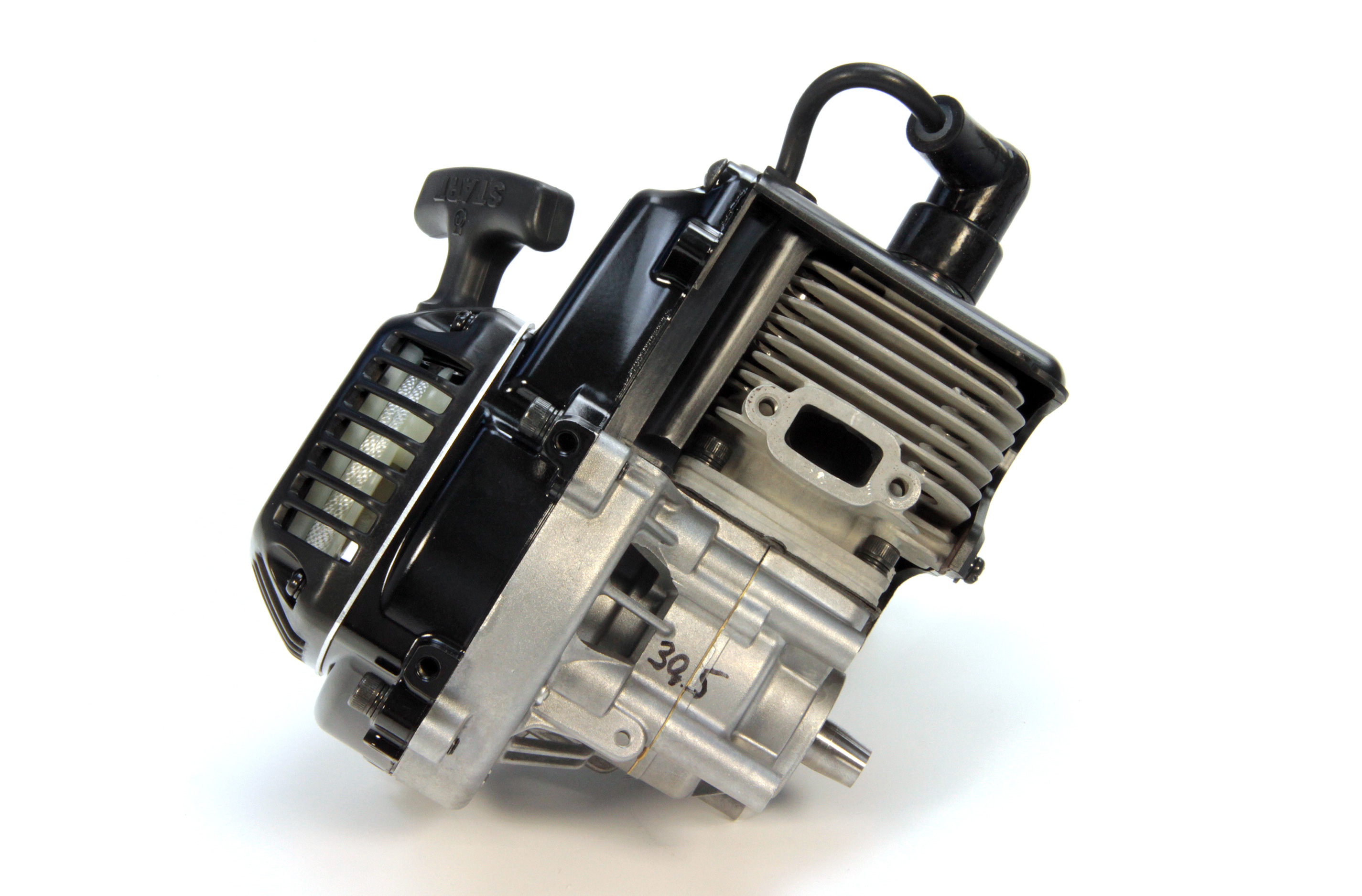

y1600 SPEED TEC CRANK Team-Edition Zenoah G230 Tuning engine
Product information "y1600 SPEED TEC CRANK Team-Edition Zenoah G230 Tuning engine"
The SPEED TEC CRANK genuine Zenoah engine is optimized for performance by hand with sophisticated craftsmanship and guarantees, besides greatly increased performance, excellent workmanship and stamina.
SPEED TEC Team Edition version modifications:
Cylinder & case:
- Adjustment of compression; enlarged ports, fuel management milled, machined and polished exhaust,the intake is flow-optimized
- the case is specially matched with enlarged and flow-optimized cross section towards the ports
- Cylinder modified for installation of the ignition system
Piston:
- Transfer port area optimized for flow, weight reduced and the piston-roof is flow-optimized and polished
Crankshaft:
- is adjusted, aligned and balanced
Flywheel and ignition:
- Latest SPEED CRANK SV ignition system for rc-car race engines with air baffles, a special balanced 62 mm diameter flywheel, modified ignition coil mount and special ignition system allows for the extremely fast revving of the SPEED TEC team edition engine and guarantees a significantly improved performance.
- The machined and more than 30% lighter than stock CRANK flywheel with fins on both sides contributes to the optimized engine cooling.
Gaskets:
- Premium quality gaskets installed. Cylinder gasket installed using elastic gasket sealer.
Isolator:
- Special matched and raised insulator
Attention!
We recommend to run exclusively fully synthetic 2-stroke engine oil,
like y0813 Motul 800 racing oil.
