y0805 SPEED TEC HPI-Fuelie original 26er EXPERT tuning engine

y0557 Zenoah G230RC, with Walbro WT 603B carburetor (also available in the ball-raced version through the shop's options menu)23 cm³ Zenoah engine for large scale cars!The engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter and / or complete clutch are optionally available at additional charge.y1009 Zenoah G240RC with Walbro WT 990 carburetor (also available in the ball-raced version through the shop's options menu)23 cm³ Zenoah engine for large scale cars!Please note: contrary to their new designation the displacement has not been increased! The outer dimension didn't change, so you don't need any additional parts for the engine swap!The engines feature the following improvements over their G230RC:- Quantity of cylinder mounting bolts increased from 2 to 4- Improved strength of crankcase- Added additional bearing on the PTO (clutch) side of crankshaft- Redesigned shape of cylinder fins- Dimension of air intake port is 5% widerContains internal fuel pump which increases acceleration from idle to wide open throttle.Removal of choke valve increases performance by increasing air flow to the carburetor - Changed material of the insulator gasket to metal, which improves sealing performanceThe engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter and / or complete clutch are optionally available at additional charge. y0553 Zenoah G260RC with Walbro WT 603B carburetor (also available in the ball-raced version through the shop's options menu)This is the G260 in the 26 cm³ version.The engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter and / or complete clutch are optionally available at additional charge. y1011 Zenoah G270RC with Walbro WT 990 carburetor (also available in the ball-raced version through the shop's options menu)26 cm³ Zenoah engine for large scale cars!Please note: contrary to their new designation the displacement has not been increased! The outer dimension didn't change, so you don't need any additional parts for the engine swap!The engines feature the following improvements over their G260RC:- Quantity of cylinder mounting bolts increased from 2 to 4- Improved strength of crankcase- Added additional bearing on the PTO (clutch) side of crankshaft- Redesigned shape of cylinder fins- Dimension of air intake port is 5% wider- New carburetor (WT-990) Contains internal fuel pump which increases acceleration from idle to wide open throttle.Removal of choke valve increases performance by increasing air flow to the carburetor - Changed material of the insulator gasket to metal, which improves sealing performanceThe engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter are optionally available at additional charge. 7800 Zenoah G290RC with Walbro WT 990 carburetor (also available in the ball-raced version through the shop's options menu)Same dimensions as the Zenoah G230, G240, G260, G270.New generation Zenoah engine with 28,5ccm cylinder capacity and approx. 3.9 hp. The cylinder is fixed with 4 screws. The technical details are identical to the Zenoah engines G240RC and G270RC.The engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter and / or complete clutch are optionally available at additional charge. Compatibility Zenoah / Losi 5ive-T:Please note that for installation in a Losi 5ive the fan cover must be swapped for a Losi or CY cover #5341 in order to fit the chassis" bolt pattern.If you want to install a Zenoah engine into the Losi 5ive, you usually have to use a fan cover from the CY engine.However, there is a workaround to maintain Zenoah fan cover.The adjustment is done via the pinion specific mounting plates for the engine. The change always affects only the rear, outer (carburetor side) plate under the fan cover. This is rotated by 180°; so that the embossed number on this plate faces the exhaust side of the engine!18T pinion: use 20T plate, rotated 180°19T pinion: use 19T plate, rotated 180°20T pinion: use 18T plate, rotated 180°On the plus side you gain the opportunity to easily mount a Zenoah engine keeping the original fan cover. On the other hand there will be the disadvantage of the necessity to combine two different sets of engine mounting plates when installing any pinion other than the stock 19T version. Therefore we do not recommend this workaround for everyday use. Nevertheless it works perfectly should ever the need arise.Zenoah G320RC with Walbro WT 1107 carburetor (also available in the ball-raced version through the shop's options menu)With 32 cm³ and 30% more power than the Zenoah G290.Significantly more torque and higher stamina due to larger sized bearings all around, with Racing Carburetor Walbro WT 1107.The motor is supplied with WT-1107 carburetor and spark plug.SpecificationType: Two stroke gasoline engineDisplacement: 31,8 cm³Bore: 38 mmStroke: 28 mmWeight: 2,3 KgOverall Dimension:Length: 167 mmWidth: 215 mmHeight: 196 mmMaximum Output: 4,6 PSMaximum Torque: 2,00 N-mRotation Direction: CounterclockwiseCarburetor: Walbro WT-1107Spark plug: CMR7HStarting: Recoil starterFor all HPI Baja 5 cars the G320RCer clutch housing has to be shortened at the mounting base, for Losi 5ive- T and Desert Buggy XL cars the clutch housings overall length must be shortened to CY size.When installing the air filter you must pay attention to the length of the screws.For use on Losi and HPI we recommend M5x45 screws (like H94763); you can also cut existing screws to length, of course.When ordering with a modified clutch housing we will include these screws!In our shop you can select from Zenoah G320RC engines already modified to fit your HPI or Losi car.The installation of the Zenoah G320RC in other cars (like FG or Smartech buggies / monsters a.s.o.) is not even remotely straightforward, since the layshaft pinion (the small pinion in front of the big differential spur gear) is in the way for the larger Zenoah G320RC crankcase.Compatibility Zenoah / Losi 5ive-T:Please note that for installation in a Losi 5ive the fan cover must be swapped for a Losi or CY cover #5341 in order to fit the chassis" bolt pattern.If you want to install a Zenoah engine into the Losi 5ive, you usually have to use a fan cover from the CY engine.However, there is a workaround to maintain Zenoah fan cover.The adjustment is done via the pinion specific mounting plates for the engine. The change always affects only the rear, outer (carburetor side) plate under the fan cover. This is rotated by 180°; so that the embossed number on this plate faces the exhaust side of the engine!18T pinion: use 20T plate, rotated 180°19T pinion: use 19T plate, rotated 180°20T pinion: use 18T plate, rotated 180°On the plus side you gain the opportunity to easily mount a Zenoah engine keeping the original fan cover. On the other hand there will be the disadvantage of the necessity to combine two different sets of engine mounting plates when installing any pinion other than the stock 19T version. Therefore we do not recommend this workaround for everyday use. Nevertheless it works perfectly should ever the need arise.

Genuine HPI spare/option part. With 1000 Silicone Diff Oil.Content:1 piece

The competition tuned pipe system for HPI-Baja 5B 2.0 and Baja SS and Carson Wild Attack cars from the top manufacturer for high performances exhaust systems and current 1/5 World and European champion SAMBA!Complete set with flexible (spring) connection between manifold and pipe and mounting hardware for bracing against the HPI Baja's roll cage.For engines from 26cc to 32cc, improves torque and top speed!Complete set with manifold, slip-fit connector with hose and spring and installation hardware.

To ensure the required cooling for current 1/5 and 1/6 engines the flywheels have fins on both sides. Therefore the fan housing has large openings on the crankcase side for the required air supply. However, the risk of foreign objects (grass, sand, or even stones!) entering here Is very high! As a result, broken fins on the flywheel occur frequently. This leads to reduced cooling efficiency and - even more critical vibrations from a flywheel which is out of balance due to missing fins. Therefore, this kind of flywheel protection is highly recommended, especially for offroad use. The product video explains the handling in detail! Note:It is essential to thoroughly clean and degrease the crankcase prior to attaching the hook-and-loop tape (OKS2661)!For installation on Chung-Yang and Zenoah engines in FG cars, the crankcase cover must be slightly modified in two places where the engine mount is attached (see Figure 6 and 7). Furthermore the fit of the fabric must be as tight as possible in the region of the layshaft pinion (in front of the differential ring gear!) (see Figure 8).Set includes:Special tailored fabric with sewed on hook-and-loop tapehook-and-loop tape for installation to the crankcaseAdhesive for securing the hook-and-loop tape

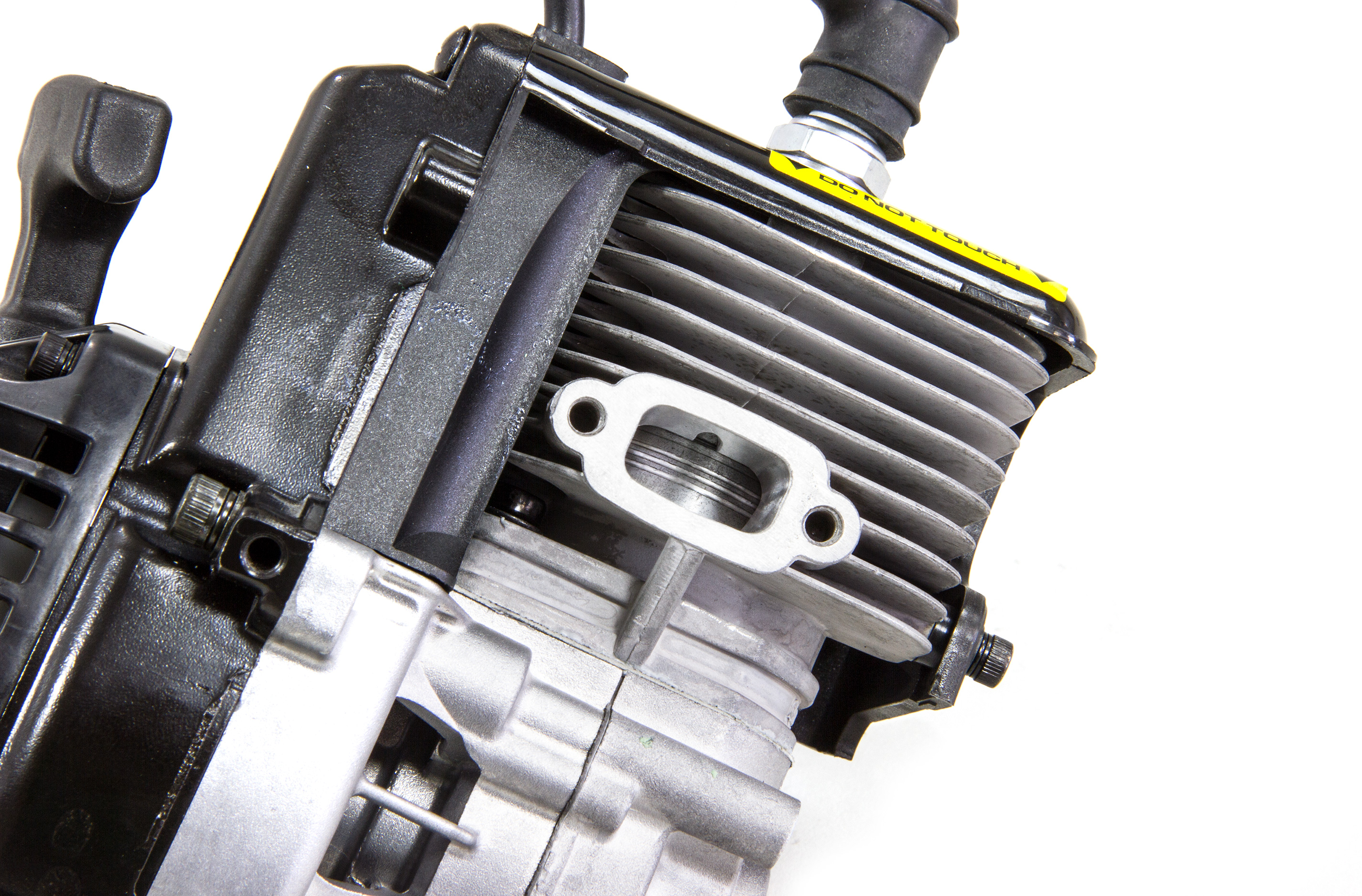

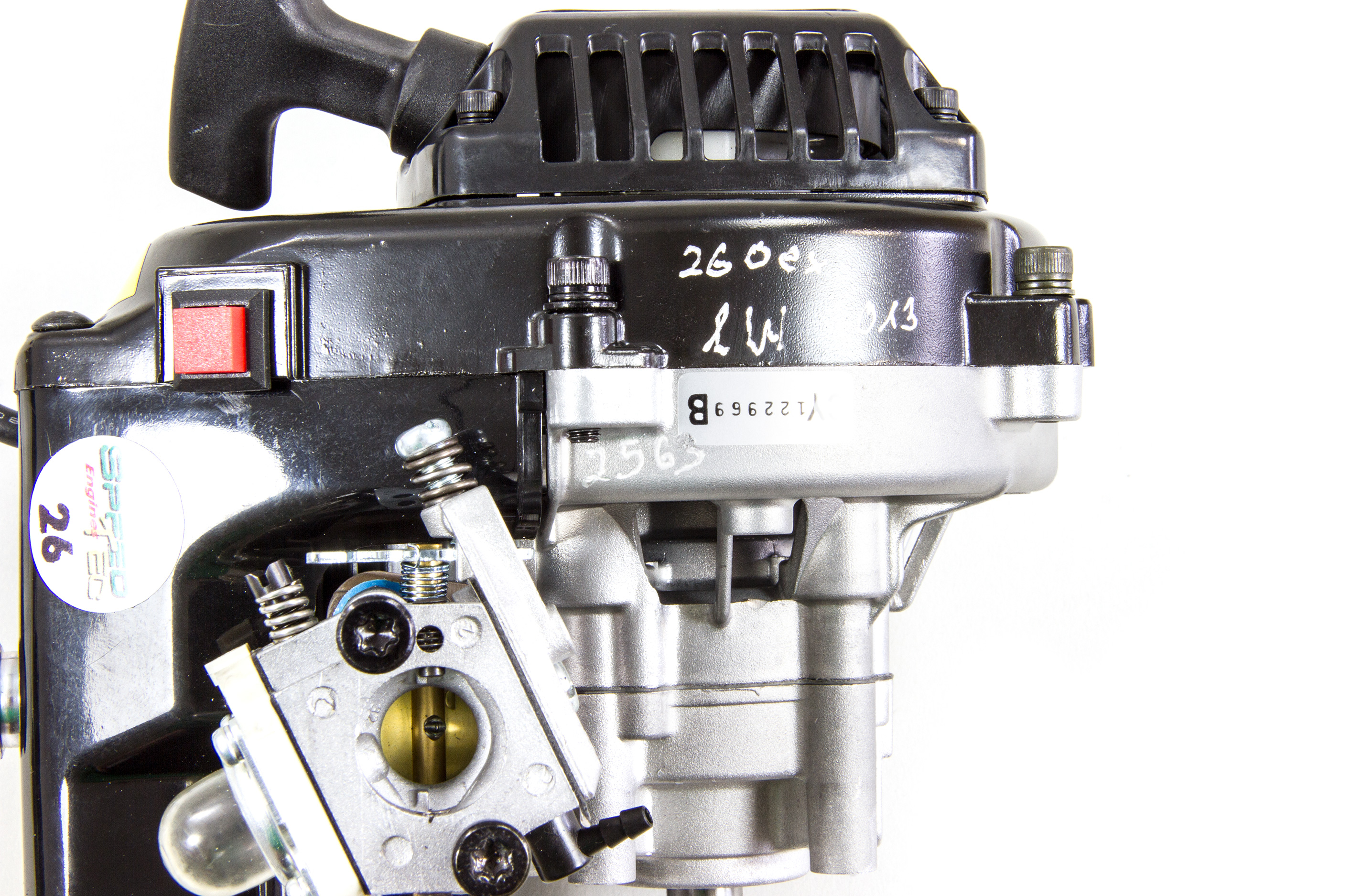

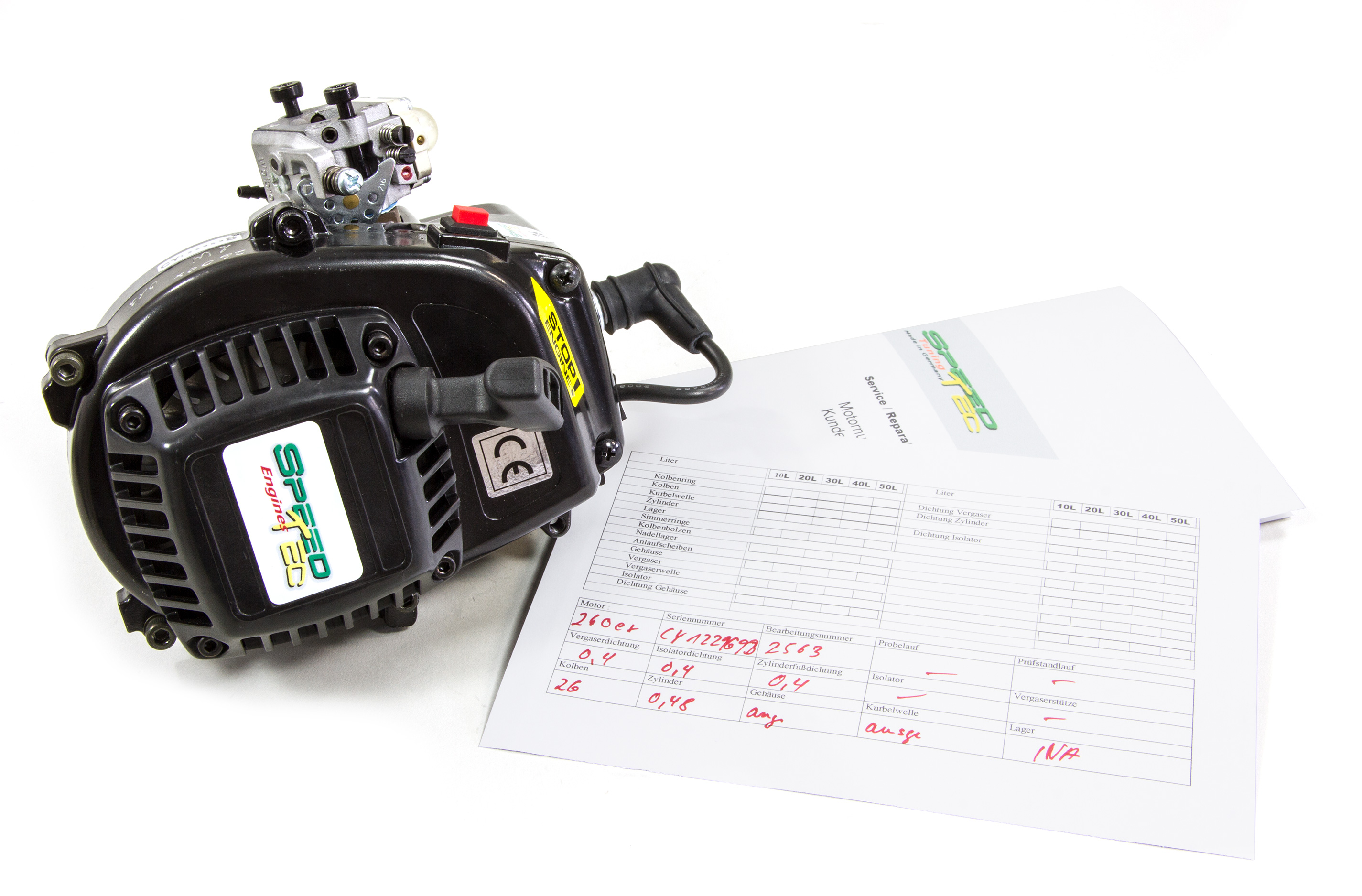

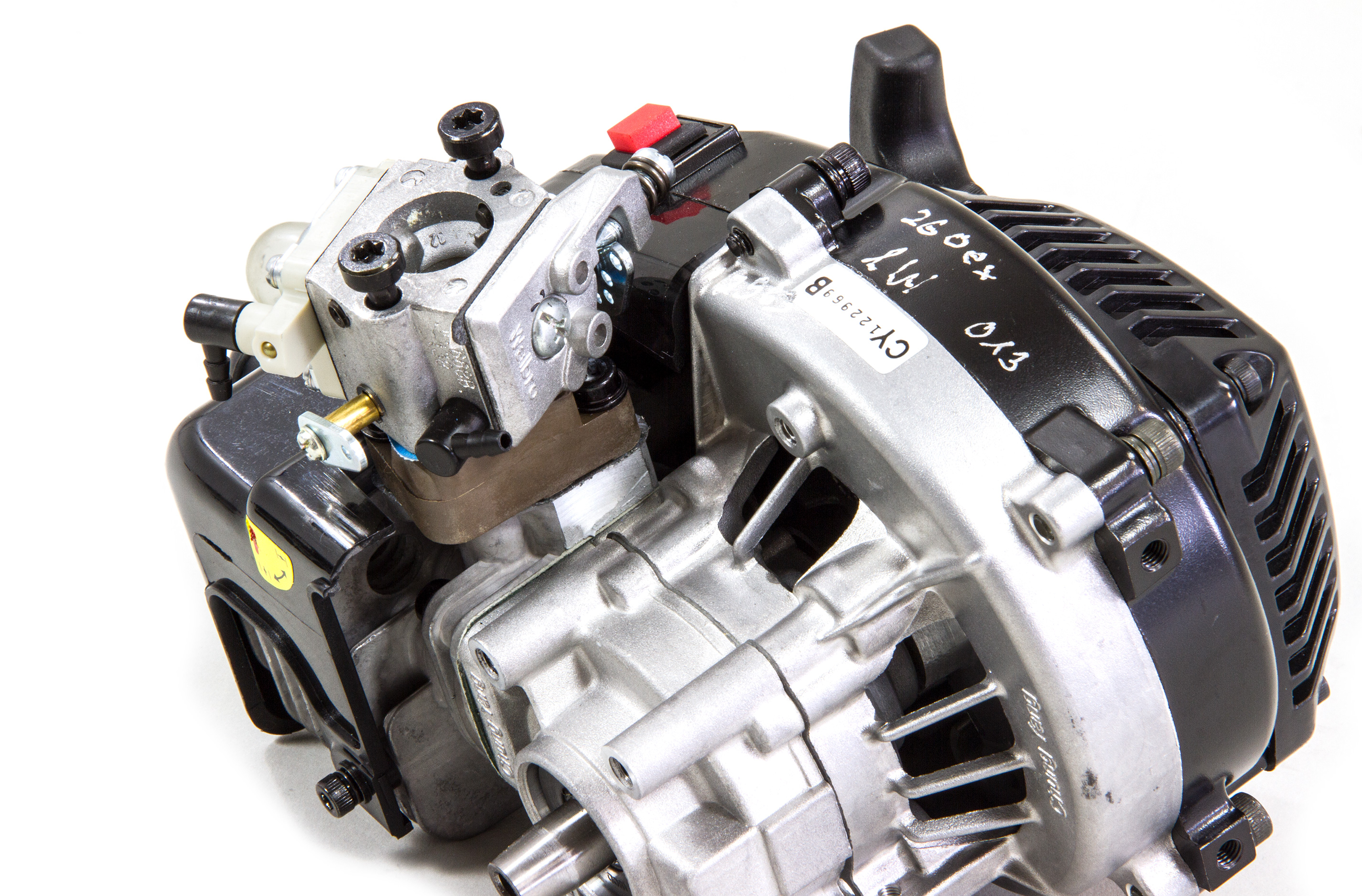

The SPEED TEC COMPETITION genuine 5ive-T engine is optimized for performance with sophisticated craftsmanship and guarantees, besides greatly increased performance, excellent workmanship and stamina. SPEED TEC COMPETITION version modifications: Cylinder: Adjustment of compression; enlarged ports, fuel management milled, machined and polished exhaust and intake, the case is specially matched with enlarged and polished cross section towards the ports, oil holes for optimized lubrication of the crankshaft bearings. Piston: weight reduced; skirt shortened; oil rings, piston above and below piston ring tapered and piston dome polished. Crankshaft: is adjusted, aligned and balanced, high quality Fluon shaft seals and Top Drag Seals installed. Flywheel: weight reduced and checked for runout.Insulator:mounted SPEED TEC tuning insulator. Gaskets: use of premium quality gaskets.To achieve the optimum performance gain of a SPEED TEC COMPETITION engine, we recommend the use of a tuned pipe ().

Length: 80 mmInside diameter: 22 mmStrength: 2,2 mm
