y0803/01 SPEED TEC CRANK race ported top end set G270

€259.90*

Available

Product number: y0803_01

EAN: 4058575042143

Product information "y0803/01 SPEED TEC CRANK race ported top end set G270"

Race ported top end set for Zenoah G240 and G270 engine.

The SPEED TEC CRANK genuine Zenoah G230 race ported top end set is optimized for performance with sophisticated craftsmanship and when accurately installed - guarantees, besides greatly increased performance, excellent workmanship and stamina.

SPEED TEC CRANK version modifications:

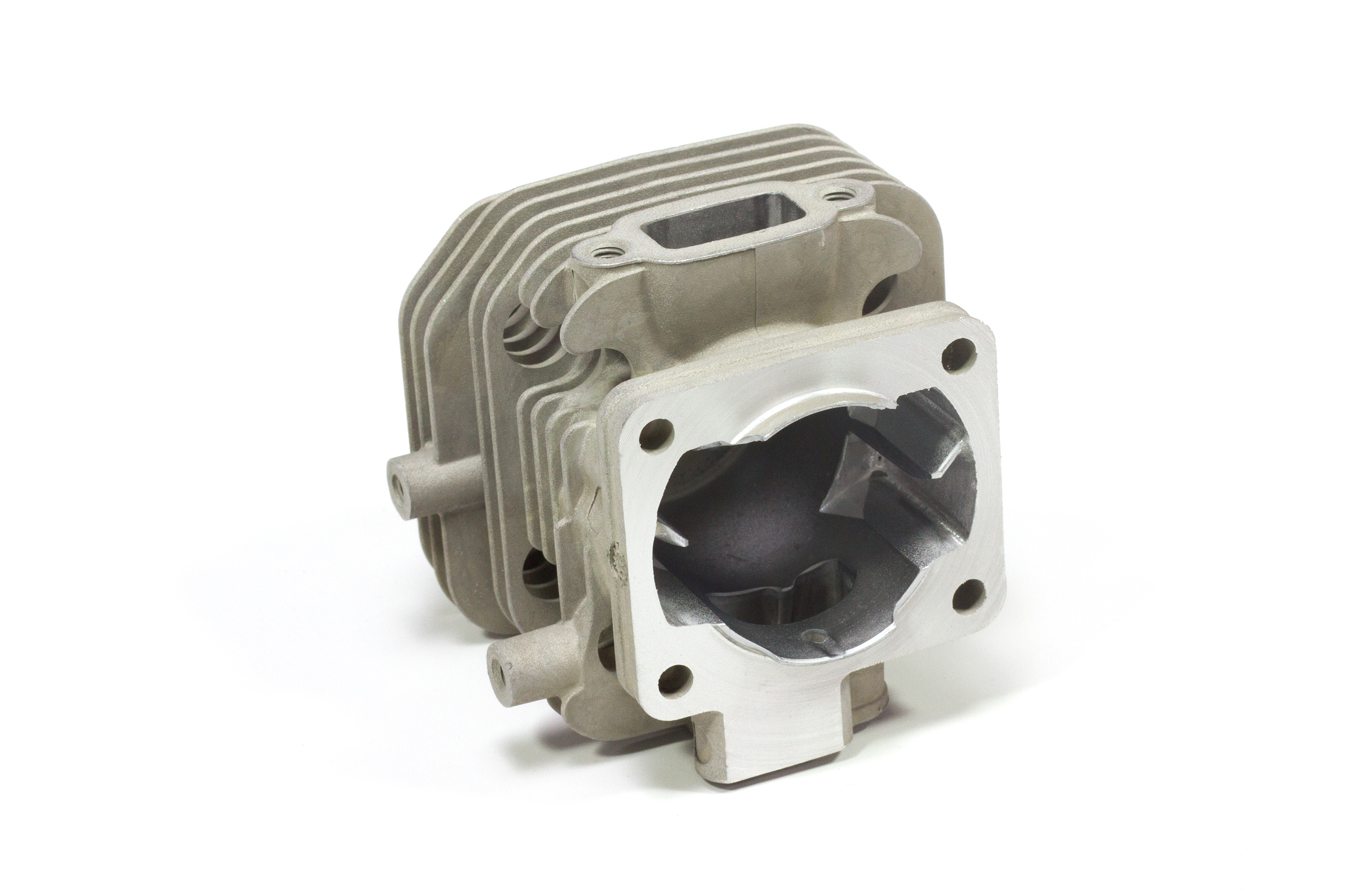

Cylinder:

Adjustment of compression
Enlarged ports
Fuel management milled
Machined and polished exhaust and intake
The case is specially matched with enlarged and polished cross section towards the ports

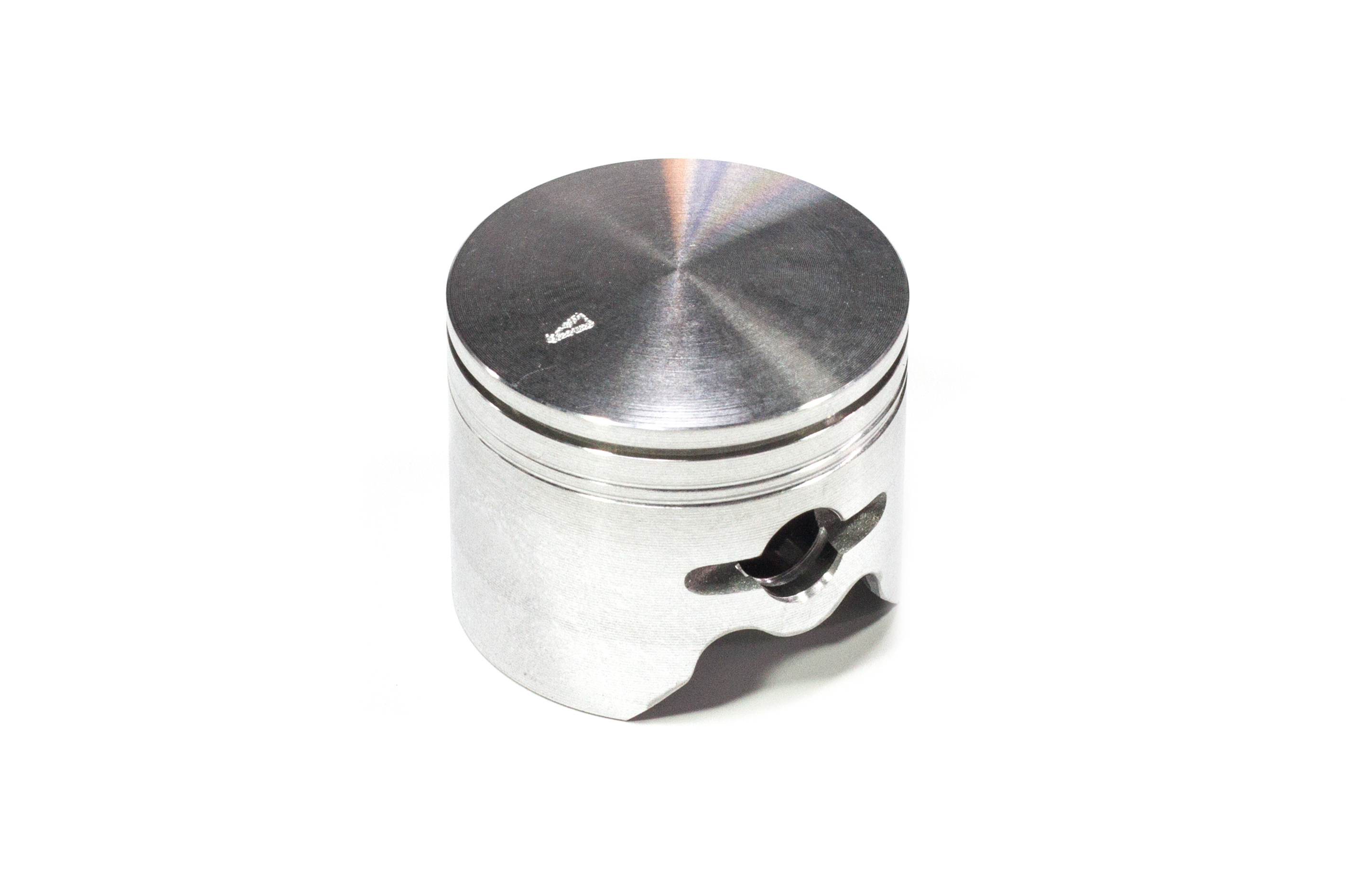

Piston:

Weight reduced
Skirt shortened
Piston above and below piston ring tapered and piston dome polished

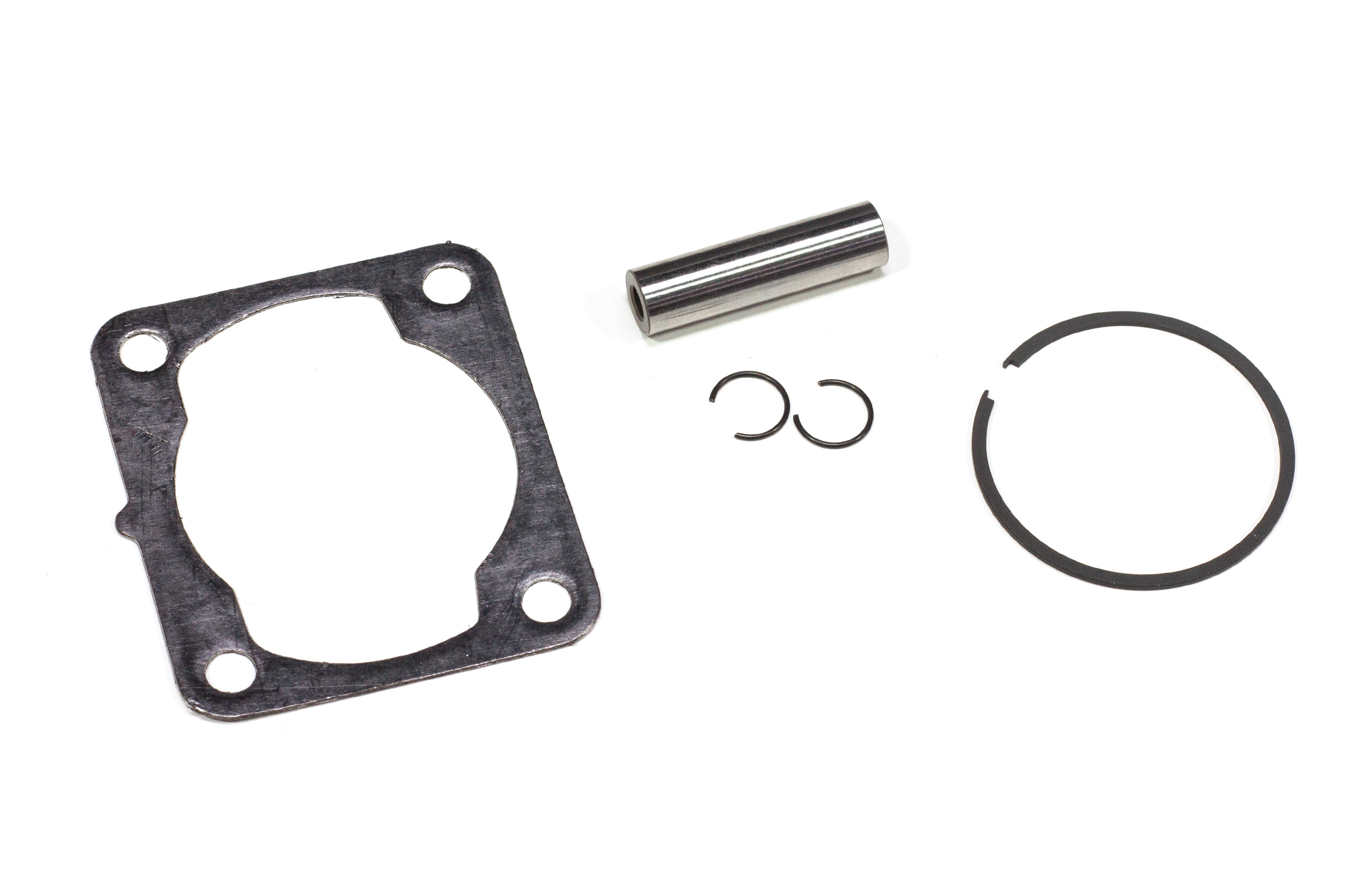

The set includes the following items:
Performance-optimized cylinder and piston, piston ring, piston pin, piston pin circlips and cylinder gasket.

To achieve the optimum performance gain of a SPEED TEC CRANK top end set, we recommend the use of a tuned pipe ().

1 set
