68511 FG Electric conversion kit 1:5 2WD with Wheelbase 465 to 535, set
Product number:
fg_68511
EAN:
3410564523209
Product information "68511 FG Electric conversion kit 1:5 2WD with Wheelbase 465 to 535, set"
Item N° 68511
Electric conversion kit 1:5 2WD with Wheelbase 465 to 535, set
Suitable for the 2WD Touring sports cars and 2WD Race Trucks with a wheel base of 465 mm and 530/535 mm.

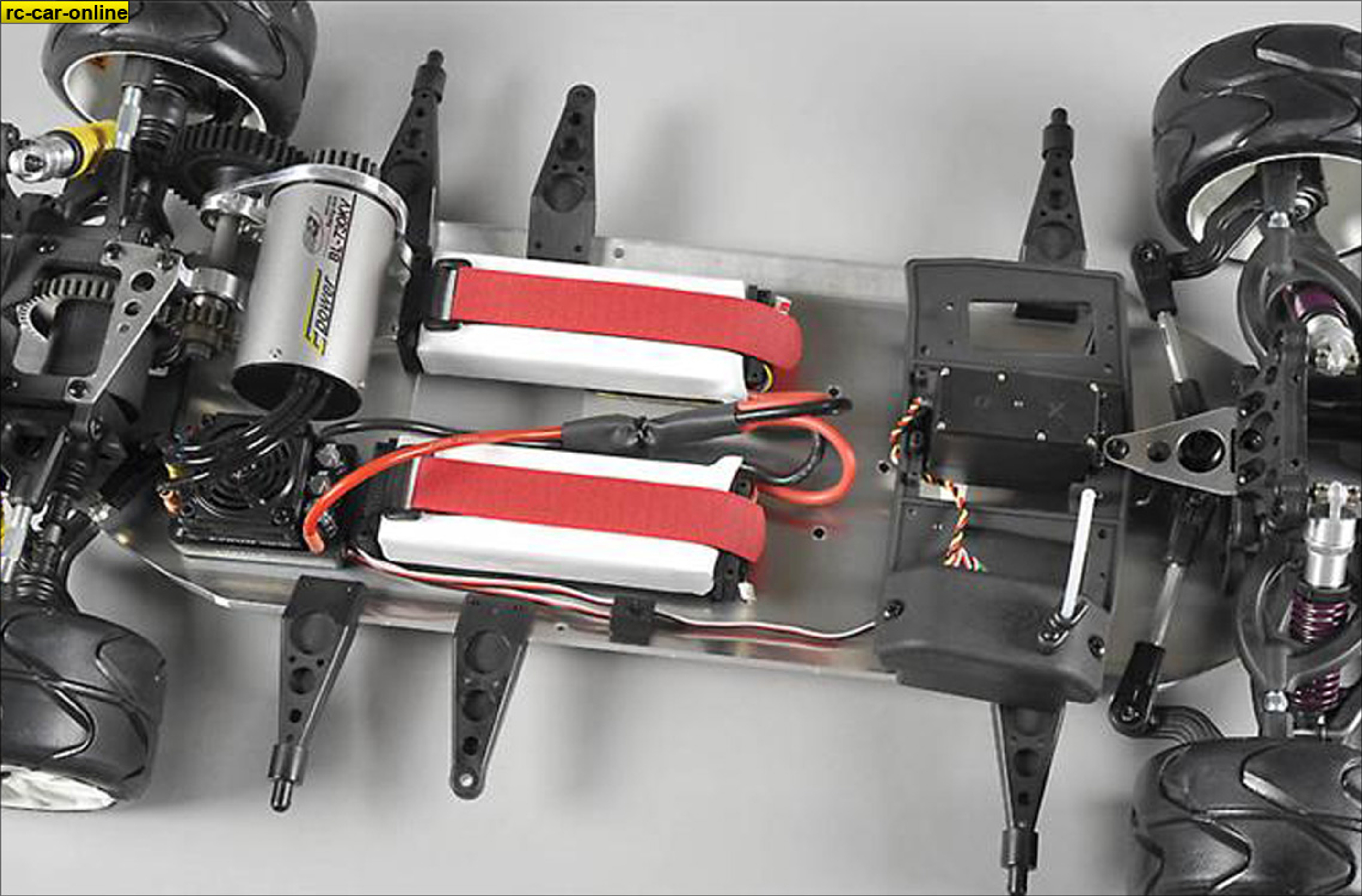

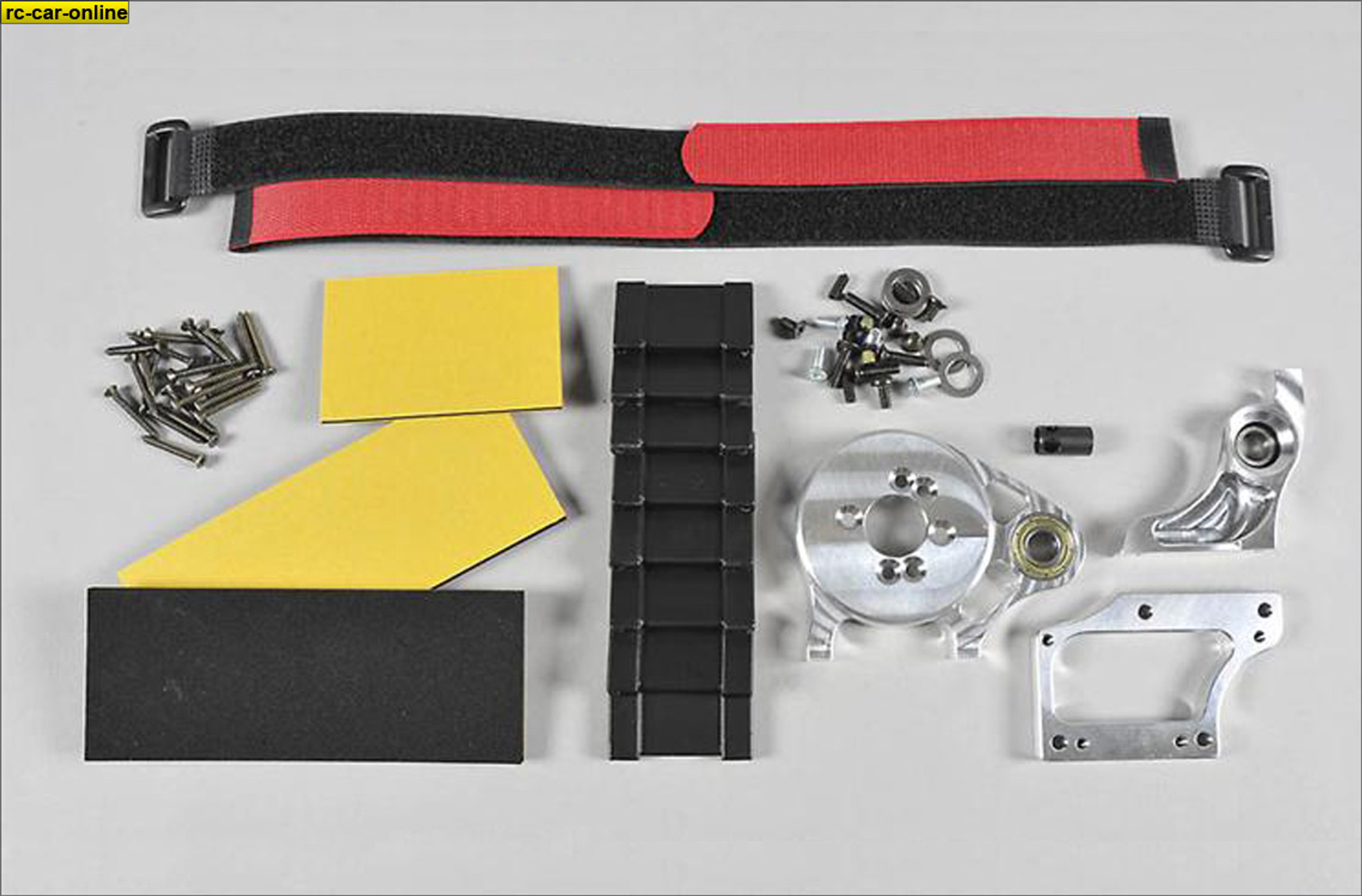

This conversion kit is suitable for the 2WD 1:5 touring and sportscar models with 465mm - 530mm wheelbase. Suitable for the electric engines from FG Modellsport, Leopard BL engines and Castle Creation. The conversion kit includes gear and engine mount, fixing parts for cruise control and LiPo batteries.Cruise control, BL engine and LiPo batteries are not included.
During the conversion several fixing holes have to be applied to the chassis. Gear transmission has to be changed accordingly to the use of the electric engine. For easy mounting we recommend LiPo batteries with a max. length of 150mm and 50mm width.
The conversion kits include all mechanical parts (except electric engine with speed control, Lipo batteries) to convert your FG model scale 1:5 and 1:6 to an electric powered system.
