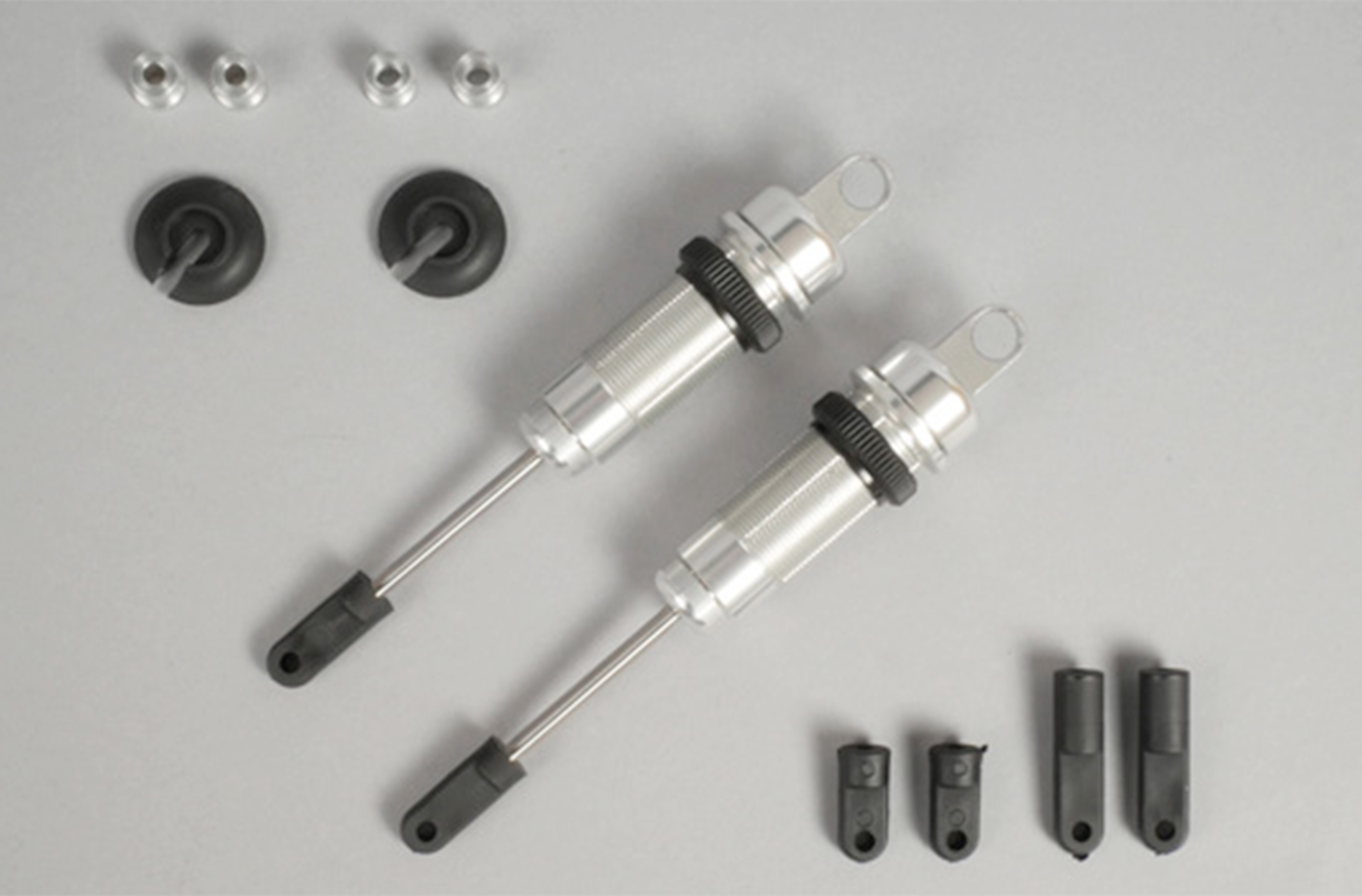

Oil-pressure shock absorber Ø20mm, long version, upper damper mount 4 mm, spring adjustment ring, spring plate, various lower damper mounts. Suitable for the front axle of Off-Road Buggy 4WD, for the rear axle of Off-Road Buggy and Monster models 2WD.
0 of 0 reviews
Average rating of 0 out of 5 stars
Leave a review!
Share your experiences with other customers.
Login
No reviews found. Share your insights with others.
2 pairs of shock absorbers, set
Please select shock absorber version!
Check which version you need!
y1137/01 for FG, Carson 2 WD models
y1137/02 for FG Monster/Stadium Truck 2 WD models
y1137/03 for FG Marder/Offroad Buggy 4 WD models
Y1137/04 for FG Monster/Stadium Truck 4 WD models
y1137/05 for Carson 2 WD models
y1137/06 for Kyosho Scorpion XXL models
y1137/07 for Carson C5 and FG Sportsline TW models
Y1137/08 for FG Evo models up to 2014
y1137/09 for FG Evo 2020 models from 2015 onwards
GPM-Spezial Cross shocks, premium full metal version.Assembled and filled.Special features:
16 mm shock bore for increased capacity
volume compensation
shock body and caps machined from billet aluminum
hard anodized shock body
machined precision delrin pistons (not injection molded!)
aluminum shaft end and spring retainer
shock caps with replaceable bushings
factory filled with 1000
GPM-Spezial Cross shocks, premium full metal version. >Assembled and filled.
volume compensationshock body and caps machined from billet aluminumhard anodized shock bodymachined precision delrin pistons (not injection molded!)aluminum shaft end and spring retainershock caps with replaceable bushingsfactory filled with 1000 filling quantityshort 7mllong 9mlLong and short version availble in the following sets:
y1137/01 Version 1
FG 2WD: Marder, Off-Road Buggy, Beetle, Monster BeetleCarson 2WD: Comanche, Attack Evo, CRT, CPT, Smartech Monster-Truck
Set includes: 2 each long and short shocks
y1137/02 Version 2
FG 2WD: Monster-Truck, Monster Jeep, Monster Hummer, Monster Beetle Pro, Stadium Truck, Stadium Jeep, Stadium Hummer
Set includes: 4 long shocks
y1137/03 Version 3
FG 4WD: Marder, Off-Road Buggy
Set includes: 4 long shocks, one pair features 5 mm upper mounting bore
y1137/04 Version 4
FG 4WD: Monster-Truck, Monster Jeep, Monster Hummer, Stadium Truck, Stadium Jeep, Stadium Hummer, Off-Road Beetle
Set includes: 4 long shocks with a 5 mm mounting hole in the upper shock cap; 1 pair with standard lower shock mounts, the other pair with long lower shock mounts (4WD MT version)
y1137/05 Version 5
Carson 2WD: Attack, Super Attack, Gas Blaster, Big AttackSmartech 2WD: UNO, Spider, Duratrax, Firehammer
Set includes: 2 each long and short shocks with spacers for the front
y1137/06 Version 6
Kyosho Scorpion XXL
Set includes:4 short shocks with long shock mounts
y1137/07 Version 7
Smartech C5 and FG Sportsline 1:5 touring cars 2WD and 4WD
Set includes: 4 short shocks equipped with shock mounts
y1137/08 Version 8
FG-Evo Modelle: 2008 - 2011 and Evo from 2012 an up
Set includes: 4 short shocks equipped with shortened shock mounts
y1137/09 Version 9
FG-Evo Modelle:2020 and 2020.1 from 2015
Set includes:4 short shocks equipped with shortened shock mounts
Overall length, extended: long 155 mm, short 131 mm
Mounting distance, extended: long 144,5 mm, short 120,5 mm
Travel: long 43,5 mm, short 30,5 mm
Inner diameter of spring: 21 mm
Shock body diameter: 20 mm
Eye bore: 4.5 mm
Eye thickness: top 6 mm, bottom 5 mm
Shaft diameter: 4 mm
Shaft thread: M4
We recommend our progressive y0452/02. for these shocks. On FG cars the OEM springs can be used as well. Shock versions y1137/07 and y1137/08 for Smartech C5 and FG on-road cars should use spring Shock oil recommendations:The GPM-Spezial Cross shocks are factory filled with 1000 viscosity silicone oil. This gives a very good shock performance at normal ambient temperatures.When a softer shock is required, you can go for 500 or even 600 viscosity oil; 1500 and up if you prefer more damping.One 50 ml bottle fills 5 long or 6 short shocks.For use in a Kyosho Scorpion XXL (version 6), the shocks must be installed with an additional 4 mm spacer at the lower front mount (see picture above). The stock Scorpion springs can be used. We suggest silicone oil with a 100 to 200 viscosity for the front and a 200 to 300 viscosity for the rear .Introductory price! Regular price: 129,90 EUR / set
Genuine silicone shock absorber oil for the optimal shock absorber set-up. Content: 50 ml Please note: Factory filling of FG/Losi/Smartech and many other 1/5 and 1/6 scale shocks is done with genuine silicone shock absorber oil. To ensure seal tightness and consistency you should only use genuine silicone shock absorber oil for refilling as well.Most every rc-car shock absorber uses silicone oil of different viscosities. The smaller the number, the lower the viscosity of the silicone oil and the softer the damping. As a rule of thumb: Viscosity 100 = similar to water Viscosity 1.000 = similar to cooking oil Viscosity 5.000 = similar to shampoo Viscosity 10.000 = similar to honey As a reference: The red FG Marder / Off-Road Buggy series shock absorbers are factory filled with 2.000 viscosity oil, the shocks on monster cars with dual shock set-ups (total of 8 shocks) are filled with 1.000 viscosity oil, and the shocks on FG onroad cars come filled with 4.000 viscosity oil. The original filling of the Losi 5ive-T is 350cc silicone oil.FG Silicone oil with 50 ml:FG Item N° 6510/010 = Viscosity: 100FG Item N° 6510/025 = Viscosity: 250FG Item N° 6510/035 = Viscosity: 350FG Item N° 6510/050 = Viscosity: 500FG Item N° 6510/075 = Viscosity: 750FG Item N° 6510/100 = Viscosity: 1000FG Item N° 6510/150 = Viscosity: 1500FG Item N° 6510/200 = Viscosity: 2000FG Item N° 6510/300 = Viscosity: 3000FG Item N° 6510/400 = Viscosity: 4000FG Item N° 6510/500 = Viscosity: 5000FG Item N° 6510/600 = Viscosity: 6000FG Item N° 6510/700 = Viscosity: 7000FG Item N° 6510/800 = Viscosity: 8000FG Item N° 6510/900 = Viscosity: 9000FG Item N° 6511 = Viscosity: 10000Viscosity of silicone oil at various temperatures.
Genuine silicone shock absorber oil for the optimal shock absorber set-up. Content: 100 ml Please note: Factory filling of FG/Losi/Smartech and many other 1/5 and 1/6 scale shocks is done with genuine silicone shock absorber oil. To ensure seal tightness and consistency you should only use genuine silicone shock absorber oil for refilling as well.Most every rc-car shock absorber uses silicone oil of different viscosities. The smaller the number, the lower the viscosity of the silicone oil and the softer the damping. As a rule of thumb: Viscosity 100 = similar to water Viscosity 1.000 = similar to cooking oil Viscosity 5.000 = similar to shampoo Viscosity 10.000 = similar to honey As a reference: The red FG Marder / Off-Road Buggy series shock absorbers are factory filled with 2.000 viscosity oil, the shocks on monster cars with dual shock set-ups (total of 8 shocks) are filled with 1.000 viscosity oil, and the shocks on FG onroad cars come filled with 4.000 viscosity oil. The original filling of the Losi 5ive-T is 350cc silicone oil.FG Silicone oil with 100 ml:FG Item N° 66295/010 = Viscosity: 100 FG Item N° 66295/025 = Viscosity: 250FG Item N° 66295/035 = Viscosity: 350FG Item N° 66295/050 = Viscosity: 500FG Item N° 66295/075 = Viscosity: 750FG Item N° 66295/100 = Viscosity: 1000FG Item N° 66295/150 = Viscosity: 1500FG Item N° 66295/200 = Viscosity: 2000FG Item N° 66295/300 = Viscosity: 3000FG Item N° 66295/400 = Viscosity: 4000FG Item N° 66295/500 = Viscosity: 5000FG Item N° 66295/600 = Viscosity: 6000FG Item N° 66295/700 = Viscosity: 7000FG Item N° 66295/800 = Viscosity: 8000FG Item N° 66295/900 = Viscosity: 9000FG Item N° 66296 = Viscosity: 10000Viscosity of silicone oil at various temperatures.
Genuine FG spare/option part. Oil-pressure shock absorber Ø20 mm, short version, upper damper mount 4mm, spring adjustment ring, spring plate, various lower damper mounts. Suitable for the front axle of the models Marder and Beetle 2WD.Content:2 pieces
Genuine FG spare/option part. Suitable on the front axle for all FG 1:6 buggy models.Dimensions:Mounting hole distance: 113 mmTravel: 26 mmDiameter: 20 mmFG factory fill is viscosity 2000 for Marder & Co. and 1000 for stadium / monster cars.RecommendationMarder & Co.: during winter viscosity 1000 - 1500, 1500 - 2000 for summerMonster / Stadium: For offroad use in the winter viscosity 700 - 900, for summer 900 - 1500; use a slightly higher viscosity for on-road useContents:1 piece
Oil-pressure shock absorber Ø20mm, long version, upper damper mount 5mm, spring adjustment ring, spring plate, various lower damper mounts. Suitable for the front axle of the 4WD Monster models and for the rear axle of Off-Road Buggy and Monster models 4WD.
The alloy housing has an outside thread to adjust the damper spring. The upper alloy shock absorber seal is equipped with a ventilation boring which makes the refilling if the damper easier. Completely new is the lower shock absorber seal with the plastic guiding bushes for the damper piston rod and for an easier chaning of the o-rings. The alloy adjusting ring has a socket for the spring collet and an adjusting mark. The shock absorber 2004 has an diameter of approx. 16 mm. Suitable for all damper springs with approx. 17 mm inside diameter.Installation length extended 129 mmTravel 38 mm
Genuine FG spare/option part. The alloy housing has an outside thread to adjust the damper spring. The upper alloy shock absorber seal is equipped with a ventilation boring which makes the refilling if the damper easier. Completely new is the lower shock absorber seal with the plastic guiding bushes for the damper piston rod and for an easier chaning of the o-rings. The alloy adjusting ring has a socket for the spring collet and an adjusting mark. The shock absorber has an diameter of approx. 16 mm. Suitable for all damper springs with approx. 17 mm inside diameter .With 110 mm hole distance.Contents:2 pieces
Genuine FG spare/option part.The alloy housing has an outside thread to adjust the damper spring. The upper alloy shock absorber seal is equipped with a ventilation boring which makes the refilling if the damper easier. Completely new is the lower shock absorber seal with the plastic guiding bushes for the damper piston rod and for an easier chaning of the o-rings. The alloy adjusting ring has a socket for the spring collet and an adjusting mark. The shock absorber 2004 has an diameter of approx. 16 mm. Suitable for all damper springs with approx. 17 mm inside diameter. Installation length Extended: 139 mmTravel: 38 mmContents:2 pieces
Oil-pressure shock absorber Ø20mm, long version, upper damper mount 4 mm, spring adjustment ring, spring plate, various lower damper mounts. Suitable for the front axle of the 4WD Monster models and for the rear axle of Off-Road Buggy and Monster models 4WD.
The alloy housing has an outside thread to adjust the damper spring. The upper alloy shock absorber seal is equipped with a ventilation boring which makes the refilling if the damper easier. Completely new is the lower shock absorber seal with the plastic guiding bushes for the damper piston rod and for an easier chaning of the o-rings. The alloy adjusting ring has a socket for the spring collet and an adjusting mark. The shock absorber 2004 has an diameter of approx. 16mm. Suitable for all damper springs with approx. 17mm inside diameter .With 115 mm hole distance.
Shock absorber conversion kit for all 1:5 and 1:6 Ecoline models. Bulk oil-pressure shock absorber, experienced for years. Mounting hole distance: 113 mmTravel: 26 mmDiameter: 20 mmThe set contains 2 shock absorber with spring plate and spacer rings.
The alloy housing has an outside thread to adjust the damper spring. The upper alloy shock absorber seal is equipped with a ventilation boring which makes the refilling if the damper easier. Completely new is the lower shock absorber seal with the plastic guiding bushes for the damper piston rod and for an easier chaning of the o-rings. The alloy adjusting ring has a socket for the spring collet and an adjusting mark. The shock absorber 2004 has an diameter of approx. 16mm. Suitable for all damper springs with approx. 17mm inside diameter.With 130 mm hole distance.
y1423 Version:
y1423/01 for all Zenoah and Chung Yang engines up to 30 cm³
Genuine HT spare/option part. For fitment on additional engines or as a spare part for engine quick mount y1421. The engine flange is available in two versions:y1423/01 for all Zenoah and Chung Yang engines up to 30 cm³ with standard bolt pattern 50 x 36 mmy1423/02 for Zenoah G320 - For installation of a Zenoah G320 in a FG Evo (Model range from 2004 till 2014). Fits the standard quick mount.When mounting the motor flange the bolts/nuts must be tightened together in small steps. To mount the studs from y1421/01 or the screws from y1421/02 the use of thread locking compound (link) is required.Please note: y1423/01 does not fit in combination with Zenoah OEM clutch!
Genuine FG spare/option part.The alloy housing has an outside thread to adjust the damper spring. The upper alloy shock absorber seal is equipped with a ventilation boring which makes the refilling if the damper easier. Completely new is the lower shock absorber seal with the plastic guiding bushes for the damper piston rod and for an easier chaning of the o-rings. The alloy adjusting ring has a socket for the spring collet and an adjusting mark. The shock absorber 2004 has an diameter of approx. 16 mm. Suitable for all damper springs with approx. 17 mm inside diameter. Installation length Extended: 139 mmTravel: 38 mmContents:2 pieces
Set consists of 4 dampers. Premium version, suitable for FG, Carson / Smartech etc. Fully assembled and filled. Special features: 16 mm inner diameter for higher oil volume
Volume equalisation Housing and screw connections made entirely of aluminium Hard anodised housing Precision piston made of Delrin, machined (no moulded part!) Aluminium piston rod base and aluminium spring plate Replaceable bearing bushes in the mounting eyes Pre-filled with 1000 silicone oil. For the following models: FG 4WD:
Marder, Off-Road Buggy Set contents: Four long shock absorbers, one pair of shock absorbers has the upper mount with 5 mm bore. We recommend our progressive off-road tuning shock absorber springs from the "Dirt-Spring M" series, part number y0321, for the shock absorbers. The original springs can also be used on FG models! Silicone oil recommendation: The GPM-Spezial Cross shock absorbers are filled with silicone oil viscosity 1000. This viscosity provides very good damping properties at normal outside temperatures. If softer damping is required, oil with a viscosity of 500 or 600 is recommended; for harder damping, 1500 or higher is recommended. One 50 ml bottle of y0038 is sufficient for five long or six short dampers.
€149.90*
