7204 FG alloy shock absorber 04 long

€69.90*

Available

Product number: fg_7204

EAN: 3410564515693

Product information "7204 FG alloy shock absorber 04 long"

Genuine FG spare/option part.

The alloy housing has an outside thread to adjust the damper spring. The upper alloy shock absorber seal is equipped with a ventilation boring which makes the refilling if the damper easier.

Completely new is the lower shock absorber seal with the plastic guiding bushes for the damper piston rod and for an easier chaning of the o-rings. The alloy adjusting ring has a socket for the spring collet and an adjusting mark.

The shock absorber 2004 has an diameter of approx. 16 mm. Suitable for all damper springs with approx. 17 mm inside diameter. Installation length

Extended: 139 mm
Travel: 38 mm

Contents:

2 pieces

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.

Alternatives

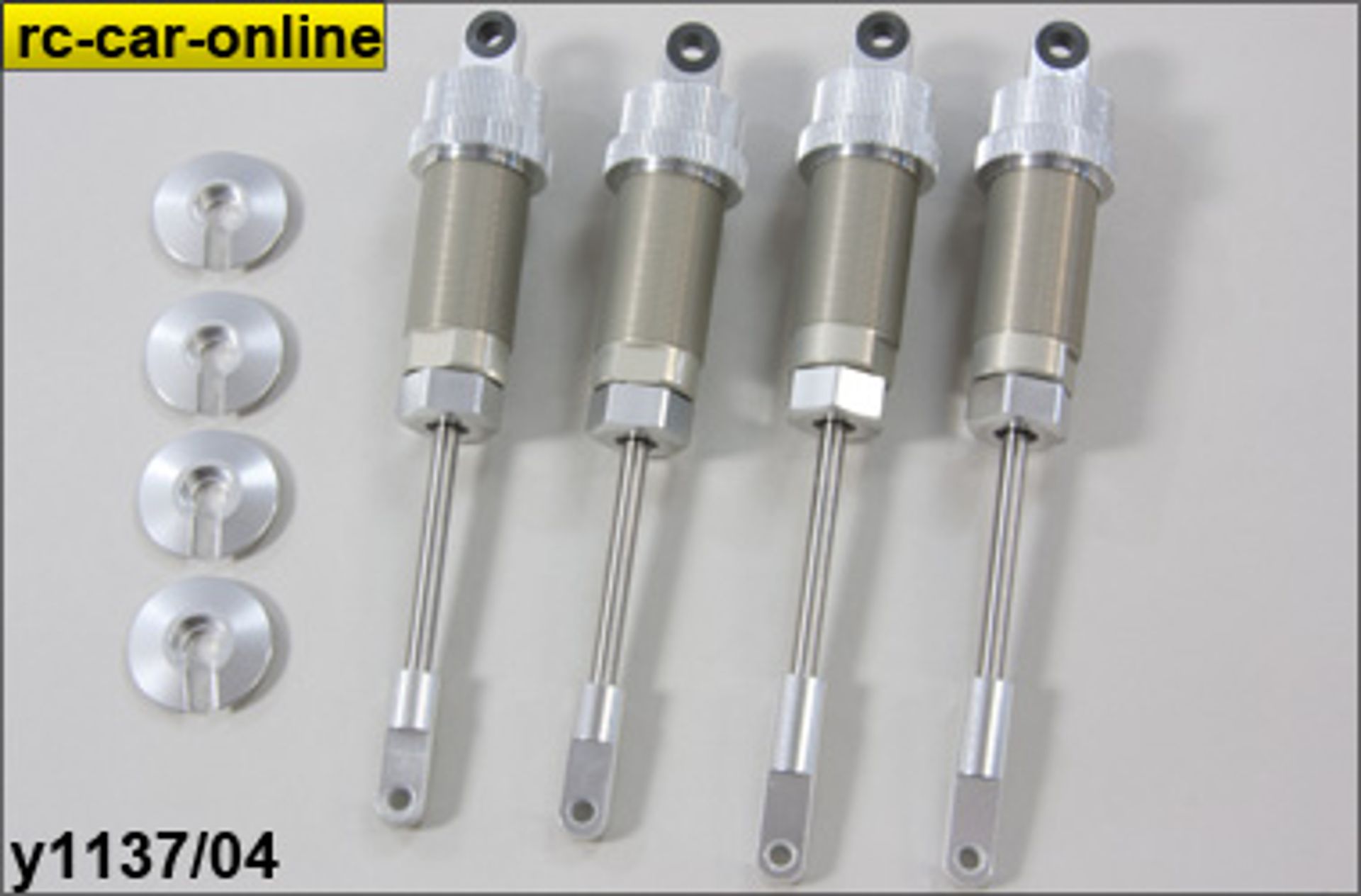

y1137 GPM-Big Bore shocks, different versions to choose

2 pairs of shock absorbers, set Please select shock absorber version! Check which version you need! y1137/01 for FG, Carson 2 WD models y1137/02 for FG Monster/Stadium Truck 2 WD models y1137/03 for FG Marder/Offroad Buggy 4 WD models Y1137/04 for FG Monster/Stadium Truck 4 WD models y1137/05 for Carson 2 WD models y1137/06 for Kyosho Scorpion XXL models y1137/07 for Carson C5 and FG Sportsline TW models Y1137/08 for FG Evo models up to 2014 y1137/09 for FG Evo 2020 models from 2015 onwards GPM-Spezial Cross shocks, premium full metal version.Assembled and filled.Special features: 16 mm shock bore for increased capacity volume compensation shock body and caps machined from billet aluminum hard anodized shock body machined precision delrin pistons (not injection molded!) aluminum shaft end and spring retainer shock caps with replaceable bushings factory filled with 1000 GPM-Spezial Cross shocks, premium full metal version. >Assembled and filled. volume compensationshock body and caps machined from billet aluminumhard anodized shock bodymachined precision delrin pistons (not injection molded!)aluminum shaft end and spring retainershock caps with replaceable bushingsfactory filled with 1000 filling quantityshort 7mllong 9mlLong and short version availble in the following sets: y1137/01 Version 1 FG 2WD: Marder, Off-Road Buggy, Beetle, Monster BeetleCarson 2WD: Comanche, Attack Evo, CRT, CPT, Smartech Monster-Truck Set includes: 2 each long and short shocks y1137/02 Version 2 FG 2WD: Monster-Truck, Monster Jeep, Monster Hummer, Monster Beetle Pro, Stadium Truck, Stadium Jeep, Stadium Hummer Set includes: 4 long shocks y1137/03 Version 3 FG 4WD: Marder, Off-Road Buggy Set includes: 4 long shocks, one pair features 5 mm upper mounting bore y1137/04 Version 4 FG 4WD: Monster-Truck, Monster Jeep, Monster Hummer, Stadium Truck, Stadium Jeep, Stadium Hummer, Off-Road Beetle Set includes: 4 long shocks with a 5 mm mounting hole in the upper shock cap; 1 pair with standard lower shock mounts, the other pair with long lower shock mounts (4WD MT version) y1137/05 Version 5 Carson 2WD: Attack, Super Attack, Gas Blaster, Big AttackSmartech 2WD: UNO, Spider, Duratrax, Firehammer Set includes: 2 each long and short shocks with spacers for the front y1137/06 Version 6 Kyosho Scorpion XXL Set includes:4 short shocks with long shock mounts y1137/07 Version 7 Smartech C5 and FG Sportsline 1:5 touring cars 2WD and 4WD Set includes: 4 short shocks equipped with shock mounts y1137/08 Version 8 FG-Evo Modelle: 2008 - 2011 and Evo from 2012 an up Set includes: 4 short shocks equipped with shortened shock mounts y1137/09 Version 9 FG-Evo Modelle:2020 and 2020.1 from 2015 Set includes:4 short shocks equipped with shortened shock mounts Overall length, extended: long 155 mm, short 131 mm Mounting distance, extended: long 144,5 mm, short 120,5 mm Travel: long 43,5 mm, short 30,5 mm Inner diameter of spring: 21 mm Shock body diameter: 20 mm Eye bore: 4.5 mm Eye thickness: top 6 mm, bottom 5 mm Shaft diameter: 4 mm Shaft thread: M4 We recommend our progressive y0452/02. for these shocks. On FG cars the OEM springs can be used as well. Shock versions y1137/07 and y1137/08 for Smartech C5 and FG on-road cars should use spring Shock oil recommendations:The GPM-Spezial Cross shocks are factory filled with 1000 viscosity silicone oil. This gives a very good shock performance at normal ambient temperatures.When a softer shock is required, you can go for 500 or even 600 viscosity oil; 1500 and up if you prefer more damping.One 50 ml bottle fills 5 long or 6 short shocks.For use in a Kyosho Scorpion XXL (version 6), the shocks must be installed with an additional 4 mm spacer at the lower front mount (see picture above). The stock Scorpion springs can be used. We suggest silicone oil with a 100 to 200 viscosity for the front and a 200 to 300 viscosity for the rear .Introductory price! Regular price: 129,90 EUR / set

€149.90*

Accessories / Spare parts

y1358 PTFE thread sealing tape, 12 mm wide, 10 m roll

Perfect for sealing threads.Resistant against almost all chemicals.Dimensions:Width: 12 mmThickness: 0.075 mmLength: 10 meters

€2.90*

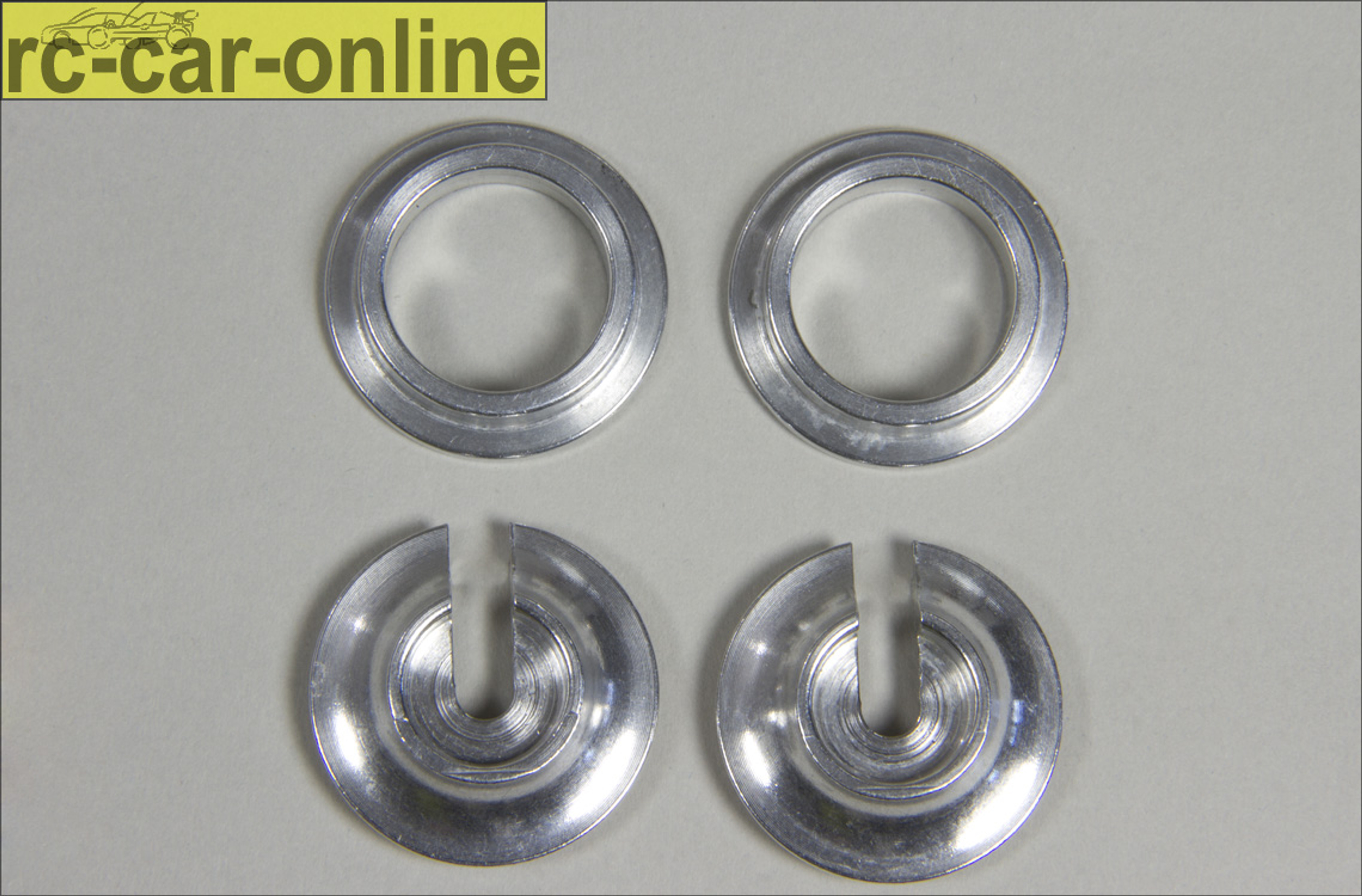

y6092/01 Adapter set 20 mm shock springs on 16 mm shocks

With these adapter rings you can use springs with 20 mm inner diameter on shocks which are made for 16 mm springs.The set includes two each adapter rings with with the dimensions below and 20 mm spring perches #y6092.Dimensions:Inner diameter: approx. 16.10 mmFlange outer diameter: ca. 24.75 mmHub outer diameter: approx. 19.95 mmFlange height: approx. 1.55 mmOverall height: approx. 5.55 mm

€24.90*

y0038 Oil for shock absorber, all viscosities, 50 ml

Genuine silicone shock absorber oil for the optimal shock absorber set-up. Content: 50 ml Please note: Factory filling of FG/Losi/Smartech and many other 1/5 and 1/6 scale shocks is done with genuine silicone shock absorber oil. To ensure seal tightness and consistency you should only use genuine silicone shock absorber oil for refilling as well.Most every rc-car shock absorber uses silicone oil of different viscosities. The smaller the number, the lower the viscosity of the silicone oil and the softer the damping. As a rule of thumb: Viscosity 100 = similar to water Viscosity 1.000 = similar to cooking oil Viscosity 5.000 = similar to shampoo Viscosity 10.000 = similar to honey As a reference: The red FG Marder / Off-Road Buggy series shock absorbers are factory filled with 2.000 viscosity oil, the shocks on monster cars with dual shock set-ups (total of 8 shocks) are filled with 1.000 viscosity oil, and the shocks on FG onroad cars come filled with 4.000 viscosity oil. The original filling of the Losi 5ive-T is 350cc silicone oil.FG Silicone oil with 50 ml:FG Item N° 6510/010 = Viscosity: 100FG Item N° 6510/025 = Viscosity: 250FG Item N° 6510/035 = Viscosity: 350FG Item N° 6510/050 = Viscosity: 500FG Item N° 6510/075 = Viscosity: 750FG Item N° 6510/100 = Viscosity: 1000FG Item N° 6510/150 = Viscosity: 1500FG Item N° 6510/200 = Viscosity: 2000FG Item N° 6510/300 = Viscosity: 3000FG Item N° 6510/400 = Viscosity: 4000FG Item N° 6510/500 = Viscosity: 5000FG Item N° 6510/600 = Viscosity: 6000FG Item N° 6510/700 = Viscosity: 7000FG Item N° 6510/800 = Viscosity: 8000FG Item N° 6510/900 = Viscosity: 9000FG Item N° 6511 = Viscosity: 10000Viscosity of silicone oil at various temperatures.

Content: 50 Milliliter (€179.00* / 1000 Milliliter)

€8.95*

Details

y0039 Oil for shock absorber, all viscosities, 100 ml

Genuine silicone shock absorber oil for the optimal shock absorber set-up. Content: 100 ml Please note: Factory filling of FG/Losi/Smartech and many other 1/5 and 1/6 scale shocks is done with genuine silicone shock absorber oil. To ensure seal tightness and consistency you should only use genuine silicone shock absorber oil for refilling as well.Most every rc-car shock absorber uses silicone oil of different viscosities. The smaller the number, the lower the viscosity of the silicone oil and the softer the damping. As a rule of thumb: Viscosity 100 = similar to water Viscosity 1.000 = similar to cooking oil Viscosity 5.000 = similar to shampoo Viscosity 10.000 = similar to honey As a reference: The red FG Marder / Off-Road Buggy series shock absorbers are factory filled with 2.000 viscosity oil, the shocks on monster cars with dual shock set-ups (total of 8 shocks) are filled with 1.000 viscosity oil, and the shocks on FG onroad cars come filled with 4.000 viscosity oil. The original filling of the Losi 5ive-T is 350cc silicone oil.FG Silicone oil with 100 ml:FG Item N° 66295/010 = Viscosity: 100 FG Item N° 66295/025 = Viscosity: 250FG Item N° 66295/035 = Viscosity: 350FG Item N° 66295/050 = Viscosity: 500FG Item N° 66295/075 = Viscosity: 750FG Item N° 66295/100 = Viscosity: 1000FG Item N° 66295/150 = Viscosity: 1500FG Item N° 66295/200 = Viscosity: 2000FG Item N° 66295/300 = Viscosity: 3000FG Item N° 66295/400 = Viscosity: 4000FG Item N° 66295/500 = Viscosity: 5000FG Item N° 66295/600 = Viscosity: 6000FG Item N° 66295/700 = Viscosity: 7000FG Item N° 66295/800 = Viscosity: 8000FG Item N° 66295/900 = Viscosity: 9000FG Item N° 66296 = Viscosity: 10000Viscosity of silicone oil at various temperatures.

Content: 100 Milliliter (€129.00* / 1000 Milliliter)

From €12.90* €15.40* (16.23% saved)

Details

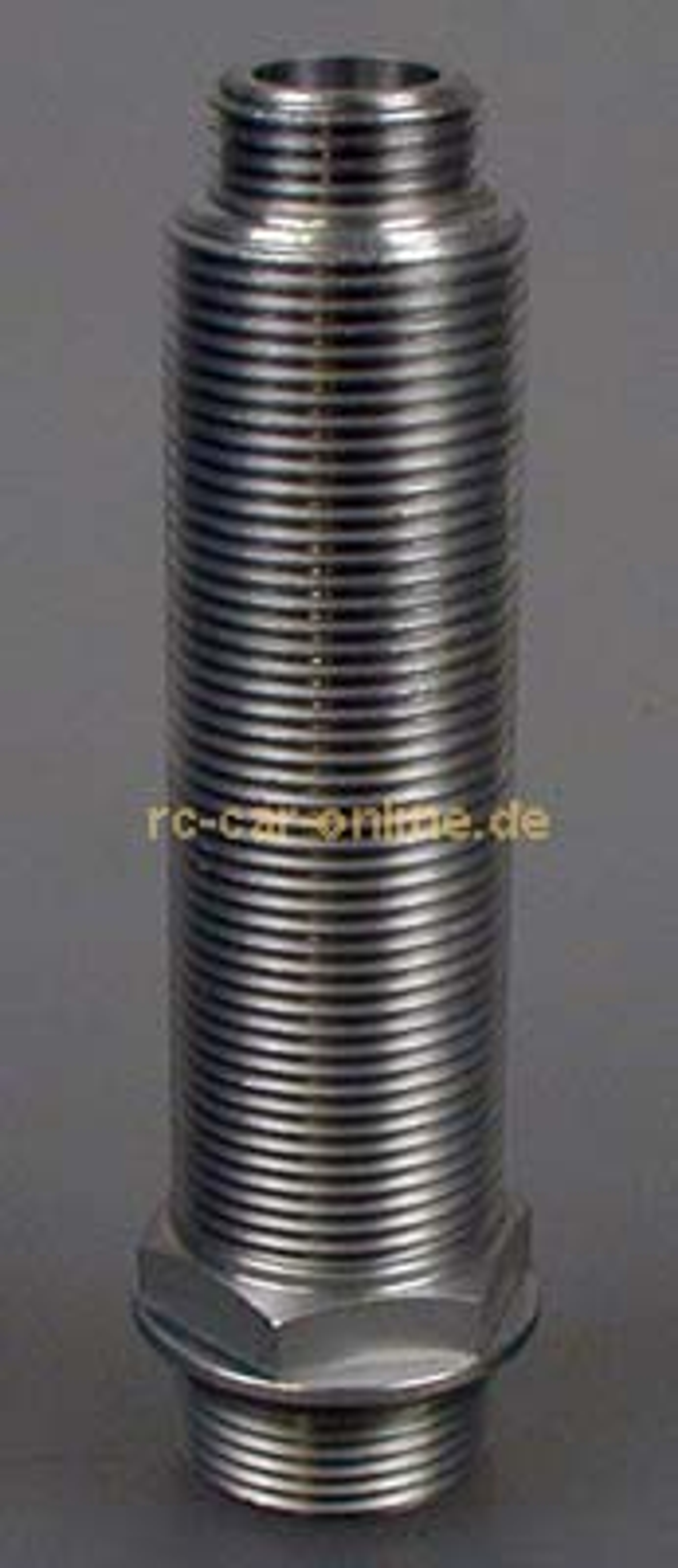

7203/01 FG Damper housing 04 long - 1pce.

Suitable for .

€24.90*

6732/03 FG E-clip spring steel 3,2 mm

Genuine FG spare/option part. Part is delivered in silver or black color from vendor!Content:15 pieces

€2.90*

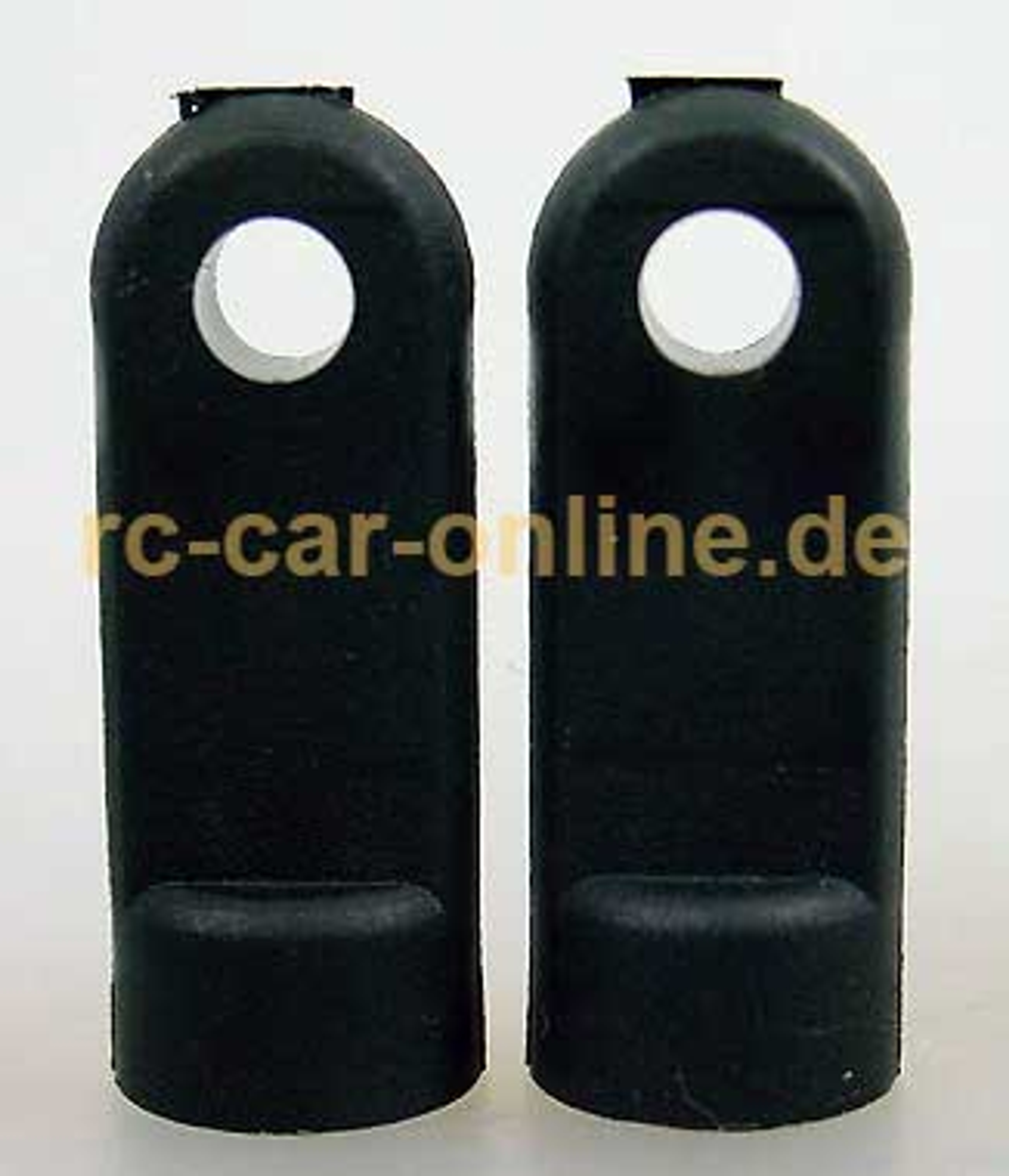

7087/01 FG Lower shock retaining short - 2pcs.

Spare part for , , and .

€4.30*

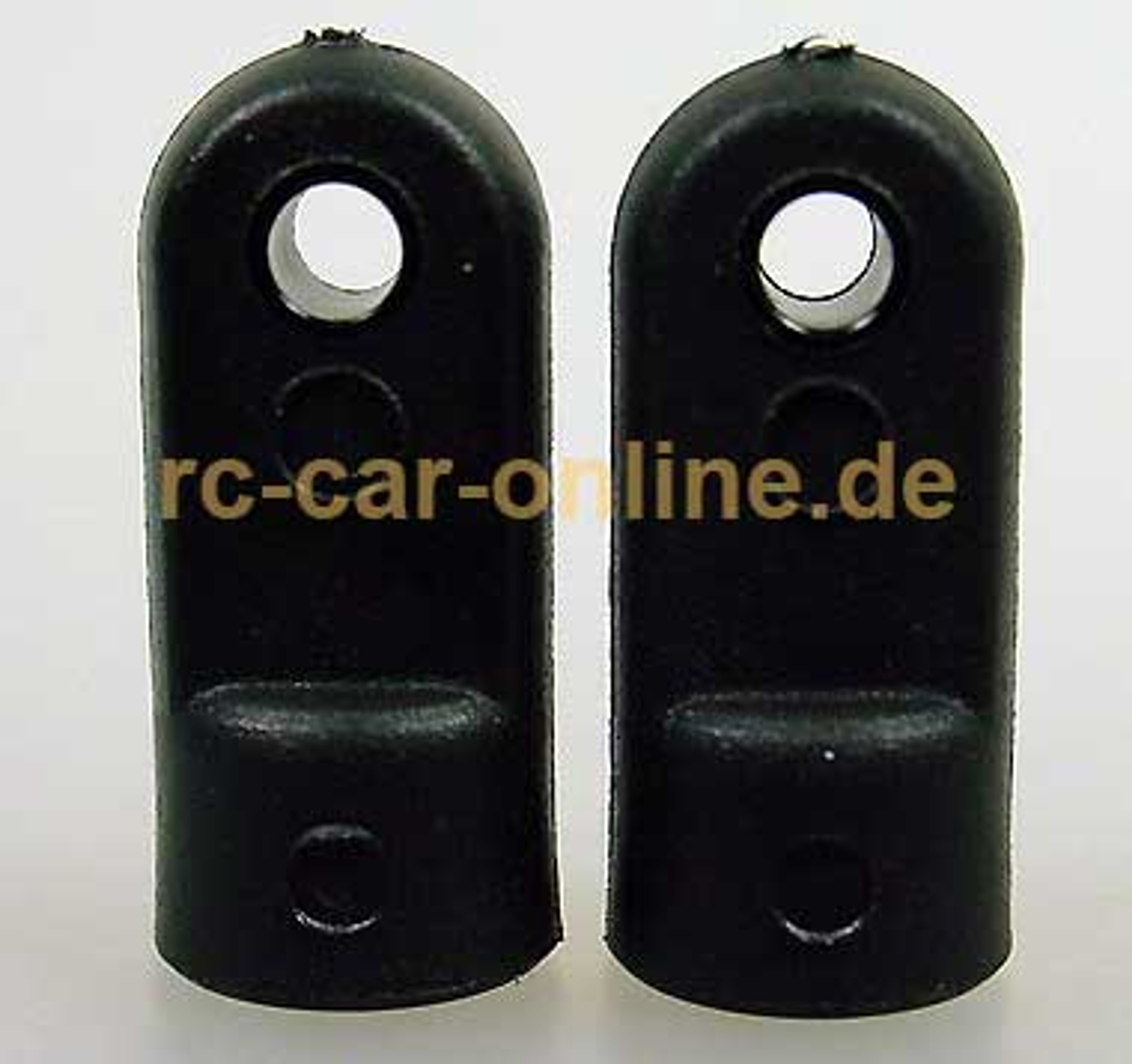

7087/02 FG Lower shock retaining long - 2pcs.

Spare part for , , , , , , , , and .

€4.50*

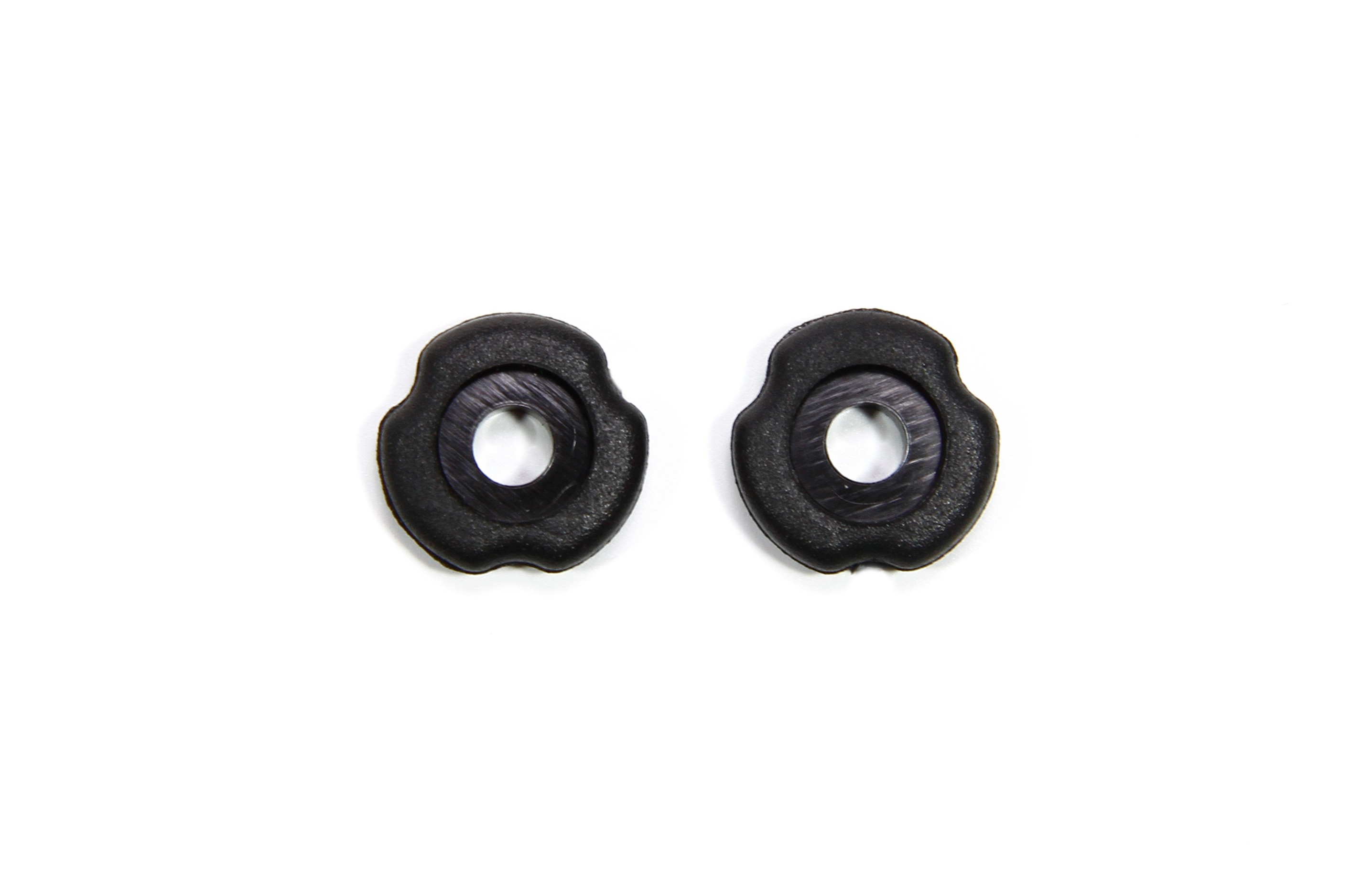

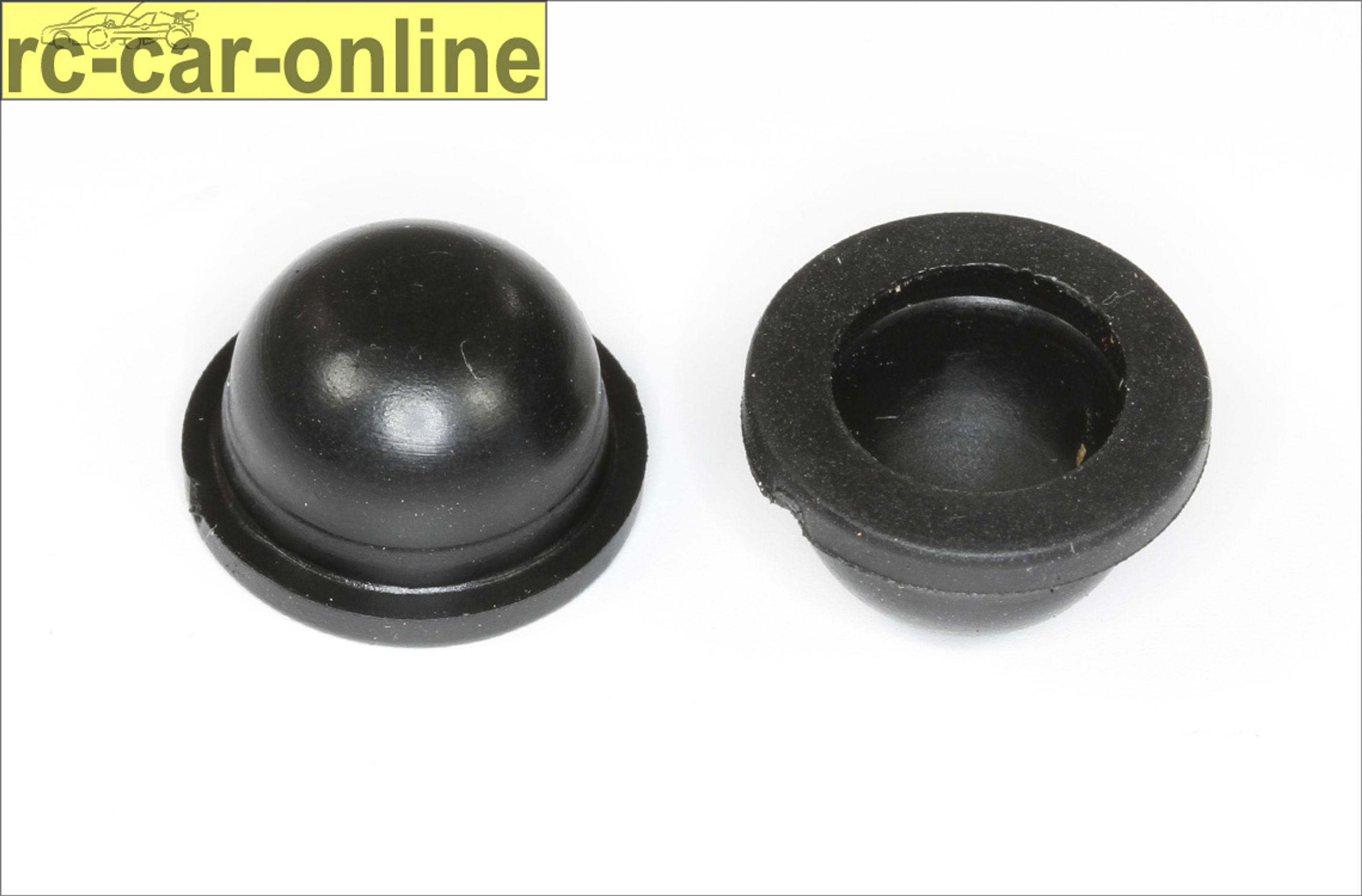

7088 FG Volume compensation for shock absorber

Genuine FG spare/option part. Ersatzteil zu:7083 FG Shock absorbers 97 short complete7200 FG alloy shock absorber 04 short7201 FG Alloy shock absorber 04 medium-short 7202 FG alloy shock absorber 04 medium-long 7203 FG alloy shock absorber 04 medium7204 FG alloy shock absorber 04 long Content:Two pieces

€4.70*

Details

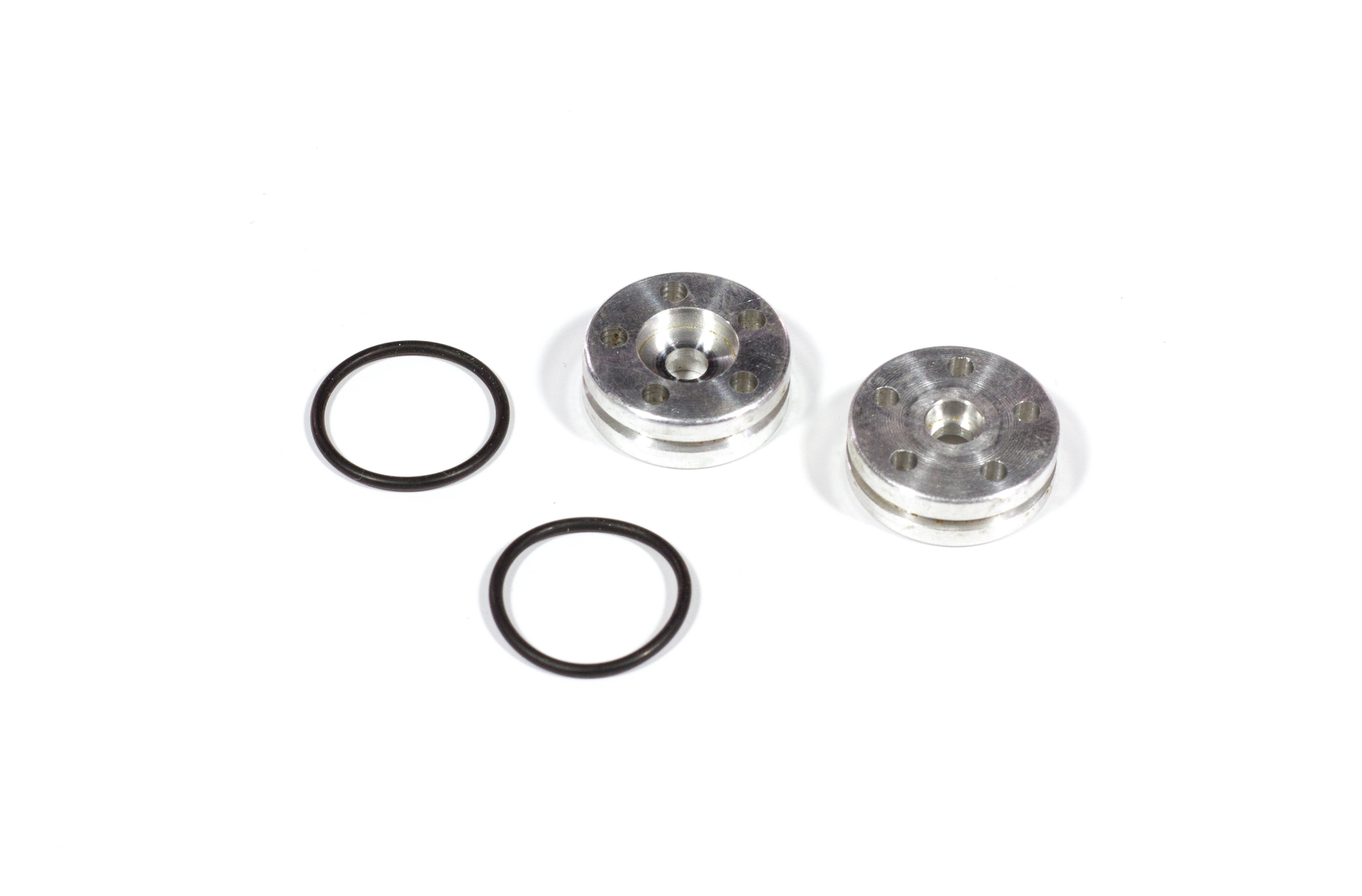

7089 FG Shock piston

Genuine FG spare/option part.Spare part for 7083, 7200, 7201, 7202, 7203, 7204.Dimensions:Outer diameter: 13.3 mmInner diameter: 4 mmContents:2 piece

€4.30*

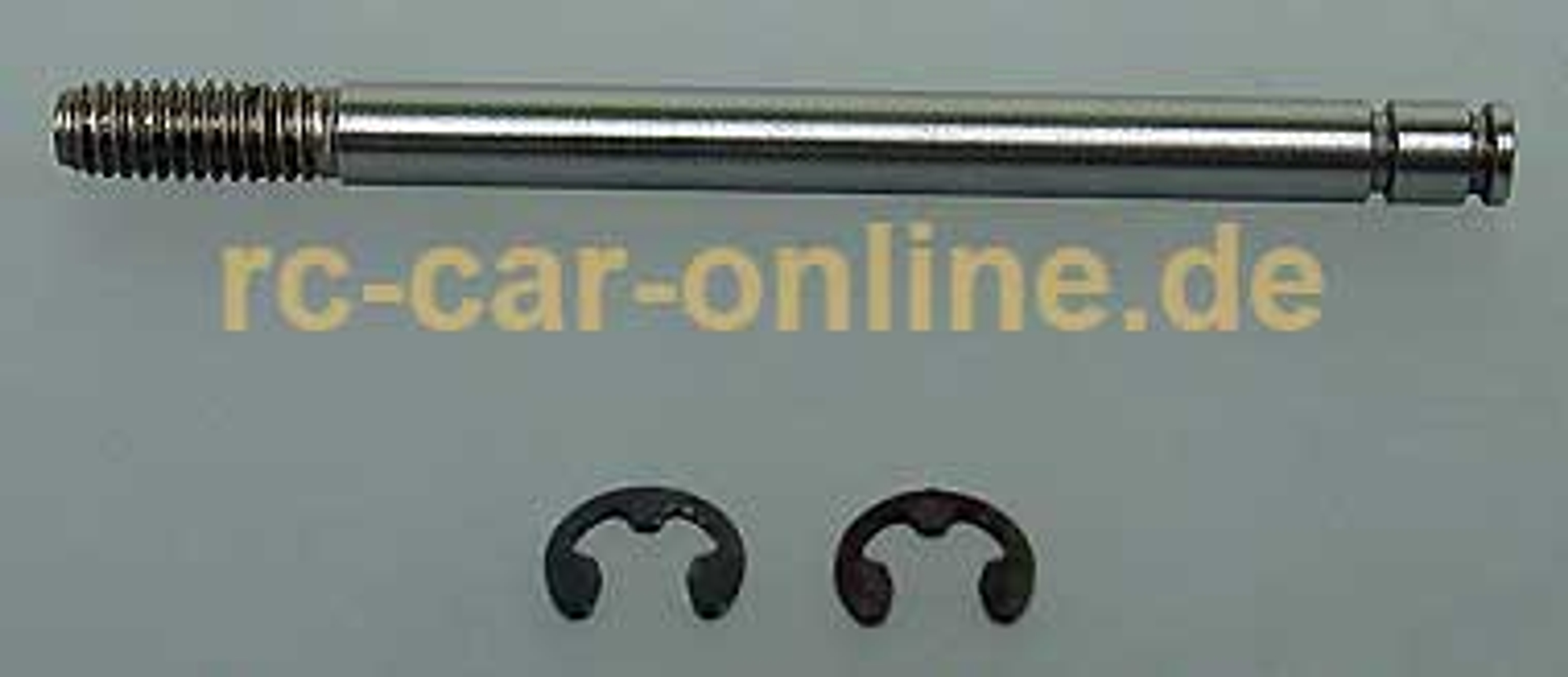

7090 FG Shock piston shaft short - 1pce.

Spare part for , , , , , , , , , and .For race actions and also when using high viscous oils we recommend to mount the piston rods with fastening thread for the piston. Through tightening the piston a backlash-free connection with the piston rod is guaranteed. Mount the threaded piston rods only in connection with the alloy damper pistons.Length 55 mmDiameter 4 mmThread length 11 mmDistance between grooves 3.1 mm

€12.70*

7091 FG Shock piston shaft long - 1pce.

Spare part for , , , , , , , , and .Length 67 mmDiameter 4 mmThread length 11 mmDistance between grooves 3.1 mm

€15.50*

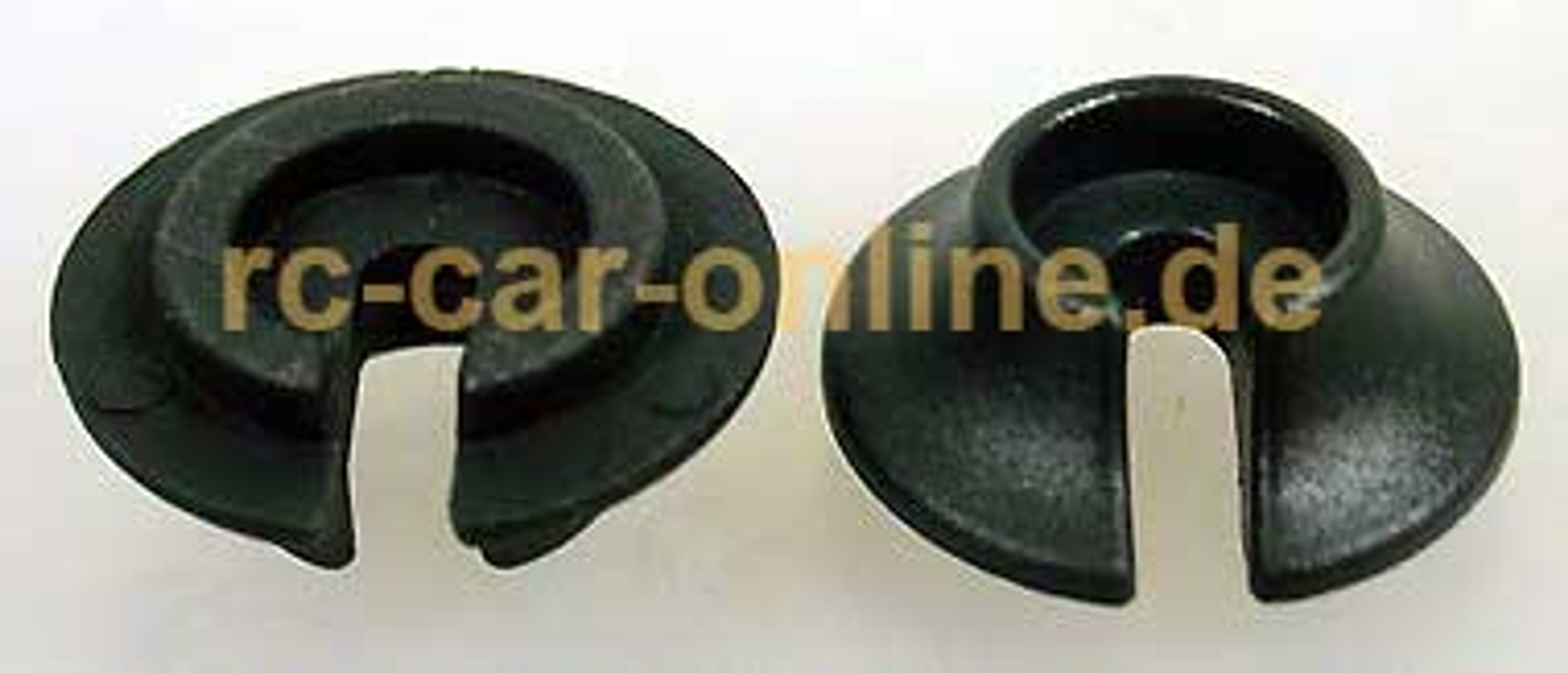

7092 FG Spring plate - 2pcs.

Spare part for , , , , and .Retainer diameter: 23 mmAccepts springs with approx. 16 mm inner diameterSlot for 4 mm shock shaft

€6.20*

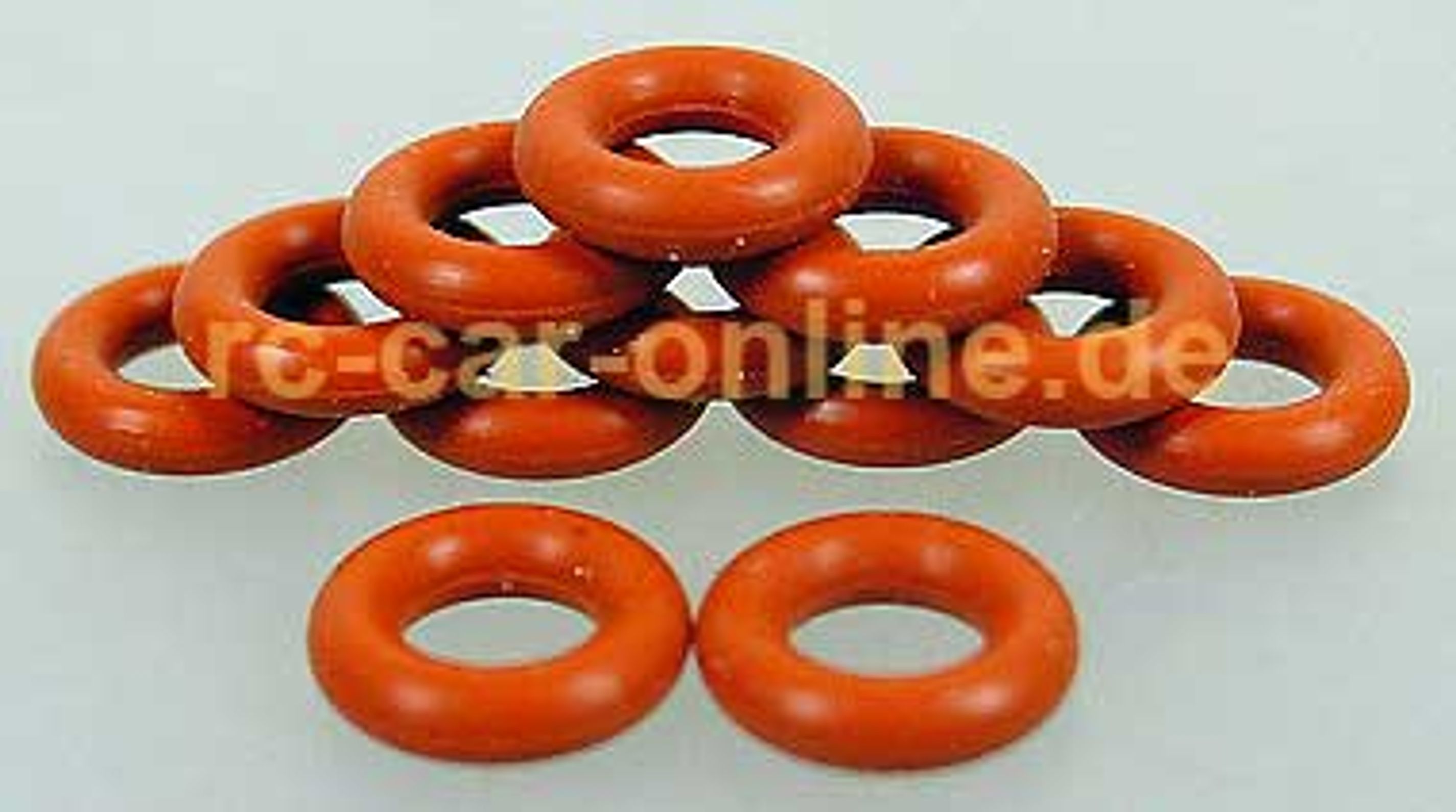

7093 FG Silicone o-ring - 12pcs.

Inner diameter 4 mmThickness 2 mm

€6.90*

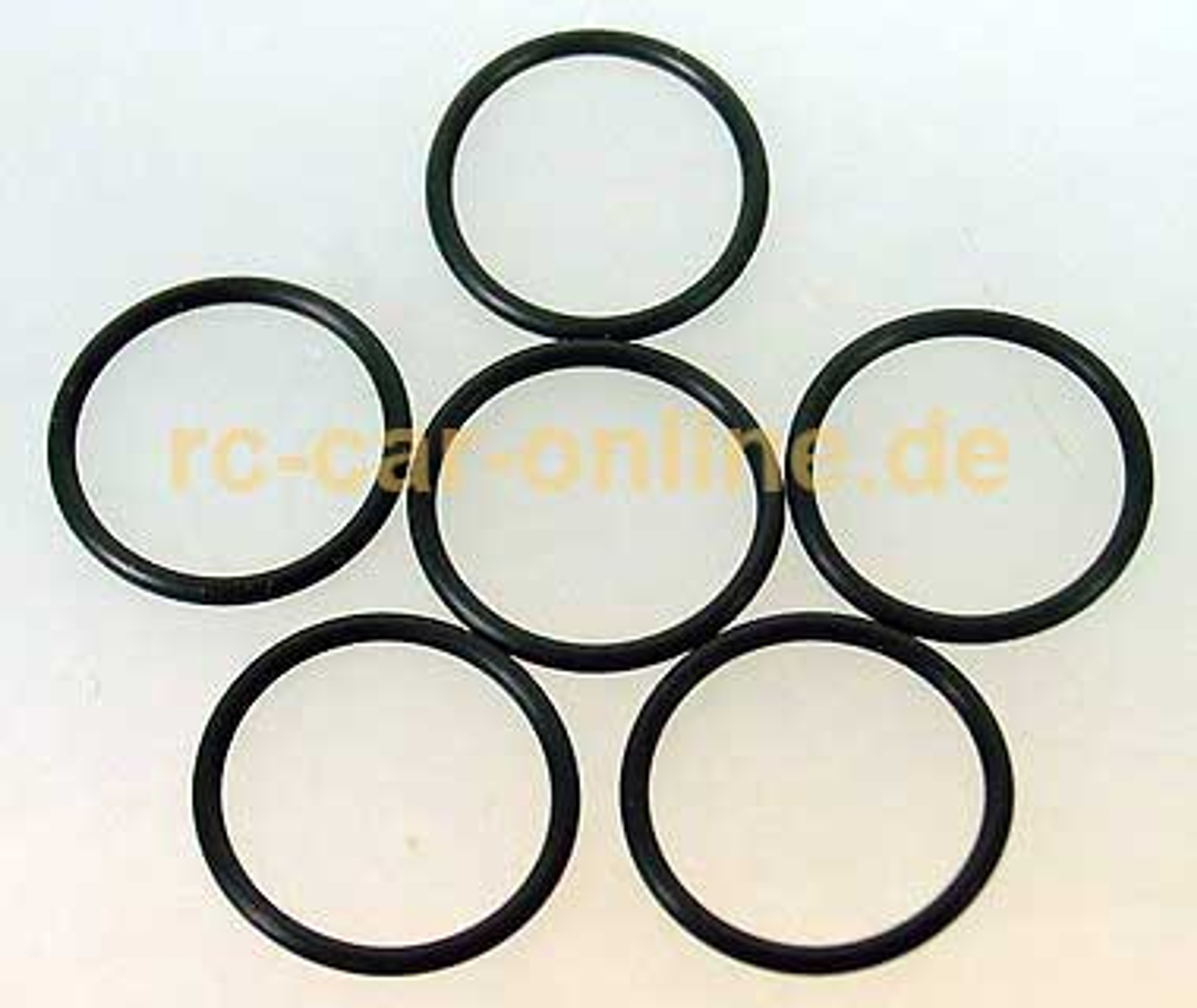

7095/01 FG O-ring for adjustable ring - 6pcs.

Spare part for , , , , and .

€5.70*

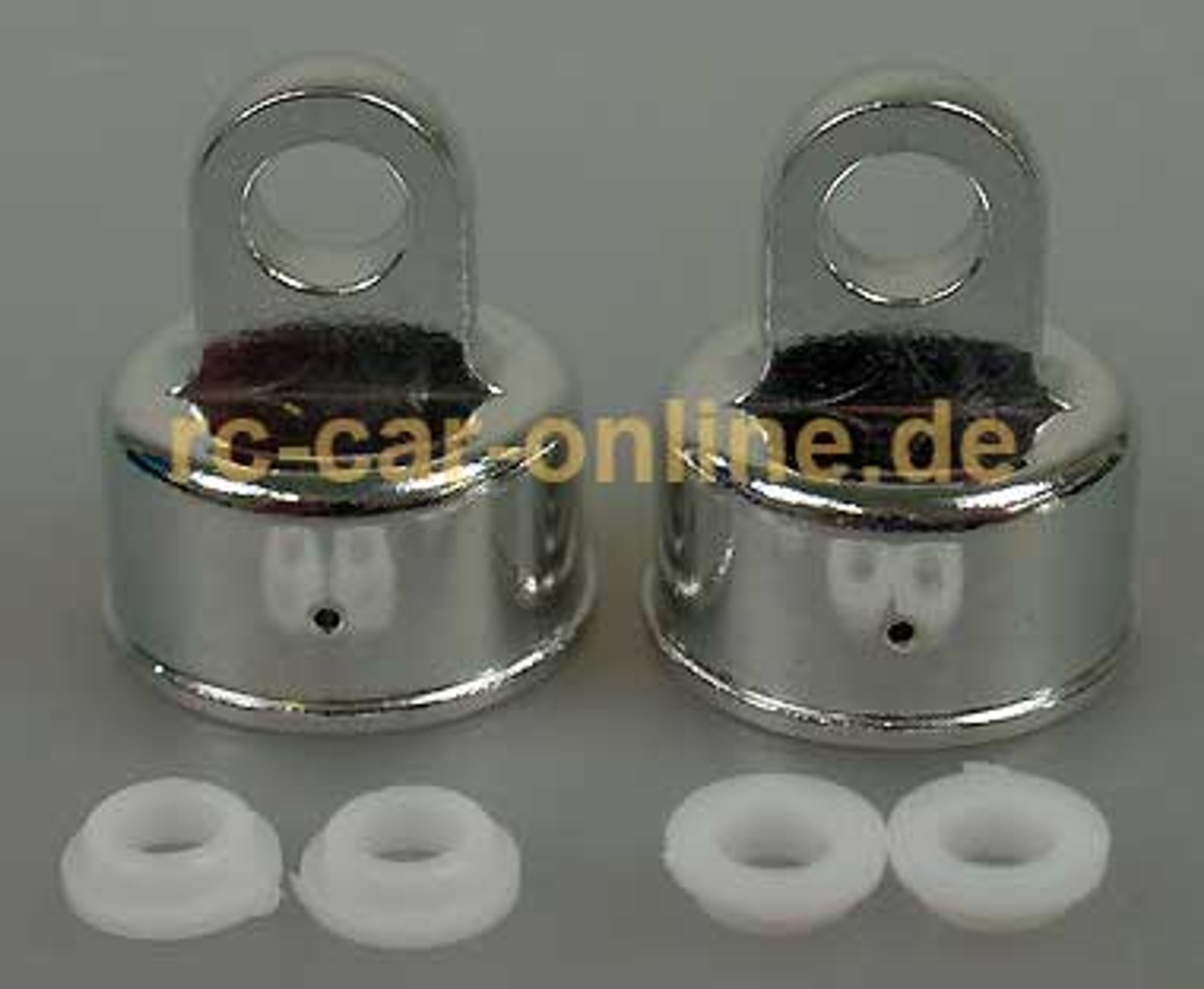

7201/02 FG Upper shock absorber seal 04 - 2pcs.

Suitable for .Bushings for 4 mm shock mounts.

€18.90*

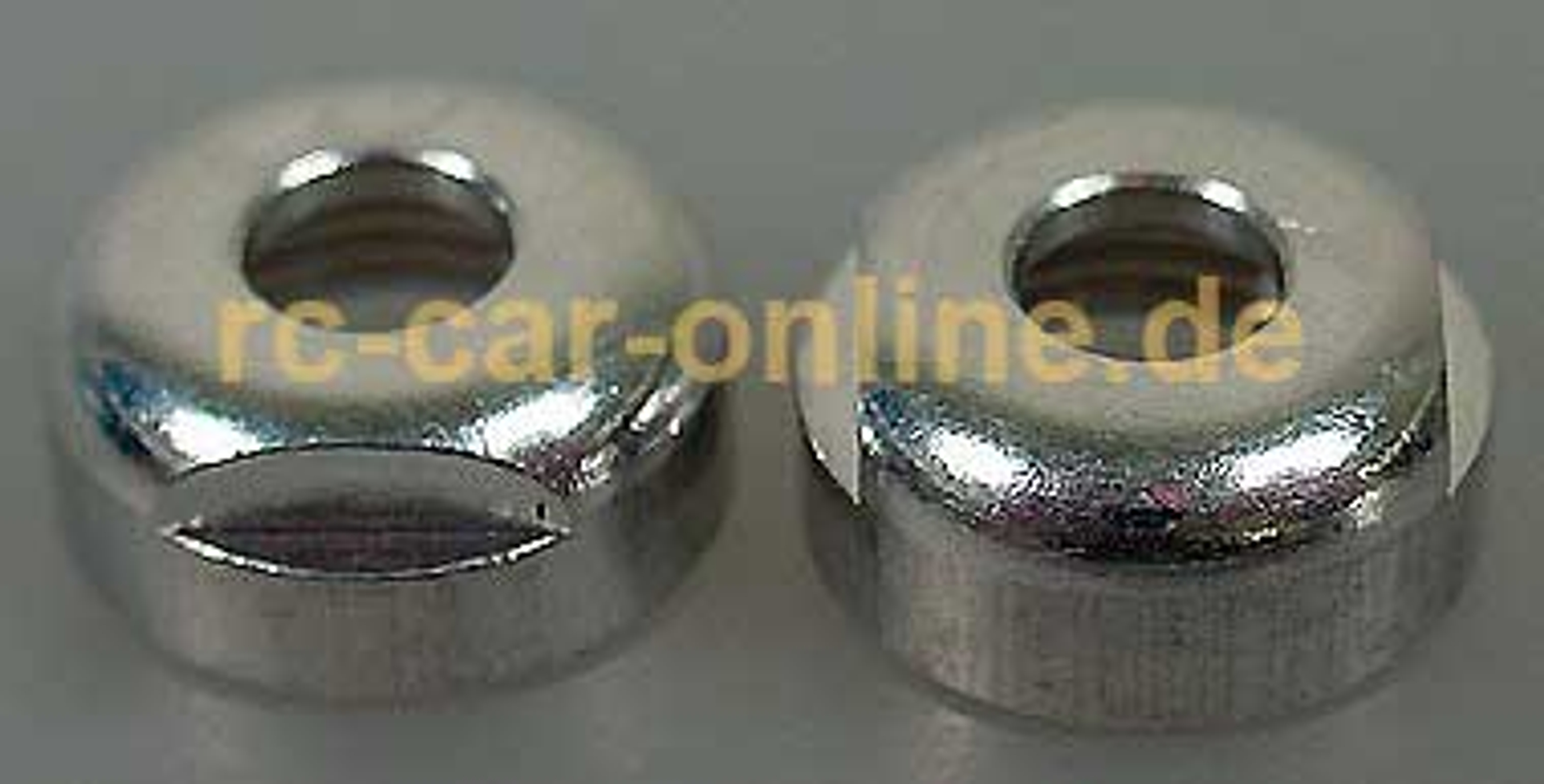

7201/04 FG Lower shock absorber seal 04 - 2pcs.

Suitable for .

€13.10*

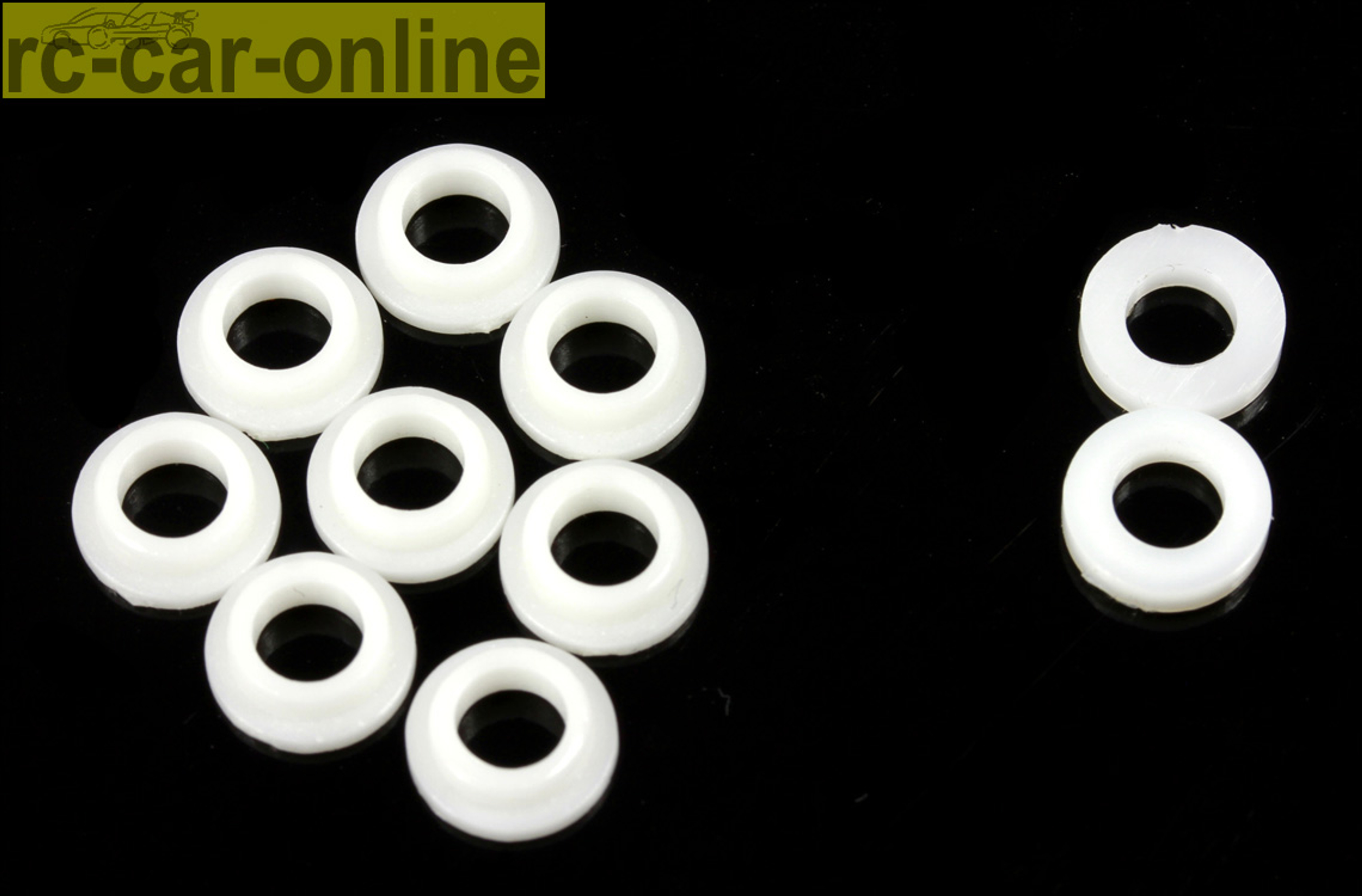

7201/05 FG Guiding set

Suitable for shocks with the FG order number: 7200, 7201, 7202, 7203, 7204.Dimensions (with flange):Inner diameter 4 mmOuter diameter 6 mmFlange diameter 8 mmWidth 2,5 mmDimensions (without flange):Outer diameter 7,7 mmWidth 1,6 mmContents:8 bushings with flange2 bushings without flange

€6.90*

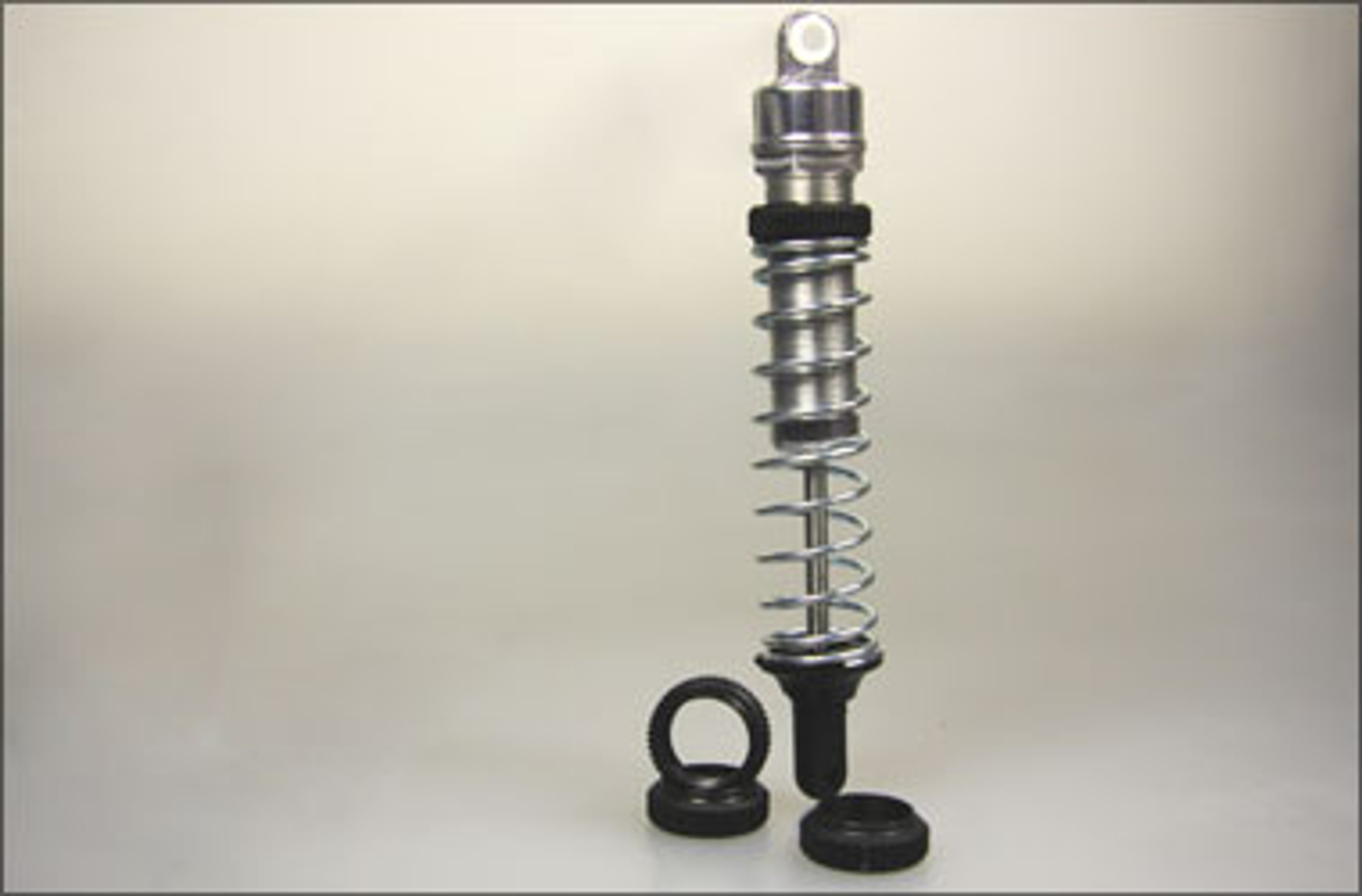

7205/05 FG Plastic adjusting rings 16mm, 4 pcs.
