2012/504 Throttle/brake servo horn dedicated to Mecatech FW01 and FG Evolution

€27.90*

Product number: mec_2012_504

EAN: 4058575051787

Product information "2012/504 Throttle/brake servo horn dedicated to Mecatech FW01 and FG Evolution"

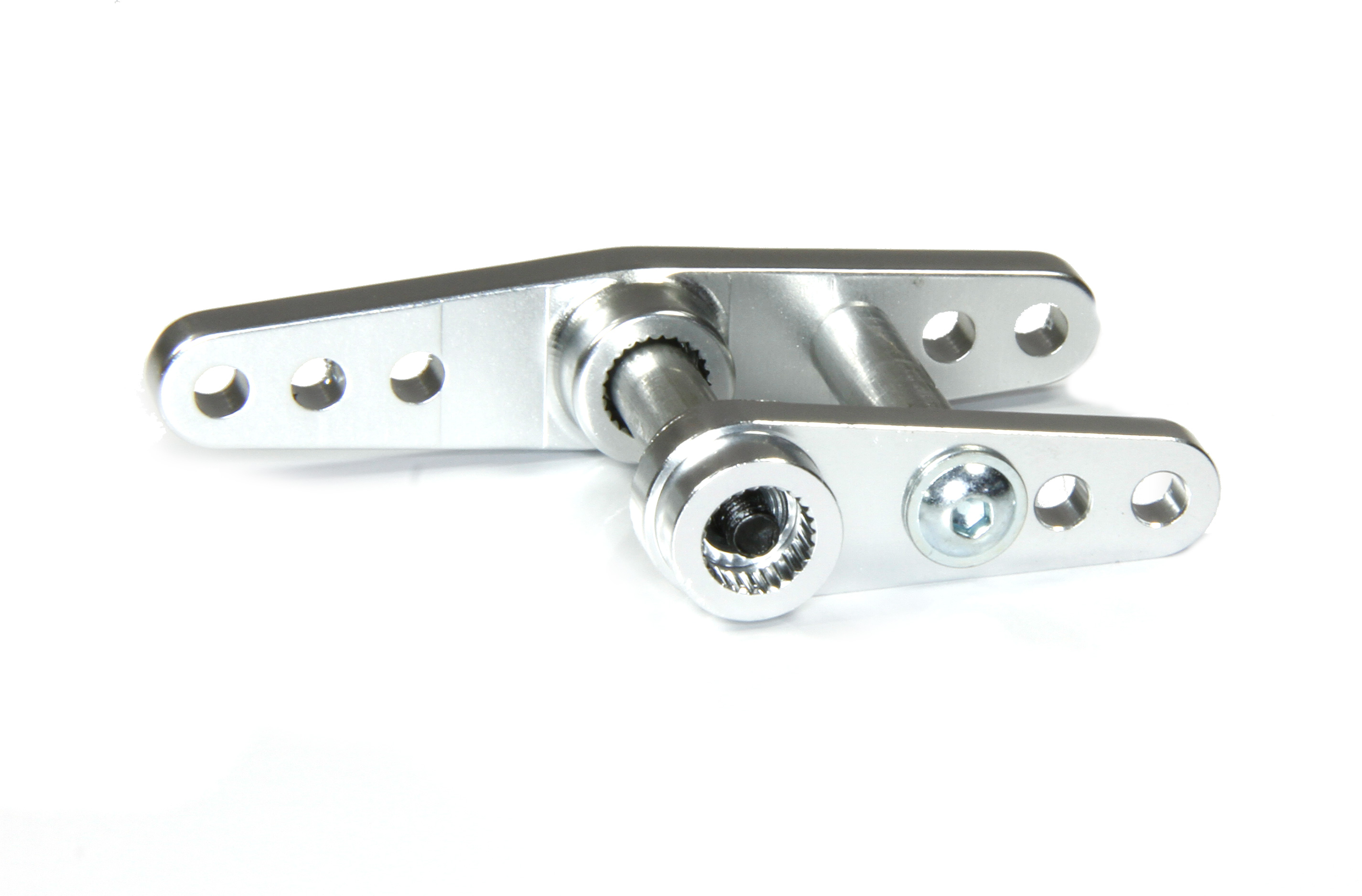

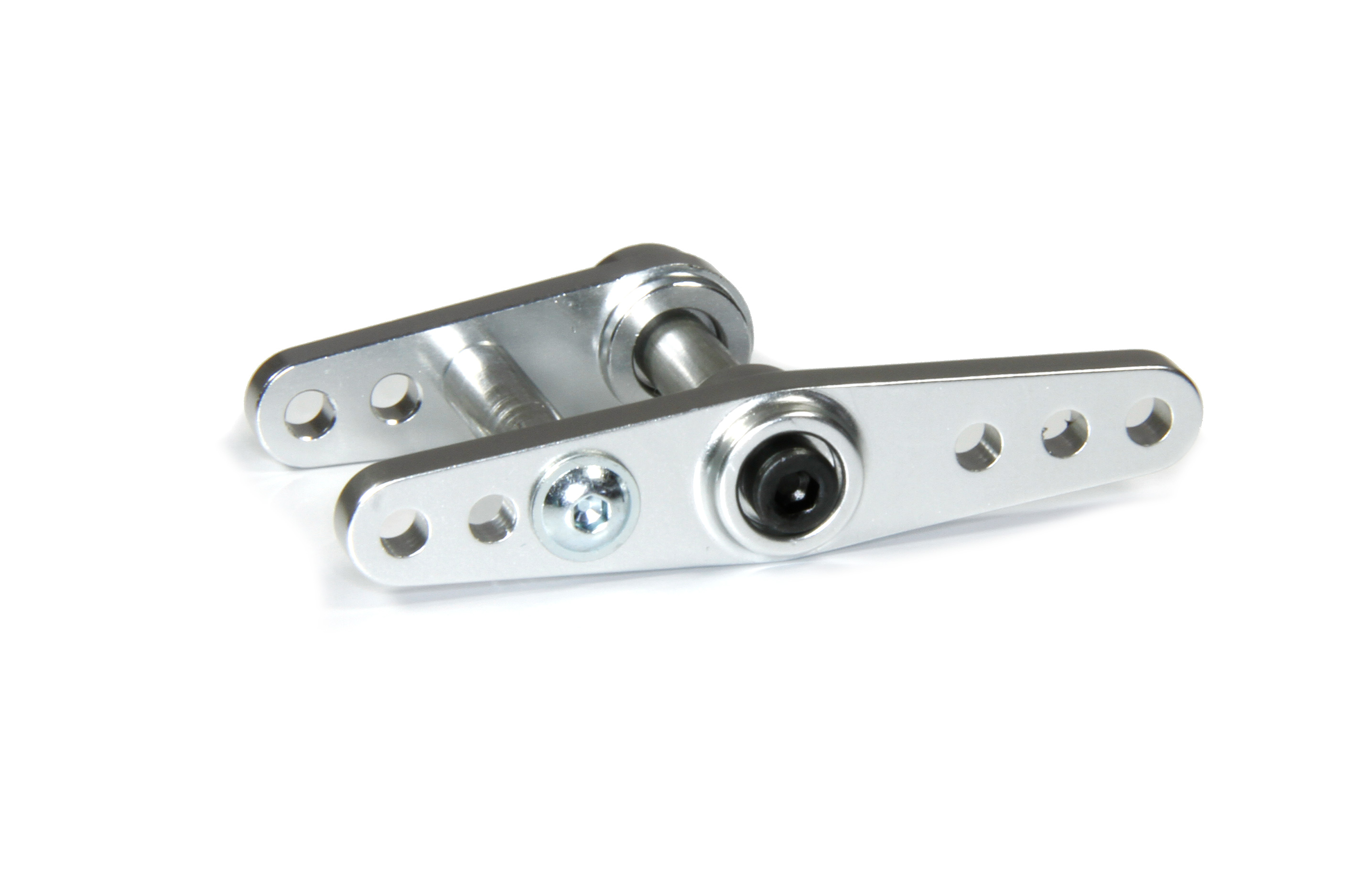

Throttle/brake servo horn dedicated to Mecatech FW01 and FG Evolution.

Suitable for all servos with an output shaft with 25T spline shaft, for example:

y2006 Digital Big-Scale Servo D-21HV
Nearly all Robbe/Futaba servos
Mega Power servo
Thunder Tiger DS1015
Savöx servos
and many more!

Content:

1 x y0700 Double sided alloy servo horn
1 x y0700/01 Single-sided alloy servo horn
2 x 1018/05 Spacer bushing 5 x 20 mm for throttle linkage Evo 08/510 (one spacer drilled to 3 mm inner diameter)
1 x M3 x 30 mm Screw
2 x M3 x 12 mm Nut
