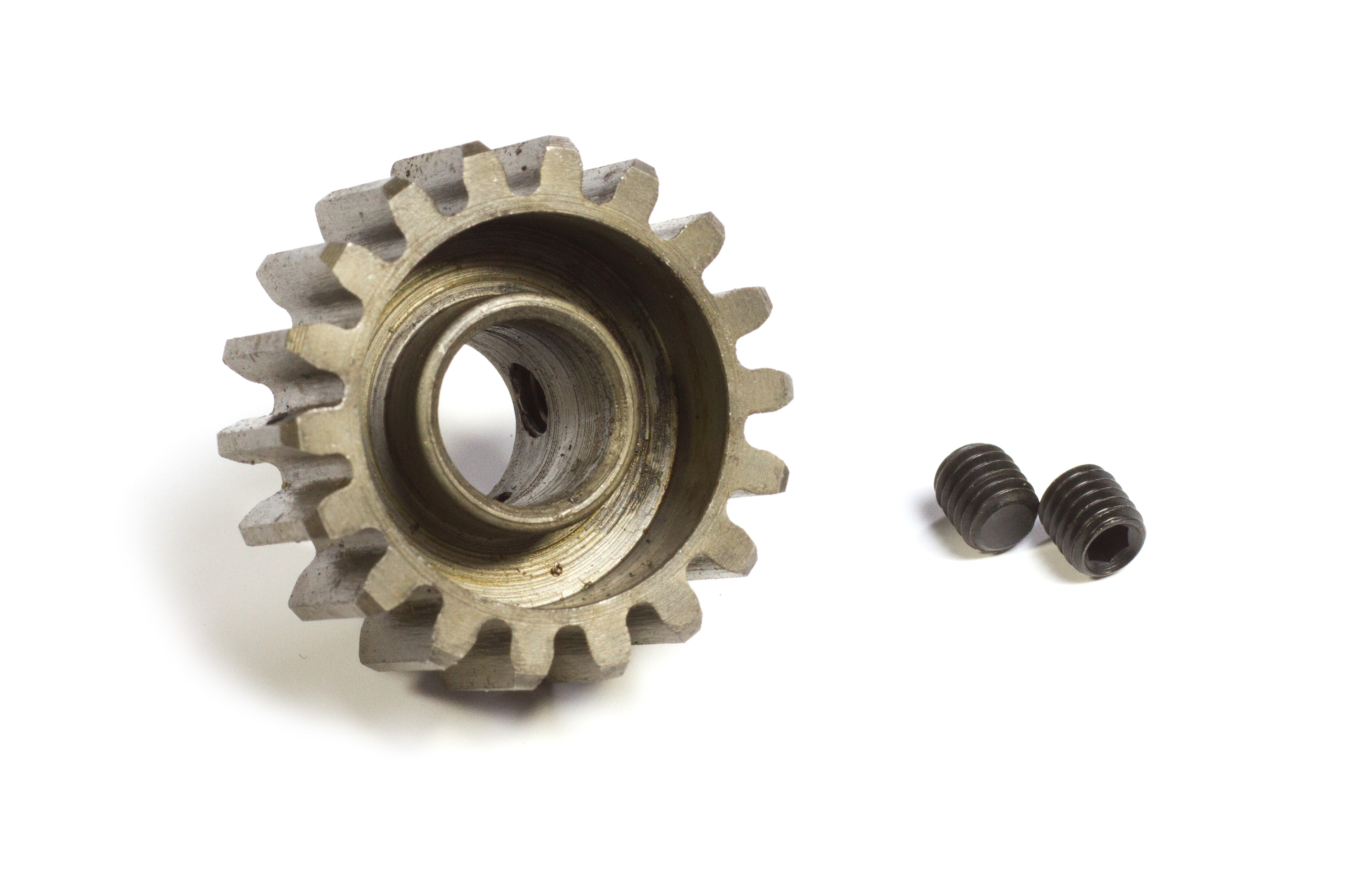

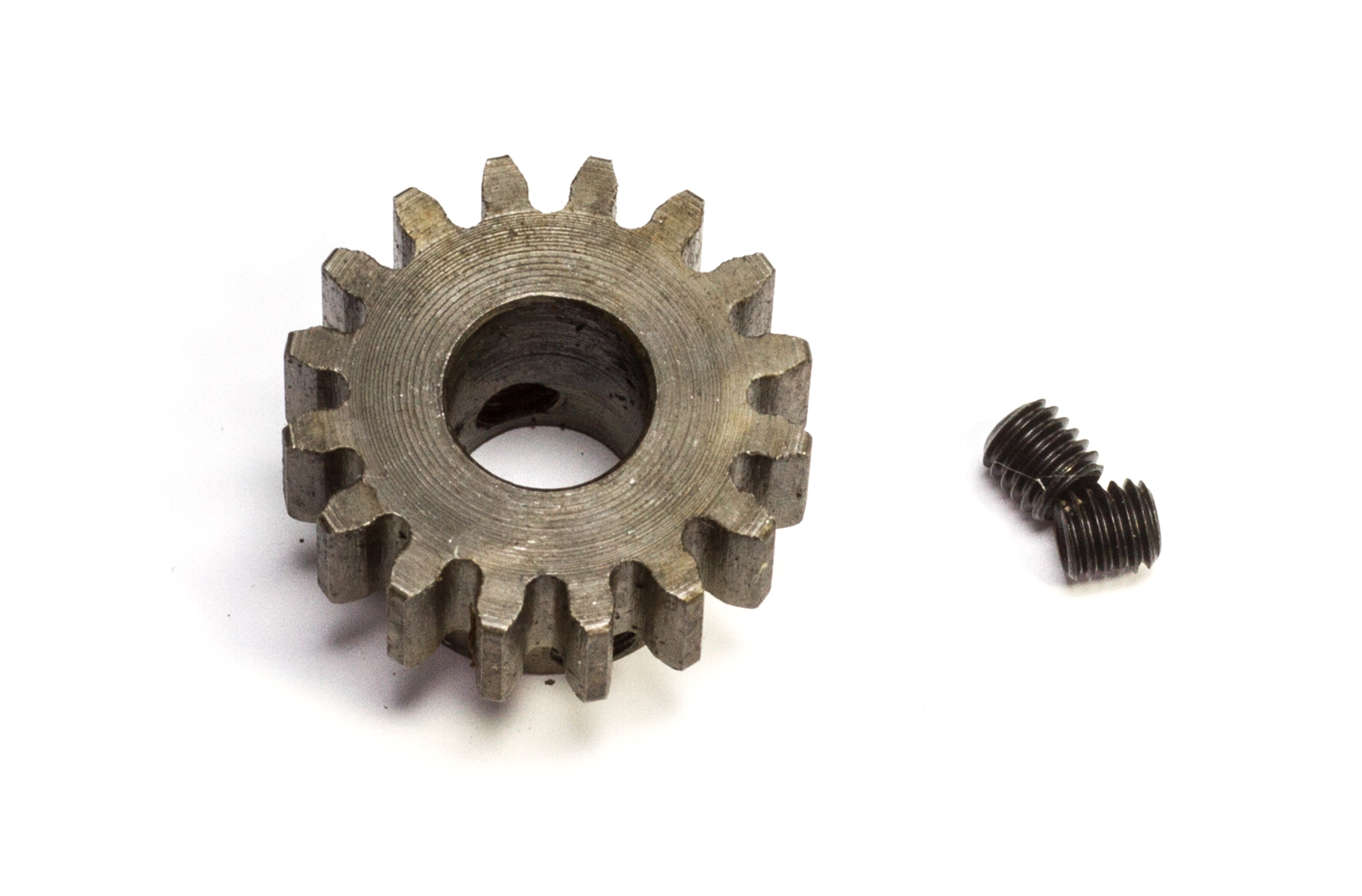

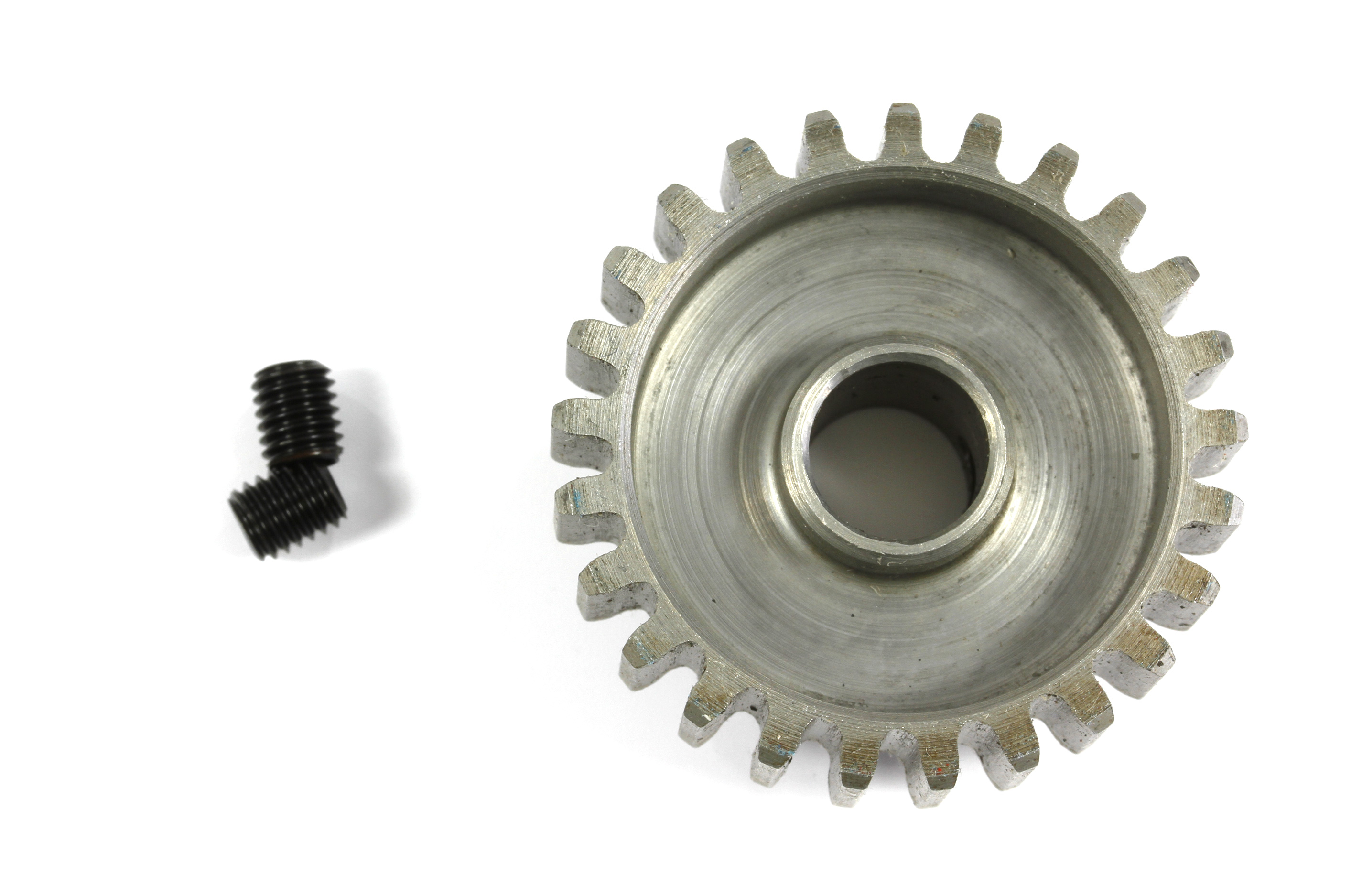

HT-Nitrited steel pinions for all FG and 1/5 scale Carson / Smartech C5

Product information "HT-Nitrited steel pinions for all FG and 1/5 scale Carson / Smartech C5"

Non-standard sizes use two numbers for definition. The second number gives the size of the corresponding ring gear.

Attention: not suitable for 1/6 scale Smartech / Carson 2WD Off-Road models. (Link to the Carson Smartech pinions: here)

Pinions up to 16T can be used on the layshaft as well.

Module: m=1,5

Profile regraded, this means that the number of teeth is changed while the diameter remained constant. The part of the involutes? curve that defines the tooth profile is changed. Positively regraded (lower number of teeth) pinions are stronger and run smoother, the reduced strength of negatively regraded pinions doesn?t really matter.

Teeth:	Item no.:
13 Teeth	HT y0268
14 Teeth	FG 6046
14 to 48 Teeth	HT y0116
15 to 48 Teeth	FG 6047
15 to 48 Teeth	HT y19354 wide
16 to 48 Teeth	FG 6431
16 to 48 Teeth	FG 6431/1 wide
17 to 48 Teeth	HT y19355-1
16 to 46 Teeth	HT y0119
17 to 46 Teeth	HT y19355
18 to 46 Teeth	FG 6432
19 to 46 Teeth	HT y19357
18 to 44 Teeth	HT y0123
19 to 44 Teeth	FG 6432/2
20 to 44 Teeth	FG 6433
21 to 44 Teeth	HT y19358
20 to 42 Teeth	HT y0904
21 to 42 Teeth	FG 7431/21
22 to 42 Teeth	FG 7431
21 to 40 Teeth	FG 7432/21
22 to 40 Teeth	FG 7432/22
23 to 40 Teeth	FG 7432/23
24 to 40 Teeth	FG 7432
25 to 40 Teeth	FG 7432/25
26 to 40 Teeth	HT y19364
26 to 38 Teeth	FG 7433

Contents:

1 piece
