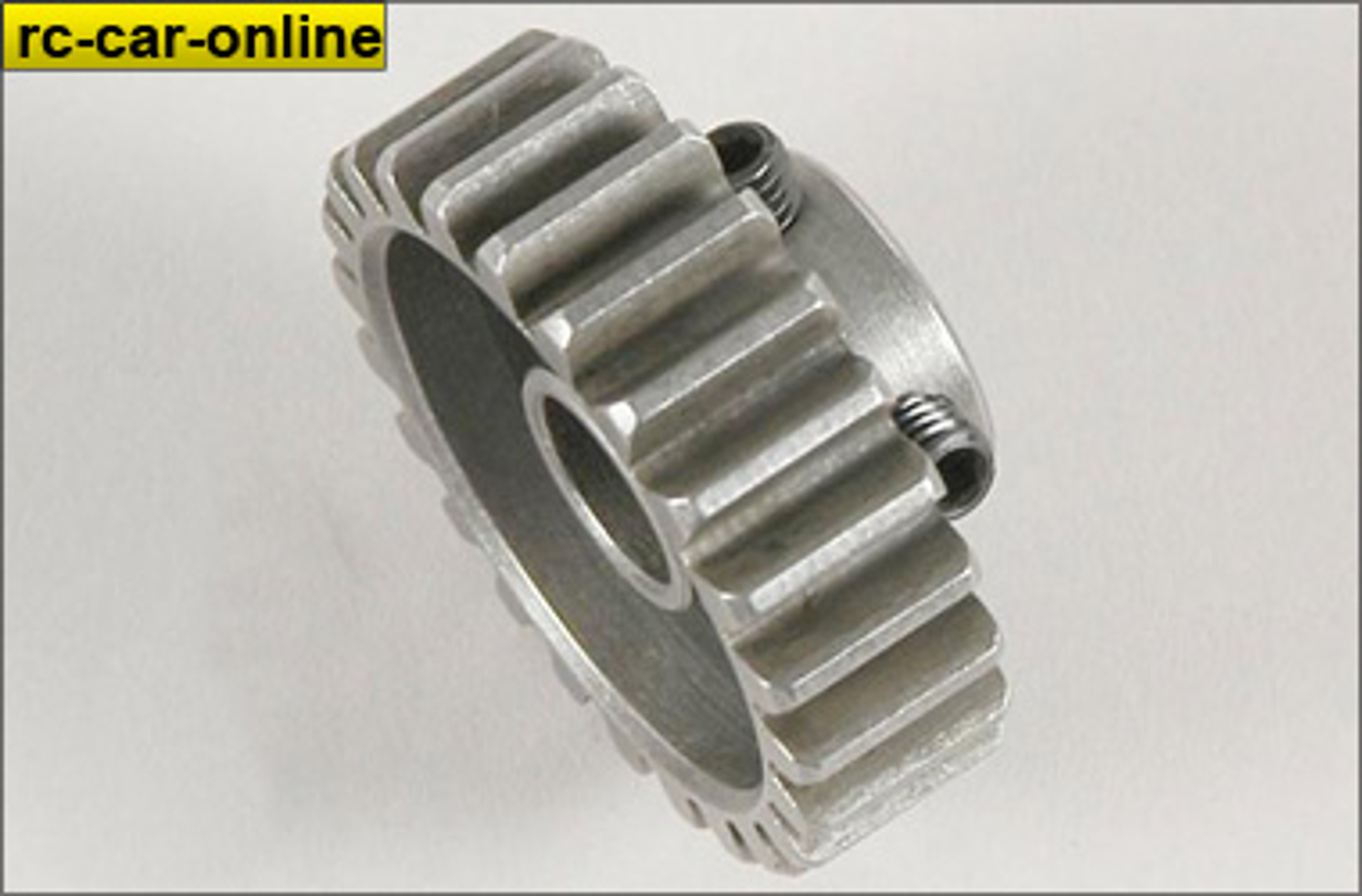

7433 FG Steel gearwheel hardened 26 teeth - 1pce.

€29.90*

Available

Product number: fg_7433

EAN: 3410564518335

Product information "7433 FG Steel gearwheel hardened 26 teeth - 1pce."

Item N° 7433
Steel gearwheel hardened 26 teeth - 1pce.

Suitable for 38 teeth main gear wheel.
Diameter 41.7 mm
Bore 10 mm
Total width 18 mm
Tooth width 11.5 mm
Module m=1.5

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

Customers also bought

HT-Nitrited steel pinions for all FG and 1/5 scale Carson / Smartech C5

Non-standard sizes use two numbers for definition. The second number gives the size of the corresponding ring gear.Attention: not suitable for 1/6 scale Smartech / Carson 2WD Off-Road models. (Link to the Carson Smartech pinions: here)Pinions up to 16T can be used on the layshaft as well.Module: m=1,5Profile regraded, this means that the number of teeth is changed while the diameter remained constant. The part of the involutes? curve that defines the tooth profile is changed. Positively regraded (lower number of teeth) pinions are stronger and run smoother, the reduced strength of negatively regraded pinions doesn?t really matter.Teeth:Item no.:13 Teeth HT y026814 Teeth FG 604614 to 48 Teeth HT y011615 to 48 Teeth FG 604715 to 48 Teeth HT y19354 wide16 to 48 Teeth FG 643116 to 48 Teeth FG 6431/1 wide17 to 48 Teeth HT y19355-116 to 46 Teeth HT y011917 to 46 Teeth HT y1935518 to 46 Teeth FG 643219 to 46 Teeth HT y1935718 to 44 Teeth HT y012319 to 44 Teeth FG 6432/220 to 44 Teeth FG 643321 to 44 Teeth HT y1935820 to 42 Teeth HT y090421 to 42 Teeth FG 7431/2122 to 42 Teeth FG 743121 to 40 Teeth FG 7432/2122 to 40 Teeth FG 7432/2223 to 40 Teeth FG 7432/2324 to 40 Teeth FG 743225 to 40 Teeth FG 7432/2526 to 40 Teeth HT y1936426 to 38 Teeth FG 7433Contents:1 piece

€29.90*

Configure now

66217/01 FG Steel pinion 15T narrow, 1pce.

Item N° 66217/01 Steel pinion 15T narrow, 1pce.Layshaft pinion for FG 4WD cars, 10 mm bore diameter.Module: m=1,5

€29.95*

7438 FG Alloy gear carrier 47mm - 1 pce.

Suitable for .For 10 mm diameter shafts.

€39.90*

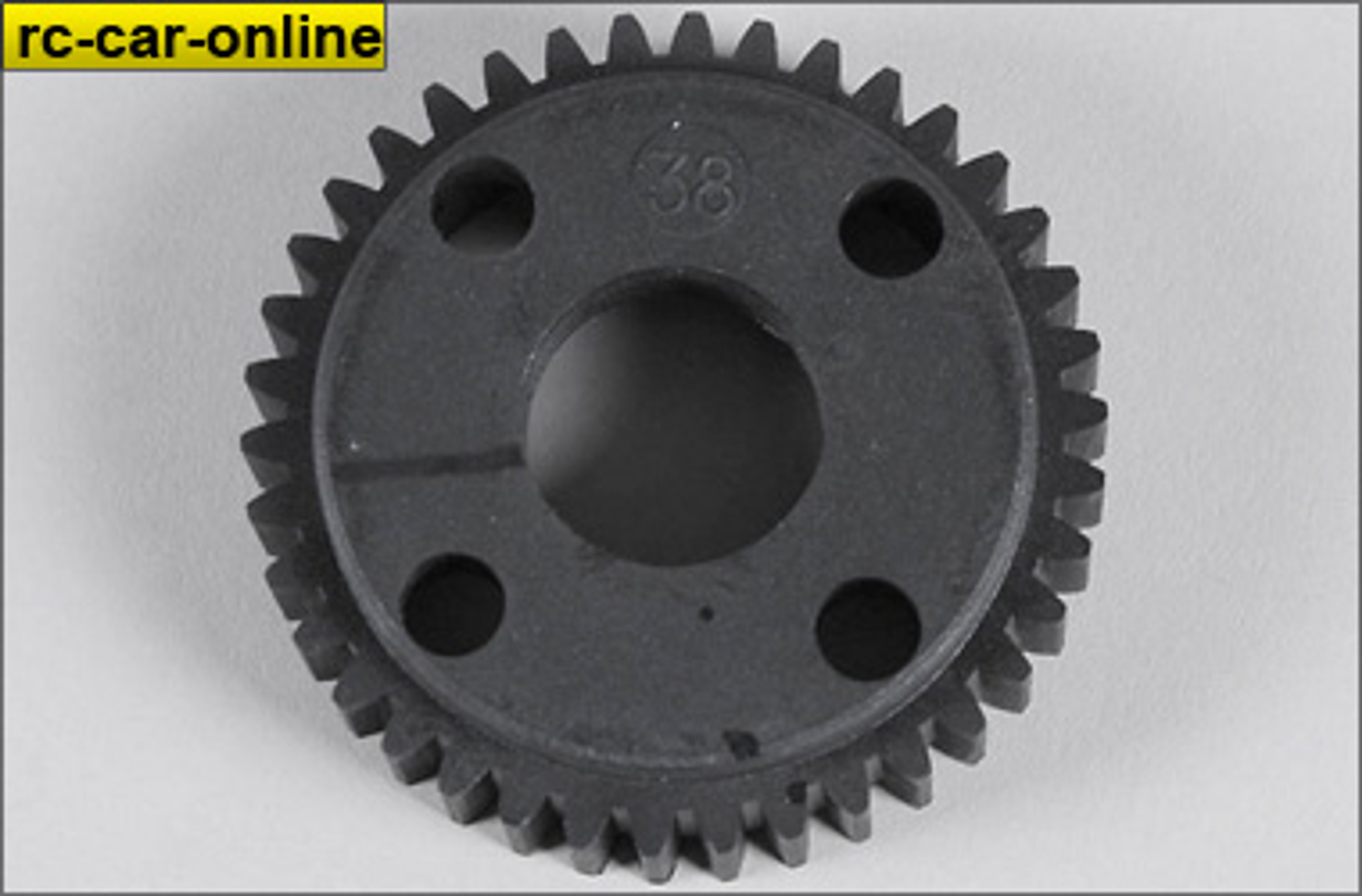

7424 FG Plastic gearwheel 38 teeth
