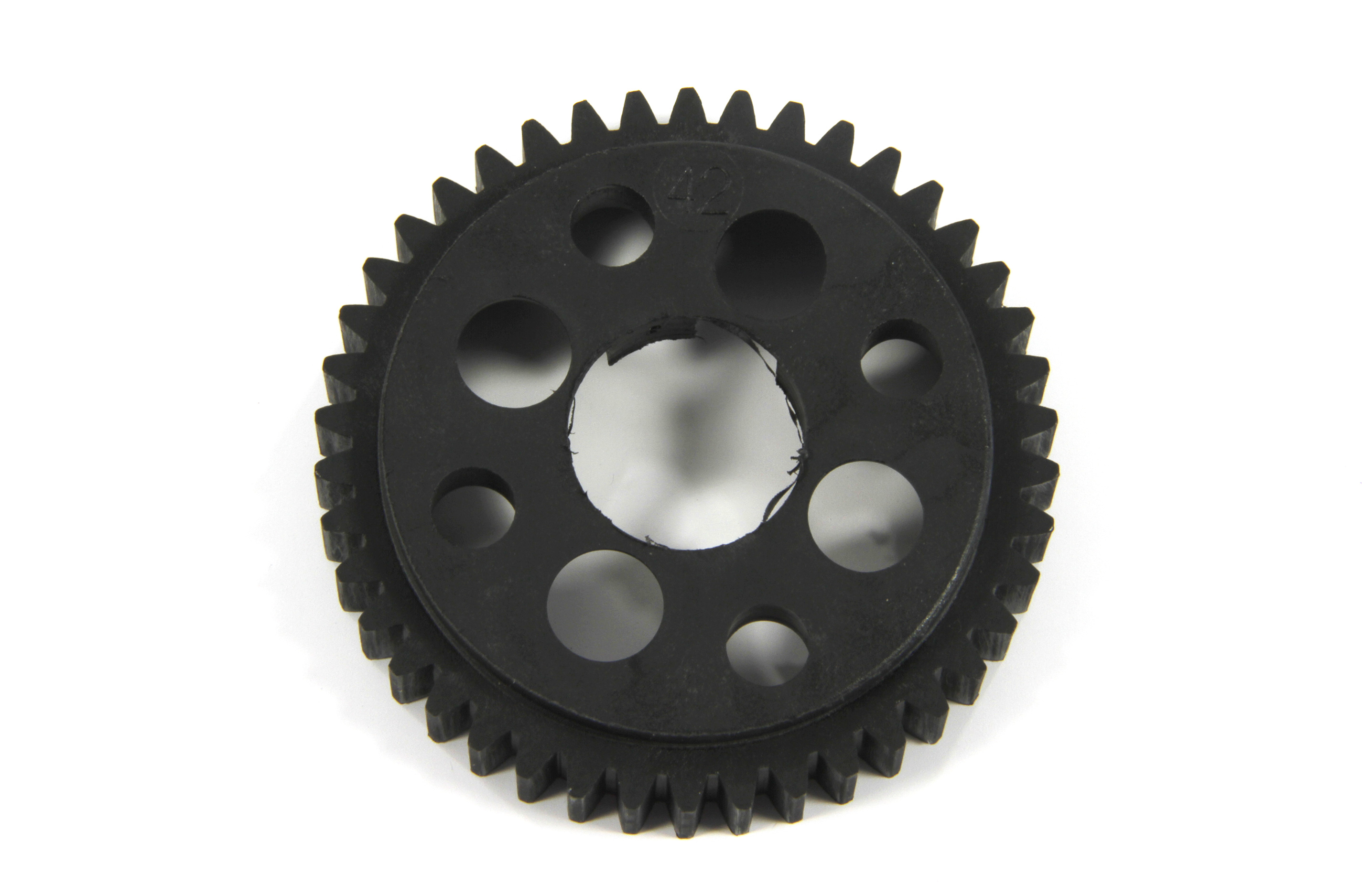

7424/01 FG Plastic gearwheel 38 teeth 2-speed, 1 pce.
€17.90
Available
Product information "7424/01 FG Plastic gearwheel 38 teeth 2-speed, 1 pce."
Suitable for all 1:5 models with 2-speed gear. Gear adapter: 7456/01 Alloy hub A 47mm and pinion: 7433 Steel gearwheel hardened 26 teeth are required for this spur gear.
Diameter 60 mm
Width 15.5 mm
Tooth width 12 mm
Module: m=1,5
Login
Accessories / Spare parts
Item N° 7433 Steel gearwheel hardened 26 teeth - 1pce.Suitable for 38 teeth main gear wheel.Diameter 41.7 mmBore 10 mmTotal width 18 mmTooth width 11.5 mmModule m=1.5

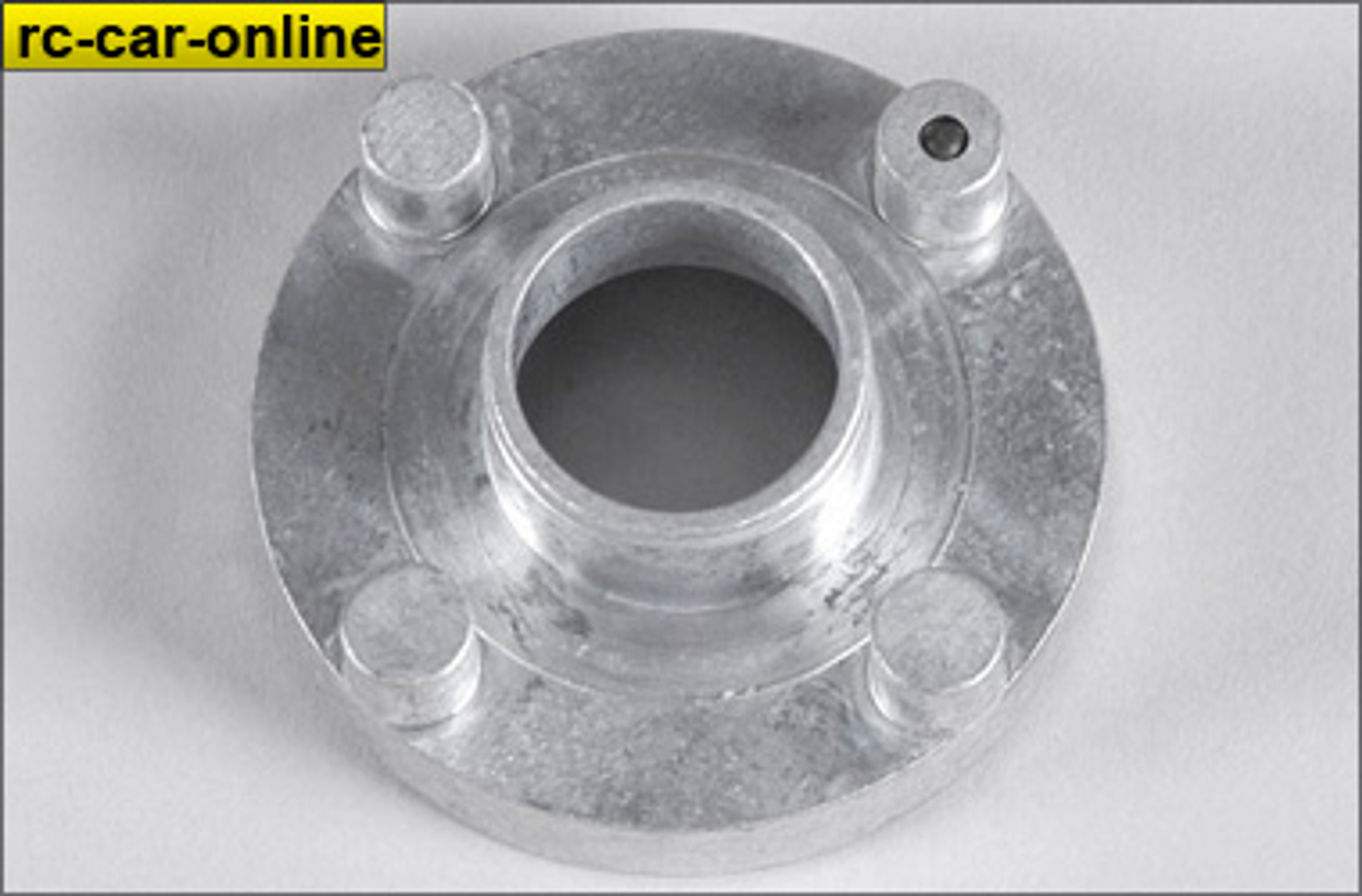

Item N° 7456/01 Alloy hub A 47mm - 1pce.Suitable for gear wheels with 38 teeth in connection with the 2-speed gears or .
