TT0198 Top Tuning Bubble-Ex for 1/10 up to 1/5 scale rc-cars

€49.90*

Available

Product number: tt_tt0198

EAN: 4058575133117

Product information "TT0198 Top Tuning Bubble-Ex for 1/10 up to 1/5 scale rc-cars"

Genuine Top Tuning spare/option part.

Indispensable for optimal suspension tuning!

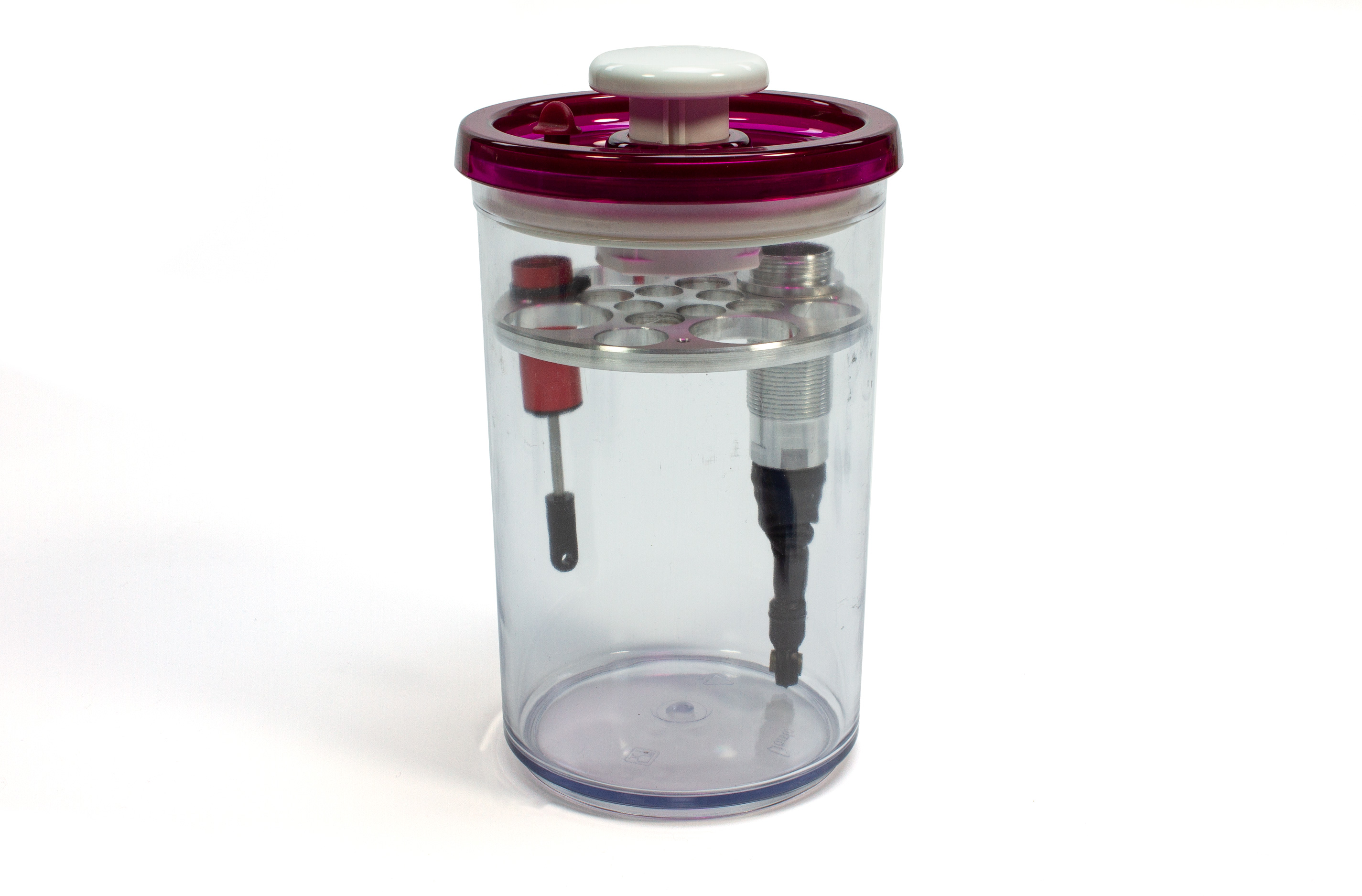

Vacuum container for removal of bubbles from shock fluid when filling shocks.

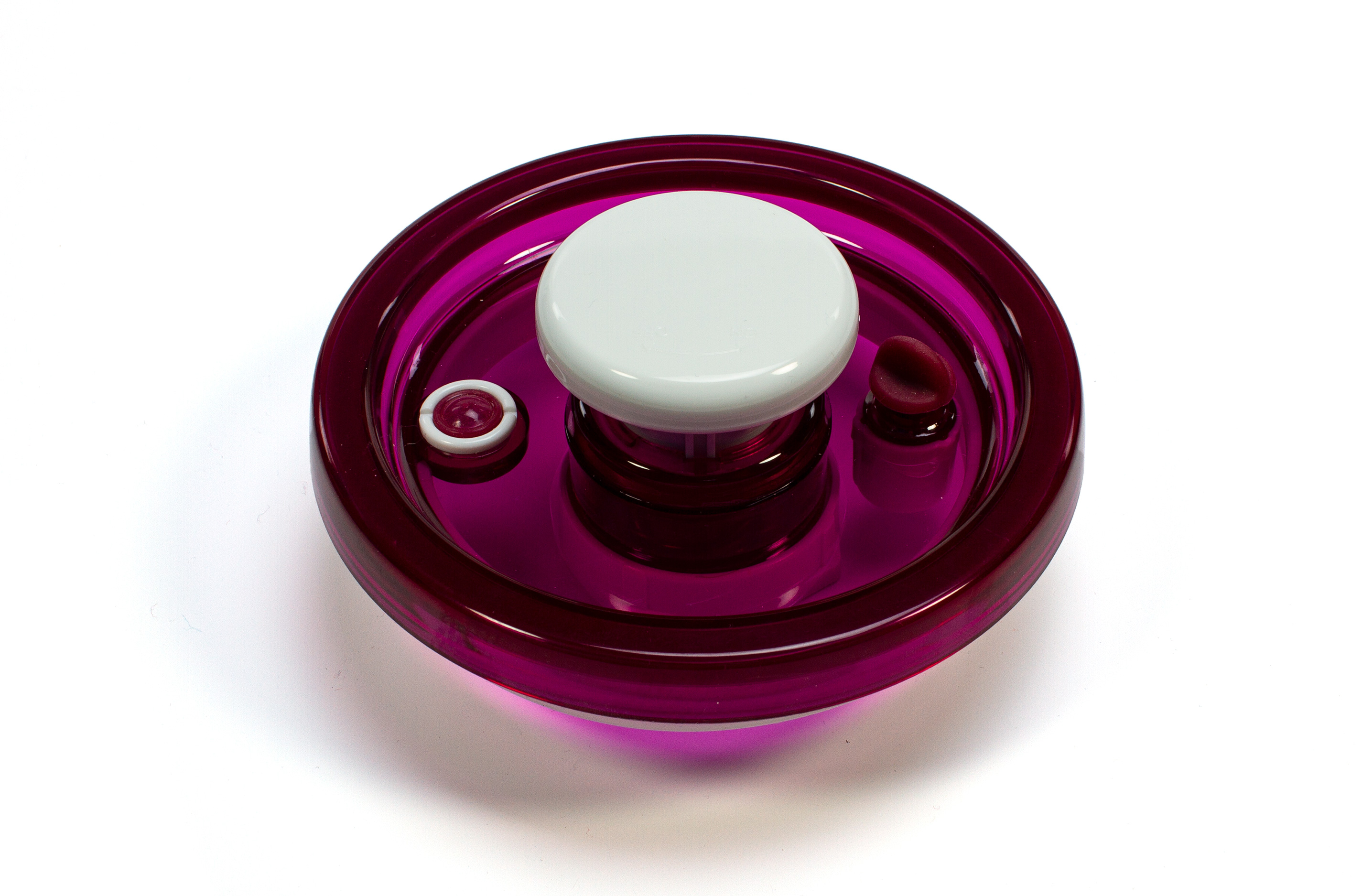

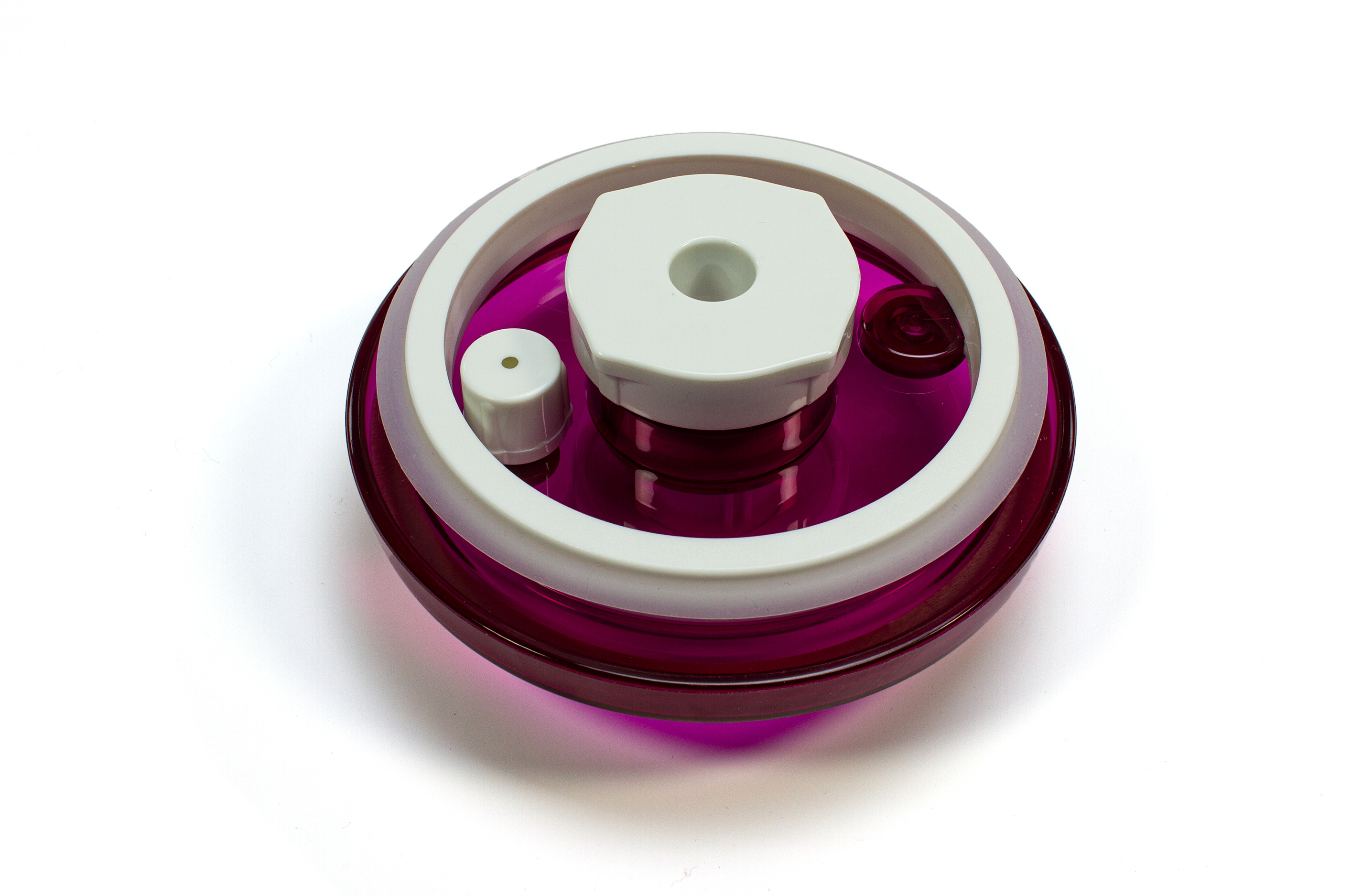

A vacuum pump is built into the lid. The tray has four holes each to accept 1/10, 1/8, 1/6 and 1/5 scale shocks.

Suitable for shock absorbers from Losi, Mecatech, BWS, Arrma, Traxxas, FG, Carson, HPI and many more, as long as they have a suitable diameter. All shocks from 15 to 32 mm outer diameter can be used in the Bubble Ex to be "de-bubbled".

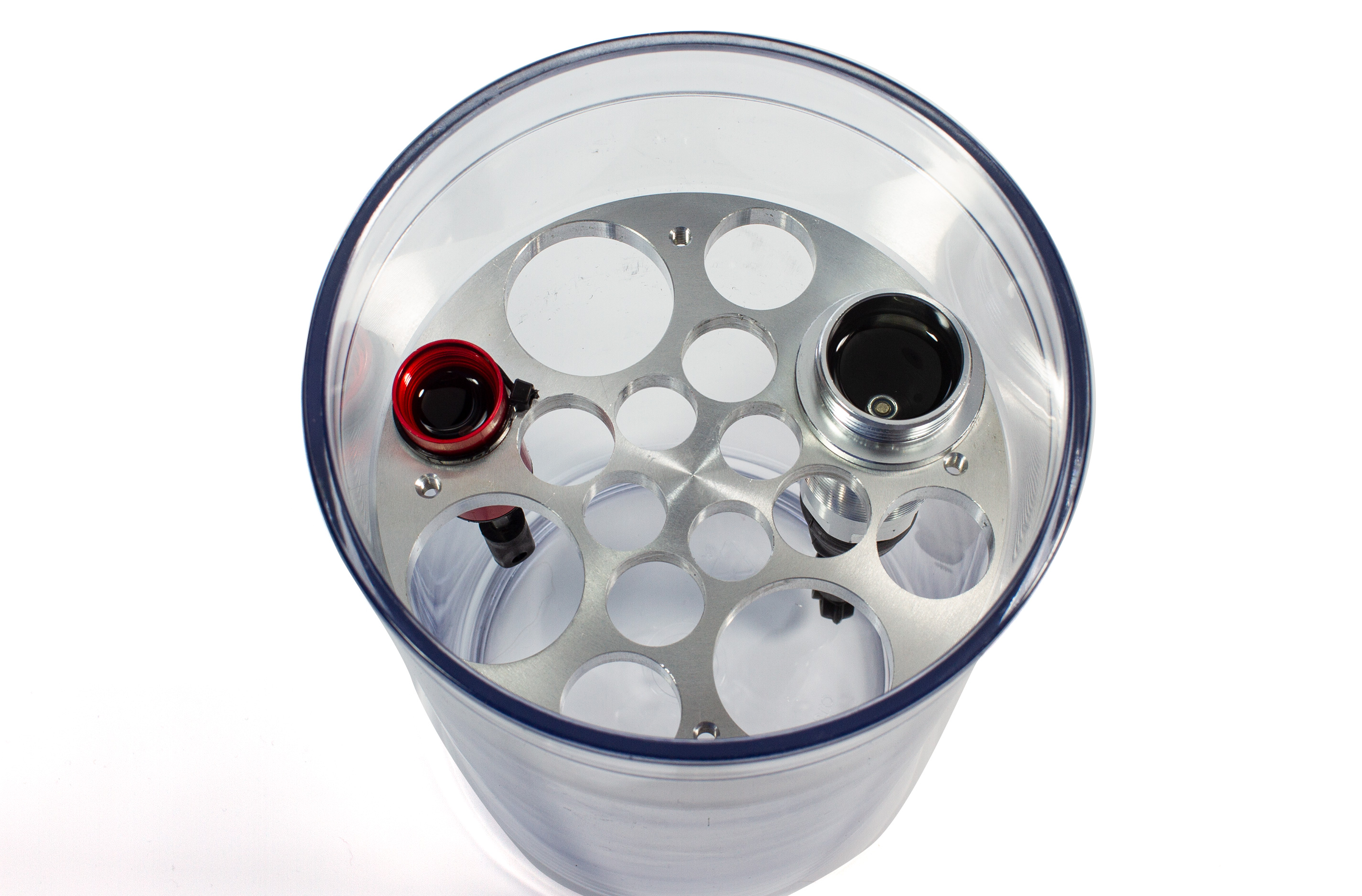

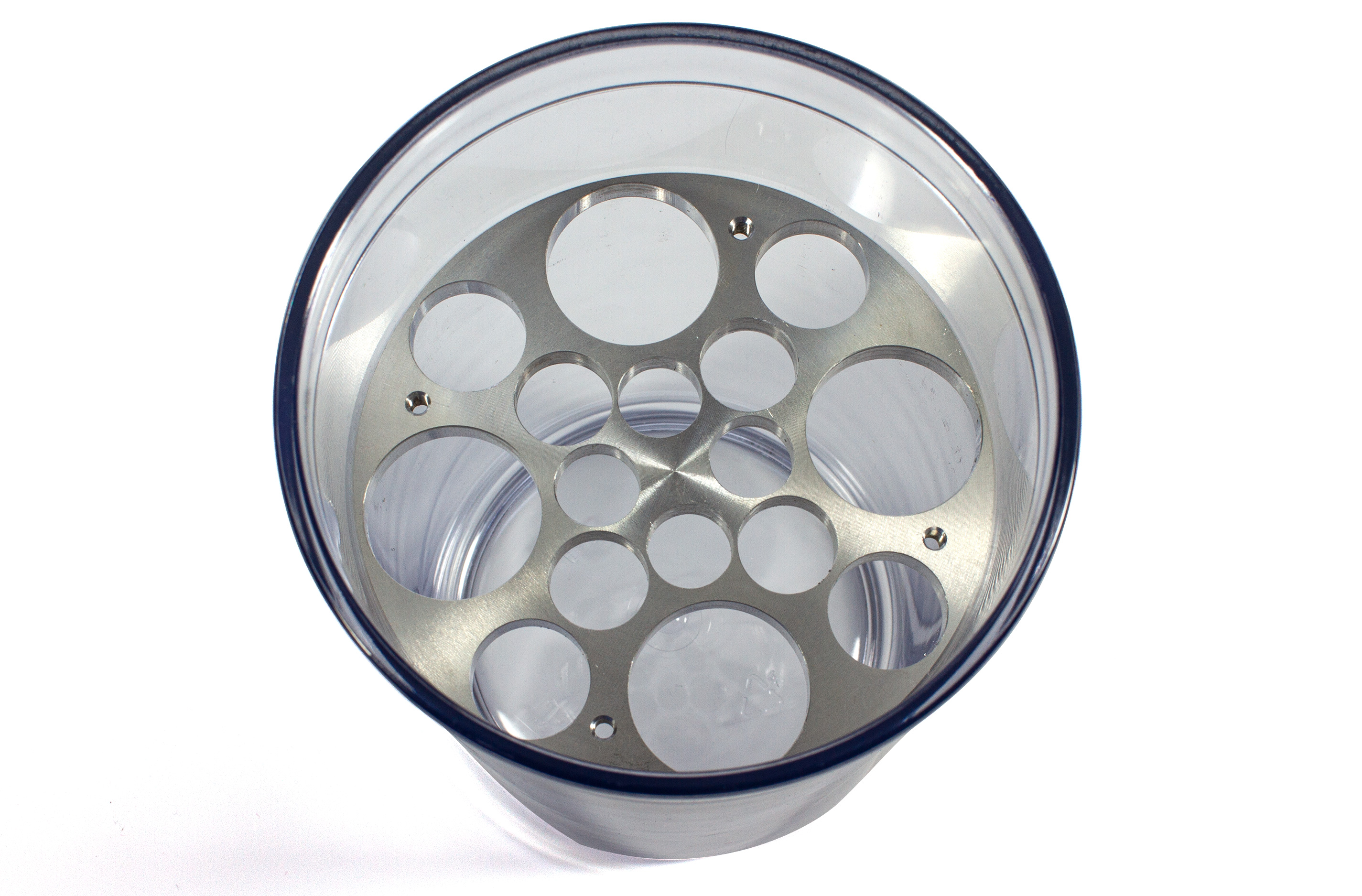

Tray bore sizes:

No. 1 = 32 mm diameter
No. 2 = 21 mm diameter
No. 3 = 17.5 mm diameter
No. 4 = 15 mm diameter

The maximum length of the shock absorber up to the upper edge of the body is about 150 mm, whereby longer shock absorbers can also be partially compressed for insertion. (e.g Losi 5ive-T and many more)

Operation:

Unlock the vacuum pump by turning it slightly to the left, the pump handle then extends a little. The small plug with handle is used to close and ventilate the container. To build up the vacuum, the plug must be in the down position.

The small membrane on the opposite side serves as an indicator for whether a vacuum is present. Only when this is curved outwards the lid of the container can be opened again without any effort.

Content:

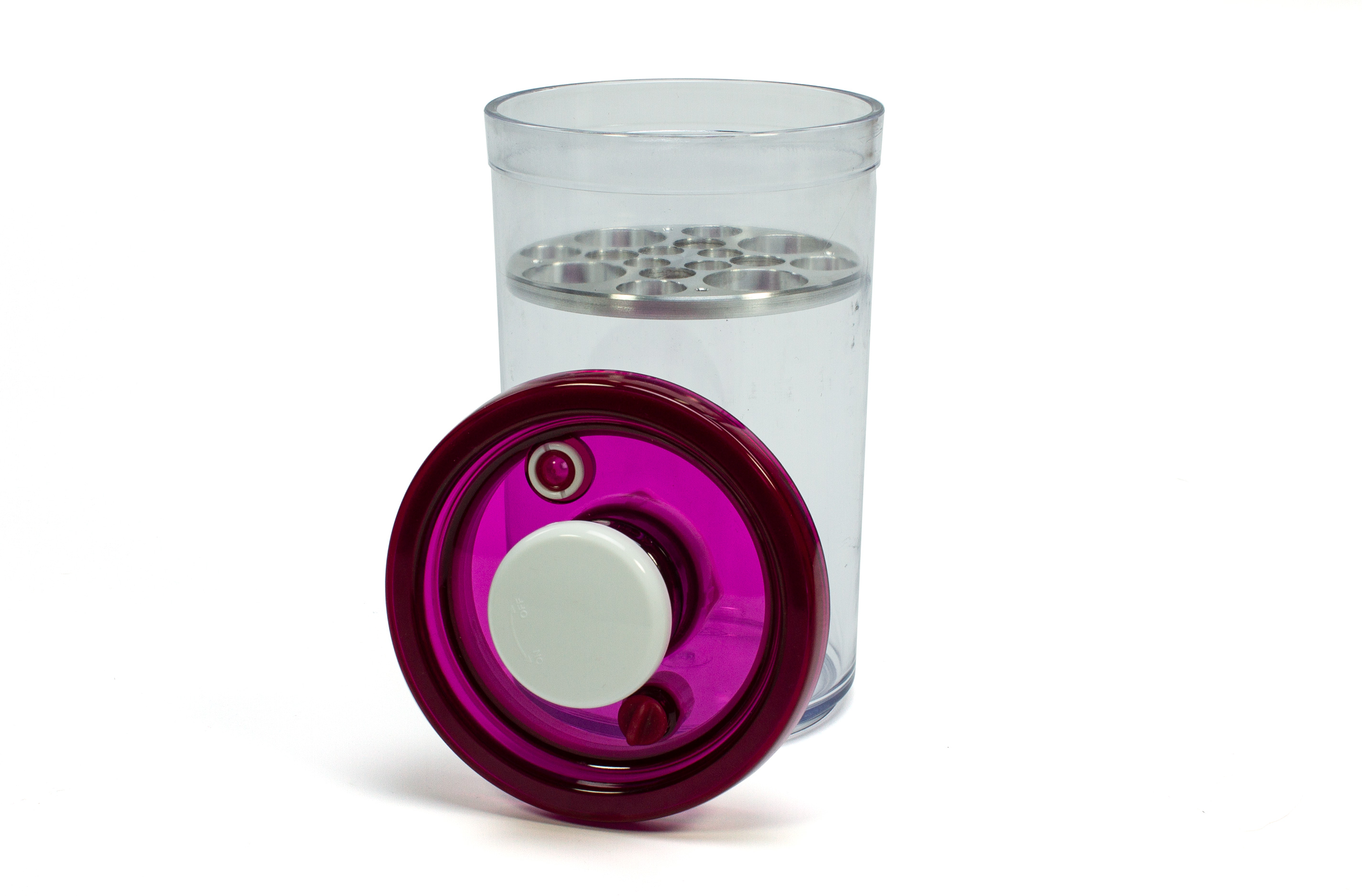

Can with integrated vacuum pump
Shock tray
