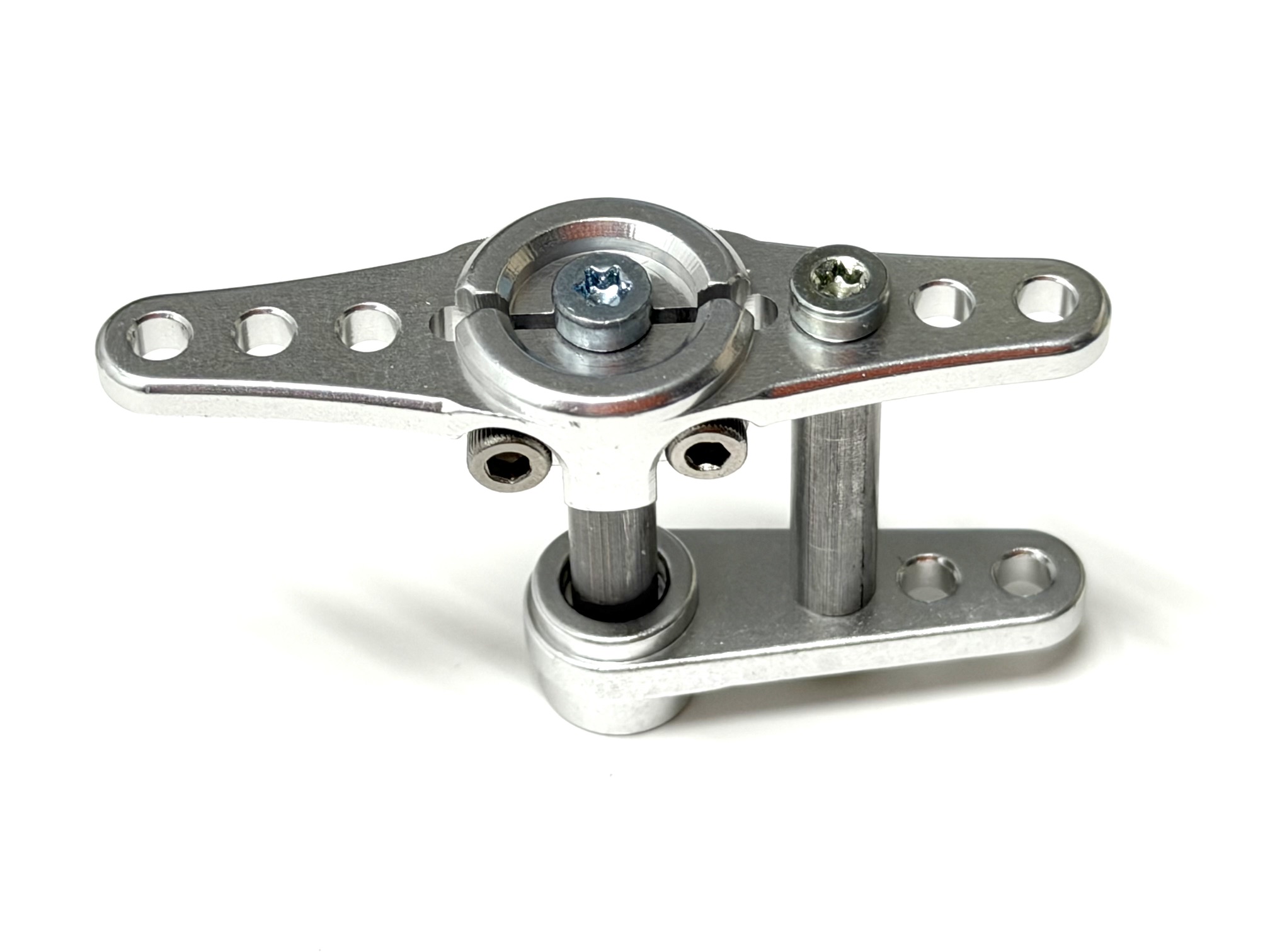

2012/504 Throttle/brake servo horn dedicated to Mecatech FW01 and FG Evolution

Skip image gallery

€27.90*

Prices incl. VAT plus shipping costs

Product number: mec_2012_504
EAN: 4058575051787

Product information "2012/504 Throttle/brake servo horn dedicated to Mecatech FW01 and FG Evolution"

Throttle/brake servo horn dedicated to Mecatech FW01 and FG Evolution.

Suitable for all servos with an output shaft with 25T spline shaft, for example:
  • y2006 Digital Big-Scale Servo D-21HV
  • Nearly all Robbe/Futaba servos
  • Mega Power servo
  • Thunder Tiger DS1015
  • Savöx servos
  • and many more!


Content:
  • 1 x y0700 Double sided alloy servo horn
  • 1 x y0700/01 Single-sided alloy servo horn
  • 2 x 1018/05 Spacer bushing 5 x 20 mm for throttle linkage Evo 08/510 (one spacer drilled to 3 mm inner diameter)
  • 1 x M3 x 30 mm Screw
  • 2 x M3 x 12 mm Nut
