y1581/01 Set TT5682/01 brushless motor 980kV+ Hobbywing HW MAX6 controller

Product information "y1581/01 Set TT5682/01 brushless motor 980kV+ Hobbywing HW MAX6 controller"

A great motor/ESC combo, ideal for 1/5 touring cars

and Formula 1 RC cars.

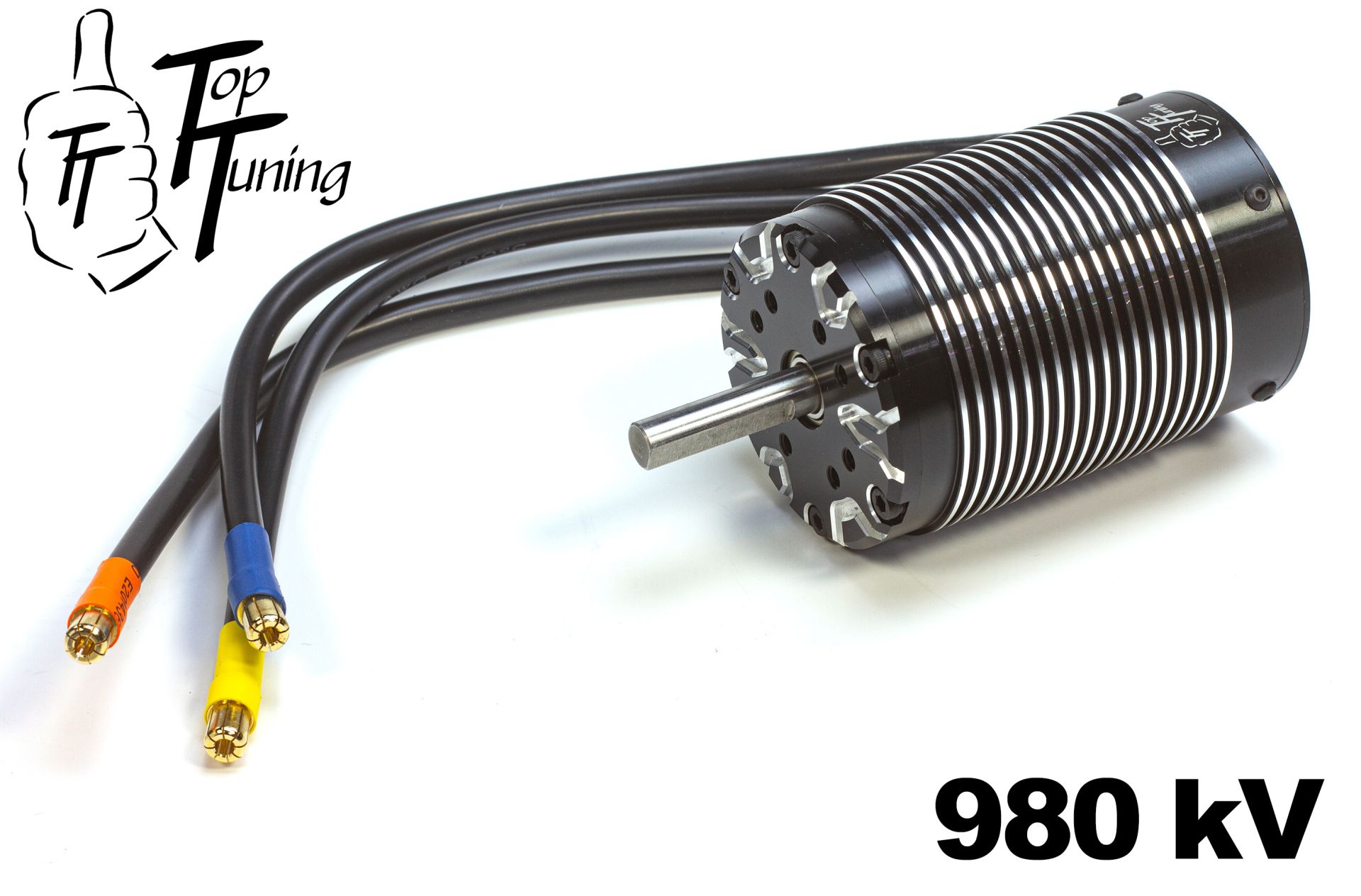

Product information "TT5682/01 Top Tuning Brushless Motor 980 kV"

Genuine Top Tuning spare/option part.

Specifications

  • Max. amps: 160 A
  • Max. voltage: 30 V
  • Max. power: 4,200 W
  • KV (RPM/Volt): 980 KV
  • Mounting hole depth: 8 mm
  • Bolt pattern: 4 x M4 at 30 mm pitch circle diameter
  • Case diameter: 57.8 mm
  • Case length: 82 mm
  • Free shaft length: 30 mm
  • Shaft diameter: 8 mm
  • Weight: 880 g
  • Connector: 6.5 mm diameter
  • Cable size: 8AWG

Features

  • High quality bearings
  • 4Pole rotor with high quality magnets
  • Stator - super thin silicon steel layers
  • Super strength 8 mm shaft
  • CNC Aluminium heatsink case
  • Copper wires with high temperature endurance


Contents:
  • 1 piece

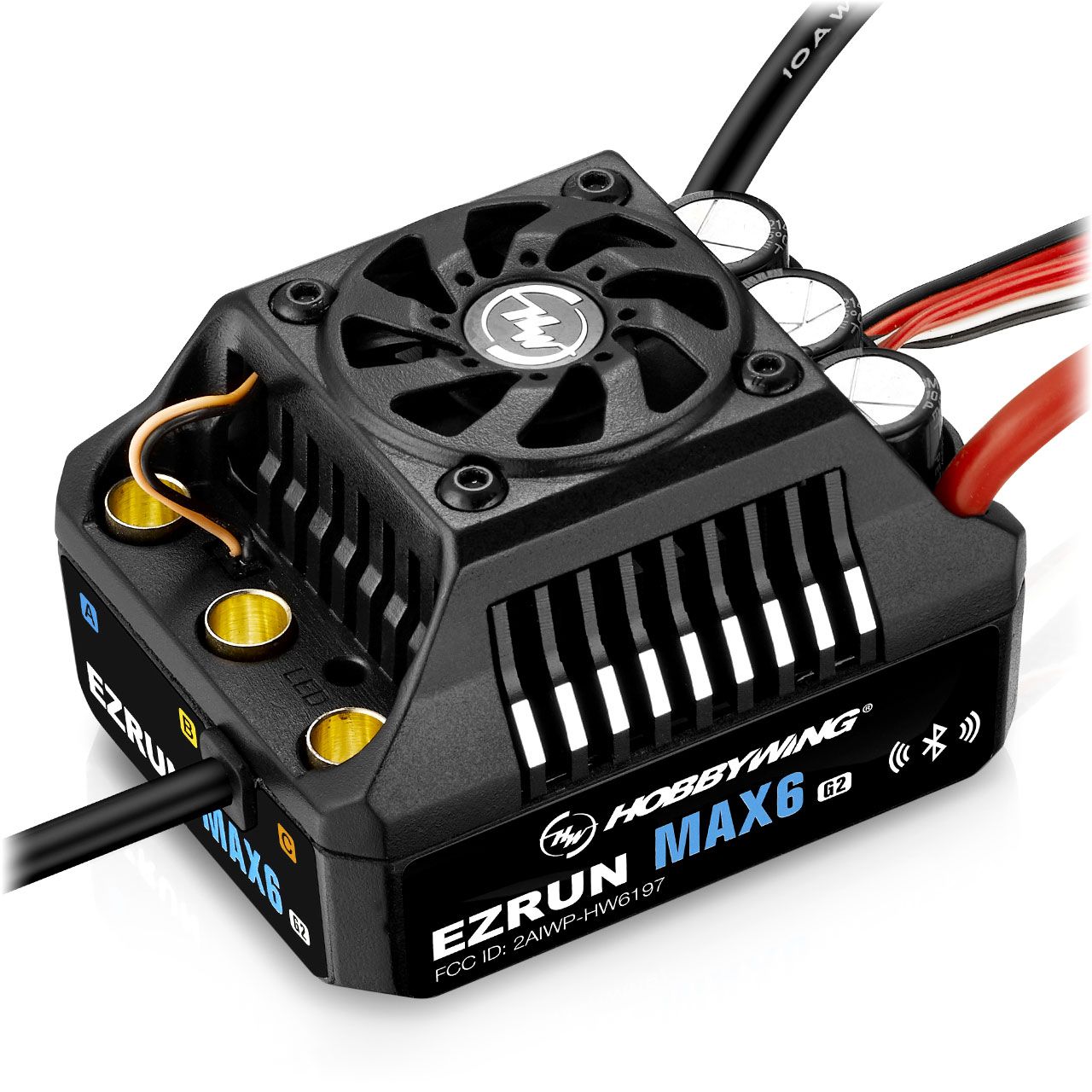

Product information "HW30105100 Hobbywing Ezrun MAX6 G2 sensored ESC 200 Amp, 3-8s LiPo, BEC 8A"

The EzRun MAX6 G2 is a modern brushless controller with high-voltage support and an integrated Bluetooth module. Compared to its predecessor model, the second generation is considerably more powerful with up to 200A and, with 12 programmable parameters, also offers more scope for customisation to suit your personal driving style. Aggressive starts, high acceleration on straight stretches and jump control are just a fraction of what the controller has to offer. And thanks to the intelligent freewheel technology, the controller remains relaxed and cool even during these demanding manoeuvres.

Probably the most convincing feature of the MAX6 G2 controller is the integrated Bluetooth module. This eliminates the need for programming cards and the OTA module as additional accessories. All you need now is the HWLink2 app and the controller can be conveniently programmed and updated on your smartphone. It is even possible to record data for up to 10 minutes and provides an insight into the most important driving data such as speed, voltage and temperature. With a powerful integrated BEC, an anti-spark design and several protective devices, this speed controller offers advanced functions and a high level of safety. The EzRun MAX6 G2 is therefore the ideal choice for RC enthusiasts looking for maximum potential and the best reliability. With perfect compatibility with both Hobbywing's EzRun 4990 G2 and 5690 G2 motors, this power system offers an unbeatable team for optimum performance with modern features.


Features


 - Now with even more power than its predecessor.

- Integrated Bluetooth module to programme the controller directly via the HWLink2 app on your smartphone.

- Intelligent fan that only activates when the temperature reaches a certain value. Water & dust resistant to IP67 standard for use in all weather conditions.

- Built-in ultra-strong switching mode BEC to address a wide range of servos (high power / high voltage servo).

- Turbo timing setting included.

- Especially recommended with the matching motor (e.g. EZRUN 4990 G2 or 5690 G2).

- Several protective functions: Battery undervoltage protection, controller and motor overheating protection, signal loss protection, current protection.

- Built-in data logging function to display various running data of up to 10min in the HW LINK app

- Supports firmware upgrade of the controller.

- 12 adjustable parameters.


Technical Data


 Type: 1/6 Brushless Sensored

Current (continuous/short): 200A / 1200A

Input voltage: 3-8S LiPo

BEC: 6V/7.4V/8.4V @8A (switch mode)

Motor types: Brushless motors (with/without sensor)

Motor limits: - 6S Lipo: KV <= 2400 - 8S Lipo: KV <= 1700 4990/5690

motor Fan: Yes, operated via the BEC

Programming: HWLink2 app (via the integrated Bluetooth module)

Waterproof: Yes

Size: 70x56x45.5mm

Weight: 245g

Applications: 1/6, 1/7 on-road, truck, monster truck


Scope of delivery:

 Ezrun MAX6 HV G2 ESC
