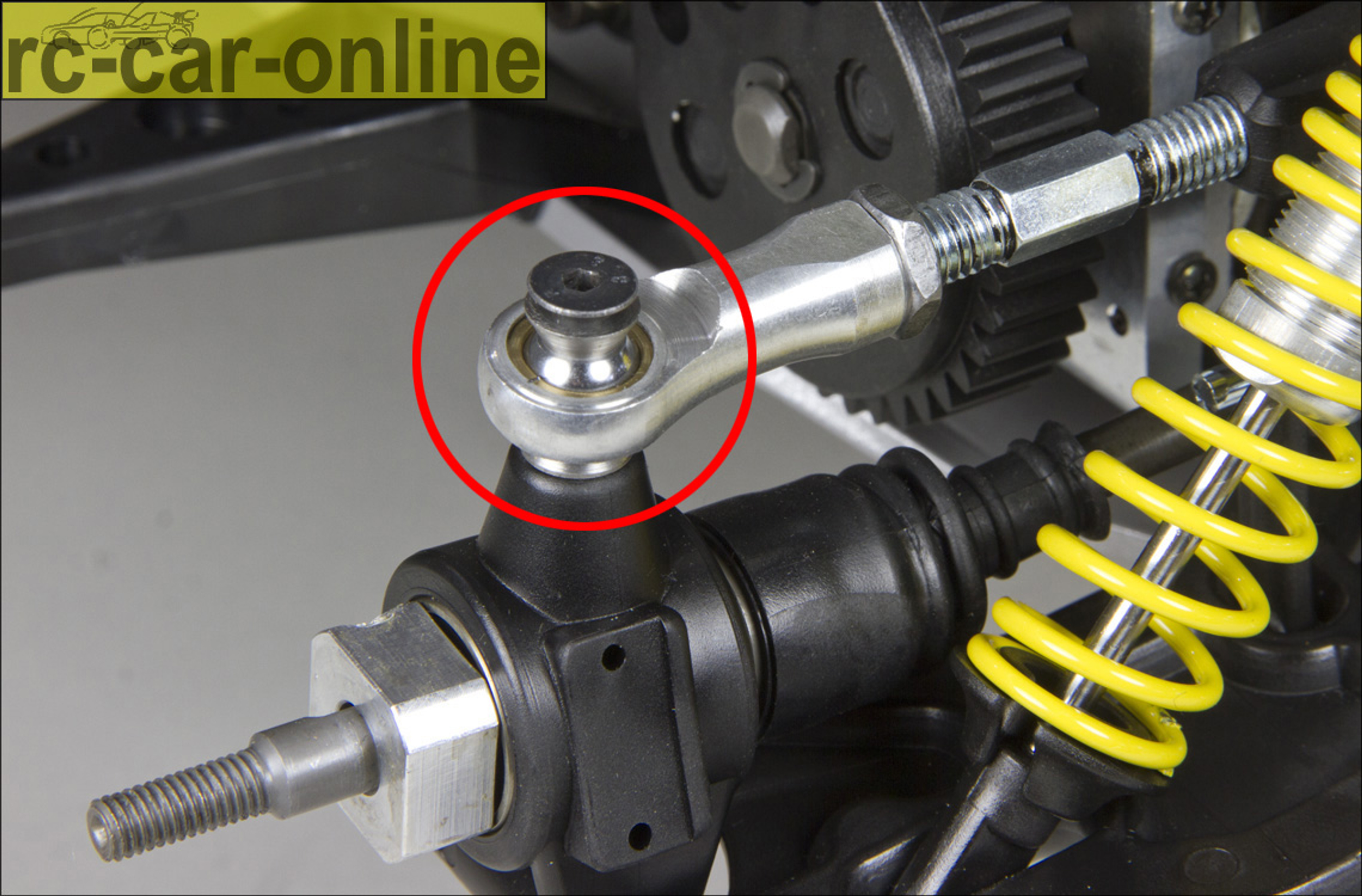

y1106 Aluminum ball joints with 5mm/M8 r/h or l/h thread, pair

rc-car-online

€14.90*

Prices incl. VAT plus shipping costs

Available

Version:

y1106/01 r/h thread, 2pcs.

y1106/02 l/h thread, 2pcs.

y1106/03 one each r/h and l/h thread

Product number: y1106

EAN: 4058575023180

Supplies

4429/02 FG Steel taper disk 5mm bore

Genuine FG spare/option part.Steel taper disks, 3.5 mm thick, with a higher stiffness compared to alloy taper disks. Installation of these disks allows for larger operation angles of the metal ball joints and rose joints. You need two disks per joint.Contents:4 pieces

€10.95*

Product information "y1106 Aluminum ball joints with 5mm/M8 r/h or l/h thread, pair"

Genuine HT spare/option part.

Two balljoints 5mm/M8 optionally with four conical spacers, to replace FG #6029/1 + #6029/8 + balls. (Set content like FG 4437)


The maintenance-free rod ends with the sliding contact surface combination steel/ bronze composite feature a spherical plain bearing with a brass outer ring which is lined with a layer of bronze web in to which PTFE with molybdenum disulphide has been rolled.

Dimensions:

A = 5 mm
B = M8 right/left
C = 8 mm
D = 17,5 mm
E = 39 mm

Contents:

2 piece

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.
