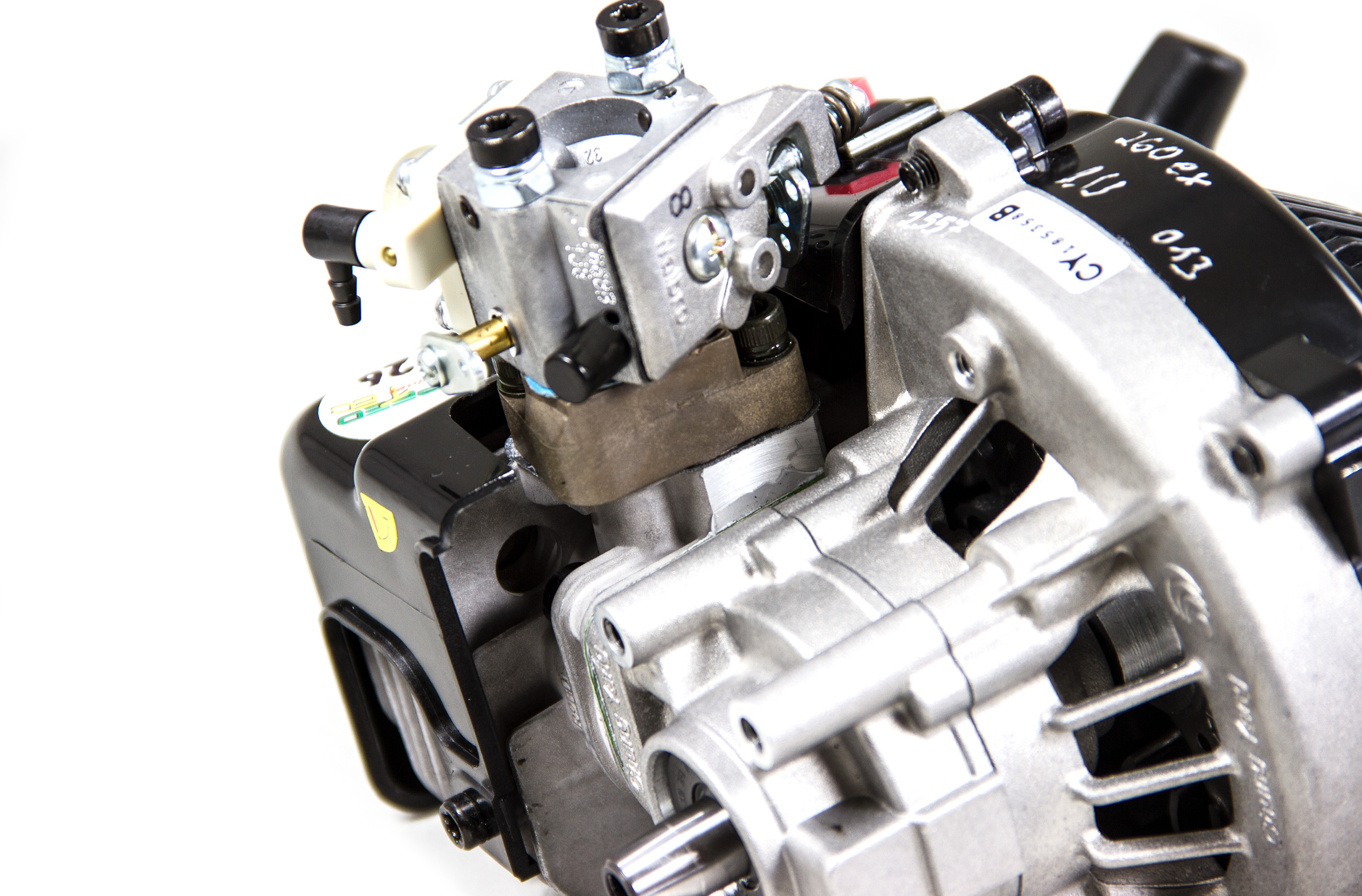

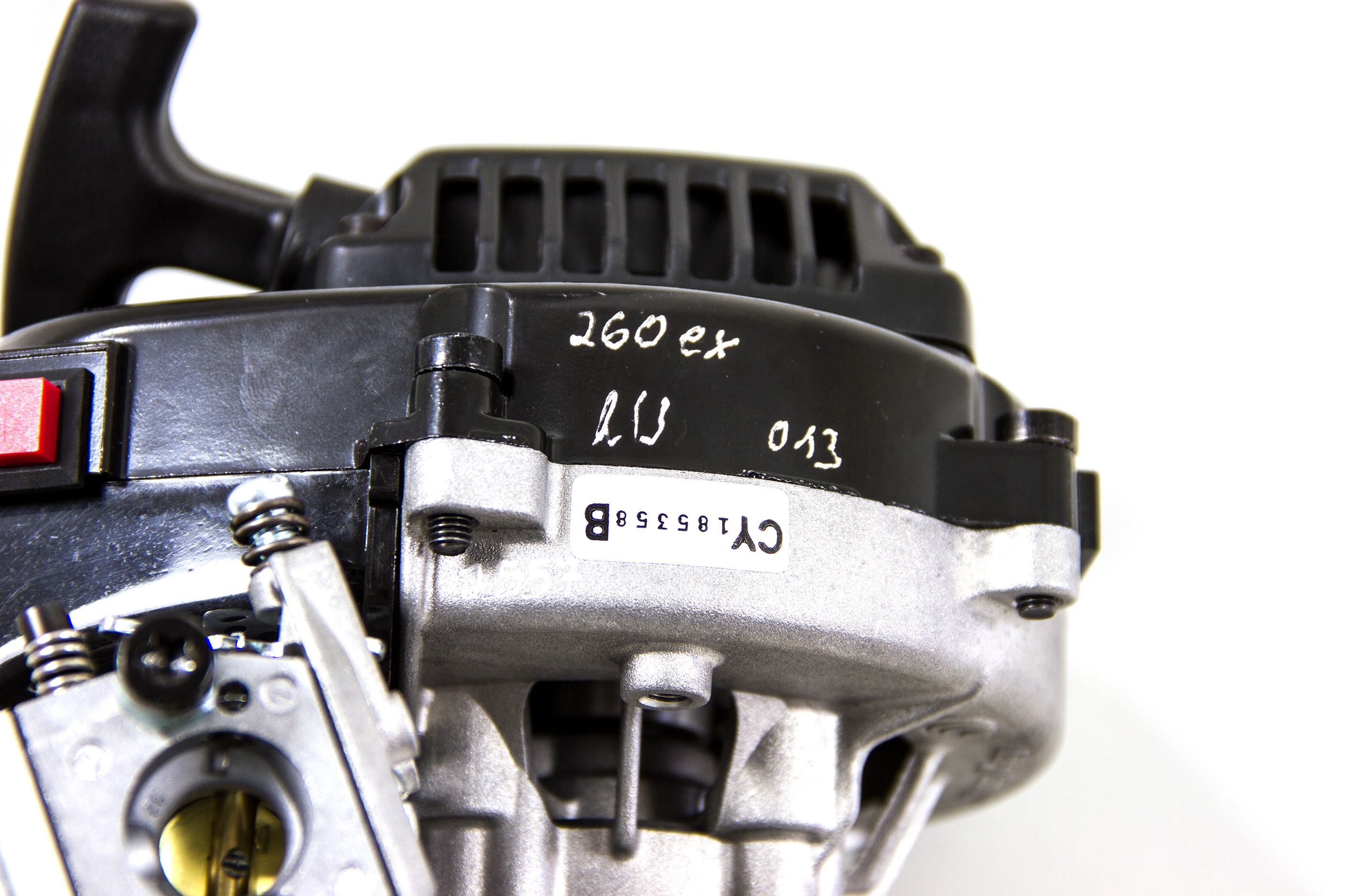

y0795 SPEED TEC 5ive-T original 26er EXPERT tuning engine
€599.00
Available
Product information "y0795 SPEED TEC 5ive-T original 26er EXPERT tuning engine"
SPEED TEC EXPERT version modifications:

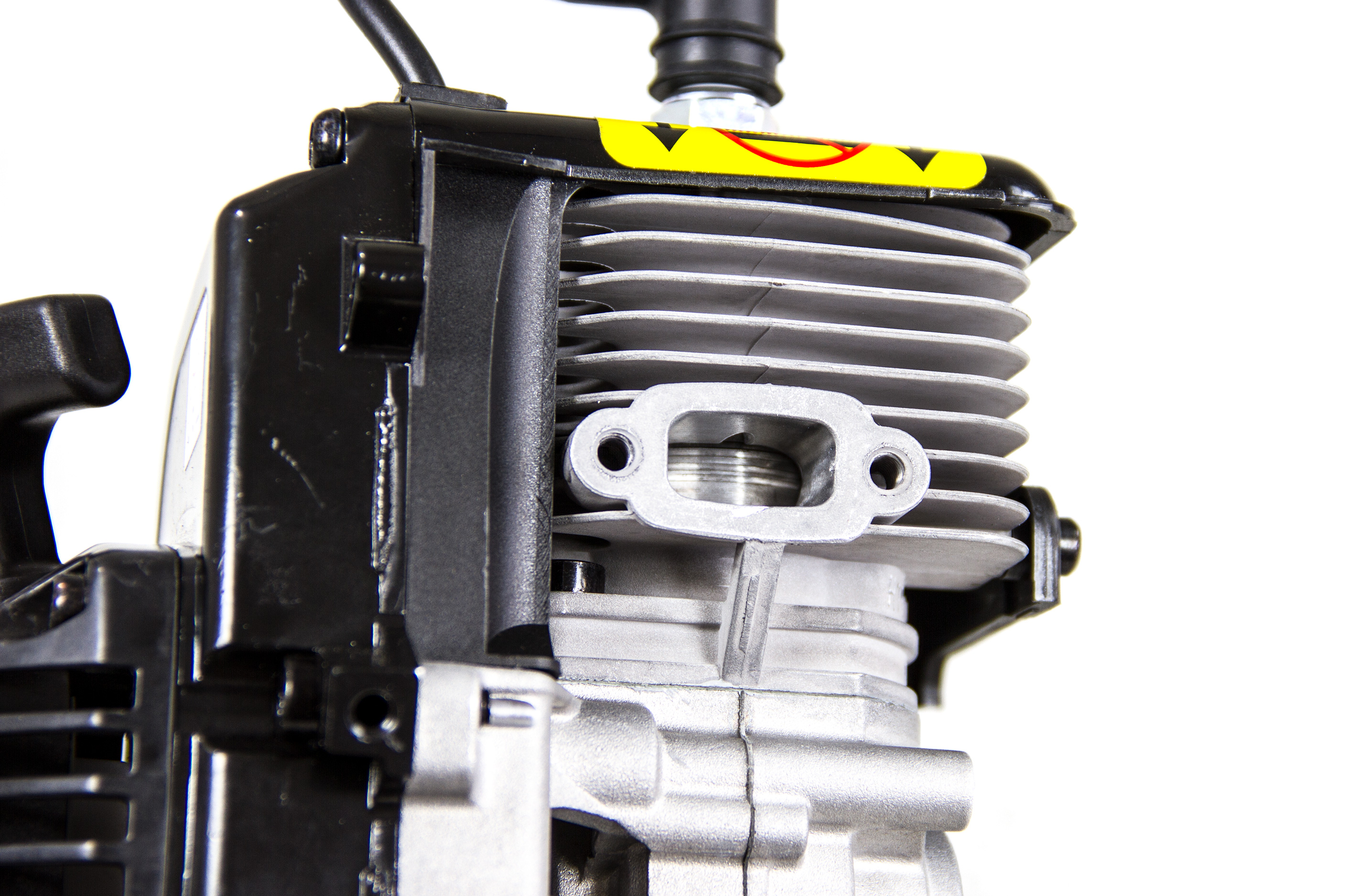

Cylinder:
Adjustment of compression; enlarged ports, fuel management milled, machined and polished exhaust and intake.
Piston:
weight reduced; skirt shortened; oil rings, piston above and below piston ring tapered and piston dome ground.
Crankshaft:
is adjusted and aligned.
Flywheel:
weight reduced and checked for runout.
Gaskets:
use of premium quality gaskets.
To achieve the optimum performance gain of a SPEED TEC EXPERT engine, we recommend the use of a tuned pipe (to the tuned pipes).
Login
Accessories / Spare parts
To ensure the required cooling for current 1/5 and 1/6 engines the flywheels have fins on both sides. Therefore the fan housing has large openings on the crankcase side for the required air supply. However, the risk of foreign objects (grass, sand, or even stones!) entering here Is very high! As a result, broken fins on the flywheel occur frequently. This leads to reduced cooling efficiency and - even more critical vibrations from a flywheel which is out of balance due to missing fins. Therefore, this kind of flywheel protection is highly recommended, especially for offroad use. The product video explains the handling in detail! Note:It is essential to thoroughly clean and degrease the crankcase prior to attaching the hook-and-loop tape (OKS2661)!For installation on Chung-Yang and Zenoah engines in FG cars, the crankcase cover must be slightly modified in two places where the engine mount is attached (see Figure 6 and 7). Furthermore the fit of the fabric must be as tight as possible in the region of the layshaft pinion (in front of the differential ring gear!) (see Figure 8).Set includes:Special tailored fabric with sewed on hook-and-loop tapehook-and-loop tape for installation to the crankcaseAdhesive for securing the hook-and-loop tape
Genuine HT spare/option part. New billet version, CNC-machined!Fits Zenoah G230/240/260/270/290/320, Losi, HPI Fuelie and CY engines. Not as easily damaged as the stock plastic unit.Does not fit PT (Carson/Smartech) engines!Contents:1 piece
Genuine HT spare/option part. Special fabric bag to protect engines, rc-plates or other expensive items. Large opening and pull-string closure.Size:Diameter 200 mmHeight 200 mmContents:1 pieceAccessories not included.
Fully synthetic oil, available in three blends. 1-liter bottle.The optimal 2-stroke oil for 23-30 cm³ engines/cars Motul Racing Oil is available in three different blends: On-Road for high revving onroad cars Off-Road for cars with high torque enginesMixing ratio for 1/5 & 1/6 applications: We recommend a mix with about 4% oil, which means 200 cc of oil to 5 litres of gas (1:25 ratio). With one litre of Motul oil you can mix about 25 litres of optimal fuel for your 1/5 or 1/6 car. That's enough for well over 20 hours of driving fun! Oil / Gas Oil percent Oil per 1 liter of gasoline Oil per 2 liter of gasoline Oil per 3 liter of gasoline Oil per 4 liter of gasoline Oil per 5 liter of gasoline 1:20 5% 50 ml 100 ml 150 ml 200 ml 250 ml 1:25 4% 40 ml 80 ml 120 ml 160 ml 200 ml 1:30 3,33% 33 ml 67 ml 100 ml 134 ml 167 ml 1:33 3% 30 ml 60 ml 90 ml 120 ml 150 ml 1:35 2,86% 29 ml 58 ml 86 ml 115 ml 143 ml 1:40 2,5% 25 ml 50 ml 75 ml 100 ml 125 ml 1:50 2% 20 ml 40 ml 60 ml 80 ml 100 ml

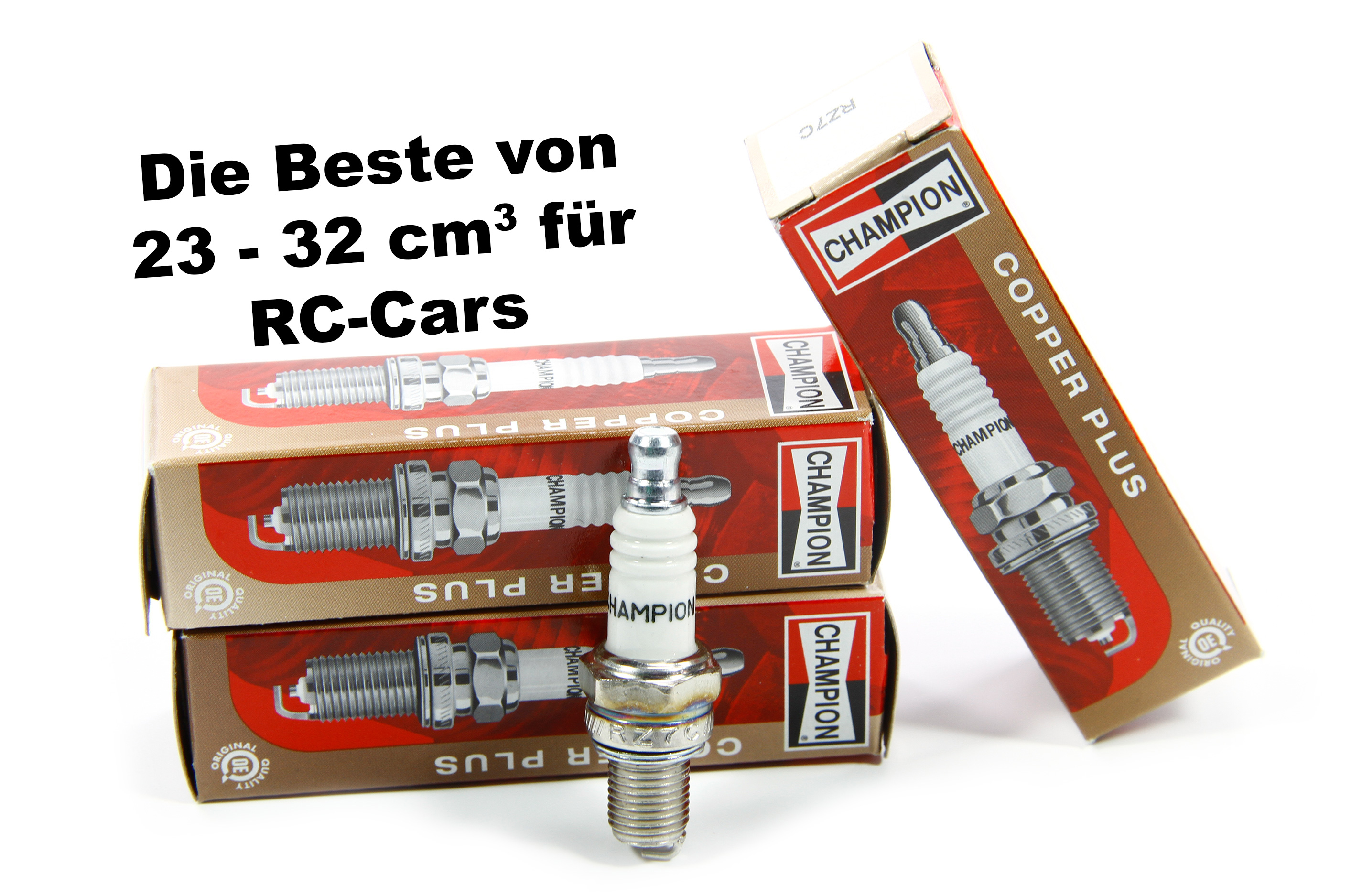

Genuine Champion spare/option part.OEM spark plug for Zenoah G230/240/260/270/290/320.Ideal too for PT, Chung Yang, Losi, HPI-Fuelie, Smartech, Nutech and Carson and other engines.The most widely used, qualitatively best spark plug for the model sport! Especially by the most 1/6 scale models the short ceramic body is indispensable, because otherwise on grounds of the heightened mounting position- the spark plug would protrude beyond the roll cage and therefore is extremely fragile by flashovers.Contents:3 pieces
Genuine HT spare/option part. Helpful tool for removal of clutch shoes, flywheels and many more.FitsZenoah G230/G240/G260/G270/G290/G320Chung-Yang enginesPT enginesLosi enginesHPI enginesThreadsize:M10 x 1Contents:1 piece
Genuine HT spare/option part. Especially for CY / Zenoah G230/240/260/270/290/320, HPI and Losi engines.Can be used for removal of the standard clutch as well!Contents:1 piece
Product Safety DangerCauses serious eye irritation.Highly flammable liquid and vapour.May cause drowsiness or dizziness.Repeated exposure may cause skin dryness or cracking.Marston Universal blue is the leading non-setting gasket and sealing compound in use world-wide. The product is used by many of the world?s major automotive manufacturers and by several Formula 1 teams.Features- Non hardening and non setting- Unlimited assembly time- Vibration resistant- Allows metal to metal contact- Resistant to combustion products, water, engine coolant, petroleum, lubricating oils, kerosene and fluorocarbon refrigerants- Seals surface imperfections- Withstands rapid variations in temperature80 ml tube
Content: 80 Milliliter (€123.75 / 1000 Milliliter)
Especially for installation of all engine gaskets. Temperature resistant from -55 °C to +200 °C. Resistant to water, mineral oils, synthetic lubricants, fuels, organic solvents and refrigerants. info: Hand tight: 10 - 20 minReady to use: 1 - 3 hoursGap fill: 0.5 mmContent: 50 ml Notes for usage: This surface seal is not for use as the sole sealant, it should always be applied in combination with a paper gasket.The HT-surface sealing agent should be sparsely applied over the entire surface, with care being taken that the sealant does not enter the devices internals (e.g. crankcase, differential a.s.o.) during the assembly.
Content: 50 Milliliter (€538.00 / 1000 Milliliter)
Genuine HT spare/option part. After-Run is a performance enhancing preservation, which ensures that the engine starts properly, even after a long time (winter break) storage. Added to the fuel it keeps the fuel system clean.Among other After-Run conserves the diaphragm of the Walbro carburetor!For long term storage (i.e. during winter!) "vital" for the carburetor diaphragms!For 23 to 32 cm³ engines like Zenoah, Chung Yang, PT, Losi, HPI a.s.o.It binds water in the fuel, particularly important when the engine is not run regularly or after wet races. After-Run improves engine performance, ensures better combustion, removes debris and residues. Simply add the content of the bottle to 5 litres of fuel.Contents:1 piece / 20 ml
Content: 20 Milliliter (€395.00 / 1000 Milliliter)
Customers also viewed

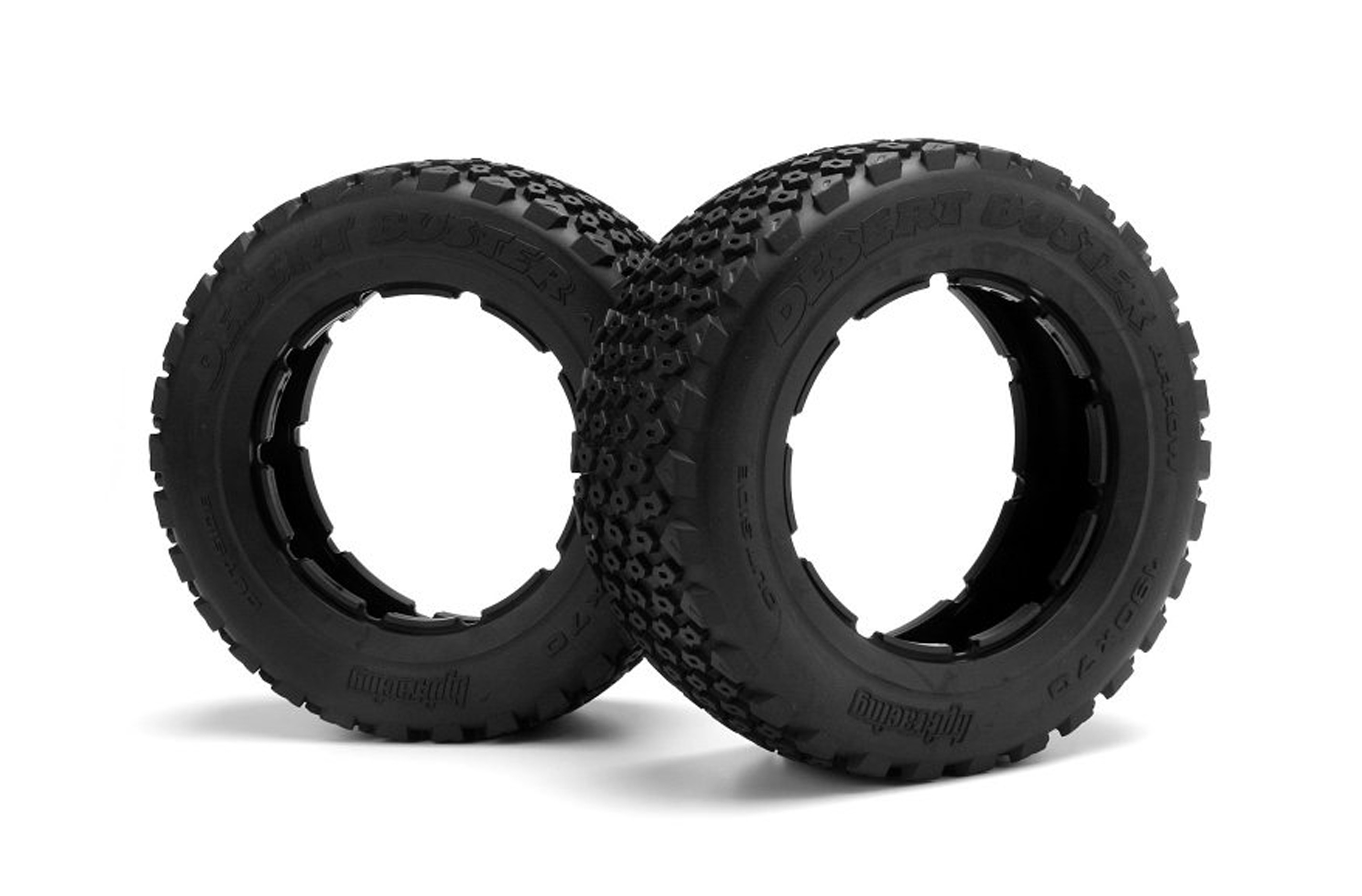

Genuine HPi spare/option part. HPI Racing Desert Buster Radial Tires are original equipment on the Baja 5T line of 1/5th scale trucks. These are front tyres that feature a "radial" tread design for stable steering control on a wide variety of surfaces. The HD Compound is perfect for heavy duty performance with the Baja 5T, it's a formulated rubber blend that resists rips and tears, developed for extreme driving conditions.Dimensions:Diameter: 190 mmWidth: 70 mmContent:2 piece / 1 pair
The new Raceline FF 530 is a very powerful competition model at an affordable price.In some countries a new competition category has been established so that as many RC car drivers as possible can enter the competition cheaply.RACELINE FF 2WD 530 Especially for competition use!Features:Front upper POM* a-armsfront/rear lower POM* a-armsPOM front axle bracketPOM shock mounts front and rear5 mm chassis platedual large diameter disk brakealuminum differentialNew rear braceDrive optimizationFront and rear aluminum spindles/uprightsAdjustable aluminum servo saverAluminum gear plateAluminum spur gear carrierLarge-volume tuned pipe systemHomologated and large volume airbox and tuned pipe systemOne advantage of POM* is its high dimensional stability. That means that it hardly changes its shape. The polymer has very good sliding and wear properties. The plastic has high strength and rigidity as well as medium to high impact strength and hardness. Its advantages also include high resilience. A very low center of gravity of the vehicle ensures good driving behavior on the track, the servos are installed lying down to support this behavior.*Polyoxymethylene (POM for short) are high molecular weight thermoplastics. The colorless, partially crystalline polymers are mainly used for the production of molded parts by injection molding.You can select the car with complete RTR-equipment from the options menu.RTR-equipmentRTR = Ready to Run. The RTR version comes ready to use with the 2,4 GHz rc-system already installed.Transmitter 2,4 GHzReceiver1x High power servo for throttle and brake 2x High power servo for steeringTx-battery, rx-batteryContent:1 piece
Fully synthetic oil, available in three blends. 1-liter bottle.The optimal 2-stroke oil for 23-30 cm³ engines/cars Motul Racing Oil is available in three different blends: On-Road for high revving onroad cars Off-Road for cars with high torque enginesMixing ratio for 1/5 & 1/6 applications: We recommend a mix with about 4% oil, which means 200 cc of oil to 5 litres of gas (1:25 ratio). With one litre of Motul oil you can mix about 25 litres of optimal fuel for your 1/5 or 1/6 car. That's enough for well over 20 hours of driving fun! Oil / Gas Oil percent Oil per 1 liter of gasoline Oil per 2 liter of gasoline Oil per 3 liter of gasoline Oil per 4 liter of gasoline Oil per 5 liter of gasoline 1:20 5% 50 ml 100 ml 150 ml 200 ml 250 ml 1:25 4% 40 ml 80 ml 120 ml 160 ml 200 ml 1:30 3,33% 33 ml 67 ml 100 ml 134 ml 167 ml 1:33 3% 30 ml 60 ml 90 ml 120 ml 150 ml 1:35 2,86% 29 ml 58 ml 86 ml 115 ml 143 ml 1:40 2,5% 25 ml 50 ml 75 ml 100 ml 125 ml 1:50 2% 20 ml 40 ml 60 ml 80 ml 100 ml
Genuine Losi spare/option part. Contents:1 piece

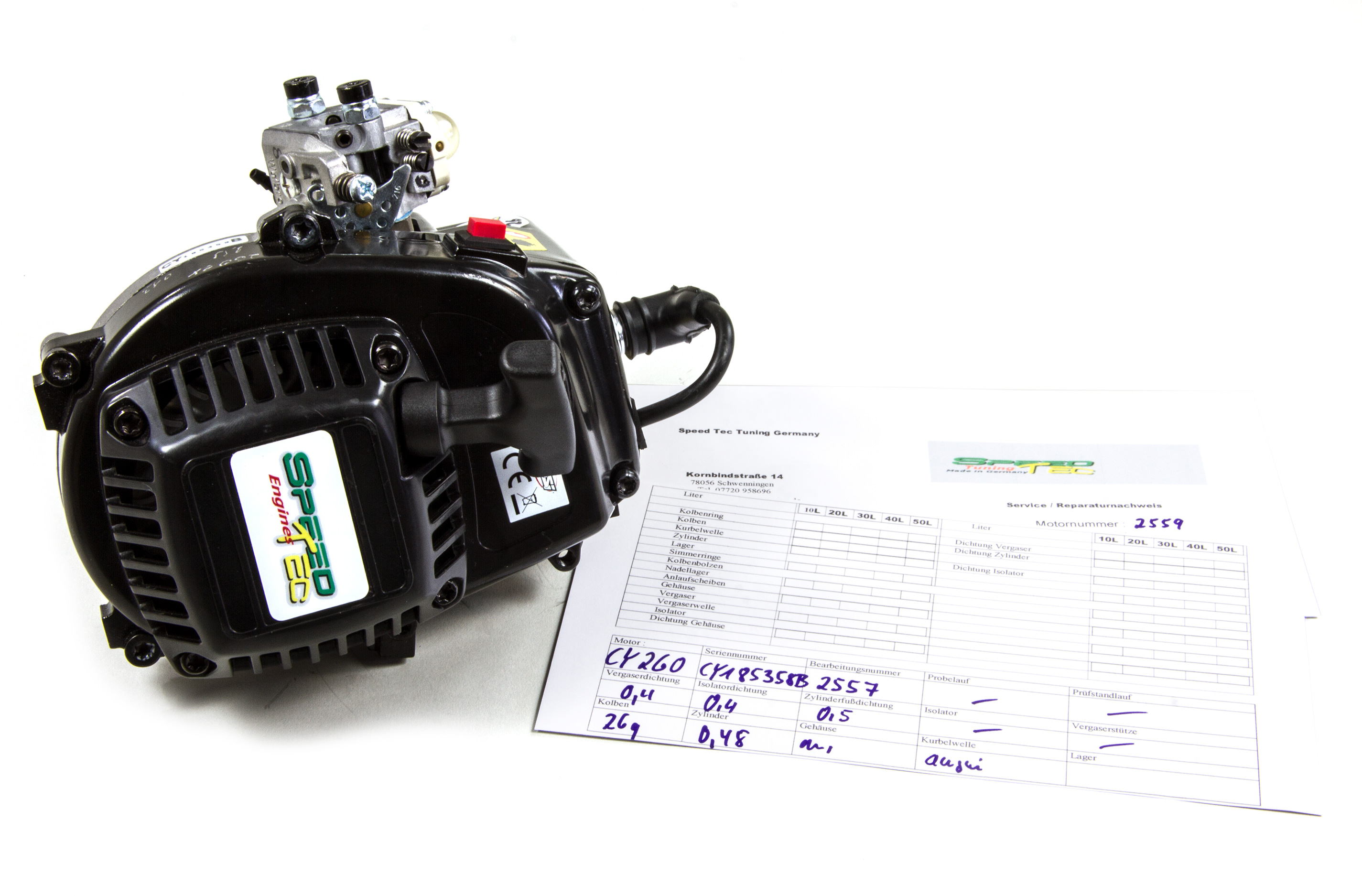

The SPEED TEC EXPERT genuine Chung-Yang engine is optimized for performance with sophisticated craftsmanship and guarantees, besides greatly increased performance, excellent workmanship and stamina. SPEED TEC EXPERT version modifications: Cylinder: Adjustment of compression; enlarged ports, fuel management milled, machined and polished exhaust and intake. Piston: weight reduced; skirt shortened; oil rings, piston above and below piston ring tapered and piston dome ground. Crankshaft: is adjusted and aligned. Flywheel: weight reduced and checked for runout. Gaskets: use of premium quality gaskets.With individual SPEED TEC serial number plate.To achieve the optimum performance gain of a SPEED TEC EXPERT engine, we recommend the use of a tuned pipe ( to the tuned pipes ).

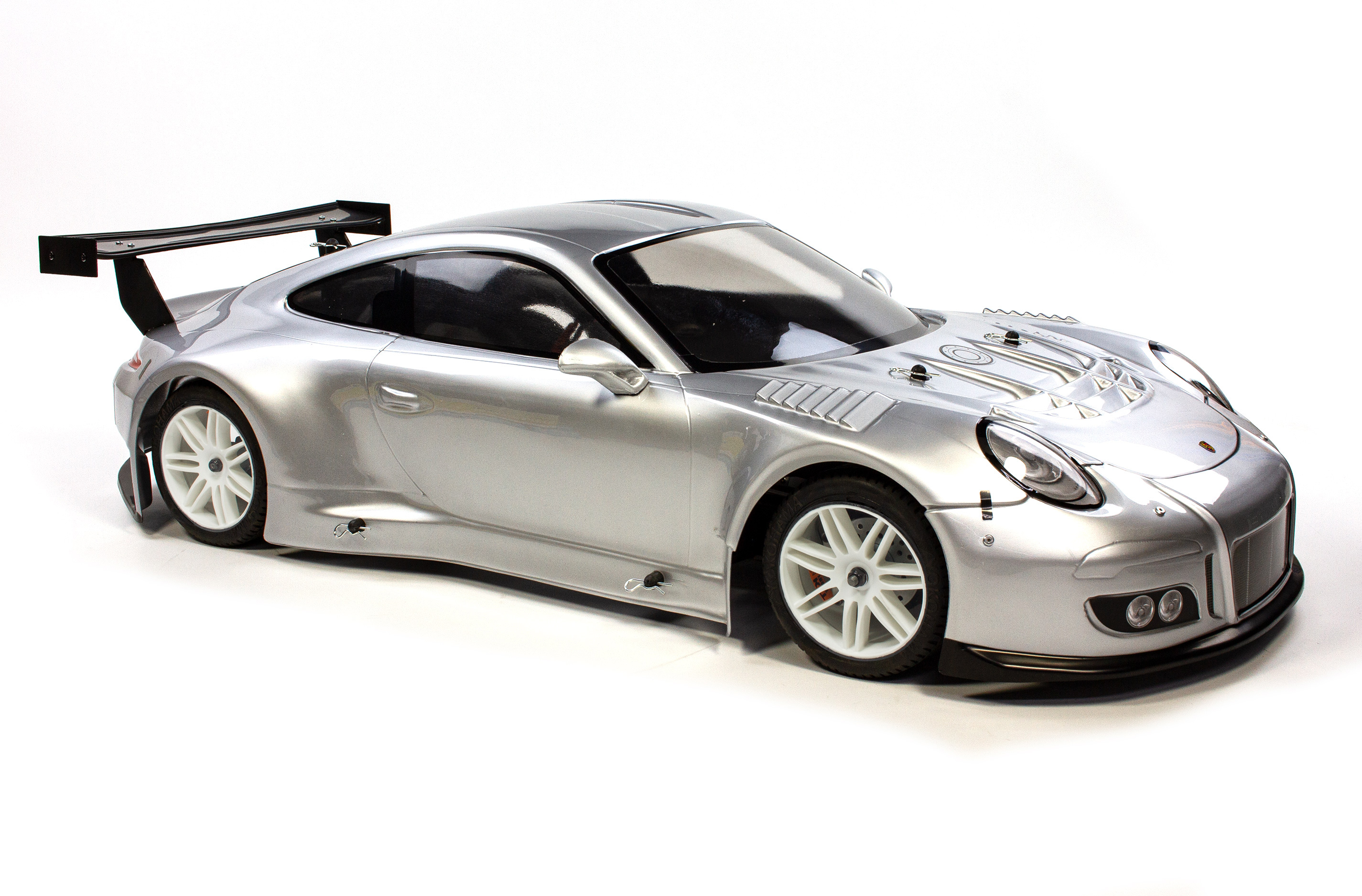

Genuine FG spare/option part. The body shell is delivered unpainted, without decal set and rear wing.500 mm wheelbaseLength: 690 mmWidth: 385 mmHeight: 240 mmContents:1 piecePainting tips:
With 32 cm³ and 30% more power than the Zenoah G290.Significantly more torque and higher stamina due to larger sized bearings all around, with Racing Carburetor Walbro WT1107.The motor is supplied with WT-1107 carburetor and spark plug.SpecificationType: Two stroke gasoline engineDisplacement: 31,8 cm³Bore: 38 mmStroke: 28 mmWeight: 2,3 KgOverall Dimension:Length: 167 mmWidth: 215 mmHeight: 196 mmMaximum Output: 4,6 PSMaximum Torque: 2,00 N-mRotation Direction: CounterclockwiseCarburetor: Walbro WT-1107Spark plug: CMR7HStarting: Recoil starterFor all HPI Baja 5 cars the G320RCer clutch housing has to be shortened at the mounting base, for Losi 5ive- T and Desert Buggy XL cars the clutch housings overall length must be shortened to CY size.With the new "K & N" version of the Losi DBXL there is another detail, which need to be considered.From the very beginning the hole pattern for the engine installation in the DBXL chassis plate was no precise match to the hole pattern of the engine, even when delivered in stock form with standard engine. Now with the "K&N" version the engine mount has been changed to eliminate this discrepancy. However, all aluminum engine mounts available on the market share their dimensions with the previous plastic engine mount. For the installation of a G320 Zenoah in a "K&N" -DBXL two possible combinations exist in order to obtain the correct hole pattern:When using the standard (new) plastic engine mount a shortened clutch housing is required as in a 5ive-TWhen using an aluminum engine mount a stock length clutch housing is requiredSeparately, it is recommended to enlarge the cutout in the body panel in front of the K & N air filter for about 2 - 3 mm to ensure that the panel cannot chafe on the air filter.When installing the air filter you must pay attention to the length of the screws.For use on Losi and HPI we recommend M5x45 screws (like H94763); you can also cut existing screws to length, of course.When ordering with a modified clutch housing we will include these screws!In our shop you can select from Zenoah G320RC engines already modified to fit your HPI or Losi car.The installation of the Zenoah G320RC in other cars (like FG or Smartech buggies / monsters a.s.o.) is not even remotely straightforward, since the layshaft pinion (the small pinion in front of the big differential spur gear) is in the way for the larger Zenoah G320RC crankcase.Compatibility Zenoah / Losi 5ive-T:Please note that for installation in a Losi 5ive the fan cover must be swapped for a Losi or CY cover #5341 in order to fit the chassis" bolt pattern.If you want to install a Zenoah engine into the Losi 5ive, you usually have to use a fan cover from the CY engine.However, there is a workaround to maintain Zenoah fan cover.The adjustment is done via the pinion specific mounting plates for the engine. The change always affects only the rear, outer (carburetor side) plate under the fan cover. This is rotated by 180°; so that the embossed number on this plate faces the exhaust side of the engine!18T pinion: use 20T plate, rotated 180°19T pinion: use 19T plate, rotated 180°20T pinion: use 18T plate, rotated 180°On the plus side you gain the opportunity to easily mount a Zenoah engine keeping the original fan cover. On the other hand there will be the disadvantage of the necessity to combine two different sets of engine mounting plates when installing any pinion other than the stock 19T version. Therefore we do not recommend this workaround for everyday use. Nevertheless it works perfectly should ever the need arise. Attention! We recommend to run exclusively fully synthetic 2-stroke engine oil, like y0813 Motul 800 racing oil.
