y1310 Hitec HS-1005SGT/HS-1100WP small mounting set for Losi 5ive-T, 2.0, 5ive-B and Mini

EUR 139,90

set - + shipping costs
all prices include VAT

1 2 3 4 5
piece: set

Available from stock
Available from stock
Place your order within the next 08.02.23 14:00:00 and we will ship tomorrow,  08 . February 2023

Fits 5ive-T 2.0 as well!

Set includes:

  • y1307 Aluminum servo horn Hitec HS-900SGS/HS-1000SGT/HS-1005SGT/HS-1100WP
  • y1308/01 Aluminum servo mount A Hitec HS-900SGS/HS-1000SGT/HS-1005SGT/HS-1100WP
  • y1308/02 Aluminum servo mount B Hitec HS-900SGS/HS-1000SGT/HS-1005SGT/HS-1100WP
  • y1309 All steel linkage steering servo/servo saver application

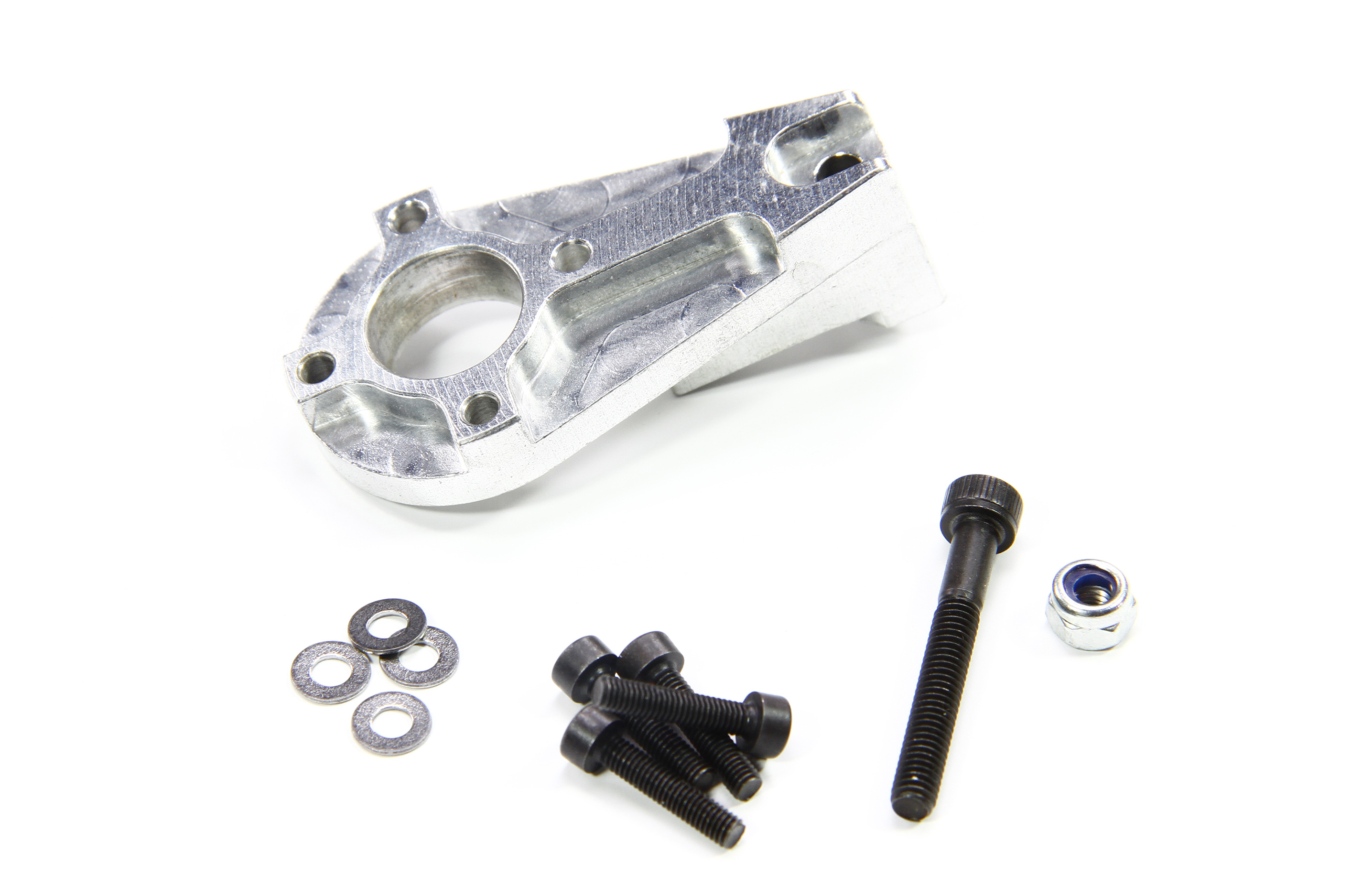

y1307 Aluminum servo horn Hitec HS-900SGS/HS-1000SGT/HS-1005SGT/HS-1100WP Losi 5ive-T, 5ive-B and Mini

Genuine HT spare/option part.

This extremely strong servo horn is specifically designed with dimensions for the installation of the Hitec HS-900SGS/HS-1000SGT/HS-1005SGT/HS-1100WP high-performance servo in the Losi 5ive-T and Mini for steering application, but it can be used in other cars with this kind of servo.

It bolts directly to the servo’s stock aluminum disk.

The lever of this arm is longer than that of the servo saver. This gives you faster actuating speed of the steering.

A linkage with a double-sided arm can only be done properly if all corresponding levers are the same length and the linkages run exactly parallel. If this is not the case, the servo and servo saver shaft will try to change the distance to each other with every steering movement . Thus, undesirable constraining forces.
For this reason we decided to give preference to the single-sided arm.

Scope of delivery:
  • 1 x Aluminium servo horn
  • 4 x Socket head cap screws 3 x 14 mm
  • 1 x Socket head cap screws 4 x 30 mm
  • 1 x Self-locking
  • hexagon nut M4
  • 4 x Shim ring 3,2

  • 1 piece

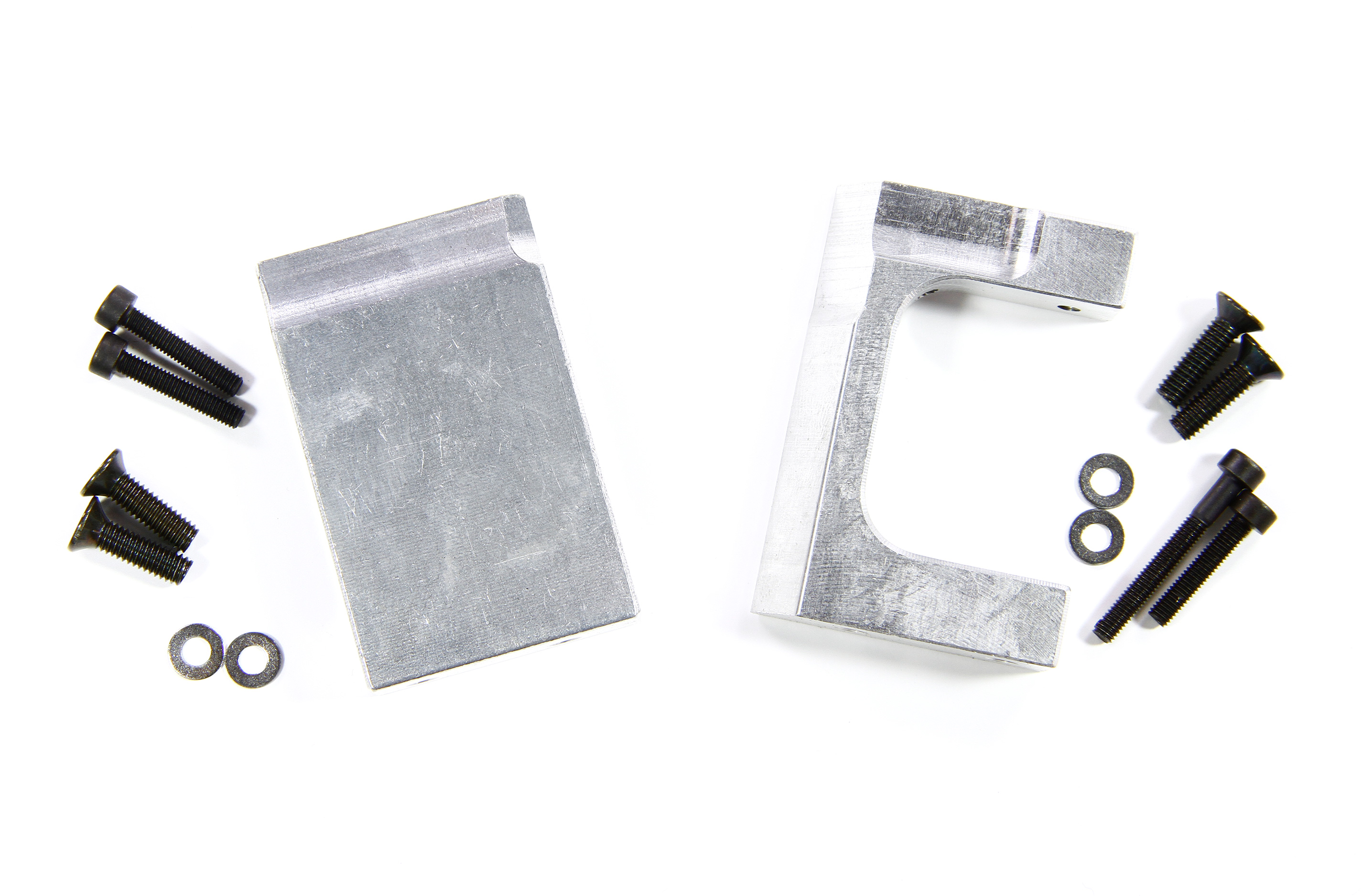

y1308/01 + y1308/02 Aluminum servo mounts Hitec HS-900SGS/HS-1000SGT/HS-1005SGT/HS-1100WP Losi 5ive-T, 5ive-B and Mini

Genuine HT spare/option part.

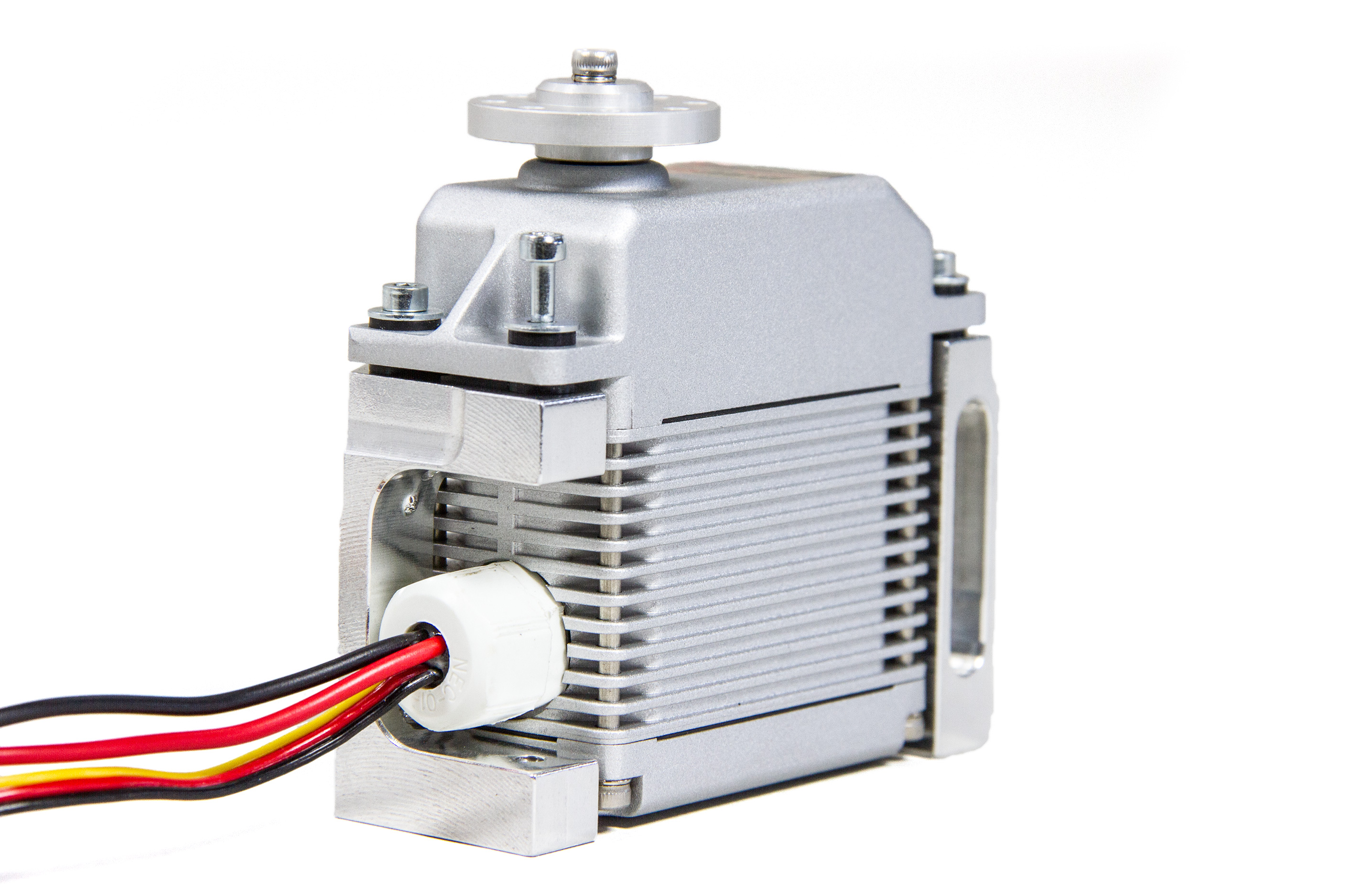

These servo mounts allow for a simple and strong mounting of the Hitec HS-900SGS/HS-1000SGT/HS-1005SGT/HS-1100WP high power servo for steering application.
The massive servo mounts bolt to the chassis using existing mounting holes. The mount for the stock servo has to be cut off the radio plate. The aluminum servo mounts feature a pair of additional mounting holes to install a stock servo should ever the need arise.

The rear mount bolts to the radio plate as well, providing additional support for the plate.

Scope of delivery y1308/01:
  • 1 x Mount A
  • 2 x Socket head cap screws 3 x 16 mm
  • 2 x Countersunk screw 4 x 14 mm
  • 2 x Shim ring 4,2 mm

Scope of delivery y1308/02:
  • 1 x Mount B
  • 1 x Socket head cap screw 3 x 25 mm
  • 1 x Socker head cap screw 3 x 16 mm
  • 2 x Countersunk screw 4x14 mm
  • 2 x Shim ring 3,2 mm

  • 1 set

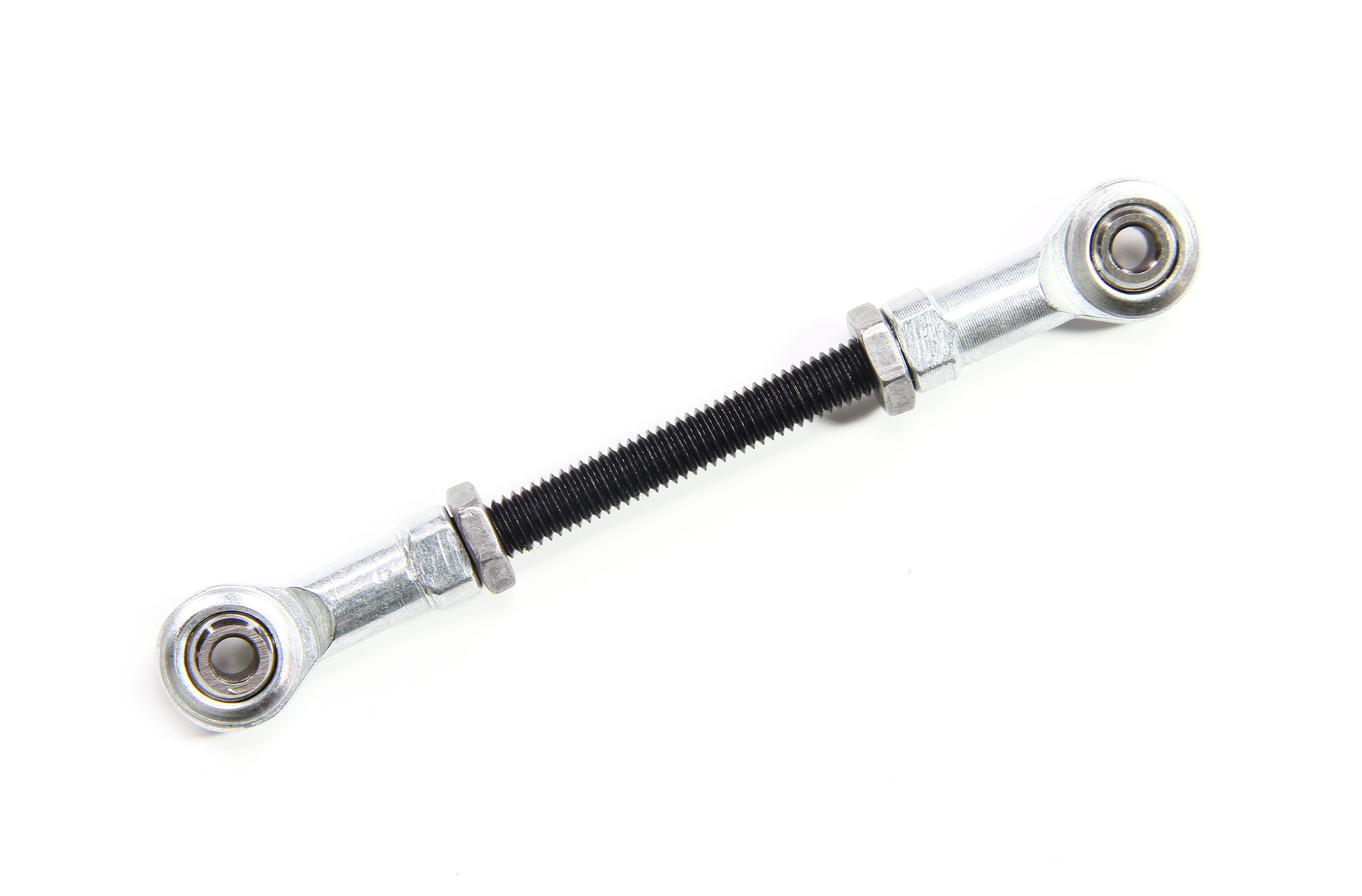

y1309 All steel linkage for Losi 5ive-T and Mini steering servo/servo saver application

Genuine HT spare/option part.

Very strong linkage with M6 steel ball joints.
M6 threaded rod with lock nuts, balls with holes for M4 screws.

Maximum length about 96 mm, but through cutting the M6 rod allows for a minimum length of 48 mm.

Significantly stronger than the standard plastic version, and especially recommend when using the Hitec HS-900SGS/HS-1000SGT/HS-1005SGT/HS-1100WP servo, this linkage can be used with "normal" servos as well.

The threaded rod is not designed as a turnbuckle for a reason because there is not need to change the adjusted length for this application after installation. The setting accuracy of 0.5 mm (½ turn) means a maximum difference to the ideal length of 0.25 mm. This is always sufficient, the trim on the transmitter handles the final adjustment.

On the other hand, a connecting rod with the same thread on both ends will always keep its setting when installed, even when both lock nuts are not tightened against the ball joints. Therefore reliability is higher.

Set includes:

  • 2 x steel ball joints M6
  • 2 x flat lock nuts
  • 1 x M6 x 60 mm threaded piece for Losi 5ive-T
  • 1 x M6 x 80 mm threaded piece for Losi 5ive-T 2.0
  • 2 x spacer tubes

  • 1 piece
