y1306 JETI-SBEC 6-42V voltage regulator
Product information "y1306 JETI-SBEC 6-42V voltage regulator"

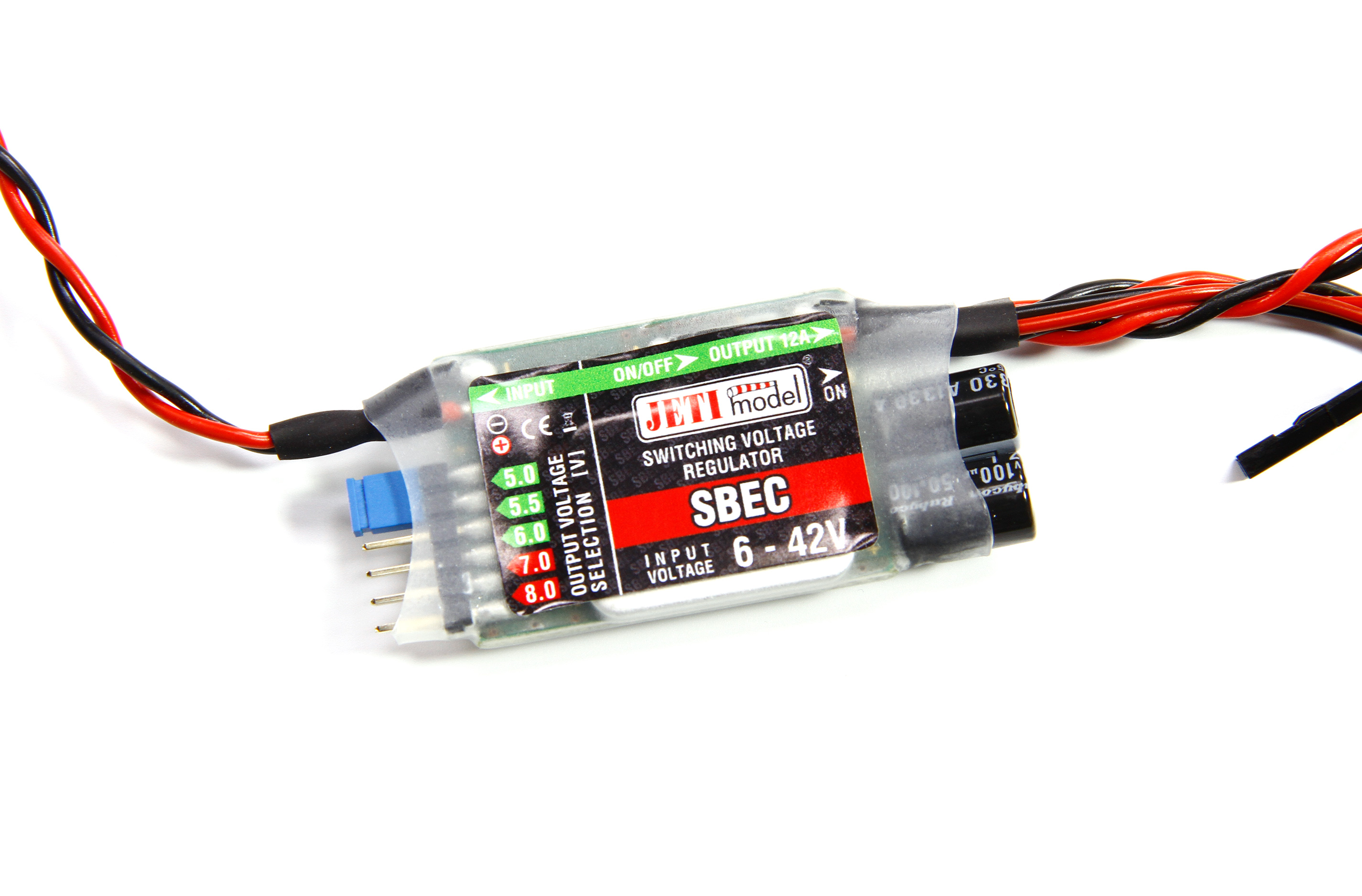

The switching voltage regulator SBEC is supposed to act as a current supply for receivers and servos. It makes possible to use a wide range of input voltages from 2S up to 10S Li-XX cells. Setup of the output voltage between 5 and 8V is accomplished by a shorting plug jumper. This means that the SBEC is also prepared for use with new higher voltage HV-servos.
This voltage regulator is for use in combination with the Hitec Servo HS-900SGS/HS-1000SGT/HS-1005SGT/HS-1100WP and the special LiPo 14.8V/3,600mAh receiver battery y1304. It utilizes a 4S LiPo battery to deliver full battery voltage to the HS-900SGS/HS-1000SGT/HS-1005SGT/HS-1100WP servo with and the usual 6 - to 8 volt supply (depending on the servos) to the rest of the rx system. The output voltage is selectable.
We install the required connectors to the regulator. The connection to the T/B servo is designed as a direct power supply, so even the current for the T/B servo does not run through the receiver.

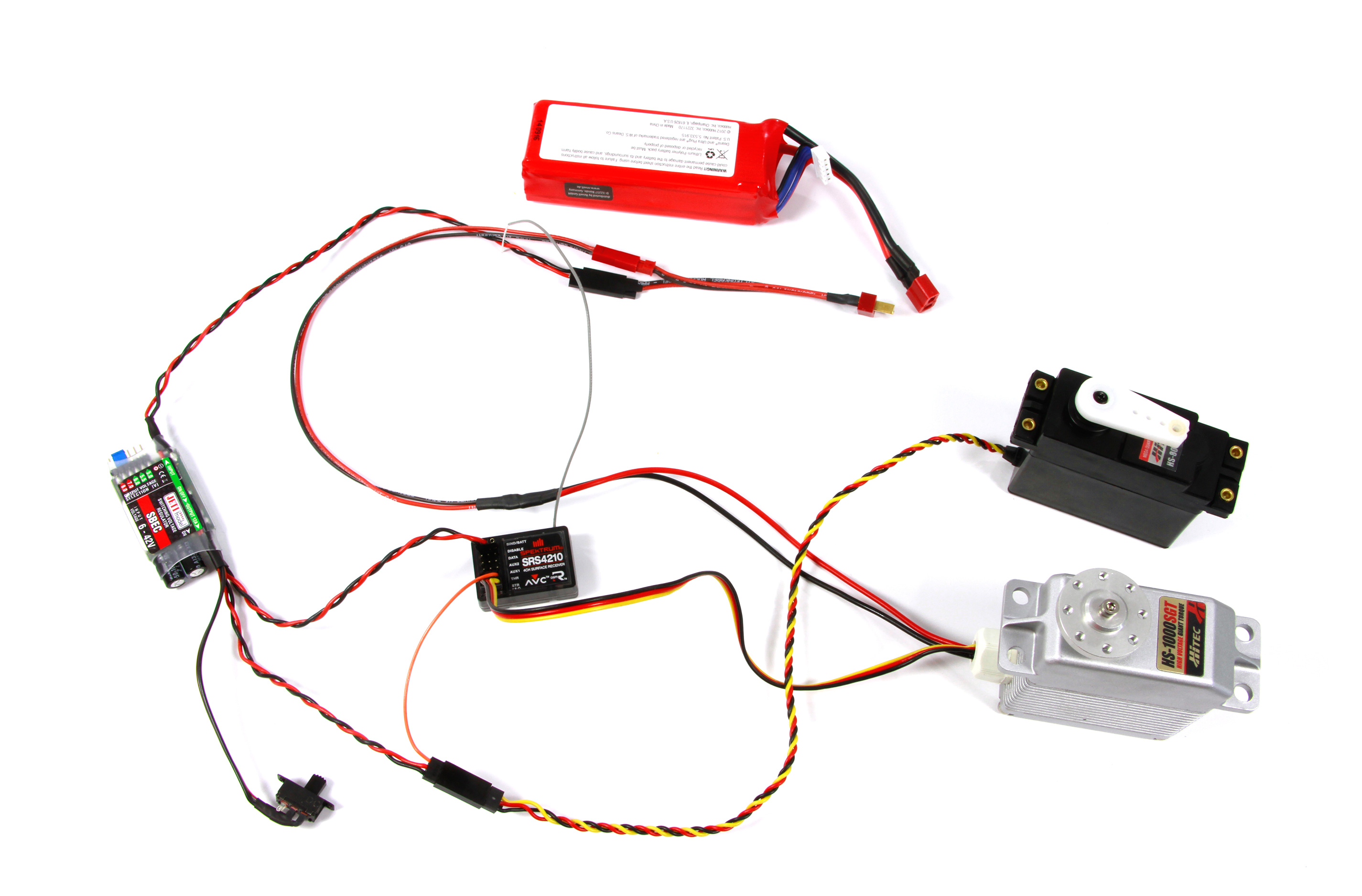

The regulator has connectors for battery, Receiver and T/B servo. The steering servos plugs directly into receiver and battery. The JR/universal connector on the battery is for the regulator, the BEC connector is for the steering servo power line.

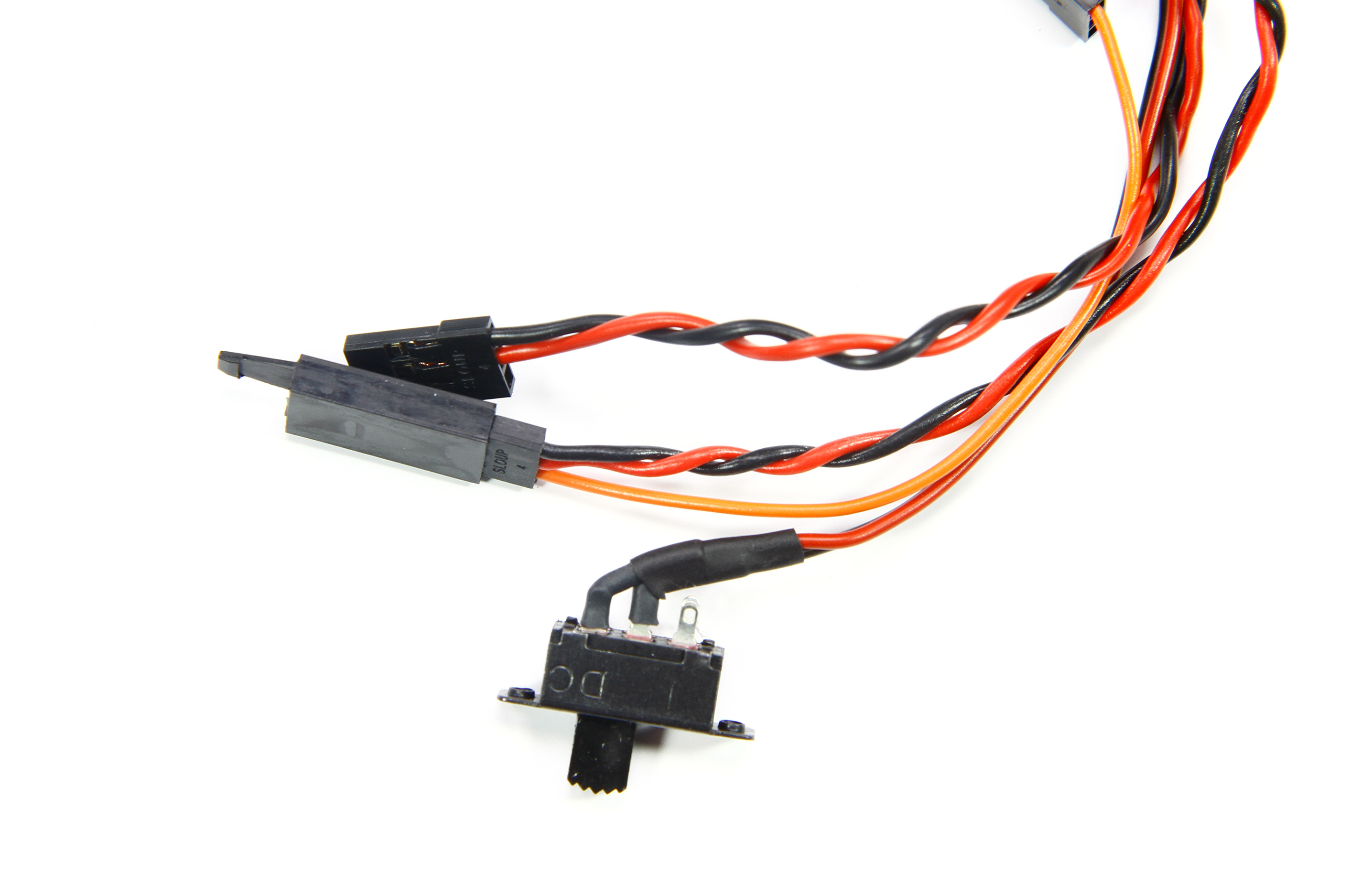

Attention: the switch on the voltage regulator does not disconnect the Hitec HS-1000SGT/HS-1005SGT/HS-1100WP's power output stage from the battery, which has a standby drain of about 6 mA. To prevent deep discharge of the battery, the servo must be disconnected from the battery at the end of the day!
For your convenience you could install our new electronic high voltage switch y0767 between servo and battery.
Wire loom and heat shrink tubing to add a matching connector to the servos power line are included.
Data:
Contents:
This voltage regulator is for use in combination with the Hitec Servo HS-900SGS/HS-1000SGT/HS-1005SGT/HS-1100WP and the special LiPo 14.8V/3,600mAh receiver battery y1304. It utilizes a 4S LiPo battery to deliver full battery voltage to the HS-900SGS/HS-1000SGT/HS-1005SGT/HS-1100WP servo with and the usual 6 - to 8 volt supply (depending on the servos) to the rest of the rx system. The output voltage is selectable.
We install the required connectors to the regulator. The connection to the T/B servo is designed as a direct power supply, so even the current for the T/B servo does not run through the receiver.
The regulator has connectors for battery, Receiver and T/B servo. The steering servos plugs directly into receiver and battery. The JR/universal connector on the battery is for the regulator, the BEC connector is for the steering servo power line.
Attention: the switch on the voltage regulator does not disconnect the Hitec HS-1000SGT/HS-1005SGT/HS-1100WP's power output stage from the battery, which has a standby drain of about 6 mA. To prevent deep discharge of the battery, the servo must be disconnected from the battery at the end of the day!
For your convenience you could install our new electronic high voltage switch y0767 between servo and battery.
Wire loom and heat shrink tubing to add a matching connector to the servos power line are included.
Data:
- Size (w/o wires): 60 x 28 x 10 mm
- Weight: 29 grams
- Input voltage (recommended): 7 to 42 V (2S to 10S LiPo)
- Output voltage (selectable): 5.0 / 5.5 / 6.0 / 7.0 / 8.0 V
- Output current: max. 6,2 A continuous / 12 A impulse
Contents:
- 1 piece
