LOSB5039 Losi Clutch Shoes & Spring, 8,000 RPM. 5T, Mini, DBXL+MTXL

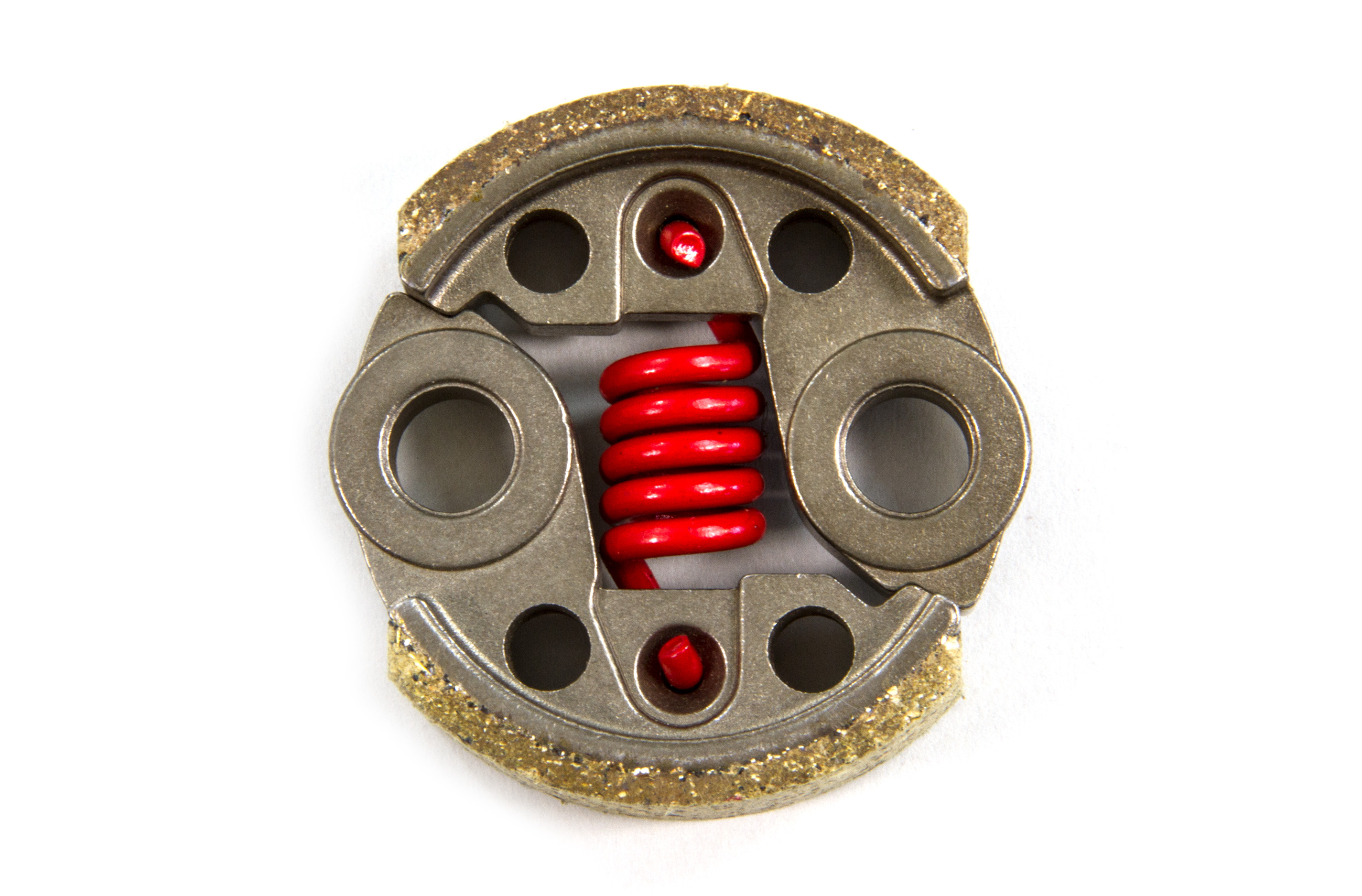

Sintered steel clutch for Zenoah and many other rc-car engines from 23 cm³ to 32 cm³. incl. clutch spring!Note: The sintered steel clutch needs a break in period of at least half an hour run time after their first installation. Only then the clutch surface reaches the desired grip and provides the necessary friction. After that the clutch will show consistent operation and extremely low wear!With 80 grams the weight of the clutch is about the same as the usual OEM clutches.As with all non-adjustable clutches a periodic monitoring of the clutch spring is recommended. By changing the spring, it is also possible to match your car to the track conditions, i.e.: the harder the spring, the higher the stall speed of the clutch.If not on hand, for installation of the sintered steel clutch a clutch spring, the Zenoah screw set # 7318 and the original Zenoah clutch mount # 7315 are required!

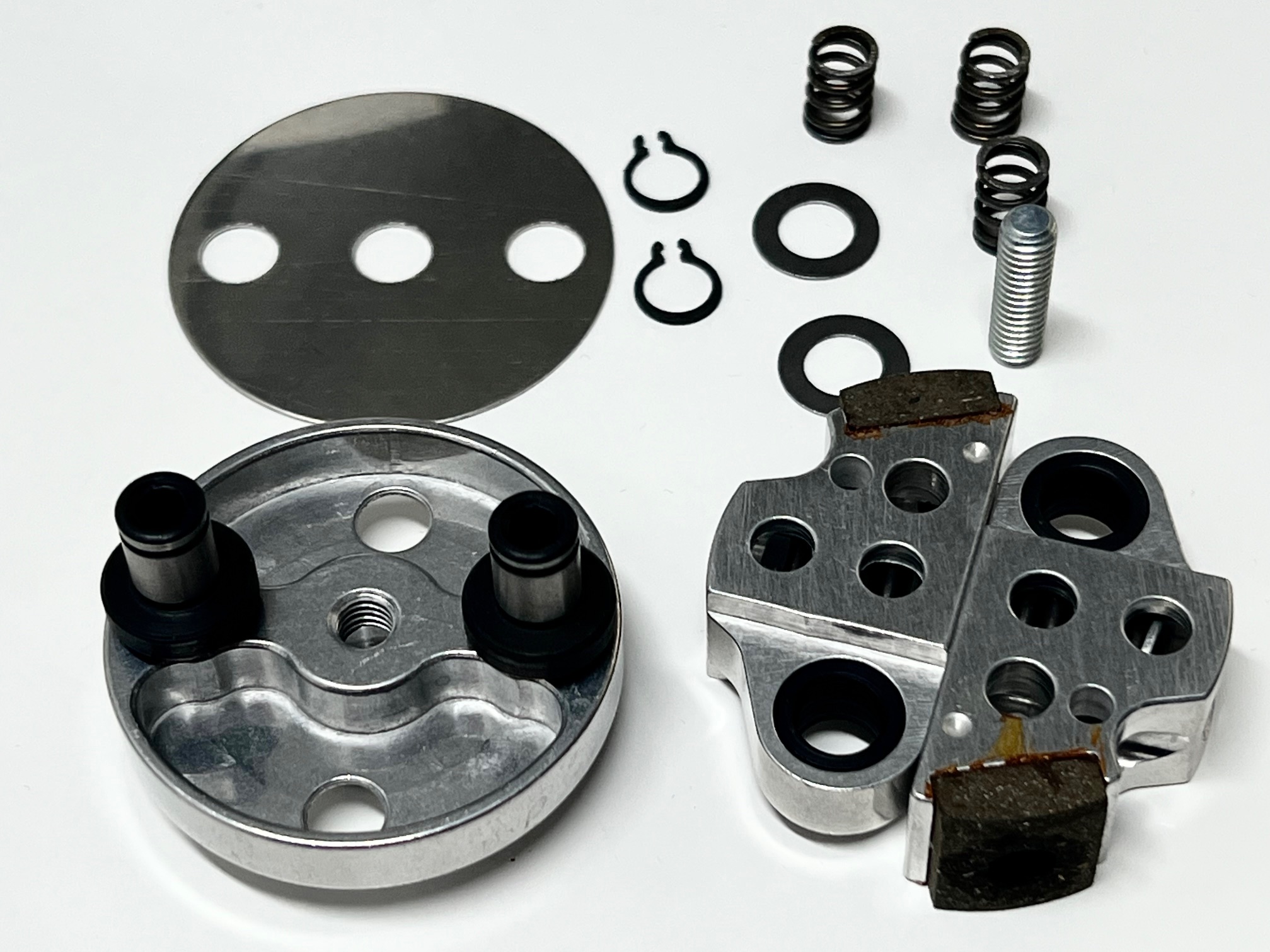

With the Big Scale-EXTREME an adjustable clutch for very special requirements has been designed:For large-displacement enginesFor heavy or high traction cars (Losi, HPI)For modified performance enginesFor the demanding off-road useRapid wear of a clutch is a sign of constant slipping, even beyond engagement speed. In this case, the clutch does not transfer the applied torque.This is where the Big ScaleEXTREME sets a new standard.The new design of the "Extreme" prevents the centrifugal forces of clutch springs or lever side of the clutch shoes from counteracting the centrifugal force of the friction pad side even after engagement.As a result this clutch can transfer lots of power with minimal wear.The new design ensures that the centrifugal forces are transferred in full to the clutch lining. Precise engagement and disengagement even under high loads and inside of closed clutch bell carriers means no problem for this clutch.The clutch can be easily adjusted to the engagement speed through three set screws without clutch bell removal, so you can match the characteristics of your engine.The special clutch lining of the Big Scale-EXTREME is particularly wear-resistant and - especially in combination with a high-quality nitrited clutch bell (), guarantees for an exceptionally long service life! Contrary to the "Cross" or "Race" version there's no need to uninstall the clutch from the engine for maintenance. All parts are easily accessible from the front after removing the front plate.Please see the specifications tab for further information and handling advices!The regular price of the Big Scale-EXTREME is EUR 139.90

The new adjustable system features three carbon pads with special 2.4 mm springs.Weight of the complete clutch is 70 grams. Very wear resistent when running with the recommended clutch bells.Adjustable friction points: First gear - 8.500 U/min. Second gear - 9.300 U/min. Third gear - 10.100 U/min. Fourth gear - 11.000 U/min.With tool #5445 the engagement speed can be adjusted to different settings within a range from about 8,500 to 11,000 rpm.
