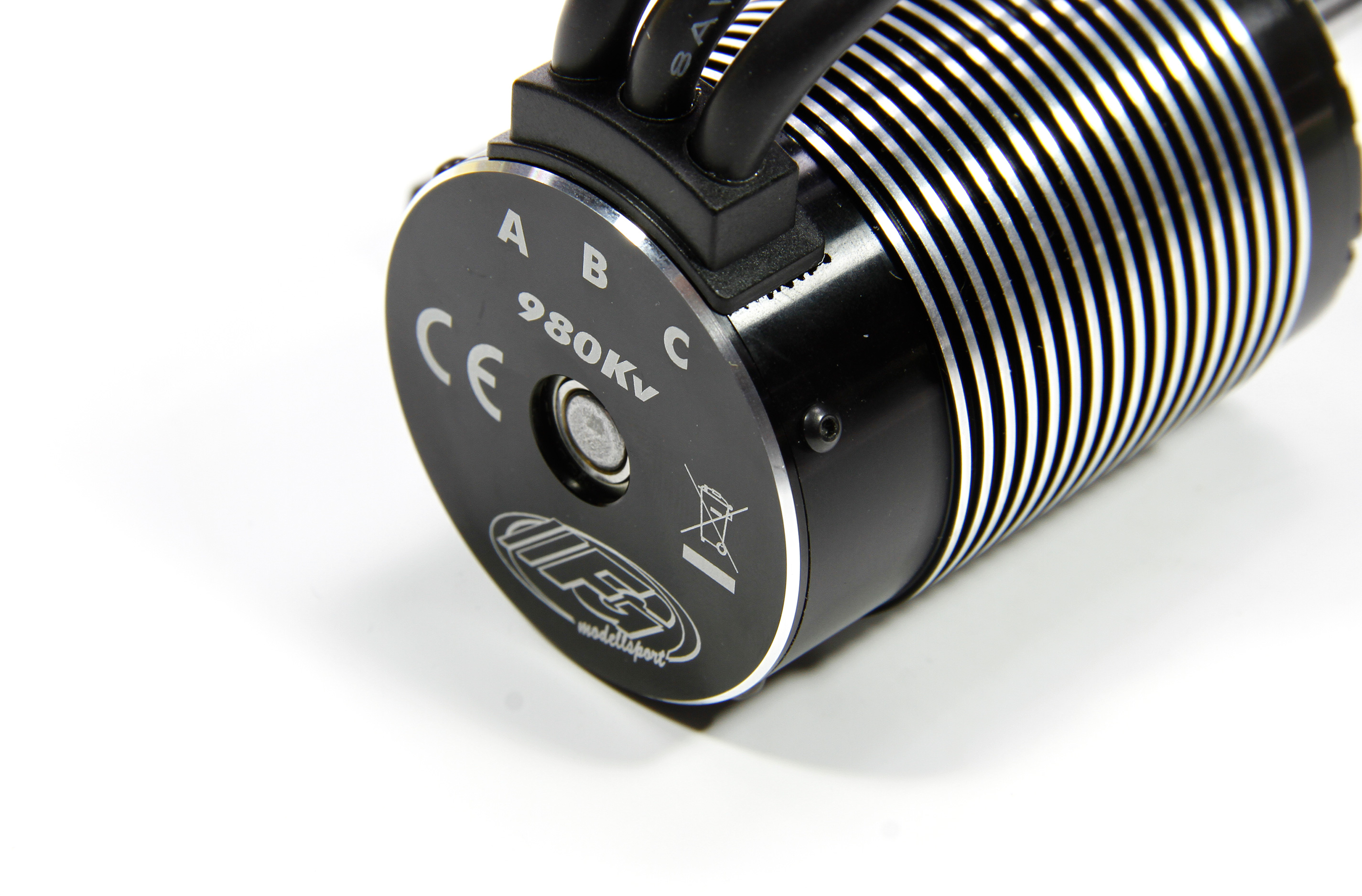

7902/01 FG Electric engine 980KV Brushless

Product information "7902/01 FG Electric engine 980KV Brushless"

Genuine FG spare/option part.

Powerful brushless engine, high torque, sintered neodymium magnets, hand-wound long working life.


Adapter bushing FG # 66514 is required for installation of steel pinions with 10 mm bore diameter. Suitable for 1/6 buggy / monster / street cars.

Technical data:
  • Max. voltage: 22,2V (6S)
  • Max. current: 193A
  • Max. 30.000RPM
  • Power in watt: 4250W
  • Rotor poles: 4
  • IO: 2.8A
  • Resistance: 0.0128
  • Length: 82mm
  • Diameters: 55 / 58mm with fins
  • Weight: 880g
  • Shaft Diameter: 8mm
  • Length of extend shaft: 30mm


Content:
  • 1 piece

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Skip product gallery

Accessories / Spare parts

TT1021/07 Top Tuning electric Motor pinion nitrided hardened, 8 mm bore, module 1.5
TT1021/07 Top Tuning electric Motor pinion nitrided hardened, 8 mm bore, module 1.5

Genuine Top Tuning spare/option part. Motor pinion made of nitrided hardened steel, module 1.5 and 8 mm bore. Reinforced hub for set screw M5x6. The pinions with odd tooth counts are profile shifted. Within the same outer diameter, there is no need to adjust the backlash when changing the pinion. When mounting on vehicles with mounting holes in the motor mount that are specific to the tooth count, the mounting holes for the higher number of teeth in each case (16 or 18) must be used.Profile regraded:This means that the number of teeth is changed while the diameter remained constant. The part of the involute curve that defines the tooth profile is changed. Positively regraded (lower number of teeth) pinions are stronger and run smoother, the reduced strength of negatively regraded pinions doesn´t really matter. Available in two sizes with two tooth counts:Outer diameter 30 mm with 17T or 18TOuter diameter 27 mm with 15T or 16TContents:1 piece

Regular price: €27.90
7908 FG Y cable with gold connectors plug/socket 8 mm
7908 FG Y cable with gold connectors plug/socket 8 mm

Genuine FG spare/option part. For connecting the 200A brushless controller to one or two LiPo batteries.Gold plated 8 mm diameter connectors.Content:2 pieces

Regular price: €17.90
Skip product gallery

Customers also viewed

TT5682/01 Top Tuning Brushless Motor 980 kV
TT5682/01 Top Tuning Brushless Motor 980 kV

Genuine Top Tuning spare/option part. Specifications Max. amps: 160 A Max. voltage: 30 V Max. power: 4,200 W KV (RPM/Volt): 980 KV Mounting hole depth: 8 mm Bolt pattern: 4 x M4 at 30 mm pitch circle diameter Case diameter: 57.8 mm Case length: 82 mm Free shaft length: 30 mm Shaft diameter: 8 mm Weight: 880 g Connector: 6.5 mm diameter Cable size: 8AWG Features High quality bearings 4Pole rotor with high quality magnets Stator - super thin silicon steel layers Super strength 8 mm shaft CNC Aluminium heatsink case Copper wires with high temperature endurance Contents:1 piece

Regular price: €189.90
y1581/01 Set TT5682/01 brushless motor 980kV+ Hobbywing HW MAX6 controller
y1581/01 Set TT5682/01 brushless motor 980kV+ Hobbywing HW MAX6 controller

A great motor/ESC combo, ideal for 1/5 touring cars and Formula 1 RC cars. Product information "TT5682/01 Top Tuning Brushless Motor 980 kV" Genuine Top Tuning spare/option part. Specifications Max. amps: 160 A Max. voltage: 30 V Max. power: 4,200 W KV (RPM/Volt): 980 KV Mounting hole depth: 8 mm Bolt pattern: 4 x M4 at 30 mm pitch circle diameter Case diameter: 57.8 mm Case length: 82 mm Free shaft length: 30 mm Shaft diameter: 8 mm Weight: 880 g Connector: 6.5 mm diameter Cable size: 8AWG Features High quality bearings 4Pole rotor with high quality magnets Stator - super thin silicon steel layers Super strength 8 mm shaft CNC Aluminium heatsink case Copper wires with high temperature endurance Contents:1 piece Product information "HW30105100 Hobbywing Ezrun MAX6 G2 sensored ESC 200 Amp, 3-8s LiPo, BEC 8A" The EzRun MAX6 G2 is a modern brushless controller with high-voltage support and an integrated Bluetooth module. Compared to its predecessor model, the second generation is considerably more powerful with up to 200A and, with 12 programmable parameters, also offers more scope for customisation to suit your personal driving style. Aggressive starts, high acceleration on straight stretches and jump control are just a fraction of what the controller has to offer. And thanks to the intelligent freewheel technology, the controller remains relaxed and cool even during these demanding manoeuvres. Probably the most convincing feature of the MAX6 G2 controller is the integrated Bluetooth module. This eliminates the need for programming cards and the OTA module as additional accessories. All you need now is the HWLink2 app and the controller can be conveniently programmed and updated on your smartphone. It is even possible to record data for up to 10 minutes and provides an insight into the most important driving data such as speed, voltage and temperature. With a powerful integrated BEC, an anti-spark design and several protective devices, this speed controller offers advanced functions and a high level of safety. The EzRun MAX6 G2 is therefore the ideal choice for RC enthusiasts looking for maximum potential and the best reliability. With perfect compatibility with both Hobbywing's EzRun 4990 G2 and 5690 G2 motors, this power system offers an unbeatable team for optimum performance with modern features. Features  - Now with even more power than its predecessor. - Integrated Bluetooth module to programme the controller directly via the HWLink2 app on your smartphone. - Intelligent fan that only activates when the temperature reaches a certain value. Water & dust resistant to IP67 standard for use in all weather conditions. - Built-in ultra-strong switching mode BEC to address a wide range of servos (high power / high voltage servo). - Turbo timing setting included. - Especially recommended with the matching motor (e.g. EZRUN 4990 G2 or 5690 G2). - Several protective functions: Battery undervoltage protection, controller and motor overheating protection, signal loss protection, current protection. - Built-in data logging function to display various running data of up to 10min in the HW LINK app - Supports firmware upgrade of the controller. - 12 adjustable parameters.Technical Data  Type: 1/6 Brushless Sensored Current (continuous/short): 200A / 1200A Input voltage: 3-8S LiPo BEC: 6V/7.4V/8.4V @8A (switch mode) Motor types: Brushless motors (with/without sensor) Motor limits: - 6S Lipo: KV <= 2400 - 8S Lipo: KV <= 1700 4990/5690 motor Fan: Yes, operated via the BEC Programming: HWLink2 app (via the integrated Bluetooth module) Waterproof: Yes Size: 70x56x45.5mm Weight: 245g Applications: 1/6, 1/7 on-road, truck, monster truck Scope of delivery:  Ezrun MAX6 HV G2 ESC

Regular price: €349.90
HW30402850 Hobbywing Ezrun 70125SD 560kV 4pol, 8mm Shaft for 1:5
HW30402850 Hobbywing Ezrun 70125SD 560kV 4pol, 8mm Shaft for 1:5

Product information "Hobbywing Ezrun 70125SD 560kV 4pol, 8mm Shaft for 1:5"Hobbywing's Ezrun 70125SD motor is a powerful complement to the MAX4 ESC, providing heavy-duty off-roaders and trucks in particular with just the power needed for action-packed rides.FeaturesPerfect sensor mode in combination with the Ezrun MAX4 ESCCNC-milled aluminum housing, 0.2mm silicon steel sheets and other high-quality building materialsFour sintered NdFeB magnets for super torque, stable performance and explosive powerInnovative new sensor interfaceWaterproof and dustproof thanks to the rubber cover of the bearingIndependent, high-precision encoder in the motor to communicate the rotor position without any interferenceMore power and less heat development with the same loadTechnical SpecificationsSensor Type:SensoredPoles:4kV Rating:560kVLiPo Cells:8-12SNo-Load Current:3.6AOuter Diameter:70mmLength:125mmShaft Diameter:8mmShaft Length:30mmWeight:1995gApplication:1/5 Heavy Duty Off-Road, TruckRelated links to "Hobbywing Ezrun 70125SD 560kV 4pol, 8mm Shaft for 1:5"

Regular price: €227.15
R052 UFRC ESC tray 8S
R052 UFRC ESC tray 8S

Genuine UFRC spare/option part. Fits Ghost Rabbit GR1.Contents:1 pieces

Regular price: €17.90

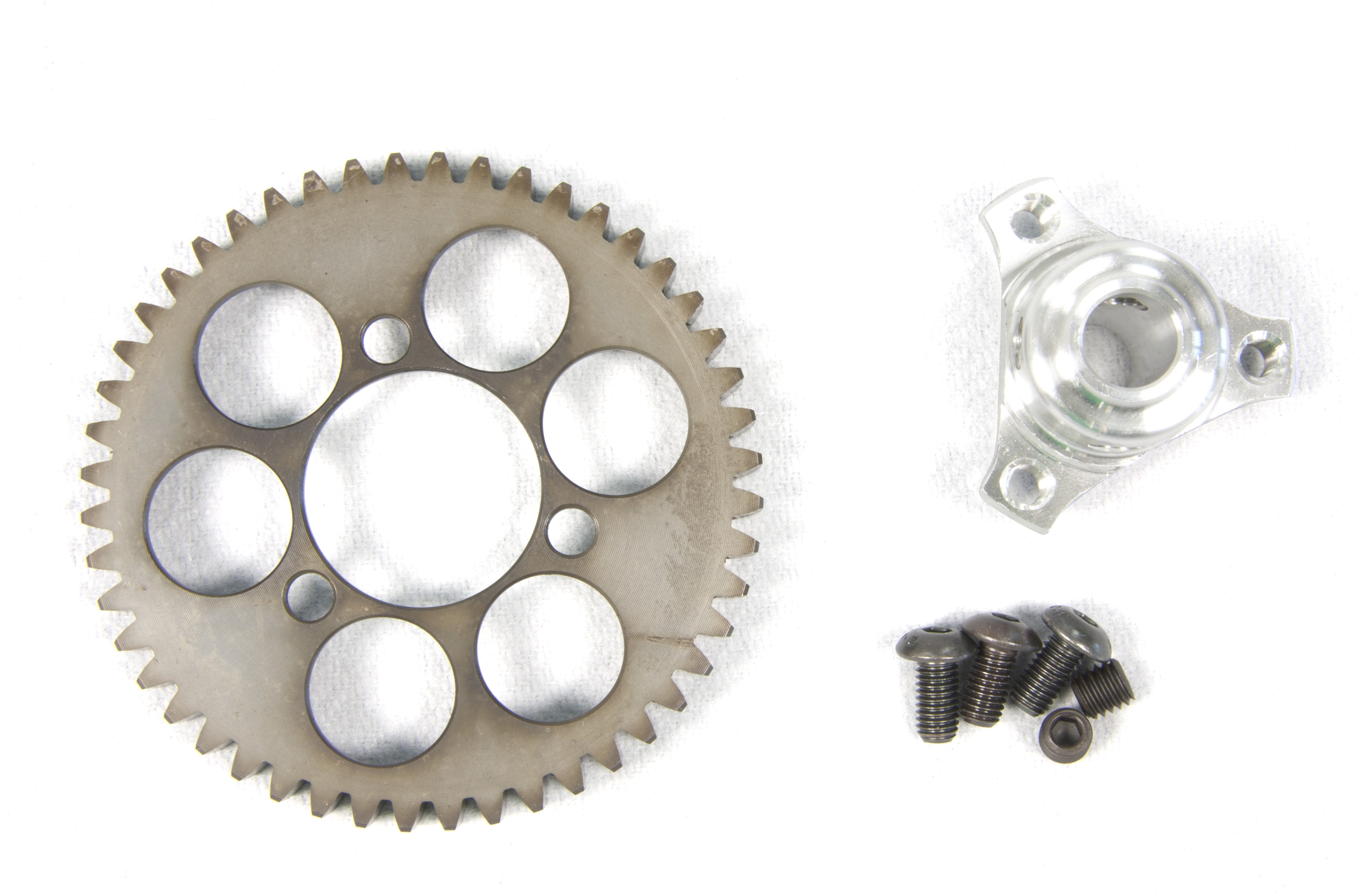

6493 FG Steel spur gear 48T with adapter
