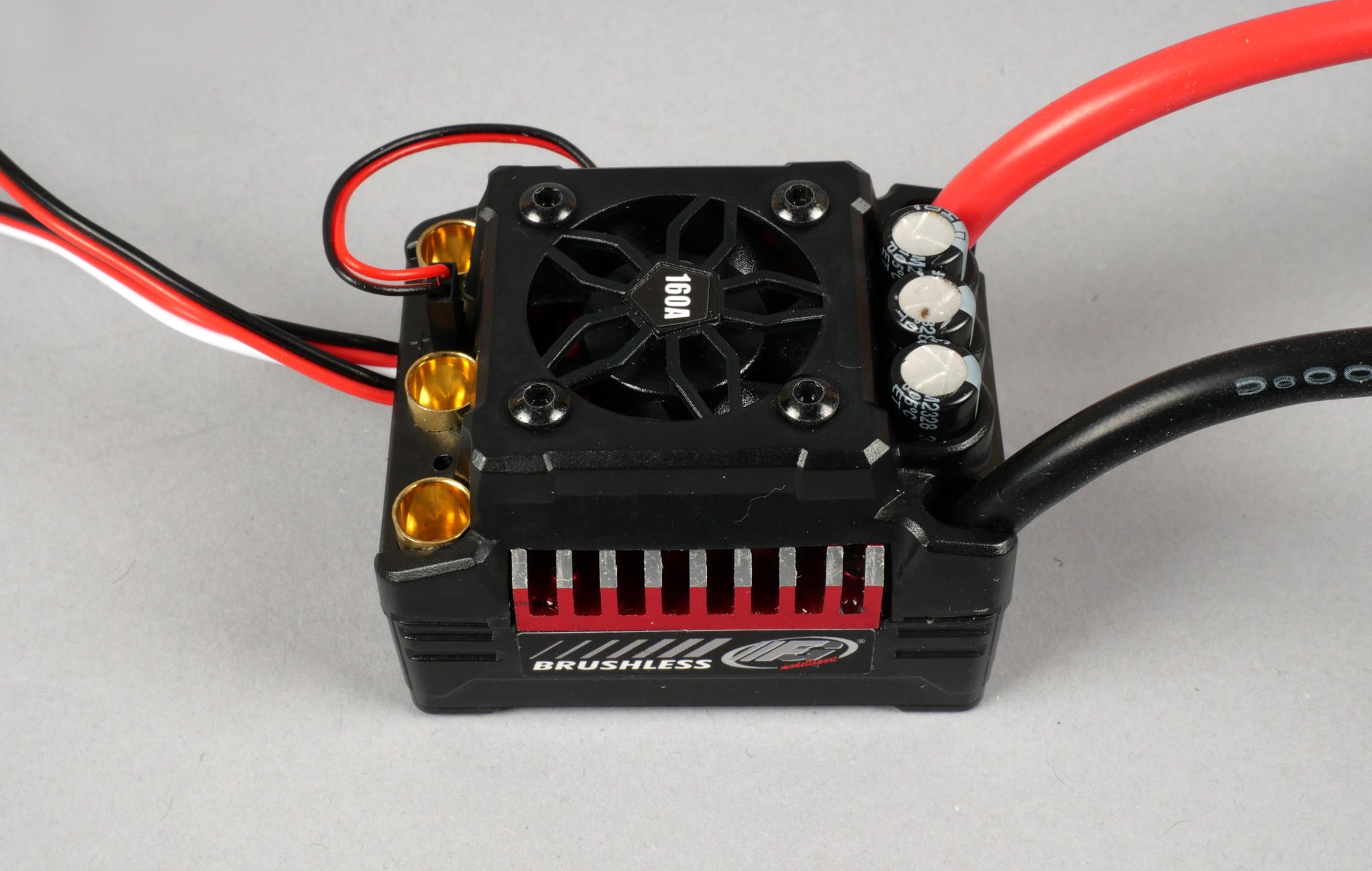

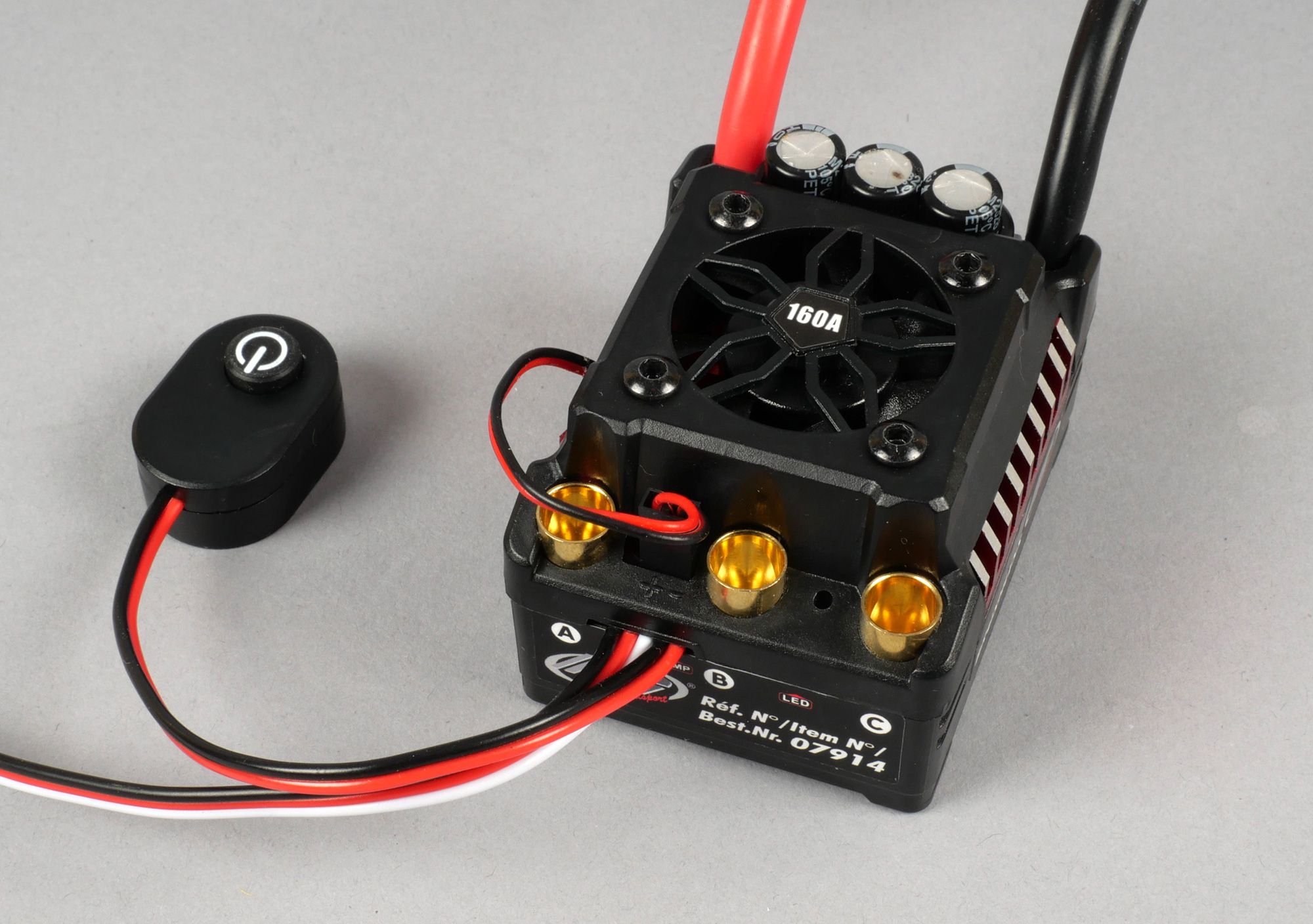

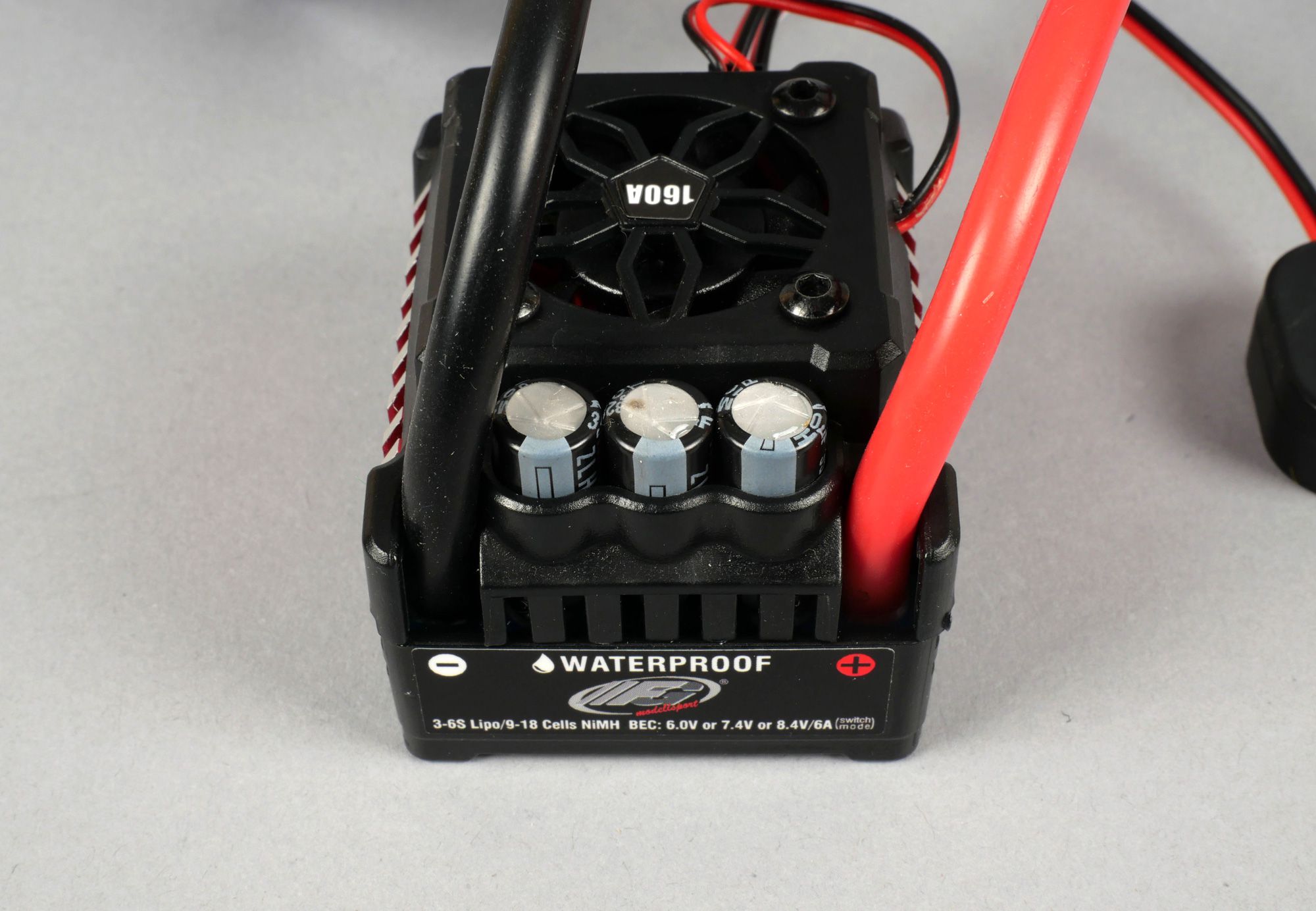

7914 FG ESC 160A 3-6S for 1/5 rc cars.
Product information "7914 FG ESC 160A 3-6S for 1/5 rc cars."
New 160A controller from FG for 1/5 models.
Technical data:
-Battery connections EC8
- 3-6S LiPo
- BEC 6V 7.4V 8.4V
1 piece
