Mielke 5743 Power Gearshift clutch for FG (not for Formel 1+Evo2020) Harm, RS5, HPI and Losi, Carbon, 2mm springs with long clutch carrier

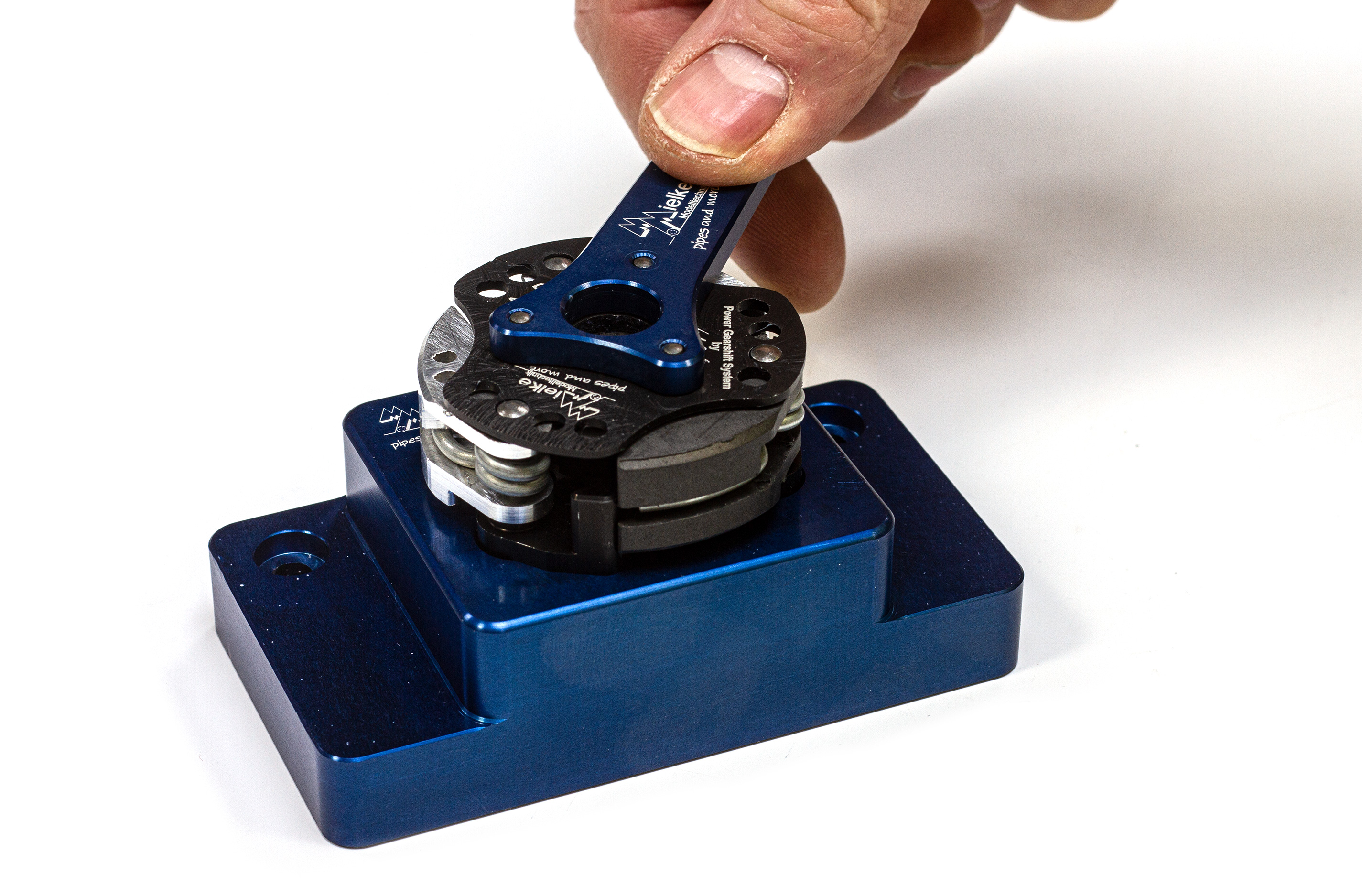

Adjustment tool for Mielke Power Gearshift clutches #5440 and #5441.

Genuine Mielke spare/option part. For easier change of springs or clutch shoes.Contents:1 piece

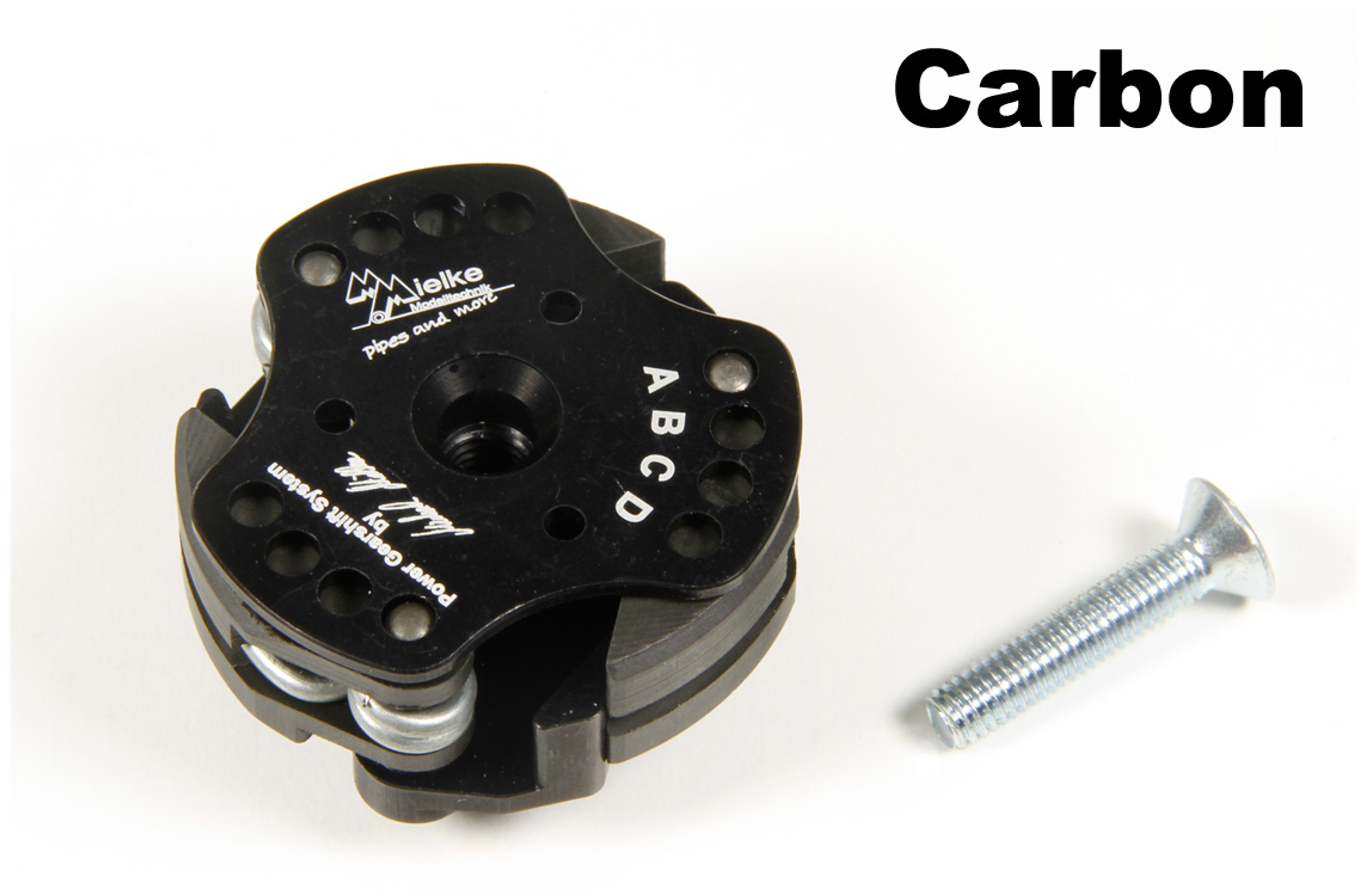

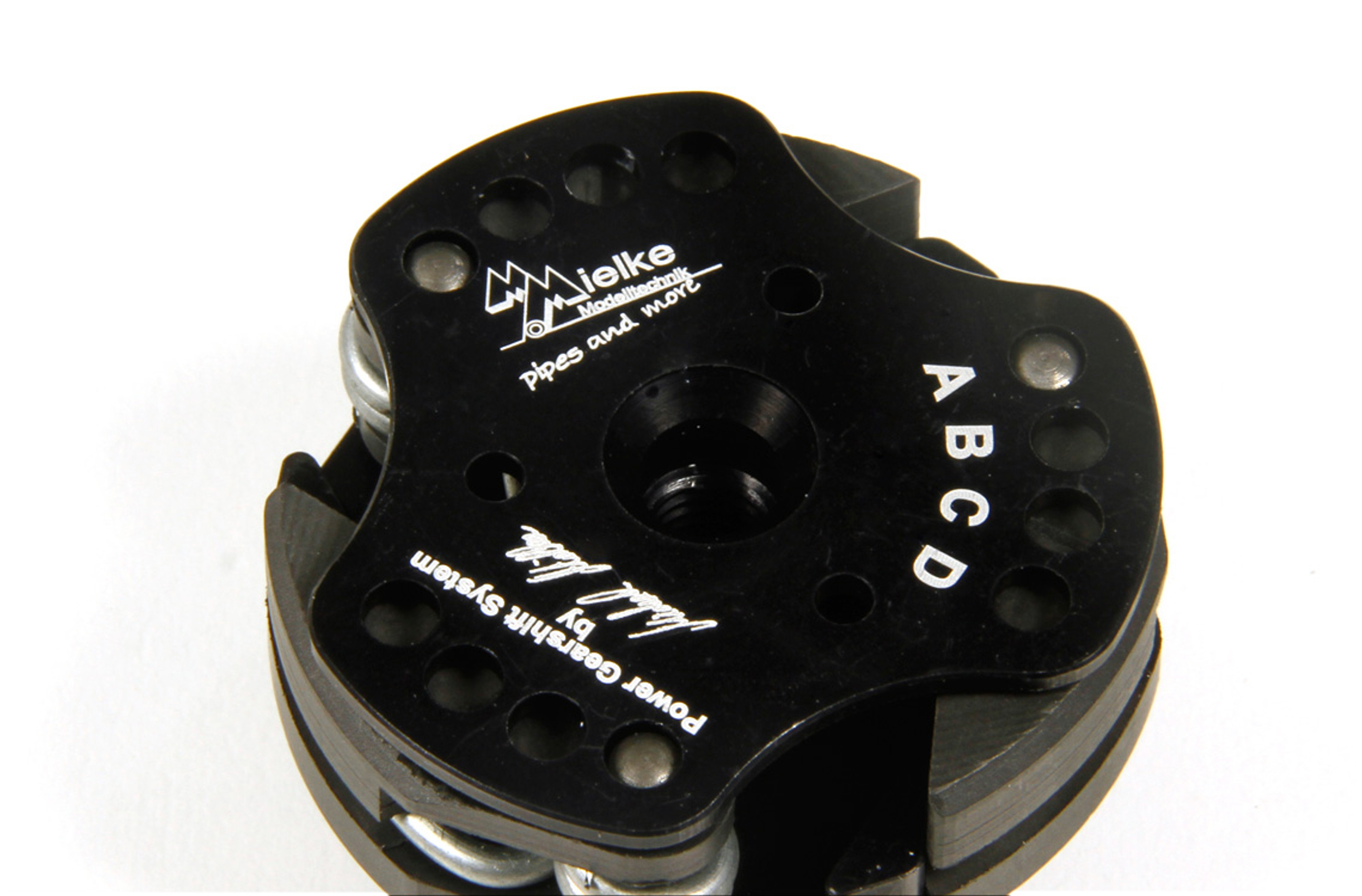

The new adjustable system features three carbon pads with special 2.3 mm springs.Weight of the complete clutch is 70 grams. Very wear resistent when running with the recommended clutch bells.Adjustable friction points: First gear - 8.500 U/min. Second gear - 9.300 U/min. Third gear - 10.100 U/min. Fourth gear - 11.000 U/min.With tool #5445 the engagement speed can be adjusted to different settings within a range from about 8,500 to 11,000 rpm.

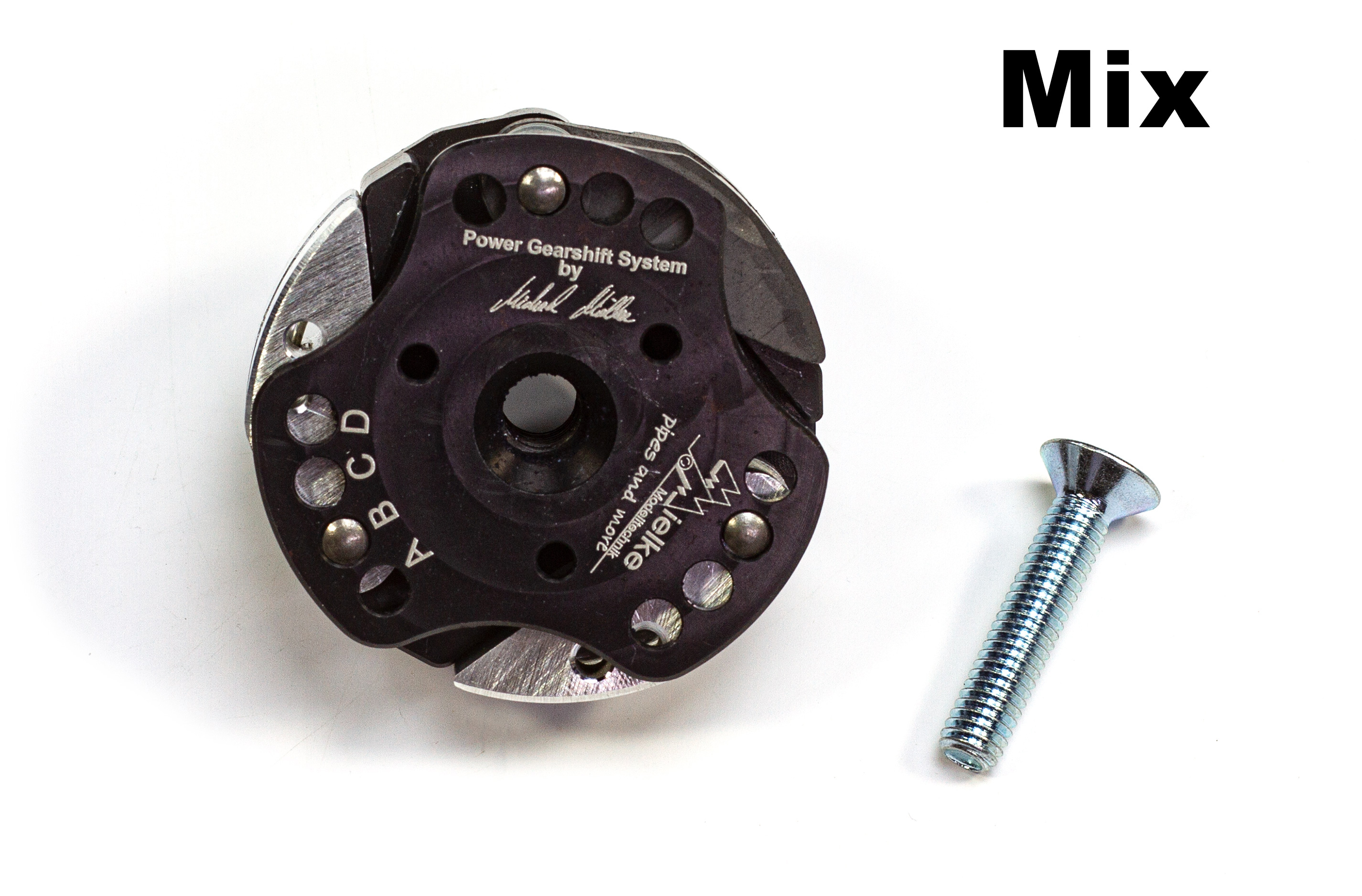

The new adjustable system features two aluminum and one carbon pad with special 2.3 mm springs.Weight of the complete clutch is 70 grams. Very wear resistent when running with the recommended clutch bells.Adjustable friction points: First gear - 8.500 U/min. Second gear - 9.300 U/min. Third gear - 10.100 U/min. Fourth gear - 11.000 U/min.With tool #5445 the engagement speed can be adjusted to different settings within a range from about 8,500 to 11,000 rpm.For RS5 models from version T14!

Genuine Mielke spare/option part. For offroad vehicles, less Grip or rain use.The new adjustable system features two aluminum and one carbon pad with special 2.0 mm springs.Weight of the complete clutch is 70 grams. Very wear resistent when running with the recommended clutch bells.Adjustable friction points: First gear - 8.500 U/min. Second gear - 9.300 U/min. Third gear - 10.100 U/min. Fourth gear - 11.000 U/min.With tool #5445 the engagement speed can be adjusted to different settings within a range from about 8,500 to 11,000 rpm. Contents:1 piece

The new adjustable system features three carbon pads with special 2.3 mm springs.Weight of the complete clutch is 70 grams. Very wear resistent when running with the recommended clutch bells.Adjustable friction points: First gear - 8.500 U/min. Second gear - 9.300 U/min. Third gear - 10.100 U/min. Fourth gear - 11.000 U/min.With tool #5445 the engagement speed can be adjusted to different settings within a range from about 8,500 to 11,000 rpm.

Genuine Mielke spare/option part. For offroad vehicles, less Grip or rain use.The new adjustable system features two aluminum and one carbon pad with special 2.0 mm springs.Weight of the complete clutch is 70 grams. Very wear resistent when running with the recommended clutch bells.Adjustable friction points: First gear - 8.500 U/min. Second gear - 9.300 U/min. Third gear - 10.100 U/min. Fourth gear - 11.000 U/min.With tool #5445 the engagement speed can be adjusted to different settings within a range from about 8,500 to 11,000 rpm. Contents:1 piece

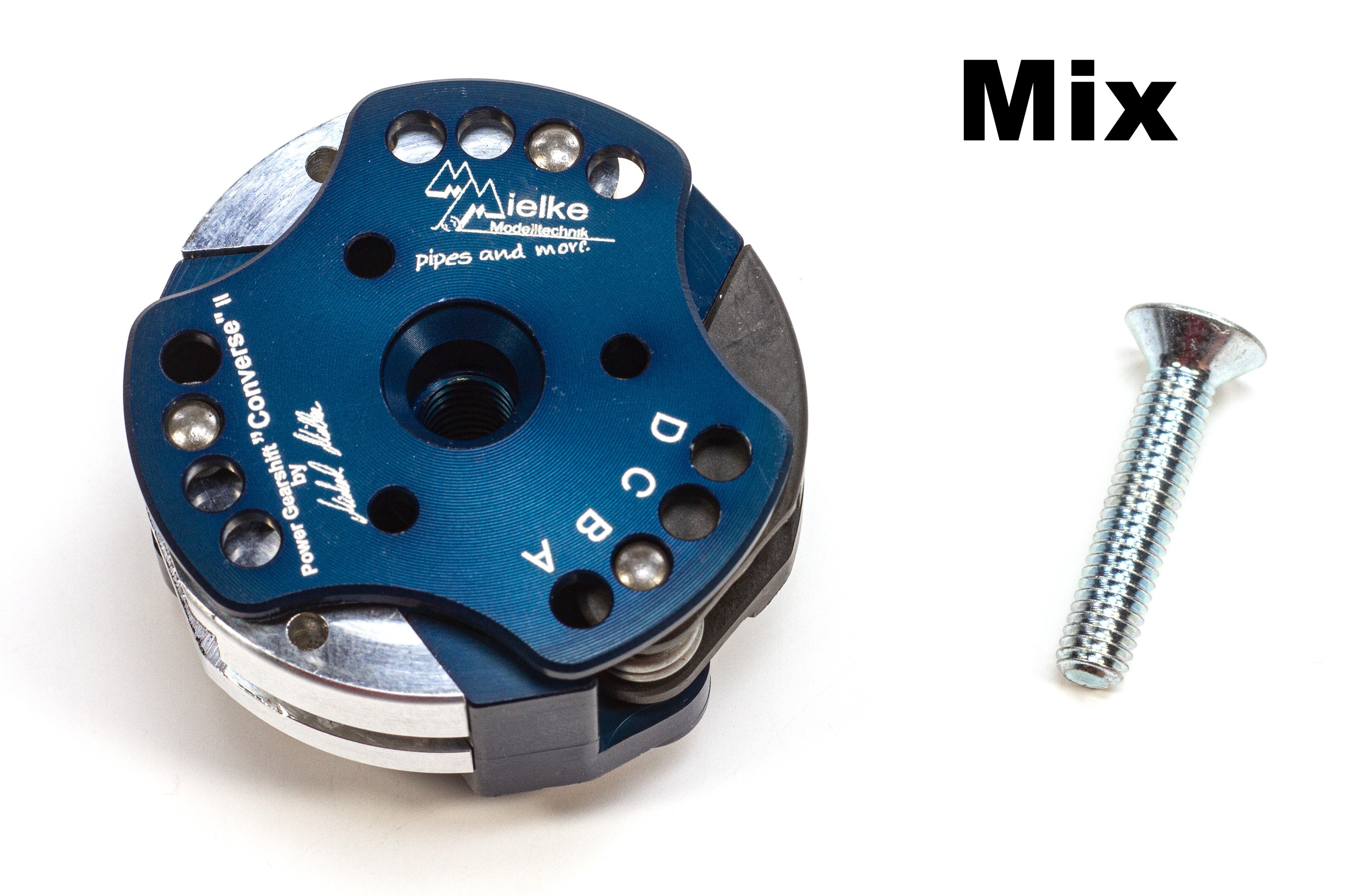

Genuine Mielke spare/option part. Fits for FG, Losi, HPI.For onroad vehicles, less Grip or rain use.Backwards installedshoes make this clutch a "Converse" clutch!After many successes with the "normal" Power Gearshift clutch this is the next step.Made of high-strength aluminium 7075-T6! All components, including the pads, are manufactured on precision machines.Contents:1 piece

The new adjustable system features two aluminum and one carbon pad with special 2.4 mm springs.Weight of the complete clutch is 70 grams. Very wear resistent when running with the recommended clutch bells.Adjustable friction points: First gear - 8.500 U/min. Second gear - 9.300 U/min. Third gear - 10.100 U/min. Fourth gear - 11.000 U/min.With tool #5445 the engagement speed can be adjusted to different settings within a range from about 8,500 to 11,000 rpm.For RS5 models from version T14!

Genuine Mecatech spare/option part. Fits Mecatech expert.Content:4 pieces

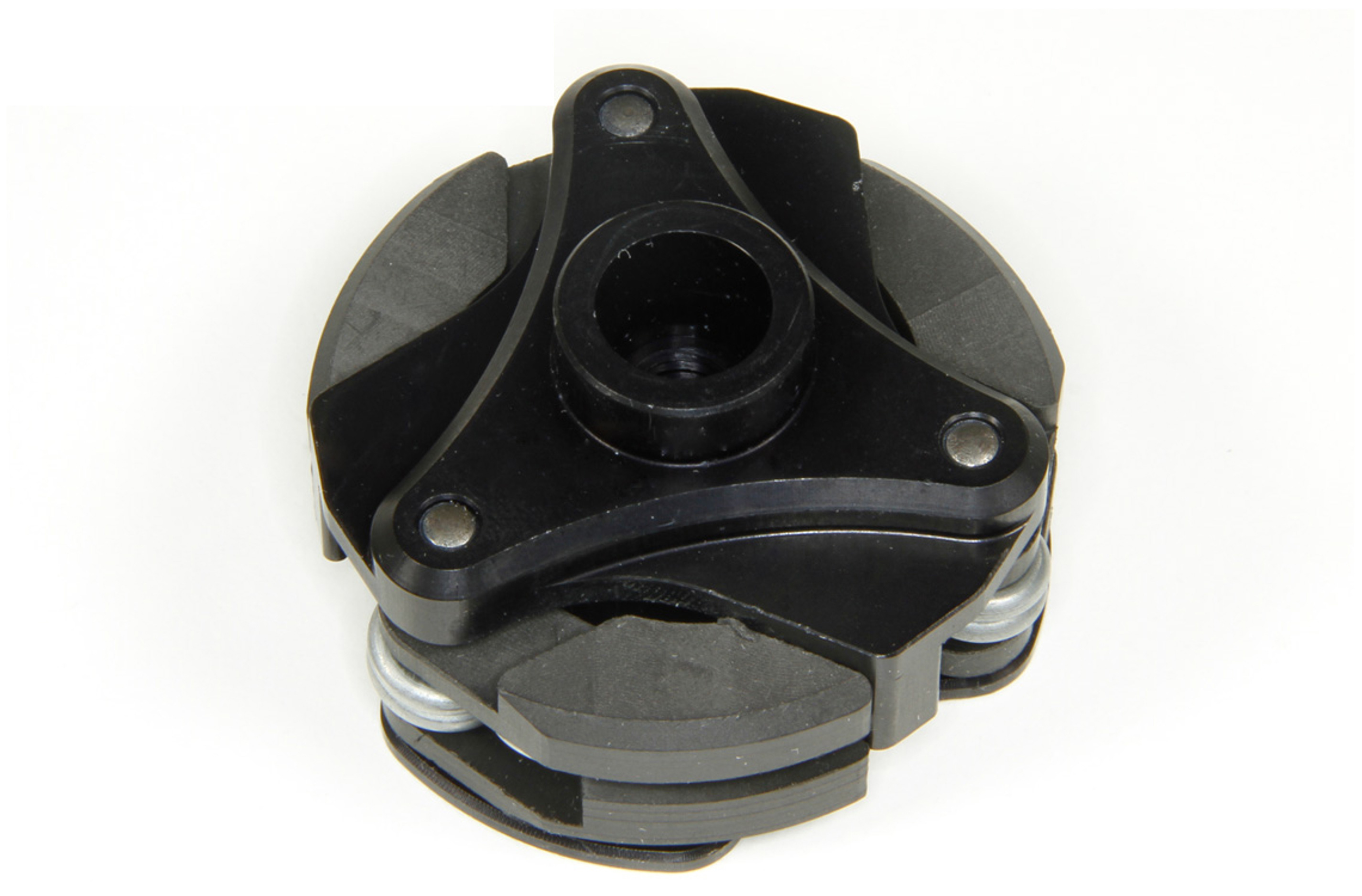

Regular price Big Scale Clutch: 109,90 EUR Nitriding hardened clutch bell: 40,50 EUR complete price:.......................150,40 EURAdjustable 3-shoe clutch for:Zenoah / Losi / Chung Yang / HPI - Fuelie / Smartech PT and many other engines.The Big Scale-Race clutch is equipped with 1.4 mm springs. This version is particularly suitable for on-road use. (not for Formular 1)The GPM-Big Scale clutch:Suitable for racing and for the ambitious hobbyist driver. Unlike the stock clutch, the installed GPM-Big Scale clutch can be adjusted by turning one single screw. A 2.5 mm allen key wrench is required for this application. Therefore it is possible to precisely adjust the clutch engagement depending on track characteristics.Handling instructions for three-shoe clutches y0730 GPM Big Scale Cross and y0731 GPM Big Scale RaceInstallation:The GPM Big Scale clutch will be bolted to the crankshaft using the supplied CSH-screw.It should be noted that the use of thread locking compound on that screw is neither necessary nor recommended!Removal:Remove the CSH-screw with a 4mm Allen wrench; then insert a suitable M8 bolt and remove the clutch from the crankcase cone by tightening that bolt. Hole for adjustment:For clutch adjustment without removing the clutch bell a 4 4.5 mm hole must be drilled into the clutch bell for access to the adjustment screw. Placement of the hole depends on clutch bell dimensions and car; so you have to make your own measurements for the placement of the hole.It is important that the drilled hole is thoroughly deburred (at least on the inside of the clutch bell) to prevent excessive clutch pad wear. Breaking in:A new clutch or shoes fitted with new pad should always be broken in. Therefore the clutch engagement speed should not be too high for the first tank of fuel. This gives the lining the possibility to adjust to the clutch bell without glazing. The only difference between two clutches is the clutch spring rate, which provides the optimal range for clutch engagement depending on the application. The three available versions of clutch springs provide adjustability within the following RPM ranges:Silver springs 1.3 mm y0730/05 (standard on Big Scale Cross): 5,000 9,500 RPMGold springs y0730/06 1.4 mm (standard on Big Scale Race): 6,500-11,500 rpm Adjustment:Adjustment of the clutch engagement speed is done by one single screw using a Handling instructions for three-shoe clutches y0730 GPM Big Scale Cross and y0731 GPM Big Scale RaceInstallation:The GPM Big Scale clutch will be bolted to the crankshaft using the supplied CSH-screw.It should be noted that the use of thread locking compound on that screw is neither necessary nor recommended!Removal:Remove the CSH-screw with a 4mm Allen wrench; then insert a suitable M8 bolt and remove the clutch from the crankcase cone by tightening that bolt. Hole for adjustment:For clutch adjustment without removing the clutch bell a 4 4.5 mm hole must be drilled into the clutch bell for access to the adjustment screw. Placement of the hole depends on clutch bell dimensions and car; so you have to make your own measurements for the placement of the hole.It is important that the drilled hole is thoroughly deburred (at least on the inside of the clutch bell) to prevent excessive clutch pad wear. Breaking in:A new clutch or shoes fitted with new pad should always be broken in. Therefore the clutch engagement speed should not be too high for the first tank of fuel. This gives the lining the possibility to adjust to the clutch bell without glazing. The only difference between two clutches is the clutch spring rate, which provides the optimal range for clutch engagement depending on the application. The three available versions of clutch springs provide adjustability within the following RPM ranges:Silver springs 1.3 mm y0730/05 (standard on Big Scale Cross): 5,000 9,500 RPMGold springs y0730/06 1.4 mm (standard on Big Scale Race): 6,500-11,500 rpm Adjustment:Adjustment of the clutch engagement speed is done by one single screw using a 2.5 mm Allen wrench. Turning the screw in increases the stall speed, backing it out will lower the stall speed. The adjusting screw is thread locked to keep the setting. Should you realize that the screw can be turned too easily please re-apply medium strength thread locking compound.Finding the best clutch engagement speed:The best clutch engagement speed should be found while driving on the track, it depends on engine characteristic, track layout, track surface and driving style.It is recommended to start with the lowest setting (which means the set screw just touching the adjustment cam) and gradually turning the adjusting screw in while doing test runs after every adjustment.If you feel that you have exceeded your best engagement speed (clutch will slip too much), back the screw out for a little bit to avoid excessive wear or glazing of the pads.Attention: You must use adhesive y0743 Clutch-Safe when replacing clutch pads!

7355/08 FG Carburetor type: Walbro WT603BStandard carburetor for Zenoah G230/260. Carb has integrated choke. Typ: Walbro WT603BHowever, we recommend using the WT668C instead of the WT603B.This also has a choke, but the manufacturing quality of the WT668C is better than the WT603B!Optional ball bearing of the throttle shaft can be selected from the shops menu.y1483 Walbro WT-1048 Racing carburetorPopular performance carburetor without choke; with 13.5 mm venturi diameter, especially suitable for large-displacement engines like the Zenoah G320.The stock throttle shaft has been replaced with the proper version required for car applications; including the throttle lever as well.All existing throttle linkages can therefore be connected as usual without modifications.This carburetor does not feature a primer bulb nor a connection for a return line. It is therefore only connected to the supply line from the tank, the return line of the tank has to be closed.Optional ball bearing of the throttle shaft can be selected from the shops menu.y1067 Walbro WT668C carburetorThe Walbro WT668C carburetor fits all Zenoah, Chung Yang (CY), Losi, HPI und PT (Smartech/Carson) engines from 23cc up to over 30cc.The Walbro WT668C features an integrated choke with lever and a throttle shaft linkage lever. Optional ball bearing of the throttle shaft can be selected from the shops menu.Alternative: Walbro 603B also with chokey0251 Performance carburetor with accelerator pump type: WT-813AWalbro WT-813A carb with accelerator pump, improves low end response when the engine is tuned for maximum performance. 15.88mm bore, 12.7mm venturi. Ready for installation with modified shaft already installed. Fits Zenoah G230/240/260/270 engines and their CY/HPI Fuelie clones as well. Optional ball bearing of the throttle shaft can be selected from the shops menu.7855 FG Carburetor type: Walbro WT990Standard carburetor for Zenoah G240, G270 and G290. Typ: Walbro WT990 Optional ball bearing of the throttle shaft can be selected from the shops menu.y1016/051 Carburetor WT1107 G320RCGenuine Zenoah spare/option part. Standard part fits Zenoah G320RC.Optional ball bearing of the throttle shaft can be selected from the shops menu.
