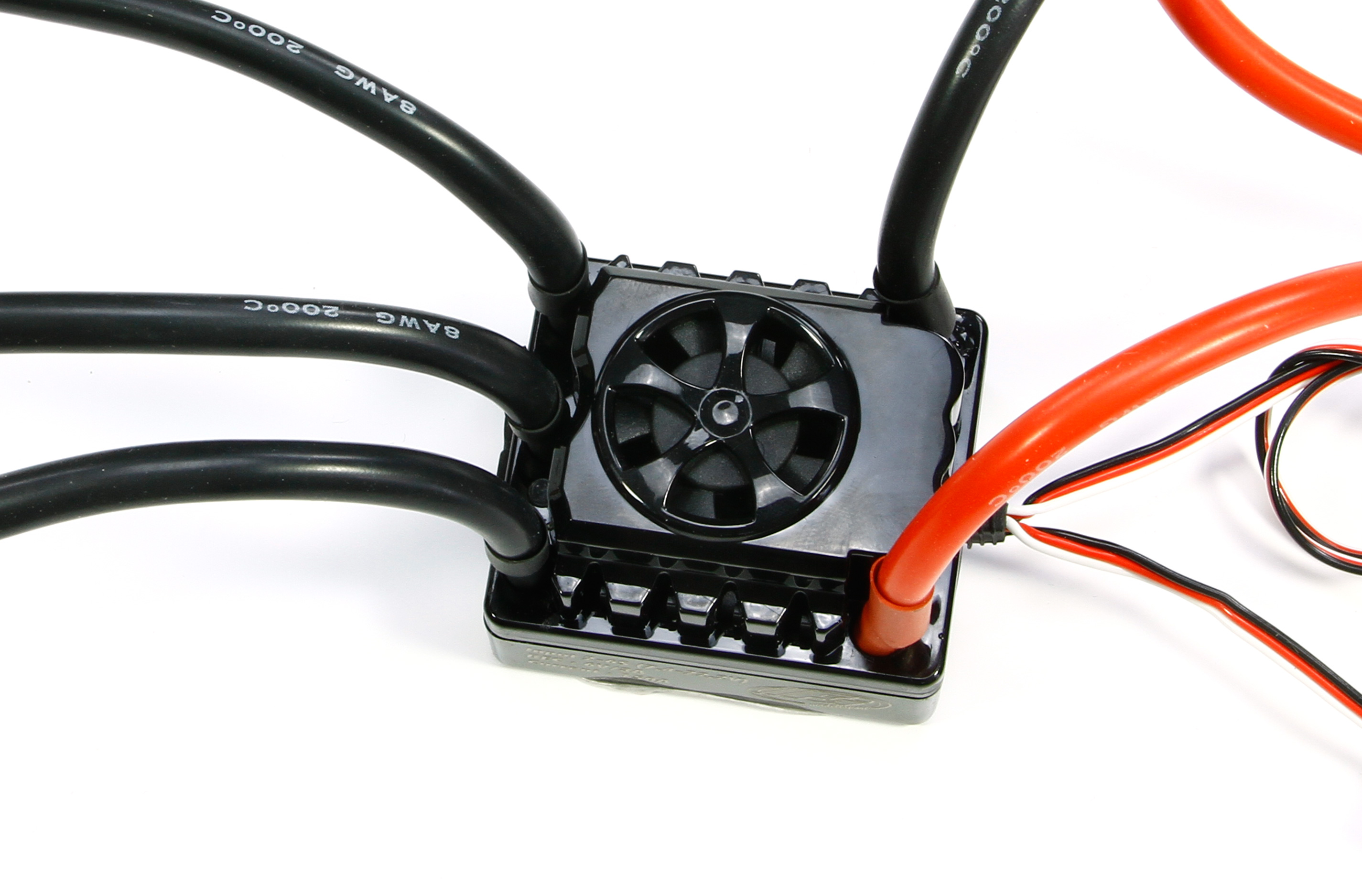

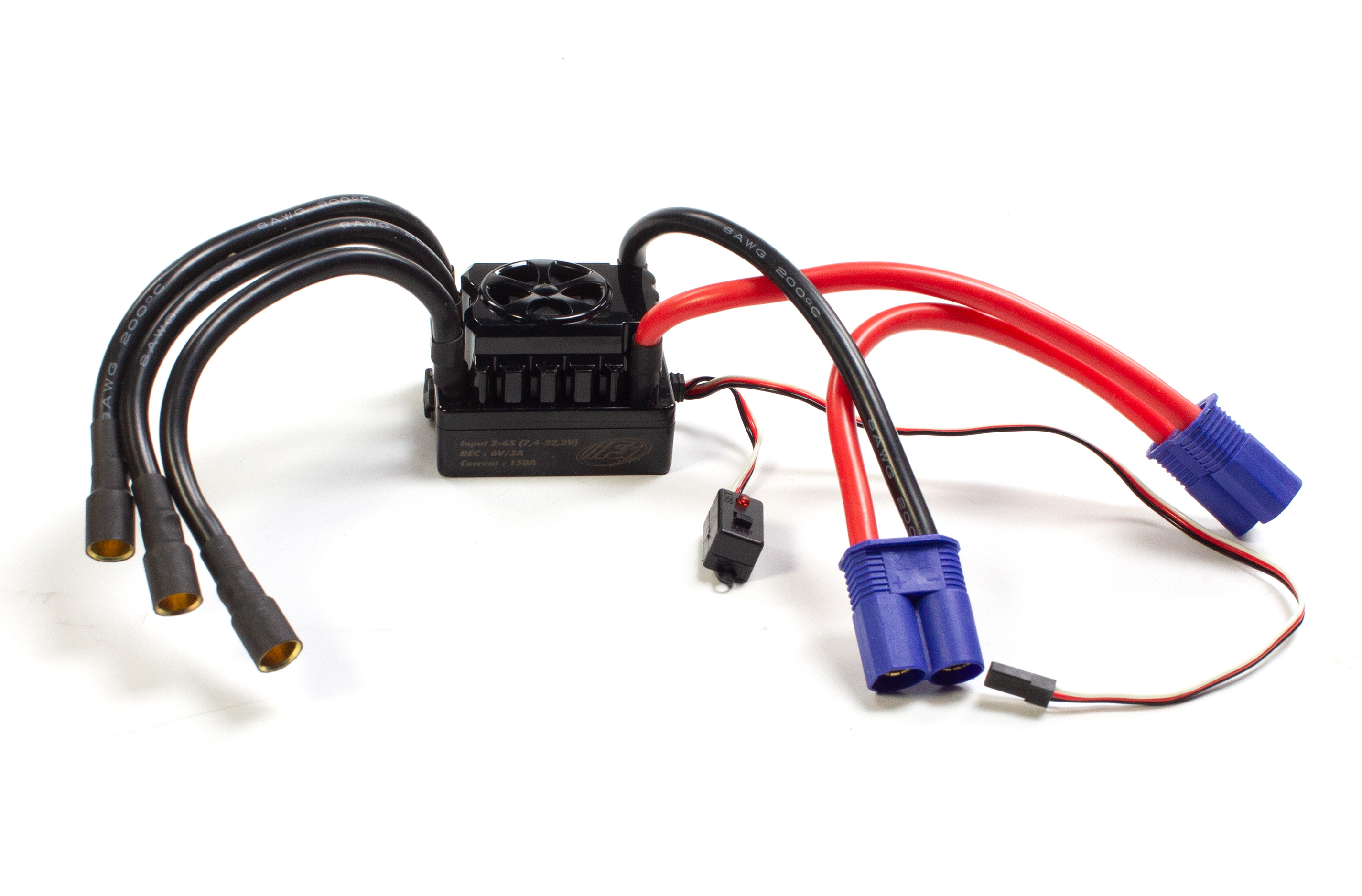

7909 Brushless controller 150A
Product information "7909 Brushless controller 150A"
Genuine FG spare/option part.
Technical data:
Contents:
Technical data:
- Voltage range: 2S-6S Li-Po (7.4 22V)
- BEC 6V/3A
- Dimensions: 55 x 48 x 38 mm
- Weight: 185g
Contents:
- 1 piece
