y1249 GPM No. 15, Steel pinion 17t and 18t, profile regraded
€44.90
Available
Product information "y1249 GPM No. 15, Steel pinion 17t and 18t, profile regraded"
Steel pinion set with one each 17T and 18T pinion.
The GPM steel pinions are profile regraded. This allows for a change in gearing by a pinion swap alone.
Module: m=1.5
Profile regraded means that the number of teeth is changed while the diameter remained constant. The part of the involutes? curve that defines the tooth profile is changed. Positively regraded (lower number of teeth) pinions are stronger and run smoother, the reduced strength of negatively regraded pinions doesn?t really matter.
1145-1153 Canton Road
Room B, 4/F, Famous Horse Centre
00000 Mong Kok, Kowloon, Hong Kong
Hong Kong
Login
Alternatives
Complete set with clutch bell and one each 17T and 18T steel pinion.GPM clutch bell with 5 mm pinion bolt. CNC-machined one-piece bell for absolute true running. Inclusive mountings.GPM 17T and 18T steel pinions are profile regraded. This allows for a change in gearing by a pinion swap alone.Module: m=1,5Profile regraded means that the number of teeth is changed while the diameter remained constant. The part of the involutes? curve that defines the tooth profile is changed. Positively regraded (lower number of teeth) pinions are stronger and run smoother, the reduced strength of negatively regraded pinions doesn?t really matter.Content of delivery:GPM steel clutch bell SBJ613GPM steel pinion 17T SBJ017TGPM steel pinion 18T SBJ018TO
Extremely strong 17T steel pinion from GPM, fits all HPI Baja 5B / SS / 2.0 and 5T, Carson Wild GP Attack. Profile regraded, it fits to the original Baja pinion Nr. 85432
The GPM 18T steel pinion is profile regraded. This allows for a change in gearing by a pinion swap alone. The pinion has the same dimensions as the HPI 17T stock pinion.Module: m=1,5Profile regraded means that the number of teeth is changed while the diameter remained constant. The part of the involutes? curve that defines the tooth profile is changed. Positively regraded (lower number of teeth) pinions are stronger and run smoother, the reduced strength of negatively regraded pinions doesn?t really matter.
Customers also viewed

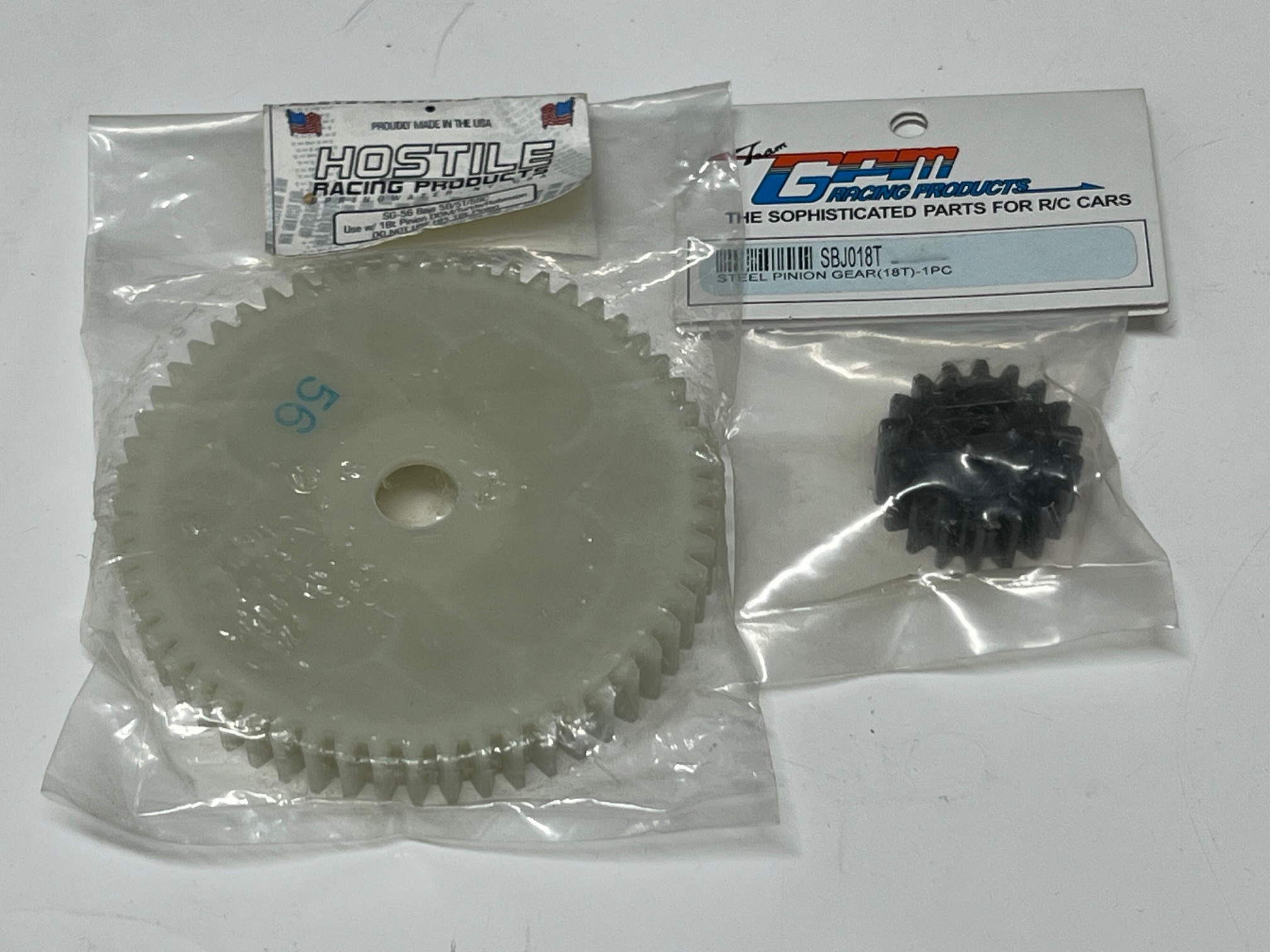

Tuning sprocket set for HPI Baja 5B and Carson Wild GP Attack. Consisting of: - Hostile Delrin pinion 56 teeth - GPM steel pinion 18 teeth

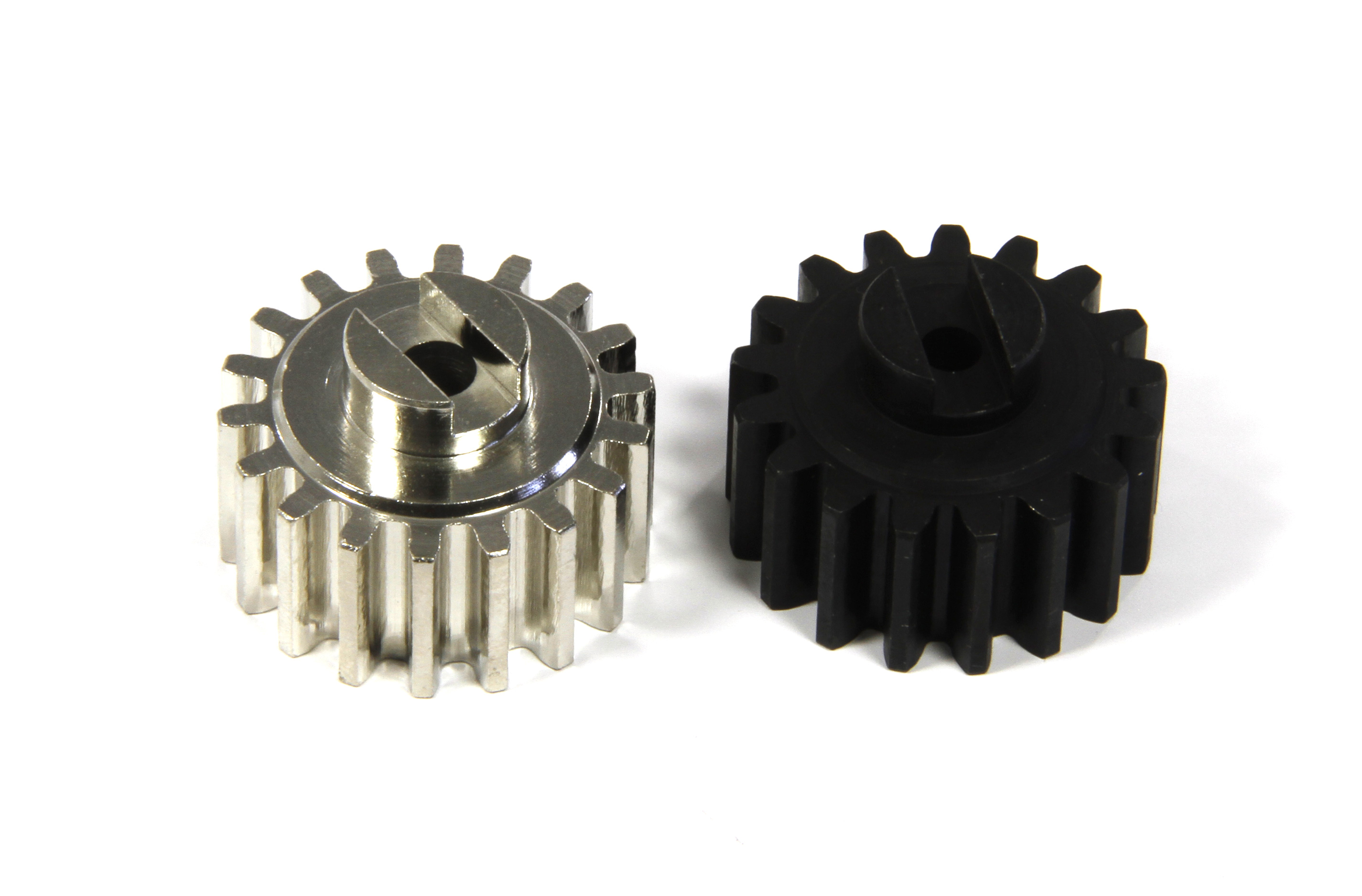

Genuine Top Tuning spare/option part. Motor pinion made of nitrided hardened steel, module 1.5 and 8 mm bore. Reinforced hub for set screw M5x6. The pinions with odd tooth counts are profile shifted. Within the same outer diameter, there is no need to adjust the backlash when changing the pinion. When mounting on vehicles with mounting holes in the motor mount that are specific to the tooth count, the mounting holes for the higher number of teeth in each case (16 or 18) must be used.Profile regraded:This means that the number of teeth is changed while the diameter remained constant. The part of the involute curve that defines the tooth profile is changed. Positively regraded (lower number of teeth) pinions are stronger and run smoother, the reduced strength of negatively regraded pinions doesn´t really matter. Available in two sizes with two tooth counts:Outer diameter 30 mm with 17T or 18TOuter diameter 27 mm with 15T or 16TContents:1 piece
The competition tuned pipe system for HPI-Baja 5B 2.0 and Baja SS and Carson Wild Attack cars from the top manufacturer for high performances exhaust systems and current 1/5 World and European champion SAMBA!Complete set with flexible (spring) connection between manifold and pipe and mounting hardware for bracing against the HPI Baja's roll cage.For engines from 26cc to 32cc, improves torque and top speed!Complete set with manifold, slip-fit connector with hose and spring and installation hardware.
The SPEED TEC EXPERT genuine 5ive-T engine is optimized for performance with sophisticated craftsmanship and guarantees, besides greatly increased performance, excellent workmanship and stamina. SPEED TEC EXPERT version modifications: Cylinder: Adjustment of compression; enlarged ports, fuel management milled, machined and polished exhaust and intake. Piston: weight reduced; skirt shortened; oil rings, piston above and below piston ring tapered and piston dome ground. Crankshaft: is adjusted and aligned. Flywheel: weight reduced and checked for runout. Gaskets: use of premium quality gaskets.To achieve the optimum performance gain of a SPEED TEC EXPERT engine, we recommend the use of a tuned pipe (to the tuned pipes).
Part is delivered in silver or black color from vendor!

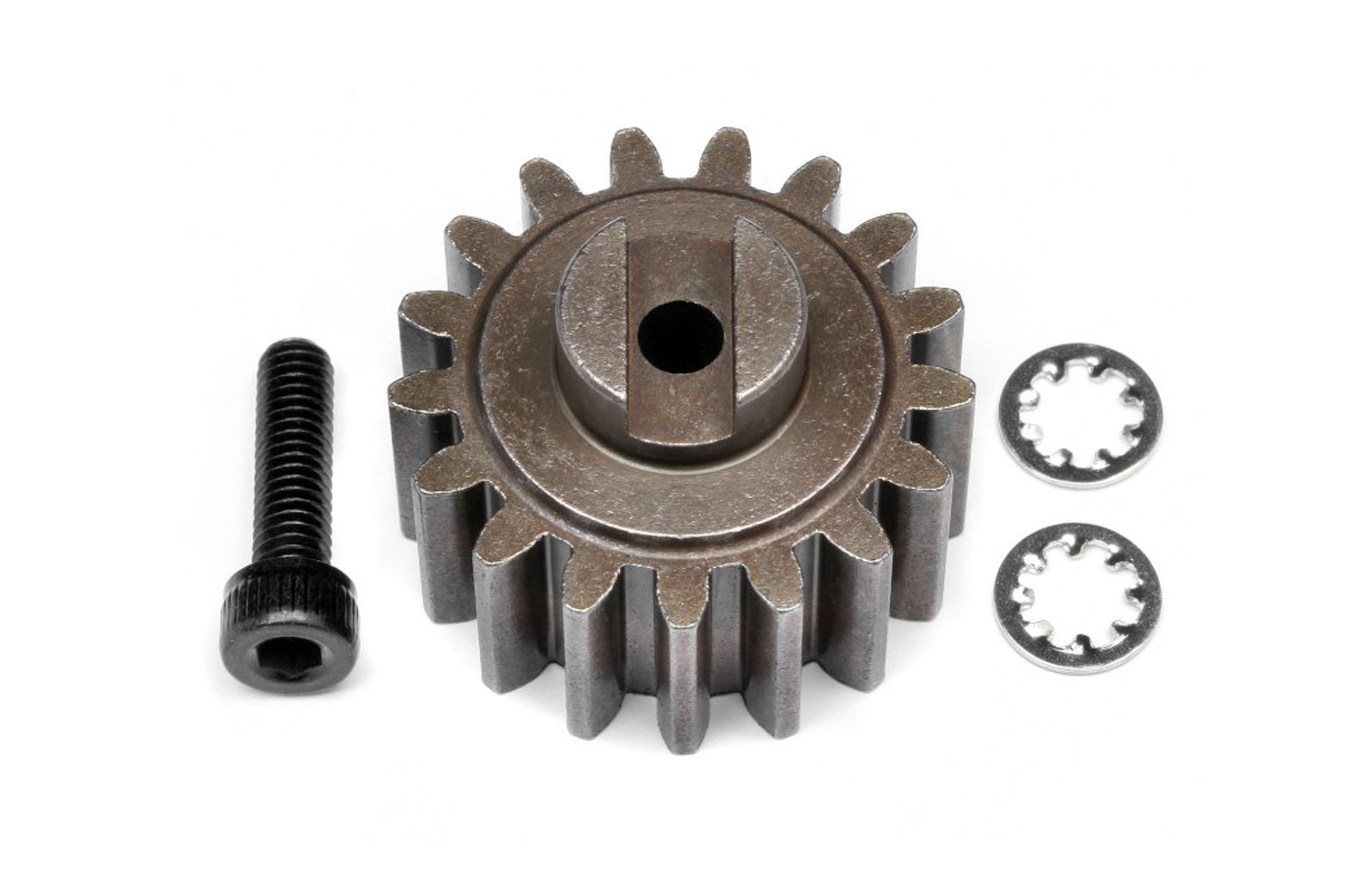

The pinions are machined from bar stock steel and nitrited (the stock pinion is metal injection molded). The do all fit with the stock spur gear and are secured with a center bolt like the stock pinion (which has 17T).Module: m=1,5Profile regraded, this means that the number of teeth is changed while the diameter remained constant. The part of the involutes? curve that defines the tooth profile is changed. Positively regraded (lower number of teeth) pinions are stronger and run smoother, the reduced strength of negatively regraded pinions doesn?t really matter.
