y0794/01 SPEED TEC EXPERT Zenoah G290 tuning cylinder set

Extremely flexible 6-piece body shell for Losi 5ive-T, with complete installation hardware.Made of thermoplastic elastomer (TPE), an extremely strong plastic which combines thermoplastic and elastomeric properties! Color black (the decals pictured are not included!). The elastoplastic body set fits the stock Losi 5ive-T roll cage precisely and is almost "unbreakable"! Due to the special surface properties of TPE (elasto plastics), elasto decal sets are strongly recommended for TPE body shells.Of course, the extreme deformability of the elastoplastic body shell, compared to the stock version, is a huge advantage.And there's more with the elastoplastic body shell:Better dirt protection for the 5ive-T through partially closed wheel wells front and rear.Front and rear fenders with large cut-outs prevent contact with the tires.Integrated window nets allow for improved airflow and better engine cooling.The textured surface of the elastoplastic body shell is largely soil-resisting.Please note: This feature also makes the use of highly specialised adhesives for any kind of decals unavoidable if you want them to stay. All decals shown in the pictures for presentation are of the standard version!Even though the elastoplastic body shell is much tougher than the stock Losi 5ive-T body, the weight increase only very moderate from 902 grams to 971 grams. The body shell is a 6-piece design for best flexibility possible.Contents:1 x hood/front fender2 x side panels1 x roof2 x rear fenders1 x complete installation hardware

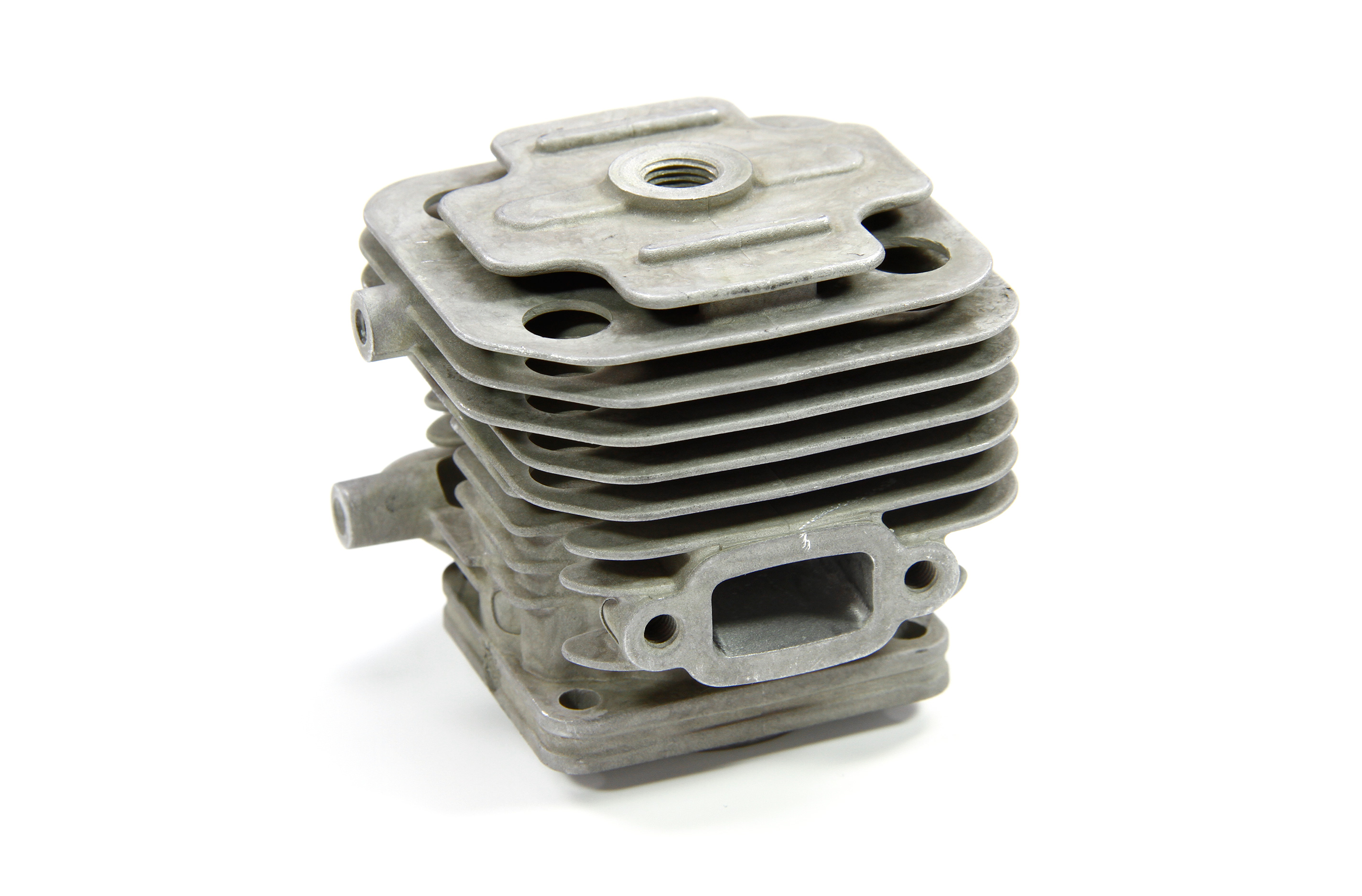

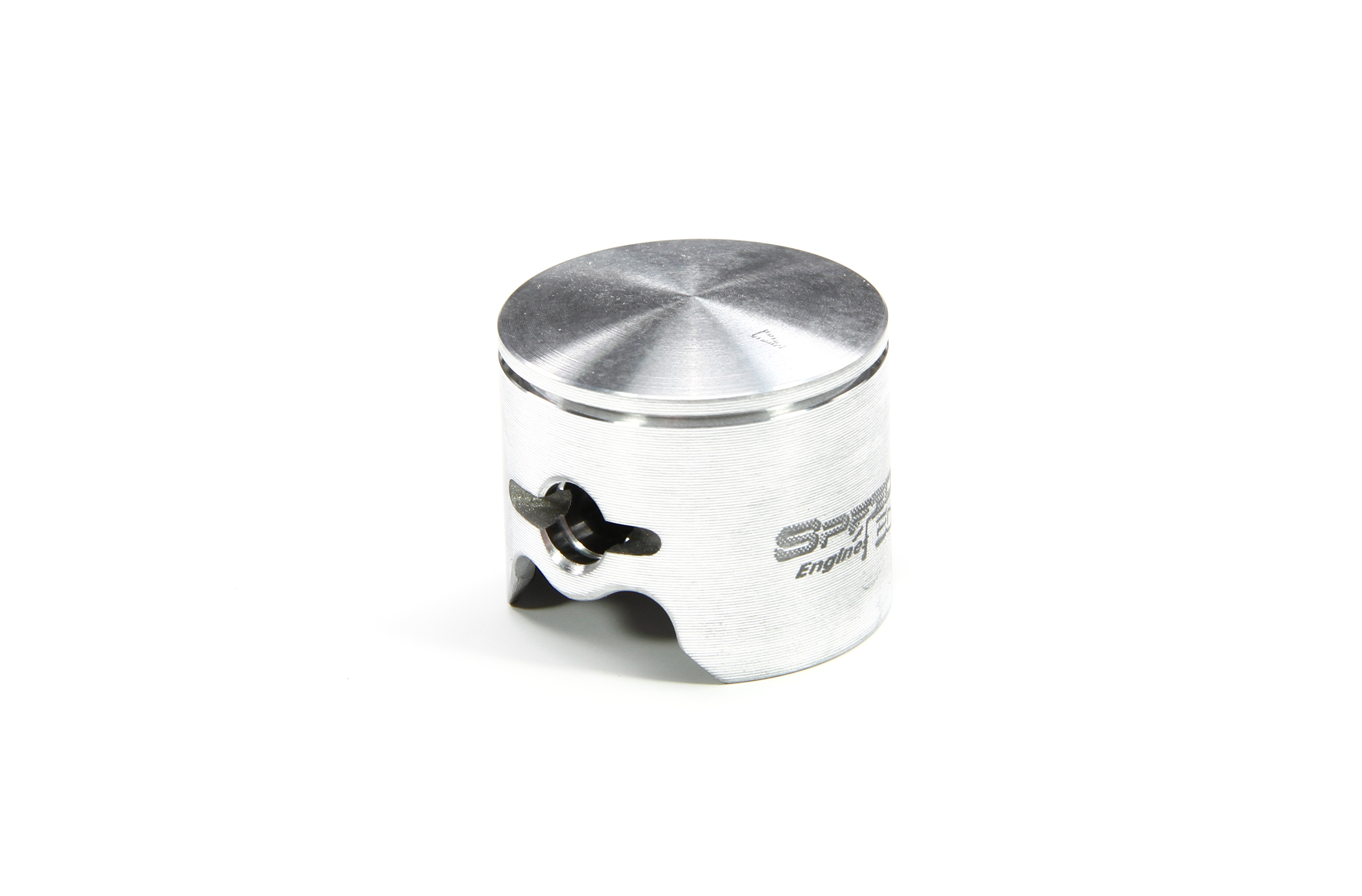

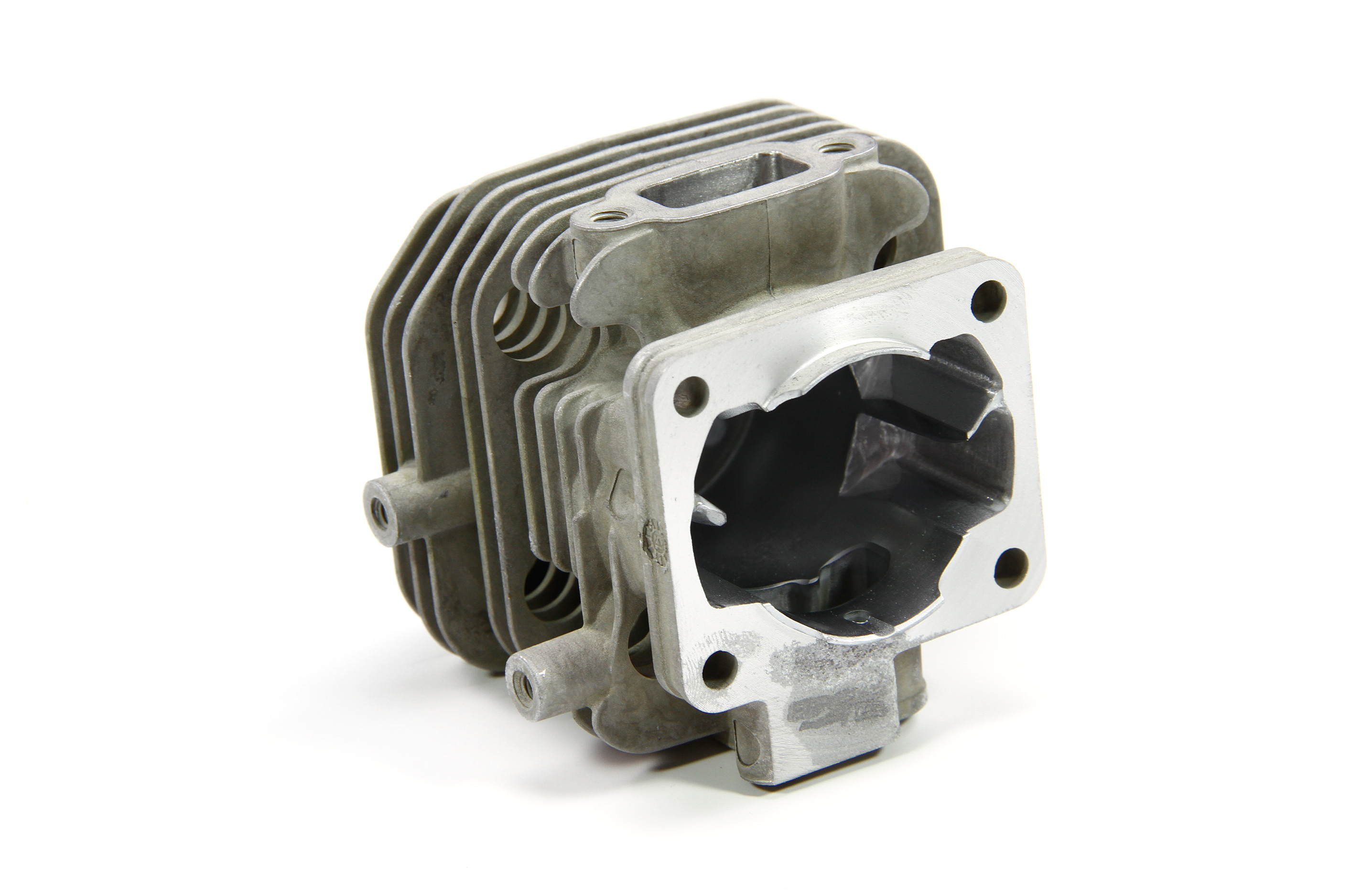

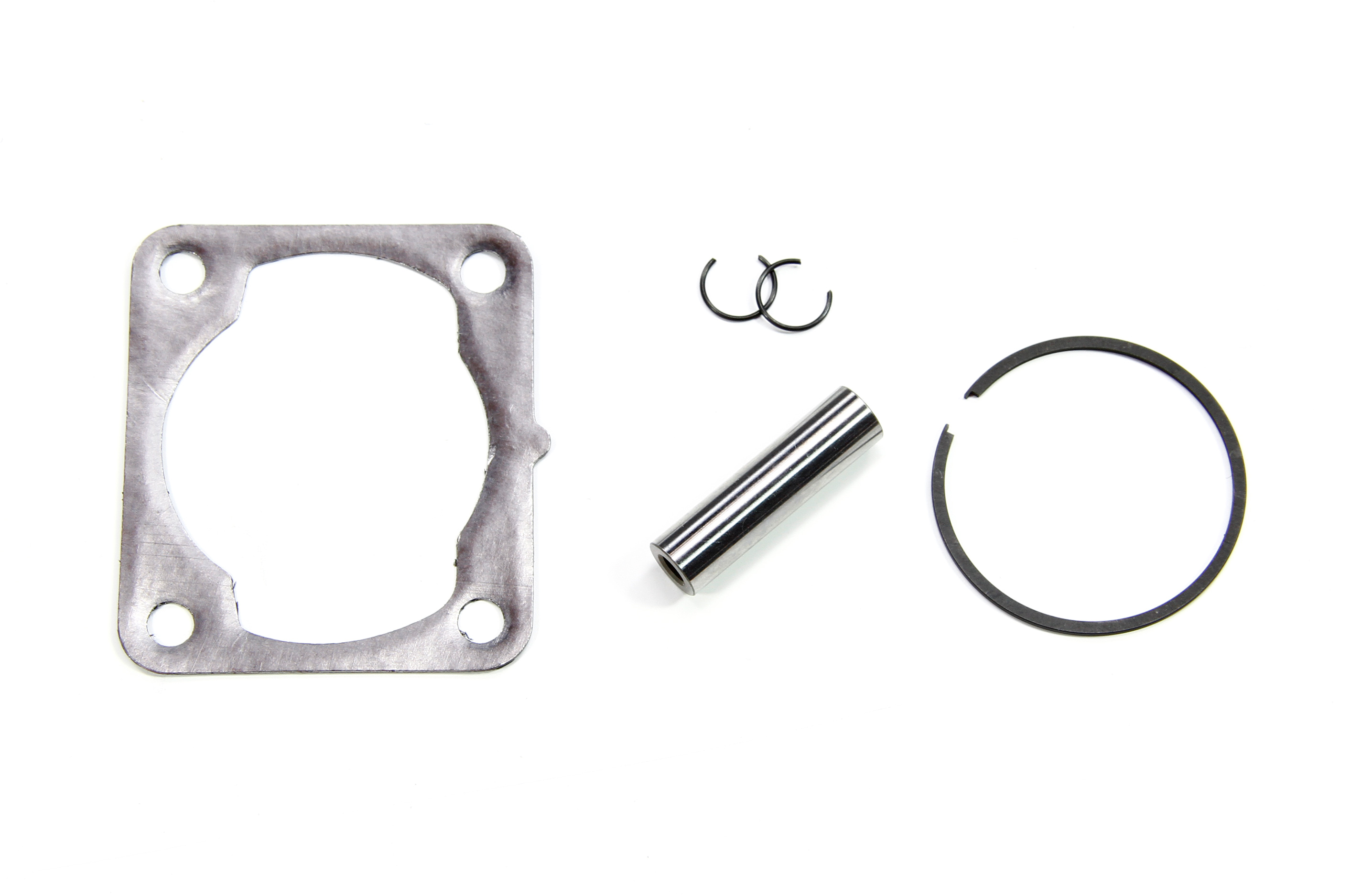

Race ported top end set for the original 5ive-T 26 cm³ engine.The SPEED TEC EXPERT genuine Zenoah G260 race ported top end set is optimized for performance with sophisticated craftsmanship and when accurately installed - guarantees, besides greatly increased performance, excellent workmanship and stamina. SPEED TEC EXPERT version modifications: Cylinder: Adjustment of compressionEnlarged portsFuel management milledModified exhaust and intake Piston: Weight reducedSkirt shortenedOil ringsPiston above and below piston ring tapered and piston dome ground The set includes the following items: Performance-optimized cylinder and piston, piston ring, piston pin, piston pin circlips and cylinder gasket.To achieve the optimum performance gain of a SPEED TEC EXPERT top end set, we recommend the use of a tuned pipe.

Race ported top end set for Zenoah G320 engine. The SPEED TEC CRANK genuine Zenoah G320 race ported top end set is optimized for performance with sophisticated craftsmanship and when accurately installed - guarantees, besides greatly increased performance, excellent workmanship and stamina.SPEED TEC CRANK version modifications: Cylinder: Adjustment of compressionThe ports have been enlargedThree additional ports (7-port) have been machinedFuel management milledMachined and polished exhaust and intakeThe case is specially matched with enlarged and polished cross section towards the portsy1016/002+3T Tuning transfer port covers:Reduced cross-section and flow-optimized transfer port cover plates for improved and faster gas flow for the Zenoah G320. The improved gas flow rate improves speed and gives faster throttle response in the medium rpm range. To improve mixture formation, the plates were glass bead blasted after machining. Piston:Weight reducedSkirt shortenedPiston above and below piston ring taperedSet includes the following parts: CylinderPistonPiston ringCylinder foot gasketPiston pinPiston pin clipThrust washer for needle bearingCover for transfer portTo achieve the optimum performance gain of a SPEED TEC CRANK top end set, we recommend the use of a tuned pipe ().

Genuine FG spare/option part. Set includes screws.Contents:2 pieces

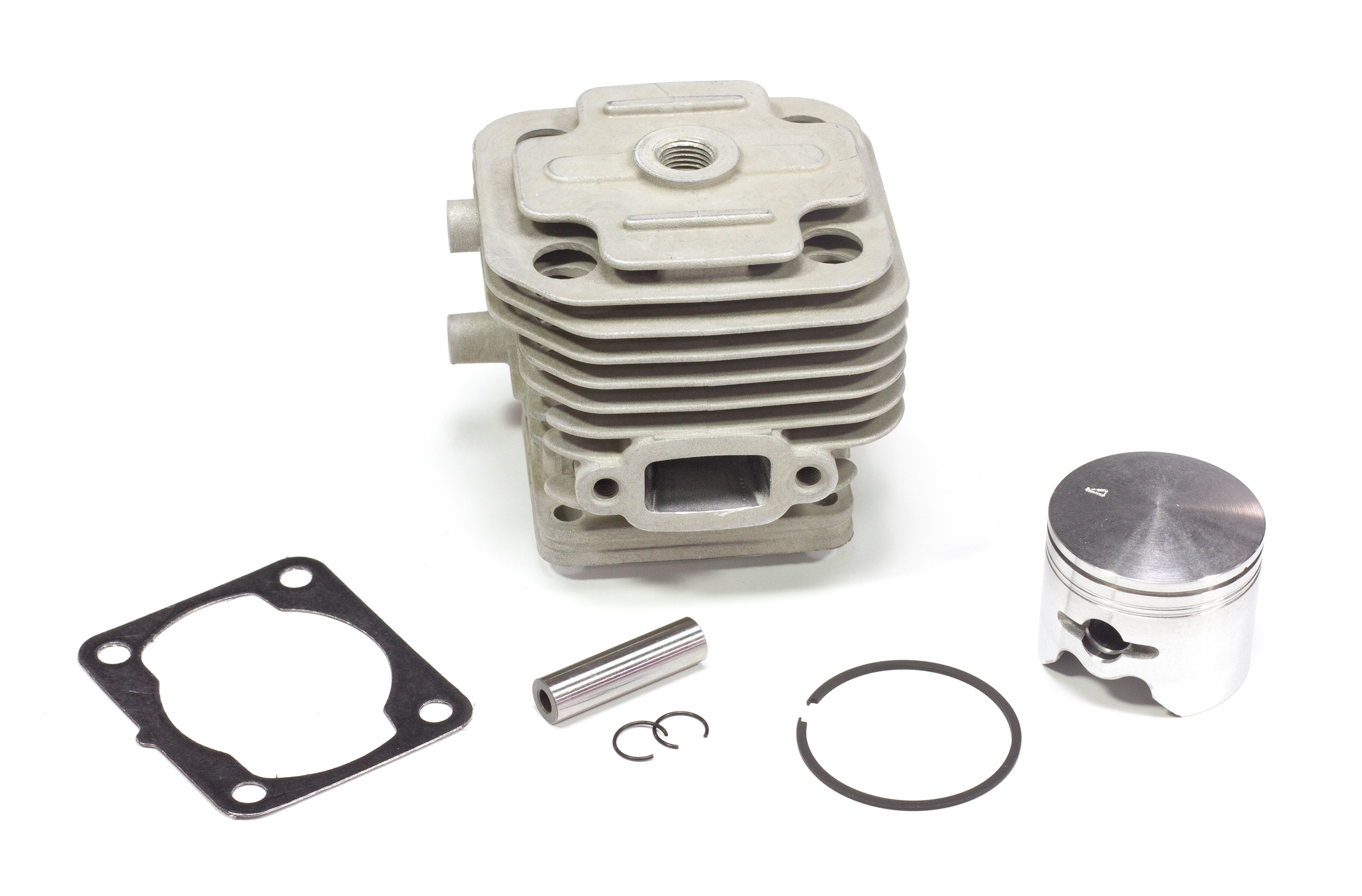

Race ported top end set for Zenoah G240, G270 and G290 engine.The SPEED TEC CRANK genuine Zenoah 30,5 cm³ race ported top end set is optimized for performance with sophisticated craftsmanship and when accurately installed - guarantees, besides greatly increased performance, excellent workmanship and stamina. SPEED TEC CRANK version modifications: Cylinder: Adjustment of compressionEnlarged portsFuel management milledMachined and polished exhaust and intakeThe case is specially matched with enlarged and polished cross section towards the ports Piston: Weight reducedSkirt shortenedPiston above and below piston ring tapered and piston dome polished The set includes the following items: Performance-optimized cylinder and piston, piston ring, piston pin, piston pin circlips and cylinder gasket.To achieve the optimum performance gain of a SPEED TEC CRANK top end set, we recommend the use of a tuned pipe ( to the tuned pipes ).Please note: You also need the modified crankshaft # along with the SPEED TEC COMPETITION top end set to convert a Zenoah 240/270/290 engine to 30.5 cc.Contents:1 set

y0557 Zenoah G230RC, with Walbro WT 603B carburetor (also available in the ball-raced version through the shop's options menu)23 cm³ Zenoah engine for large scale cars!The engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter and / or complete clutch are optionally available at additional charge.y1009 Zenoah G240RC with Walbro WT 990 carburetor (also available in the ball-raced version through the shop's options menu)23 cm³ Zenoah engine for large scale cars!Please note: contrary to their new designation the displacement has not been increased! The outer dimension didn't change, so you don't need any additional parts for the engine swap!The engines feature the following improvements over their G230RC:- Quantity of cylinder mounting bolts increased from 2 to 4- Improved strength of crankcase- Added additional bearing on the PTO (clutch) side of crankshaft- Redesigned shape of cylinder fins- Dimension of air intake port is 5% widerContains internal fuel pump which increases acceleration from idle to wide open throttle.Removal of choke valve increases performance by increasing air flow to the carburetor - Changed material of the insulator gasket to metal, which improves sealing performanceThe engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter and / or complete clutch are optionally available at additional charge. y0553 Zenoah G260RC with Walbro WT 603B carburetor (also available in the ball-raced version through the shop's options menu)This is the G260 in the 26 cm³ version.The engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter and / or complete clutch are optionally available at additional charge. y1011 Zenoah G270RC with Walbro WT 990 carburetor (also available in the ball-raced version through the shop's options menu)26 cm³ Zenoah engine for large scale cars!Please note: contrary to their new designation the displacement has not been increased! The outer dimension didn't change, so you don't need any additional parts for the engine swap!The engines feature the following improvements over their G260RC:- Quantity of cylinder mounting bolts increased from 2 to 4- Improved strength of crankcase- Added additional bearing on the PTO (clutch) side of crankshaft- Redesigned shape of cylinder fins- Dimension of air intake port is 5% wider- New carburetor (WT-990) Contains internal fuel pump which increases acceleration from idle to wide open throttle.Removal of choke valve increases performance by increasing air flow to the carburetor - Changed material of the insulator gasket to metal, which improves sealing performanceThe engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter are optionally available at additional charge. 7800 Zenoah G290RC with Walbro WT 990 carburetor (also available in the ball-raced version through the shop's options menu)Same dimensions as the Zenoah G230, G240, G260, G270.New generation Zenoah engine with 28,5ccm cylinder capacity and approx. 3.9 hp. The cylinder is fixed with 4 screws. The technical details are identical to the Zenoah engines G240RC and G270RC.The engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter and / or complete clutch are optionally available at additional charge. Compatibility Zenoah / Losi 5ive-T:Please note that for installation in a Losi 5ive the fan cover must be swapped for a Losi or CY cover #5341 in order to fit the chassis" bolt pattern.If you want to install a Zenoah engine into the Losi 5ive, you usually have to use a fan cover from the CY engine.However, there is a workaround to maintain Zenoah fan cover.The adjustment is done via the pinion specific mounting plates for the engine. The change always affects only the rear, outer (carburetor side) plate under the fan cover. This is rotated by 180°; so that the embossed number on this plate faces the exhaust side of the engine!18T pinion: use 20T plate, rotated 180°19T pinion: use 19T plate, rotated 180°20T pinion: use 18T plate, rotated 180°On the plus side you gain the opportunity to easily mount a Zenoah engine keeping the original fan cover. On the other hand there will be the disadvantage of the necessity to combine two different sets of engine mounting plates when installing any pinion other than the stock 19T version. Therefore we do not recommend this workaround for everyday use. Nevertheless it works perfectly should ever the need arise.Zenoah G320RC with Walbro WT 1107 carburetor (also available in the ball-raced version through the shop's options menu)With 32 cm³ and 30% more power than the Zenoah G290.Significantly more torque and higher stamina due to larger sized bearings all around, with Racing Carburetor Walbro WT 1107.The motor is supplied with WT-1107 carburetor and spark plug.SpecificationType: Two stroke gasoline engineDisplacement: 31,8 cm³Bore: 38 mmStroke: 28 mmWeight: 2,3 KgOverall Dimension:Length: 167 mmWidth: 215 mmHeight: 196 mmMaximum Output: 4,6 PSMaximum Torque: 2,00 N-mRotation Direction: CounterclockwiseCarburetor: Walbro WT-1107Spark plug: CMR7HStarting: Recoil starterFor all HPI Baja 5 cars the G320RCer clutch housing has to be shortened at the mounting base, for Losi 5ive- T and Desert Buggy XL cars the clutch housings overall length must be shortened to CY size.When installing the air filter you must pay attention to the length of the screws.For use on Losi and HPI we recommend M5x45 screws (like H94763); you can also cut existing screws to length, of course.When ordering with a modified clutch housing we will include these screws!In our shop you can select from Zenoah G320RC engines already modified to fit your HPI or Losi car.The installation of the Zenoah G320RC in other cars (like FG or Smartech buggies / monsters a.s.o.) is not even remotely straightforward, since the layshaft pinion (the small pinion in front of the big differential spur gear) is in the way for the larger Zenoah G320RC crankcase.Compatibility Zenoah / Losi 5ive-T:Please note that for installation in a Losi 5ive the fan cover must be swapped for a Losi or CY cover #5341 in order to fit the chassis" bolt pattern.If you want to install a Zenoah engine into the Losi 5ive, you usually have to use a fan cover from the CY engine.However, there is a workaround to maintain Zenoah fan cover.The adjustment is done via the pinion specific mounting plates for the engine. The change always affects only the rear, outer (carburetor side) plate under the fan cover. This is rotated by 180°; so that the embossed number on this plate faces the exhaust side of the engine!18T pinion: use 20T plate, rotated 180°19T pinion: use 19T plate, rotated 180°20T pinion: use 18T plate, rotated 180°On the plus side you gain the opportunity to easily mount a Zenoah engine keeping the original fan cover. On the other hand there will be the disadvantage of the necessity to combine two different sets of engine mounting plates when installing any pinion other than the stock 19T version. Therefore we do not recommend this workaround for everyday use. Nevertheless it works perfectly should ever the need arise.

The SPEED TEC EXPERT genuine Zenoah G290 engine is optimized for performance with sophisticated craftsmanship and guarantees, besides greatly increased performance, excellent workmanship and stamina. SPEED TEC EXPERT version modifications: Cylinder: Adjustment of compression; enlarged ports, fuel management milled, machined and polished exhaust and intake. Piston: weight reduced; skirt shortened; oil rings, piston above and below piston ring tapered and piston dome ground. Crankshaft: is adjusted and aligned. Flywheel: weight reduced and checked for runout. Gaskets: use of premium quality gaskets.To achieve the optimum performance gain of a SPEED TEC EXPERT engine, we recommend the use of a tuned pipe ( to the tuned pipes ).
