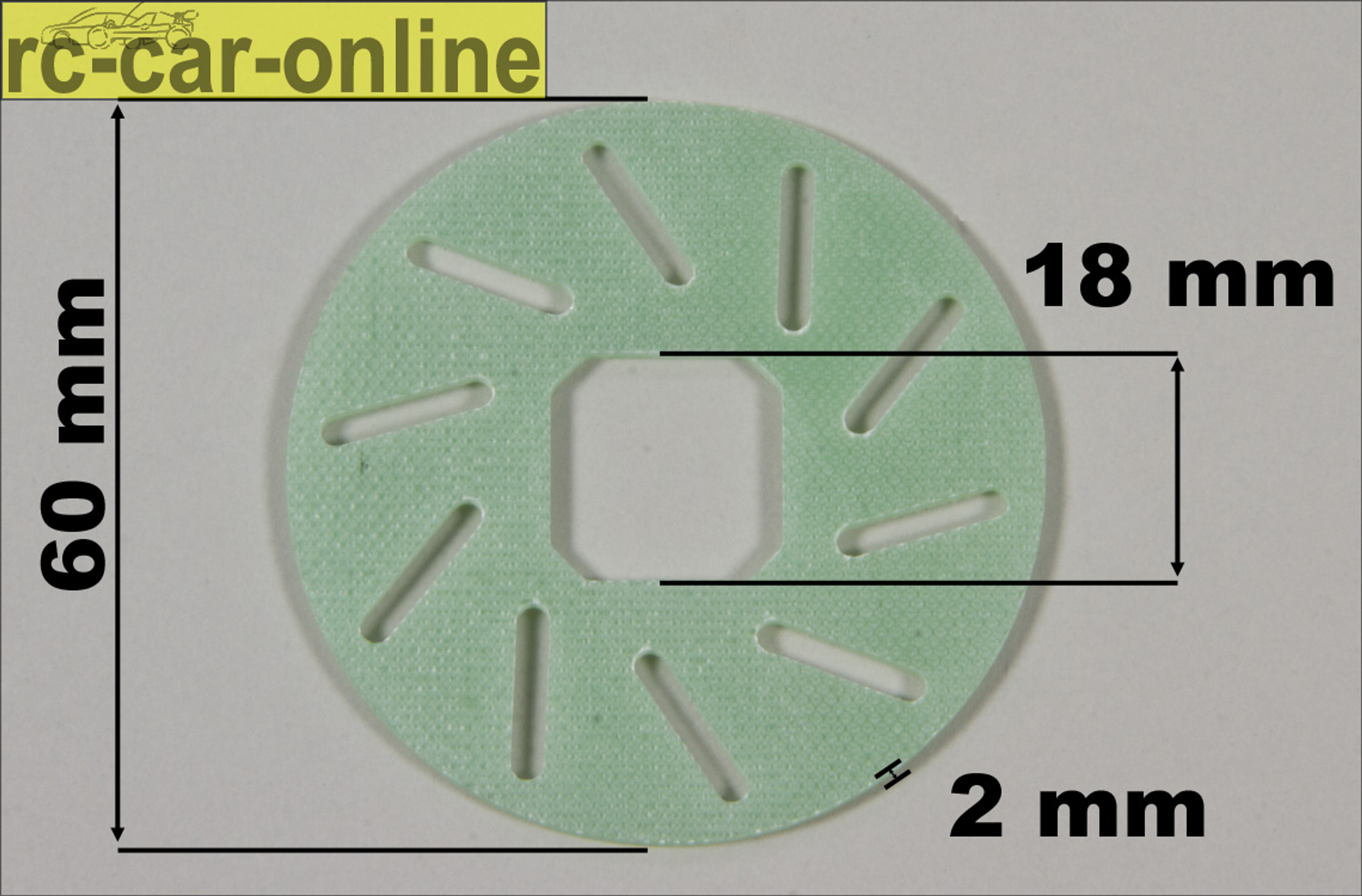

Top quality epoxy P-R-M Race brake discs with 10 dirt slots for removing dirt and abrasion, which will be transferred to the outside by the discs rotation. The epoxy P-R-M Race brake disc provides an optimal deceleration of the car without the unwanted fading (poor braking performance due to increased heat buildup)! The best braking action when using the epoxy P-R-M Race brake disc is achieved by the combination of the epoxy brake discs and steel brake pads (8456 or y19218). The epoxy P-R-M Race brake discs fit mechanical front and rear brakes on FG / Smartech / Carson cars with brake pads 8456 recommended for these applications.1 pair (2 pieces) Dimensions: Outer diameter: 60 mm Thickness: 2 mmsocket for 18 mm square wheel drive
Genuine HT spare/option part. A simple and effective method to prevent the suspension from bottoming out even with a soft damper setting. A rubber grommet dampens the hard impact to the shocks. Using small clips (which are also available separately) of 1.5 mm, 2 mm or 3 mm thickness, suspension travel can be adjusted to match vehicle ride height. The set includes all parts for two shock absorbers.The clips fit shock shafts up to 4.5 mm diameter. Suitable for the following shock : y1137 GPM - Spezial Cross shocks (all versions) 2011 Mecatech Big Bore Shocks y1193 Mecatech Klick-Shocks, externally adjustable FG 6083/6084 shocks front / rear 66291/66292/66293 alloy shocks 08 67320/67330 alloy shocks for Leopard 2WD/4WD 7202/7203/7204 alloy shocks 04 305029/305030 shocks Comanche / Attack Evo 32488 Carson 1/5 front shocks 32574 Carson 1/5 rear shocks Cad shocks (all versions ) Content:6 clips 1.5 mm thick6 clips 2 mm thick6 clips 3 mm thick 2 rubber grommets 4 suspension travel washers
Genuine HT spare/option part.Fits 535 mm wheel base, current touring car width. A rear wing is available through the shop's options menu. The body shell comes without decals!Required body mounts:Front section: FG 7020/11 Front bumperRear body mount: FG 7152/01 Rear body supportSide front: FG 7012 Body mountSide rear: FG 7014 Body mountAvailable decal sheets:y1329 - Vehicle decalsy1320/01 - Team decals Posty1329/02 - Team decals Samsungy1329/03 - BMW-Bank decalsy0683 - Jägermeister decalsy3006 - rc-car-online decalsDimensions:Length: 885 mmWidth: 392 mmHeight: 260 mmWheel base: 530 mm
Top quality epoxy P-R-M Race brake discs with four dirt slots and 12 4-mm holes for removing dirt and abrasion, which will be transferred to the outside by the discs rotation. The epoxy R-P-M Race brake disc provides an optimal deceleration of the car without the unwanted fading (poor braking performance due to increased heat buildup!)! With an extremely heavy car like the Losi 5ive-T and Mini exceptionally good braking effect is especially important, of course! The best braking action when using the epoxy RPM Race brake disc is achieved by the combination of the epoxy brake discs and the stock Losi 5ive-T and Mini steel brake pads! The epoxy R-P-M Race brake discs for the Losi 5ive-T/Mini are a direct replacement for the original aluminum brake discs. Dimensions: Outer diameter: 60 mm Thickness: 3 mm socket for the stock Losi 5ive-T/Mini drive cup Weight: 383 grams/ pair
Genuine HT spare/option part.For secure installation of the brake cables.Contents:1x Brake cable bracket2x Socket head cap screws 3 x 25 mm2x Self-locking hexagon nut M3
The set is delivered not painted. The body is not drilled and fits touring cars of all 1/5 scale brands with a 535 mm wheelbase.EFRA number: 5063/14Rear Wing:8147 FG Rear wing BMW 320si WTCC and BMW M3 SuperstarsFor additional cooling of the motor, there is the option of selecting a cooling air duct in the shopping basket selection.Optional carbon or aluminum rear wings can be found here.Required body mounts:Mount front: FG 7020/12 Front bumper Rear body mount: FG 7152/01 Rear body mount Side body mount front: FG 7012 Body mounts Side body mount rear: FG 7014 Body mounts Measures:Length: 890 mmWidth: 392 mmHeigth: 260 mmWheelbase: 530 mmPainting tips:
Product information "y1137/01 GPM-Big Bore Premium shock absorbers for FG, Carson/Smartech 2WD, set"
Set consists of 4 shock absorbers. Premium version, suitable for FG, Carson / Smartech etc. Fully assembled and filled. Special features:
16 mm inner diameter for higher oil volume
Volume equalisation Housing and screw connections made entirely of aluminium Hard anodised housing Precision piston made of Delrin, machined (no moulded part!) Aluminium piston rod base and aluminium spring plate Replaceable bearing bushes in the mounting eyes Pre-filled with 1000 silicone oil. For the following models: FG 2WD: Marder, Off-Road Buggy, Beetle, Monster Beetle Carson 2WD: Comanche, Attack Evo, CRT, CPT, Smartech monster truck Set contents:
Two long and two short dampers.We recommend our progressive off-road tuning shock absorber springs from the "Dirt-Spring M" series for the shock absorbers. The original springs can also be used on FG models! Silicone oil recommendation:
The GPM-Spezial Cross shock absorbers are filled with silicone oil viscosity 1000. This viscosity provides very good damping properties at normal outside temperatures. If softer damping is required, oil with a viscosity of 500 or 600 is recommended; for harder damping, 1500 or higher. One 50 ml bottle is sufficient for five long or six short dampers.
Genuine HT spare/option part.This extremely strong servo horn is specifically designed with dimensions for the installation of the Hitec HS-900SGS/HS-1000SGT/HS-1005SGT/HS-1100WP high-performance servo in the Losi 5ive-T and Mini for steering application, but it can be used in other cars with this kind of servo.It bolts directly to the servos stock aluminum disk.The lever of this arm is longer than that of the servo saver. This gives you faster actuating speed of the steering.A linkage with a double-sided arm can only be done properly if all corresponding levers are the same length and the linkages run exactly parallel. If this is not the case, the servo and servo saver shaft will try to change the distance to each other with every steering movement . Thus, undesirable constraining forces.For this reason we decided to give preference to the single-sided arm.Scope of delivery:1 x Aluminium servo horn4 x Socket head cap screws 3 x 14 mm1 x Socket head cap screws 4 x 30 mm1 x Self-lockinghexagon nut M44 x Shim ring 3,2Contents:1 piece
Genuine HT spare/option part. Fits Area 5ive-T rear uprights AREA-5T-034 on the driveshaft side. Both sides sealed (2RS) for increased dirt resistance. Does not fit stock parts! Content:2 pieces
Set besteht aus 4 Dämpfer.Premiumausführung, passend für FG EVO 2020 Modelle.Fertig montiert und befüllt.Besondere Merkmale:16 mm Innendurchmesser für höheres ÖlvolumenVolumenausgleichGehäuse und Verschraubungen komplett aus Aluminiumharteloxiertes GehäusePräzisionskolben aus Delrin, zerspanend gefertigt (kein Spritzteil!)Alu-Kolbenstangenfuß und Alu-Federtelleraustauschbare Lagerbuchsen in den Befestigungsaugenfertig befüllt mit 1500/2000er Siliconöl.Für folgende Modelle:y1137/09 für FG-Evo 2020 Modelle: ab 2015Setinhalt:Vier kurze Dämpfer mit geänderten (gekürzt) Dämpferfüßen und Federteller, sowie Befüllung Front 2000er Heck 1500er Siliconöl.Bei Dämpfer Version brauchen sie die Feder y0452/02. Silikonöl-Empfehlung:Die GPM-Spezial Stoßdämpfer sind mit Silikonöl Viskosität 1500 und 2000er befüllt. Diese Viskosität ergibt sehr gute Dämpfungseigenschaften bei normalen Außentemperaturen.Wird eine weichere Dämpfung angestrebt, so empfiehlt sich Öl in den Viskositäten 1000 oder 1500; für eine härtere Dämpfung entsprechend 2500 oder höher.Eine 50 ml Flasche y0038 reicht für fünf lange oder sechs kurze Dämpfer.
Genuine HT spare/option part. Replacement clips for Suspension limiter no.: Clips with 1,5 mm, 2 mm und 3 mm size included in the set. The clips fit shock shafts up to 4.5 mm diameter. Suitable for the following shock : y1137 GPM - Spezial Cross shocks (all versions) 2011 Mecatech Big Bore Shocks y1193 Mecatech Klick-Shocks, externally adjustable FG 6083/6084 shocks front / rear 66291/66292/66293 alloy shocks 08 67320/67330 alloy shocks for Leopard 2WD/4WD 7202/7203/7204 alloy shocks 04 305029/305030 shocks Comanche / Attack Evo 32488 Carson 1/5 front shocks 32574 Carson 1/5 rear shocks Cad shocks (all versions ) Package includes:6 clips 1.5 mm thick 6 clips 2 mm thick6 clips 3 mm thick
Top quality epoxy P-R-M Race brake discs with four dirt slots and 12 4-mm holes for removing dirt and abrasion, which will be transferred to the outside by the discs rotation. The epoxy R-P-M Race brake disc provides an optimal deceleration of the car without the unwanted fading (poor braking performance due to increased heat buildup!)! With an extremely heavy car like the Losi 5ive-T and Mini exceptionally good braking effect is especially important, of course! The epoxy R-P-M Race brake discs for the Losi 5ive-T/Mini are a direct replacement for the original aluminum brake discs. Dimensions: Outer diameter: 60 mm Thickness: 3 mm socket for the stock Losi 5ive-T/Mini drive cup Weight: 383 grams/ pair
Set consists of 4 dampers. Premium version, suitable for FG, Carson / Smartech etc.
Fully assembled and filled. Special features: 16 mm inner diameter for higher oil volume Volume equalisation Housing and screw connections made entirely of aluminium Hard anodised housing Precision piston made of Delrin, machined (no moulded part!) Aluminium piston rod base and aluminium spring plate Replaceable bearing bushes in the mounting eyes Pre-filled with 1000 silicone oil. For the following models: FG 4WD:
Monster Truck, Monster Jeep, Monster Hummer, Stadium Truck, Stadium Jeep, Stadium Hummer, Off-Road Beetle Set contents:
Four long dampers with 5 mm mount in the upper damper caps. Damper feet one pair short, one pair long (4WD MT version). We recommend our progressive off-road tuning shock absorber springs from the "Dirt-Spring M" series, part number y0321, for the shock absorbers. The original springs can also be used on FG models! Silicone oil recommendation: The GPM-Spezial Cross shock absorbers are filled with silicone oil viscosity 1000. This viscosity provides very good damping properties at normal outside temperatures. If softer damping is required, oil with a viscosity of 500 or 600 is recommended; for harder damping, 1500 or higher is recommended. One 50 ml bottle of y0038 is sufficient for five long or six short dampers.
Set consists of 4 dampers. Premium version, suitable for FG, Carson / Smartech etc.
Fully assembled and filled. Special features: 16 mm inner diameter for higher oil volume Volume equalisation Housing and screw connections made entirely of aluminium Hard anodised housing Precision piston made of Delrin, machined (no moulded part!) Aluminium piston rod base and aluminium spring plate Replaceable bearing bushes in the mounting eyes Pre-filled with 1000 silicone oil. For the following models: Carson 2WD:
Attack, Super Attack, Gas Blaster, Big Attack
Smartech 2WD:
UNO, Spider, Duratrax, Firehammer Set contents: Two long and two short shock absorbers as well as spacers for the front axle. We recommend our progressive off-road tuning shock absorber springs from the "Dirt-Spring M" series, part number y0321, for the shock absorbers. The original springs can also be used on FG models! Silicone oil recommendation: The GPM-Spezial Cross shock absorbers are filled with silicone oil viscosity 1000. This viscosity provides very good damping properties at normal outside temperatures. If softer damping is required, oil with a viscosity of 500 or 600 is recommended; for harder damping, 1500 or higher is recommended. One 50 ml bottle of y0038 is sufficient for five long or six short dampers.
Set consists of 4 dampers. Premium version, suitable for FG, Carson / Smartech etc. Fully assembled and filled. Special features: 16 mm inner diameter for higher oil volume Volume equalisation Housing and screw connections made entirely of aluminium Hard anodised housing Precision piston made of Delrin, machined (no moulded part!) Aluminium piston rod base and aluminium spring plate Replaceable bearing bushes in the mounting eyes Pre-filled with 1500/2000 silicone oil. For the following models: FG-Evo models:
2008 - 2011 and Evo from 2012 Set contents: Four short dampers with modified (shortened) damper feet
For damper version y1137/07 and y1137/08 for Smartech C5 and FG smooth track models the spring y0452/02. Silicone oil recommendation: The GPM-Spezial shock absorbers are filled with silicone oil viscosity 1500 and 2000. This viscosity provides very good damping properties at normal outside temperatures. If softer damping is required, we recommend using oil with a viscosity of 1000 or 1500; for harder damping, use 2500 or higher. One 50 ml bottle of y0038 is sufficient for five long or six short dampers.
Set consists of 4 dampers. Premium version, suitable for FG, Carson / Smartech etc. Fully assembled and filled. Special features: 16 mm inner diameter for higher oil volume Volume equalisation Housing and screw connections made entirely of aluminium Hard anodised housing Precision piston made of Delrin, machined (no moulded part!) Aluminium piston rod base and aluminium spring plate Replaceable bearing bushes in the mounting eyes Pre-filled with 1000 silicone oil. For the following models: Kyosho Scorpion XXL
Set contents: Four short dampers with long damper feet. We recommend our progressive off-road tuning shock absorber springs from the "Dirt-Spring M" series, part number y0321, for the shock absorbers. The original springs can also be used on FG models! Silicone oil recommendation: The GPM-Spezial Cross shock absorbers are filled with silicone oil viscosity 1000. This viscosity provides very good damping properties at normal outside temperatures. If softer damping is required, oil with a viscosity of 500 or 600 is recommended; for harder damping, 1500 or higher is recommended. One 50 ml bottle of y0038 is sufficient for five long or six short dampers.When installing in a Kyosho Scorpion XXL (version 6), the dampers on the front axle must be shimmed by 4mm (see picture above!). The original Scorpion springs can still be used. We recommend a silicone oil with a viscosity of 100-200 for the front axle and a silicone oil with a viscosity of 200-300 for the rear axle.
Product information "y1137/02 GPM-Big Bore Premium shock absorbers for FG Monster/Stadium Truck 2WD, set" Set consists of 4 shock absorbers. Premium version, suitable for FG, Carson / Smartech etc. Fully assembled and filled. Special features: 16 mm inner diameter for higher oil volume
Volume equalisation
Housing and screw connections made entirely of aluminium Hard anodised housing
Precision piston made of Delrin, machined (no moulded part!)
Aluminium piston rod base and aluminium spring plate Replaceable bearing bushes in the mounting eyes
Pre-filled with 1000 silicone oil. For the following models:
FG 2WD:
Monster Truck, Monster Jeep, Monster Hummer, Monster Beetle Pro, Stadium Truck, Stadium Jeep, Stadium Hummer
Set contents: Four long shock absorbers We recommend our progressive off-road tuning shock absorber springs from the "Dirt-Spring M" series, part number y0321, for the shock absorbers. The original springs can also be used on FG models! Silicone oil recommendation: The GPM-Spezial Cross shock absorbers are filled with silicone oil viscosity 1000. This viscosity provides very good damping properties at normal outside temperatures. If softer damping is required, oil with a viscosity of 500 or 600 is recommended; for harder damping, 1500 or higher is recommended. One 50 ml bottle of y0038 is sufficient for five long or six short dampers.
Set consists of 4 dampers. Premium version, suitable for FG, Carson / Smartech etc. Fully assembled and filled. Special features: 16 mm inner diameter for higher oil volume
Volume equalisation Housing and screw connections made entirely of aluminium Hard anodised housing Precision piston made of Delrin, machined (no moulded part!) Aluminium piston rod base and aluminium spring plate Replaceable bearing bushes in the mounting eyes Pre-filled with 1000 silicone oil. For the following models: FG 4WD:
Marder, Off-Road Buggy Set contents: Four long shock absorbers, one pair of shock absorbers has the upper mount with 5 mm bore. We recommend our progressive off-road tuning shock absorber springs from the "Dirt-Spring M" series, part number y0321, for the shock absorbers. The original springs can also be used on FG models! Silicone oil recommendation: The GPM-Spezial Cross shock absorbers are filled with silicone oil viscosity 1000. This viscosity provides very good damping properties at normal outside temperatures. If softer damping is required, oil with a viscosity of 500 or 600 is recommended; for harder damping, 1500 or higher is recommended. One 50 ml bottle of y0038 is sufficient for five long or six short dampers.
Set consists of 4 dampers. Premium version, suitable for FG, Carson / Smartech etc. Fully assembled and filled. Special features: 16 mm inner diameter for higher oil volume Volume equalisation Housing and screw connections made entirely of aluminium Hard anodised housing Precision piston made of Delrin, machined (no moulded part!) Aluminium piston rod base and aluminium spring plate Replaceable bearing bushes in the mounting eyes Pre-filled with 1500/2000 silicone oil. For the following models: Smartech C5 and FG Sportsline 1:5 touring cars 2WD and 4WD
Set contents:
Four short dampers with damper feet
For damper version y1137/07 and y1137/08 for Smartech C5 and FG smooth track models the spring y0452/02. Silicone oil recommendation: The GPM-Spezial shock absorbers are filled with silicone oil viscosity 1500 and 2000. This viscosity provides very good damping properties at normal outside temperatures.
If softer damping is required, we recommend using oil with a viscosity of 1000 or 1500; for harder damping, use 2500 or higher. One 50 ml bottle of y0038 is sufficient for five long or six short dampers.
TURBO-TWIST, 325 mm long screw driver in top quality. Allows you to set the carburetor on almost any 1:5 / 1:6 model also with a mounted body shell.On most models, you have to adjust the motor with this screwdriver does not even stoop.Caution:May differ from picture!
The set is delivered with Jägermeister painted. The body is not drilled and fits all 1/5 scale fabricate with a wheelbase of 535 mm.For additional cooling of the motor, there is the option of selecting a cooling air duct in the shopping basket selection.Required body mounts:Mount front: FG 7020/12 Front bumper Rear body mount: FG 7152/01 Rear body mount Side body mount front: FG 7012 Body mounts Side body mount rear: FG 7014 Body mounts Measures:Length: 890 mmWidth: 392 mmHeigth: 260 mmWheelbase: 530 mm
2 pairs of shock absorbers, set
Please select shock absorber version!
Check which version you need!
y1137/01 for FG, Carson 2 WD models
y1137/02 for FG Monster/Stadium Truck 2 WD models
y1137/03 for FG Marder/Offroad Buggy 4 WD models
Y1137/04 for FG Monster/Stadium Truck 4 WD models
y1137/05 for Carson 2 WD models
y1137/06 for Kyosho Scorpion XXL models
y1137/07 for Carson C5 and FG Sportsline TW models
Y1137/08 for FG Evo models up to 2014
y1137/09 for FG Evo 2020 models from 2015 onwards
GPM-Spezial Cross shocks, premium full metal version.Assembled and filled.Special features:
16 mm shock bore for increased capacity
volume compensation
shock body and caps machined from billet aluminum
hard anodized shock body
machined precision delrin pistons (not injection molded!)
aluminum shaft end and spring retainer
shock caps with replaceable bushings
factory filled with 1000
GPM-Spezial Cross shocks, premium full metal version. >Assembled and filled.
volume compensationshock body and caps machined from billet aluminumhard anodized shock bodymachined precision delrin pistons (not injection molded!)aluminum shaft end and spring retainershock caps with replaceable bushingsfactory filled with 1000 filling quantityshort 7mllong 9mlLong and short version availble in the following sets:
y1137/01 Version 1
FG 2WD: Marder, Off-Road Buggy, Beetle, Monster BeetleCarson 2WD: Comanche, Attack Evo, CRT, CPT, Smartech Monster-Truck
Set includes: 2 each long and short shocks
y1137/02 Version 2
FG 2WD: Monster-Truck, Monster Jeep, Monster Hummer, Monster Beetle Pro, Stadium Truck, Stadium Jeep, Stadium Hummer
Set includes: 4 long shocks
y1137/03 Version 3
FG 4WD: Marder, Off-Road Buggy
Set includes: 4 long shocks, one pair features 5 mm upper mounting bore
y1137/04 Version 4
FG 4WD: Monster-Truck, Monster Jeep, Monster Hummer, Stadium Truck, Stadium Jeep, Stadium Hummer, Off-Road Beetle
Set includes: 4 long shocks with a 5 mm mounting hole in the upper shock cap; 1 pair with standard lower shock mounts, the other pair with long lower shock mounts (4WD MT version)
y1137/05 Version 5
Carson 2WD: Attack, Super Attack, Gas Blaster, Big AttackSmartech 2WD: UNO, Spider, Duratrax, Firehammer
Set includes: 2 each long and short shocks with spacers for the front
y1137/06 Version 6
Kyosho Scorpion XXL
Set includes:4 short shocks with long shock mounts
y1137/07 Version 7
Smartech C5 and FG Sportsline 1:5 touring cars 2WD and 4WD
Set includes: 4 short shocks equipped with shock mounts
y1137/08 Version 8
FG-Evo Modelle: 2008 - 2011 and Evo from 2012 an up
Set includes: 4 short shocks equipped with shortened shock mounts
y1137/09 Version 9
FG-Evo Modelle:2020 and 2020.1 from 2015
Set includes:4 short shocks equipped with shortened shock mounts
Overall length, extended: long 155 mm, short 131 mm
Mounting distance, extended: long 144,5 mm, short 120,5 mm
Travel: long 43,5 mm, short 30,5 mm
Inner diameter of spring: 21 mm
Shock body diameter: 20 mm
Eye bore: 4.5 mm
Eye thickness: top 6 mm, bottom 5 mm
Shaft diameter: 4 mm
Shaft thread: M4
We recommend our progressive y0452/02. for these shocks. On FG cars the OEM springs can be used as well. Shock versions y1137/07 and y1137/08 for Smartech C5 and FG on-road cars should use spring Shock oil recommendations:The GPM-Spezial Cross shocks are factory filled with 1000 viscosity silicone oil. This gives a very good shock performance at normal ambient temperatures.When a softer shock is required, you can go for 500 or even 600 viscosity oil; 1500 and up if you prefer more damping.One 50 ml bottle fills 5 long or 6 short shocks.For use in a Kyosho Scorpion XXL (version 6), the shocks must be installed with an additional 4 mm spacer at the lower front mount (see picture above). The stock Scorpion springs can be used. We suggest silicone oil with a 100 to 200 viscosity for the front and a 200 to 300 viscosity for the rear .Introductory price! Regular price: 129,90 EUR / set
