The T10PXR is a 10-channel 2.4GHz computer radio control system with F-4G,T-FHSS SR / T-FHSS / S-FHSS and MiniZ modulation modes. The transmitter convinces with new design, new keypad and high quality carbon elements. New additions are some new buttons, 2- and 3-position switches and a rocker switch at the base of the transmitter.

The Futaba T10PX comes with many new features that make the new RC-car radio flagship a very flexible transmitter.

With 10 channels and many configuration options, the possible uses go far beyond those of a conventional car radio.
From racer and drifter to crawler and boat to complex function models, everything is possible.

Overview of the modulation types:

• F-4G, 10 channels / telemetry
• T-FHSS-SR, 4 channels
• T-FHSS, 4 channels / telemetry
li>
• S-FHSS, 7 channels

The new F-4G transmission protocol has been further improved compared to T-FHSS SR. Latency has been significantly reduced again and the range extended. At the same time, the receivers have become smaller.

The optical center of the T10PX is the backlit 4.3 inch TFT color touch display with brilliant colors and high sharpness. Even in direct sunlight, all values on the display can be read excellently. The graphic user interface with the well-known easy to use Futaba menu structure, ensures easy operation. Navigation is intuitive via the screen and the additional buttons on the top of the transmitter.

TELEMETRY

Synchronized, bi-directional communication between transmitter and receiver with high telemetry data rate (up to 9 times per second), without loss of control channel response. Maximum of 31 telemetry sensors, alarm tone setting and output via beeper, vibration alert or voice output via internal speaker or optional headphones/active speaker.

• Telemetry data recording on SD card (SDHC)
• Telemetry data analysis via spreadsheet programs or LogView software
• Real-time display of telemetry data on integrated display
• Receiver signal strength indicator for monitoring the range
• Receiver undervoltage warning system for monitoring of the receiver battery
• Connection of up to 31 sensors to the S.BUS2 input

S.BUS-TECHNOLOGY

• Connection option for S.BUS2 sensors
• All S.BUS servos can also be connected to normal servo outputs of the receiver
• Digital BUS technology for model sports
• Allows ideal placement of all components with efficient wire routing
• Future-proof, digital technology for all future Futaba components

Features:

• Color LCD Touch Screen 4.3 Inch
• F4G System & Telemetry
• S-FHSS & T-FHSS
• Super Response (SR) Mode
• MiniZ S-FHSS
• 10 channels
• 40 models memory
• additional 3- and 2-step switches
• Brake mixer for large scale cars
• 4-wheel steering mixer
• Dual ESC mixer
• Mixer for track drives
• CPS LED mixer
• Gyro adjustment via T10PX
• microSD Slot (Data Log / Update)
• USB port

Content of delivery

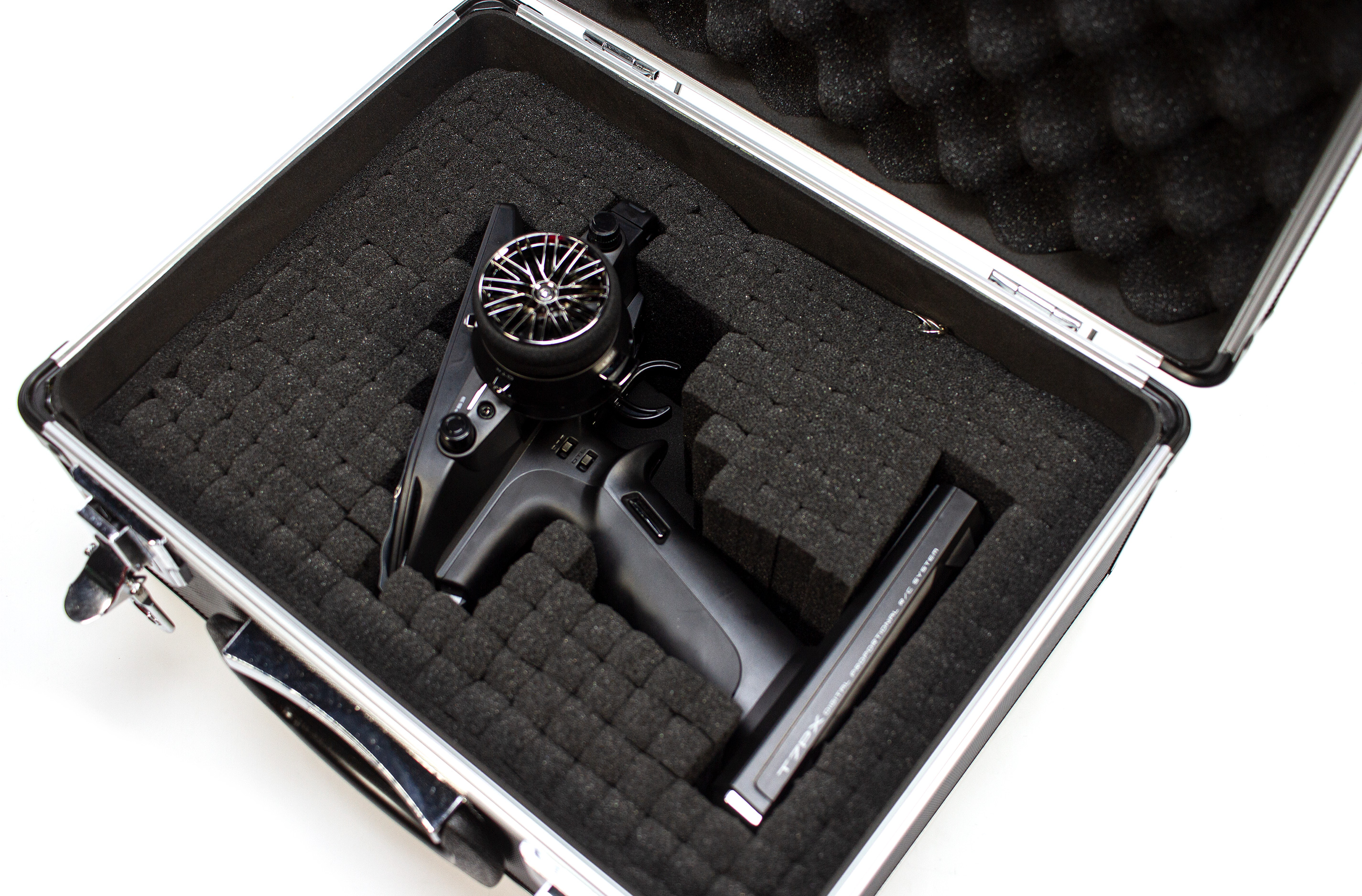

• Transmitter T10PX
• Receiver 404SBS
• Instruction manual DE/UK
• Accessories
