FG Sportsline 2WD-530 with Bugatti EB 110 body shell, 23cm³ Engine
Product number:
sl_08_bugatti_eb110.2
EAN:
4058575141150
Zubehör
%
Ideal work stand with extra wide tripod up to 100 kg. load capacity with excellent stability, even on uneven (!) urface.Specially made support mechanism, individually adjustable width from 115 mm to 375 mm for most RC cars from 1/10 to 1/5 scale. incline from 0 to 90° Quickly folded and loaded For easy storage, as well as for transport completely foldable! (Carrying bag available!)Height adjustment of the support from 635 mm to 1000 mm and inclination from 0-90° Length of the support surface 386 mm Bis zu 100Kg belastbar! Support mechanism continuosly adjustable in width Due to various adjustment options, the Top Tuning CAR STAND offers the optimal possibilities for making adjustments or maintenance work on the RC car. The load capacity and stability are beyond doubt with a load limit of 100 kg and the extremely stable tripod. The up to 90 ° adjustable slant shows your RC car at events and presentations, as well as in your assembly room to its best advantage! 6.5 kg. weight Pivoting bracket Height adjustable from 69 to 104 cm Basic frame is made of steel, painted or chromed Car bracket is made of aluminum and stainless steel A tool holder TT1030/01 is also available as an accessory in our shop selection.
Hobbythek car bag for 1/5 carsFits for all 1/5 models for example: FG-: HPI-; Mecatech FW01-; Carson-; Smartech-; Conrads-; Harm-; RS5-; Lauterbacher a.s.oMade from extremely durable fabric, easily washable; with wrap-around shoulder belts and zipper closure.No dirt in the car boot!Dimensions:Length: 95 cmWidth: 40 cmHeight: 30 cm
Fully synthetic oil, available in three blends. 1-liter bottle.The optimal 2-stroke oil for 23-30 cm³ engines/cars Motul Racing Oil is available in three different blends: On-Road for high revving onroad cars Off-Road for cars with high torque enginesMixing ratio for 1/5 & 1/6 applications: We recommend a mix with about 4% oil, which means 200 cc of oil to 5 litres of gas (1:25 ratio). With one litre of Motul oil you can mix about 25 litres of optimal fuel for your 1/5 or 1/6 car. That's enough for well over 20 hours of driving fun! Oil / Gas Oil percent Oil per 1 liter of gasoline Oil per 2 liter of gasoline Oil per 3 liter of gasoline Oil per 4 liter of gasoline Oil per 5 liter of gasoline 1:20 5% 50 ml 100 ml 150 ml 200 ml 250 ml 1:25 4% 40 ml 80 ml 120 ml 160 ml 200 ml 1:30 3,33% 33 ml 67 ml 100 ml 134 ml 167 ml 1:33 3% 30 ml 60 ml 90 ml 120 ml 150 ml 1:35 2,86% 29 ml 58 ml 86 ml 115 ml 143 ml 1:40 2,5% 25 ml 50 ml 75 ml 100 ml 125 ml 1:50 2% 20 ml 40 ml 60 ml 80 ml 100 ml
Product information "FG Sportsline 2WD-530 with Bugatti EB 110 body shell, 23cm³ Engine"
The Sportsline quality at a reasonable price for beginners. For rookies and all those who simply just want to have fun and drive a DTM Audi, Mercedes or a fast Porsche. The Sportsline series is ideal for car modellers whose main focus is not just the chassis, but rather the combination of chassis and body shell.
Technical description:

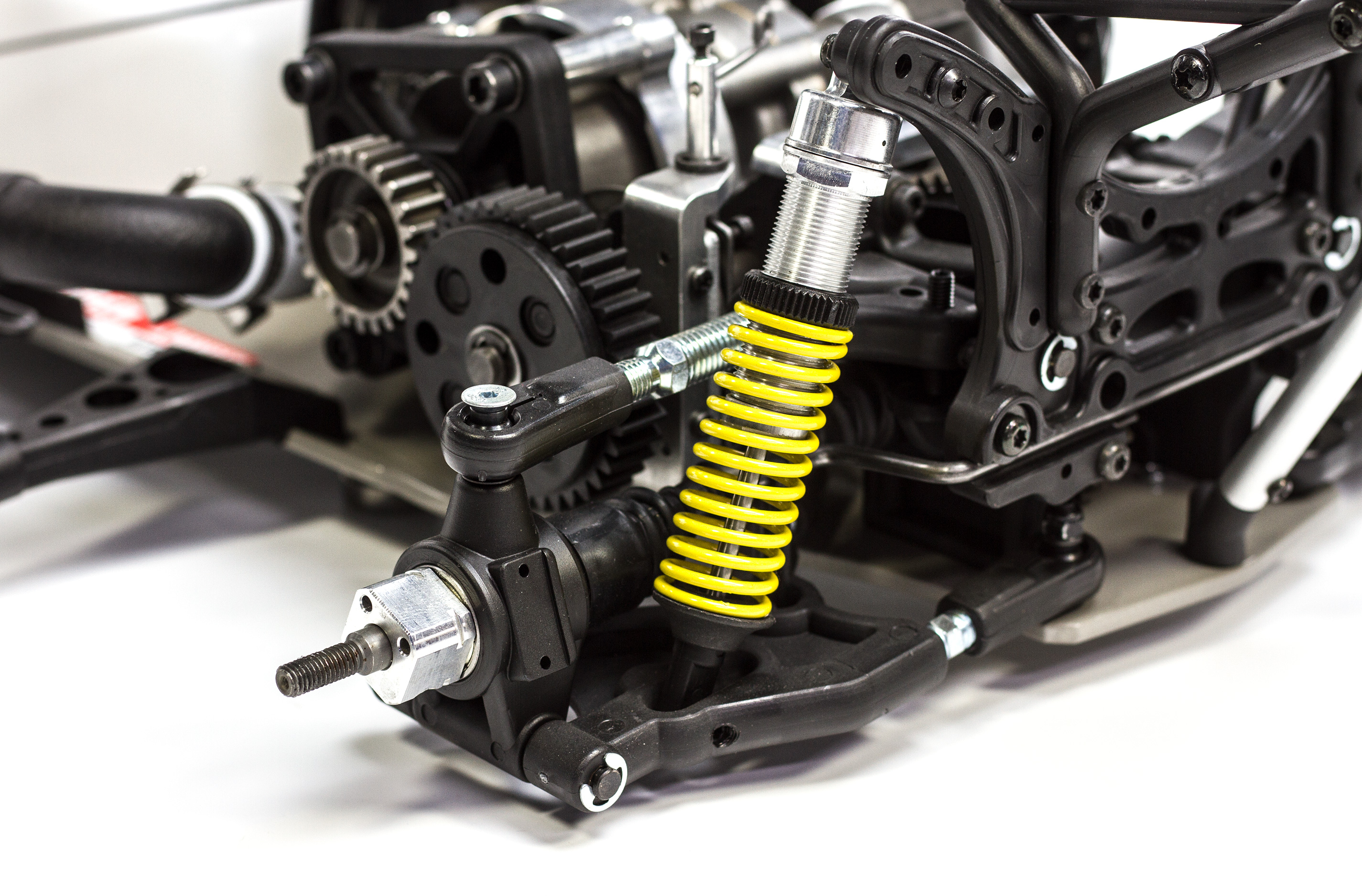

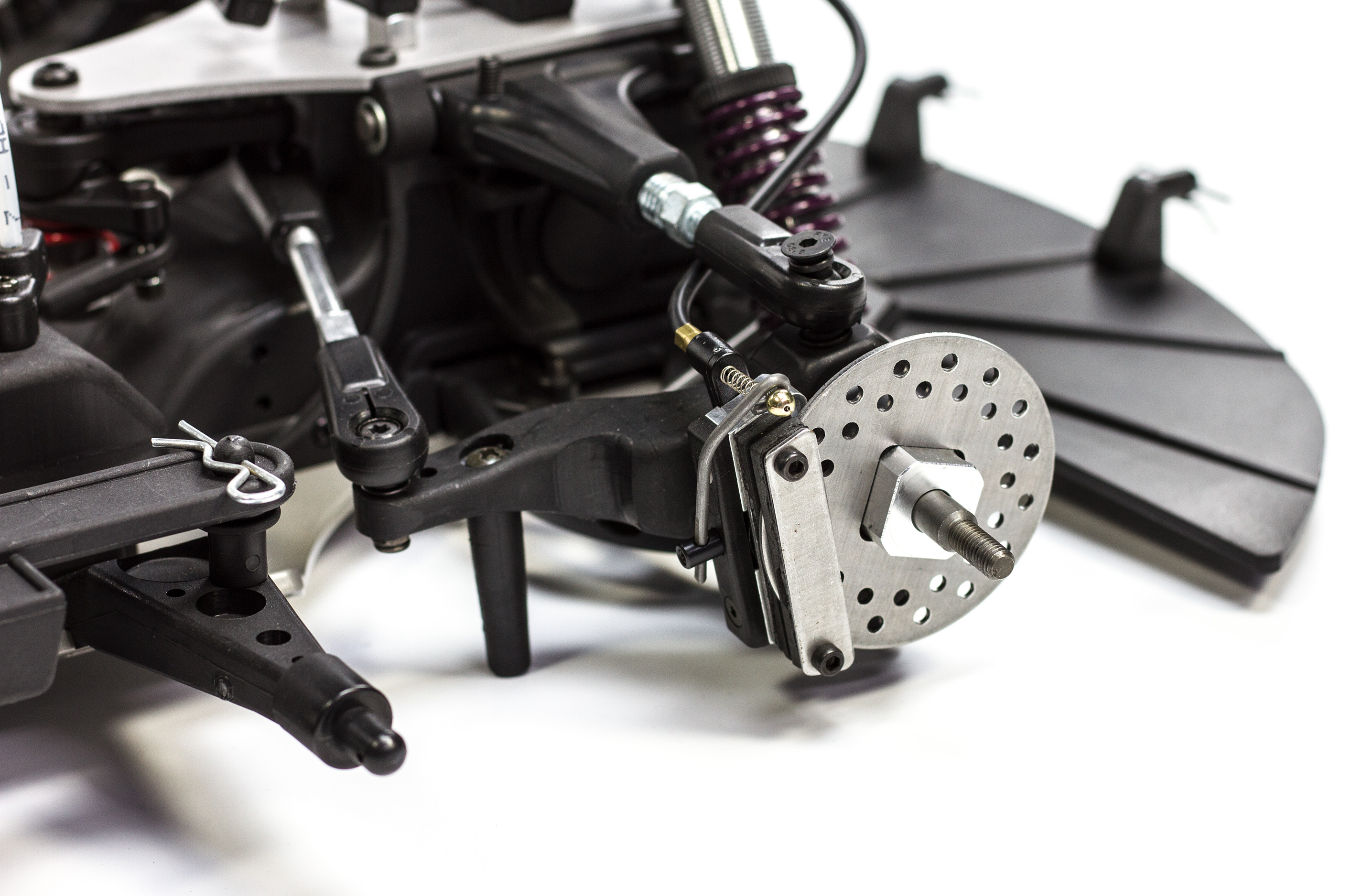

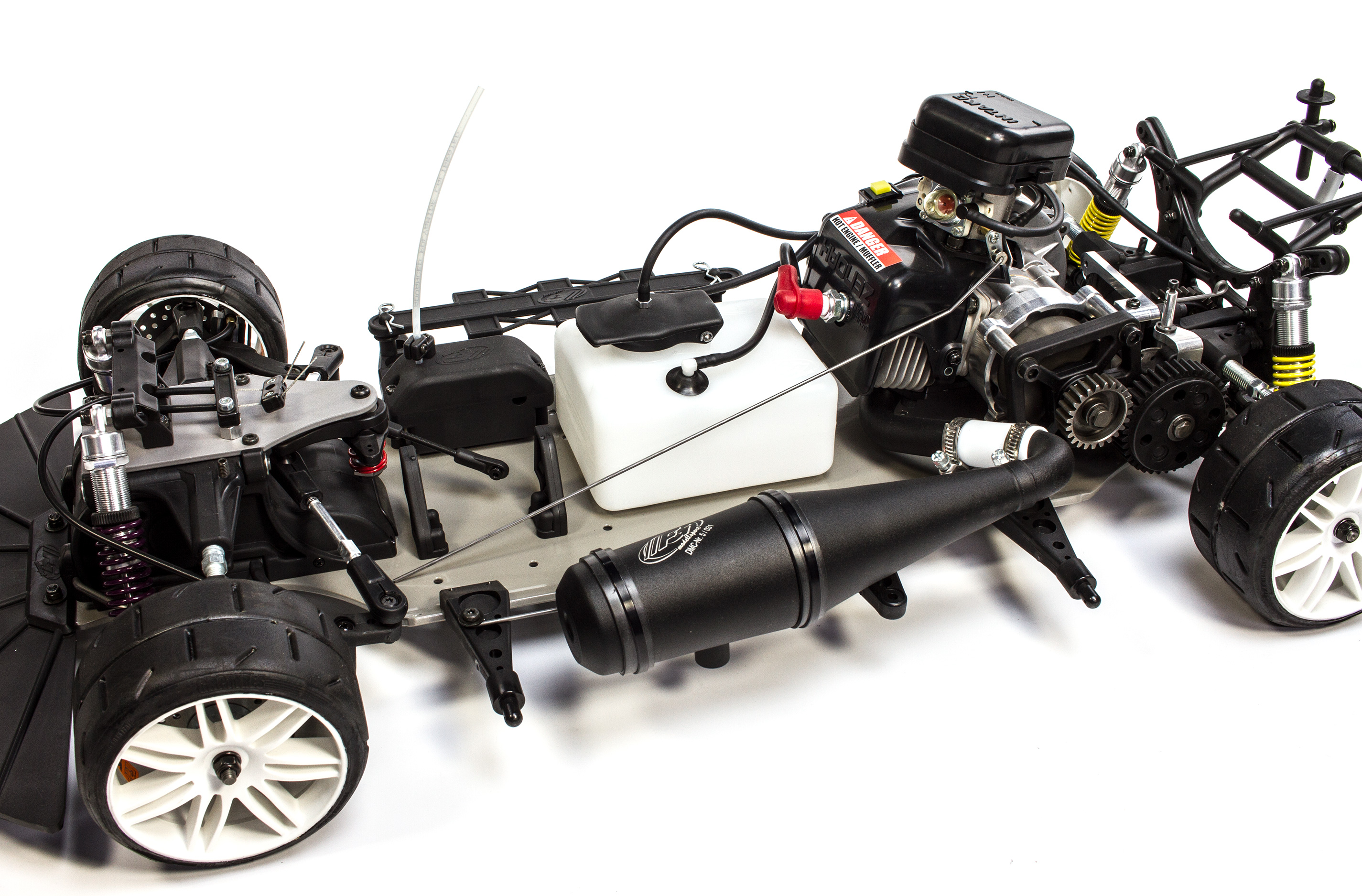

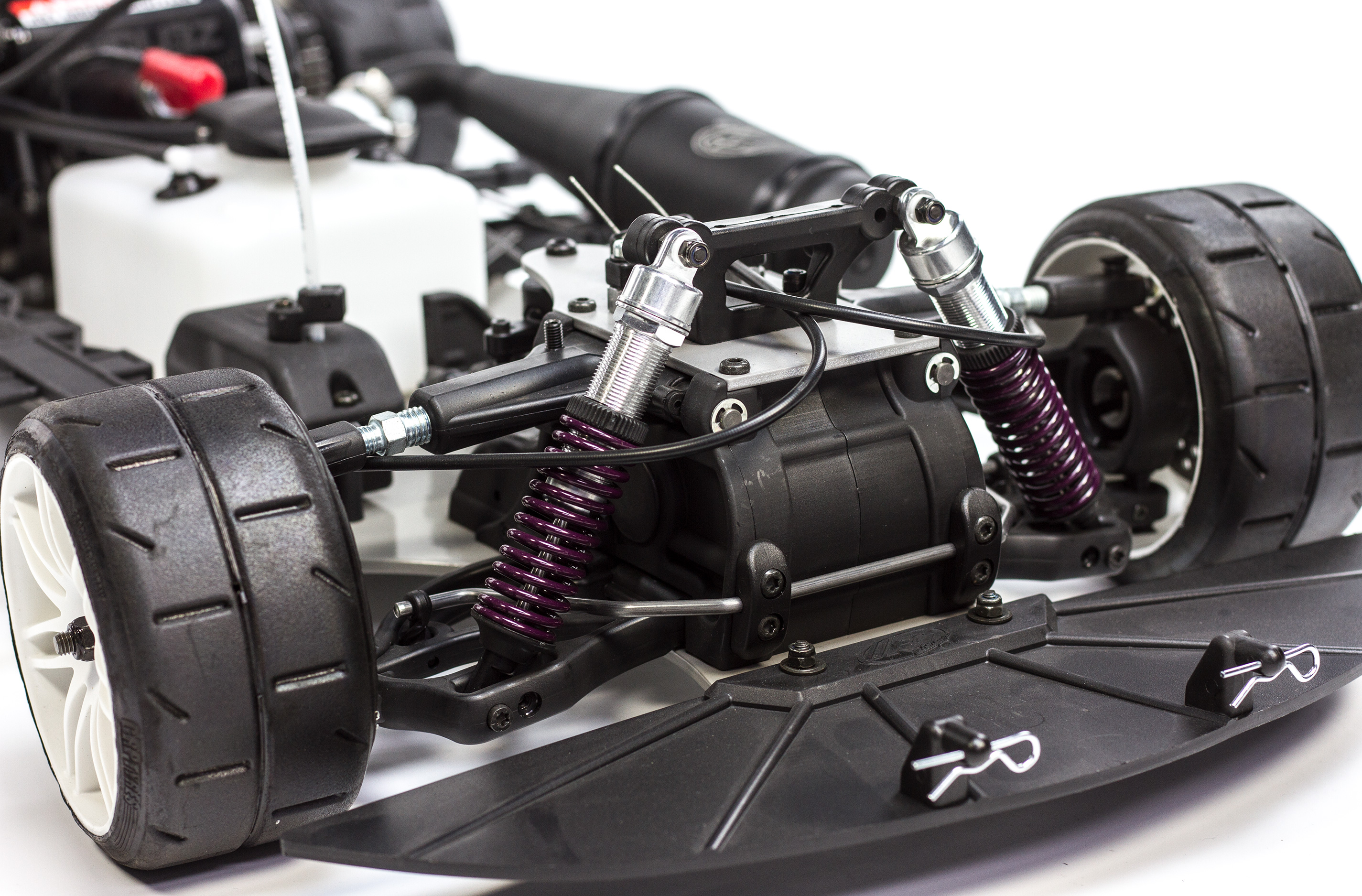

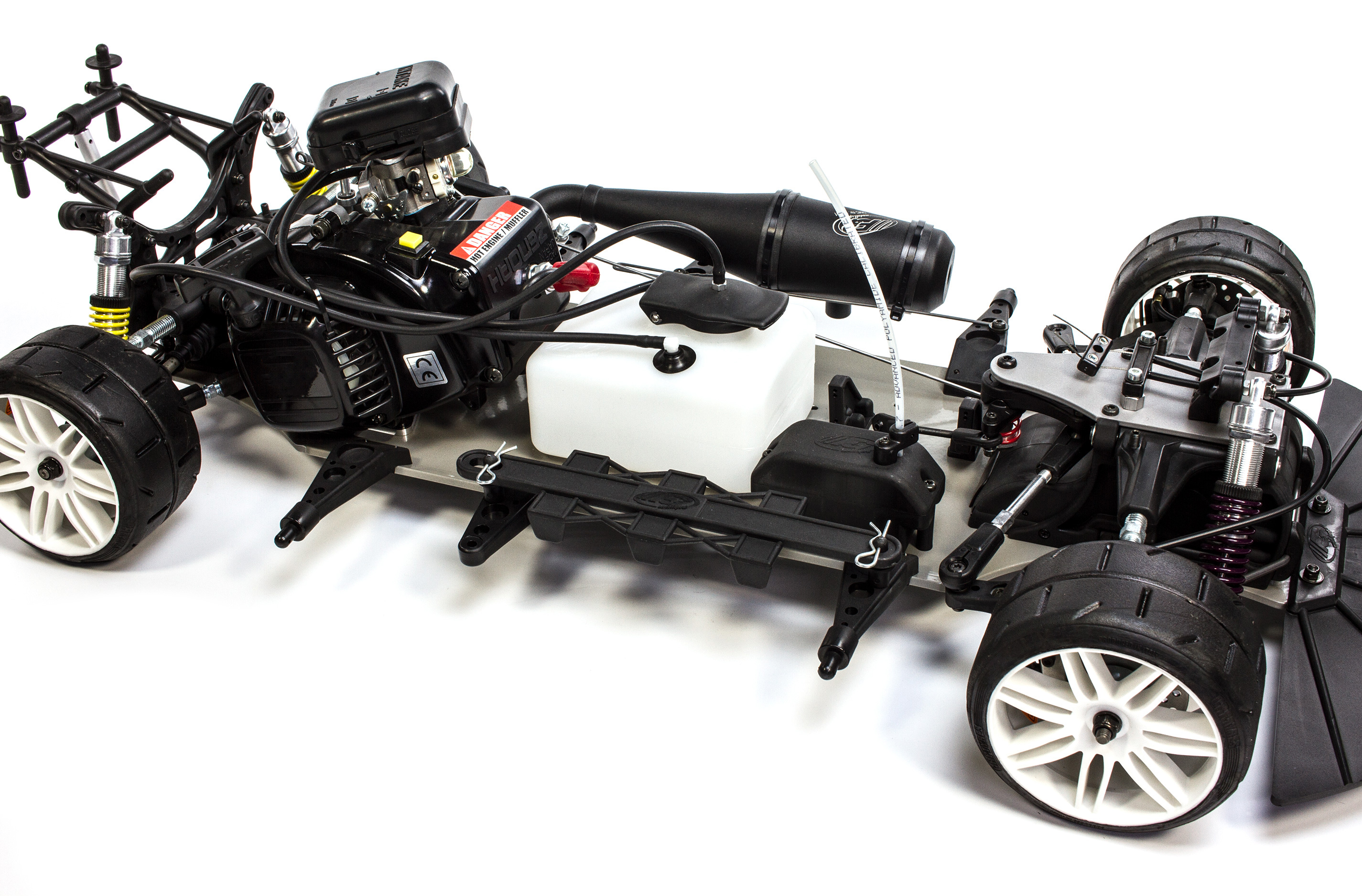

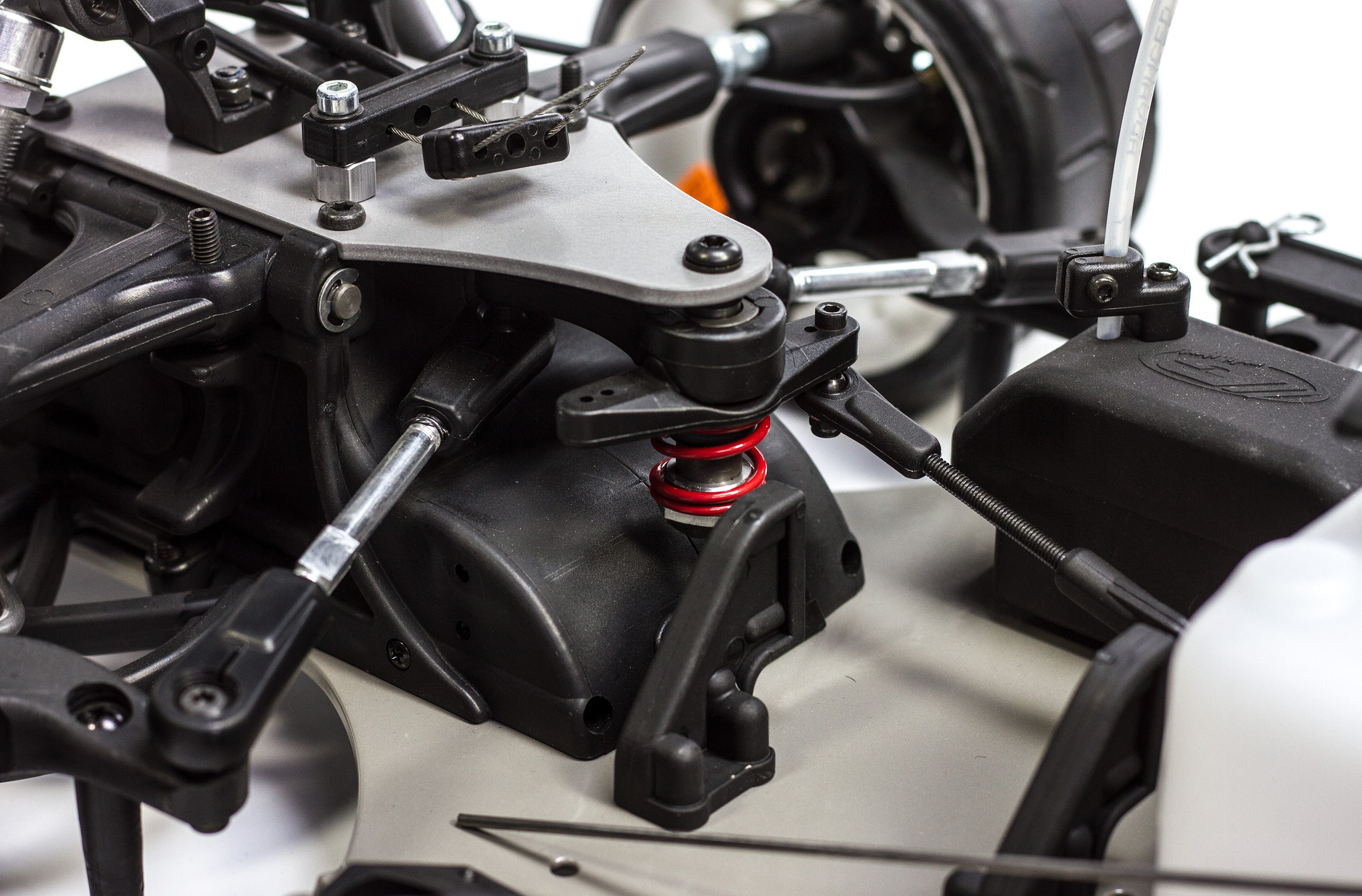

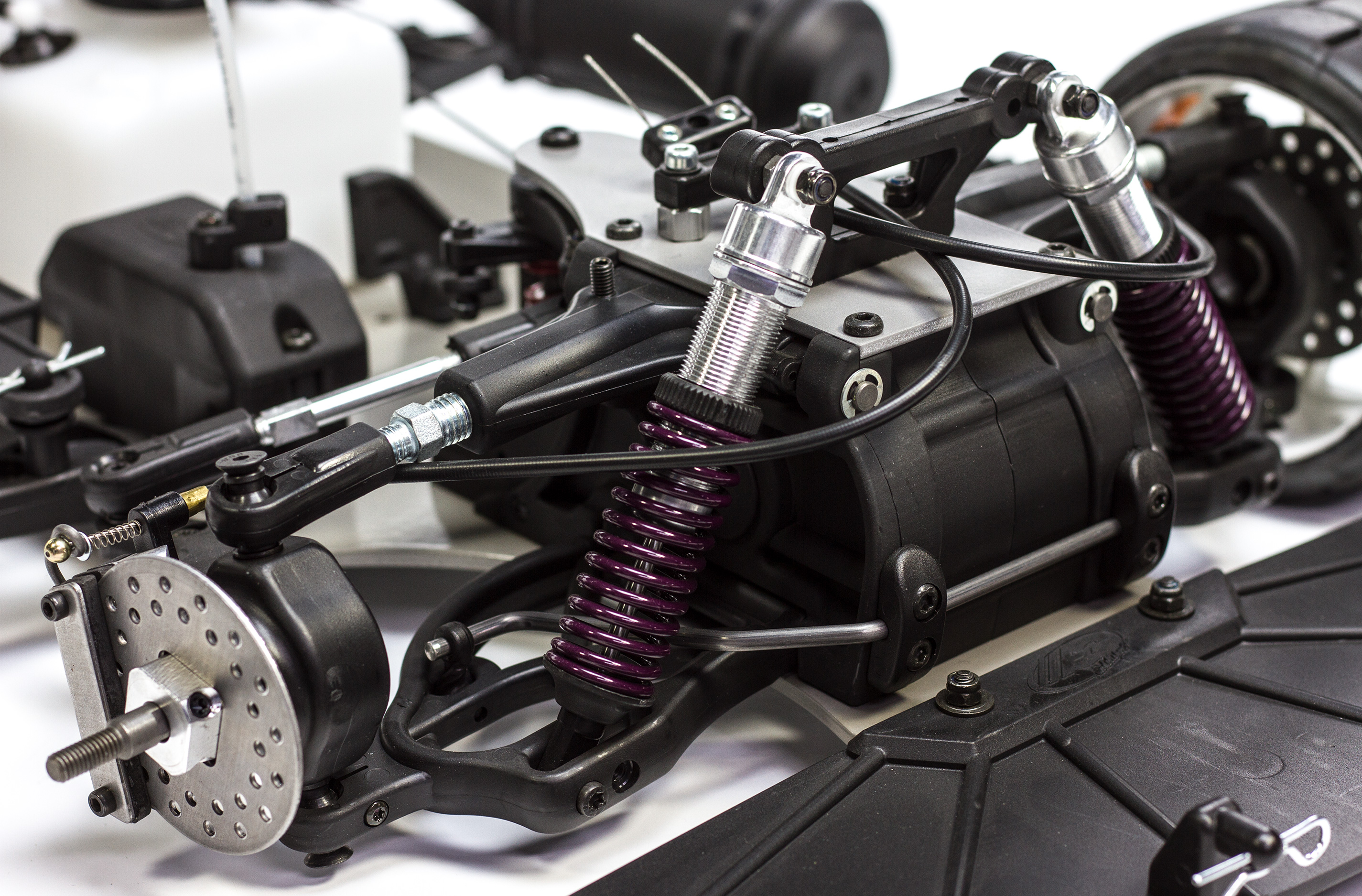

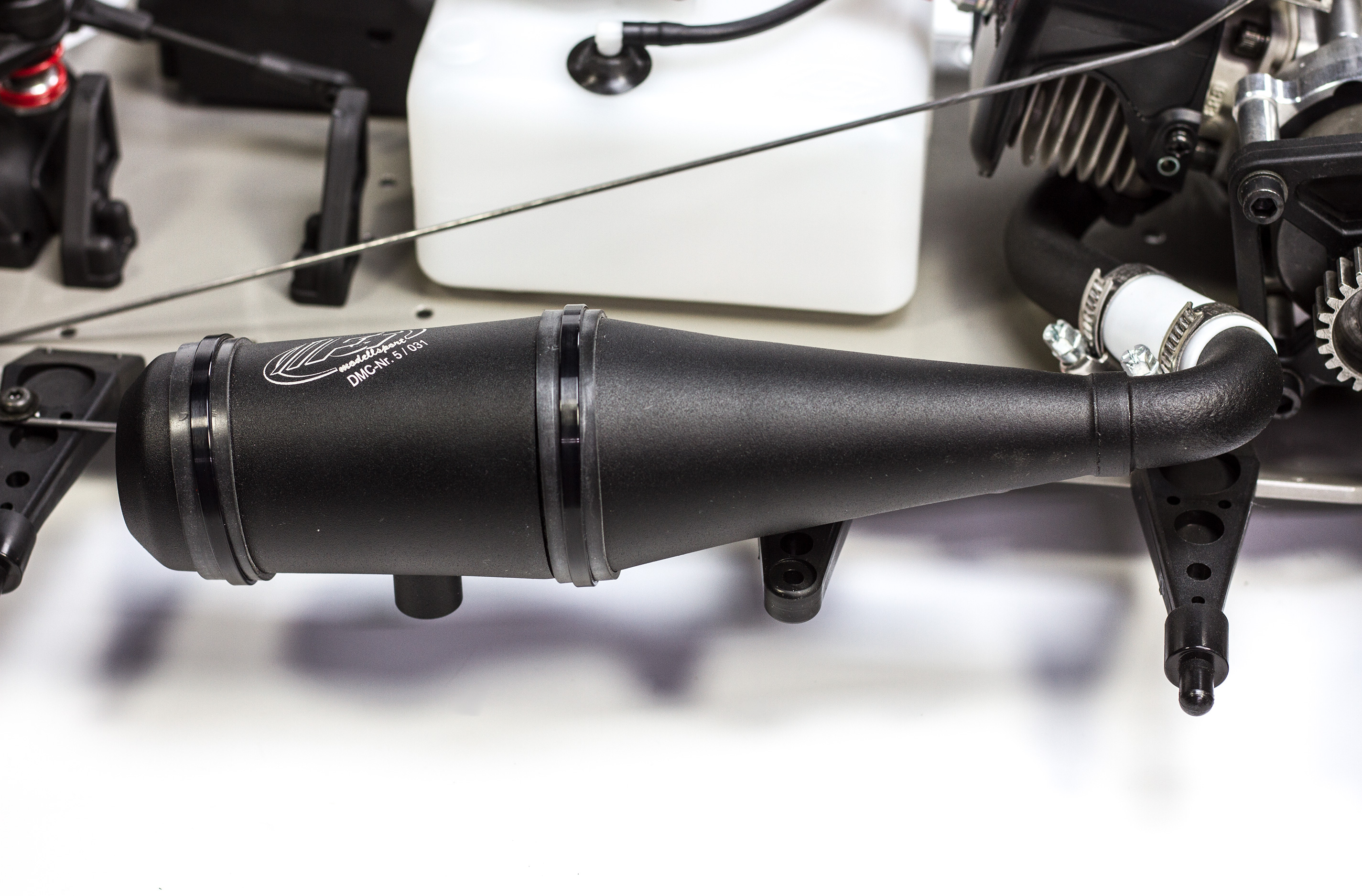

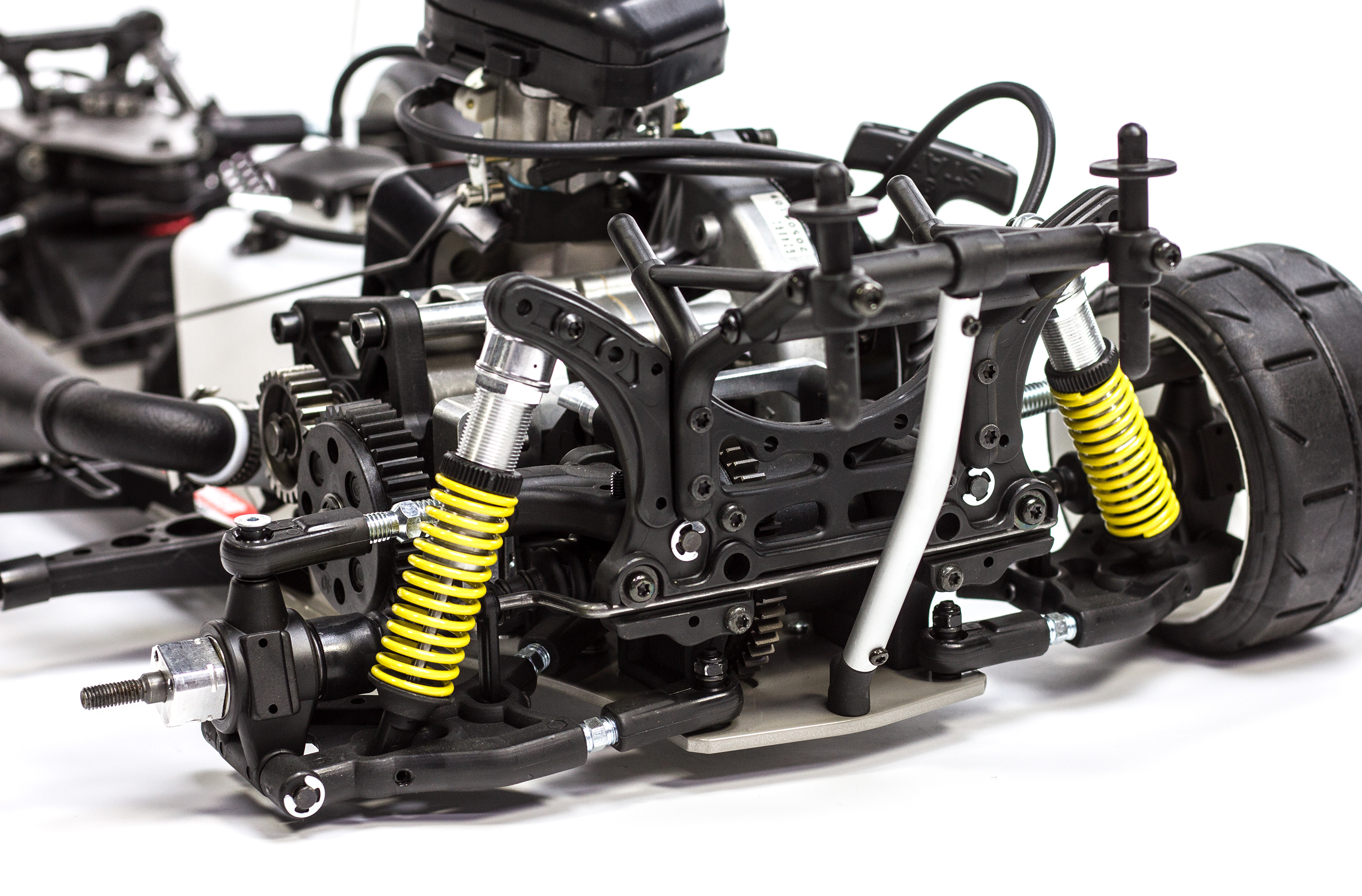

The model has a 535 wheelbase. The models are built on a 4mm alloy chassis with double wishbones at front and rear axle. All borings of the alloy chassis are countersunk to prevent the screw heads from bearing out. The models are serial equipped with the 2-damper front axle which guarantees an optimal traction of both front wheels. At the front/rear axle you can adjust through track rods or adjusting screws with right-/left-handed thread the king pin angle, trailing effect and toe-in. Further equipment points are front disk brakes, differential gear, easy-running FG ball drive, alloy brake calliper with big brake disk, stabilizer bar front and rear, tuned pipe muffler, Evo gas tank, rear brace, 24T steel pinion, spark plug cap suppression cover, latest version (Evo) oil-pressure shock absorbers with volume control and external adjusting ring for the initial spring preload. All rotating parts as shafts, axles and clutch bells a.s.o. are supported by ball bearings.

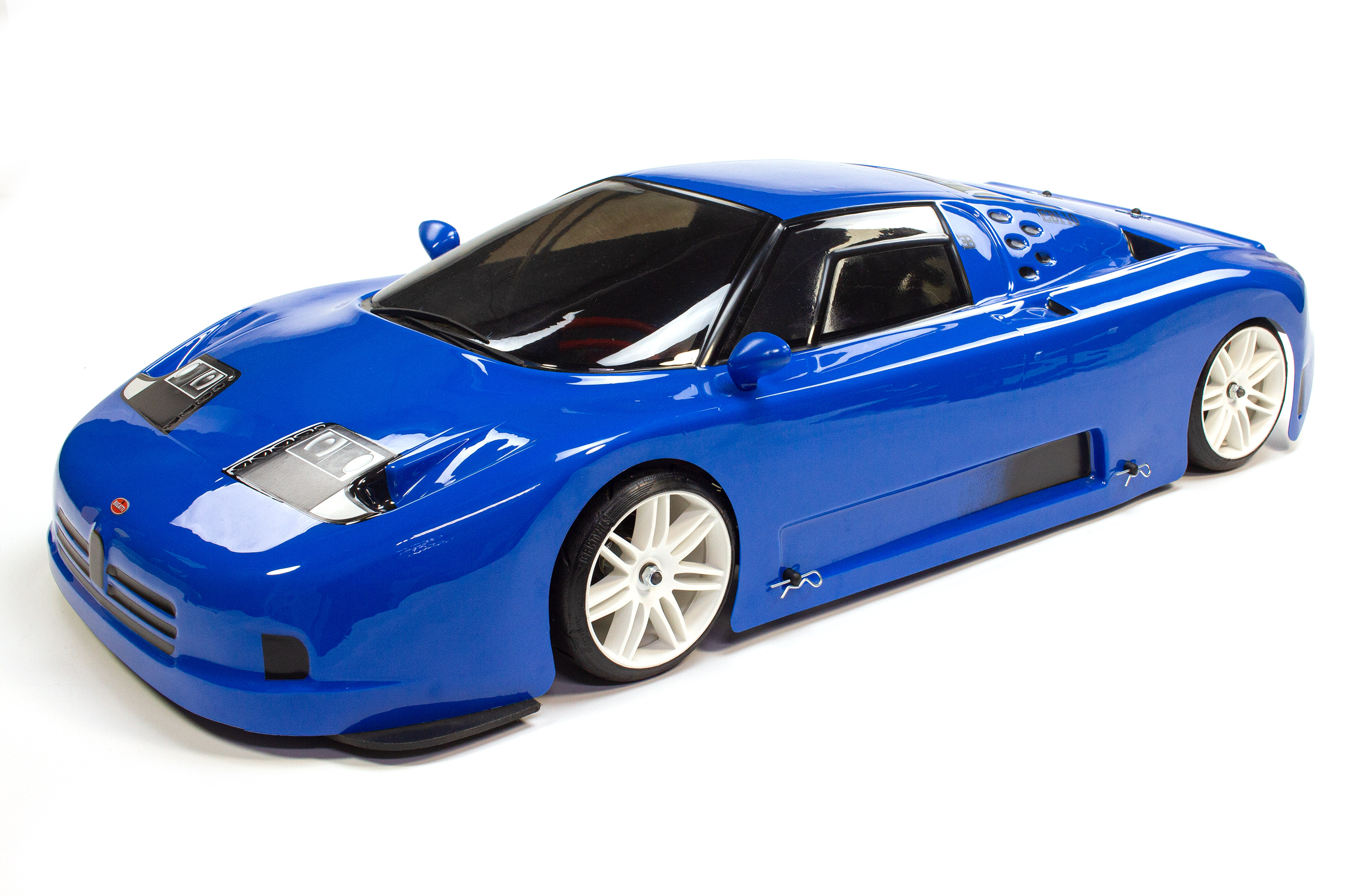

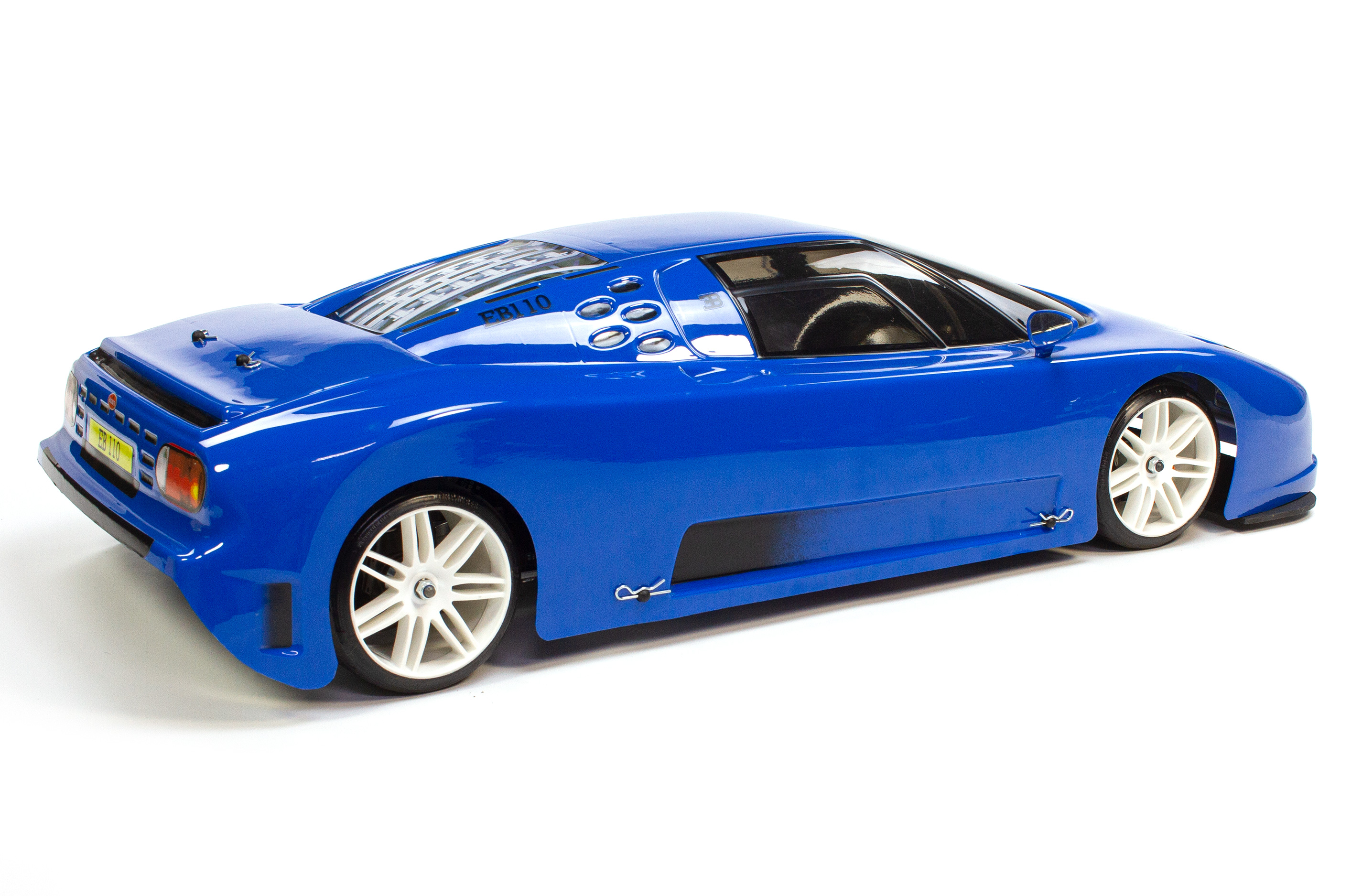

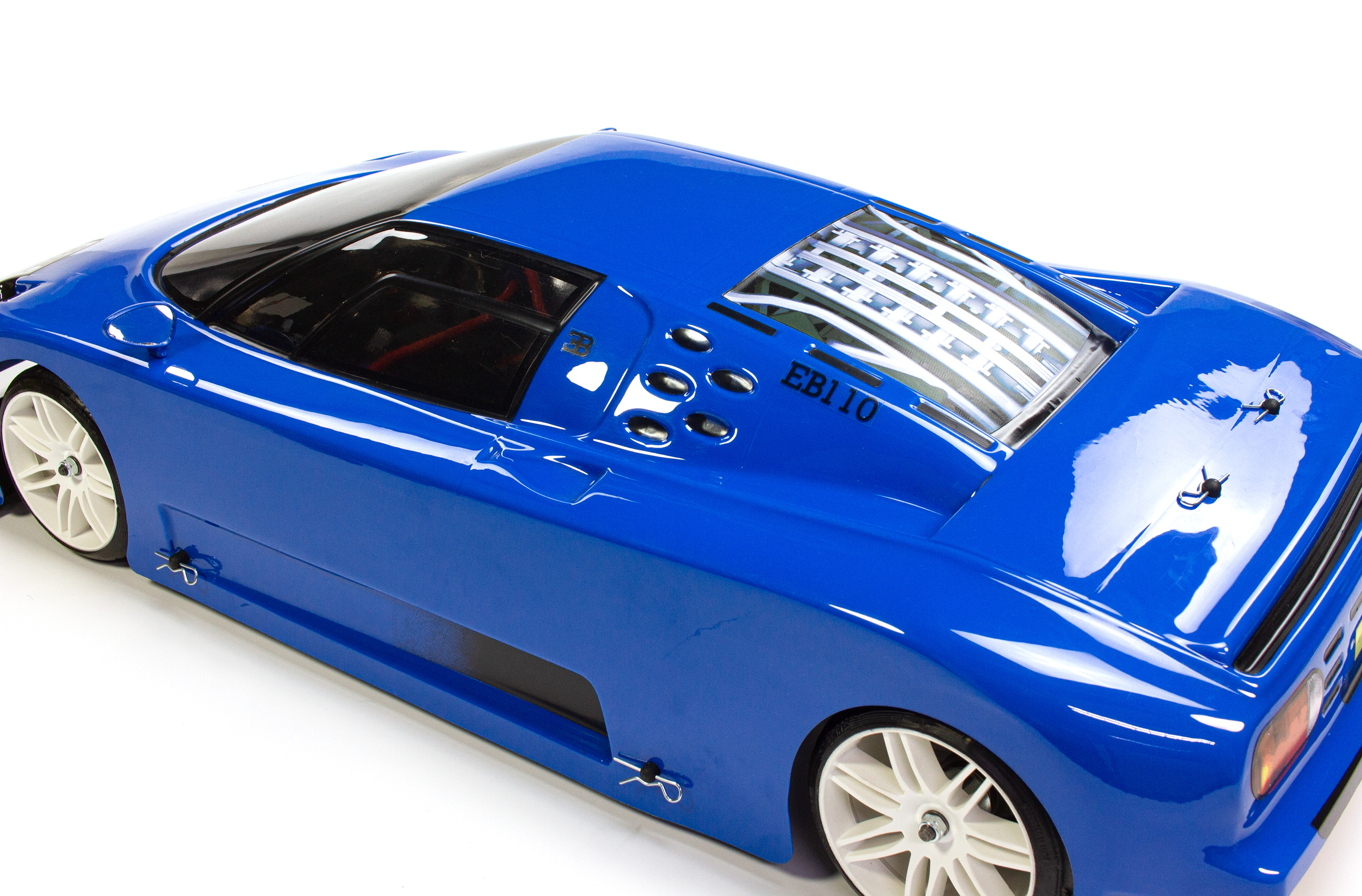

Since the Bugatti EB 110 1:5 scale body is - just like the original very low, a very low height air filter (Nr. 9043) is mounted.

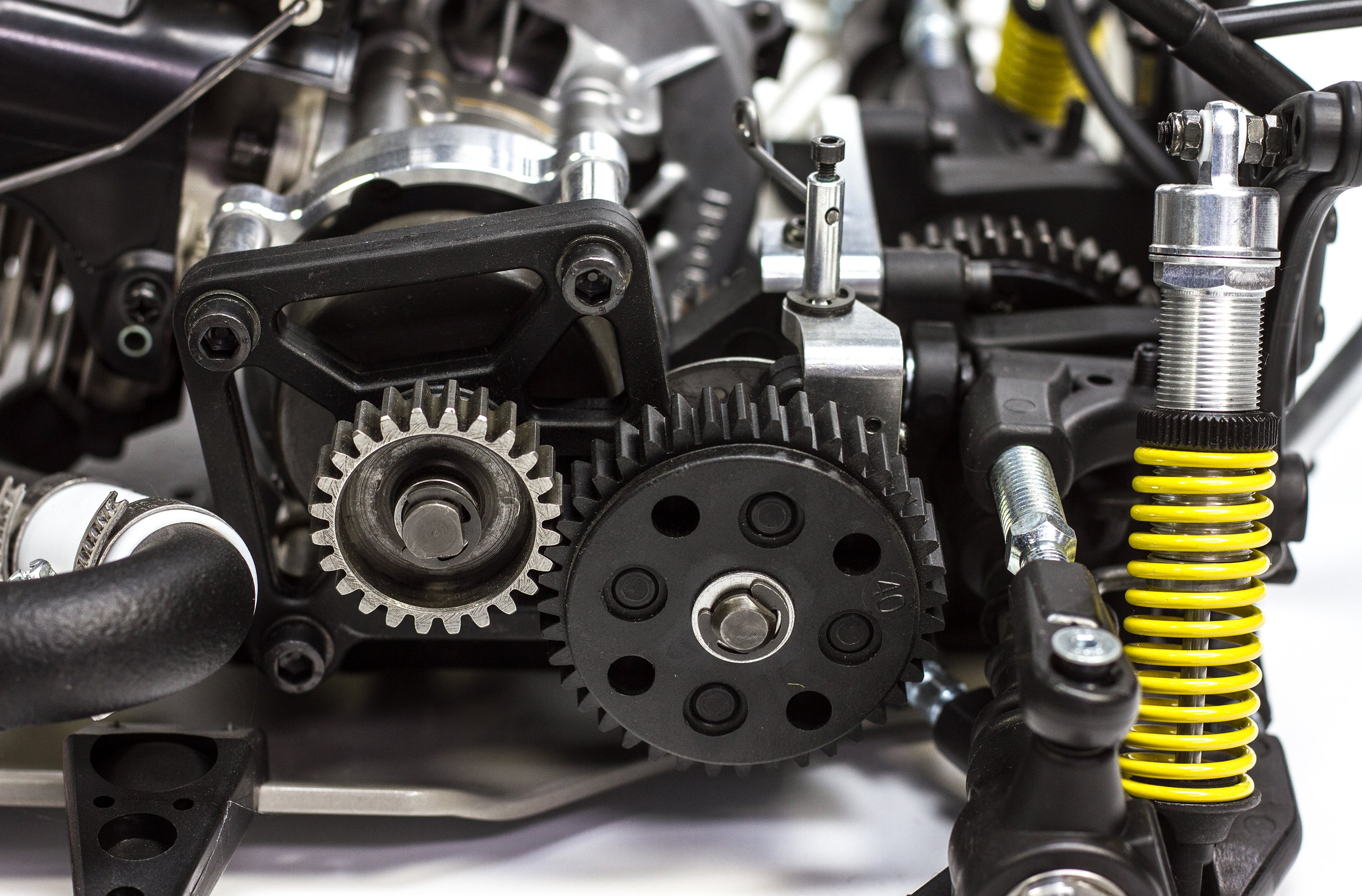

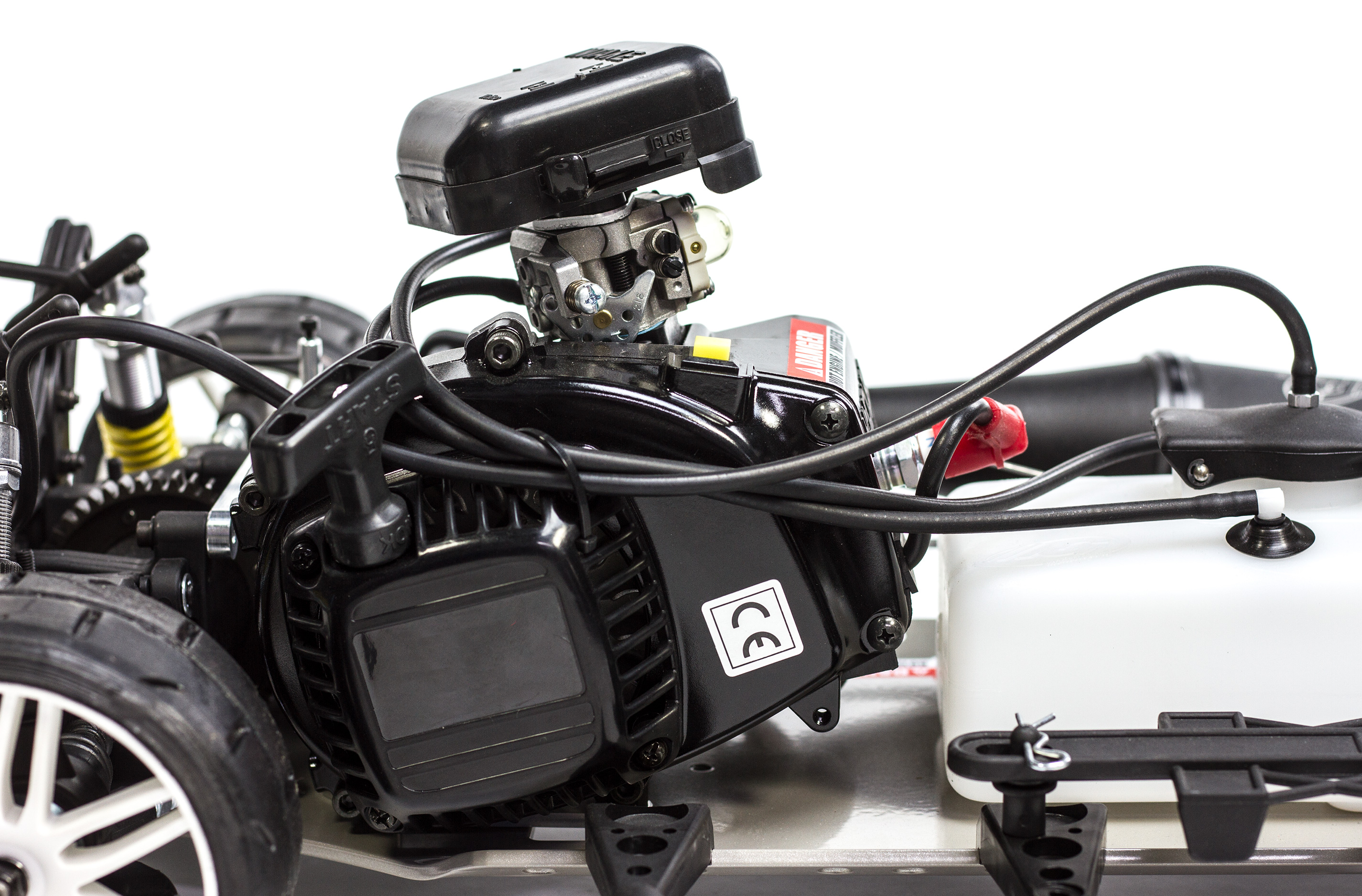

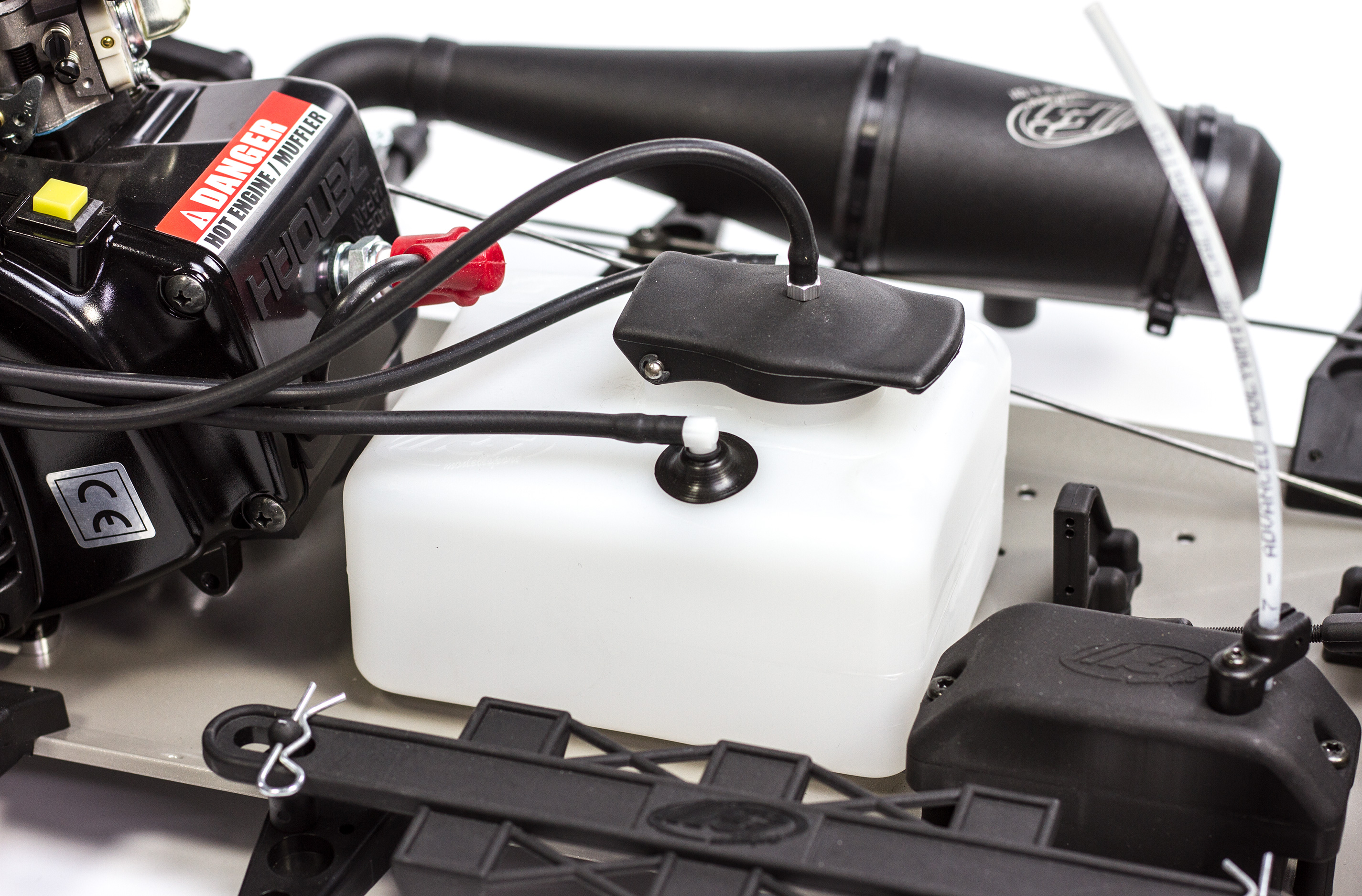

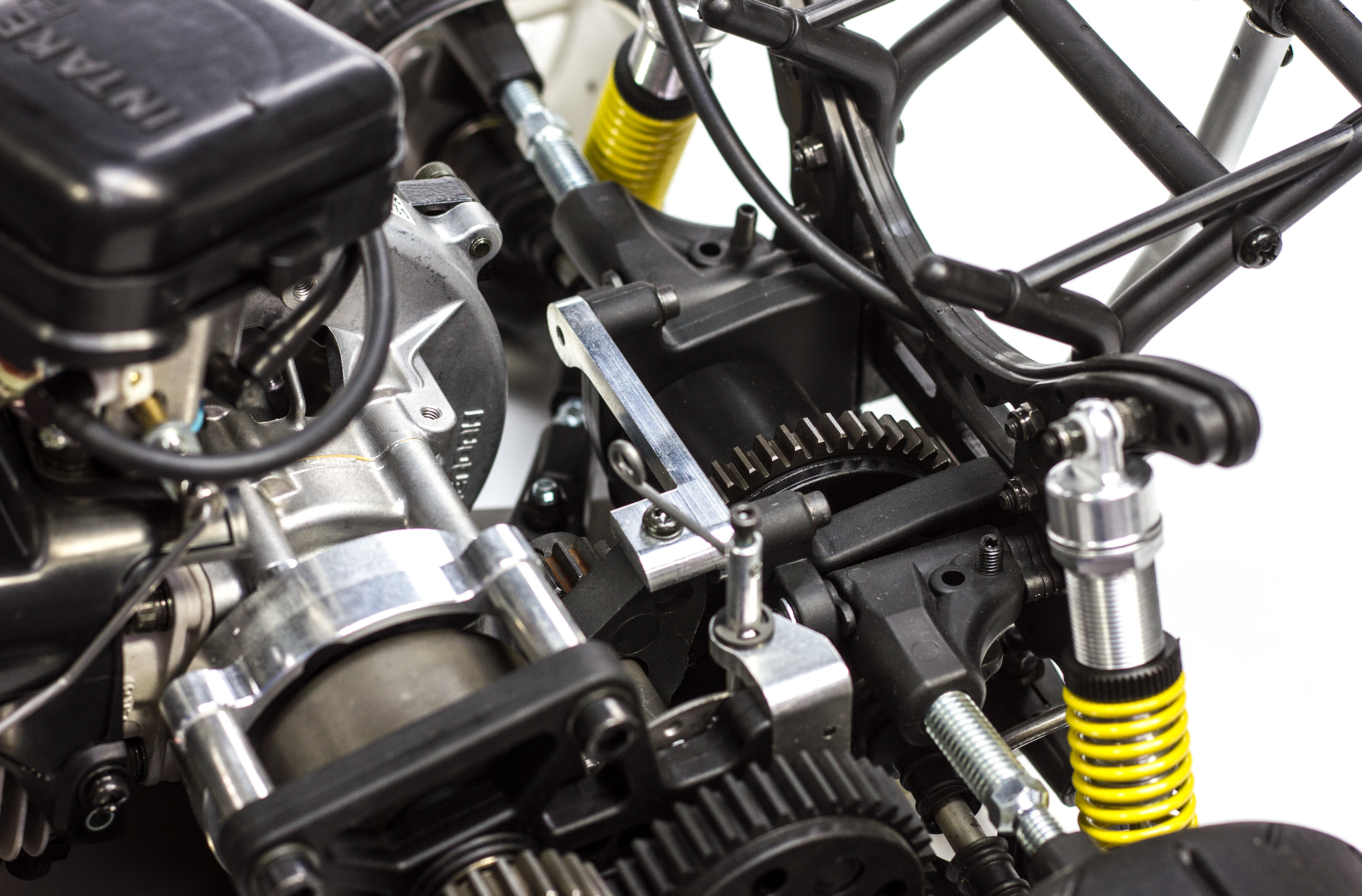

The models are equipped with a powerful 23ccm combustion engine. The engine needs a 2-stroke petrol oil mixture. One tank filling gives you about 45 minutes driving fun. The power is transmitted over the well-tried system: from the engine over the 2-block clutch over radial tooth wheels on to the rear axle which is equipped with the bevel differential gear with pluggable axles. RC-plate with receiver box.
To complete the models all merchantable servos and radio control systems are suitable.
The RTR version comes with complete factory installed rc-system, including Ni-Cads!
Dimensions:
The car comes with an unpainted body shell!
![]()
Technical description:
The model has a 535 wheelbase. The models are built on a 4mm alloy chassis with double wishbones at front and rear axle. All borings of the alloy chassis are countersunk to prevent the screw heads from bearing out. The models are serial equipped with the 2-damper front axle which guarantees an optimal traction of both front wheels. At the front/rear axle you can adjust through track rods or adjusting screws with right-/left-handed thread the king pin angle, trailing effect and toe-in. Further equipment points are front disk brakes, differential gear, easy-running FG ball drive, alloy brake calliper with big brake disk, stabilizer bar front and rear, tuned pipe muffler, Evo gas tank, rear brace, 24T steel pinion, spark plug cap suppression cover, latest version (Evo) oil-pressure shock absorbers with volume control and external adjusting ring for the initial spring preload. All rotating parts as shafts, axles and clutch bells a.s.o. are supported by ball bearings.
Since the Bugatti EB 110 1:5 scale body is - just like the original very low, a very low height air filter (Nr. 9043) is mounted.
You can select the car with complete RTR-equipment from the options menu.
RTR-equipment
RTR = Ready to Run. The RTR version comes ready to use with the 2,4 GHz rc-system already installed.
- Transmitter 2,4 GHz
- Receiver
- High power servo for throttle and brake
- Largescale servo for steering
- Tx-battery, rx-battery
The models are equipped with a powerful 23ccm combustion engine. The engine needs a 2-stroke petrol oil mixture. One tank filling gives you about 45 minutes driving fun. The power is transmitted over the well-tried system: from the engine over the 2-block clutch over radial tooth wheels on to the rear axle which is equipped with the bevel differential gear with pluggable axles. RC-plate with receiver box.
To complete the models all merchantable servos and radio control systems are suitable.
The RTR version comes with complete factory installed rc-system, including Ni-Cads!
Dimensions:
- Length: 880 mm
- Width: 392 mm
- Height: approx. 240 mm
- Wheelbase: 530 mm
The car comes with an unpainted body shell!
Touring cars in action!
Painting tips:
![]()
| Drive: | 2WD |
|---|---|
| Motorization: | Gas |
| RTR: | RTR to choose |
| Scale: | 1/5 |
