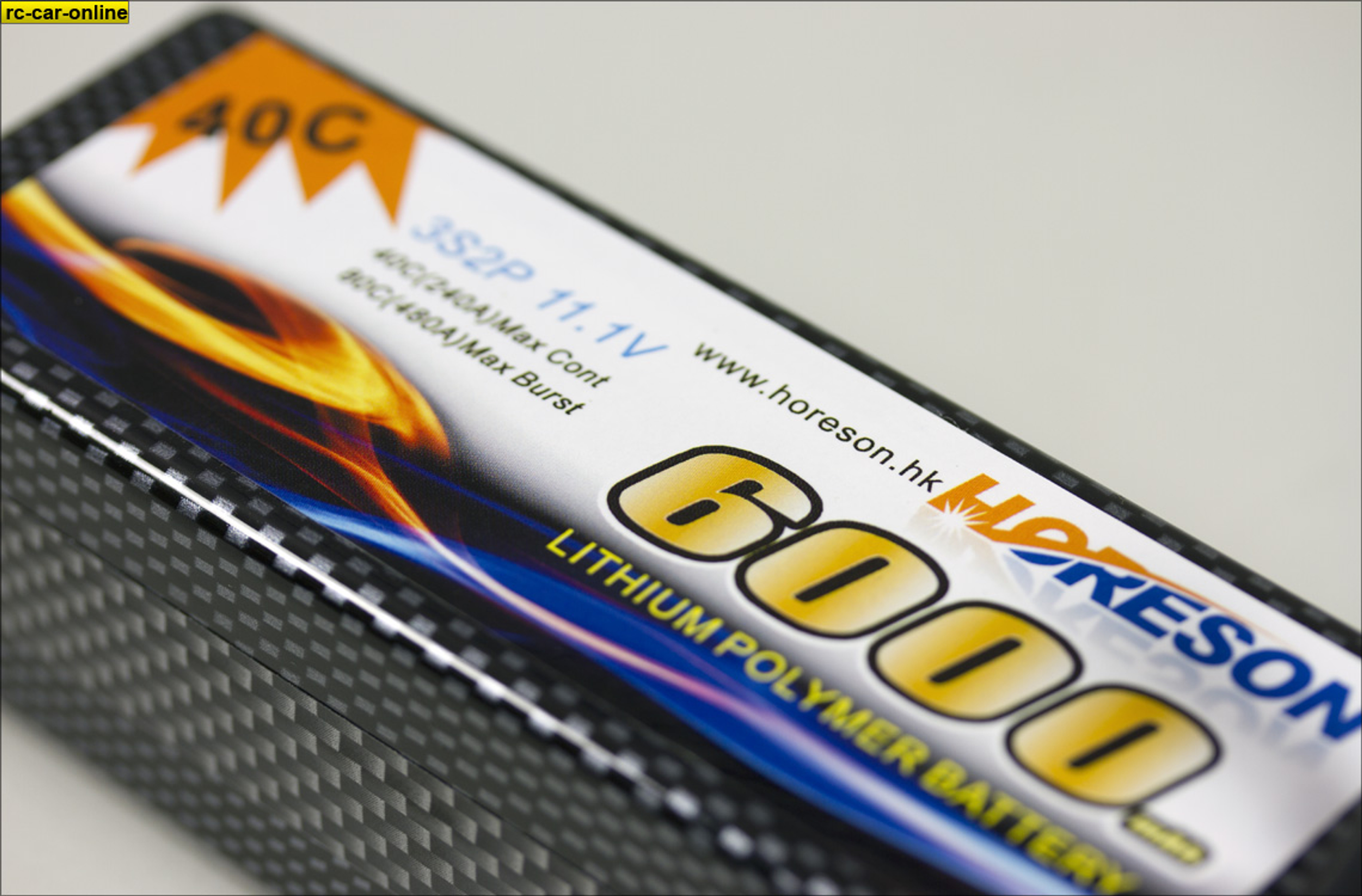

y1300/02 Rc-Car LiPo battery 3S/2P 6.000 mAh 11,1 V 40C
Product information "y1300/02 Rc-Car LiPo battery 3S/2P 6.000 mAh 11,1 V 40C"

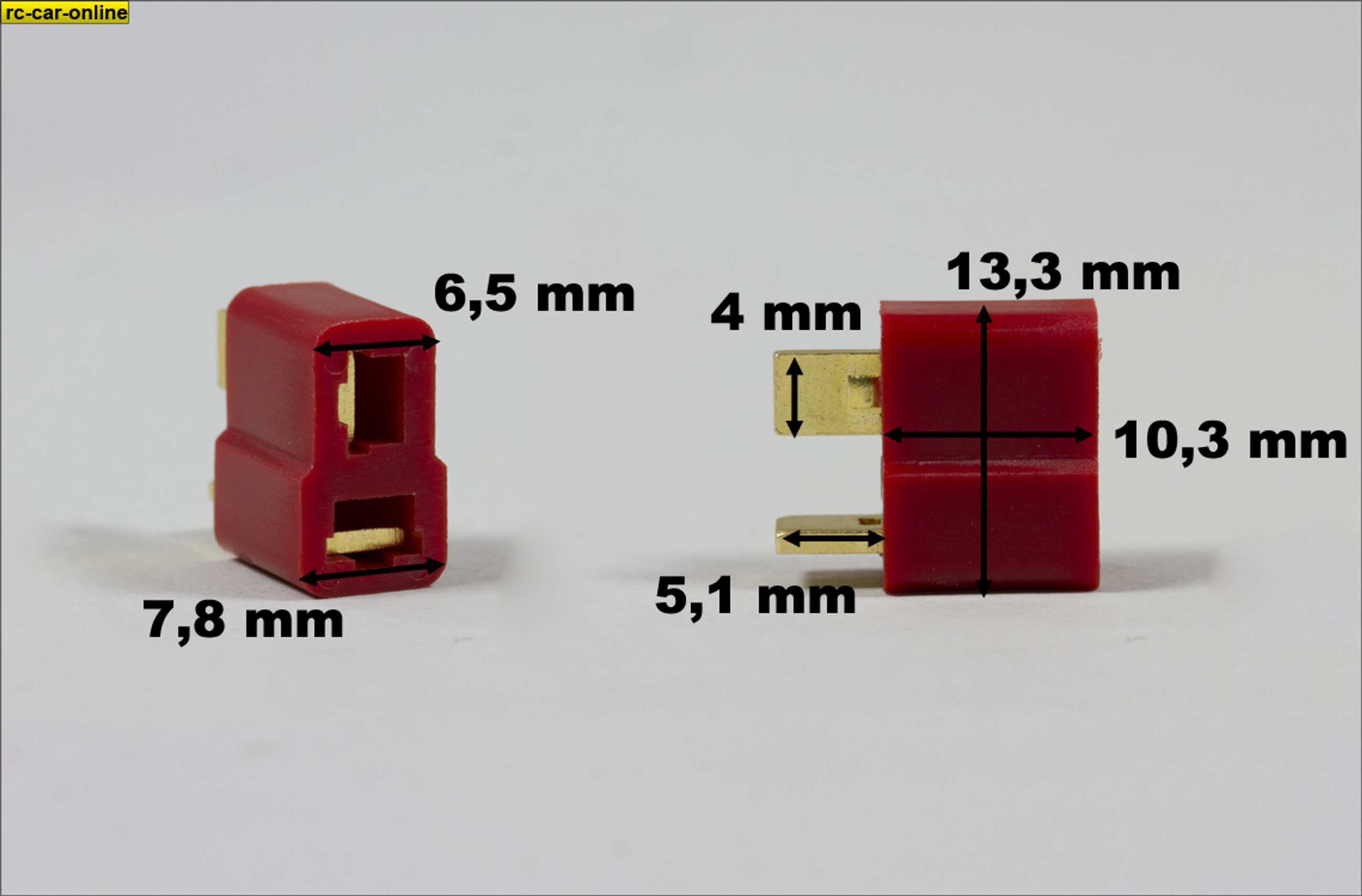

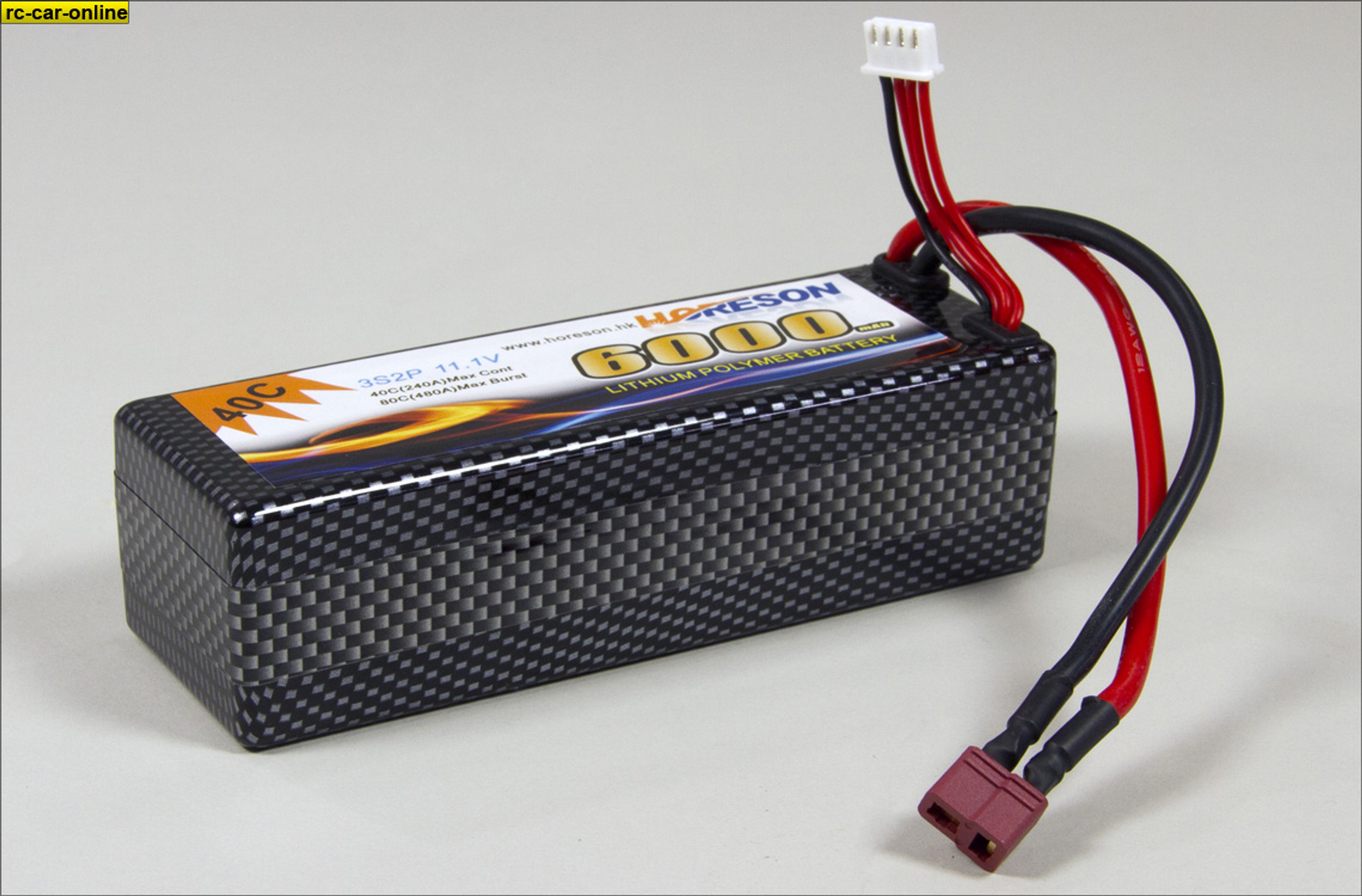

Rc-car LiPo hardcase battery with XH balancer connector and cable with T-connector (link to the T-connector).
Typical features
| Battery conector: | |
 |  |
Typical features
- Low inner resistance with high MPV
- Higher energy density with lower weight
- Longer lifecycle under proper usage, up to 200 times
- Can be charged with 5C when time is critical
- Recommended charge with 2 3C
| PArt number | LiPo-Battery type | Cable cross section | Case | Capacity mAh | Volt | Width +/- 1,5 mm | Height +/- 1,5 mm | Length +/- 5 mm | Weight +/- 10g | Cont. current | Peak current |
| y1300/02 | 3 S / 2 P | 12AWG/3,3 | hart | 6.000 | 11,1 | 38,0 | 46,5 | 137,5 | 462 | 40C(240A) | 80C(480A) |
| y1300/03 | 4 S / 2 P | 12AWG/3,3 | hart | 5.500 | 14,8 | 48,0 | 46,5 | 137,5 | 558 | 40C(220A) | 80C(440A) |
| y1300/04 | 6 S / 1 P | 10AGW/5,27 | soft | 5.200 | 22,2 | 48,0 | 46,0 | 155,0 | 708 | 45C(189A) | 90C(378A) |
| y1300/06 | 3 S / 2 P | 10AWG/5,27 | soft | 6.000 | 11,1 | 44,0 | 33,0 | 137,0 | 424 | 40C(240A) | 80C(480A) |
