2011 Mecatech Big Bore Shocks

€175.00*

Currently unavailable

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Product number: mec_2011

EAN: 4058575036647

Product information "2011 Mecatech Big Bore Shocks"

Genuine Mecatech spare/option part.

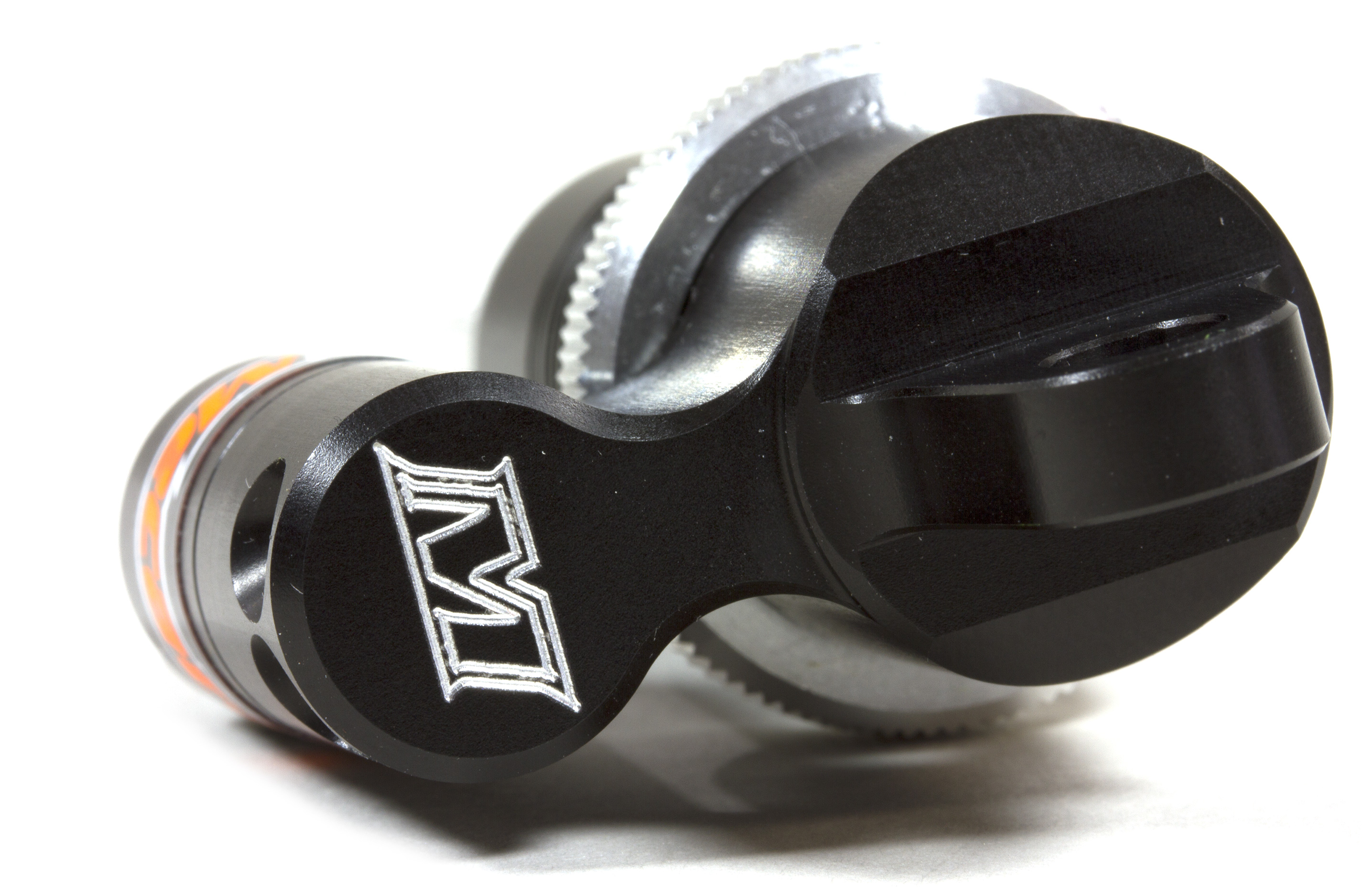

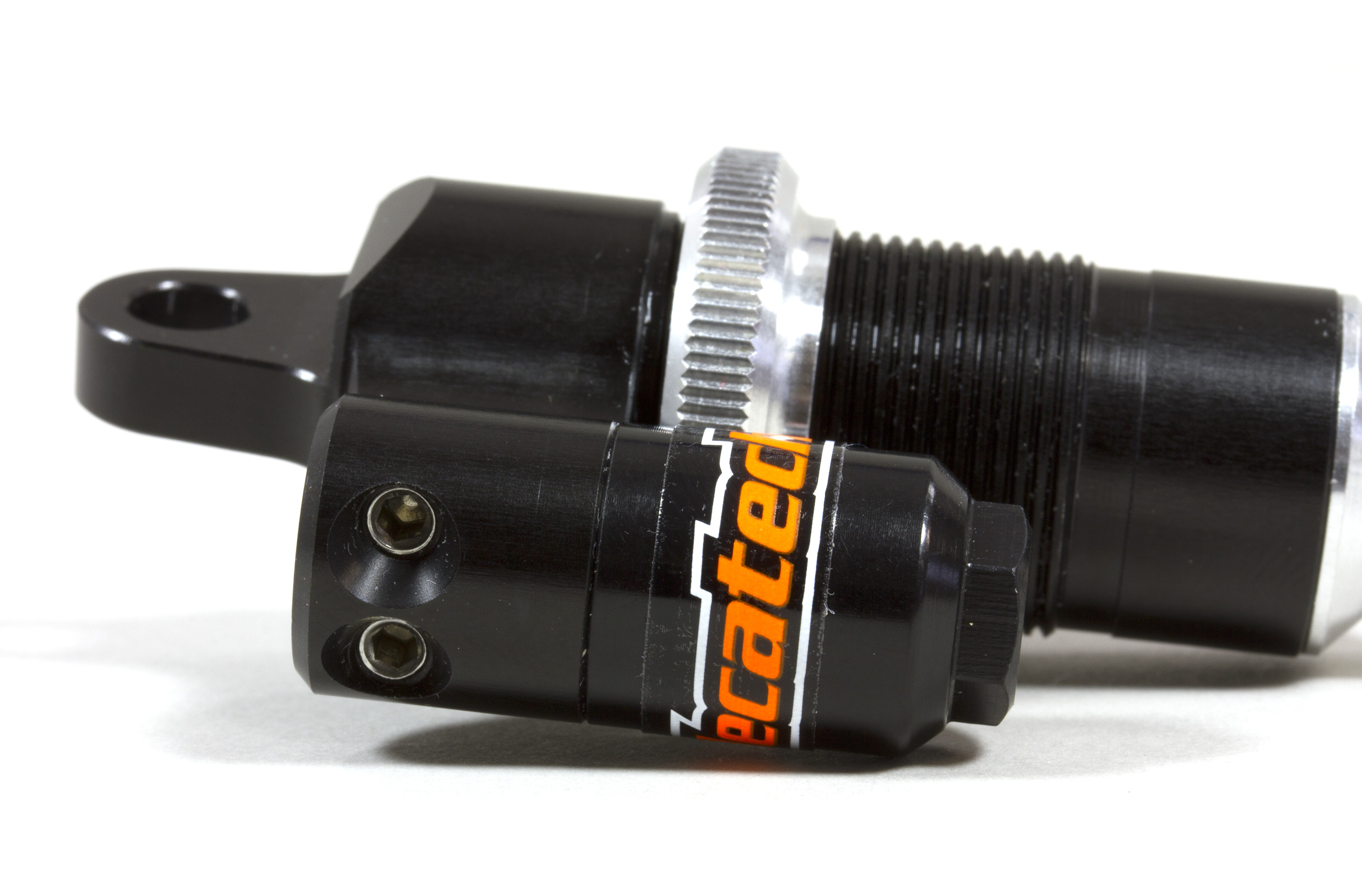

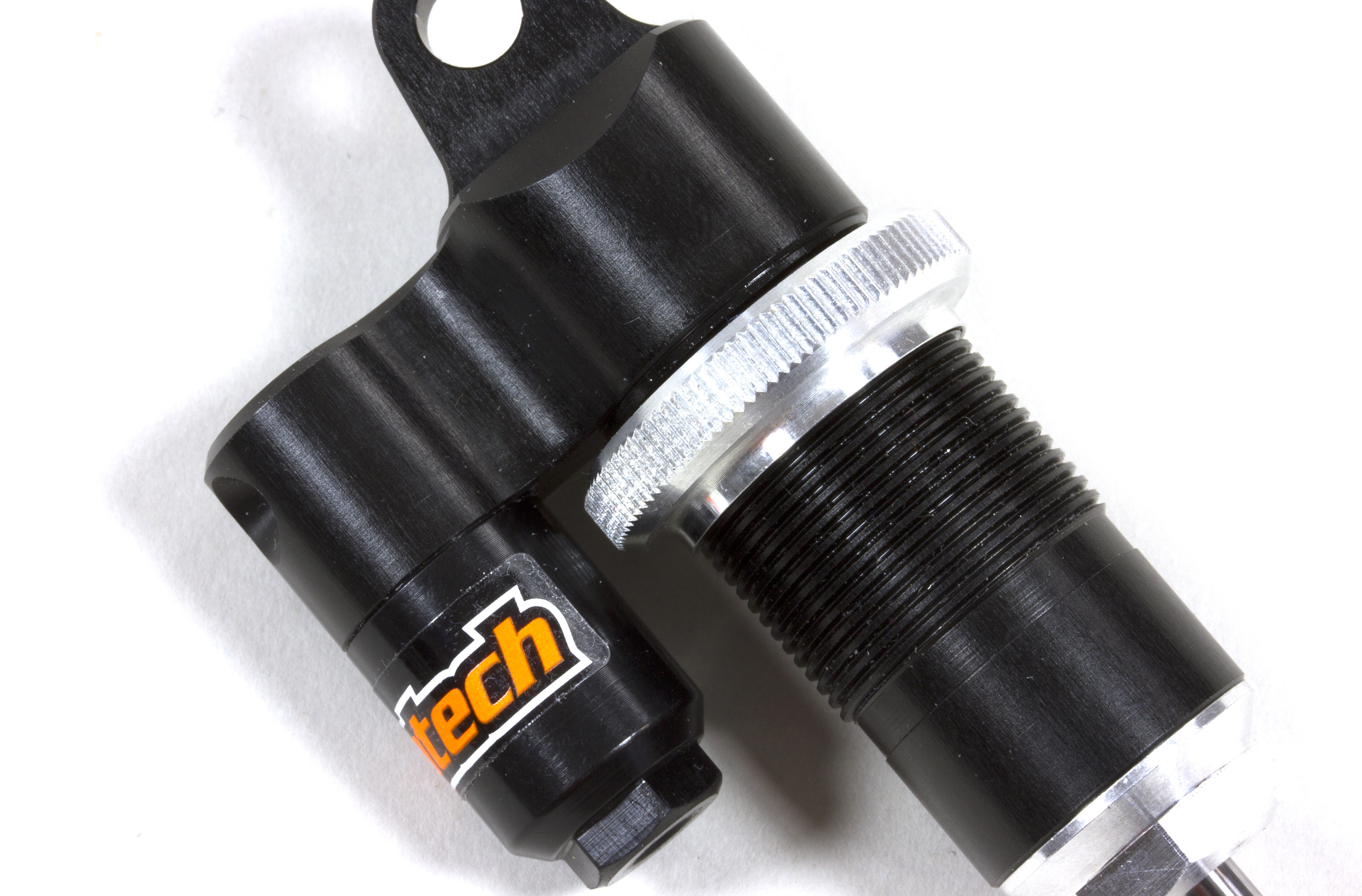

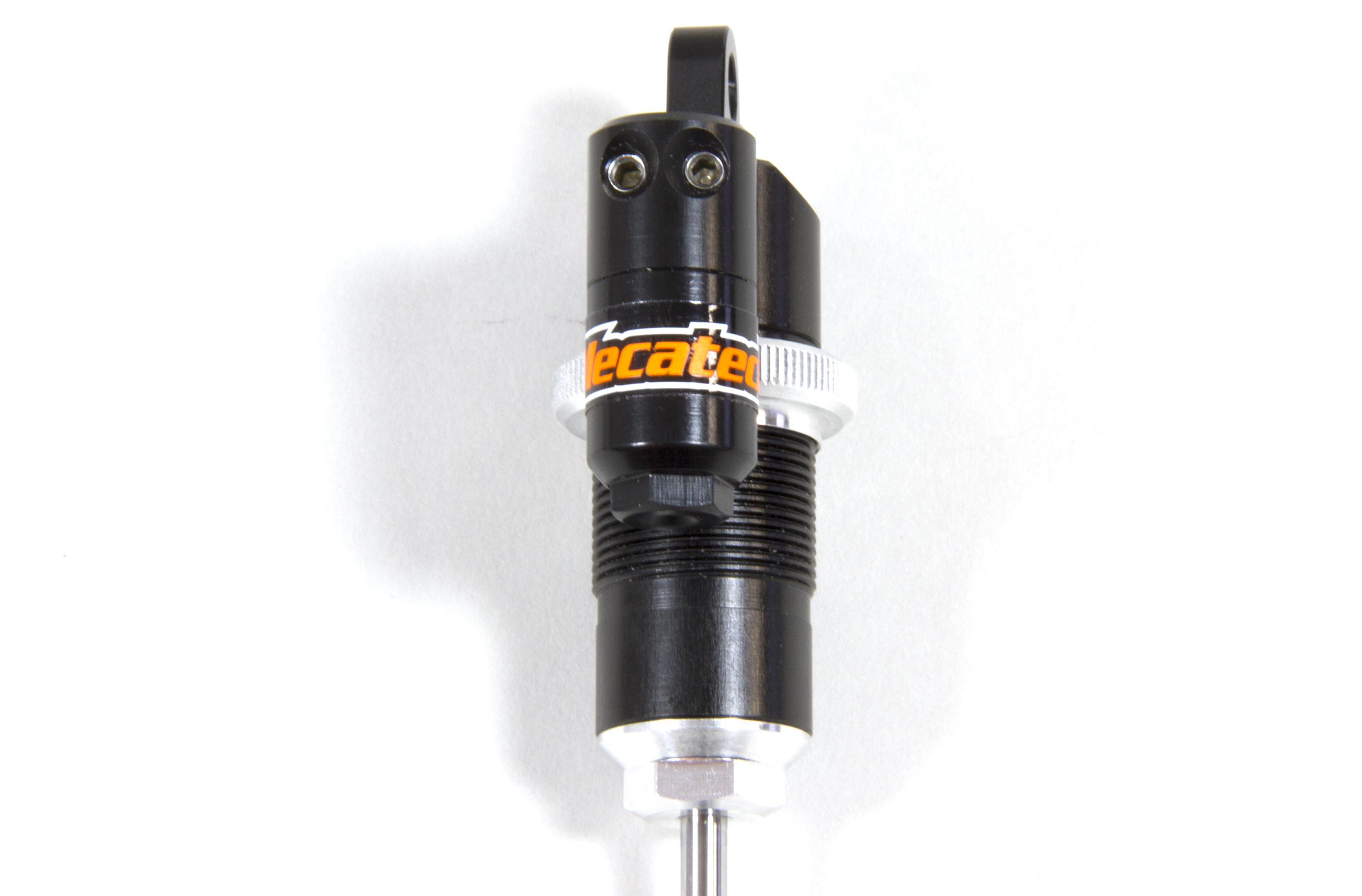

The new Mecatech Big Bore shock absorbers with piggy back volume compensation reservoirs use normal silicone oil. The increased diameter in combination with the separate volume compensation via a floating piston of the new MecaTech Big Bore shocks allows for a very constant driving. This results in improved traction and optimized handling.

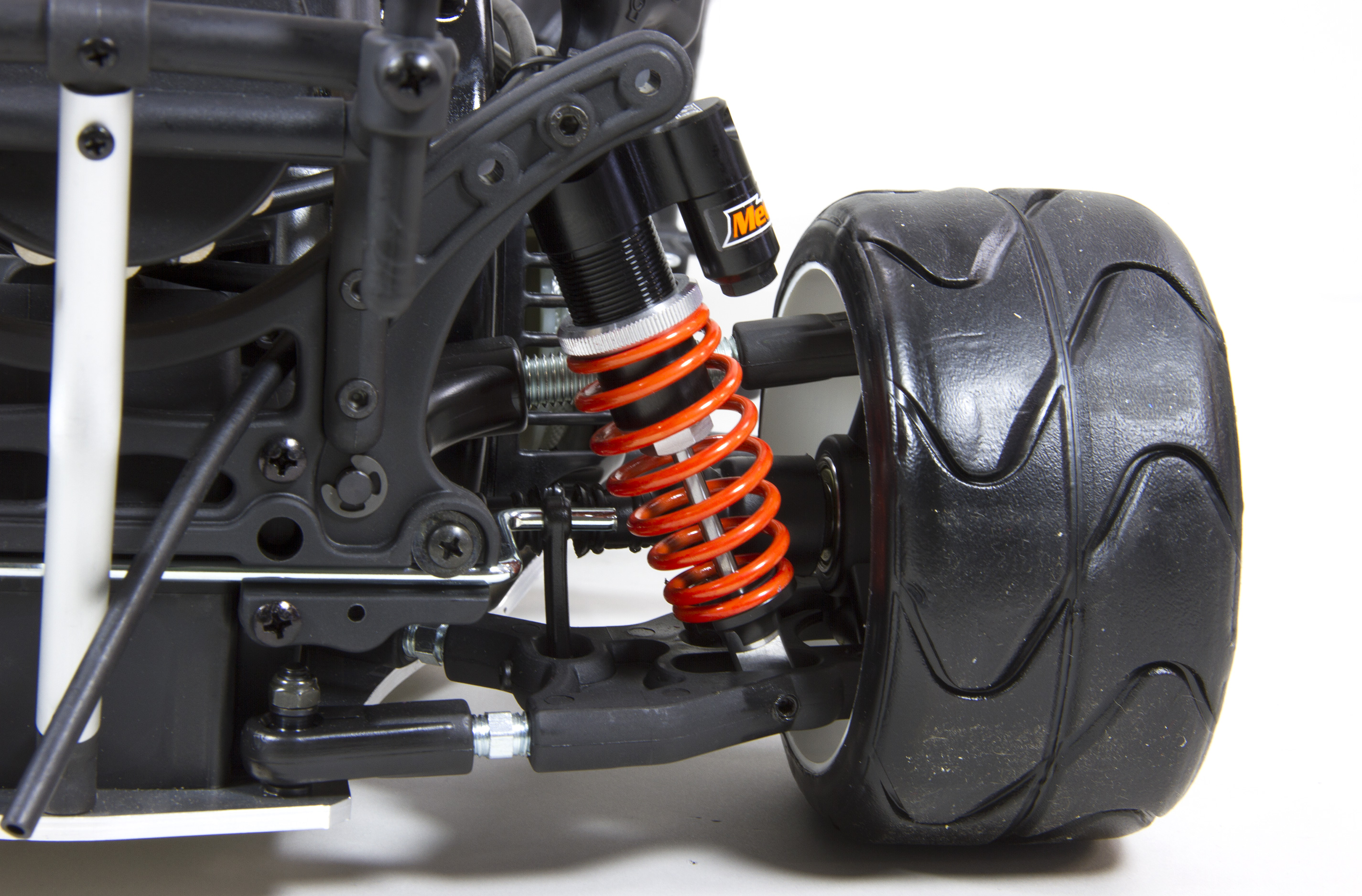

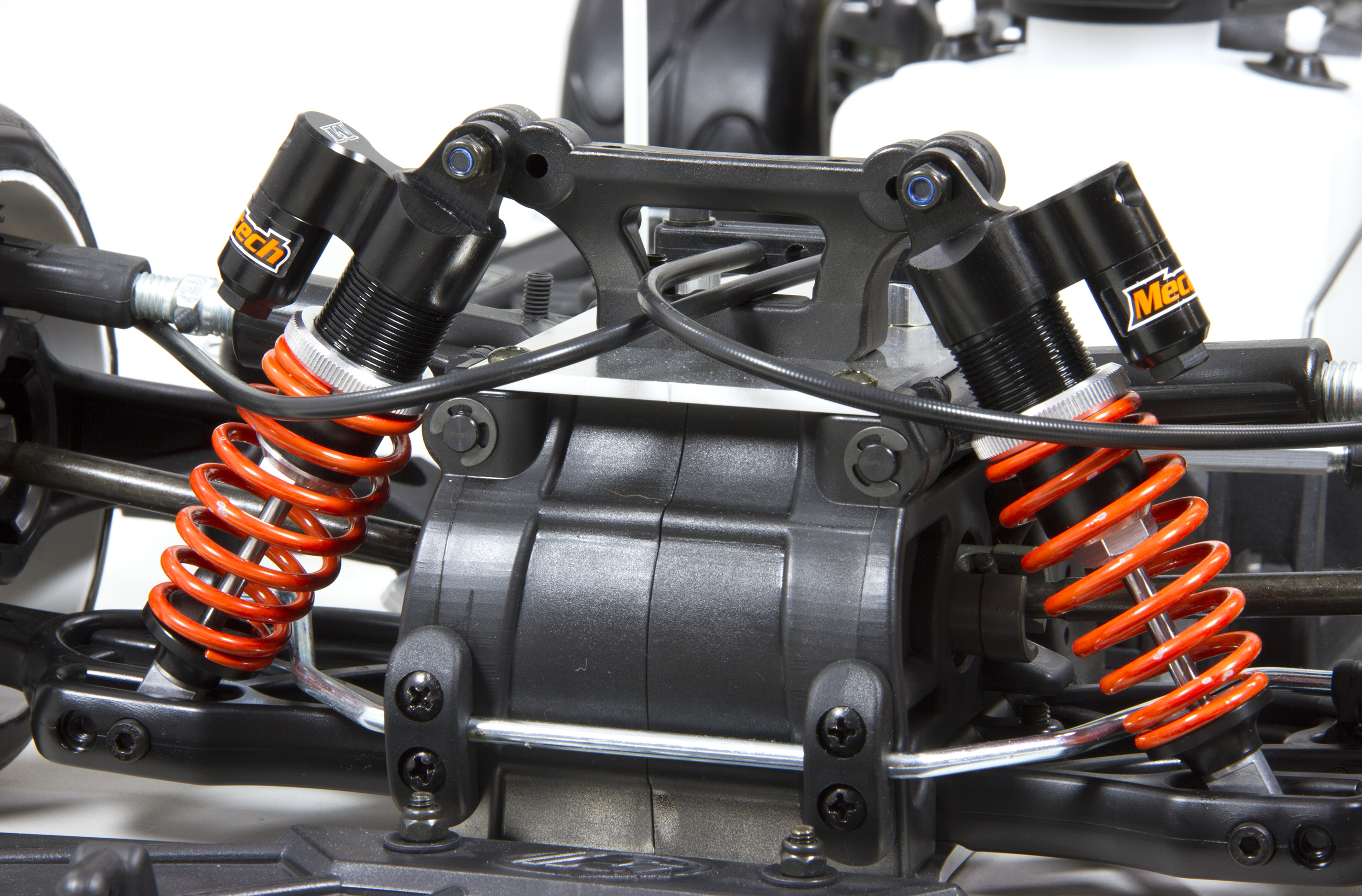

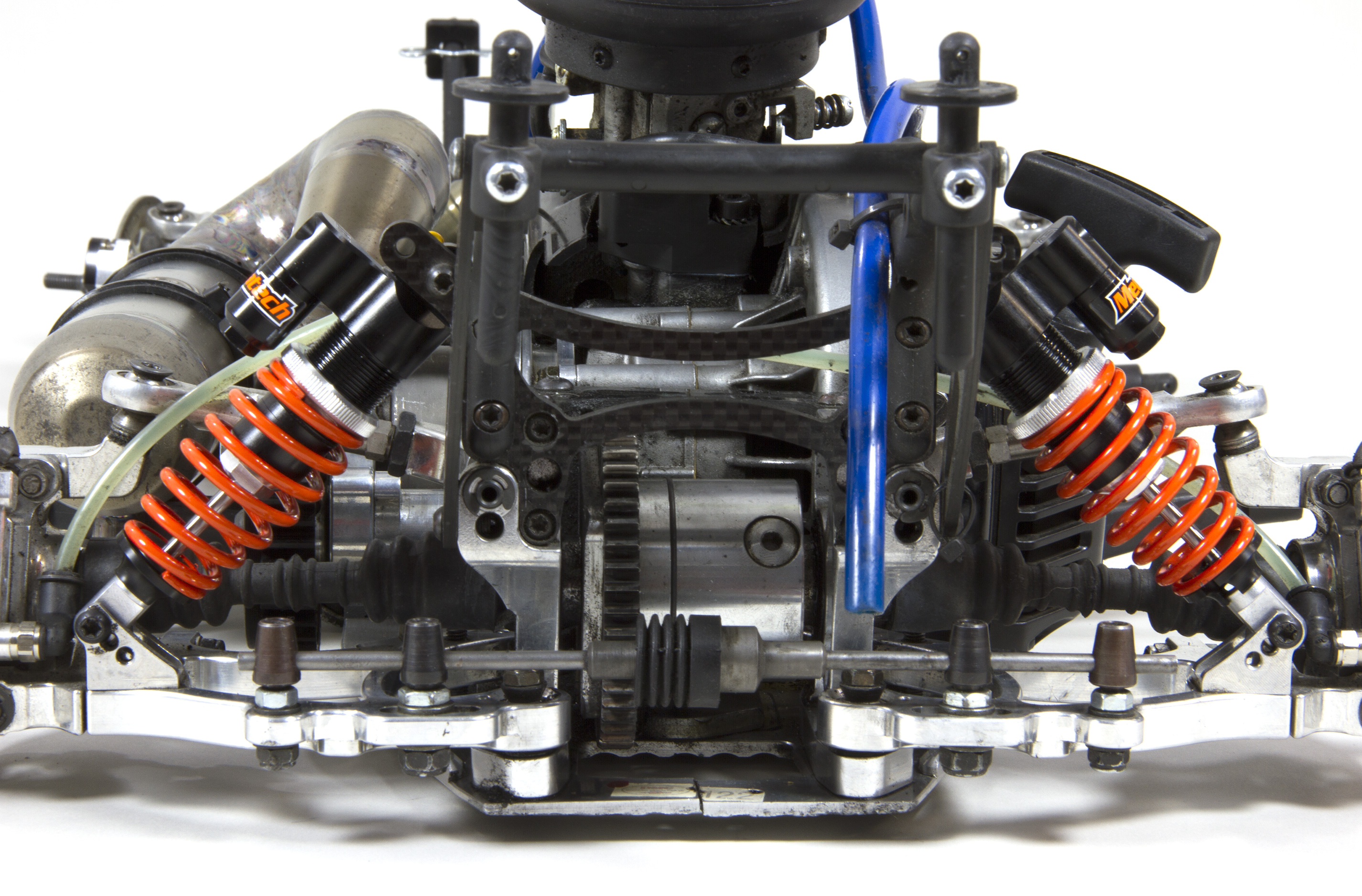

The Big Bore shocks fit most 1/5 scale onroad cars.

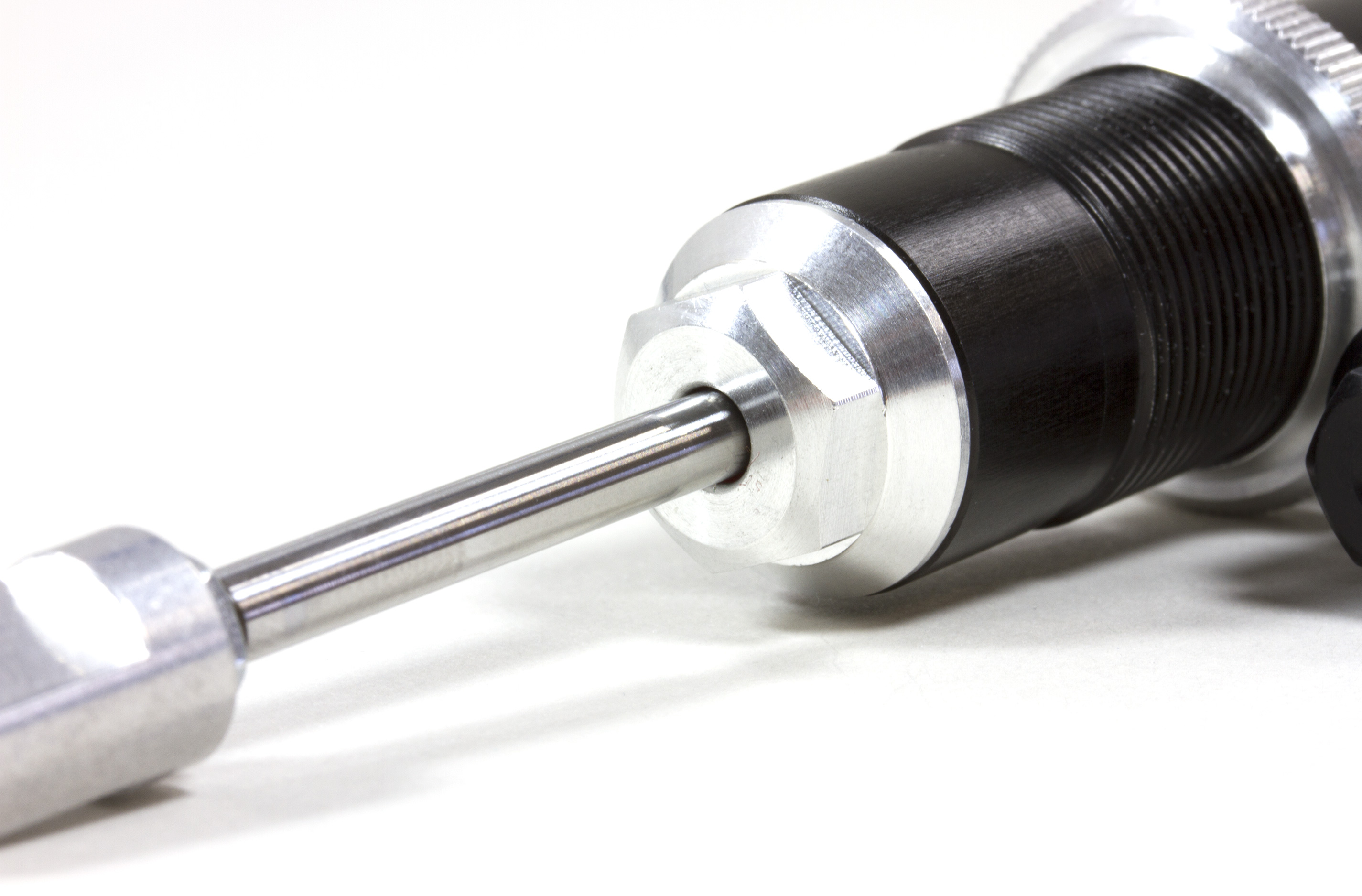

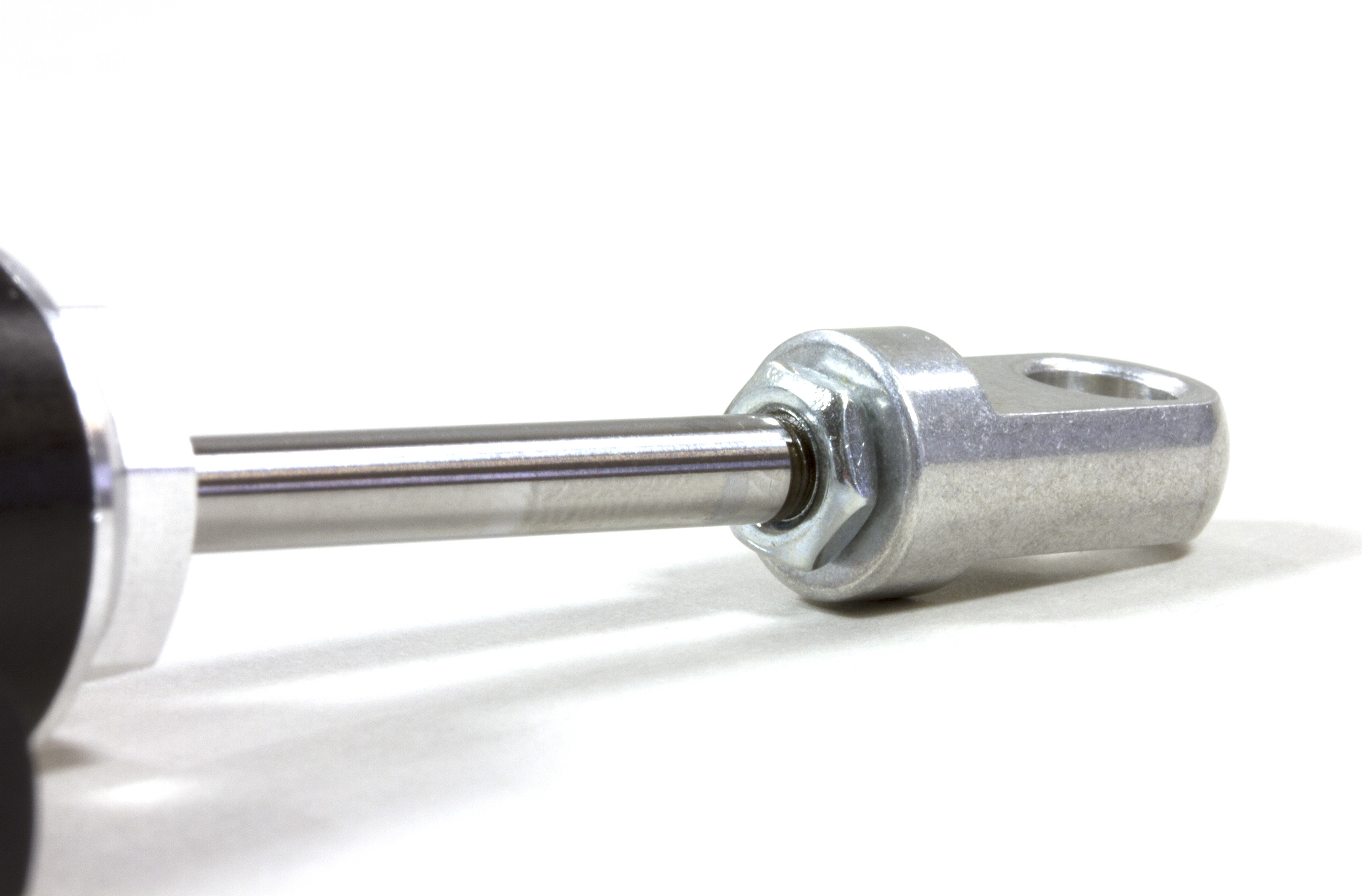

The outstanding craftsmanship guarantees a perfect seal; the shocks come w/o springs. The Big Bore shocks feature aluminum shock ends with replaceable bushings.

Technical specifications:

Total length: 120 mm
Distance of mounting holes: 110 mm center/center
Mounting hole diameter: 4.10 mm
Thickness of shock ends: 6 mm
Max shock/spring travel: 30 mm
Weight without oil: 46 g each
Weight without oil with spring: 68 g each

Recommended silicone oil:
Mecatech recommends silicone oil with a viscosity of 6,000 to 8,000 for the front axle and 3,000 to 5,000 for the rear.

Content:

1 set
