HW30402850 Hobbywing Ezrun 70125SD 560kV 4pol, 8mm Shaft for 1:5
Product number:
hw30402850

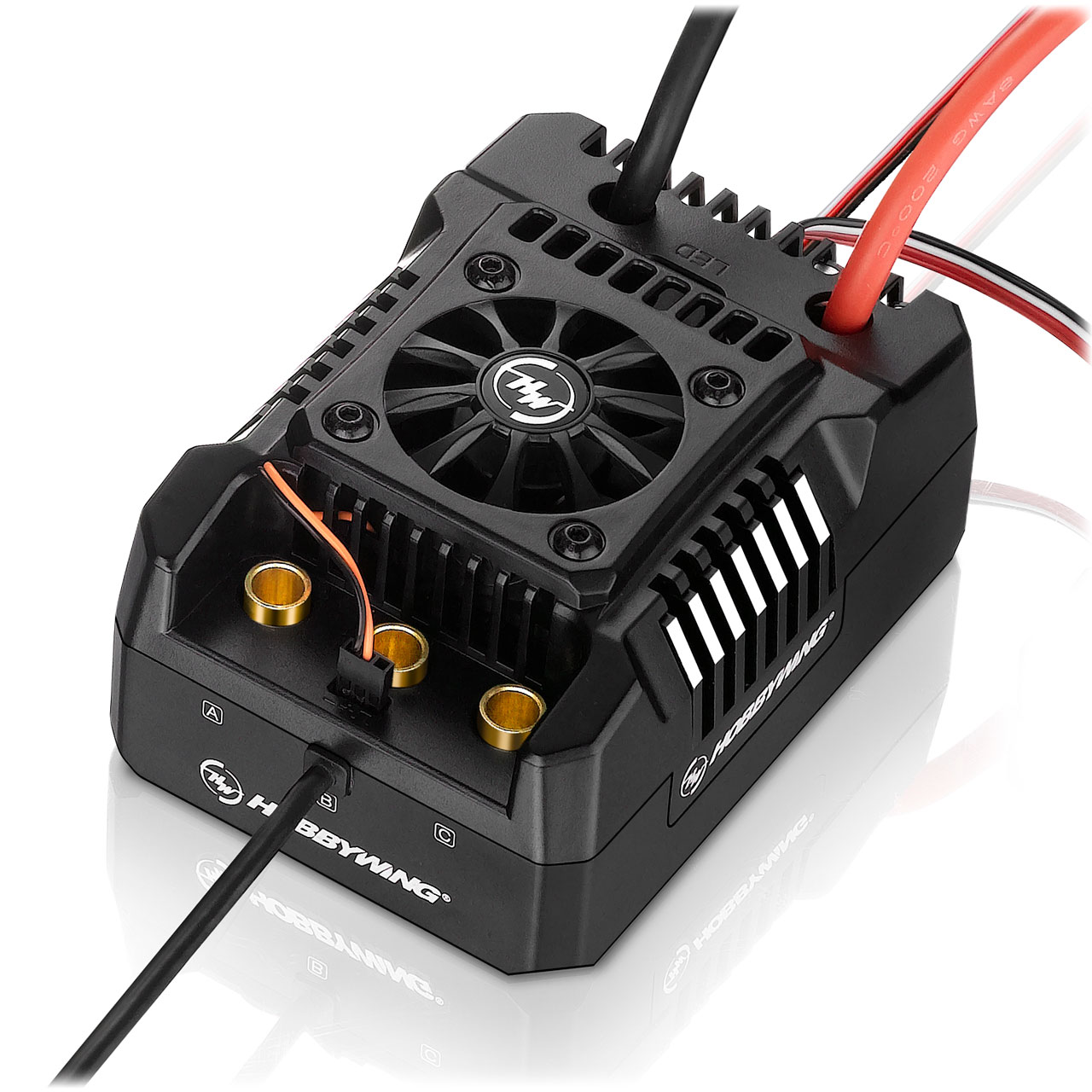

The Ezrun Max4 controller is suitable for particularly large 1:4 and 1:5 scale models. This controller is ideal for use in any of these models, whether heavy-duty off-roaders or trucks. It is the ideal choice for high-end models that are subject to high demands or are operated aggressively. Despite the enormous size, care was taken to use high-quality and, above all, durable materials in the construction. This can be seen, for example, in the fact that the Max4 controller is excellently protected against dust, water and similar external influences. The electronic switch is also optimally protected against damage that could otherwise occur during a normal ride. In addition, the Ezrun Max4 has a built-in super high-current BEC that can provide a maximum output power of up to 25A. The output voltage can therefore be switched between 6V, 7.4V and 8.4V. The high-current BEC was developed to supply the latest high-current servos with sufficient power on request and thus to be able to precisely control the appropriate large models. Features - Super-strong switch mode BEC with a constant current of 10A, instant 25A and the ability to switch between 6, 7.4 and 8.4V - Fireproof circuits to protect the battery connector - Additional built-in protection mechanisms: undervoltage, overheating, signal loss, ... - Versatile programmability - Real-time data recording Technical data: Current (continuous/short) 300A / 2000A
Motor type: Sensor/sensorless brushless motors
Motor limit: 12S LiPo: kV <= 600 (70125 size)
LiPo cells: 6-12S
BEC: 6V / 7.4V / 8.4V with 10A (switchable)
Fan: Yes (supply via built-in BEC)
Programming input: Fan / PRG input
Programming: LED programming card, LCD programming box, OTA programming module
Size: 125x85x61.7mm
Weight: 775.4g
Application: 1/4 and 1/5 Heavy Duty-Off-Road, Trucks
Product information "Hobbywing OTA Bluetooth Programer"Thanks to the OTA Programming Module, Hobbywing ESCs can be programmed in a new modern and intuitive way. The ESC is wirelessly connected to a smartphone via the Bluetooth signal sent by the module. All parameters can then be selected and set as usual in the Hobbywing "HW Link" app.The OTA programming module is also smaller and lighter than a conventional programming box and therefore fits comfortably in any pocket. So perfect for on the go.FeaturesEasy to operateCompact designData Recording in real time (compatible ESC required)Firmware-Update within the "HW Link"-AppInclusive Reset-Button on the bottom sideSuitable for the following HobbyWing productsselected XERUN and EZRUN-ESCs for RC carsselected PLATINUM-ESCs for RC aircraftsselected SEAKING-ESCs for RC BoatsTechnical SpecificationsDimensions:30x25.5x8.5mmWeight:10.2gWorking Voltage:5-12.6VEffective Range:0-3mSupported Bluetooth-Version:>/= 4.0 Notice: You can download the "HW Link"-App by Hobbywing for Android-Devices in the Google Play Store as well as for IOS-Devices in the Apple Store.
Product information "HW30402850 Hobbywing Ezrun 70125SD 560kV 4pol, 8mm Shaft for 1:5"
Product information "Hobbywing Ezrun 70125SD 560kV 4pol, 8mm Shaft for 1:5"
Hobbywing's Ezrun 70125SD motor is a powerful complement to the MAX4 ESC, providing heavy-duty off-roaders and trucks in particular with just the power needed for action-packed rides.
Features
- Perfect sensor mode in combination with the Ezrun MAX4 ESC
- CNC-milled aluminum housing, 0.2mm silicon steel sheets and other high-quality building materials
- Four sintered NdFeB magnets for super torque, stable performance and explosive power
- Innovative new sensor interface
- Waterproof and dustproof thanks to the rubber cover of the bearing
- Independent, high-precision encoder in the motor to communicate the rotor position without any interference
- More power and less heat development with the same load
Technical Specifications
| Sensor Type: | Sensored |
| Poles: | 4 |
| kV Rating: | 560kV |
| LiPo Cells: | 8-12S |
| No-Load Current: | 3.6A |
| Outer Diameter: | 70mm |
| Length: | 125mm |
| Shaft Diameter: | 8mm |
| Shaft Length: | 30mm |
| Weight: | 1995g |
| Application: | 1/5 Heavy Duty Off-Road, Truck |
