68408 FG Front axle free wheel for 4WD

Product information "68408 FG Front axle free wheel for 4WD"

Genuine FG spare/option part.


The advantage of a one-way clutch over conventional or limited slip differentials is the combination of maximum propulsion and outstanding agility in the turns. This results in a 4WD vehicle with the quick turning-in of a 2WD while retaining the advantages of 4WD traction when accelerating out of corners.
This applies to offroad and street cars alike.

The inner races in the one-way clutch feature the internal spline drive to accept FG differential shafts. They are made of high strength steel, hardened and ground to very close tolerances. Combined with the large one-way clutches, this guarantees the transfer of the high maximum torque.

Installation is pretty easy; the one-way clutch unit replaces the bevel gears in the diff including the satellite gear shaft and is inserted as a single piece into the differential case. You just have to take care that the side where the writing on the clutch can be seen goes to the left hand side (in the direction of travel).

Fits FG-plastic differential case and HT- or FG-aluminum cases for non-self-locking differential versions.

For vehicles not equipped with in-wheel brakes it should be noted that there will be no more braking action in front from the layshaft brake when running the one-way clutch as a front differential

Only for 4WD models. Suitable for all differential housings except viscous and Powerlock diff.

Contents:
  • 1 piece

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Accessories / Spare parts

Average rating of 0 out of 5 stars

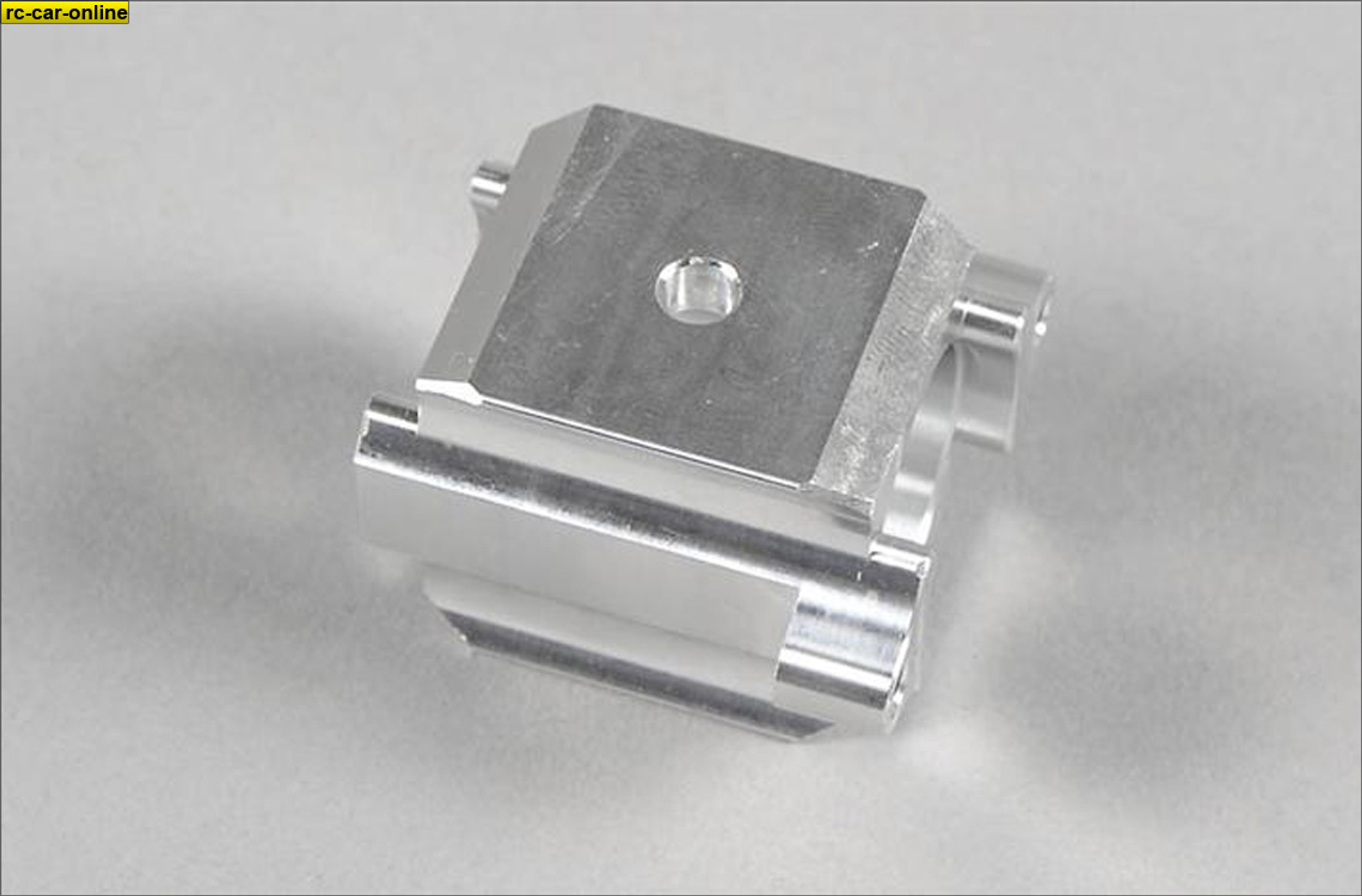

8509/01 FG Alum. housing f.free wheel, 1 pce.
Genuine FG spare/option part.Replacement part for 68408 Front axle free wheel for 4WD

€28.30*

Average rating of 0 out of 5 stars

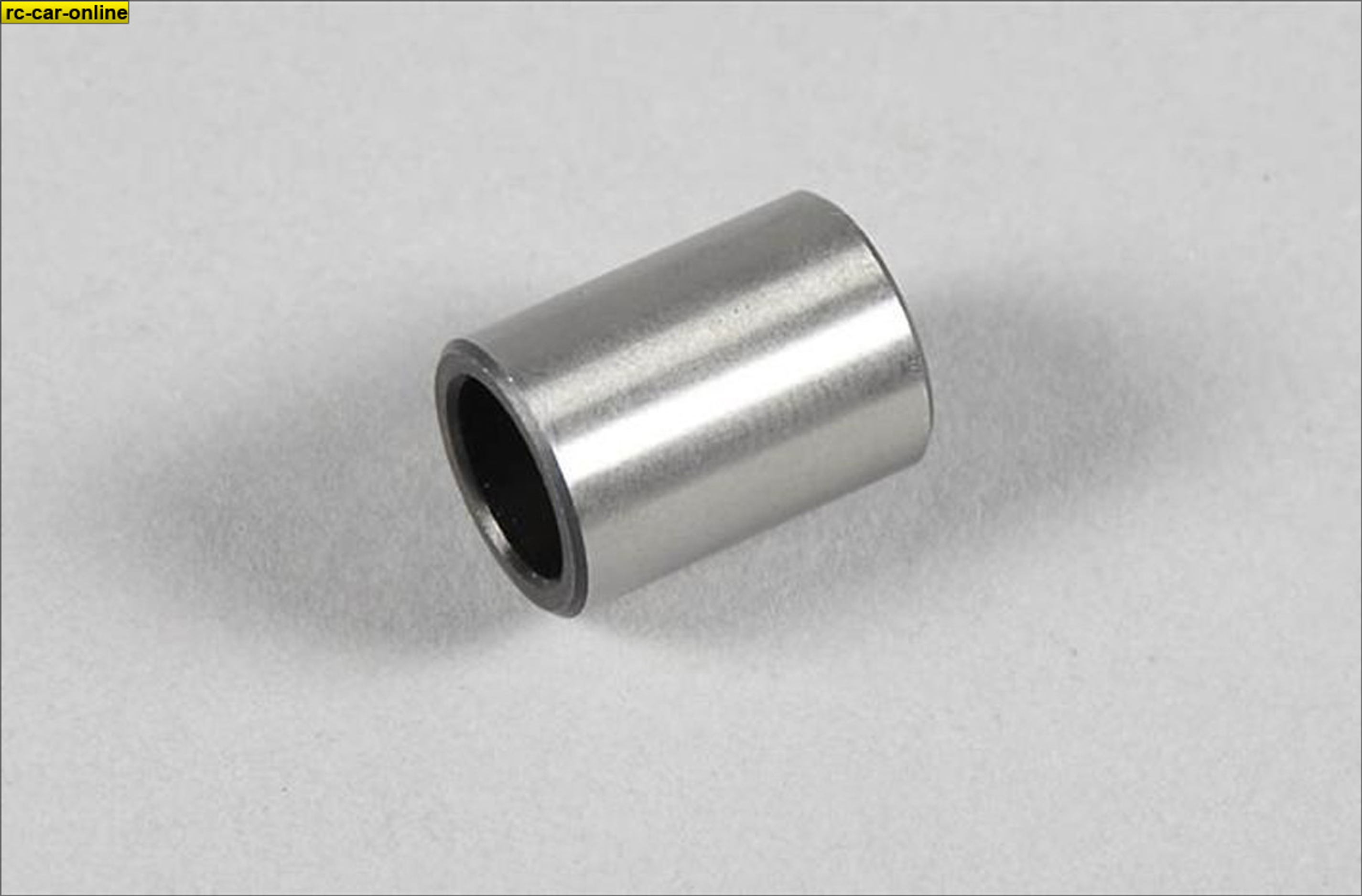

8509/02 FG Transmission bush f. free wheel, 1 pce.
Genuine FG spare/option part.Replacement part for 68408 Front axle free wheel for 4WD

€24.30*

Average rating of 0 out of 5 stars

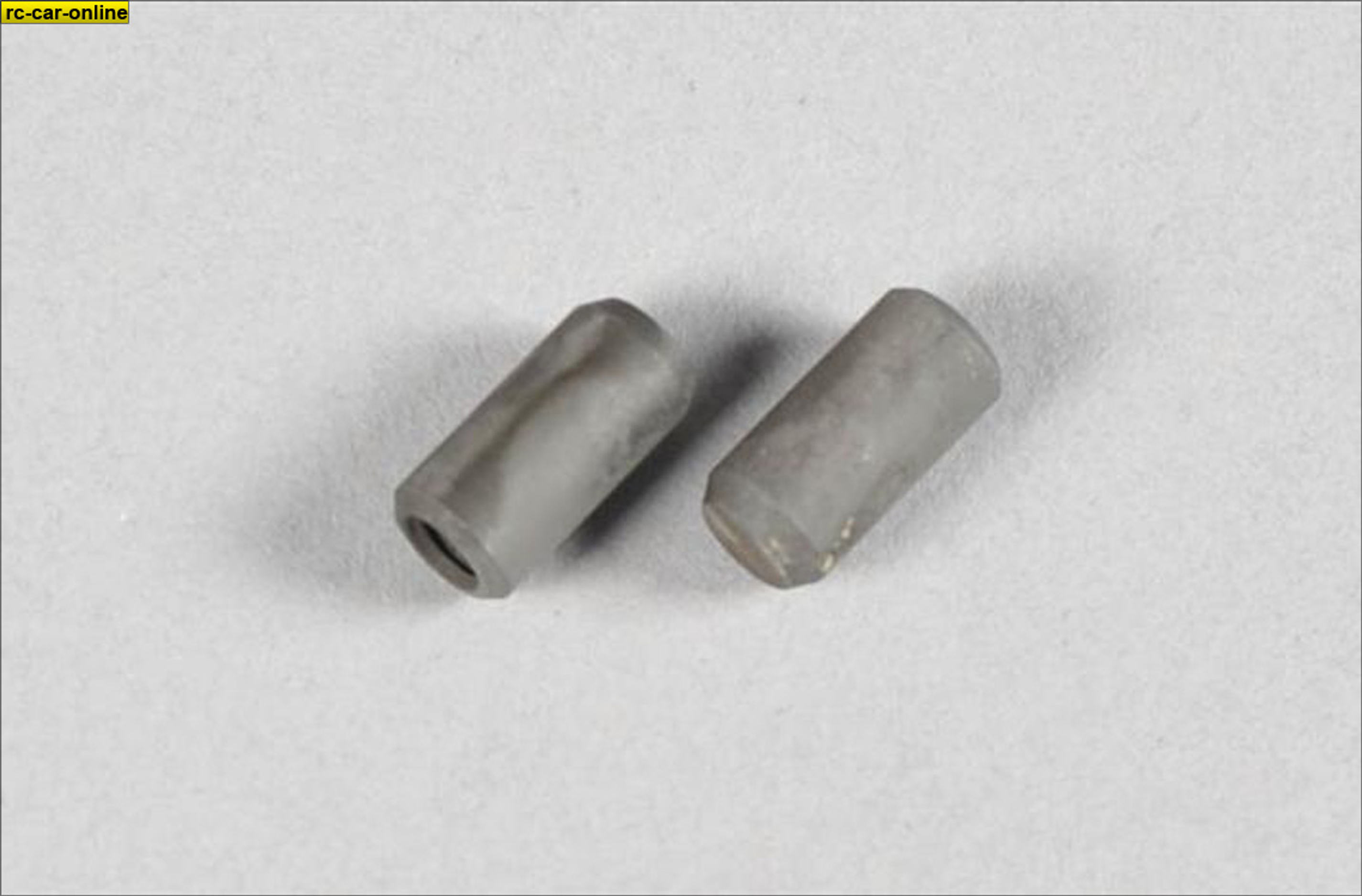

8509/03 FG Dowel pin Ø5 x 10mm, 2 pcs.
Genuine FG spare/option part.Replacement part for 68408 Front axle free wheel for 4WD

€4.40*

Average rating of 0 out of 5 stars

8509/04 FG Free-wheel sleeve 14 x 20 x 16mm, 2 pcs.
Genuine FG spare/option part.Replacement part for 68408 Front axle free wheel for 4WD

€29.95*

Average rating of 0 out of 5 stars

8509/05 FG Distance disks 8x20x0,5, 2 pcs.
Genuine FG spare/option part.Replacement part for 68408 Front axle free wheel for 4WD

€3.20*
