66230, FG Alloy wheel square 14mm/M6 2 pcs.
Product number:
fg_66230
EAN:
4058575020905
This is the successor of the product:
y6107/01 Wheel squares 18 mm HART-COAT, 14 mm wide
Product information "66230, FG Alloy wheel square 14mm/M6 2 pcs."
Bore diameter 8 mm
Login
Alternatives

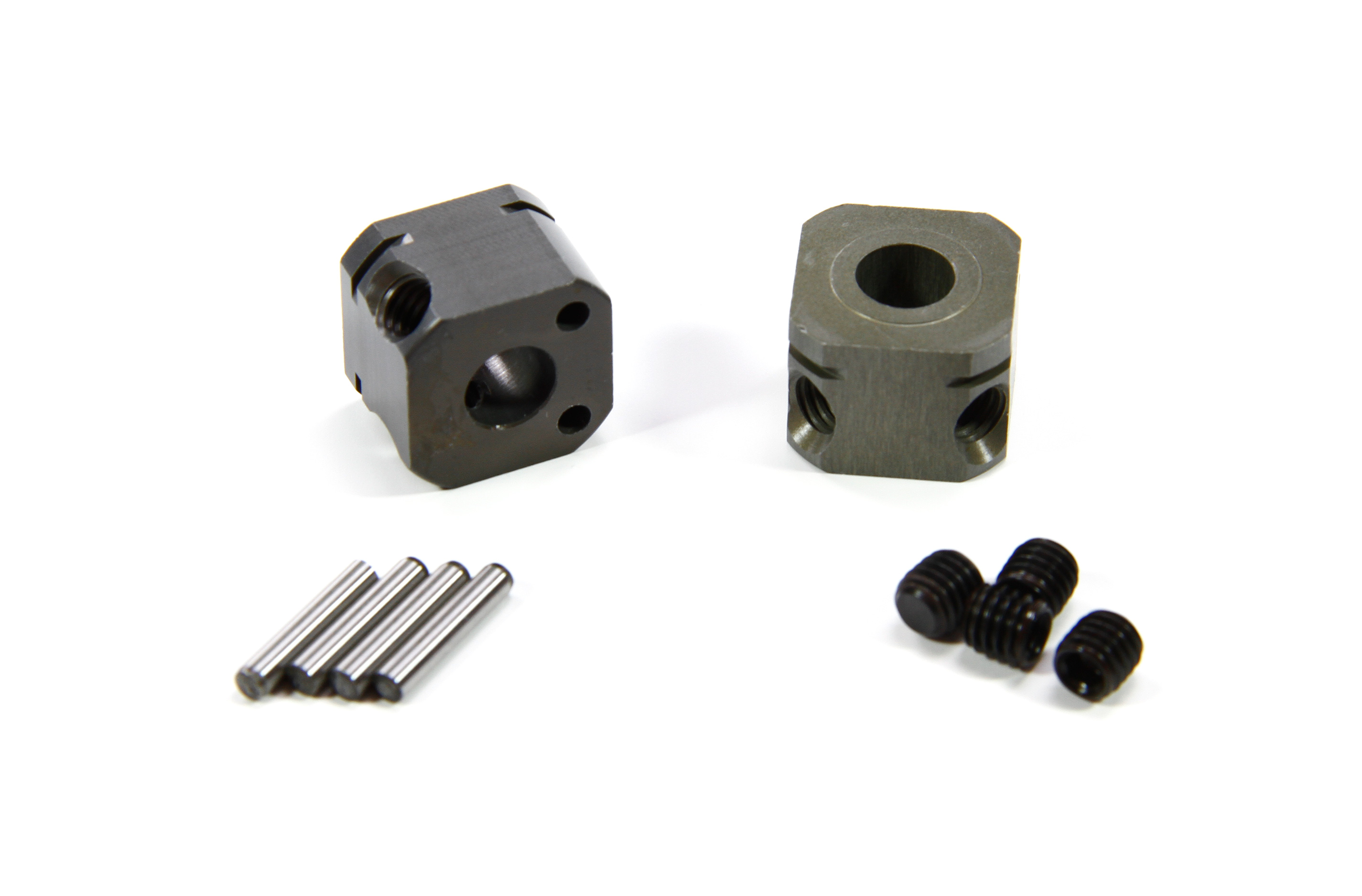

Genuine HT spare/option part.Wheel squares made of high-strength aluminum, hardened, with two M6 mounting threads Suitable for most 1/6 and 1/5 rc-cars. Through the use of two 6 mm screws a significantly higher retention force is achieved. Yet it is still recommended to use medium strength thread lock (link y0114)! The hard anodizing (HART-COAT) guarantees much lower wear of the squares! Especially recommended when using wheel mounted brake discs! Four 3x16 dowel pins per square are included which prevent the squares from spinning in the rim. Press fitting them into the wheel squares is optional. The 12, 14 and 17 mm wide squares feature a groove for inserting a C-clip (link 6106/05), which acts as a guide for the brake disk. The narrow 9.5 mm wide squares dont need a clip; the close sitting rim will guide the disk. Measures18 mm square (wheel drive!)9,5 mm wide, 8.0 mm diameter axle boretwo M6 mounting threads The set includes 2 pieces of 9,5 mm wide wheel squares and 4 pieces each of M6 grub screws and 3x16 dowel pins.Contents:2 pieces
Genuine HT spare/option part.Wheel squares made of high-strength aluminum, hardened, with two M6 mounting threads Suitable for most 1/6 and 1/5 rc-cars. Through the use of two 6 mm screws a significantly higher retention force is achieved. Yet it is still recommended to use medium strength thread lock (link y0114)! The hard anodizing (HART-COAT) guarantees much lower wear of the squares! Especially recommended when using wheel mounted brake discs! Four 3x16 dowel pins per square are included which prevent the squares from spinning in the rim. Press fitting them into the wheel squares is optional. The 12, 14 and 17 mm wide squares feature a groove for inserting a C-clip (link 6106/05), which acts as a guide for the brake disk. The narrow 9.5 mm wide squares dont need a clip; the close sitting rim will guide the disk. Measures18 mm square (wheel drive!)14 mm wide, 8.0 mm diameter axle boretwo M6 mounting threads The set includes 2 pieces of 14 mm wide wheel squares and 4 pieces each of M6 grub screws and 3x16 dowel pins.Contents:2 pieces
Genuine HT spare/option part.Wheel squares made of high-strength aluminum, hardened, with two M6 mounting threads Suitable for most 1/6 and 1/5 rc-cars. Through the use of two 6 mm screws a significantly higher retention force is achieved. Yet it is still recommended to use medium strength thread lock (link y0114)! The hard anodizing (HART-COAT) guarantees much lower wear of the squares! Especially recommended when using wheel mounted brake discs! Four 3x16 dowel pins per square are included which prevent the squares from spinning in the rim. Press fitting them into the wheel squares is optional. The 12, 14 and 17 mm wide squares feature a groove for inserting a C-clip (link 6106/05), which acts as a guide for the brake disk. The narrow 9.5 mm wide squares dont need a clip; the close sitting rim will guide the disk. Measures18 mm square (wheel drive!)17 mm wide, 8.0 mm diameter axle boretwo M6 mounting threads The set includes 2 pieces of 17 mm wide wheel squares and 4 pieces each of M6 grub screws and 3x16 dowel pins.Contents:2 pieces
Genuine HT spare/option part.Wheel squares made of high-strength aluminum, hardened, with two M6 mounting threads Suitable for most 1/6 and 1/5 rc-cars. Through the use of two 6 mm screws a significantly higher retention force is achieved. Yet it is still recommended to use medium strength thread lock (link y0114)! The hard anodizing (HART-COAT) guarantees much lower wear of the squares! Especially recommended when using wheel mounted brake discs! Four 3x16 dowel pins per square are included which prevent the squares from spinning in the rim. Press fitting them into the wheel squares is optional. The 12, 14 and 17 mm wide squares feature a groove for inserting a C-clip (link 6106/05), which acts as a guide for the brake disk. The narrow 9.5 mm wide squares dont need a clip; the close sitting rim will guide the disk. Measures18 mm square (wheel drive!)12 mm wide, 8.0 mm diameter axle boretwo M6 mounting threads The set includes 2 pieces of 12 mm wide wheel squares and 4 pieces each of M6 grub screws and 3x16 dowel pins.Content:2 pieces
