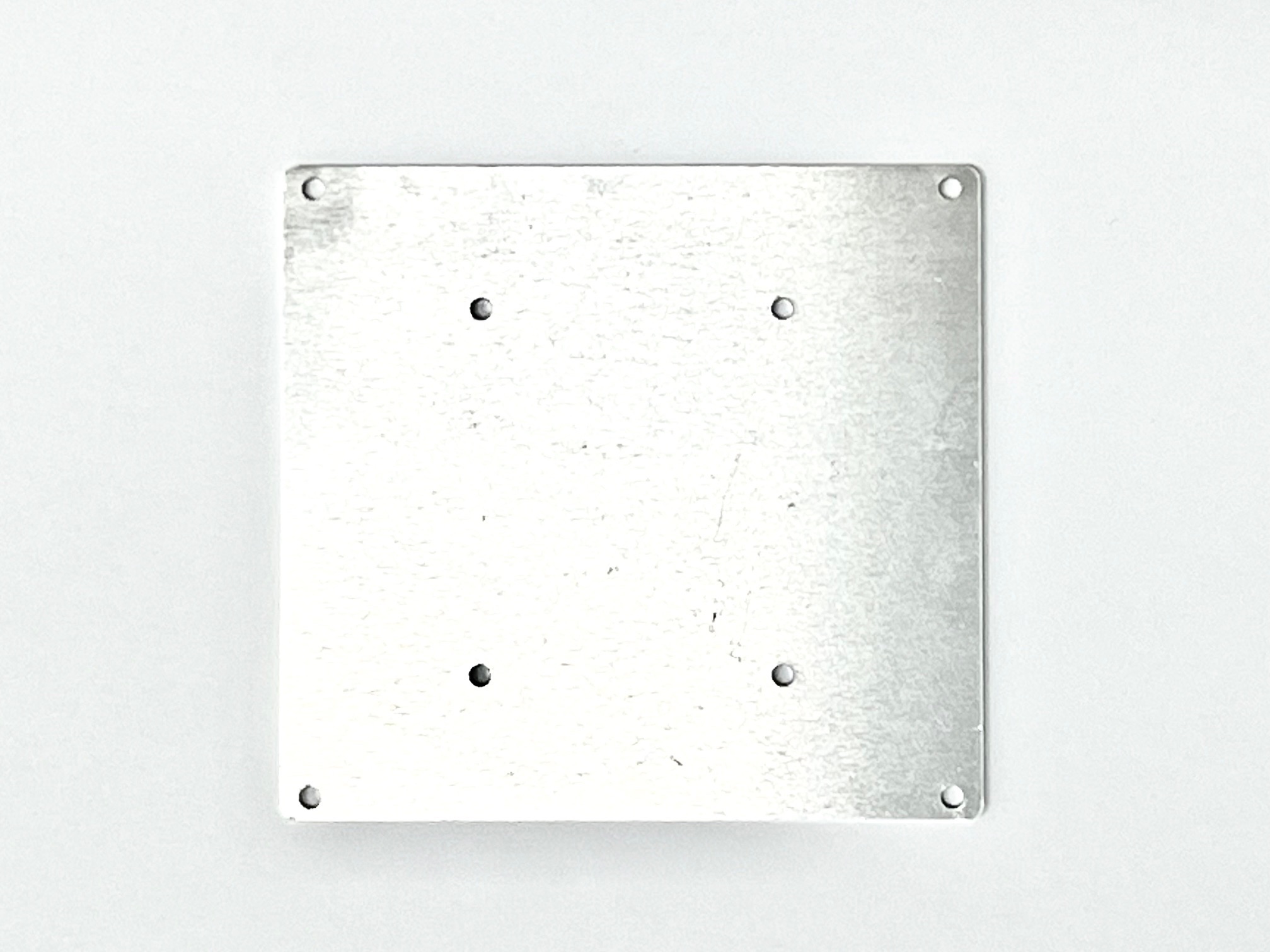

Genuine HT spare/option part. Universal radio plate for FG 2WD Marder/Beetle/Off-Road Buggy/Pajero an all Monster and Stadium models. With drilling templates for the following steering servos:Hitec HS-805BB/HS-5745/5735/Orange Power MPX Jumbo und Rhino The size of the steering servo can vary because you can adjust the position of the aluminum tray bar to accomodate larger or smaller servos. You will need FG adapters for installation of the gas / brake servo: #5014/04 servo mounting frame for (standard sized) Futaba / JR, Thunder Tiger DS1015 - 2pcs. Accepts FG servo frames for up to two throttle/brake servos (not included). Spacers for rx-box installation are included.Old version chassis plates (~pre 2003) have a different bolt pattern. When installing this radio plate on an old chassis new mounting holes must be drilled into the chassis plateThe surface is plain aluminum. With the necessary effort it can be polished to a high luster.Contents:1 piece
Genuine HT spare/option part.Alloy case conversion kit for Smartech / Carson 2WD and FG 2WD large scale cars .Comes complete as shown with reinforced differential tube, sealed bearings, installed needle bearings, shims, screws and o-rings.The scope of supply for FG:4 x Countersunk screw M4 x 8 mm2 x Shims 8 x 20 x 0,10 mm2 x Lenticular flange head screw M3 x 10 mm2 x Washers 3,2 mm2 x Gasket for DiffThe scope of supply for Smartech:4 x Countersunk screw M4 x 8 mm4 x Shims 8 x 20 x 0,10 mm8 x Shims 5 x 17 x 0,10 mm2 x Lenticular flange head screw M3 x 10 mm2 x Washers 3,2 mm2 x Gasket for DiffContents:1 set

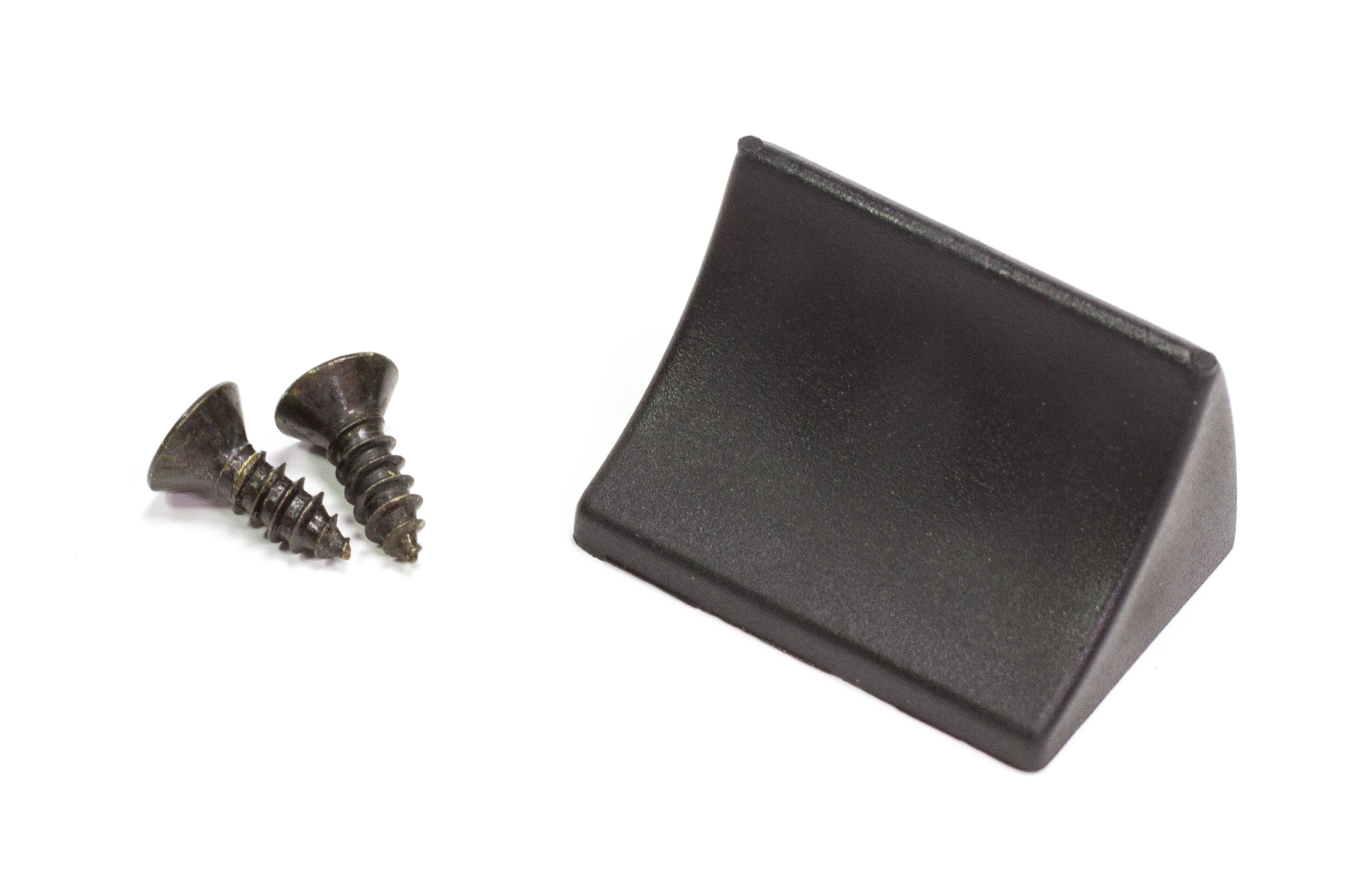

Genuine FG spare/option part. The differential key prevents a damage of the diff. cover through bigger stones. Suitable for all FG 1:6 Buggy and Monster models.Contents:1 piece
Genuine FG spare/option part. This conversion kit is suitable for the newer chassis of 2WD and 4WD touring and sportscars and Buggy/Monster models with 500mm - 535mm wheelbase. Suitable for the electric engines from FG Modellsport, Leopard BL engines and Castle Creation. The conversion kit includes gear and engine mount, fixing parts for cruise control and LiPo batteries. Cruise control, BL engine and LiPo batteries are not included. During the conversion several fixing holes have to be applied to the chassis. Gear transmission has to be changed accordingly to the use of the electric engine.For easy mounting we recommend LiPo batteries with a max. length of 150 mm and 50 mm width.The conversion kits include all mechanical parts (except electric engine with speed control, Lipo batteries) to convert your FG model scale 1:5 and 1:6 to an electric powered system.Contents:1 set
Genuine Top Tuning spare/option part.This kit includes all required parts for converting a Losi 5ive-T, 5ive-B or Mini into an electric car.Contents:TT1021 Top Tuning Electric conversion kit for Losi 5ive-T/B and Miniand your choice of Motor and ESC:- 8S Vision : Hobbywing Ezrun MAX5 250A ESC and 56112 ZTW Monster Brushless Motor 700 kV - 12S Vision+270€ : y1549/01: Hobbywing Ezrun MAX4 300A 12S ESC with TT70120 620KV Brushless motor TT1021 Top Tuning Electric conversion kit for Losi 5ive-T/B and MiniAll aluminum parts are made of 7075 alloy.Front motor mount design to assure ample clearance for the rear brake disc when running mechanical brakes.Accepts two batteries up to 155 mm long und 50 mm wide. The battery tray accepts batteries up to 164 mm long, but the motor pinion limits the max. length of one battery to 155 mm.Contents:Motor mount, rear clamp Battery carrier plate made of 3 mm epoxy with aluminum brackets for the hook-and-loop bands4 hook-and-loop bands to secure the batteriesaluminum mounting pedestals for the battery plate16T pinion with 8 mm bore diameterMounting screws
Hobbywing Ezrun MAX5 ESC 250A with Top Tuning 700KV Brushless Motor 8S:
Specifications
56112 ZTW Monster Brushless motor:Max. Amps: 175AMax. Voltage: 42VMax. Power: 7.350WKV (RPM/Volt): 700KVMounting hole depth: 8 mmBolt pattern: 4 x M4 on each 30 mmCase diameter: 57,8 mmCase length: 112 mmFree shaft length: 30 mmShaft diameter: 8 mmGewicht: 1260g
Specifications Hobbywing Ezrun MAX5 ESC 250A:
technical Data :Type: 1/5 Brushless Sensored Current (continuous/short): 250A / 1600A Input voltage: 6-12S LiPo
BEC: 6V/7.4V/8.4V @8A (switch mode) Motor types: Brushless motors (with/without sensor) Motor limits: - 8S Lipo: KV <= 1200
- 12S Lipo: KV <= 800 56118 motor Fan: Yes, operated via the BEC
Programming: LED programming card
LCD programming box (G2)
OTA programming module
Separate programming connection Waterproof: Yes Output: 8.00mm Bullet Connector (female) Size: 94.5x59.4x50.9mm Weight: 428.5g Applications: 1/5 buggy, truck
Alternativ 12S:
Hobbywing Ezrun 300A 12S Regler mit Top Tuning 620KV Brushless Motor:
Technische Daten Regler ESC:Strom (dauer/kurz)300A / 2000AMotortyp:Sensor/Sensorlose Brushless MotorenMotorlimit:12S LiPo: kV <= 600 (70125er Größe)LiPo-Zellen:6-12SBEC:6V / 7.4V / 8.4V mit 10A (schaltbar)Lüfter:Ja (Versorgung über eingebautem BEC)Programmiereingang:Lüfter / PRG-EingangProgrammierung:LED Programmierkarte, LCD Programmierbox, OTA ProgrammiermodulGröße:125x85x61.7mmGewicht:775.4g
Max. Amps: 175AMax. Voltage: 42VMax. Power: 7.350WKV (RPM/Volt): 700KVMounting hole depth: 8 mmBolt pattern: 4 x M4 on each 30 mmCase diameter: 57,8 mmCase length: 112 mmFree shaft length: 30 mmShaft diameter: 8 mmGewicht: 1260gSpecifications TT70120 Top Tuning Beast Brushless motor 620kV:Max. Amps: 200AMax. Voltage: 8-14SMax. Power: 10.000WKV (RPM/Volt): 620KVResistance: 0,0095Mounting hole depth: 8 mmCase diameter: 70 mmCase length: 120 mmFree shaft length: 30 mmShaft diameter: 8 mmGewicht: 1730g
