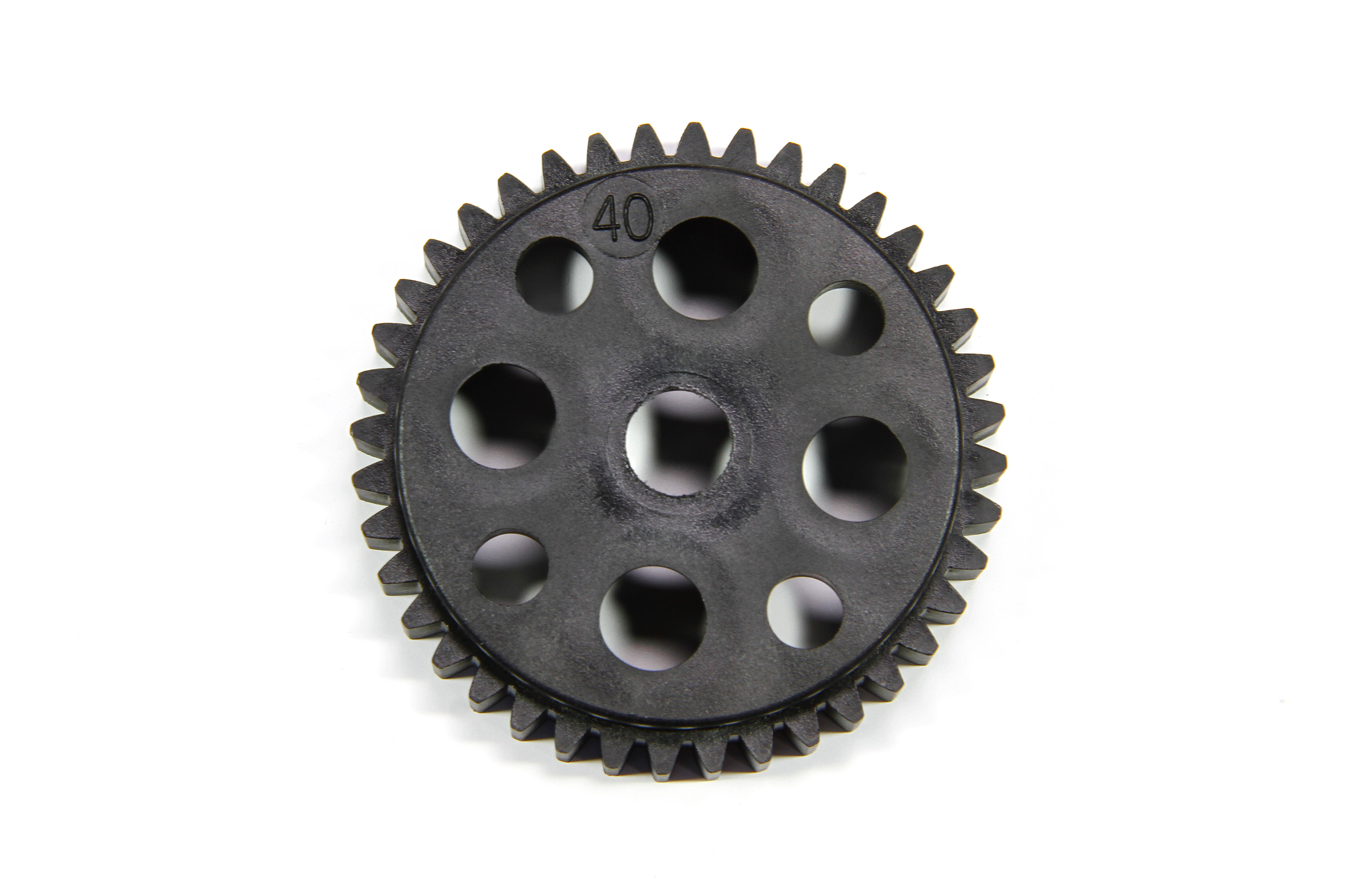

32734 Spur gear 40 teeth - 1pce.
€14.90
Currently unavailable
Product information "32734 Spur gear 40 teeth - 1pce."
Login
Accessories / Spare parts
Fits FG and Smartech touring cars. The use of steel spur gears on the layshaft increases reliability significantly. Pebbles, heat and shock loads created by high rev clutches are no longer a problem. The carrier is designed for reverse installation as seen on the FG EVO car, where the hubs of pinion and spur gear carrier are pointing to the outside of the car. The carrier features M8 grub screws for installation on the layshaft. This means that the tip of the screw is as wide as the flat area on the shaft and ensures best possible load distribution. The spur gears feature the same diameter as the FG plastic versions. The use of a steel clutch pinion is mandatory with steel spur gears! The spur gears are available as 39T, 40T or 41T versions. The following measures are required for installation of the HT-steel gear adapter "on-road" on the layshaft in FG EVO 2020 cars:- The installed wide 16T layshaft pinion 6431/01 must be replaced by the narrow version 6431.- The supplied 1mm shim must be added between layshaft pinion and ball bearing.- The flat sections on the layshaft do not have the usual 180° offset for the adapter; therefore only one grub screw will be used. However, since this is a wide face M8 version, this is no disadvantage.
Alloy ring gear adaptor for FG, Smartech, Carson and many other cars. Contrary to the stock plastic adaptor the aluminum version is secured by set screws.There are three sizes available:y0048/01 - 47 mm outer diameter, fits 38 tooth ring gearsy0048/02 - 52 mm outer diameter, fits 39/40/41/42/43/44 tooth ring gears - Weight: 29 grammsy0048/03 - 60 mm outer diameter, fits 46T and 48T ring gears - Weight: 31 gramms
Genuine Smartech spare/option part.Fits Carson/Smartech - C5 (on road).Content:1 piece
Alternatives
Fits FG and Smartech touring cars. The use of steel spur gears on the layshaft increases reliability significantly. Pebbles, heat and shock loads created by high rev clutches are no longer a problem. The carrier is designed for reverse installation as seen on the FG EVO car, where the hubs of pinion and spur gear carrier are pointing to the outside of the car. The carrier features M8 grub screws for installation on the layshaft. This means that the tip of the screw is as wide as the flat area on the shaft and ensures best possible load distribution. The spur gears feature the same diameter as the FG plastic versions. The use of a steel clutch pinion is mandatory with steel spur gears! The spur gears are available as 39T, 40T or 41T versions. The following measures are required for installation of the HT-steel gear adapter "on-road" on the layshaft in FG EVO 2020 cars:- The installed wide 16T layshaft pinion 6431/01 must be replaced by the narrow version 6431.- The supplied 1mm shim must be added between layshaft pinion and ball bearing.- The flat sections on the layshaft do not have the usual 180° offset for the adapter; therefore only one grub screw will be used. However, since this is a wide face M8 version, this is no disadvantage.
Genuine FG spare/option part.Suitable for all 1:5 models.Dimensions:Diameter 63 mmWidth 15.5 mmTooth width 12 mmModule: m=1,5Contents:1 piece
Customers also viewed
Genuine FG spare/option part.Suitable for all 1:5 models.Dimensions:Diameter 63 mmWidth 15.5 mmTooth width 12 mmModule: m=1,5Contents:1 piece
Genuine ARRMA spare/option part. Contents:1 piece
46 teeth gear wheel for the layshaft.Diameter 72 mmWidth 15.5 mmTooth width 12 mmModule: m=1,5
2-speed gear box, retrofotting is possible for Smartech/Carson C5, all 1:5 2WD FG models except Formula 1 + FG EVO 2020, adjustable shift point, high reliability, gear wheels can be changed in no time. During a competition we recommend to use the small gearwheels with 16-26 teeth in alloy oder steel.If you use the gear wheels (38 teeth) you need the alloy hub A 47mm ().Contained pinions: 22 to 42 teeth and 24 to 40 teeth.Contents:1 piece
