1001M-F Mecatech twin piston hydraulic brake front for Mecatech star mount, set
€315.00
Available in 21 days
Product information "1001M-F Mecatech twin piston hydraulic brake front for Mecatech star mount, set"

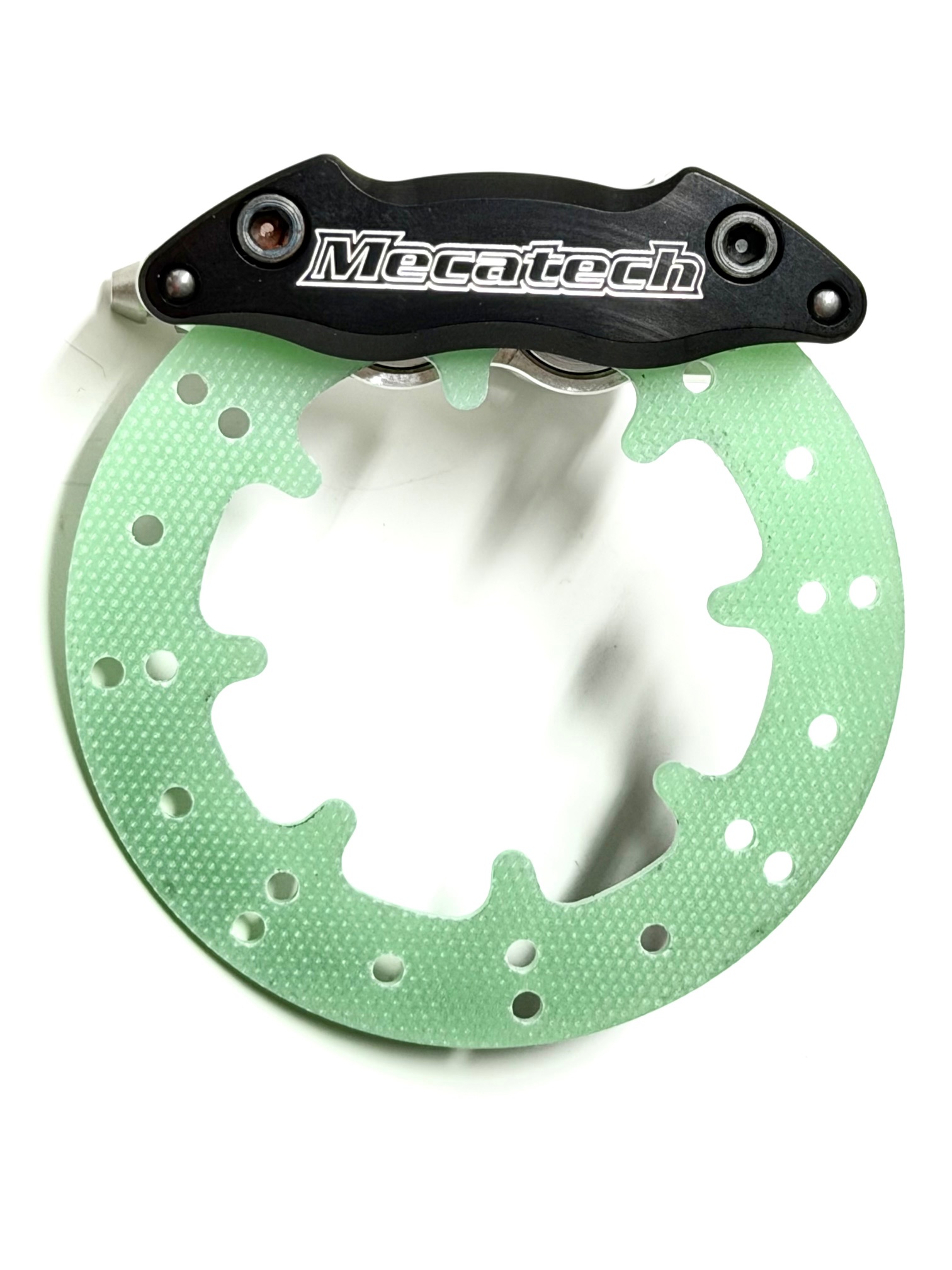

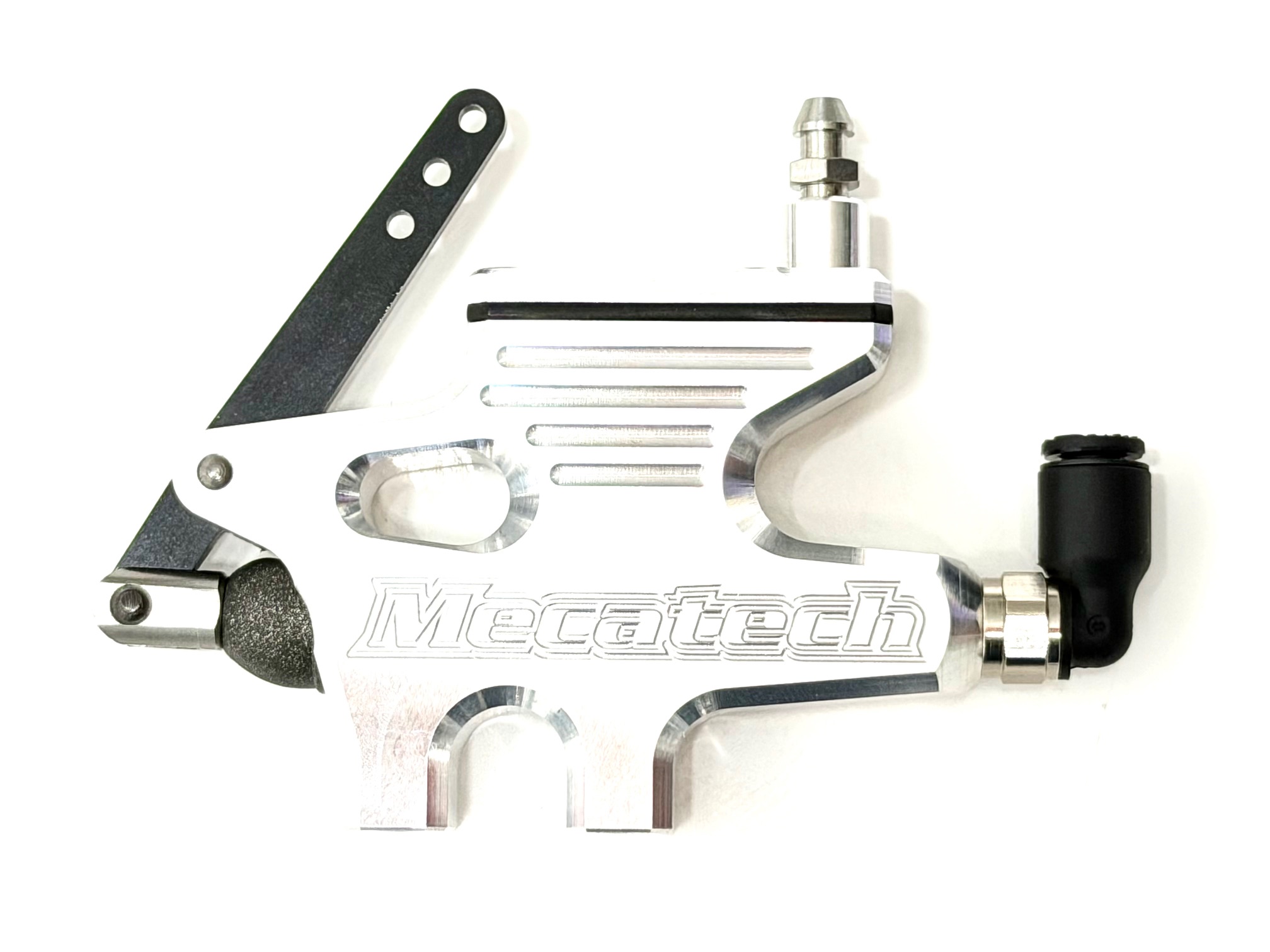

Front Twin piston hydraulic brakes with Epoxi rotors and steel brake pads for optimized braking performance. The master cylinders feature a volume compensation.
Fits FG Evo 04 - 08, Mecatech FW01, Competition 07 - 08, Sportsline 08 and with pedestal in every FG offroad cars (buggy / monster / stadium with original FG 700 ml fuel tank).
The brake fits without any further accessories on FG Evo-models which are equipped with the a-arms no. 1100/10 respectively 1100/11
When running wheel squares with Seeger ring, the ring has to be removed.
On FG Evo-models which are equipped with the a-arms no. 1100/05 respectively 1100/06, the brake has to be filled before the installation. In addition the ventilation nipple of the brake must be exchanged against the venting valve no. y0309
Pedestal for installation for all FG Offroad-models:
- Mecatech twin piston hydraulic brake
