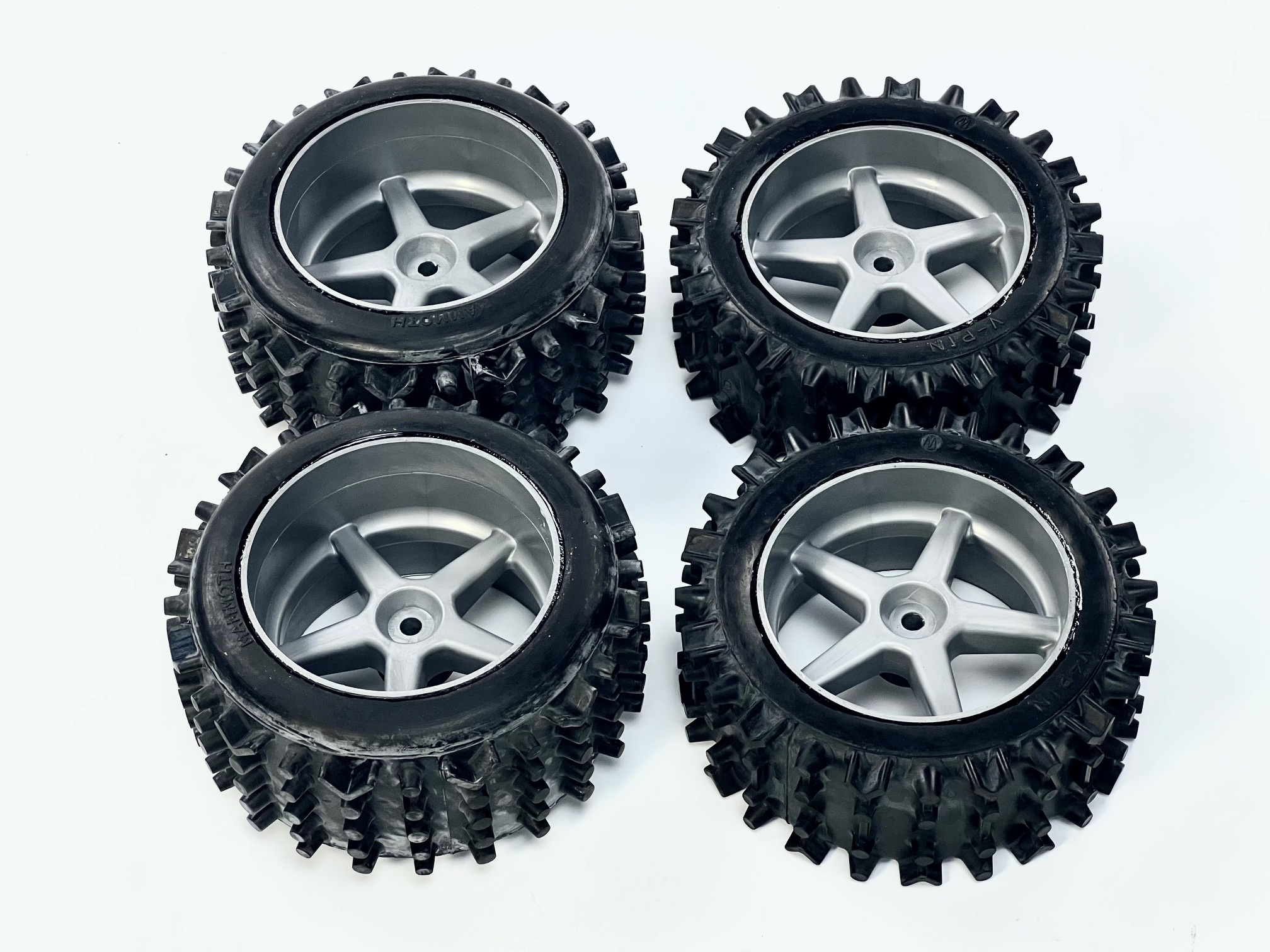

y0617/01 Offroad Super Combi - Front V-Pin/Rear Mammoth glued on silver rim, 2 pairs/4 pieces

Off-Road tires mounted and glued on rims, on chrome rims. Due to the high torque load on the bonding of tires on largescale cars, checking the bonding from time to time and re-glueing (y0067) if necessary is unavoidable.Dimensions:Diameter: 150 mmWidth: 60 mmWheel square: 18 mmContents:4 pieces / 2 pairs

The V-pin competition tire is particularly suitable for tracks with loose and sandy surface.The high tread profile, extended to the tire shoulder requires a high manufacturing cost.This tread design guarantees an extremely high side traction and provides maximum propulsion especially on surfaces like sand and loose soil for optimum.A well proven combination is the use of Mammoth tires in the rear and V-pin at the front.By cutting of the tread profile of the V-pin tires you can adjust your car's handling easily. The partly or nearly complete removal of the V-pin tire's tread on the outside of the tire, greatly affects the tire's side bite when cornering. Due to the high torque load on the bonding of tires on largescale cars, checking the bonding from time to time and re-glueing (y0067) if necessary is unavoidable.Please take a look at the corresponding pics:Pic A - very high lateral grip = car tends to oversteerPic B - high lateral grip = still sharp steering responsePic C - reduced lateral grip = neutral handlingPic D - low lateral grip = expect the car to understeerOf course, the before mentioned does depend on the track surface!Summarized: removing tread from V-Pin tires on the front axle will reduce oversteering, calm your car and make it easier to drive.When oversteering is extreme (e.g. high grass) you may even start cutting the tread on the inside shoulder. This can prevent your car from those annoying traction rolls.For very loose soil the soft compound is recommended, under normal condition the medium compound is usually your best choice.Dimensions:Diameter: 163 mmWidth: 65 mmInner diameter: 106 mmPrices of the components:V-Pin tires EUR 39.90 / pairV-Pin tire inserts EUR 9.90 / pairRims FG 3105/02 EUR 14.90 / pairglue set y0067 EUR 13.30Total EUR 78.80Ready mounted and glued EUR 69.90 / pairRim with 18 mm square drive

BIG DIGGER 170x60 with black MadMax Extreme rims with 20 beadlock screws, with 18 mm square socket and reinforced orange beadlock rings for FG, Smartech and many more. Due to the extreme load created by the MadMax BIG DIGGER tires the rim was optimized again with a reinforcement ring.The MadMax tires had 84 extremely strong, with more than 1 cm² cross-section and 6 mm tread depth, allow for best power transfer and provide excellent grip even on loose surfaces like sand or soil.The tires are fitted with a special rigid insert, which can handle the cornering forces and maintain the tires shape even on heavy cars. We recommend to check the beadlock screws after the run. Dimensions:Outer diameter: 170 mmFront tire width: 60 mmReinforced 18 mm square wheel drive 1 pairThe video shows the 18 mm square drive version. Also available with 24 mm hex. Some off-road tires knowledge can be found here!

This carriers makes it possible to run steel spur gears on the layshaft. Pebbles heat and the high torque of monster truck applications are no longer a problem.The carrier is designed for reverse installation as seen on the FG EVO car, where the hubs of the pinion and the spur gear carrier are pointing to the outside of the car. The carrier features M8 (eight, no typo) grub screws for installation on the layshaft. This means that the tip of the screw is as wide as the flat area on the shaft and ensures best possible load distribution.

The V-pin competition tire is particularly suitable for tracks with loose and sandy surface. The high tread profile, extended to the tire shoulder requires a high manufacturing cost. This tread design guarantees an extremely high side traction and provides maximum propulsion especially on surfaces like sand and loose soil for optimum. A well proven combination is the use of in the rear and V-pin at the front. By cutting of the tread profile of the V-pin tires you can adjust your car's handling easily. The partly or nearly complete removal of the V-pin tire's tread on the outside of the tire, greatly affects the tire's side bite when cornering.Please take a look at the corresponding pics:Pic A - very high lateral grip = car tends to oversteerPic B - high lateral grip = still sharp steering responsePic C - reduced lateral grip = neutral handlingPic D - low lateral grip = expect the car to understeerOf course, the before mentioned does depend on the track surface!Summarized: removing tread from V-Pin tires on the front axle will reduce oversteering, calm your car and make it easier to drive.When oversteering is extreme (e.g. high grass) you may even start cutting the tread on the inside shoulder. This can prevent your car from those annoying traction rolls.For very loose soil the soft compound is recommended, under normal condition the medium compound is usually your best choice.HPI Baja 5 cars can also use these tires when equipped with special adapters. Dimensions:Diameter: 163 mmWidth: 65 mmInner diameter: 106 mm

MAXI PIN 185 x 75 with black colored MadMax Extreme rims, 20-fold screwed, very tough, with 18 mm square drive and with reinforced orange beadlock rings for FG, Smartech and many more. The MadMax MAXI PIN tires come with strong special tire inserts which allow transferring the power without canting, even on heavy cars. MadMax MAXI PIN tire was developed specifically for astro turf tracks! The special tread design with 480 studs per tire provides excellent grip, but also a high load on tire and rim! To stabilize the tire, the outer shoulder features radial ribs which minimizes the tilting under load and counteract the shear forces during cornering. Furthermore, the MAXI PIN tire has studs positioned on the outside shoulder, which support the steering in corners. All together the MAXI PIN tires provide maximum grip, which made it necessary to upgrade the beadlock screws on these MadMax EXTREME wheels. So they come with 3.0 mm screws instead of the usual 2.5 mm ones! Nevertheless, tires and beadlocks should be checked after every run. Dimensions: Outer diameter: 185 mm tire width at bead: 70 mm Tread width: 75 mm Reinforced 18 mm square wheel drive 2 pair Some off-road tires knowledge can be found here!The video shows the 18 mm square drive version. Also available with 24 mm hex.

Item N° 66237/01 Gilmer belt 15mm, for Leopard 4WD 530, Offroad 4WD 535 and Sportline TW 4WD 535, 1 pce.
