Genuine spare/option part.This prefilter prevents the starter mechanism from rough dirt. Suitable for Zenoah and Chung Yang engines.Contents:1 piece

The SPEED TEC 7-port genuine Zenoah engine is optimized for performance by hand with sophisticated craftsmanship and guarantees, besides greatly increased performance, excellent workmanship and stamina. More power and torque through the three additional transfer ports.SPEED TEC V 7-port version modifications: Cylinder:Cylinder bottom modified for higher compressionenlarged and flow-optimized transfer portsmachining of three additional transfer ports raises number of ports from 4 to 7intake and exhaust ports optimized and matchedport timing modifiedCrankshaft:is adjusted, aligned and balancedFlywheel and ignition:Weight reduced and checked for run-out.Gaskets:Premium quality gaskets installed. Cylinder gasket installed using elastic gasket sealer.With the new "K & N" version of the Losi DBXL there is another detail, which need to be considered.From the very beginning the hole pattern for the engine installation in the DBXL chassis plate was no precise match to the hole pattern of the engine, even when delivered in stock form with standard engine. Now with the "K&N" version the engine mount has been changed to eliminate this discrepancy. However, all aluminum engine mounts available on the market share their dimensions with the previous plastic engine mount. For the installation of a G320 Zenoah in a "K&N" -DBXL two possible combinations exist in order to obtain the correct hole pattern:When using the standard (new) plastic engine mount a shortened clutch housing is required as in a 5ive-TWhen using an aluminum engine mount a stock length clutch housing is requiredSeparately, it is recommended to enlarge the cutout in the body panel in front of the K & N air filter for about 2 - 3 mm to ensure that the panel cannot chafe on the air filter.For all HPI Baja 5 cars the G320RCer clutch housing has to be shortened at the mounting base, for Losi 5ive- T and Desert Buggy XL cars the clutch housings overall length must be shortened to CY size.When installing the air filter you must pay attention to the length of the screws.For use on Losi and HPI we recommend M5x45 screws (like H94763); you can also cut existing screws to length, of course.When ordering with a modified clutch housing we will include these screws!In our shop you can select from Zenoah G320RC engines already modified to fit your HPI or Losi car.The installation of a Zenoah G320RC in a Smartech C5 onroad car is possible without modifications. However, due to the engines performance aluminum engine mounts (set # y0189) are mandatory!The installation of the Zenoah G320RC in other cars (like FG or Smartech buggies / monsters a.s.o.) is not even remotely straightforward, since the layshaft pinion (the small pinion in front of the big differential spur gear) is in the way for the larger Zenoah G320RC crankcase.Compatibility Zenoah / Losi 5ive-T:Please note that for installation in a Losi 5ive the fan cover must be swapped for a Losi or CY cover #5341 in order to fit the chassis" bolt pattern.If you want to install a Zenoah engine into the Losi 5ive, you usually have to use a fan cover from the CY engine.However, there is a workaround to maintain Zenoah fan cover.The adjustment is done via the pinion specific mounting plates for the engine. The change always affects only the rear, outer (carburetor side) plate under the fan cover. This is rotated by 180°; so that the embossed number on this plate faces the exhaust side of the engine!18T pinion: use 20T plate, rotated 180°19T pinion: use 19T plate, rotated 180°20T pinion: use 18T plate, rotated 180°On the plus side you gain the opportunity to easily mount a Zenoah engine keeping the original fan cover. On the other hand there will be the disadvantage of the necessity to combine two different sets of engine mounting plates when installing any pinion other than the stock 19T version. Therefore we do not recommend this workaround for everyday use. Nevertheless it works perfectly should ever the need arise. Attention! We recommend to run exclusively fully synthetic 2-stroke engine oil, like y0813 Motul 800 racing oil.

Genuine FG spare/option part.Handy auxiliary tool to press-in ball bearings, guide bushes a.s.o. A jaming of ball bearings or guide bushes is almost impossible. Also suitable for dismounting of cooling fans and clutches at Zenoah engines. For Solo only suitable for cooling fans.

Item N° 306057 / S5085Reinforced engine mount for Carson / Smartech 1/6 carsm 1 pceCarson part number: 306057Smartech part number: S5085Reinforced aluminum engine mount for Carson / Smartech 1/6 cars with three M5 tapped mounting holes.Dimensions:Length: 80 mmWidth: 10 mmThread size: M5

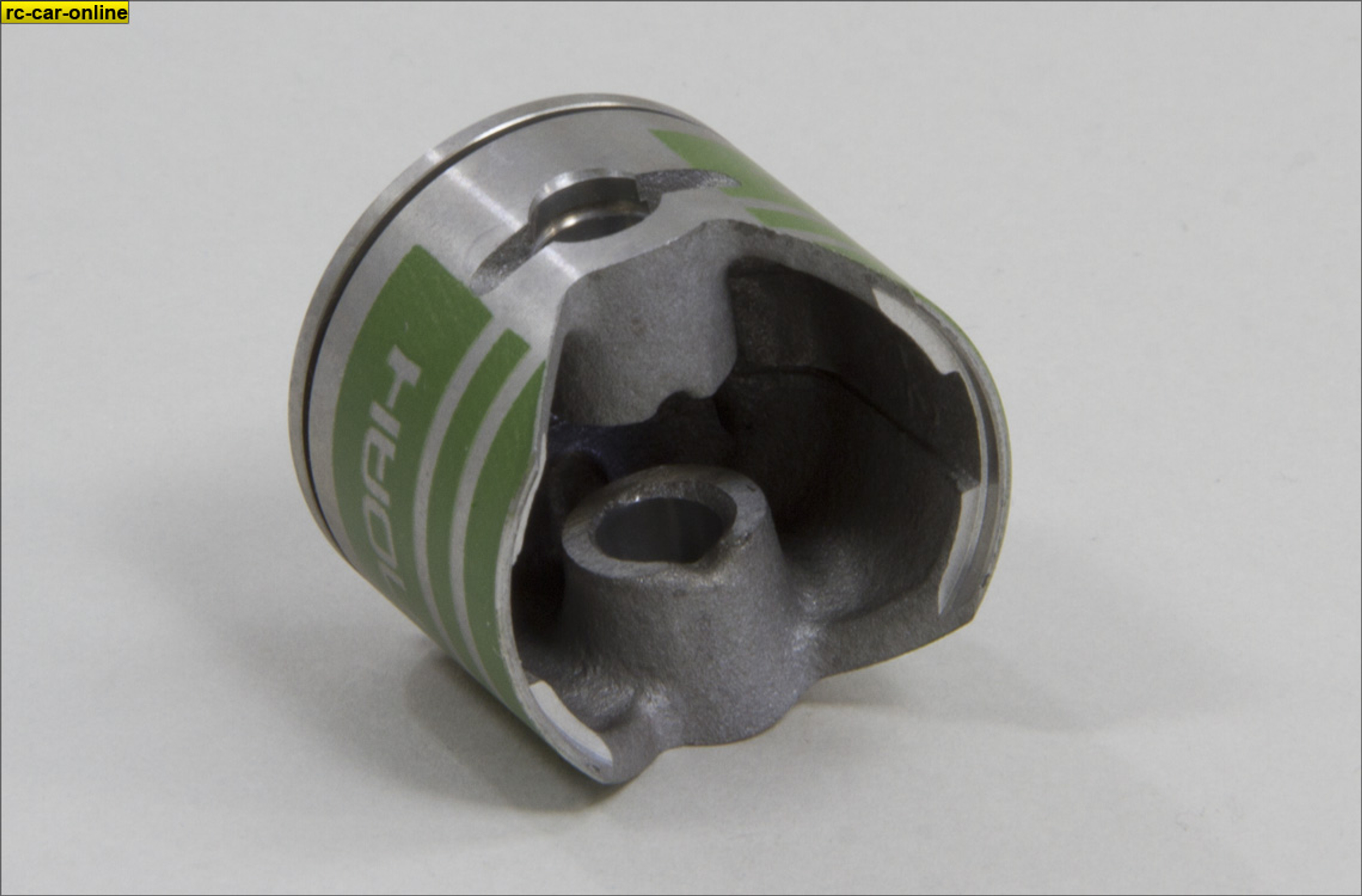

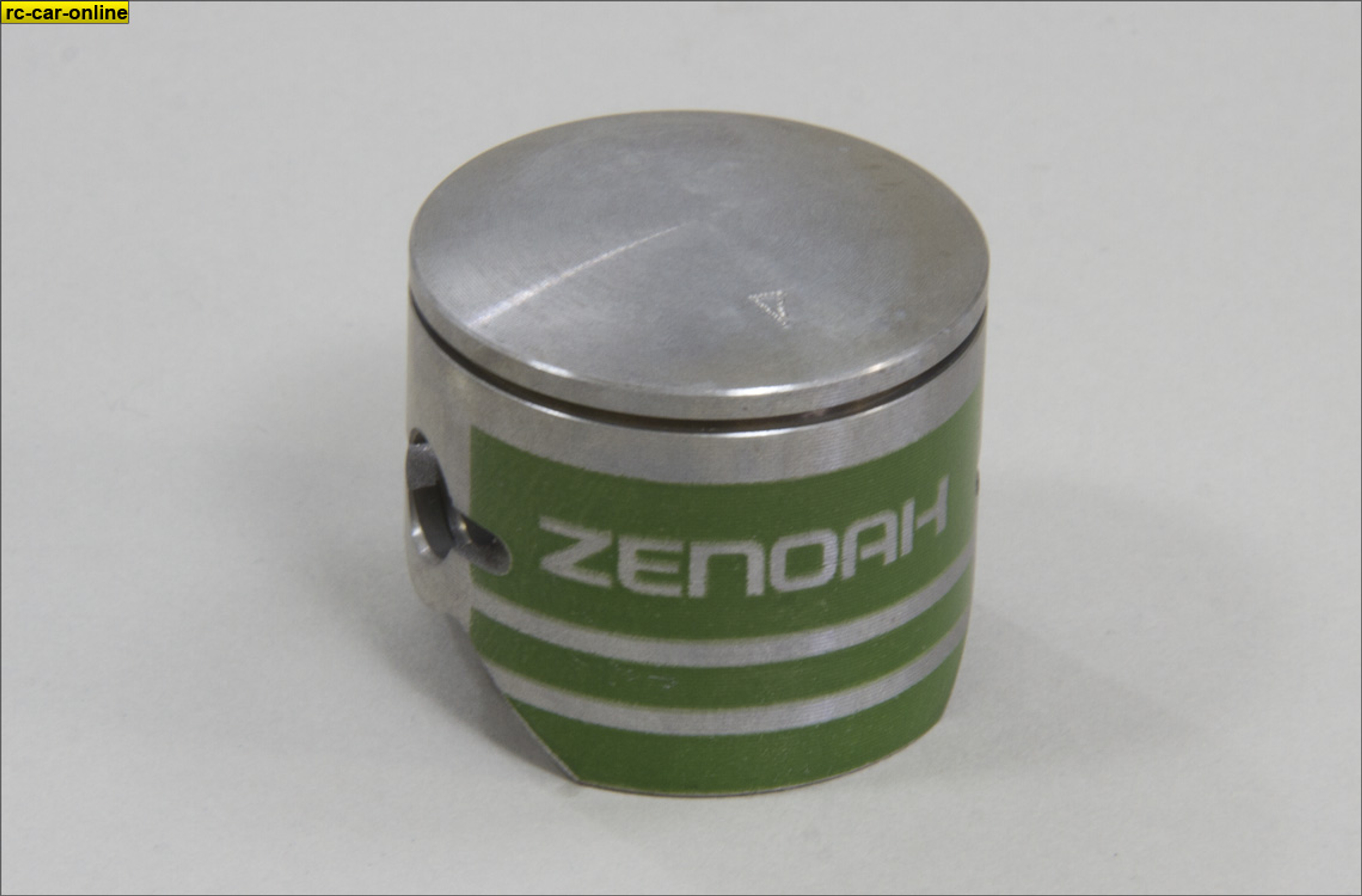

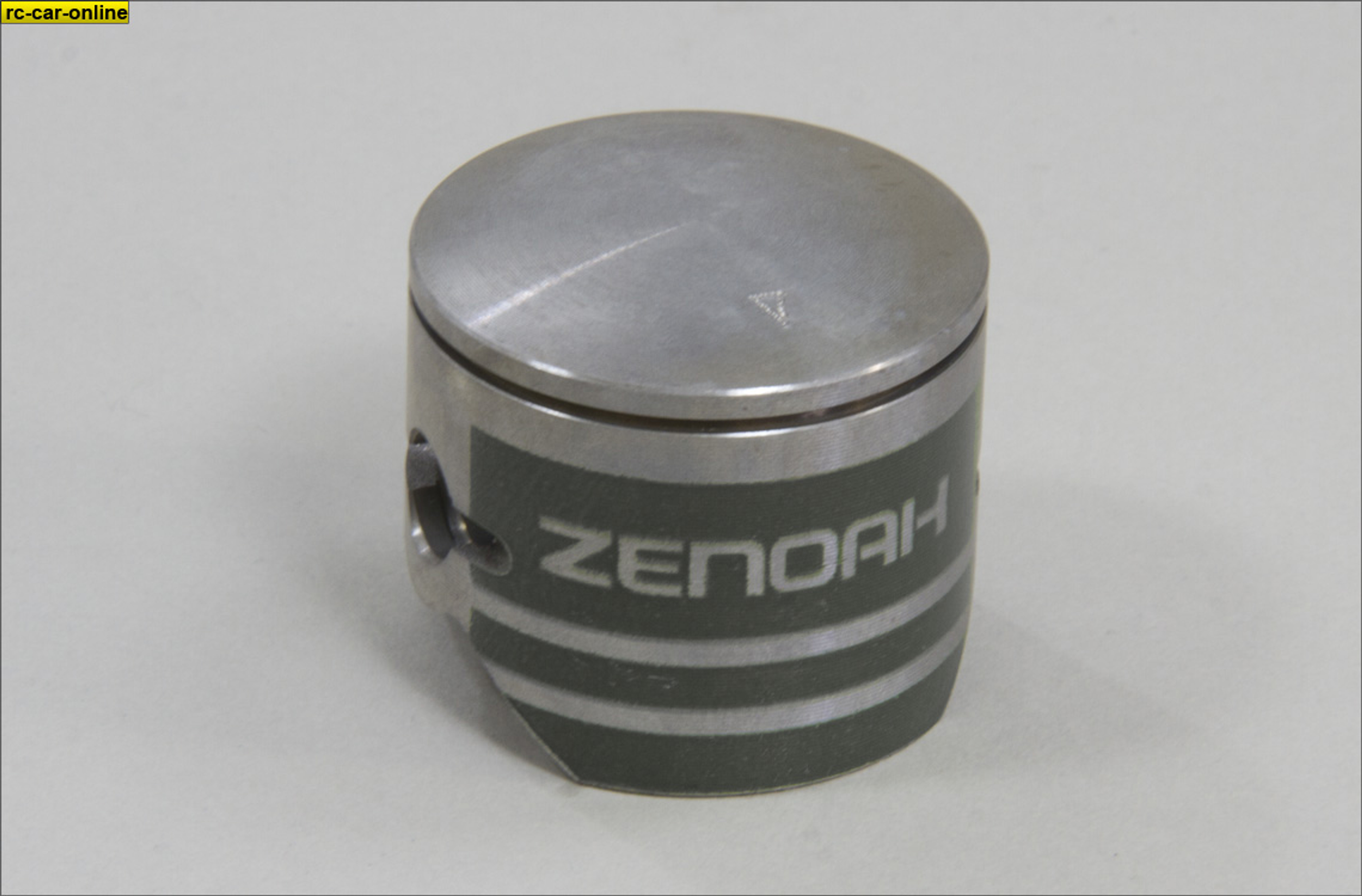

Rebuild kit for the Zenoah G260/04 engine to replace piston/cylinder related parts, fits the previous G260 engines as well. The kit includes the following parts:Cylinder G260Piston G260Piston ring G260Piston bolt G260Piston pin retainer clipsCylinder gasketThis kit can also be installed on CY26, HPI and Losi engines, but you have to use Zenoah needle bearing 7312 and spacer washers 7312/0 for this application! Please note:It is recommended to use a gasket sealer with every gasket on an engine. This gives better sealing anda longer lasting gasket. We also recommend:y0804 HT-flange sealer 518 y0994 Marston sealery0807 MD-Sil RTV silicone sealer

Genuine FG spare/option part.For Zenoah G230/240/260/270/290 enginesContents:1 piece

Genuine FG spare/option part.Spare part for Zenoah G290 engine.Contents:1 piece
