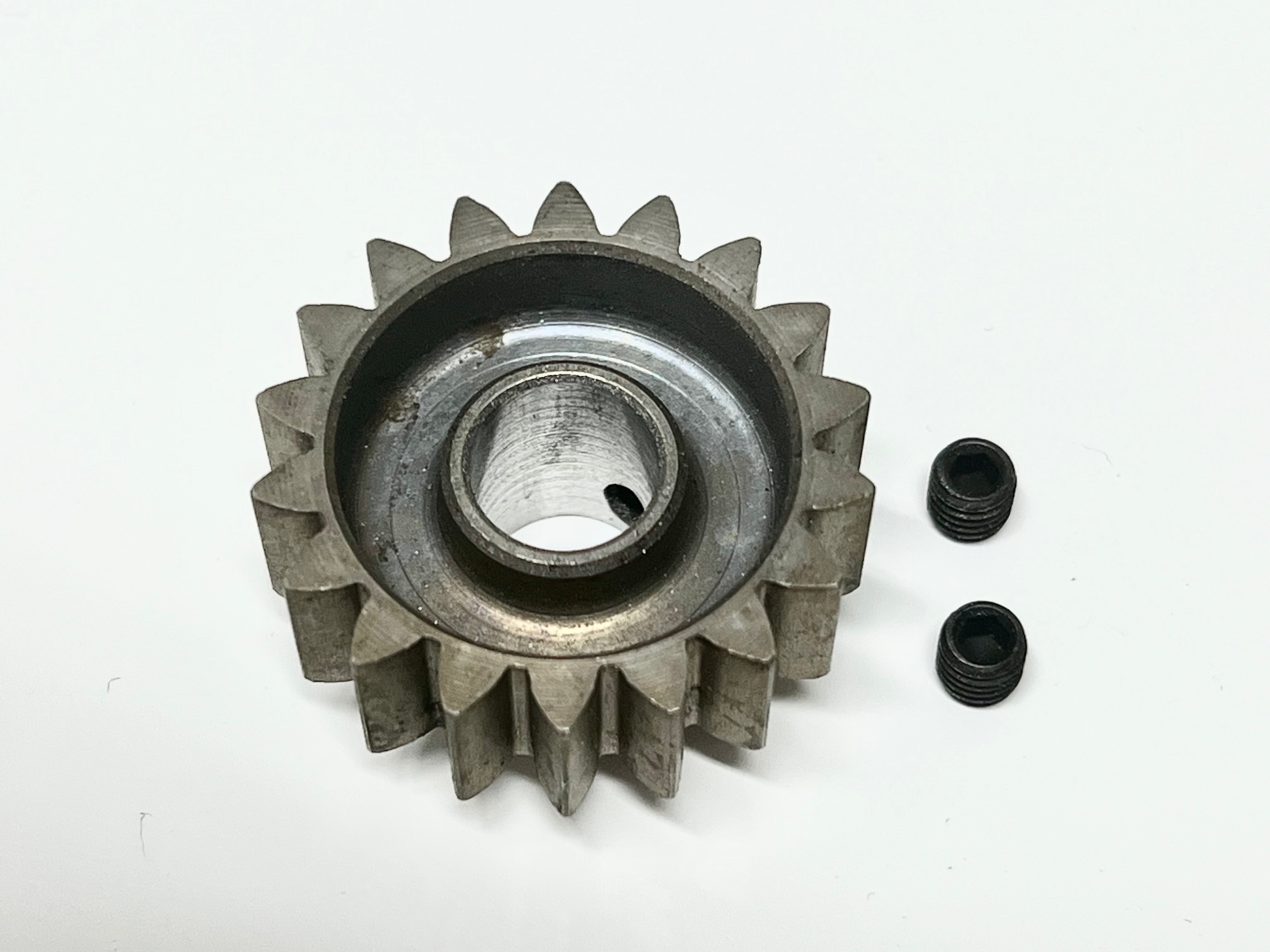

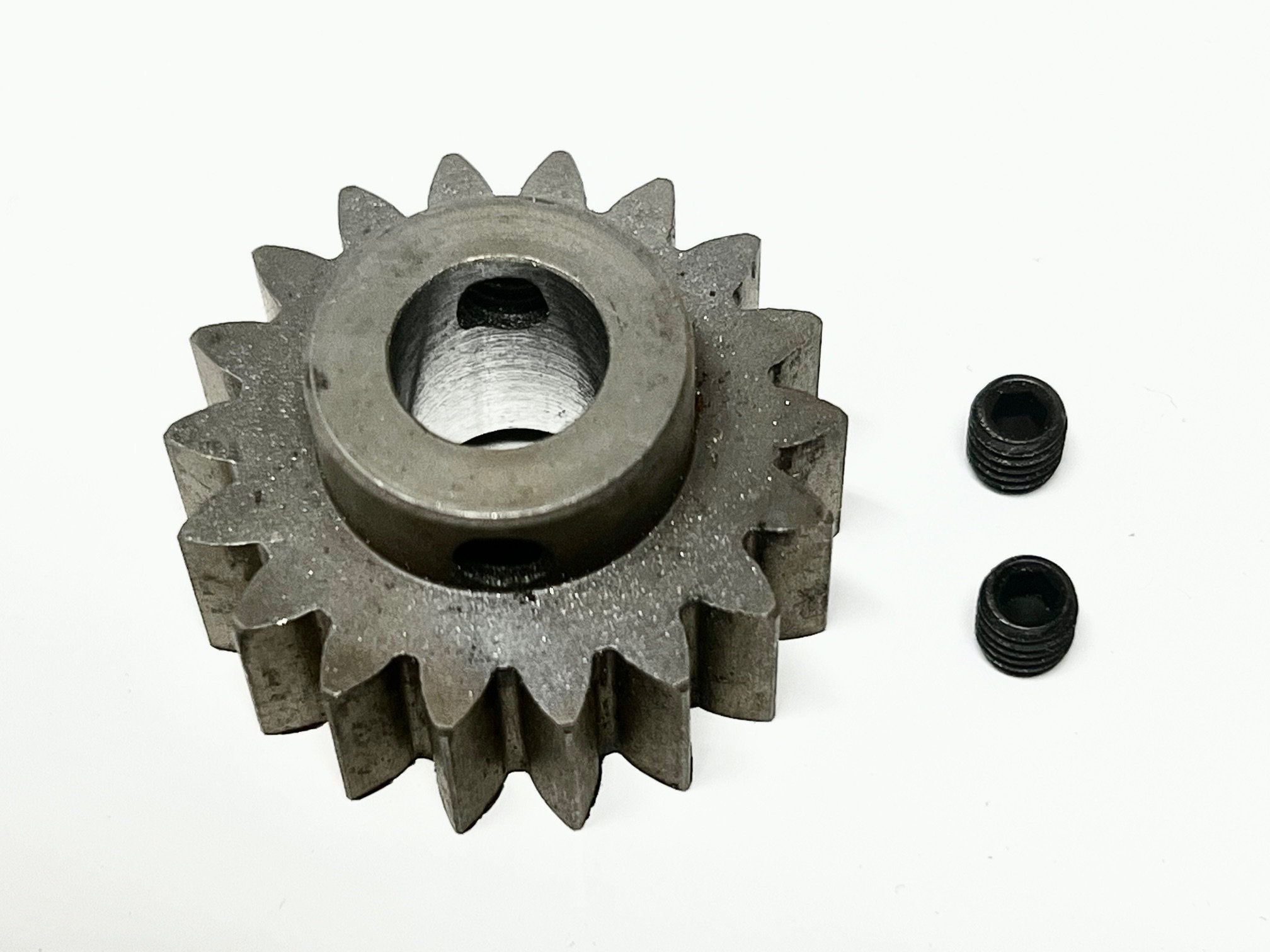

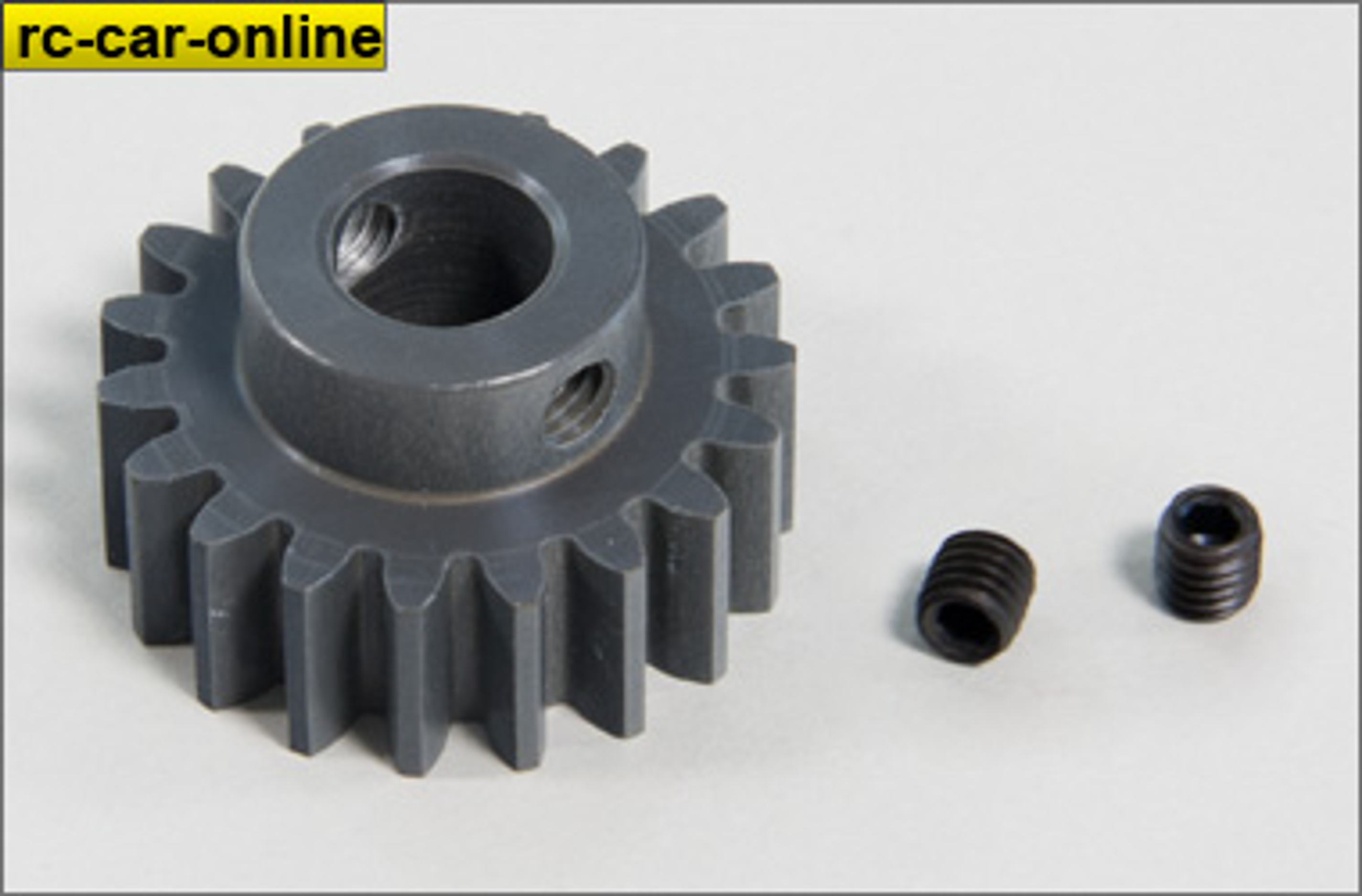

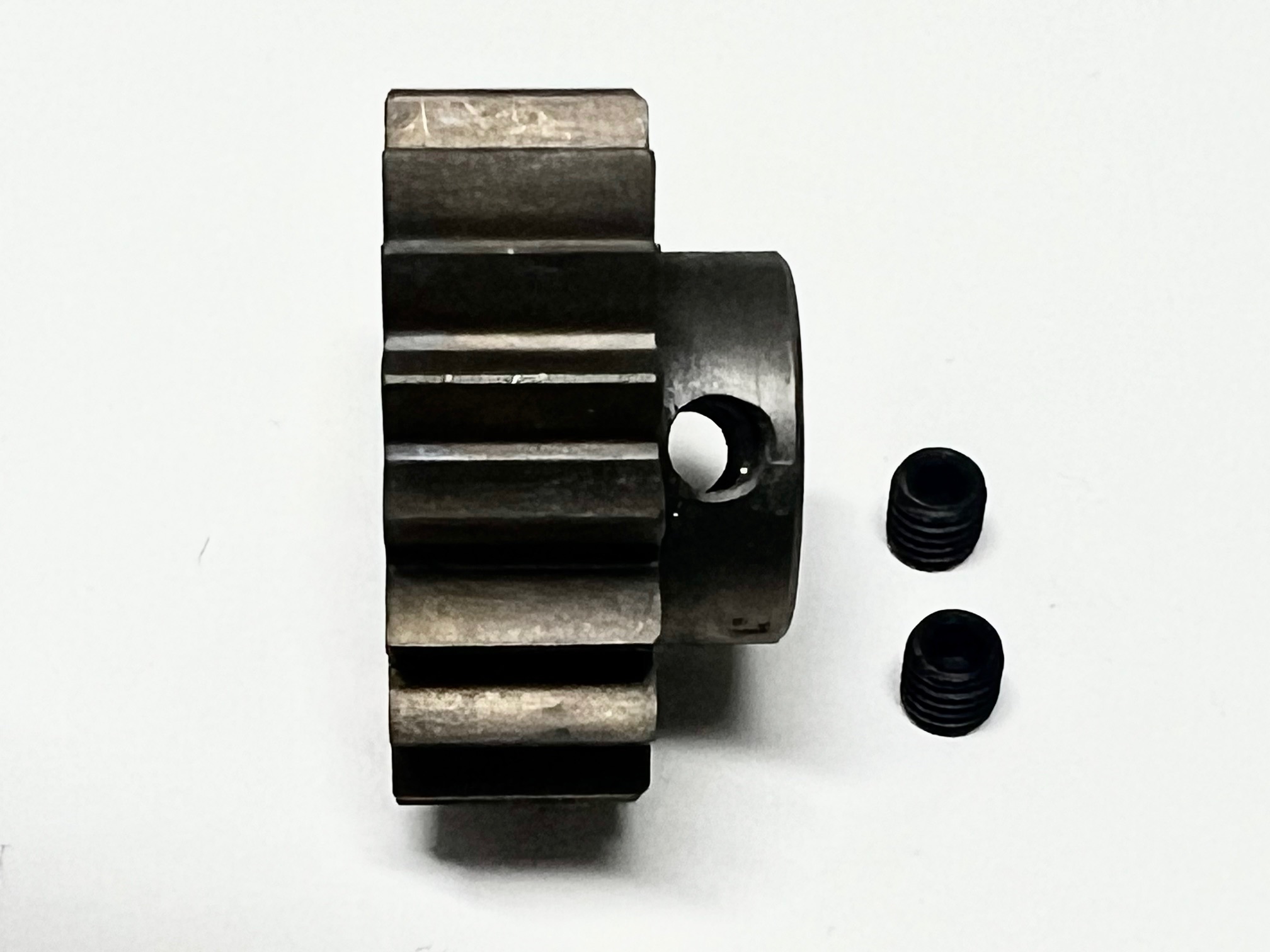

y0207 HT steel pinion 19 teeth Carson/Smartech Offroad 2WD models
€29.90
Available
Product information "y0207 HT steel pinion 19 teeth Carson/Smartech Offroad 2WD models"
Original rc-car-online spare/tuning part.
The sprockets are milled from steel and nitride-hardened. They all fit on the standard main gear and are fastened with 2 grub screws.
The sprockets are profile-shifted and therefore all have the same diameter!
Module: m=1.5
1 piece
