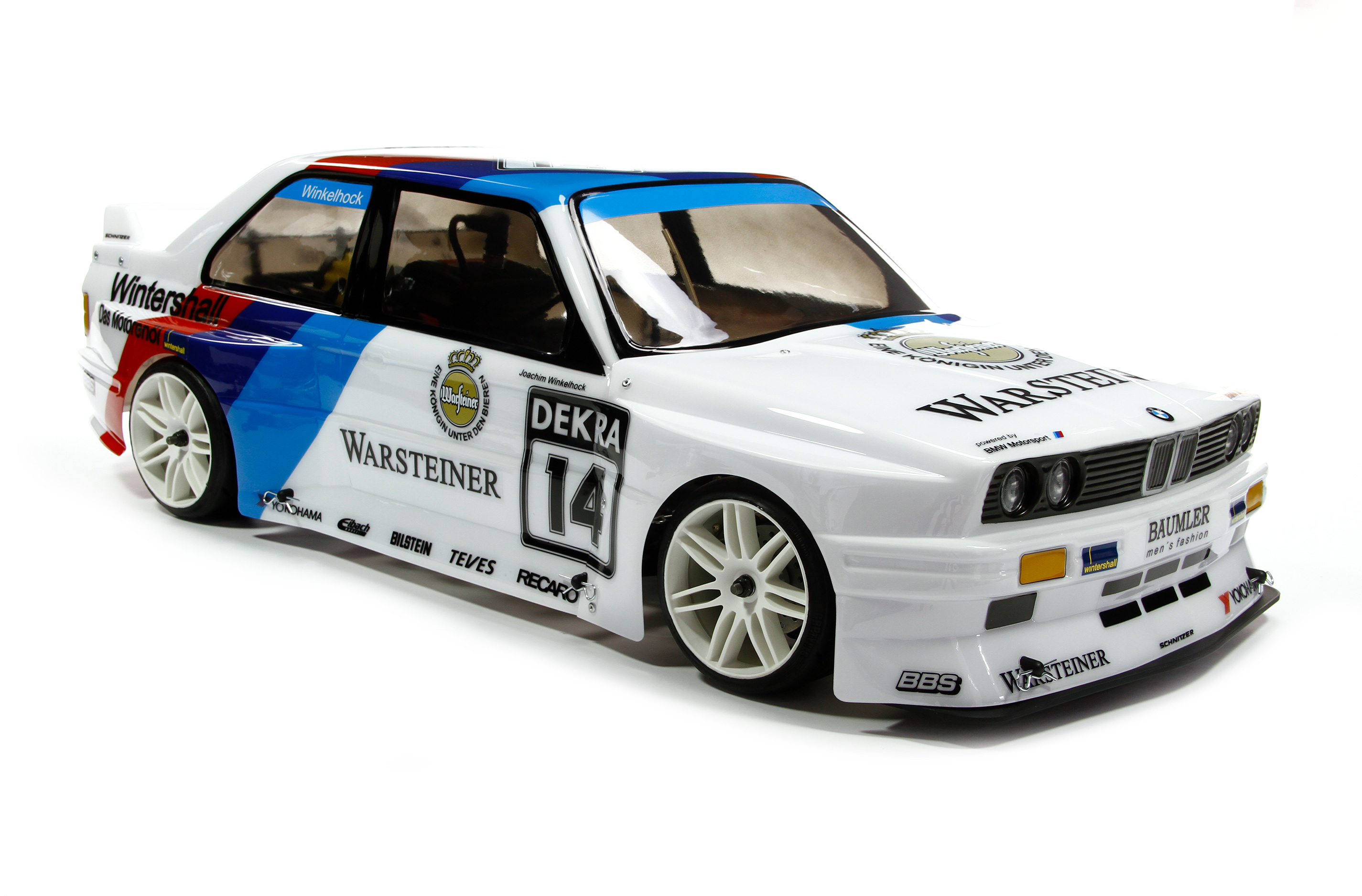

FG Sportsline with BMW E30 body shell, 23cm³ Engine
D


from EUR 1.149,90


piece - + shipping costs
all prices include VAT


1 2 3 4 5  (
8
)

print
Config
Available from stock
Available from stock
Place your order within the next 24.01.22 14:00:00 and we will ship tomorrow,  24 . January 2022
FG


The Sportsline quality at a reasonable price for beginners. For rookies and all those who simply just want to have fun and drive a DTM Audi, Mercedes or a fast Porsche. The Sportsline series is ideal for car modellers whose main focus is not just the chassis, but rather the combination of chassis and body shell.

Technical description:
The model has a 510 wheelbase. The models are built on a 4mm alloy chassis with double wishbones at front and rear axle. All borings of the alloy chassis are countersunk to prevent the screw heads from bearing out. The models are serial equipped with the 2-damper front axle which guarantees an optimal traction of both front wheels. At the front/rear axle you can adjust through track rods or adjusting screws with right-/left-handed thread the king pin angle, trailing effect and toe-in. Further equipment points are front disk brakes, differential gear, easy-running FG ball drive, alloy brake calliper with big brake disk, stabilizer bar front and rear, tuned pipe muffler, Evo gas tank, rear brace, 24T steel pinion, spark plug cap suppression cover, latest version (Evo) oil-pressure shock absorbers with volume control and external adjusting ring for the initial spring preload. All rotating parts as shafts, axles and clutch bells a.s.o. are supported by ball bearings.

You can select the car with complete RTR-equipment from the options menu.

RTR-equipment
rtr_image
RTR = Ready to Run. The RTR version comes ready to use with the 2,4 GHz rc-system already installed.
  • Transmitter: Reflex Wheel Pro III 2,4 GHz
  • Receiver: Mini BEC
  • High power servo for throttle and brake
  • Largescale servo for steering
  • Tx-battery, rx-battery


The models are equipped with a powerful 23ccm combustion engine. The engine needs a 2-stroke petrol oil mixture. One tank filling gives you about 45 minutes driving fun. The power is transmitted over the well-tried system: from the engine over the 2-block clutch over radial tooth wheels on to the rear axle which is equipped with the bevel differential gear with pluggable axles. RC-plate with receiver box.
To complete the models all merchantable servos and radio control systems are suitable.

The RTR version comes with complete factory installed rc-system, including Ni-Cads! The car comes with an unpainted body shell.

Dimensions:
  • Length: 780 mm
  • Width: 405 mm
  • Height: 250 mm
  • Wheelbase: 510 mm




Touring cars in action!


Painting tips:



Config
Body shell
  • • Unpainted w/o surcharge
  • • Painted as shown
  • • Without body shell
Decal set
  • • Without decal set
  • • 8063/01 FG BMW M3 E30 Team decals
  • • 8063/02 FG BMW M3 E30 Vehicle decal
  • • 8063 FG BMW M3 E30 decal set
RTR
  • • Without RTR
  • • With RTR equipment
  • • With RTR LiPo equipment
Charger
  • • Without charger
  • • DYNC0505W Dynamite 20W Li-Po charger 2A
  • • y1581 HT H6AC/DC compact charger, 50W up to 6S
  • • y1580 HT T240 Duo AC/DC, 2 x 120W, up to 2x 6S, charger
Engine
  • • Original Kingstar 23 cm³ engine
  • • Original Chung Yang 26 cm³ engine
  • • Zenoah G230
  • • Zenoah G240
  • • Zenoah G260
  • • Zenoah G270
  • • Zenoah G290
  • • Zenoah G320
  • • SPEED TEC Zenoah G230 Expert
  • • SPEED TEC Zenoah G240 Expert
  • • SPEED TEC Zenoah G260 Expert
  • • SPEED TEC Zenoah G270 Expert
  • • SPEED TEC Zenoah G290 Expert
  • • SPEED TEC Zenoah G320 Expert
  • • SPEED TEC CRANK Zenoah G230
  • • SPEED TEC CRANK Zenoah G240
  • • SPEED TEC CRANK Zenoah G260
  • • SPEED TEC CRANK Zenoah G270
  • • SPEED TEC CRANK Zenoah G290
  • • Selection: Without Engine
Brake
  • • With original mechanical front disk brake
  • • with original Mecatech hydraulic fornt disk brake Type Expert
  • • with original 9541 FG-Evo 2020 hydraulic front brake
  • • with original FG-Evo 2020 hydraulic 9541 front and 9540 rear brake
Tire mounting
  • • Without tire mounting
  • • Glued tires
Alloy gear plate
  • • Original Plastic gear plate
  • • Alloy gear plate
Front uprights
  • • Original front uprights (Plastic)
  • • Alloy front uprights
Rear uprights
  • • Original rear uprights (plastic)
  • • y0669 Rear alloy uprights
Differential
  • • Original FG-Sportsline standard with plastic housing
  • • 8485/05 Alloy differential adjustable
  • • 8500/05 Alloy differential self-locking double
  • • 8501/05 Alloy differential self-locking fourfold
Car-Bag
  • • Without y0550 HT Car Bag for 1/5 scale cars
  • • With y0550 HT Car Bag for 1/5 scale cars
