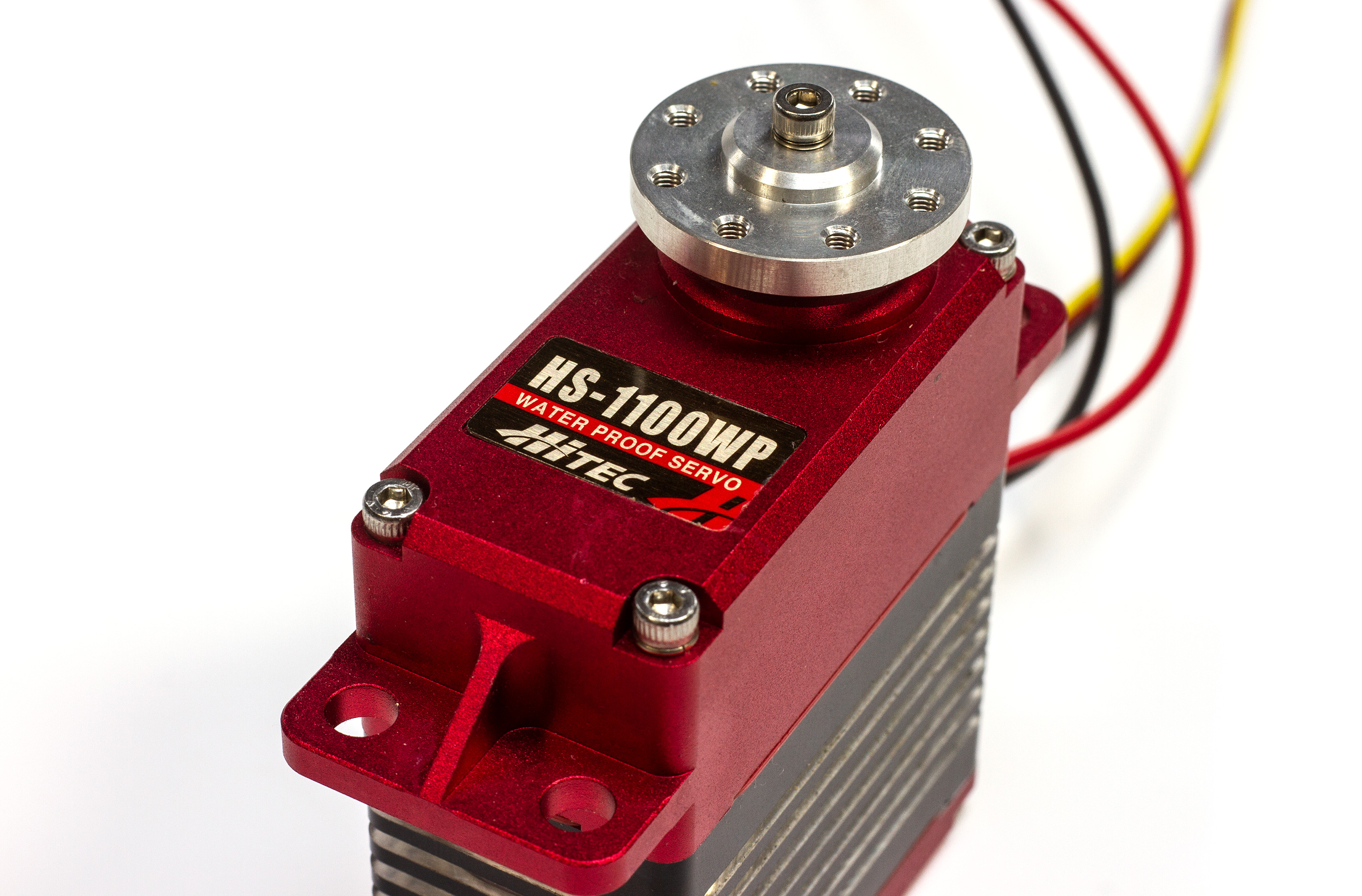

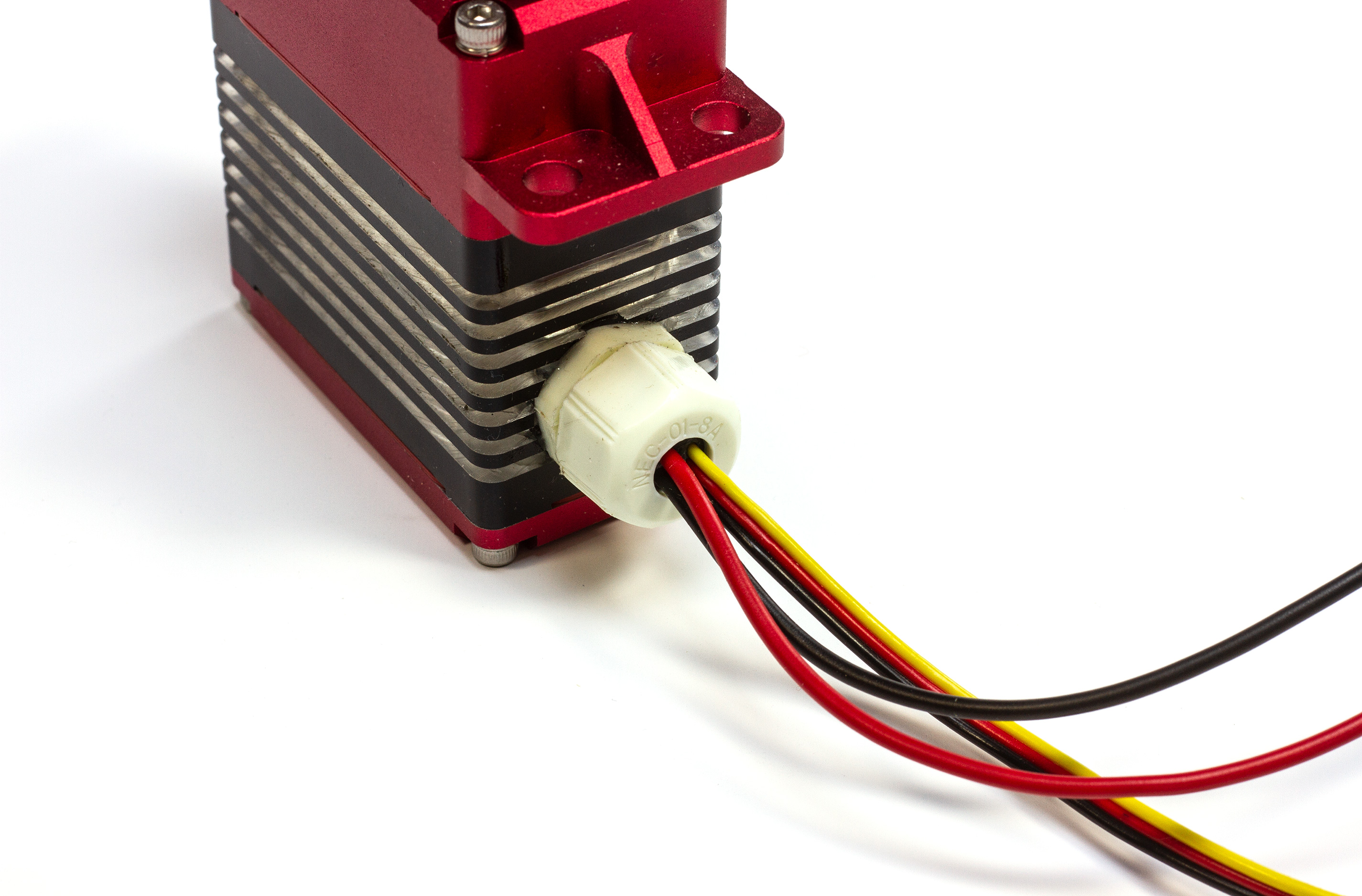

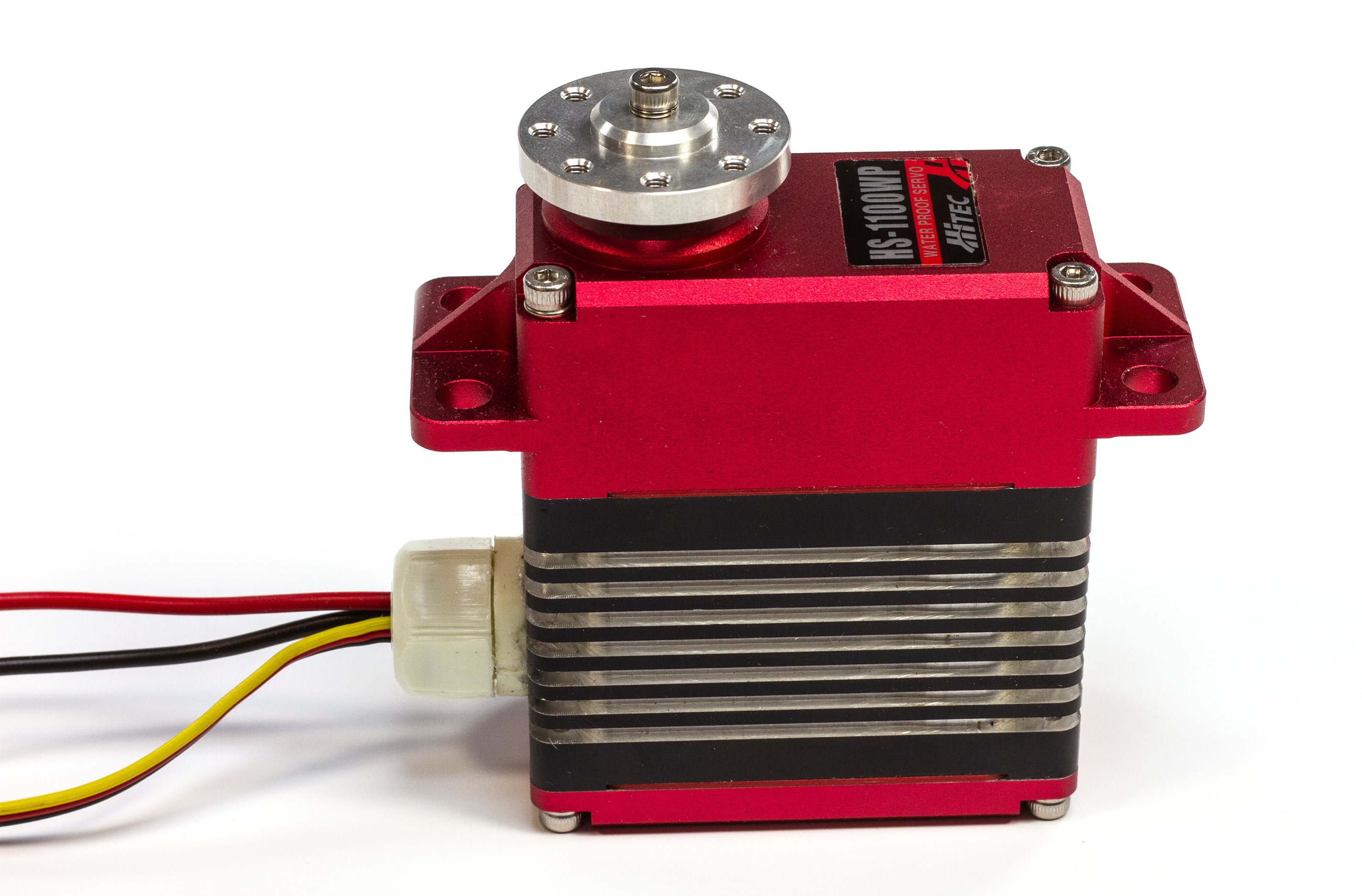

Hitec Servo HS-1100WP Waterproof IP67



EUR 629,90


piece - + shipping costs
all prices include VAT


1 2 3 4 5  (
2
)

print
piece: piece


Available from stock
Available from stock
Place your order within the next 29.11.21 14:00:00 and we will ship Monday,  29 . November 2021
Hitec


Genuine Hitec spare/option part.

Waterproof Power IP67 for large models and many industrial applications

Servo HS-1100WP is the most powerful and 100% waterproof servo Hitec large assortment! Thus, it is ideally suited for industrial applications and also for XXL large-scale models. Equipped with a hand-brush motor for maximum reliability and durability, and which protects from the full milled aluminum housing perfectly against electromagnetic interference. Another special course (not programmable) to call the virtually indestructible steel gears and a digital servo electronics IP67 classification.

The Servo HITEC HS-1005SGT delivers maximum and constant performance and with its data also a favorite for industrial applications such as UAV, robotics and special effects.

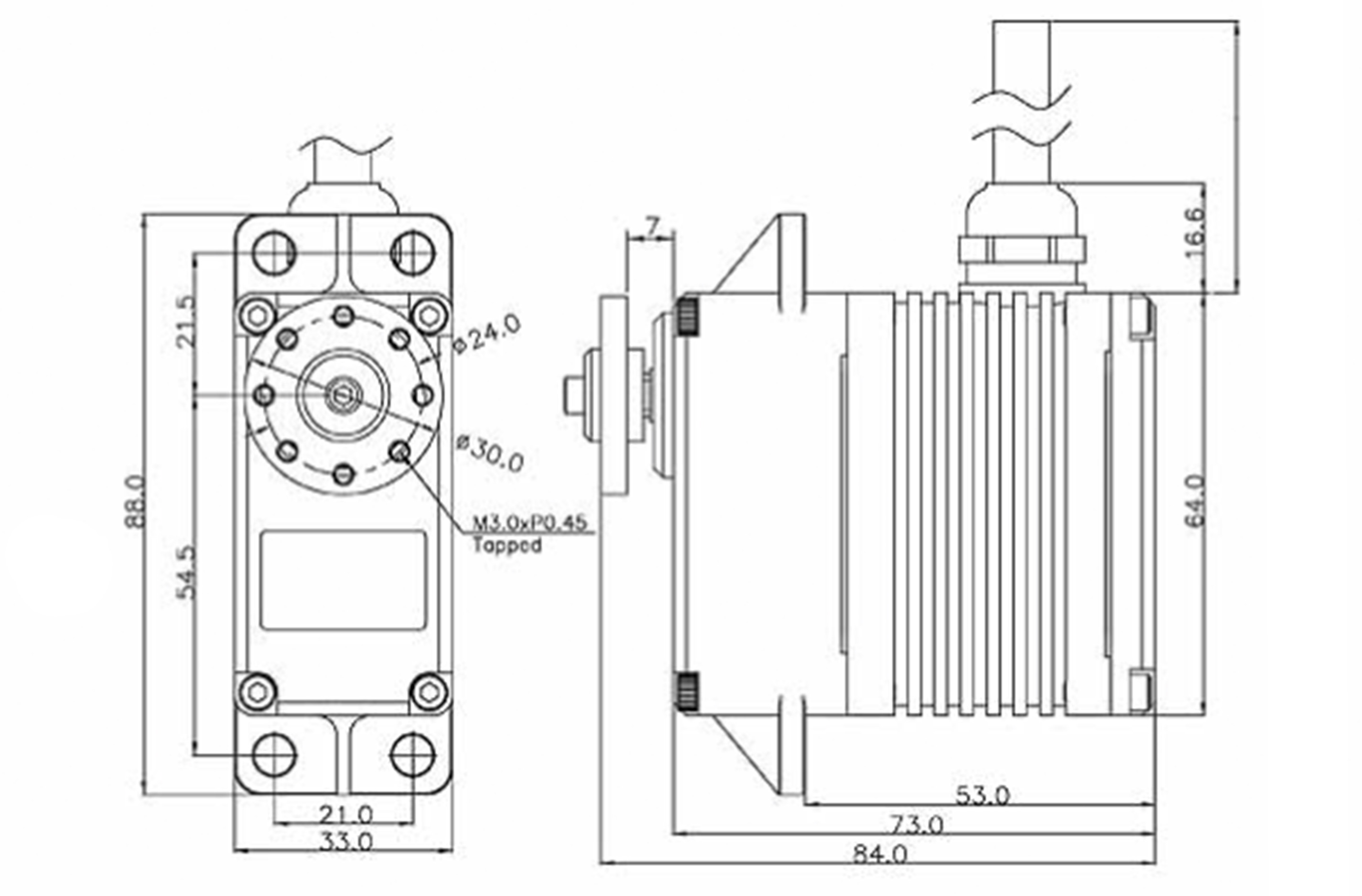

Technical data:
    Width: 33 mm
  • Height: 73 mm
  • Length: 64 mm
  • Weight: 0340 kg
  • Power Type: Mega
  • Features: operating voltage
  • From 11.1 to 14.8 volts, Amendment leads possible (Optional)
  • Engine type servos: brushed
  • Transmission: steel
  • Operating voltage in V: 11.1 to 14.8 volts
  • Actuating time s / 60 ° at 11.1 volts: 0:26
  • Setting time s / 60 ° at 14.8 volts: 12:19
  • Torque in kg cm at 6.0 volts: 84
  • Torque in kg cm at 7.4 volts: 110
  • Teeth: Mega
  • Ball bearings: Yes, 2 times MR148
  • Waterproof: Yes
  • Flight recommendation: YES
  • Recommendation Heli: YES
  • Recommendation Car: YES
  • Recommendation boat: YES
  • Temperature range: -20 ° to 60 ° C
Features:
  • Highest force
  • Enormous holding power
  • Indirect long-life potentiometer, 1 million cycles
  • Steel gears
  • Bearings, 2-MR148
  • Aluminum housing

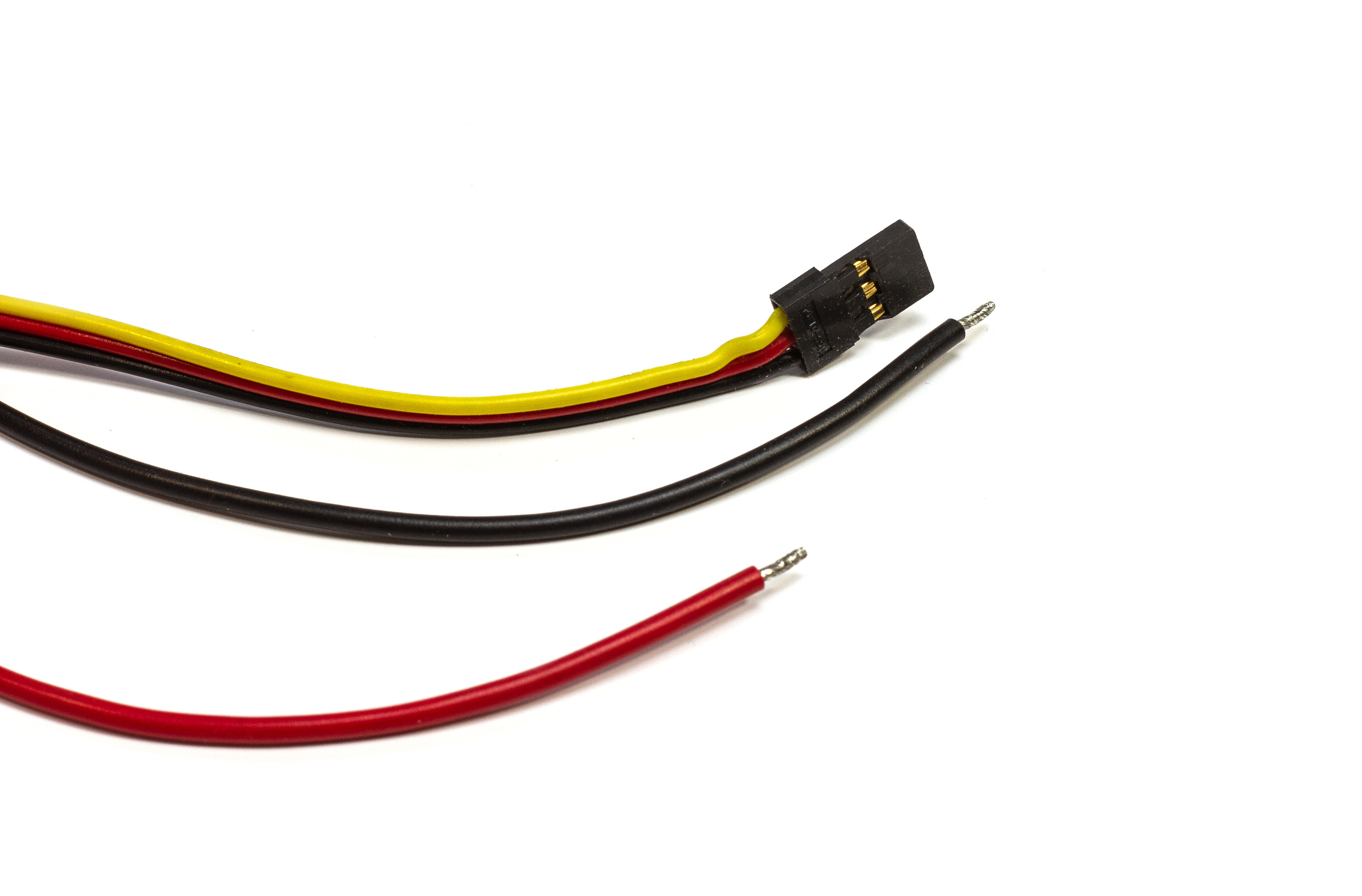

  • Separate signal and power supply




Contents:
  • 1 piece
