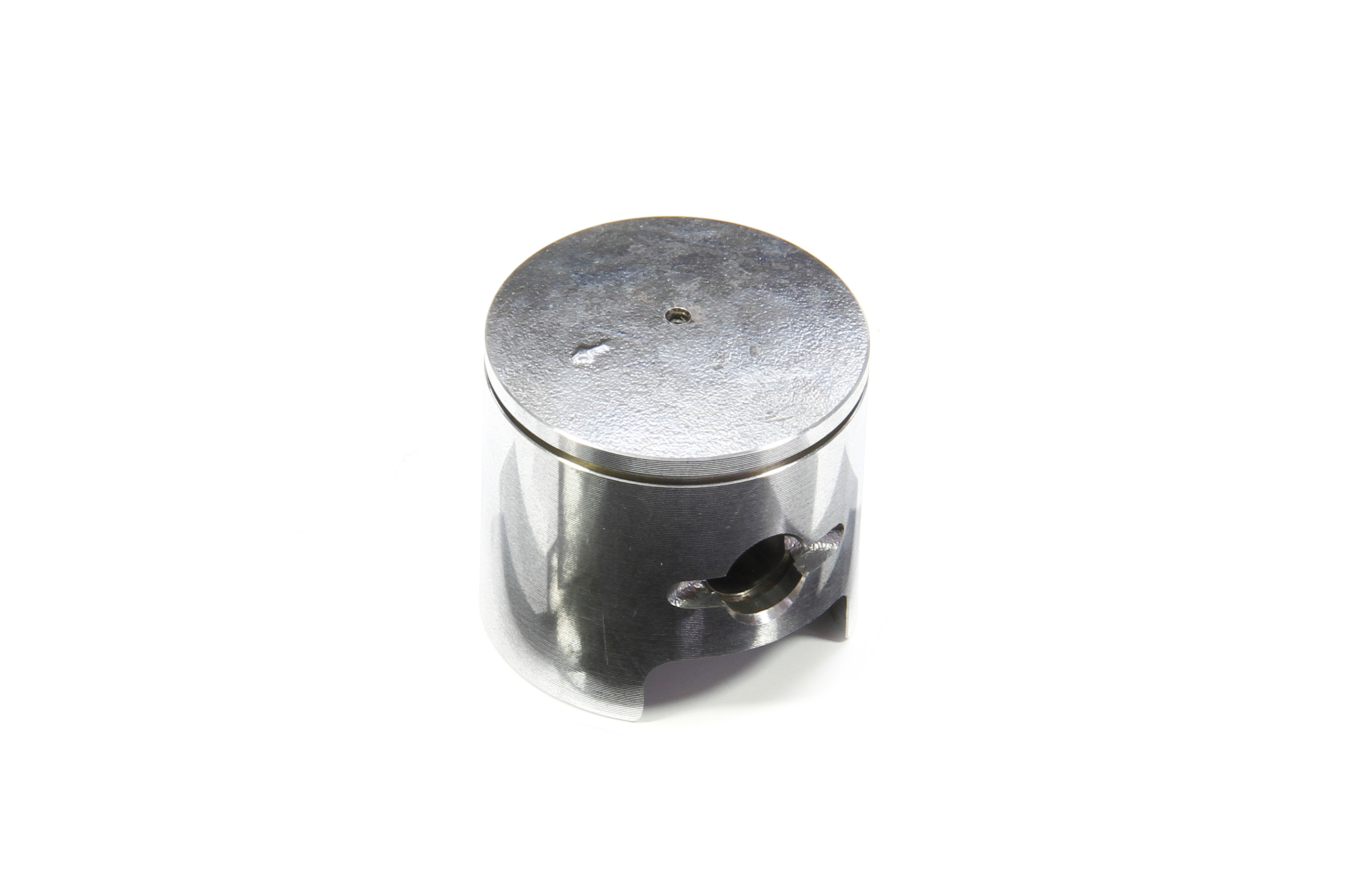

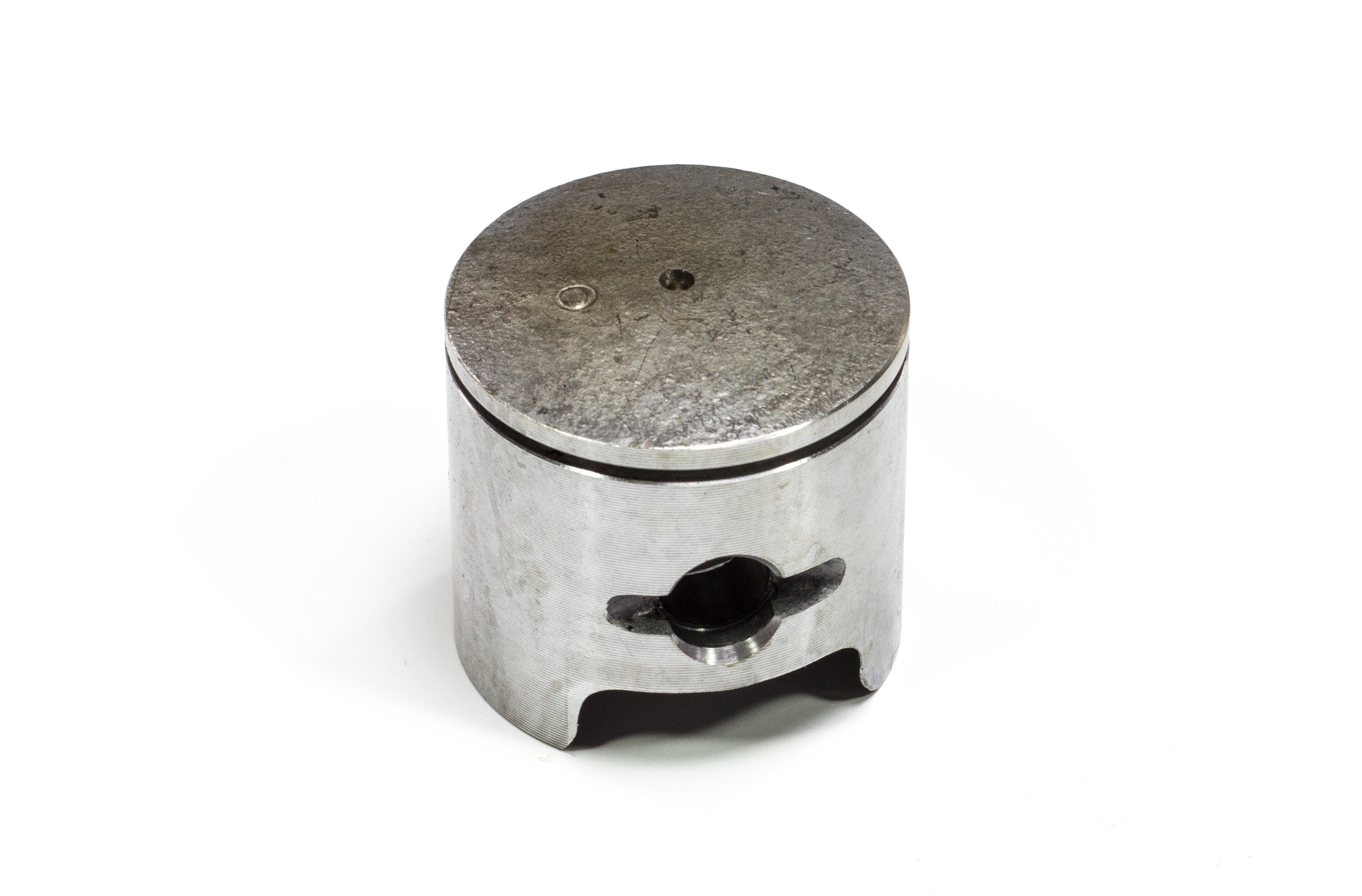

7308/09 FG Piston for Zenoah G230/240

The SPEED TEC CRANK genuine Zenoah engine is optimized for performance by hand with sophisticated craftsmanship and guarantees, besides greatly increased performance, excellent workmanship and stamina. SPEED TEC Team Edition version modifications: Cylinder & case:Adjustment of compression; enlarged ports, fuel management milled, machined and polished exhaust,the intake is flow-optimized the case is specially matched with enlarged and flow-optimized cross section towards the ports Cylinder modified for installation of the ignition systemPiston:Transfer port area optimized for flow, weight reduced and the piston-roof is flow-optimized and polishedCrankshaft:is adjusted, aligned and balancedFlywheel and ignition:Latest SPEED CRANK SV ignition system for rc-car race engines with air baffles, a special balanced 62 mm diameter flywheel, modified ignition coil mount and special ignition system allows for the extremely fast revving of the SPEED TEC team edition engine and guarantees a significantly improved performance.The machined and more than 30% lighter than stock CRANK flywheel with fins on both sides contributes to the optimized engine cooling.Gaskets:Premium quality gaskets installed. Cylinder gasket installed using elastic gasket sealer.Isolator:Special matched and raised insulator Attention! We recommend to run exclusively fully synthetic 2-stroke engine oil, like y0813 Motul 800 racing oil.

y0557 Zenoah G230RC, with Walbro WT 603B carburetor (also available in the ball-raced version through the shop's options menu)23 cm³ Zenoah engine for large scale cars!The engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter and / or complete clutch are optionally available at additional charge.y1009 Zenoah G240RC with Walbro WT 990 carburetor (also available in the ball-raced version through the shop's options menu)23 cm³ Zenoah engine for large scale cars!Please note: contrary to their new designation the displacement has not been increased! The outer dimension didn't change, so you don't need any additional parts for the engine swap!The engines feature the following improvements over their G230RC:- Quantity of cylinder mounting bolts increased from 2 to 4- Improved strength of crankcase- Added additional bearing on the PTO (clutch) side of crankshaft- Redesigned shape of cylinder fins- Dimension of air intake port is 5% widerContains internal fuel pump which increases acceleration from idle to wide open throttle.Removal of choke valve increases performance by increasing air flow to the carburetor - Changed material of the insulator gasket to metal, which improves sealing performanceThe engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter and / or complete clutch are optionally available at additional charge. y0553 Zenoah G260RC with Walbro WT 603B carburetor (also available in the ball-raced version through the shop's options menu)This is the G260 in the 26 cm³ version.The engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter and / or complete clutch are optionally available at additional charge. y1011 Zenoah G270RC with Walbro WT 990 carburetor (also available in the ball-raced version through the shop's options menu)26 cm³ Zenoah engine for large scale cars!Please note: contrary to their new designation the displacement has not been increased! The outer dimension didn't change, so you don't need any additional parts for the engine swap!The engines feature the following improvements over their G260RC:- Quantity of cylinder mounting bolts increased from 2 to 4- Improved strength of crankcase- Added additional bearing on the PTO (clutch) side of crankshaft- Redesigned shape of cylinder fins- Dimension of air intake port is 5% wider- New carburetor (WT-990) Contains internal fuel pump which increases acceleration from idle to wide open throttle.Removal of choke valve increases performance by increasing air flow to the carburetor - Changed material of the insulator gasket to metal, which improves sealing performanceThe engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter are optionally available at additional charge. 7800 Zenoah G290RC with Walbro WT 990 carburetor (also available in the ball-raced version through the shop's options menu)Same dimensions as the Zenoah G230, G240, G260, G270.New generation Zenoah engine with 28,5ccm cylinder capacity and approx. 3.9 hp. The cylinder is fixed with 4 screws. The technical details are identical to the Zenoah engines G240RC and G270RC.The engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter and / or complete clutch are optionally available at additional charge. Compatibility Zenoah / Losi 5ive-T:Please note that for installation in a Losi 5ive the fan cover must be swapped for a Losi or CY cover #5341 in order to fit the chassis" bolt pattern.If you want to install a Zenoah engine into the Losi 5ive, you usually have to use a fan cover from the CY engine.However, there is a workaround to maintain Zenoah fan cover.The adjustment is done via the pinion specific mounting plates for the engine. The change always affects only the rear, outer (carburetor side) plate under the fan cover. This is rotated by 180°; so that the embossed number on this plate faces the exhaust side of the engine!18T pinion: use 20T plate, rotated 180°19T pinion: use 19T plate, rotated 180°20T pinion: use 18T plate, rotated 180°On the plus side you gain the opportunity to easily mount a Zenoah engine keeping the original fan cover. On the other hand there will be the disadvantage of the necessity to combine two different sets of engine mounting plates when installing any pinion other than the stock 19T version. Therefore we do not recommend this workaround for everyday use. Nevertheless it works perfectly should ever the need arise.Zenoah G320RC with Walbro WT 1107 carburetor (also available in the ball-raced version through the shop's options menu)With 32 cm³ and 30% more power than the Zenoah G290.Significantly more torque and higher stamina due to larger sized bearings all around, with Racing Carburetor Walbro WT 1107.The motor is supplied with WT-1107 carburetor and spark plug.SpecificationType: Two stroke gasoline engineDisplacement: 31,8 cm³Bore: 38 mmStroke: 28 mmWeight: 2,3 KgOverall Dimension:Length: 167 mmWidth: 215 mmHeight: 196 mmMaximum Output: 4,6 PSMaximum Torque: 2,00 N-mRotation Direction: CounterclockwiseCarburetor: Walbro WT-1107Spark plug: CMR7HStarting: Recoil starterFor all HPI Baja 5 cars the G320RCer clutch housing has to be shortened at the mounting base, for Losi 5ive- T and Desert Buggy XL cars the clutch housings overall length must be shortened to CY size.When installing the air filter you must pay attention to the length of the screws.For use on Losi and HPI we recommend M5x45 screws (like H94763); you can also cut existing screws to length, of course.When ordering with a modified clutch housing we will include these screws!In our shop you can select from Zenoah G320RC engines already modified to fit your HPI or Losi car.The installation of the Zenoah G320RC in other cars (like FG or Smartech buggies / monsters a.s.o.) is not even remotely straightforward, since the layshaft pinion (the small pinion in front of the big differential spur gear) is in the way for the larger Zenoah G320RC crankcase.Compatibility Zenoah / Losi 5ive-T:Please note that for installation in a Losi 5ive the fan cover must be swapped for a Losi or CY cover #5341 in order to fit the chassis" bolt pattern.If you want to install a Zenoah engine into the Losi 5ive, you usually have to use a fan cover from the CY engine.However, there is a workaround to maintain Zenoah fan cover.The adjustment is done via the pinion specific mounting plates for the engine. The change always affects only the rear, outer (carburetor side) plate under the fan cover. This is rotated by 180°; so that the embossed number on this plate faces the exhaust side of the engine!18T pinion: use 20T plate, rotated 180°19T pinion: use 19T plate, rotated 180°20T pinion: use 18T plate, rotated 180°On the plus side you gain the opportunity to easily mount a Zenoah engine keeping the original fan cover. On the other hand there will be the disadvantage of the necessity to combine two different sets of engine mounting plates when installing any pinion other than the stock 19T version. Therefore we do not recommend this workaround for everyday use. Nevertheless it works perfectly should ever the need arise.

Genuine Mecatech spare/option part for the FW01.Content:1 piece

Genuine FG spare/option part. The following items are required for completion: body mounts, body.The models are built on a 4mm aluminium chassis with double wishbones front and rear. All borings are countersunk. The models are equipped with front disk brakes for an optimal braking power. Fully adjustable front and rear double wishbone suspensions.Further equipment points are : differential gear, central brake with oversized disk, oil-pressure shock absorbers with volume control and external adjusting ring for the initial tension of the spring. All rotating parts on ball bearings. The body parts are made of clear polycarbonate. Tires are glued on the rims. The models are driven by a 23ccm engine with a powerincreasing tuned pipe. The engine runs with a 2-stroke petrol-oil mixture. Through the installed pull-start system the engine can be started without any problem. The tank capacity enables you to run your model around 45 minutes.RTR version : Radio system 2.4GHz Steering metal gear servo 25kg Gaz/Throttle servo 10kg Radio supplied with 8 stick battery and one charger

Genuine FG spare/option part.Width 0.8 mm.Hint for installation: The green dot on the ring goes towards the clutch side!Contents:1 piece

Because of the customised and complex production of the Mecatech FW 01, the lead time is currently 14 working days!The Mecatech FW01 is for sure the currently most innovative 1/5 race car designed for the dedicated and technically enthusiastic rc car driver.Everyone is enthusiastic about the perfectly fitting and precise workmanship at the highest level. Only high quality materials are used for the production.Since many years Mecatech is a well-know premium manufacturer of largescale hydraulic brakes or shocks and, as only a few may know, a technology expert for a number of Formula 1 racing teams!The Performance Kit from the FW01 is particularly intended for "racer" and differs from the Chassis Kit model by the Performance Kit. Here the list of parts are not including:DifferentialEngine Clutch, Airbox and tuned pipe systembody shell and tiresElectonic components such as servos, batteries and Remote controlPerformance Kit :engine brace left and rightfront stabilizer bar 2.75 mm titanium ready for installationrear stabilizer bar 1.75 mm titanium ready for installationthe two 80 gram front weightsthe two smaller 80 gram center weightsWith the Performance Kit the vehicle is quasi equipped as used at races!Stock gearing:Clutch pinion / spur gear: 36T / 64TLayshaft pinion / differential: 24T / 73TCurrently the Mecatech FW01 is for sure the benchmark of the 1/5 scale racing scene! In the first year Markus Feldmann won with his FW01 1: 5 Mecatech on one of the world's finest and most demanding race track in Lostallo / SwitzerlandMecatech is multiple German, European and World Champion with the FW01 and as the last result:Markus Feldman wins the European Championship in Tourlaville/France. All top 5 positions went to drivers running a Mecatech FW01. 7 out of 10 finalists cars were Mecatech FW01.Although the fit of the Mecatech FW01 parts makes the assembly of the car a great experience, some of our customers want to use the expertise of our shop and wish their FW01 fully assembled and tuned in by us! The complete assembly of your FW01 by our workshop is possible for an additional charge. Please note that the costs of the full assembly with servos a.s.o. do not include the price of any rc-components. If you do not have a suitable radio system with servos and batteries as well as switch and charger, you have to take an additional EUR 800 to EUR 1,500 for this equipment into account. We will be happy to make you an appropriate offer. We are currently waiting for the latest version of the Mecatech FW01. The following components are not included in the Performance Kit not and can be selected individually through the choice of options: engine, clutch, exhaust and airbox, differential gear, body shell and wheels. Not included are all relevant components for remote control! included in the kit:clutch bellbell pinionshaft and screw for clutch installationdifferential spur gearnot included:differentialbody shellairboxrear wingengineelectronicstiresclutch We are currently waiting for the latest version of the Mecatech FW01.

Genuine FG spare/option part.Contents:1 piece
