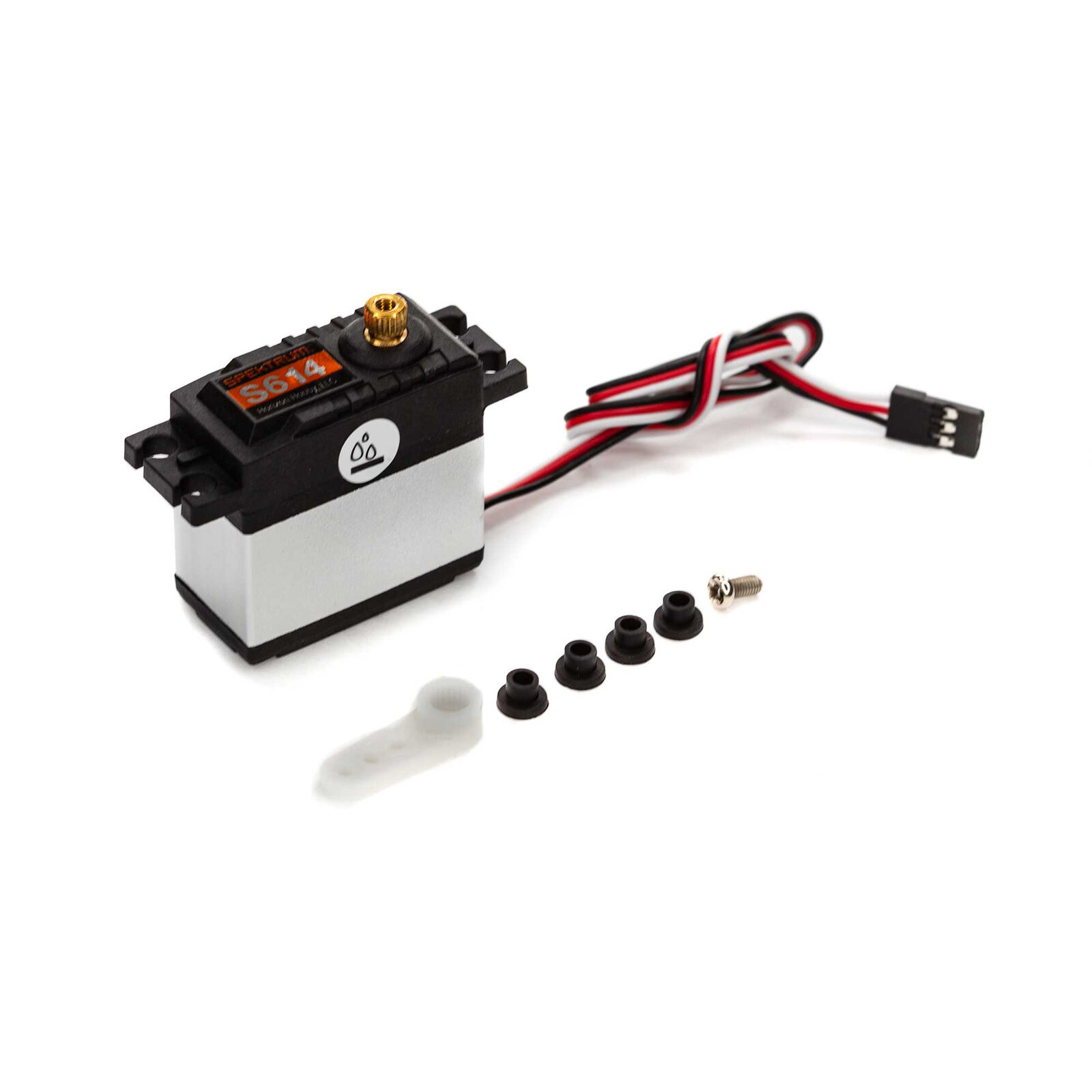

S614 Waterproof Metal Gear Surface Servo, 23T
€29.99
Available
Product information "S614 Waterproof Metal Gear Surface Servo, 23T"
S614 Waterproof Metal Gear Surface Servo, 23T Produktspezifikationen
- Anwendung : Oberfläche
- Bearing : Dual
- Buchse oder Kugellagerlager
- Connector Wire Length 10.4" (264 mm)
- Eingangsspannung 6.0V
- Getriebeart : Metall
- Getriebematerial : Bronze
- Maximum Servo Torque 201.4oz-in (14.5kg-cm) at 6.0V
- Motortyp : Bürstenmotor
- Product Height(Länge) 1.6" (41 mm)
- Product Length(Höhe) 1.8" (46 mm)
- Product Weight(Gewicht)2.2 oz (62g)
- Product Width(Breite) 0.8" (20 mm)
- Programmierbar : Nein(No)
- Servo Betriebsspannung 6.0V
- Servo Größenkategorie Standard
- Servo Typ : Digital
- Spline Count : 23 - Tooth(Zähne)
- Überladeschutz : Nein(No)
- Verbindertyp : Universal
- Wasserabweisend : Ja(Yes)
1 Stück(piece)
Login
Alternative
• Typ : Digital• Gewicht : 62 g ± 1 g• Abmessung : 40,5 × 20 × 38 mm• Betriebsspannung : 4,8 à 7,4 volts• Betriebsgeschwindigkeit : 0,12 s/60° leer• Drehmoment (6,0 V) 18 kg.cm• Drehmoment (7,4 V) : 20 kg.cm• Lagertyp Doppeltes Leerlauflager : 25Z• Getriebetyp : Metal• Steckerlänge : 300 mm ± 5 mm (JR/HITEC)• Gehäuse : Plastik / Aluminium
