HT-Airbox Evo, y19028 - 1pce.
Product number:
luftf_0015
EAN:
4058575011859
Product information "HT-Airbox Evo, y19028 - 1pce."

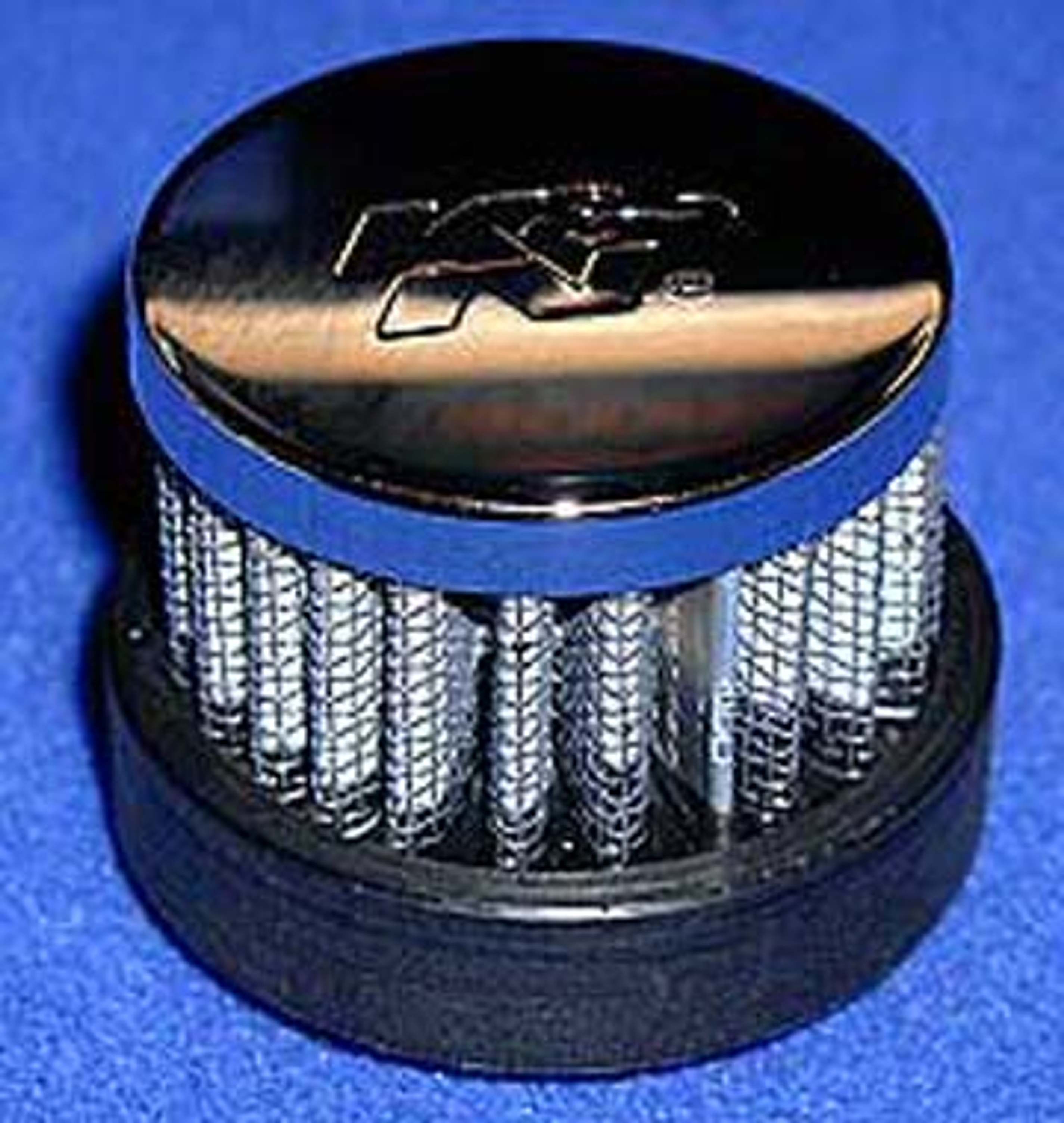

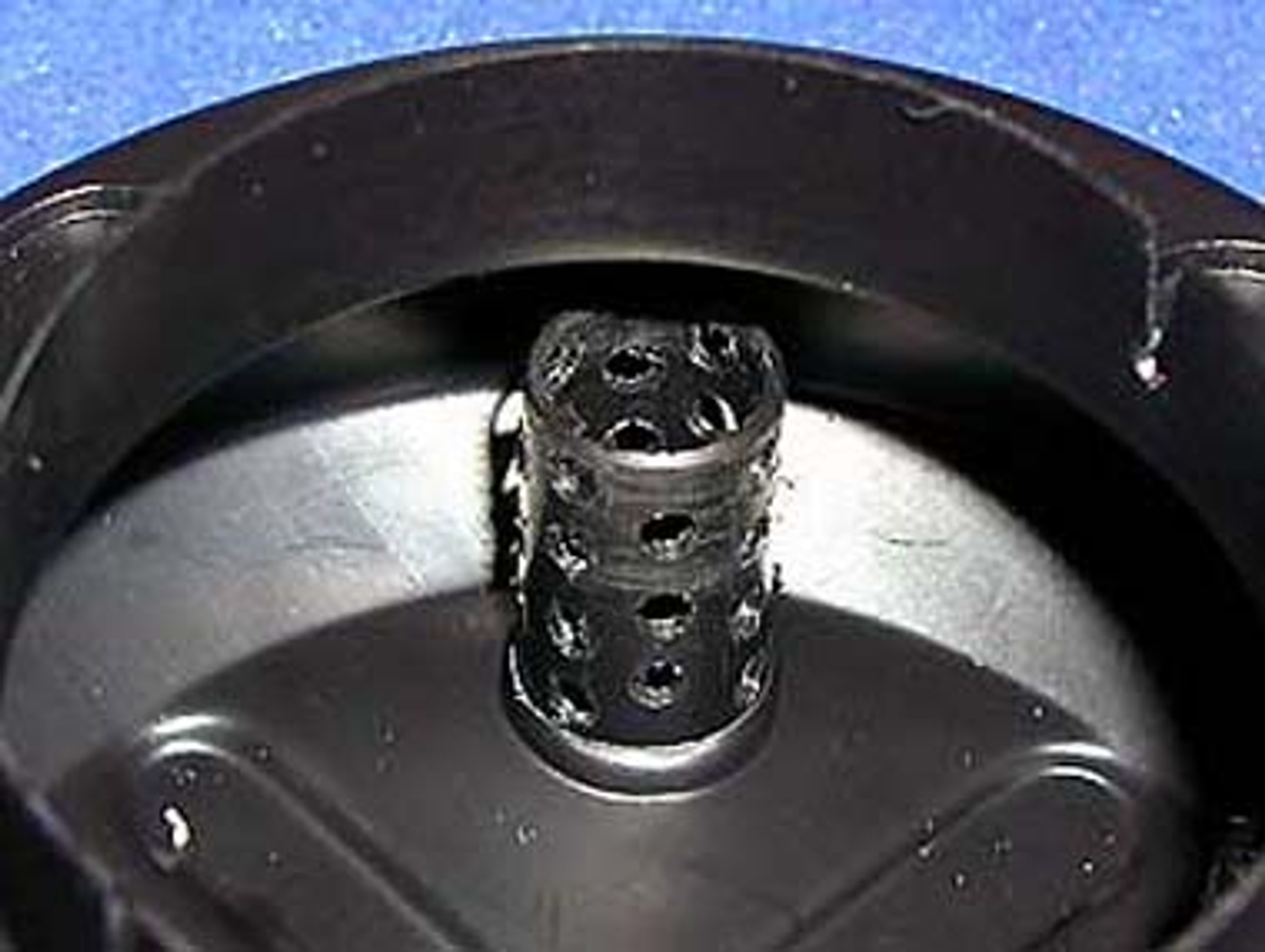

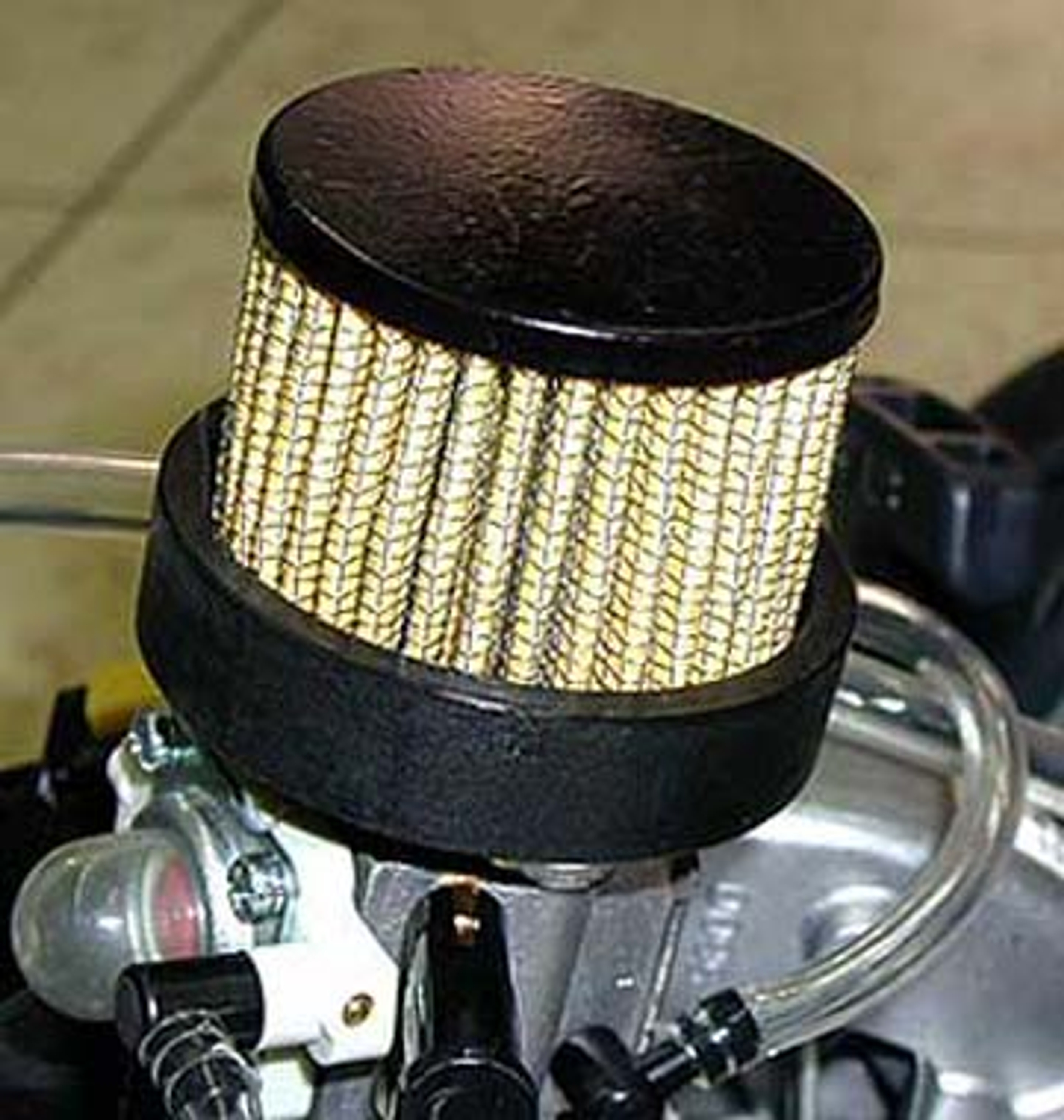

HT-airboxes, very small, low height design and low weight; but with a large (45 mm diameter) filter element. The boxes will fit on a FG car under a Porsche GT3 body and weighs even less than a FG Formula 1 airbox. The filter mounts directly above the carburetor and remains there, even when the box itself has been removed.

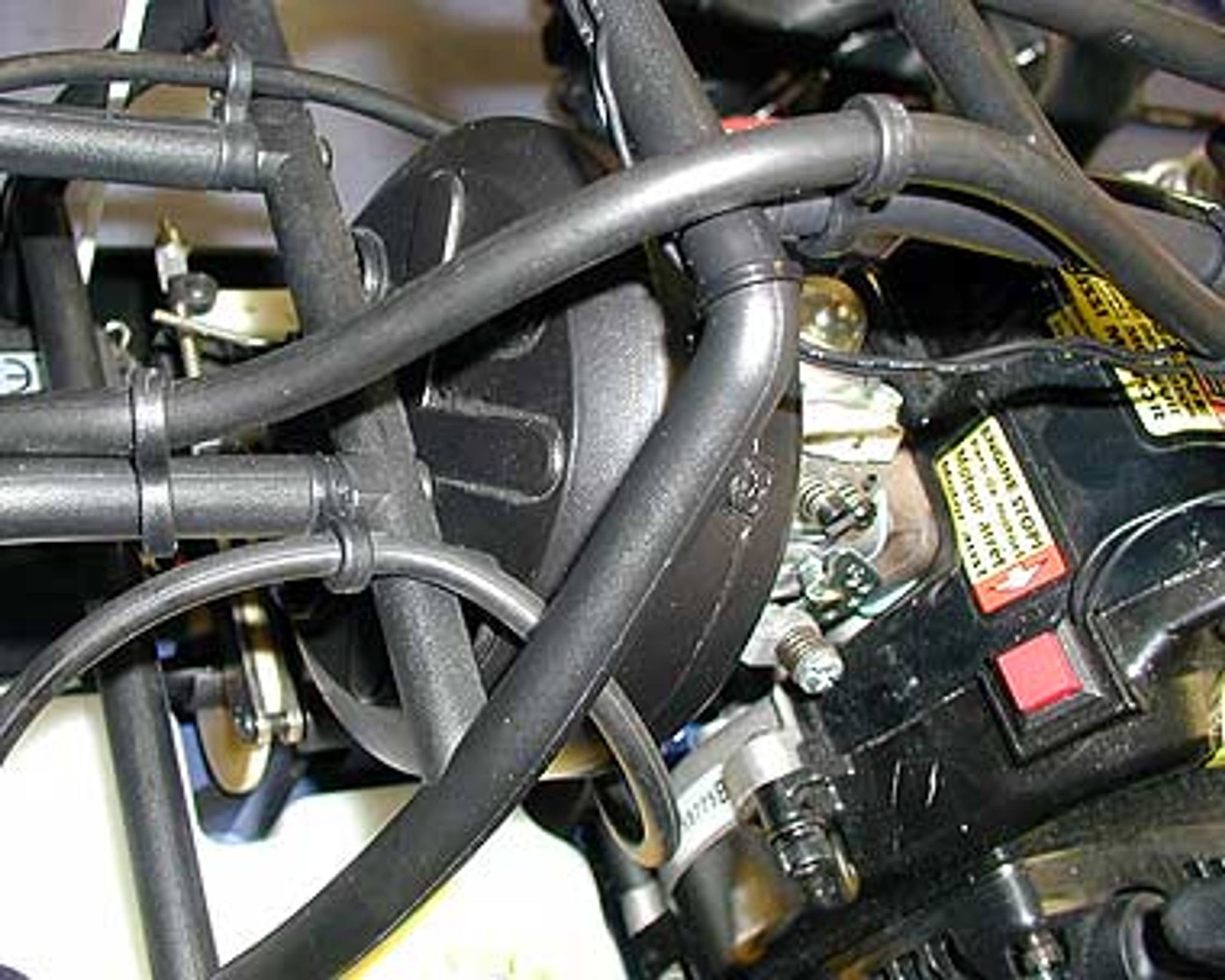

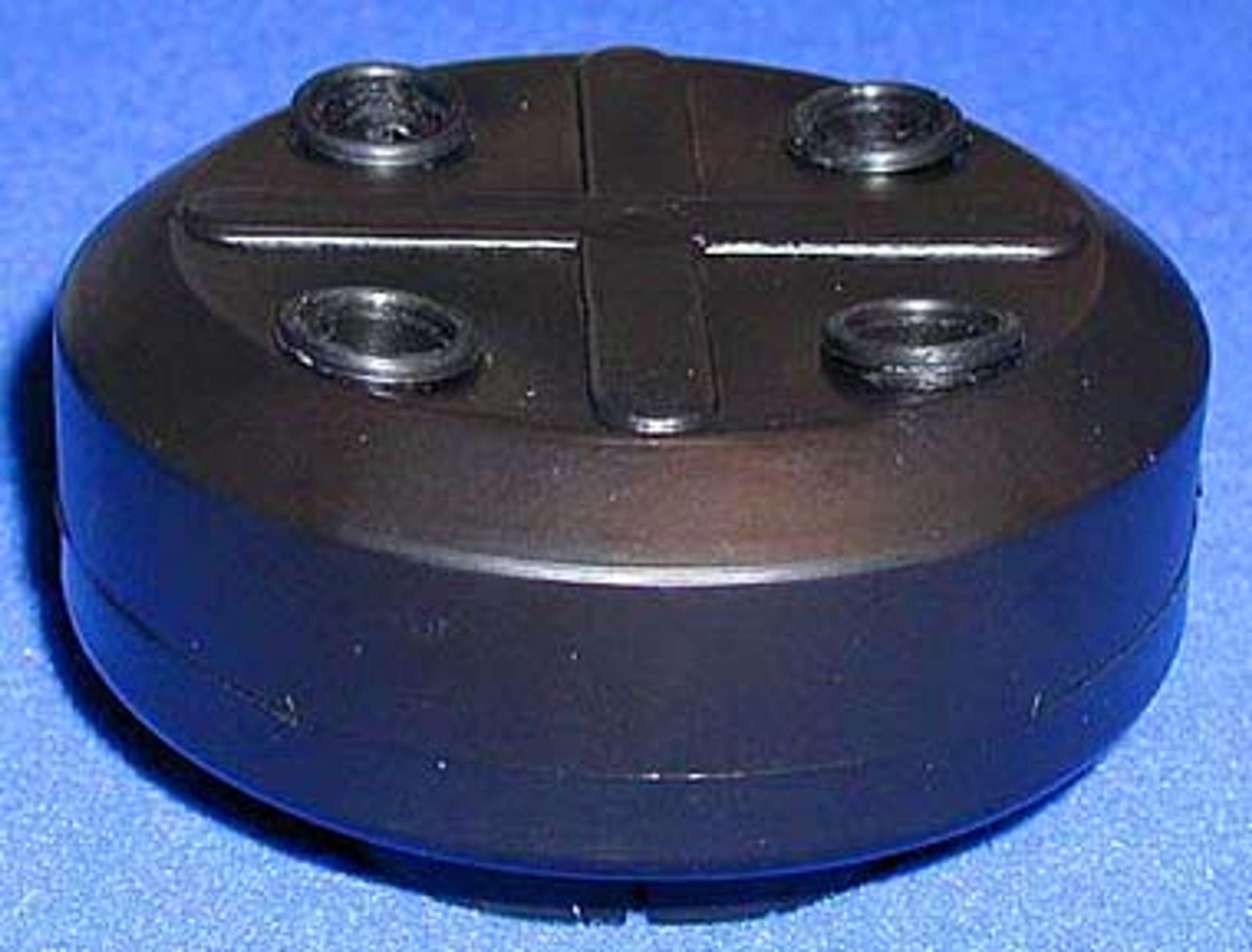

The Evo-airbox has a higher flow rate, which is important for the high revving engines in onroad cars. Its diameter (100 mm) will usually allow an installation only in a few buggies with a vertically mounted engine, like Gas Devil / Titan / Helldevil.
All parts available separately.
The Evo-airbox has a higher flow rate, which is important for the high revving engines in onroad cars. Its diameter (100 mm) will usually allow an installation only in a few buggies with a vertically mounted engine, like Gas Devil / Titan / Helldevil.
All parts available separately.
