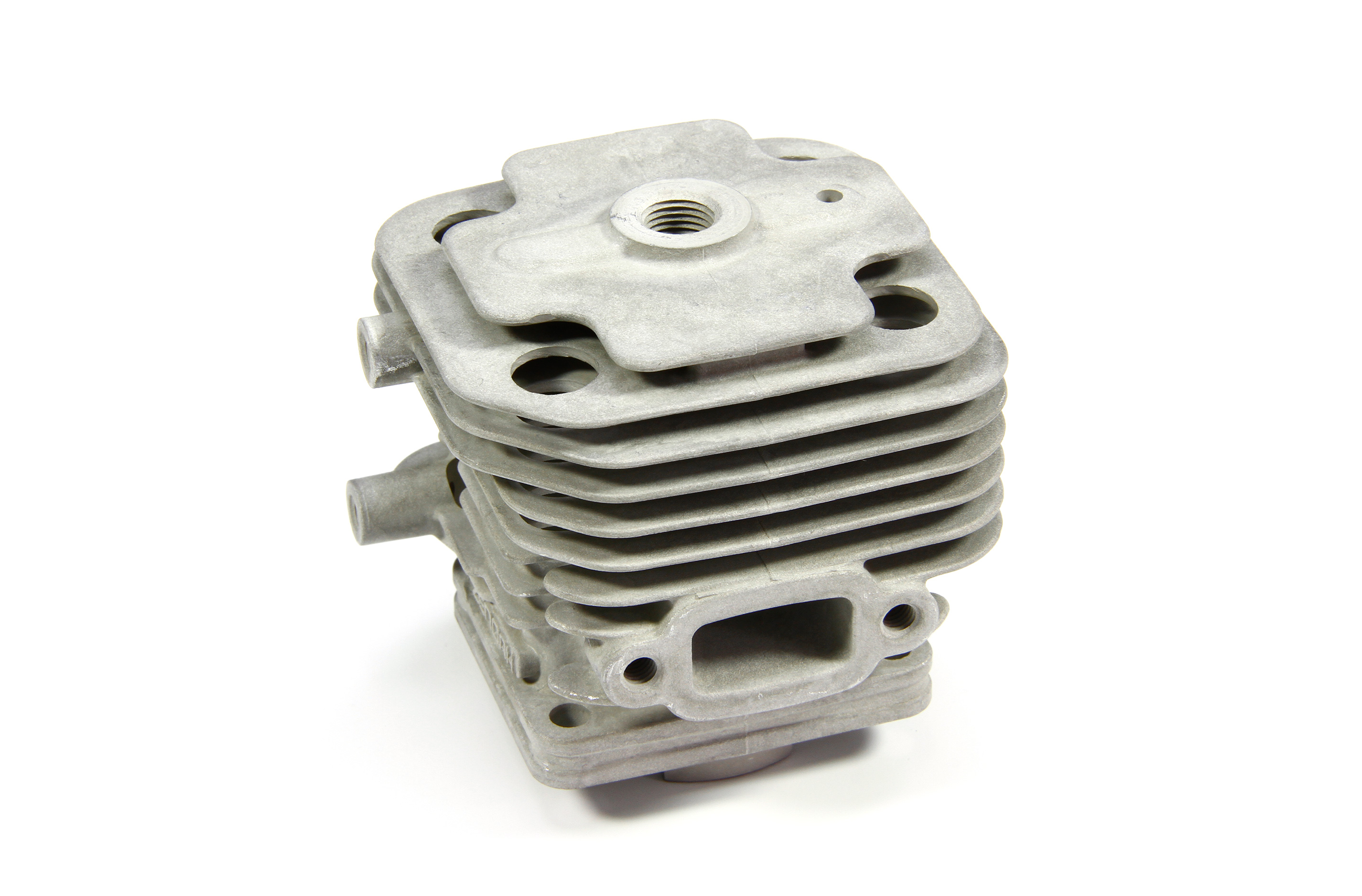

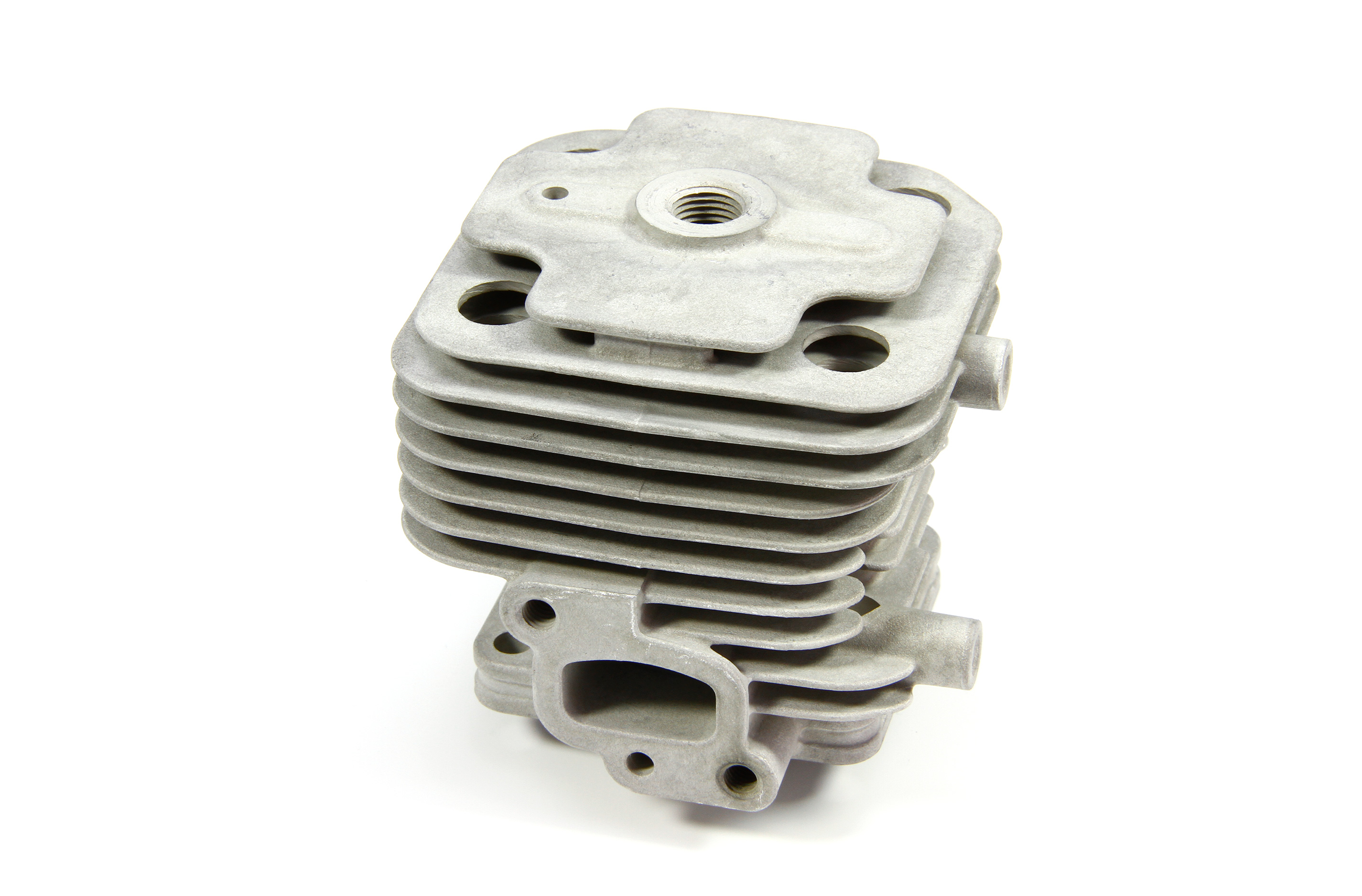

7785/01 FG Cylinder for Zenoah G270

Rebuild kit for the Zenoah G270 engine to replace piston/cylinder related parts. The kit includes the following parts:Cylinder G270Piston G270Piston ring G270Piston pin G270Piston pin retainer clipsCylinder gasketPlease note:It is recommended to use a gasket sealer with every gasket on an engine. This gives better sealing anda longer lasting gasket. We also recommend:y0804 HT-flange sealer 518 y0994 Marston sealery0807 MD-Sil RTV silicone sealer

Genuine FG spare/option part.Dimensions:Diameter: 34 mmContents:1 piece

Race ported top end set for Zenoah G240 and G270 engine.The SPEED TEC EXPERT genuine Zenoah G270 race ported top end set is optimized for performance with sophisticated craftsmanship and when accurately installed - guarantees, besides greatly increased performance, excellent workmanship and stamina. SPEED TEC EXPERT version modifications: Cylinder: Adjustment of compressionEnlarged portsFuel management milledModified exhaust and intake Piston: Weight reducedSkirt shortenedPiston above and below piston ring tapered and piston dome ground The set includes the following items: Performance-optimized cylinder and piston, piston ring, piston pin, piston pin circlips and cylinder gasket.To achieve the optimum performance gain of a SPEED TEC EXPERT top end set, we recommend the use of a tuned pipe ().

Race ported top end set for Zenoah G240 and G270 engine.The SPEED TEC CRANK genuine Zenoah G230 race ported top end set is optimized for performance with sophisticated craftsmanship and when accurately installed - guarantees, besides greatly increased performance, excellent workmanship and stamina. SPEED TEC CRANK version modifications: Cylinder: Adjustment of compressionEnlarged portsFuel management milledMachined and polished exhaust and intakeThe case is specially matched with enlarged and polished cross section towards the ports Piston: Weight reducedSkirt shortenedPiston above and below piston ring tapered and piston dome polished The set includes the following items: Performance-optimized cylinder and piston, piston ring, piston pin, piston pin circlips and cylinder gasket.To achieve the optimum performance gain of a SPEED TEC CRANK top end set, we recommend the use of a tuned pipe ().1 set

Genuine FG spare/option part. This stroke-up crankshaft changes the stroke from 28mm (standard) to 30mm. The crank-shaft fits the Zenoah engines G230, G240, G260, G270 and G290. No warranty can be provided for engines with modified crank-shaft.Contents:1 piece

Same dimensions as the Zenoah G230, G240, G260, G270.New generation Zenoah engine with 28,5cm³ cylinder capacity and approx. 3.9 hp. The cylinder is fixed with 4 screws. The technical details are identical to the Zenoah engines G240RC and G270RC.The engine will be delivered with pull starter, carb and spark plug / spark plug cap. Genuine Zenoah air filter and / or complete clutch and / or ball beard carburetor are optionally available at additional charge. Compatibility Zenoah / Losi 5ive-T:Please note that for installation in a Losi 5ive the fan cover must be swapped for a Losi or CY cover #5341 in order to fit the chassis" bolt pattern.If you want to install a Zenoah engine into the Losi 5ive, you usually have to use a fan cover from the CY engine.However, there is a workaround to maintain Zenoah fan cover.The adjustment is done via the pinion specific mounting plates for the engine. The change always affects only the rear, outer (carburetor side) plate under the fan cover. This is rotated by 180°; so that the embossed number on this plate faces the exhaust side of the engine!18T pinion: use 20T plate, rotated 180°19T pinion: use 19T plate, rotated 180°20T pinion: use 18T plate, rotated 180°On the plus side you gain the opportunity to easily mount a Zenoah engine keeping the original fan cover. On the other hand there will be the disadvantage of the necessity to combine two different sets of engine mounting plates when installing any pinion other than the stock 19T version. Therefore we do not recommend this workaround for everyday use. Nevertheless it works perfectly should ever the need arise. Attention! We recommend to run exclusively fully synthetic 2-stroke engine oil, like y0813 Motul 800 racing oil.

Genuine FG spare/option part.Spare part for Zenoah G290 engine.Dimensions:Thickness: 1 mmContents:1 piece
