Product information "10009 FG Formula 1 Competition 1/5 "New Version2025""
Highlights News 2025
- Tuning aluminium lower wishbones, one-piece (front and rear)
- Tuning chassis plate black anodised and milled
- Tuning milled aluminium rear axle linkage for toe-in adjustment
- Perforated tuning clutch bell
- Side flaps on the rear spoiler in carbon fibre
Highlights Formel 1 Competition
- This model is fitted with numerous aluminium parts:
- front and rear side bulkheads, rockers, engine mount, suspension arm ends...

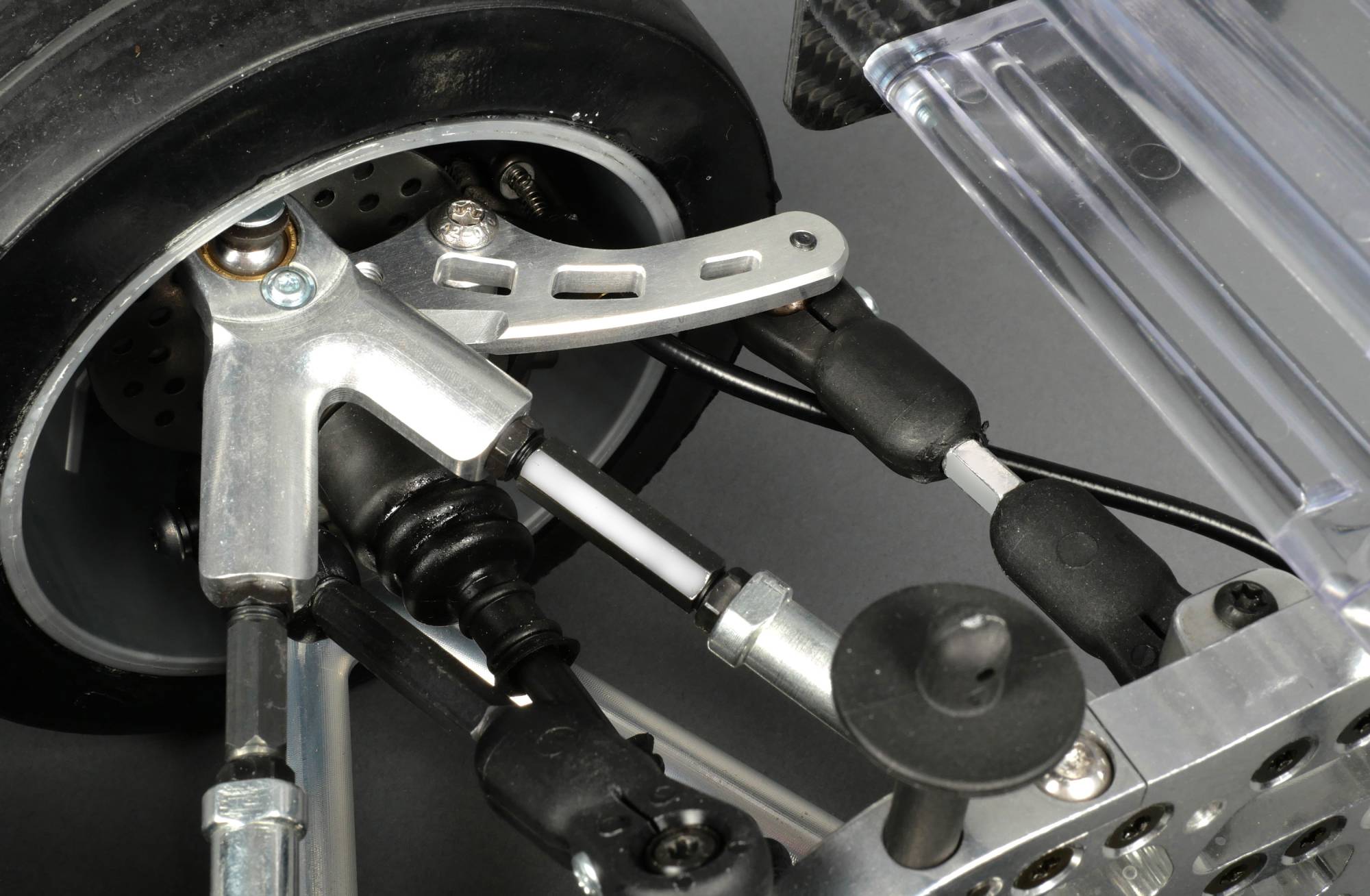

Steel made Uniball sockets all possible enable all adjustments of the front and rear suspensions.

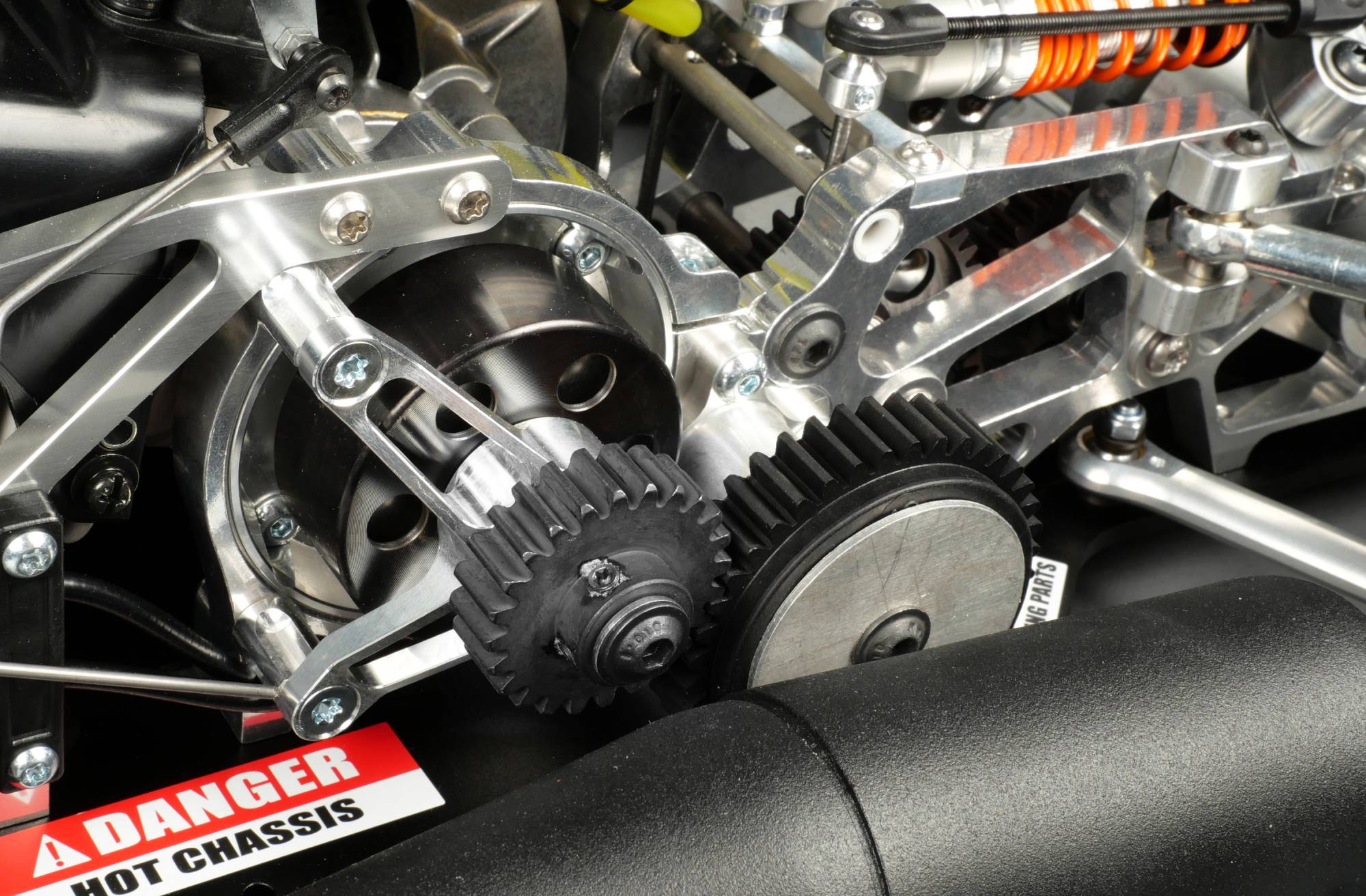

The transmission made with a gearwheell drive offers outstanding reliability and smooth operation.
Technical description of the FG Formula 1 Competition :

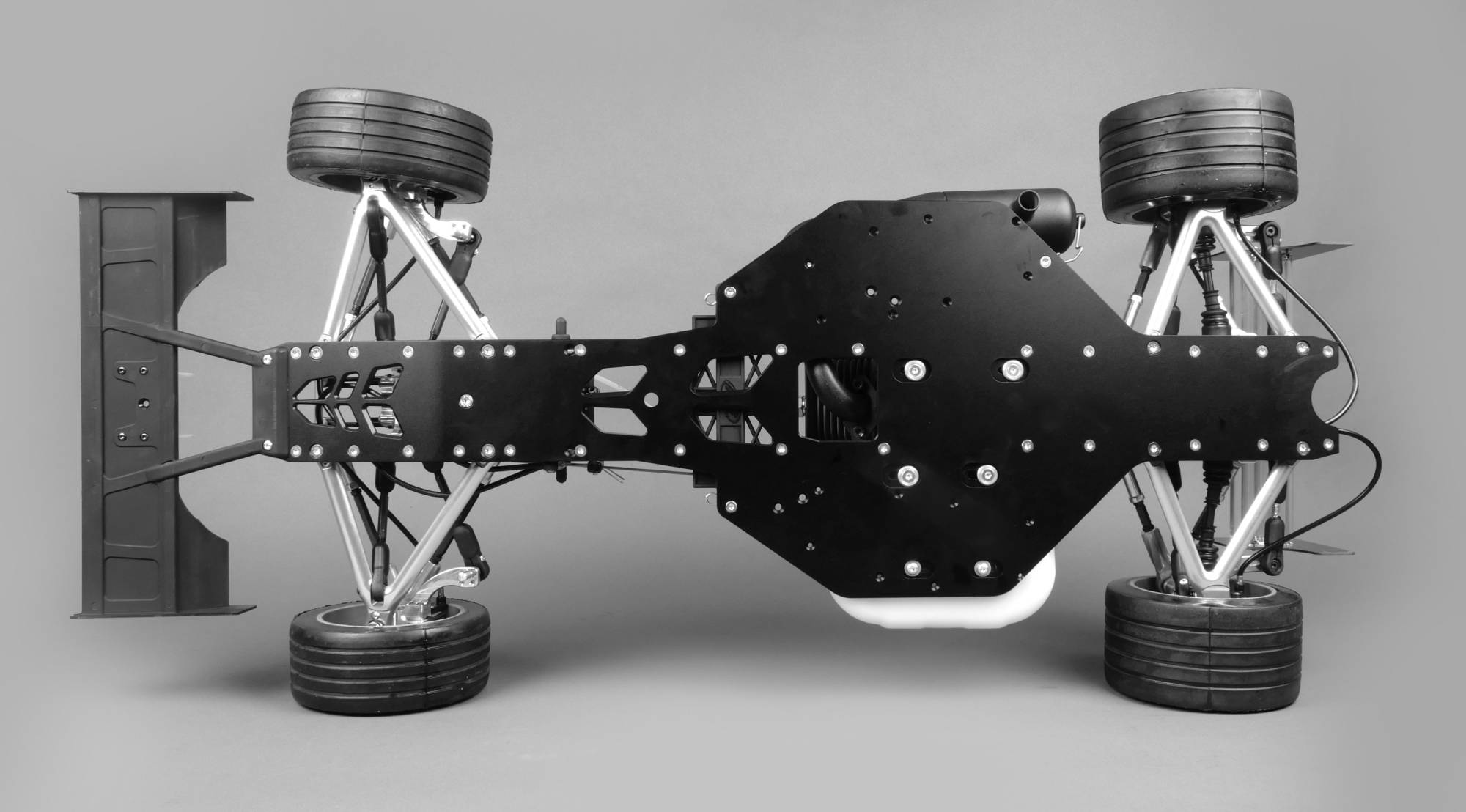

The undercarriage of the FG Formula 1 Competition is built on an 5mm alloy chassis. All screws at the bottom of the chassis are countersunk.

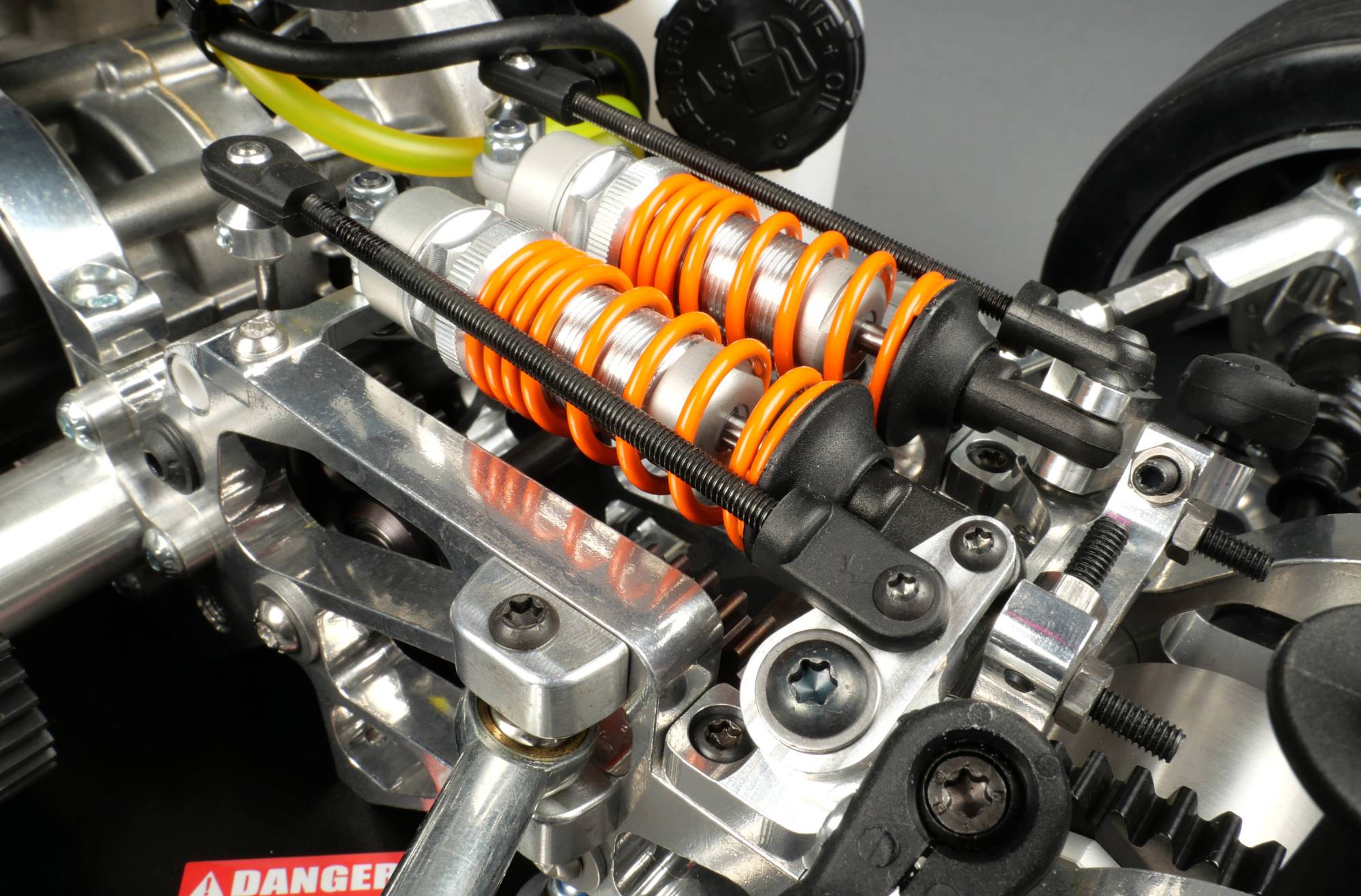

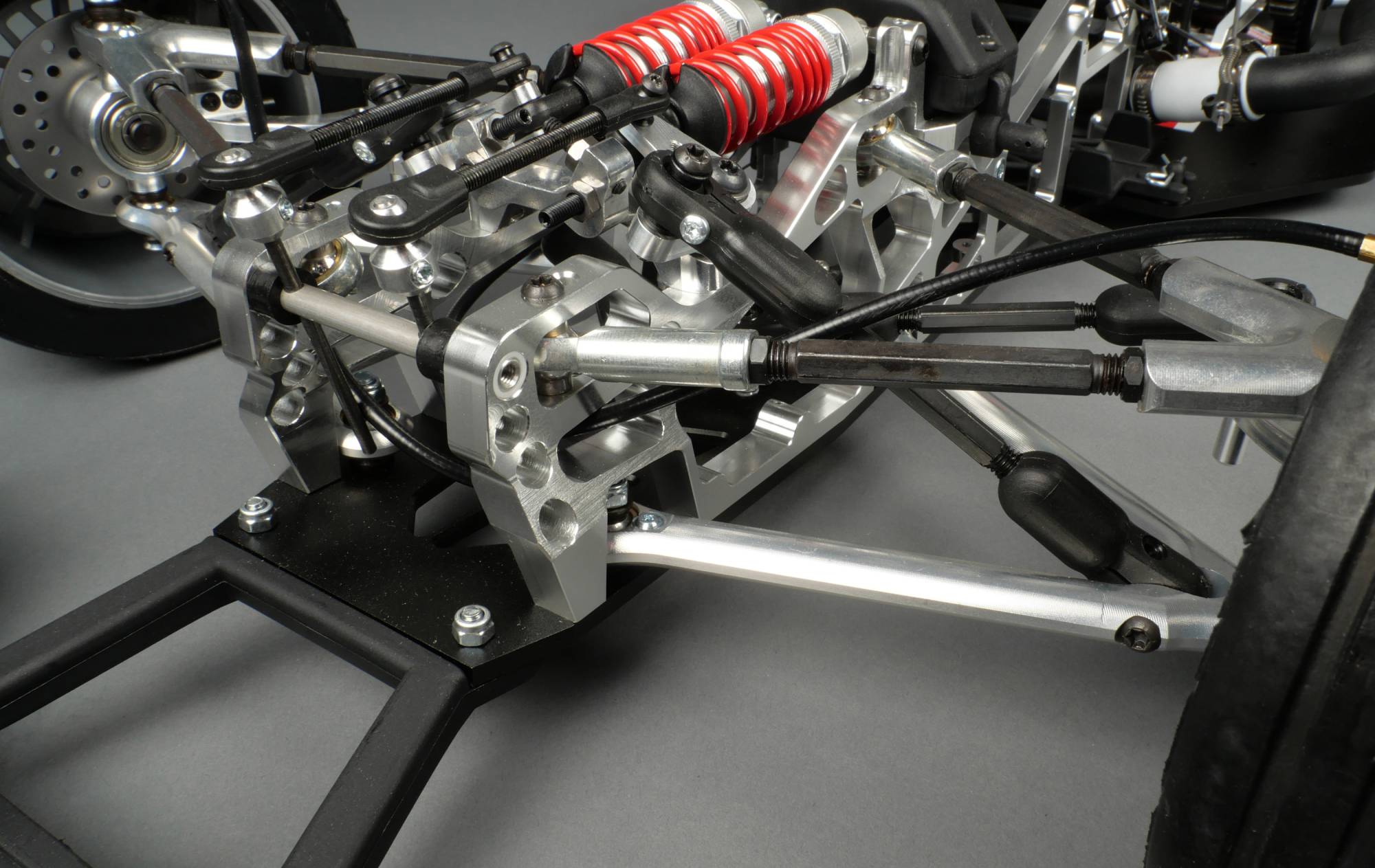

Front and rear axle mounts as well as the engine unit are connected over the complete length of the chassis, therefore we achieved almost the stiffness of a monocoque chassis. The quick fix system of the engine makes a fast changing of the engine possible. The drive to the rear axle is carried out over several easy-running front gearwheels and an FG ball drive at the rear axle. A separate flange bearing holds the clutch bell in order to relieve the crankshaft. Front and rear axle with their various adjusting possibilities as king pin angle, castor a.s.o. consist of alloy delta wishbones below. Solid alloy rear axle plates reduce the wear at the rear axle and give an enormous driving stability. 4 oil-pressure shock absorbers controlled by a pushrod suspension as well as stabilizers guarantee an optimal ground contact.
We deliver the chassis selectively with tuning bowden cable brakes for front or respectively rear axle. The model is powered by a high-capacity 26 cm³ engine with airbox and Tuning pipe.
Equipment of the FG Formula 1 Competition
CNC-cut 5mm alloy chassis with lateral carbon fiber inserts, 26 cm³ Zenoah engine, inlet silencer, Tuning pipe, FG gearwheel drive, ball drive, complete rear and front axle carrier unit with integrated engine quick-fixing device, double alloy wishbone fastenings, lower alloy delta wishbones at front and rear axle, front and rear alloy uprights, ball-bearing servo saver, steering stops, pushrods, 4 oil-pressure shock absorbers with alloy damper pistons, mechanical Tuning brakes at front and rear, stabilizer for front and rear axle, 10mm alloy balls, rear spoiler, polycarbonate body shell, polyamide front spoiler, receiver box, competition tires with tire inserts.
For the final assembly of the models you need further: radio control system (transmitter, receiver), 1 large steering servos (each approx. 40 - 50 kg), 2 servo for throttle brake (approx. 20 - 30 kg), batteries and charger.
These parts are not included and must be supplied or ordered separately when the rc installation option is selected!
Includet
- Zenoah 26cc engine
- Airbox
- Pipe
- Clear bodyshell and polycarbonate spoiler
- Mechanical brakes
Dimensions
- Length: 960mm
- Width: 440mm
- Height: 230mm
- Wheelbase: 620mm
Drive: | 2WD |
---|---|
Motorization: | Gas |
RTR: | Without RTR |
Scale: | 1/5 |
