y1463/01 MadMax SUPER GRIP Soft + 24 mm hex rims 80 mm, 1 pair for HPI, Losi & Co.
€79.90
Available
Product information "y1463/01 MadMax SUPER GRIP Soft + 24 mm hex rims 80 mm, 1 pair for HPI, Losi & Co."

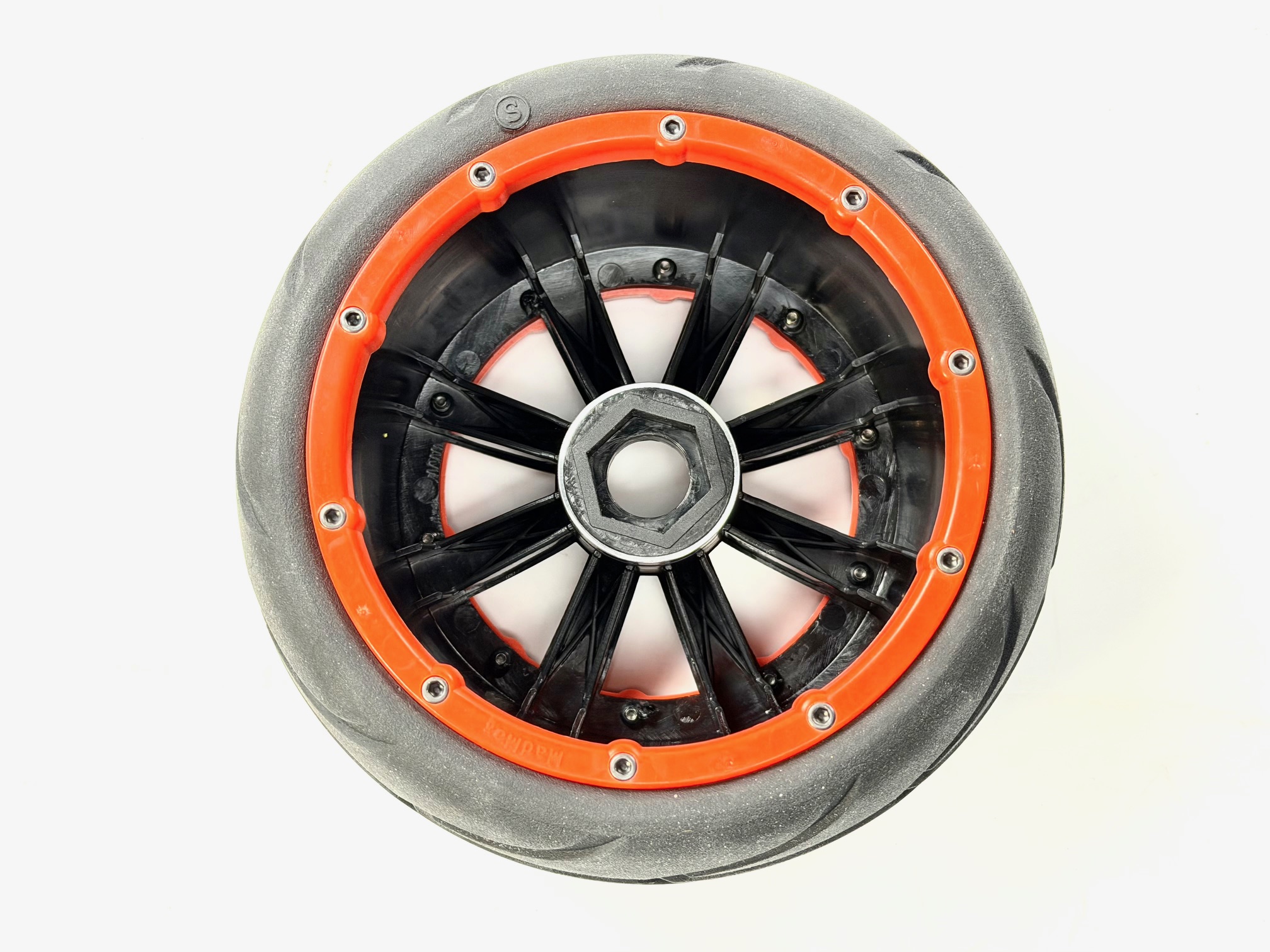

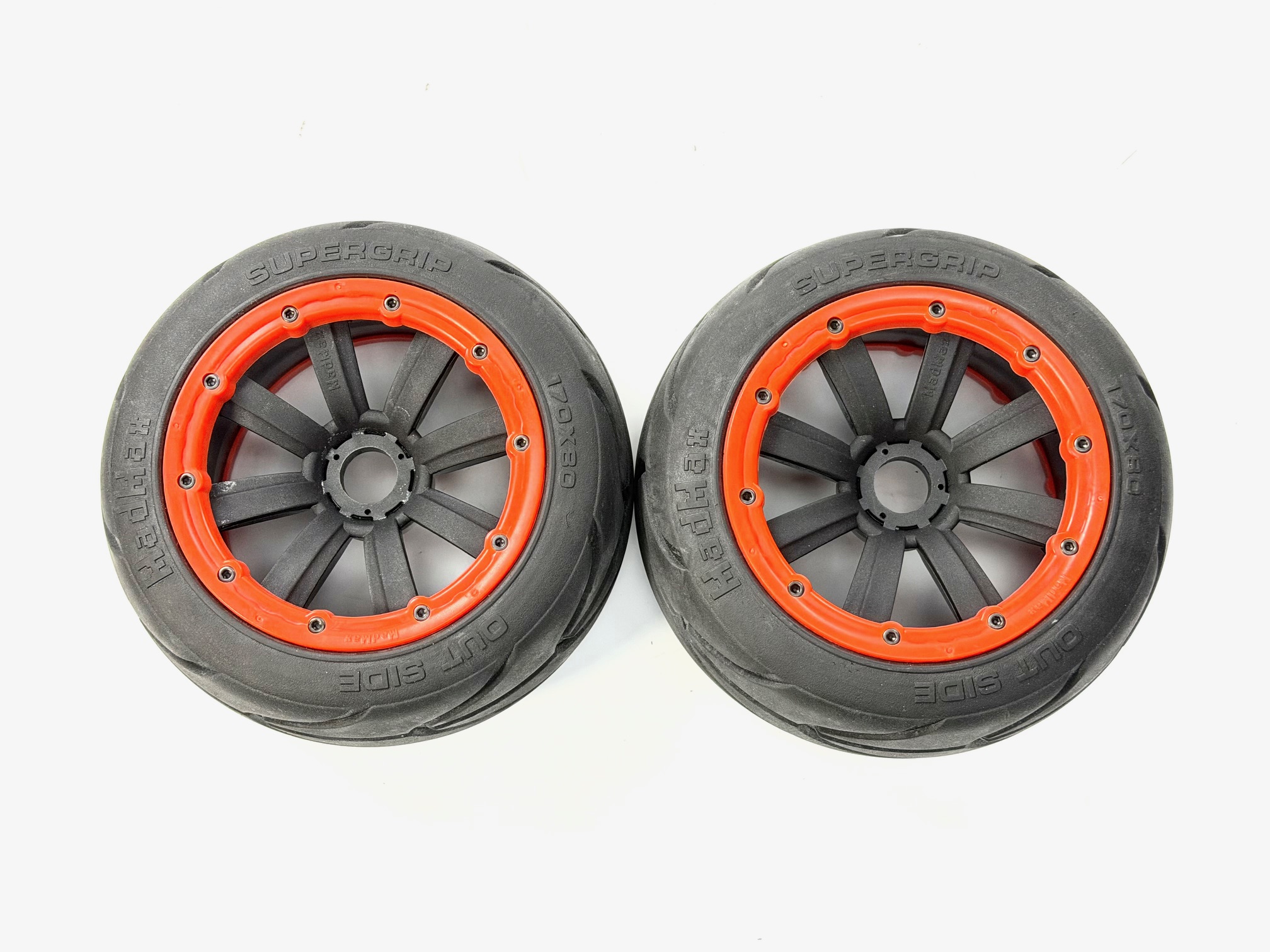

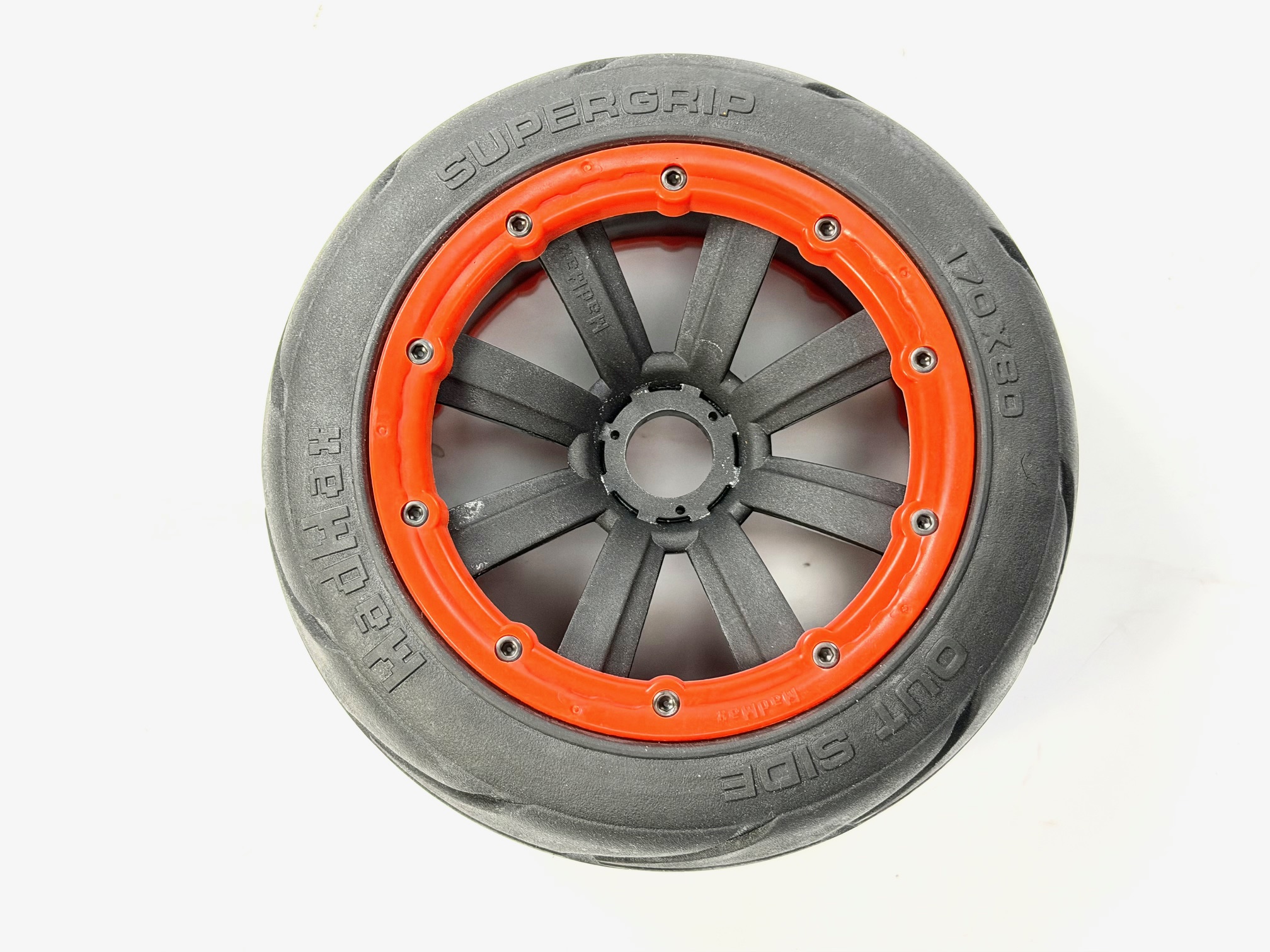

SUPER GRIP Soft tires 170 x 80 mm with black MadMax Extreme rims for 24 mm hex wheel drive, 20 beadlock screws per rim and reinforced orange beadlock rings. Fits Losi 5ive-T, 5ive Mini, Desert Buggy XL and all HPI Baja 5B and 5T/SC cars.
Due to the extreme stress created by the MadMax SUPER GRIP tires, the rim has been optimized again.
The tires come with a special rigid insert which transfers the applied forces without tilting; even with the heaviest cars like the Losi 5ive-T.
All together, the SUPER GRIP lives up to its name and provides maximum grip, which makes it necessary to use the supplied 3 mm beadlock screws for the MadMax EXTREME rims instead of the usual 2.5 mm screws. Additionally, the seating of these screws should be checked after each use.
The MadMax SUPERGRIP tires have been designed especially for use on tarmac. Even on fine-pored tarmac your car will still find enough grip! (As you can see in our video.)
On most 1/5 and 1/6 cars the best combination is the use of 60 mm wide front and 80 mm wide rear tires. The Losi 5ive-T Mini should run 60 mm wide MadMax SUPERGRIP tires all around, because the 80 mm wide SUPERGRIP tires are a bit too wide for the Mini body shell.
The 80 mm wide MadMax tires are reinforced on the inside of the carcass with a special cross pattern in the tread section and ribs in the outside shoulder.
MadMax SUPERGRIP tires are available in the following compounds: (embossed marking on the inside shoulder!)
For running an rc-car on tarmac, the following recommendations apply:
The dirtier the track or the colder the weather, the stickier (softer) the rear tires should be.
A note for the front tires: 2WD cars should run slightly harder tires in front than in rear.
On 4WD cars the same compound front and rear is usually a good choice!
Of course, like in full scale motorsport it also applies to the MadMax SUPERGRIP tires that the softer the tire the higher the wear. The medium compound tire lasts significantly longer than the soft version!

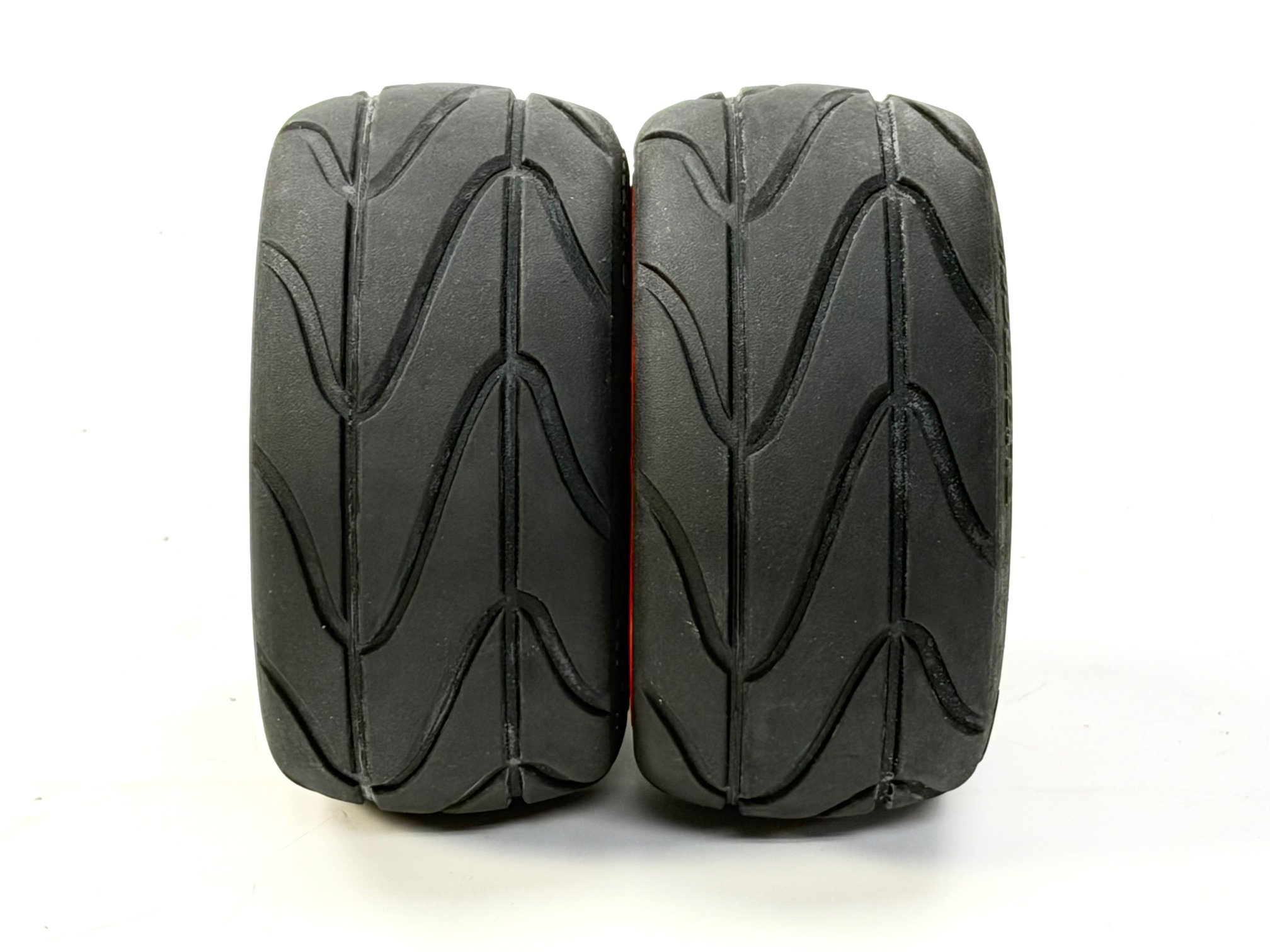

The MadMax SUPERGRIP has a special on-road tread. These tires have excellent grip even after eating up the tread and can be used after that for a long time as slicks!
1 pair
Nauenweg 55
47805 Krefeld
Germany
0 of 0 reviews
Average rating of 0 out of 5 stars
Login
Accessories / Spare parts
Genuine HT spare/option part. Hardened special screws for mounting the beadlock rings of MadMax and Losi DBXL rims.For HPI rims due to the screw head diameter only to be used in combination with non-HPI beadlock rings (i.e. MadMax or Losi 5ive-T)!The combination of larger diameter and substantially larger thread depth ensures a secure grip of the screws in the plastic of the rims; the coarse thread also allows for quick assembly.The large head with T10 hexalobular drive distributes the load as wide as possible on the ring.The screws are galvanized for rust protection.Please note: it is not recommended to use the screws in rims which had previously M3 screws installed. With new rims or in exchange for M2.5 screws appropriate strength is ensured.Dimensions: Diameter: 3,1 mmLength: 12 mmHexalobular drive: T10 (Torx) Content:1 Set of 40 screws for one pair of rims.
Customers also bought
Genuine Losi spare/option part. Contents:1 piece
Genuine ATOP spare/option part. CNC-machined 6061-T6 aluminum center diff mount; fits Losi DBXL 2.0.4-piece set consisting of two diff towers, connecting bridge, and pinion cover. Considerably stiffer than the standard plastic parts and unaffected by the heat generated by the engine and the brake.Contents:1 piece
Genuine ATOP spare/option part. CNC-machined 6061-T6 aluminum clutch bell holder for Losi DBXL+MTXL. Compared to the stock plastic part the higher strength of the aluminum part ensures secure seat for the bearings, increased dimensional stability at high temperatures and reduced operating temperatures for the bearings due the aluminums thermal conductivity. Larger bearings (12 x 28 x 7) for higher load capacity. Comes with ball bearings and spacer tubes included.It is recommended to use the ball bearings/bushings adhesive (y0113 Thread locking compound).Contents:1 set
Genuine ATOP spare/option part. CNC-machined 6061-T6 aluminum intermediate transmission shaft bracket for Losi DBXL. The high strength of the material and the larger screws provide a secure seat for the bearings and add torsional rigidity.The set includes lager bearings (8 x 22 x 7) for higher load capacity and mounting bolts.Contents:1 piece This article is identical to the article in the video!
Customers also viewed

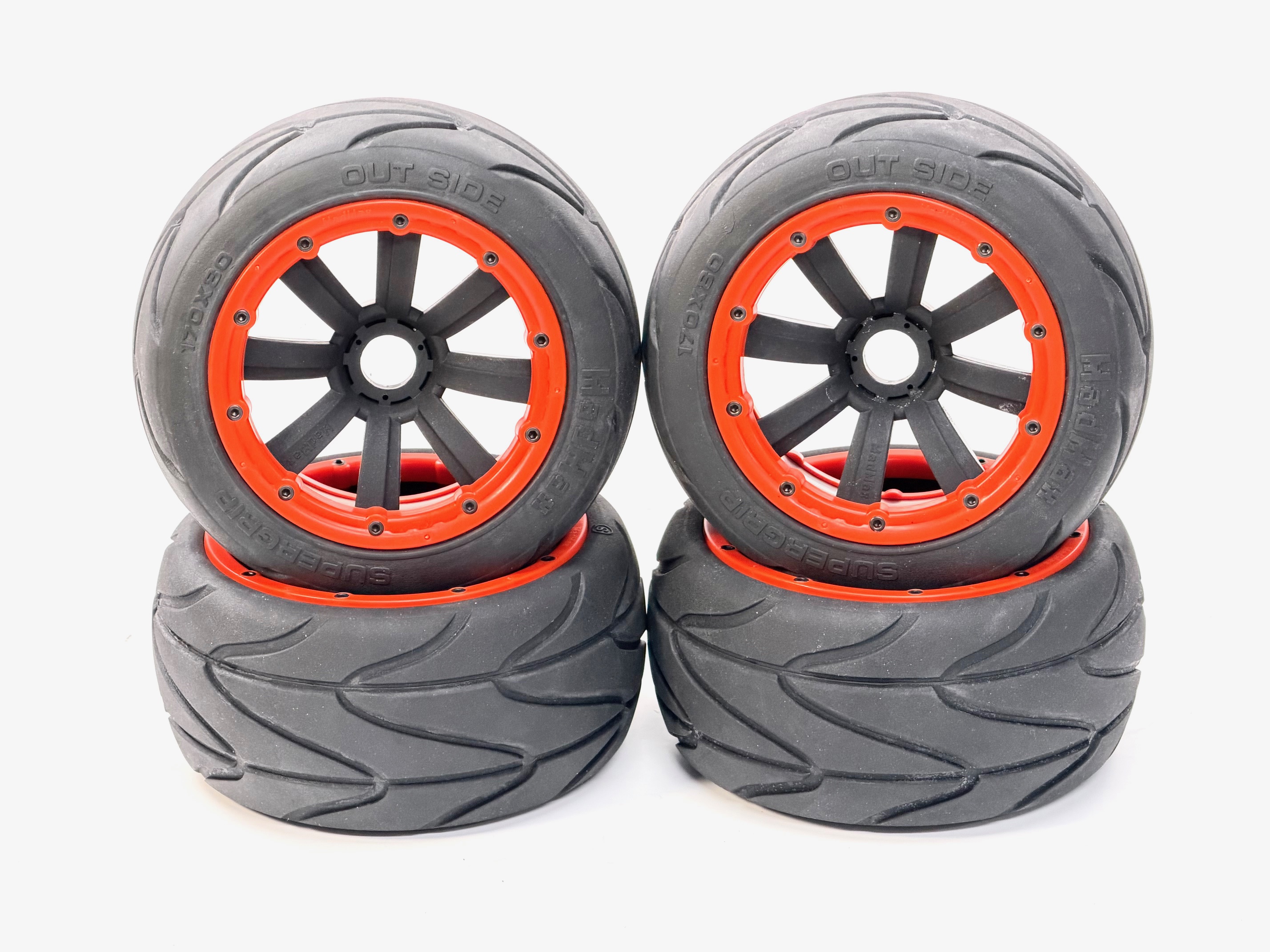

2 pairs SUPER GRIP Soft tires 170 x 80 mm with black MadMax Extreme rims for 24 mm hex wheel drive, 20 beadlock screws per rim and reinforced orangen beadlock rings. Fits Losi 5ive-T, 5ive Mini, Desert Buggy XL and all HPI Baja 5B and 5T/SC cars.Due to the extreme stress created by the MadMax SUPER GRIP tires, the rim has been optimized again.The tires come with a special rigid insert which transfers the applied forces without tilting; even with the heaviest cars like the Losi 5ive-T.All together, the SUPER GRIP lives up to its name and provides maximum grip, which makes it necessary to use the supplied 3 mm beadlock screws for the MadMax EXTREME rims instead of the usual 2.5 mm screws. Additionally, the seating of these screws should be checked after each use.The MadMax SUPERGRIP tires have been designed especially for use on tarmac. Even on fine-pored tarmac your car will still find enough grip! (As you can see in our video.) The 80 mm wide MadMax tires are reinforced on the inside of the carcass with a special cross pattern in the tread section and ribs in the outside shoulder.MadMax SUPERGRIP tires are available in the following compounds: (embossed marking on the inside shoulder!)For running an rc-car on tarmac, the following recommendations apply:The dirtier the track or the colder the weather, the stickier (softer) the rear tires should be.A note for the front tires: 2WD cars should run slightly harder tires in front than in rear.On 4WD cars the same compound front and rear is usually a good choice!Of course, like in full scale motorsport it also applies to the MadMax SUPERGRIP tires that the softer the tire the higher the wear. The medium compound tire lasts significantly longer than the soft version!The MadMax SUPERGRIP has a special on-road tread. These tires have excellent grip even after eating up the tread and can be used after that for a long time as slicks!2 pairs
