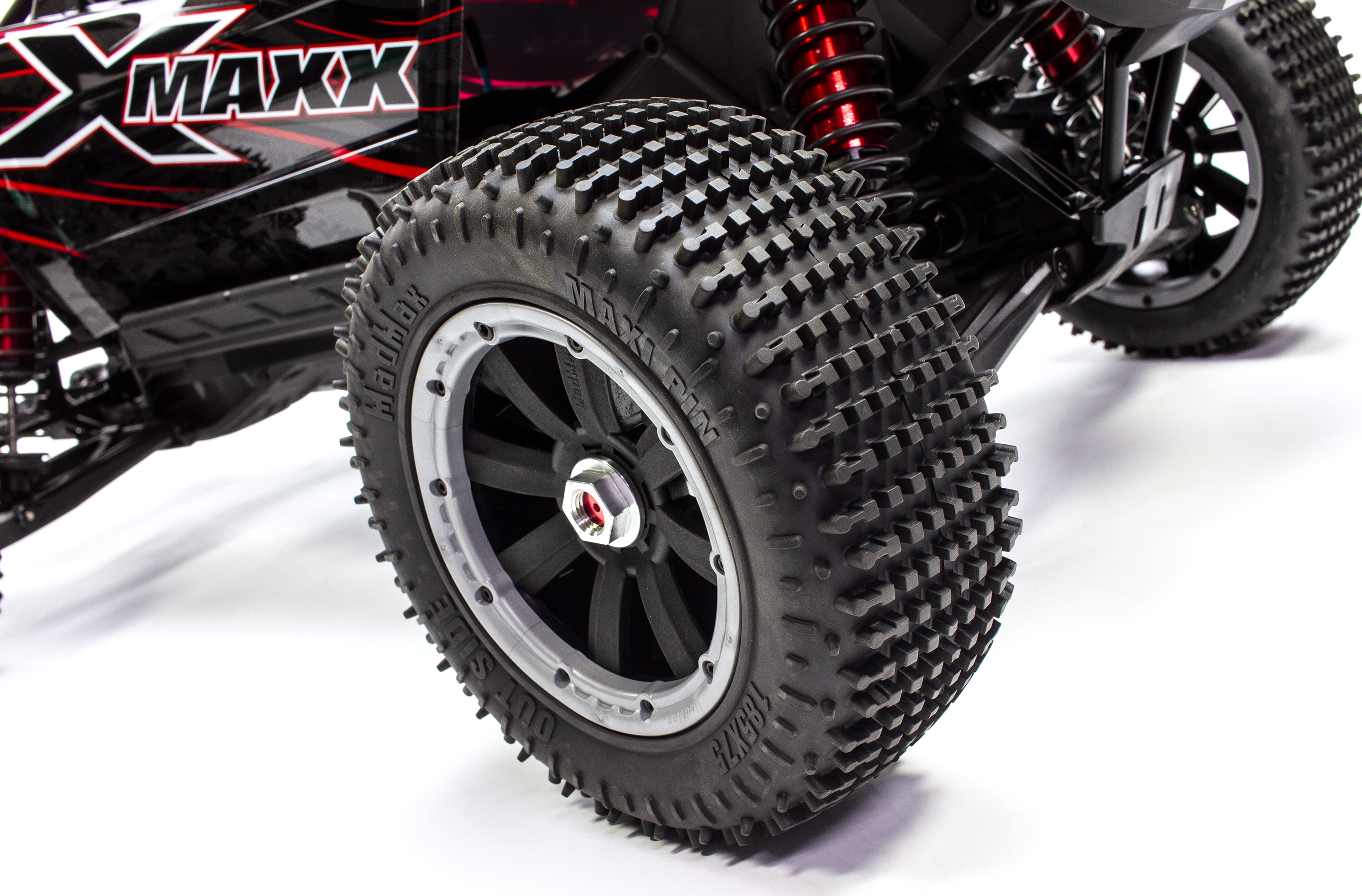

y1017 MadMax MAXI PIN tires complete set for Traxxas X-MAXX 4x4 with adapter

Product information "y1017 MadMax MAXI PIN tires complete set for Traxxas X-MAXX 4x4 with adapter"

Offerset:
  • 2 Pairs MadMax Maxi Pin tires
  • 2 Pairs MadMax rims
  • 2 Pairs MadMax inlays
  • 2 Pairs / 4 pieces adapter TT1020/01

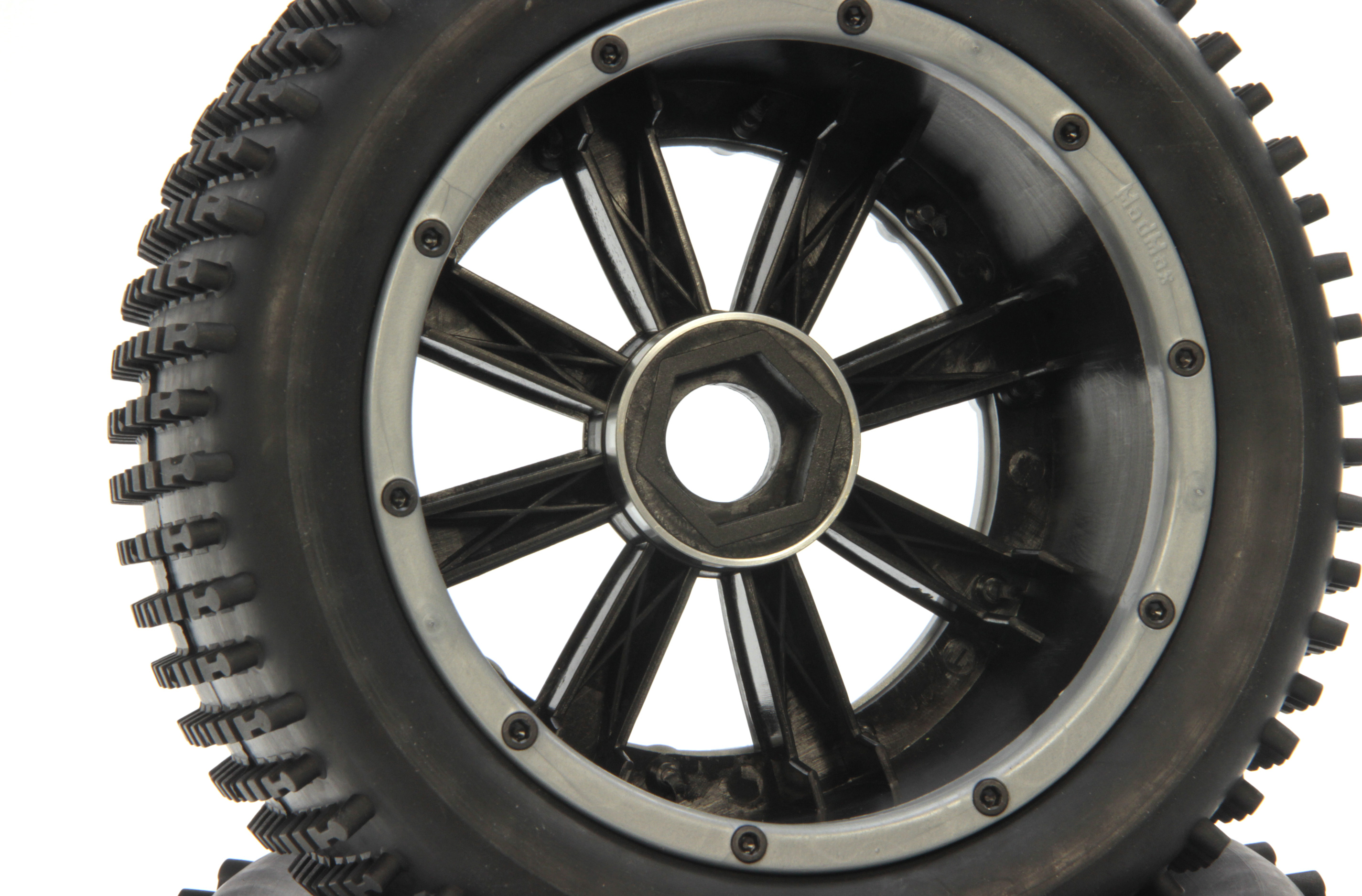

MAXI PIN 185 x 75 with black colored MadMax Extreme rims, 20-fold screwed, very tough, with 24 mm hex drive and with reinforced orange beadlock rings for Losi and HPI.

The MadMax MAXI PIN tires come with strong special tire inserts which allow transferring the power without canting, even on heavy cars.

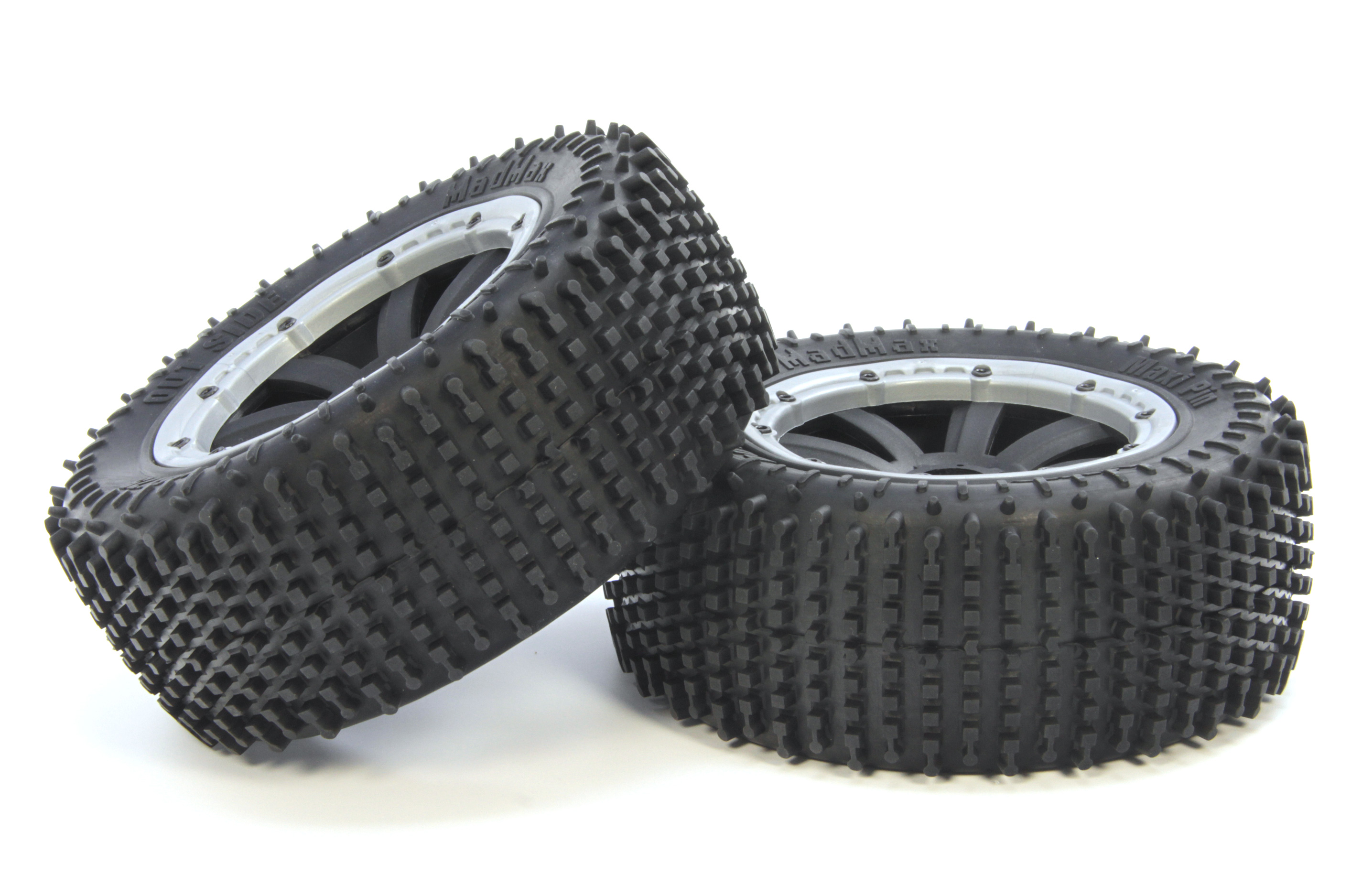

MadMax MAXI PIN tire was developed specifically for astro turf tracks! The special tread design with 480 studs per tire provides excellent grip, but also a high load on tire and rim! To stabilize the tire, the outer shoulder features radial ribs which minimizes the tilting under load and counteract the shear forces during cornering. Furthermore, the MAXI PIN tire has studs positioned on the outside shoulder, which support the steering in corners.

All together the MAXI PIN tires provide maximum grip, which made it necessary to upgrade the beadlock screws on these MadMax EXTREME wheels. So they come with 3.0 mm screws instead of the usual 2.5 mm ones! Nevertheless, tires and beadlocks should be checked after every run.

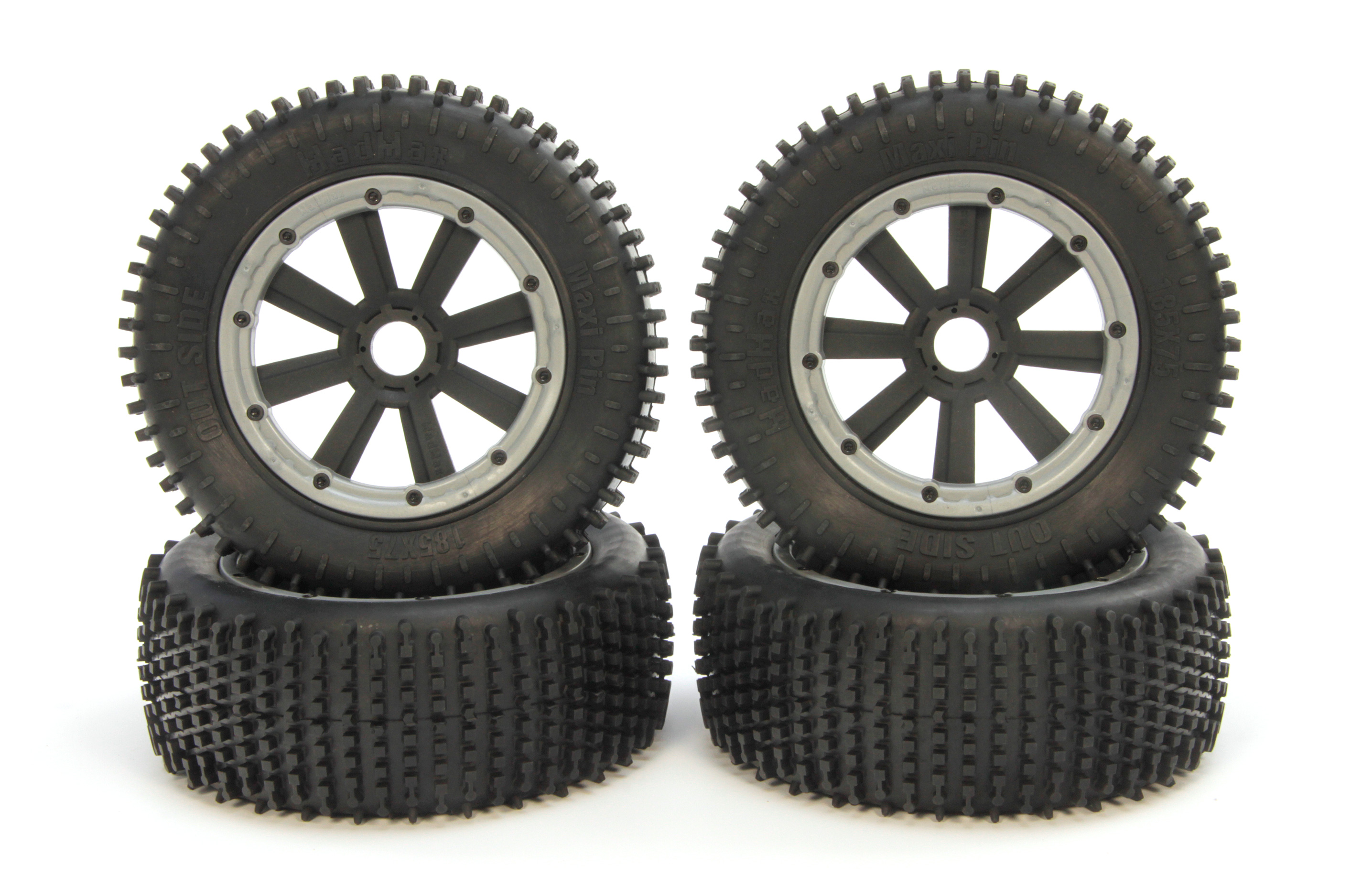

The set consists of four tires, including tire inserts and MadMax EXTREME rims and 4 pieces adapter wheel nuts TT1020/01.

Dimensions:
  • Outer diameter: 185 mm
  • tire width at bead: 70 mm
  • Tread width: 75 mm
  • Reinforced 24 mm hex wheel drive


The video shows the 18 mm square drive version. Also available with 24 mm hex.




Some off-road tires knowledge can be found here!

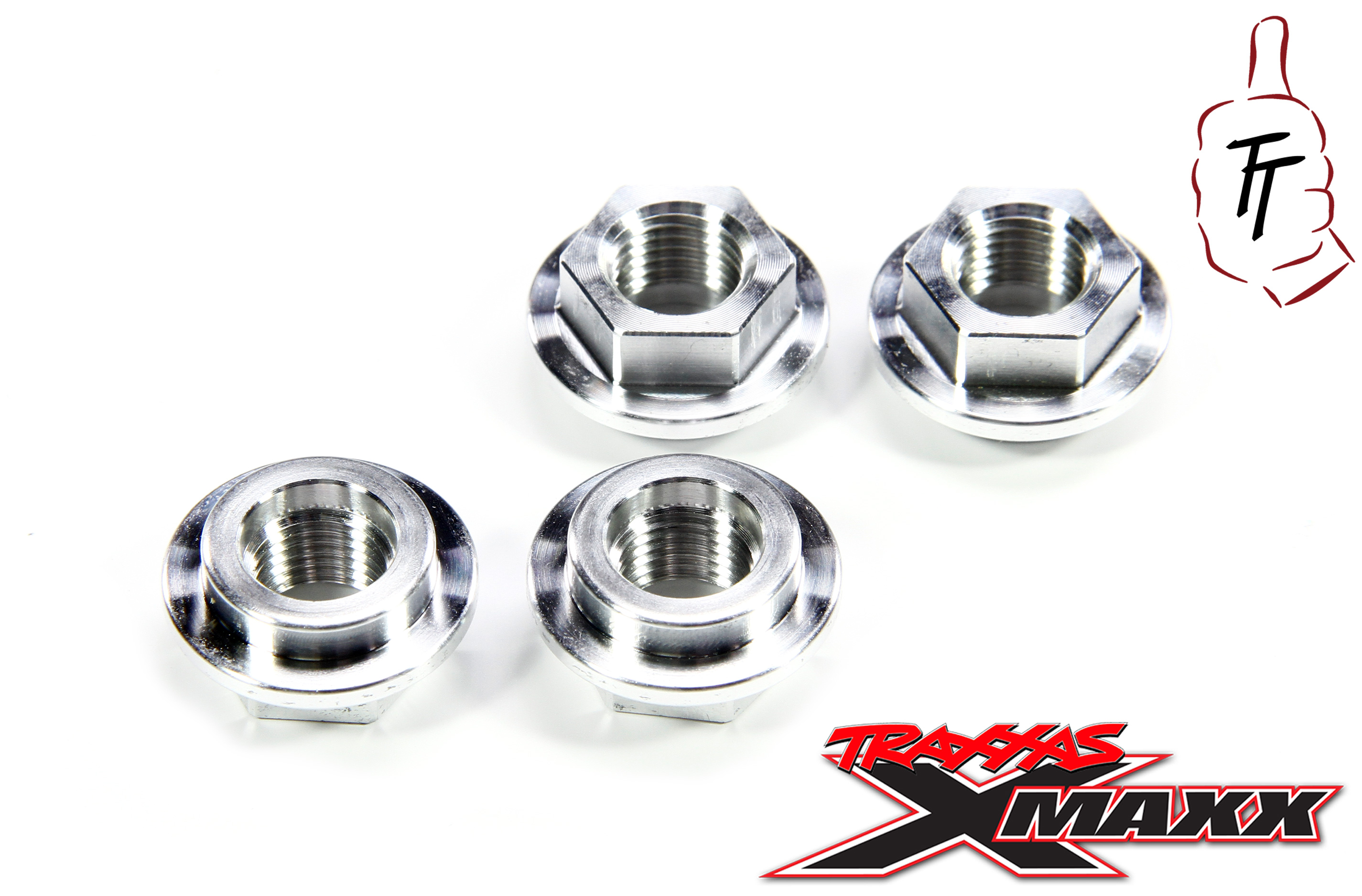

TT1020 Top Tuning Adapter wheel nut



Genuine TopTuning spare/option part.

These adapter nuts, manufactured from billet 7075 aluminum allow for easy and precise installation of all MadMax, HPI and Losi tires and rims on the Traxxas X-Maxx. For the best result possible, nut and adapter are manufactured as a one-piece unit.

It should be noted that the wide rims can be used on the rear axle only. On the front axle they would limit the steering angle by grinding on lower a-arm and steering rod.

Traxxas has microencapsulated the wheel shafts of the X-Maxx to secure the wheel nuts. Like any thread locking compound this is not for eternity. After several tire changes the use of a normal screw locking compound is advised, we recommend it "y0113 / 01 medium strength".

The dimensions of the nut are specifically designed for use with MadMax, current HPI and Losi rims. Rims from Losi 5ive have slightly different dimensions in the hub area. This is meaningless on the large LOSI or HPI wheel adapters. With the smaller and shorter wheel nut thread of the X-Maxx wheel shafts you cannot compromise. Therefore there are also special nuts for the Losi rims/wheels available at our options menu.
However, somewhere in the past, the injection moulds for the HPI rims were slightly modified in the hub area. As part of that job the bore diameter has probably been slightly increased. Therefore, the use of older rims in combination with the adapter nuts makes it necessary to increase the rim bore a little bit.

Due to repeated requests for use: these wheel nuts replace the stock wheel nuts when installing the wheels!

Contents:
  • 4 pieces

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.
