37 products found for "y1016_002_3t"

rc-car-online - Home

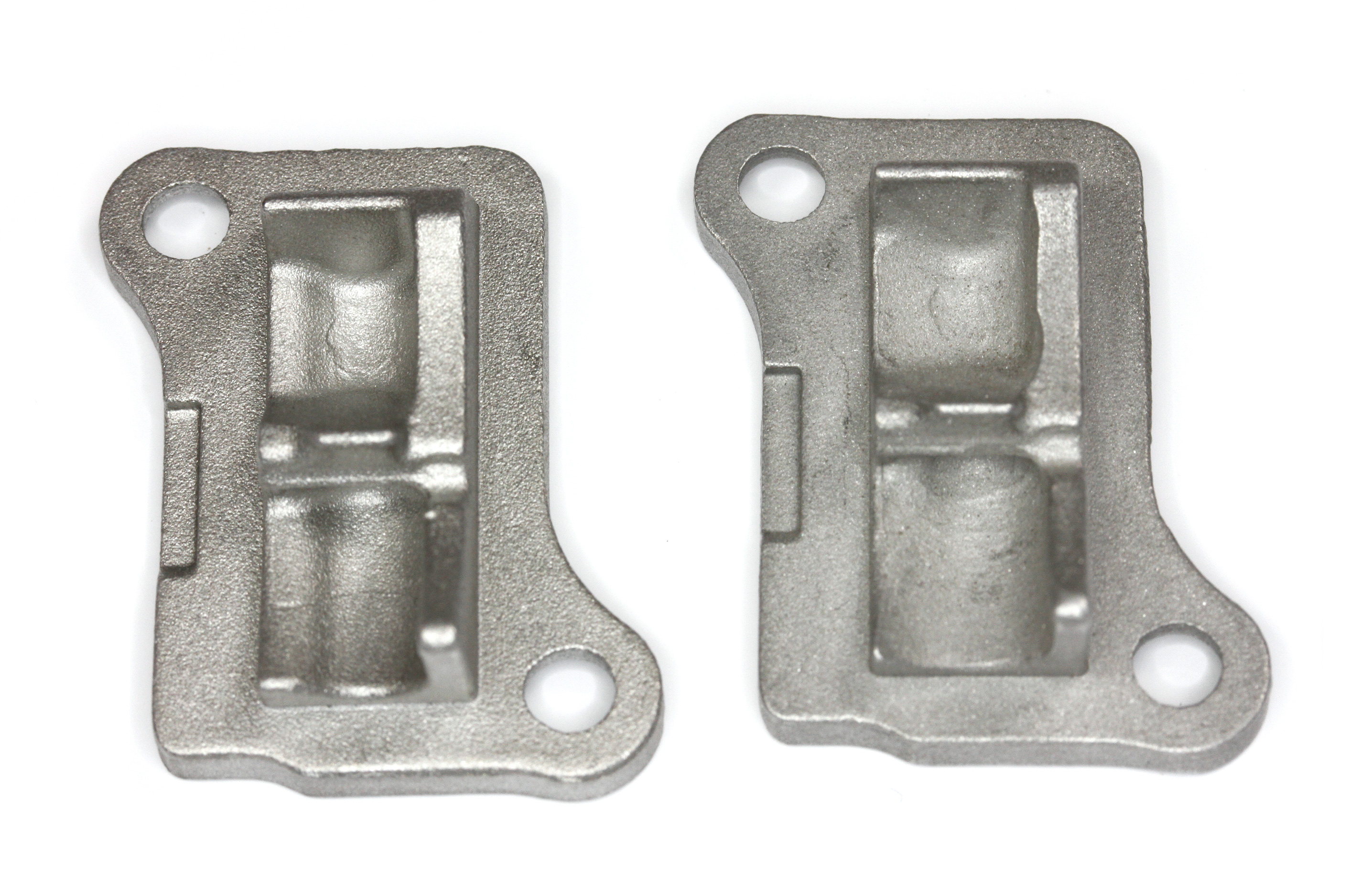

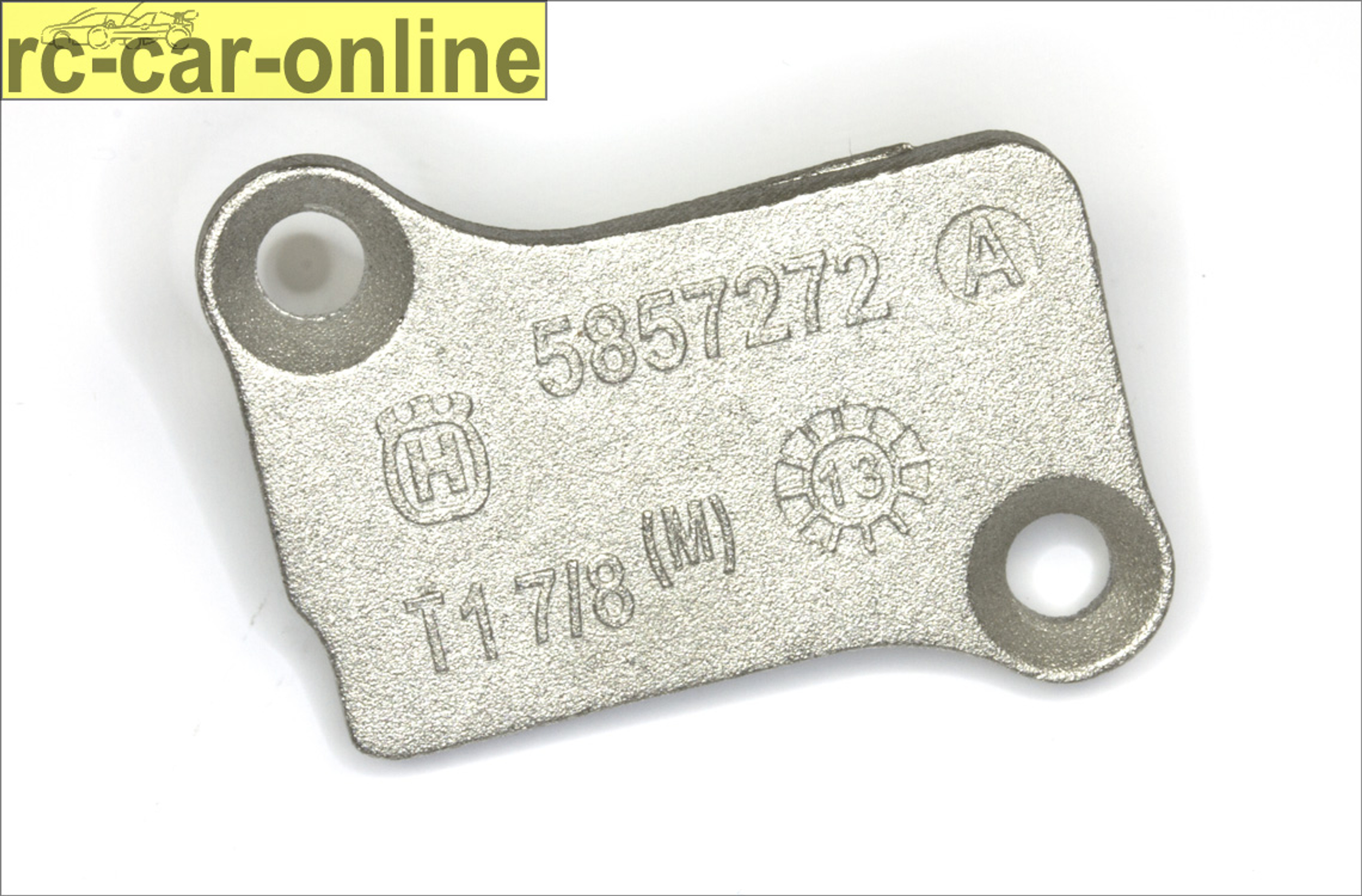

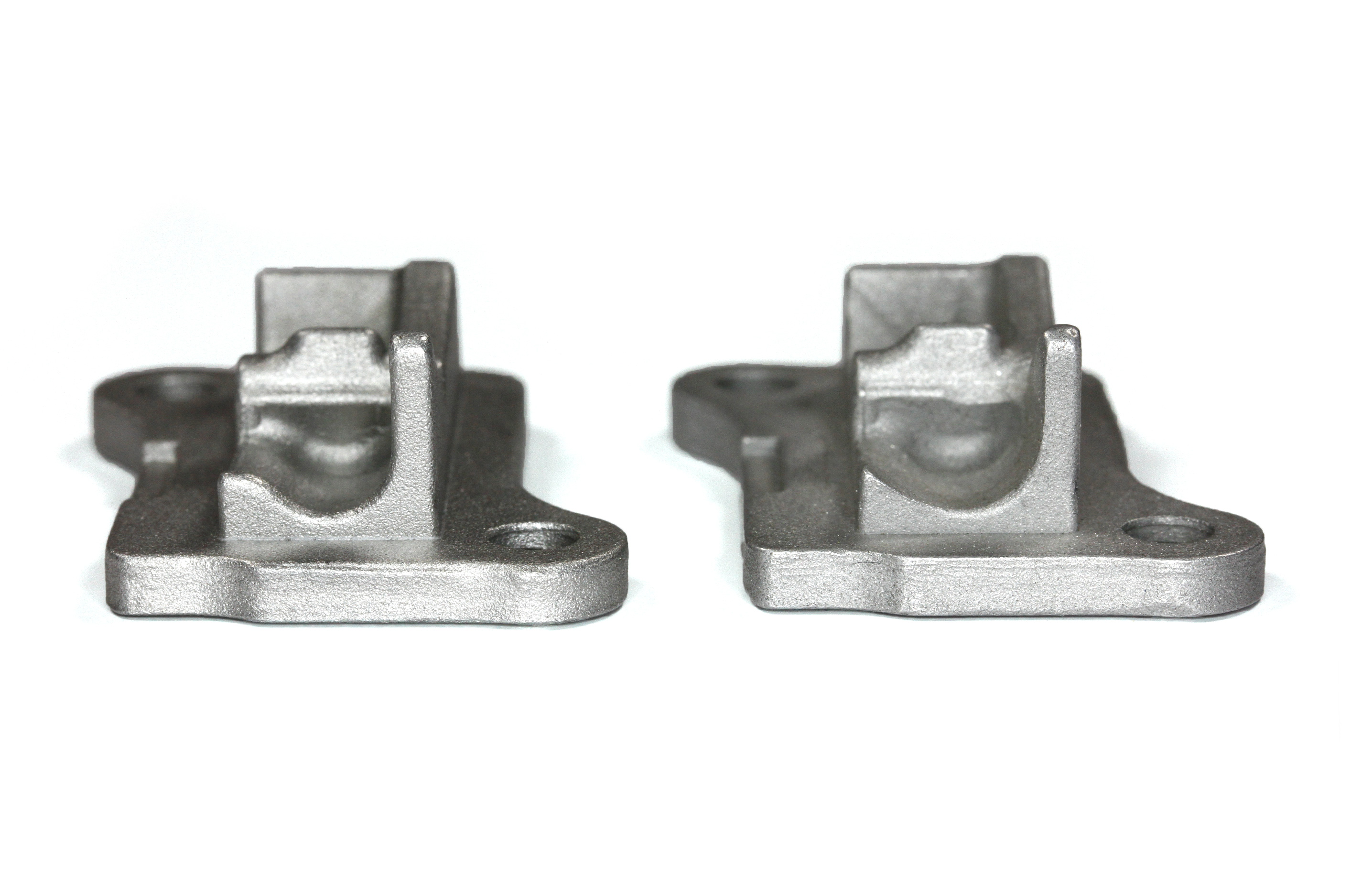

y1016/002+3T Tuning transfer port coversfor Zenoah G320

Reduced cross-section and flow-optimized transfer port cover plates for improved and faster gas flow for the Zenoah G320. The improved gas flow rate improves speed and gives faster throttle response in the medium rpm range. To improve mixture formation, the plates were glass bead blasted after machining.

€34.90*

This product is no longer available.

y1016/001 Cylinder G320RC

Genuine Zenoah spare/option part. Replacement part fits Zenoah G320RC.

€69.90*

y1016/051 Carburetor WT1107 G320RC

Genuine Zenoah spare/option part. Replacement part fits Zenoah G320RC.

€79.90*

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

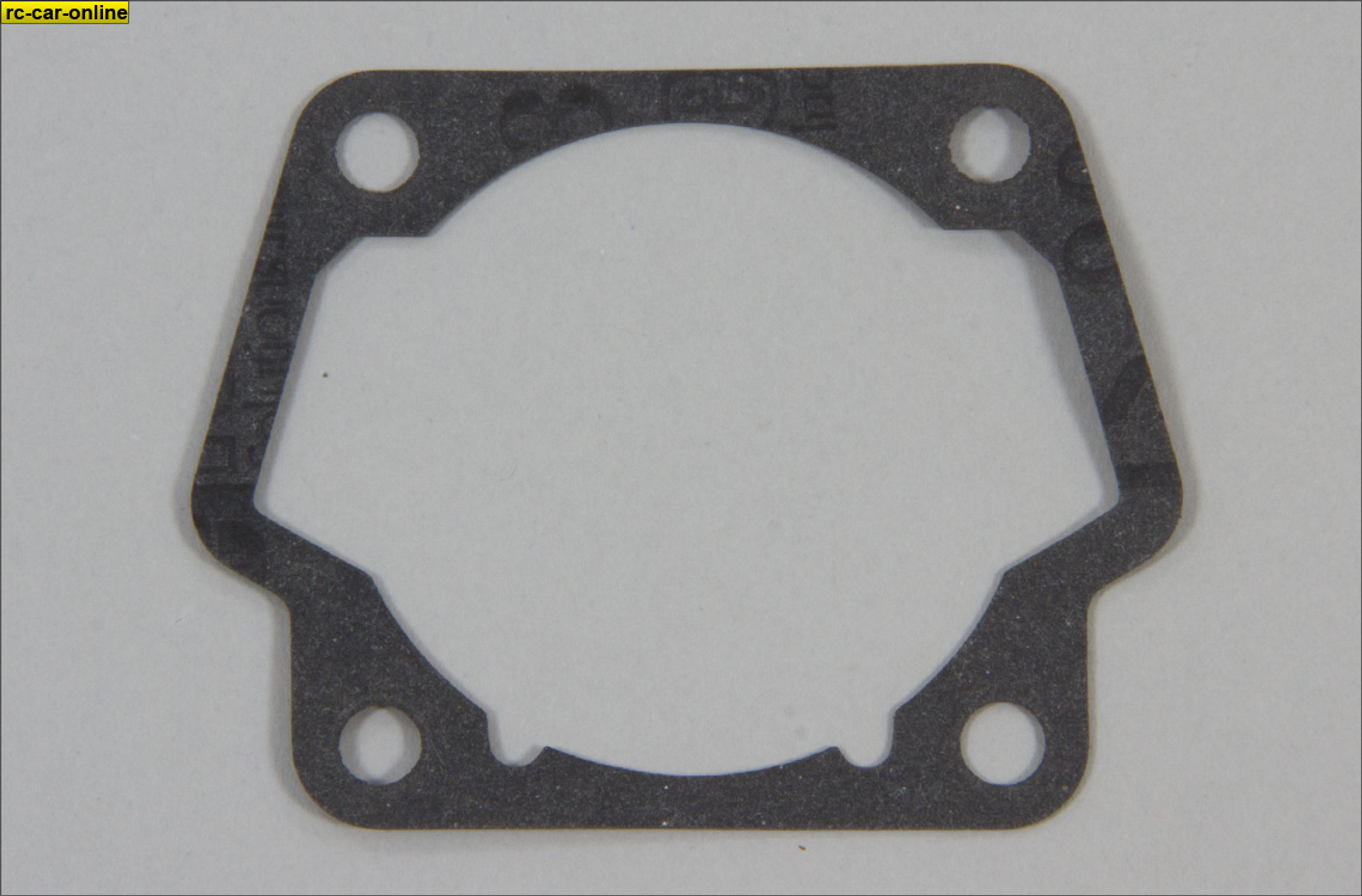

y1016/005 Cylinder gasket G320RC

Genuine Zenoah spare/option part. Replacement part fits Zenoah G320RC.

€4.90*

y1016/013 Crankcase gasket G320RC

Genuine Zenoah spare/option part. Replacement part fits Zenoah G320RC.

€4.90*

y1016/025 Piston ring G320RC

Genuine Zenoah spare/option part. Replacement part fits Zenoah G320RC.

€11.00*

y1016/011 Crankcase, complete G320RC

Genuine Zenoah spare/option part. Replacement part fits Zenoah G320RC.

€69.90*

y1016/026 Piston pin G320RC

Genuine Zenoah spare/option part. Replacement part fits Zenoah G320RC.Dimensions: Outer diameter: 9 mmInner diameter: 6mmLength: 32 mm

€9.80*

y1016/024 Piston G320RC

Genuine Zenoah spare/option part. Replacement part fits Zenoah G320RC.

€24.90*

y1016/028 Needle bearing G320RC

Genuine Zenoah spare/option part. Replacement part fits Zenoah G320RC.

€8.90*

y1016/111 Starter decal G320RC

Genuine Zenoah spare/option part. Replacement part fits Zenoah G320RC.

€3.90*

y1016/021 Cylinder shroud G320RC

Genuine Zenoah spare/option part. Replacement part fits Zenoah G320RC.

€12.90*

y1016/007 Insulator gasket G320RC

Genuine Zenoah spare/option part. Replacement part fits Zenoah G320RC.

€4.90*

y1016/100-02 Clutch housing Zenoah G320RC for HPI models

Genuine Zenoah G320RC clutch housing.Modified (milled) clutch housing for installation of a Zenoah G320RC engine in all HPI Baja 5 largescale cars.

€49.90*

y1016/095 Original Zenoah 32 cm³ 4 Bolt Rebuilt kit

Original Zenoah 32 cm³ Rebuilt kit Top quality with Zenoah warranty!Set includes the following parts: CylinderPistonPiston ringCylinder foot gasketPiston pinPiston pin clipThrust washer for needle bearingCover for transfer portAttention: For the assembling of the covers enclosed please use the HT-flange sealer y804 and pay attention to the assembling instructions enclosed.Please note:It is recommended to use a gasket sealer with every gasket on an engine. This gives better sealing anda longer lasting gasket. We also recommend:y0804 HT-flange sealer 518 y0994 Marston sealery0807 MD-Sil RTV silicone sealer

€109.90*

y1016/016 Shaft seal, large G320RC

Genuine Zenoah spare/option part. Replacement part fits Zenoah G320RC.

€18.30*

y1016/029 Washer for needle bearing G320RC

Genuine Zenoah spare/option part. Replacement part fits Zenoah G320RC.

€2.90*

y1016/100-01 Clutch housing Zenoah G320RC for Losi models

Genuine Zenoah G320RC clutch housing.Modified (milled) clutch housing for installation of a Zenoah G320RC engine in all Losi models.

€49.90*

y1016 Zenoah G320RC with Walbro carburetor WT1107

With 32 cm³ and 30% more power than the Zenoah G290.Significantly more torque and higher stamina due to larger sized bearings all around, with Racing Carburetor Walbro WT1107.The motor is supplied with WT-1107 carburetor and spark plug.SpecificationType: Two stroke gasoline engineDisplacement: 31,8 cm³Bore: 38 mmStroke: 28 mmWeight: 2,3 KgOverall Dimension:Length: 167 mmWidth: 215 mmHeight: 196 mmMaximum Output: 4,6 PSMaximum Torque: 2,00 N-mRotation Direction: CounterclockwiseCarburetor: Walbro WT-1107Spark plug: CMR7HStarting: Recoil starterFor all HPI Baja 5 cars the G320RCer clutch housing has to be shortened at the mounting base, for Losi 5ive- T and Desert Buggy XL cars the clutch housings overall length must be shortened to CY size.With the new "K & N" version of the Losi DBXL there is another detail, which need to be considered.From the very beginning the hole pattern for the engine installation in the DBXL chassis plate was no precise match to the hole pattern of the engine, even when delivered in stock form with standard engine. Now with the "K&N" version the engine mount has been changed to eliminate this discrepancy. However, all aluminum engine mounts available on the market share their dimensions with the previous plastic engine mount. For the installation of a G320 Zenoah in a "K&N" -DBXL two possible combinations exist in order to obtain the correct hole pattern:When using the standard (new) plastic engine mount a shortened clutch housing is required as in a 5ive-TWhen using an aluminum engine mount a stock length clutch housing is requiredSeparately, it is recommended to enlarge the cutout in the body panel in front of the K & N air filter for about 2 - 3 mm to ensure that the panel cannot chafe on the air filter.When installing the air filter you must pay attention to the length of the screws.For use on Losi and HPI we recommend M5x45 screws (like H94763); you can also cut existing screws to length, of course.When ordering with a modified clutch housing we will include these screws!In our shop you can select from Zenoah G320RC engines already modified to fit your HPI or Losi car.The installation of the Zenoah G320RC in other cars (like FG or Smartech buggies / monsters a.s.o.) is not even remotely straightforward, since the layshaft pinion (the small pinion in front of the big differential spur gear) is in the way for the larger Zenoah G320RC crankcase.Compatibility Zenoah / Losi 5ive-T:Please note that for installation in a Losi 5ive the fan cover must be swapped for a Losi or CY cover #5341 in order to fit the chassis" bolt pattern.If you want to install a Zenoah engine into the Losi 5ive, you usually have to use a fan cover from the CY engine.However, there is a workaround to maintain Zenoah fan cover.The adjustment is done via the pinion specific mounting plates for the engine. The change always affects only the rear, outer (carburetor side) plate under the fan cover. This is rotated by 180°; so that the embossed number on this plate faces the exhaust side of the engine!18T pinion: use 20T plate, rotated 180°19T pinion: use 19T plate, rotated 180°20T pinion: use 18T plate, rotated 180°On the plus side you gain the opportunity to easily mount a Zenoah engine keeping the original fan cover. On the other hand there will be the disadvantage of the necessity to combine two different sets of engine mounting plates when installing any pinion other than the stock 19T version. Therefore we do not recommend this workaround for everyday use. Nevertheless it works perfectly should ever the need arise. Attention! We recommend to run exclusively fully synthetic 2-stroke engine oil, like y0813 Motul 800 racing oil.

€339.90*
