Complete set with all required installation parts!

Perfect option for 1/5th scale models looking to run a 8S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing with heat sinking fins, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and high-precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors. Perfectly matched to the Firma 160 Smart ESC.

TT1021 Top Tuning Electric conversion kit for Losi 5ive-T/B and Mini

All aluminum parts are made of 7075 alloy.
Front motor mount design to assure ample clearance for the rear brake disc when running mechanical brakes.
Accepts two batteries up to 150 mm long und 50 mm wide. The battery tray accepts batteries up to 164 mm long, but the motor pinion limits the max. length of one battery to 155 mm.

This conversion kit is for the Losi 5iveT/B and Mini. The conversion kit for the Losi 5ive-T 2.0 has the order number TT5014

Driving batteries with the following maximum dimensions can be installed:

• Length: 165 mm
• Width: 51 mm
• Height: variable

The speed controller (ESC) requires EC8 connections or corresponding adapter cables!

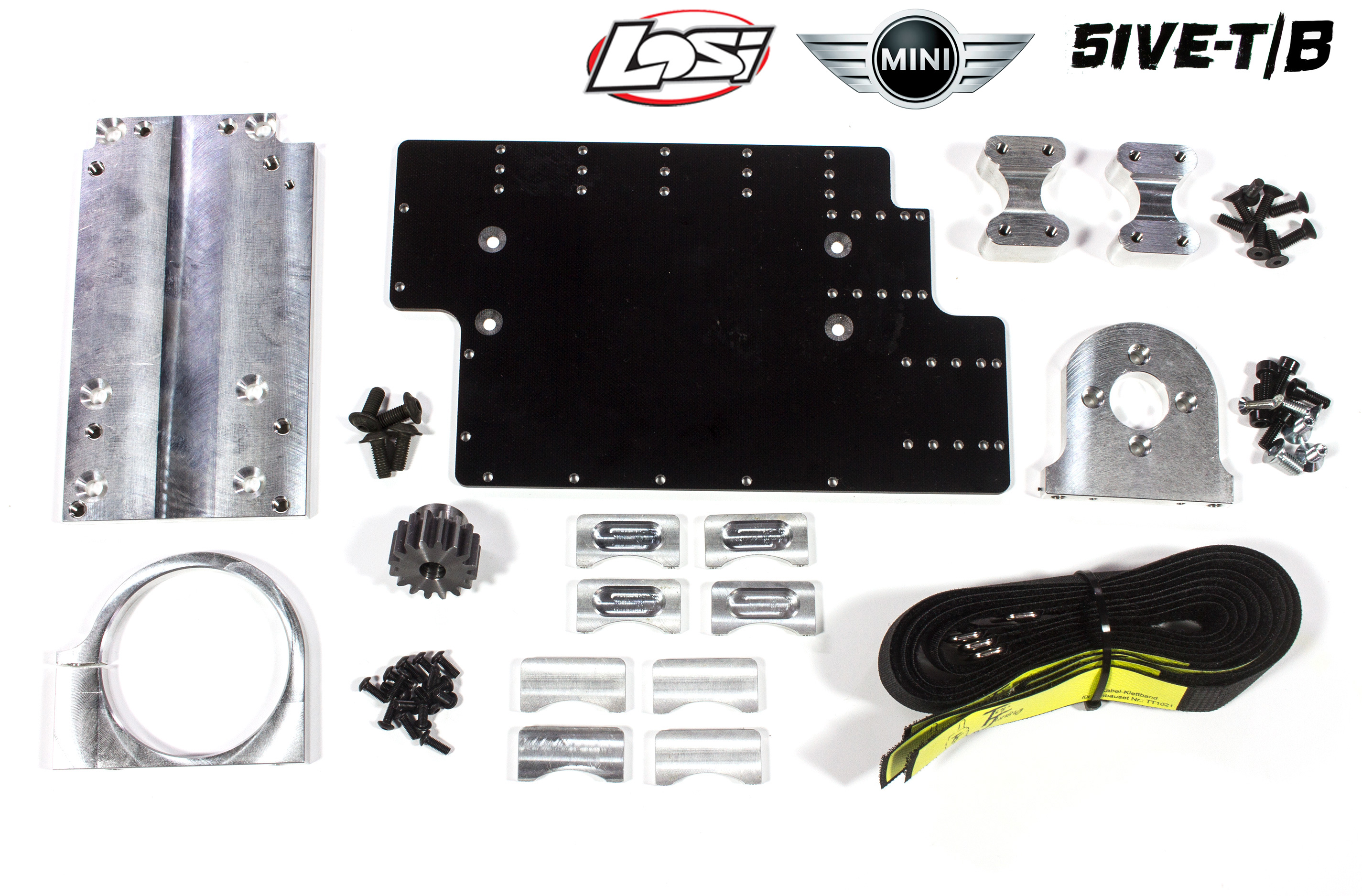

Contents:

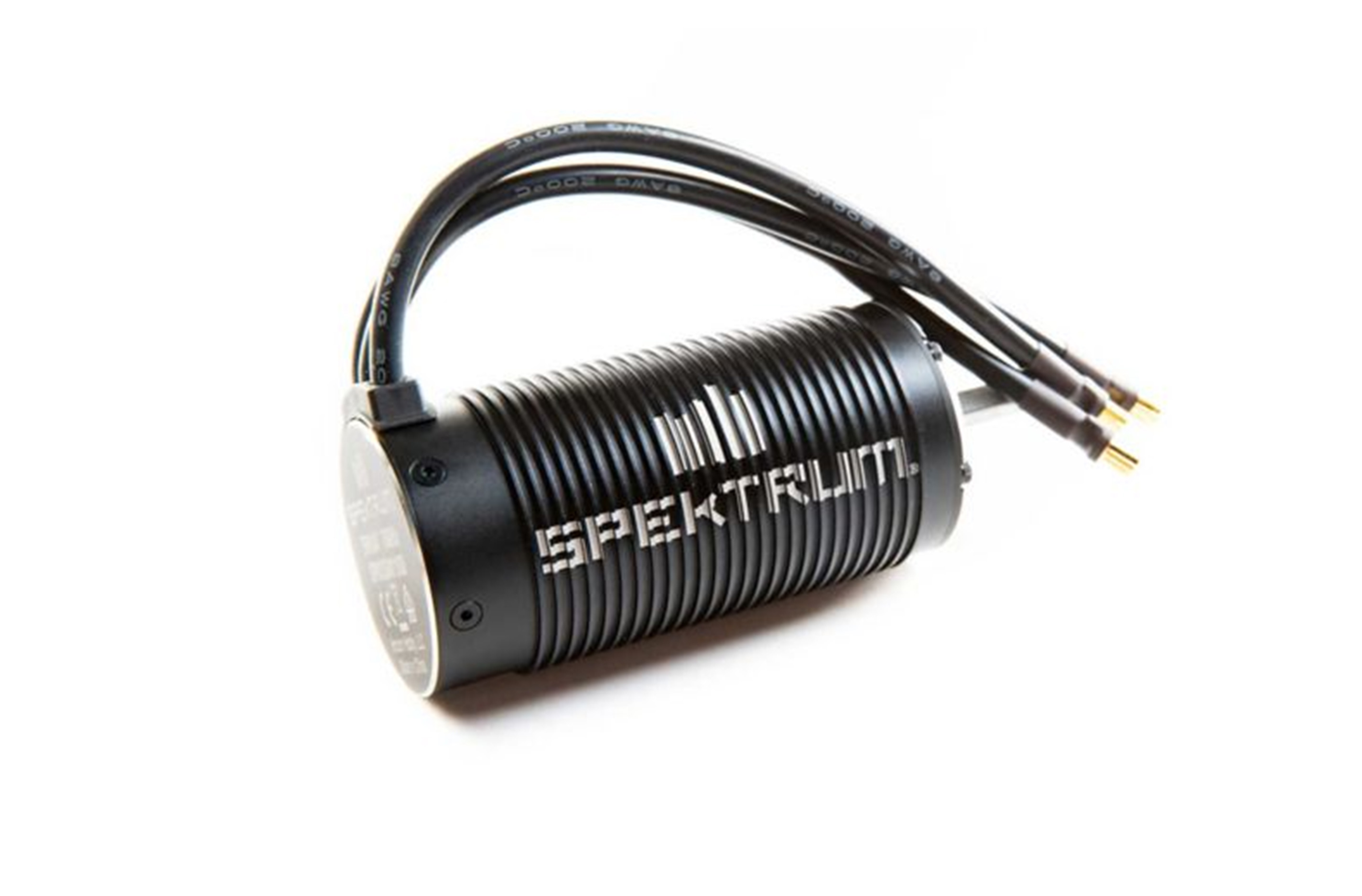

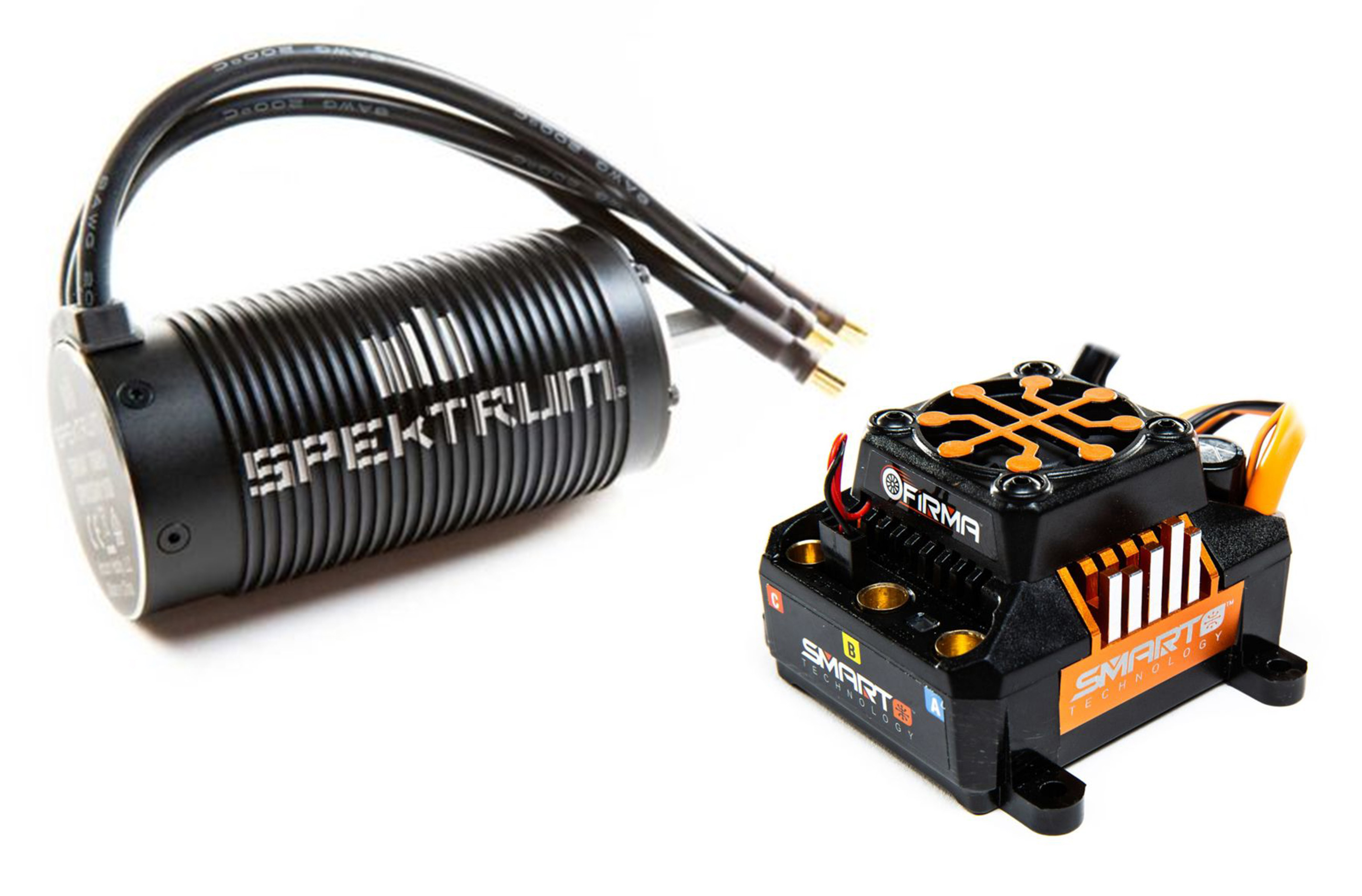

• SPMXSM1100 Spektrum Firma 780Kv Brushless Motor

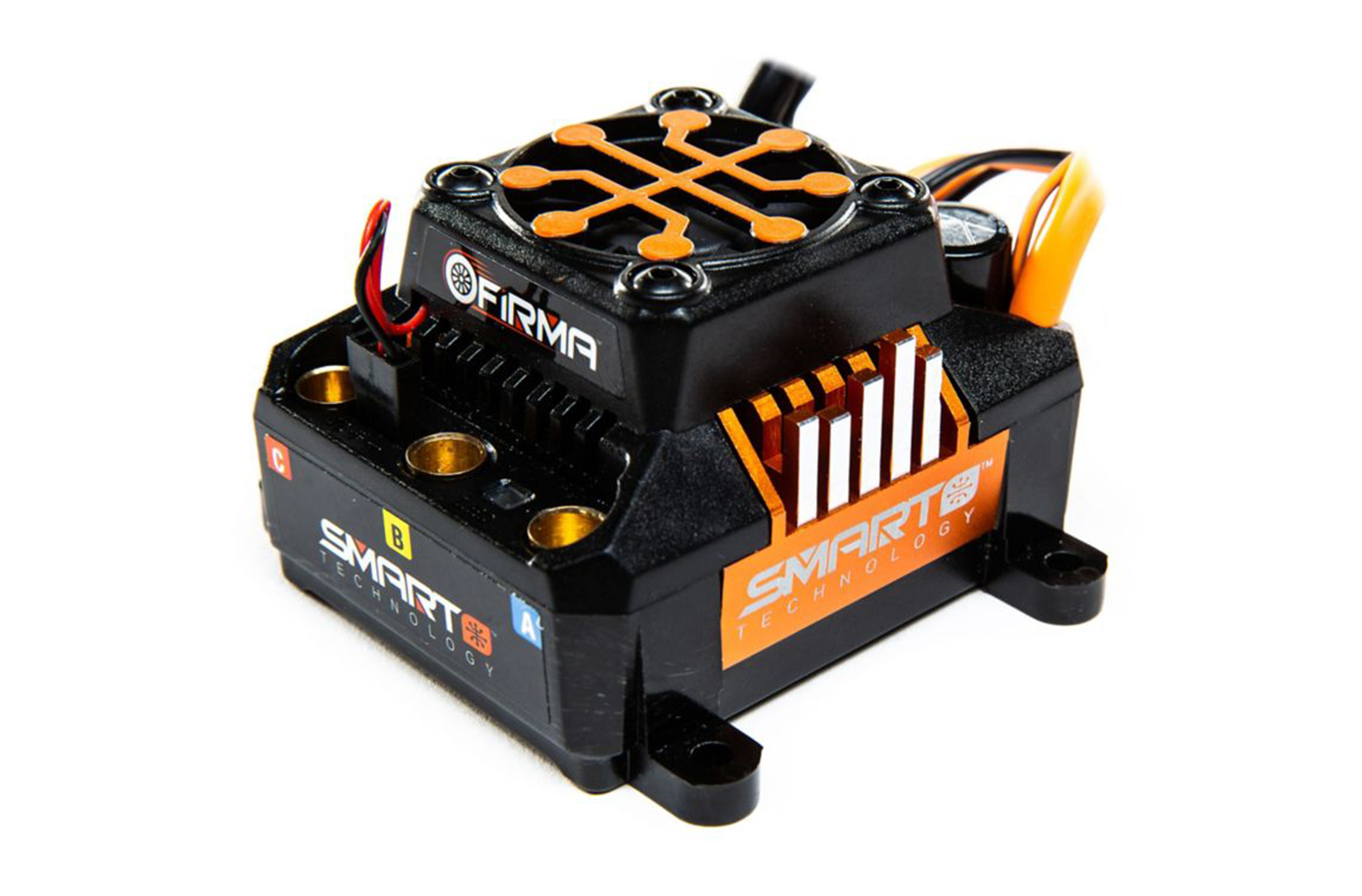

• SPMXSE1160 Spektrum Firma 160 Amp Brushless Smart ESC 3S-8S

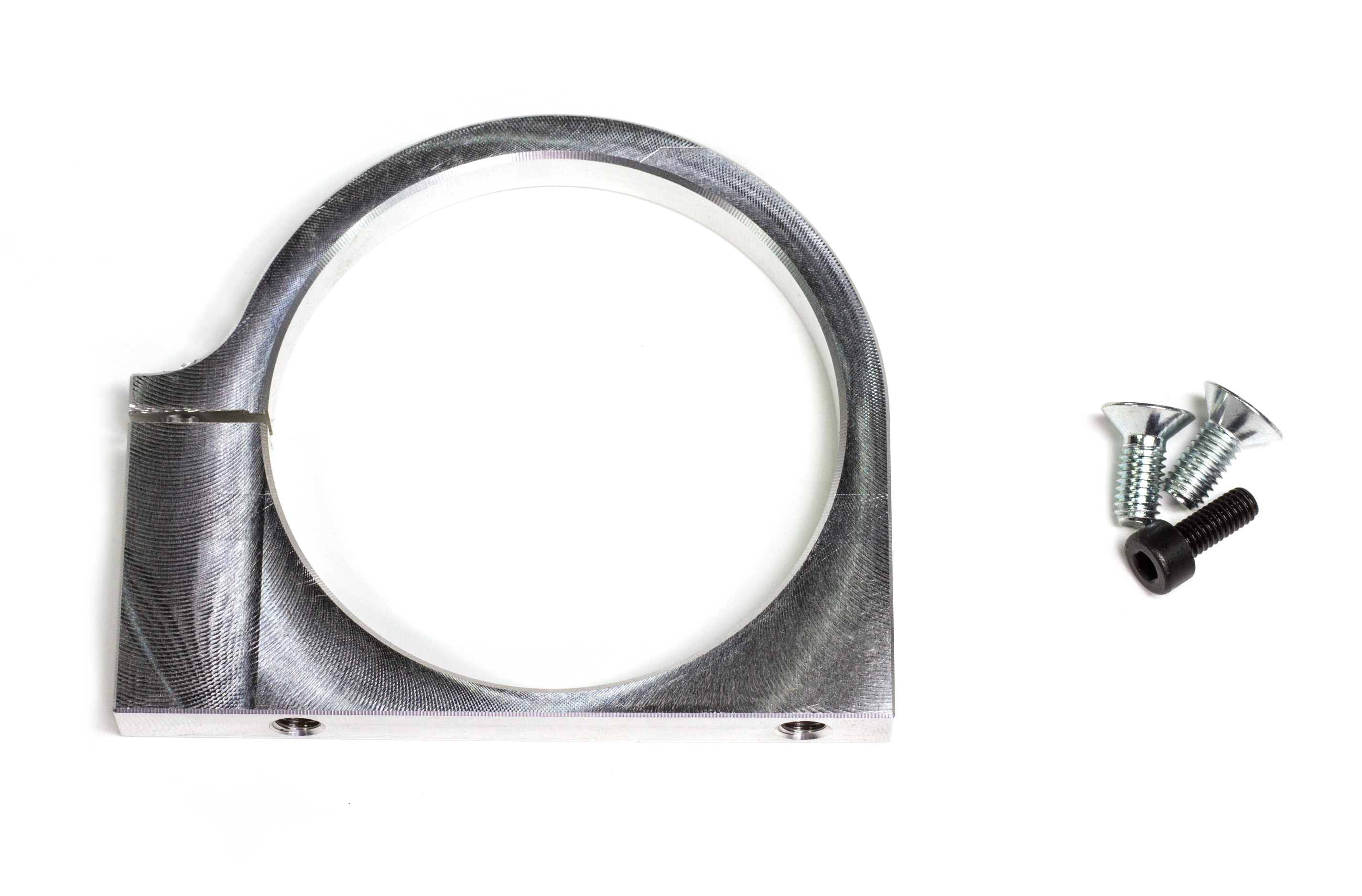

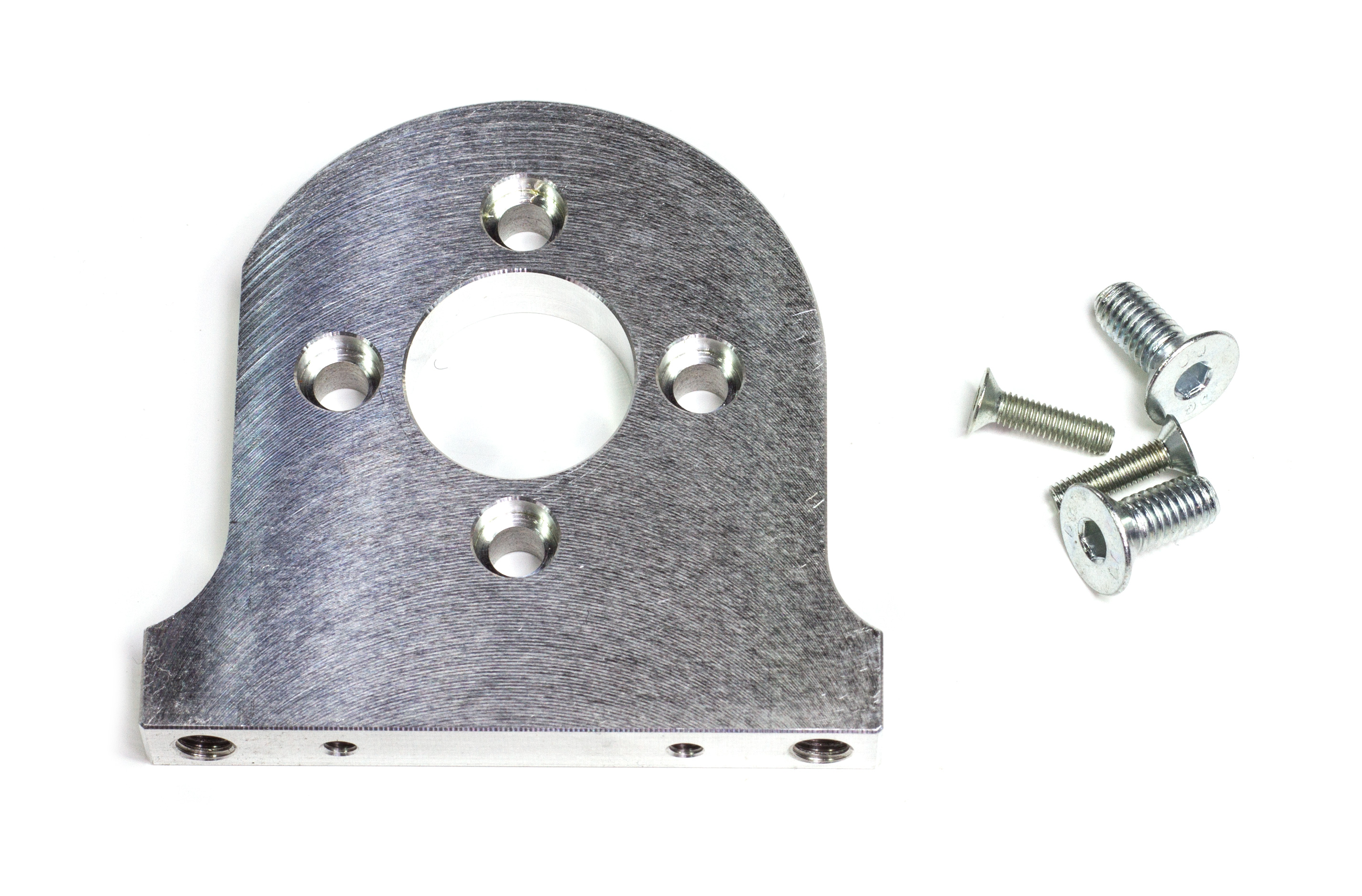

• Motor mount with your choice of rear clamp

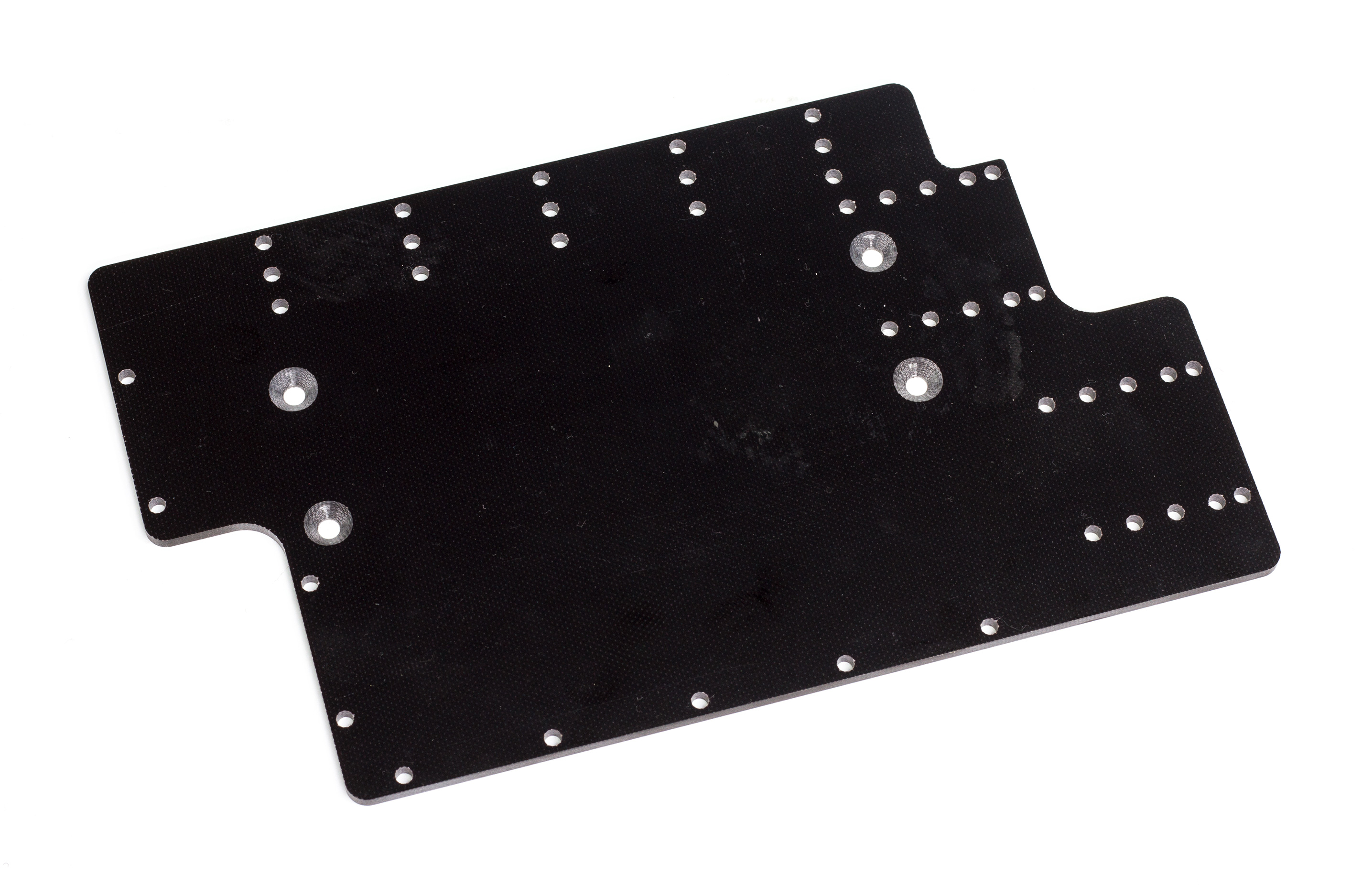

• Battery carrier plate made of 3 mm epoxy with aluminum brackets for the hook-and-loop bands
• 4 hook-and-loop bands to secure the batteries
• aluminum mounting pedestals for the battery plate
• 17T pinion with 8 mm bore diameter
• Mounting screws
