TT1023 Top Tuning brushless conversion kit with motor and ESC for Losi 5ive-T 2.0
D


from EUR 609,90


set - + shipping costs
all prices include VAT


1 2 3 4 5

print
Config
Available from stock
Available from stock
Place your order within the next 19.01.22 14:00:00 and we will ship tomorrow,  19 . January 2022
TopTuning


Genuine Top Tuning spare/option part.

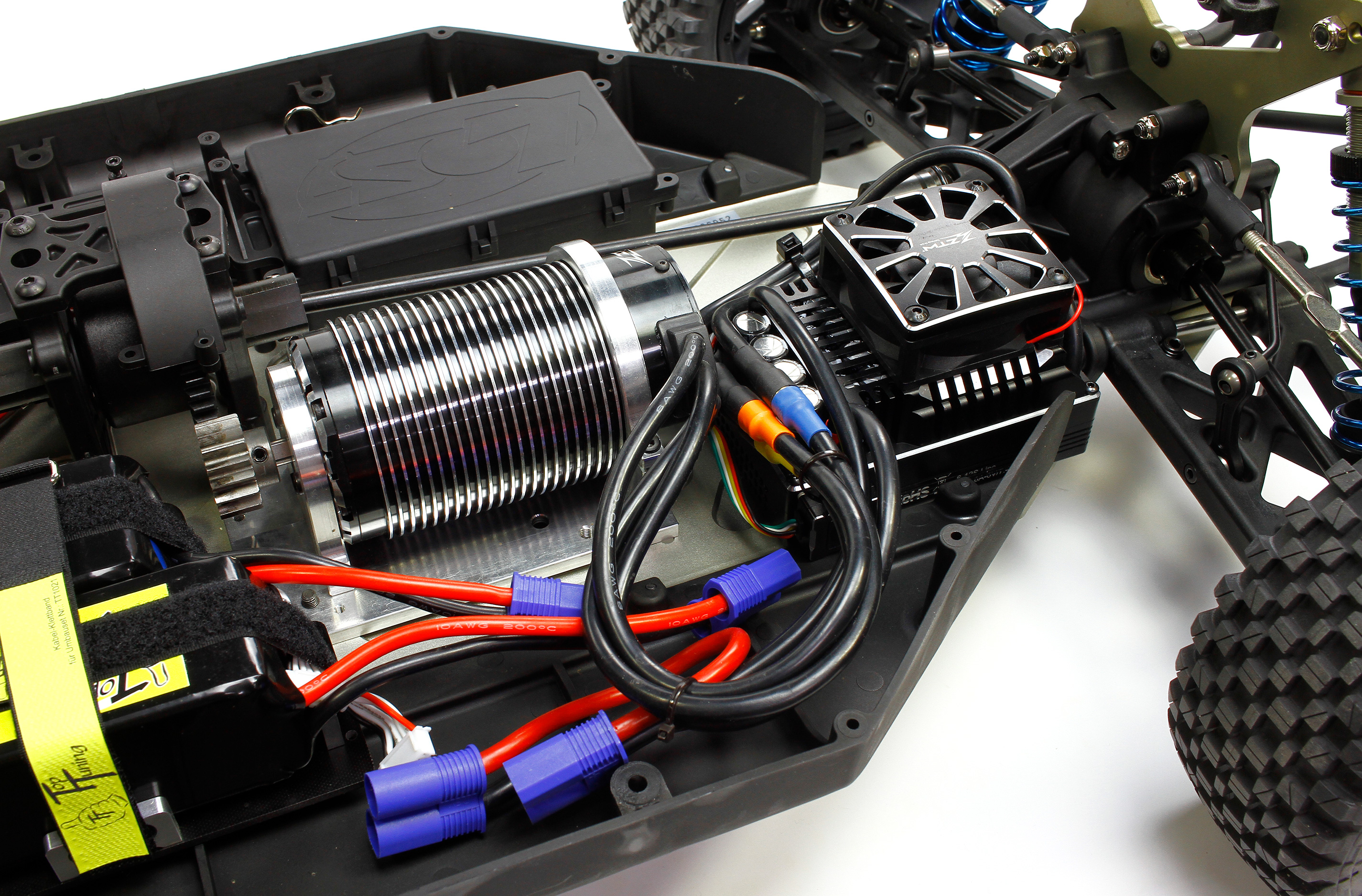

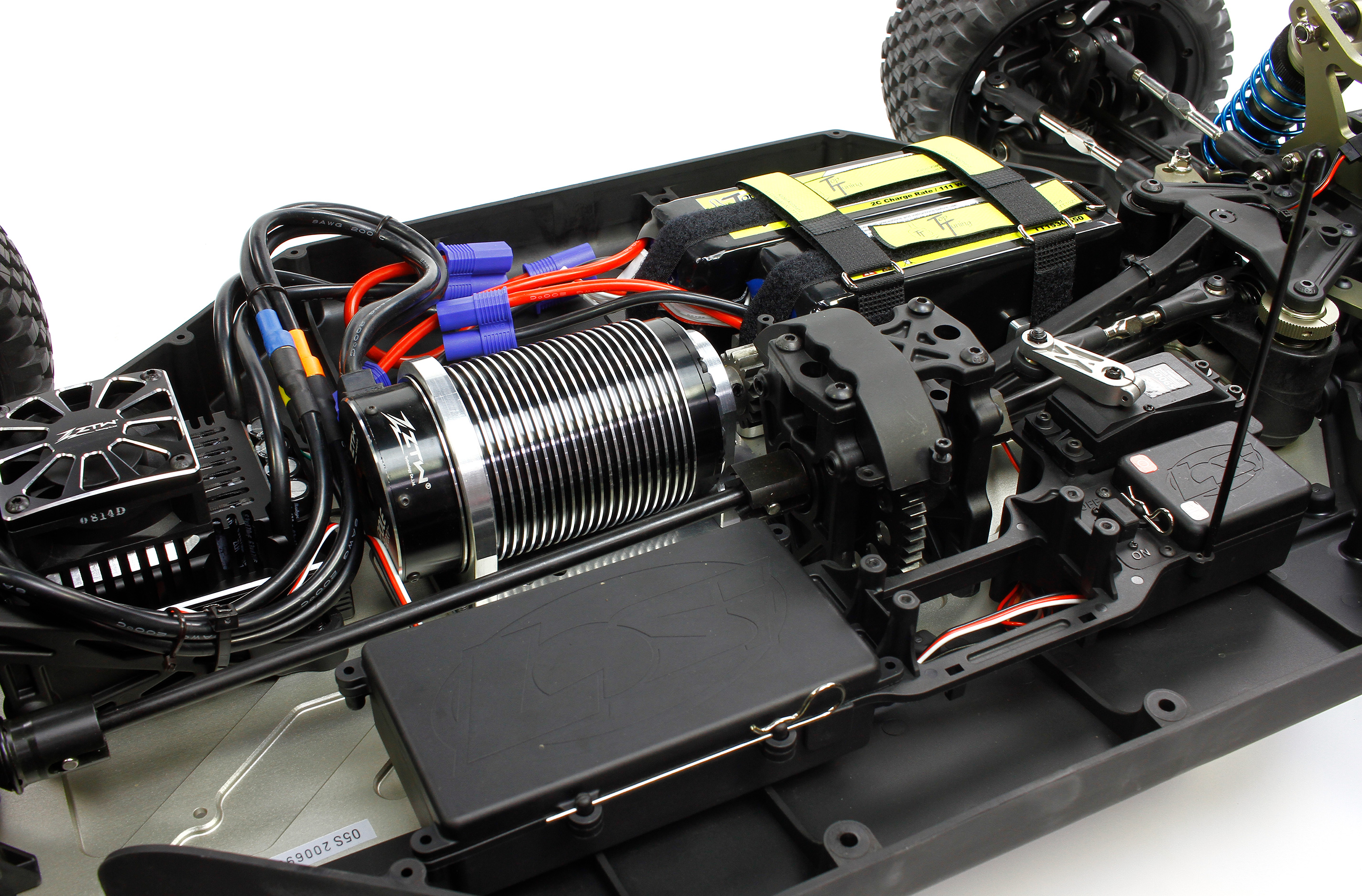

This kit includes all required parts for converting a Losi 5ive-T 2.0 into an electric car.

Contents:
  • TT1024 Top Tuning Electric conversion kit for Losi 5ive-T 2.0

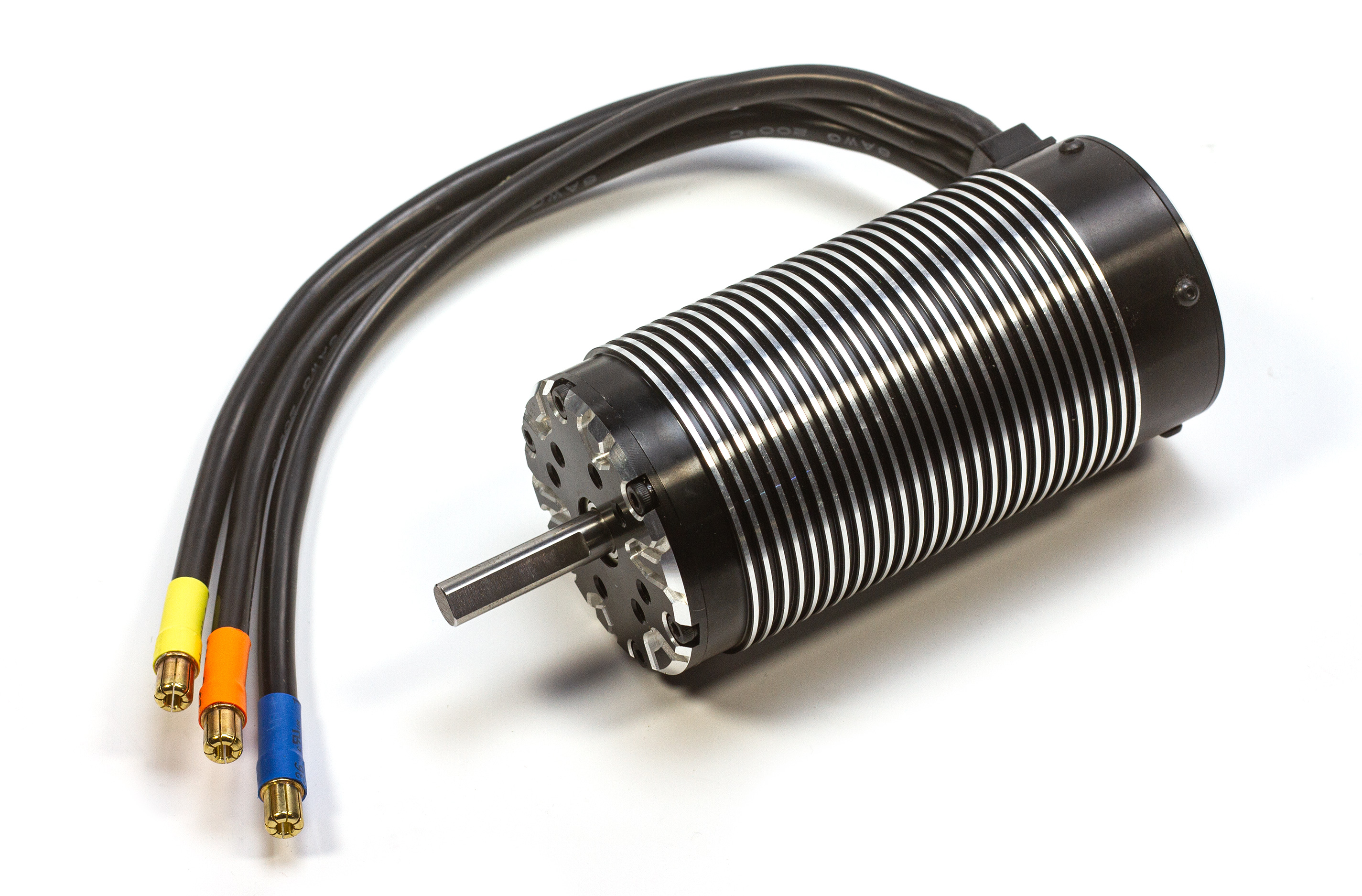

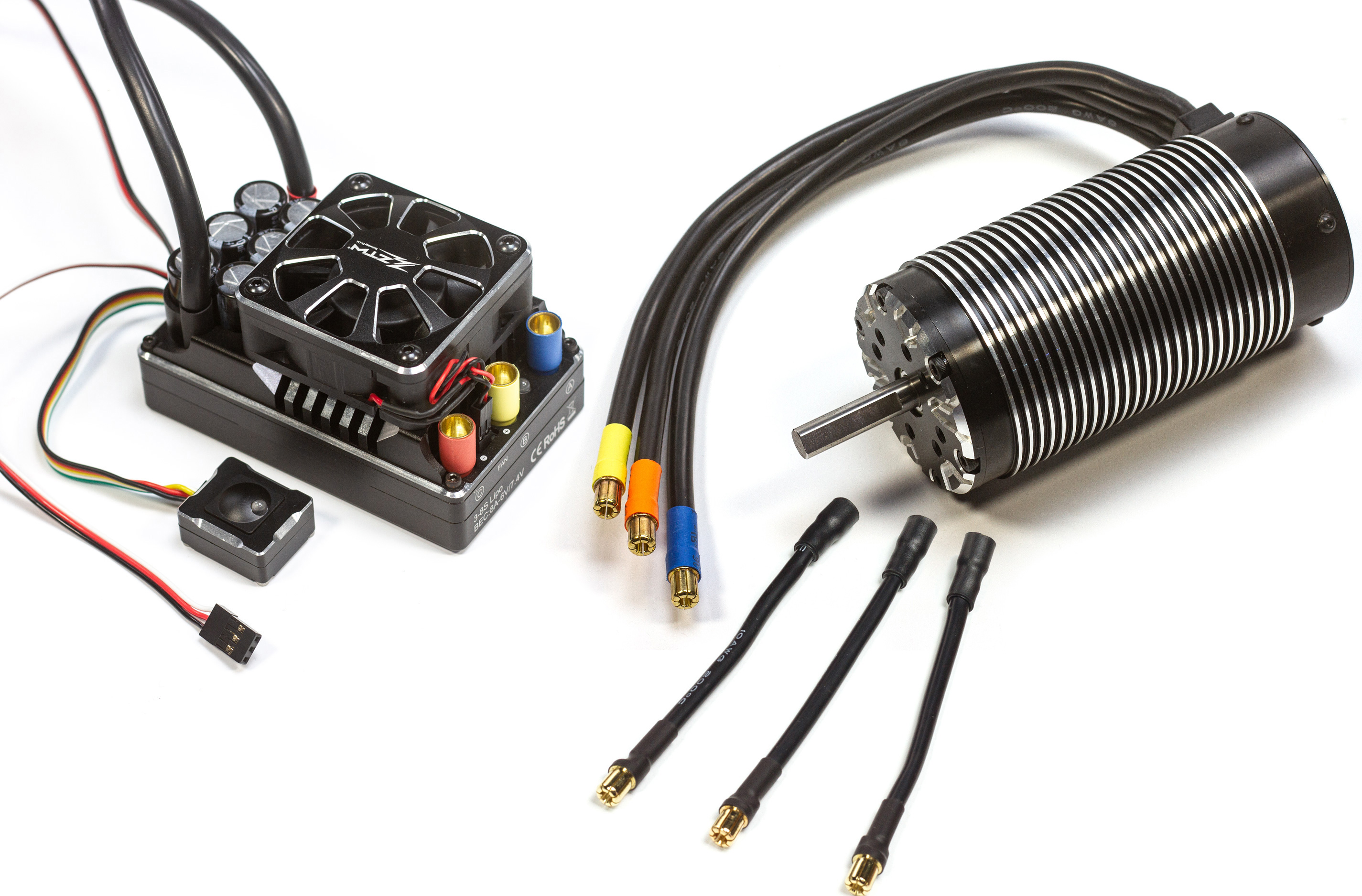

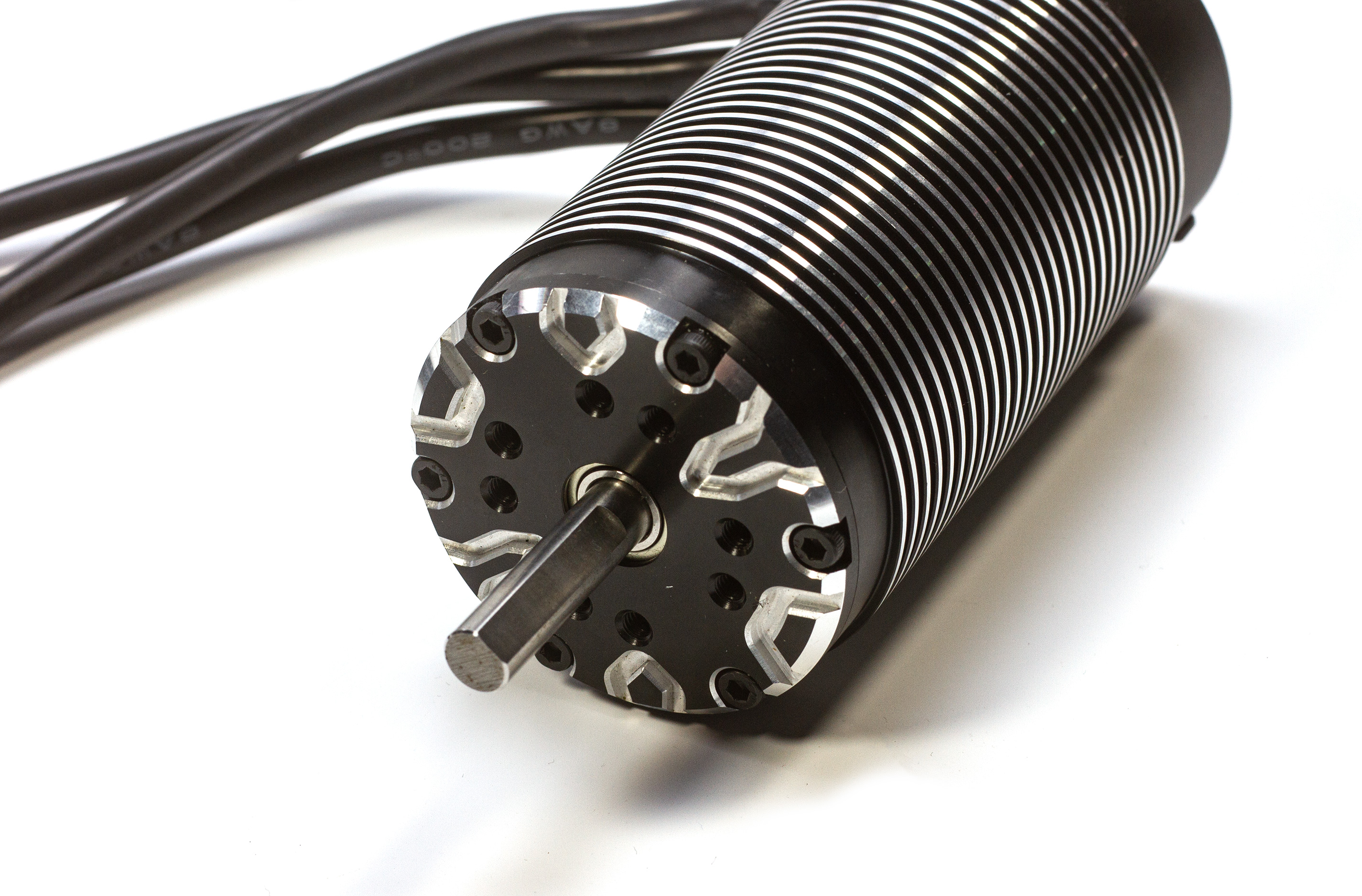

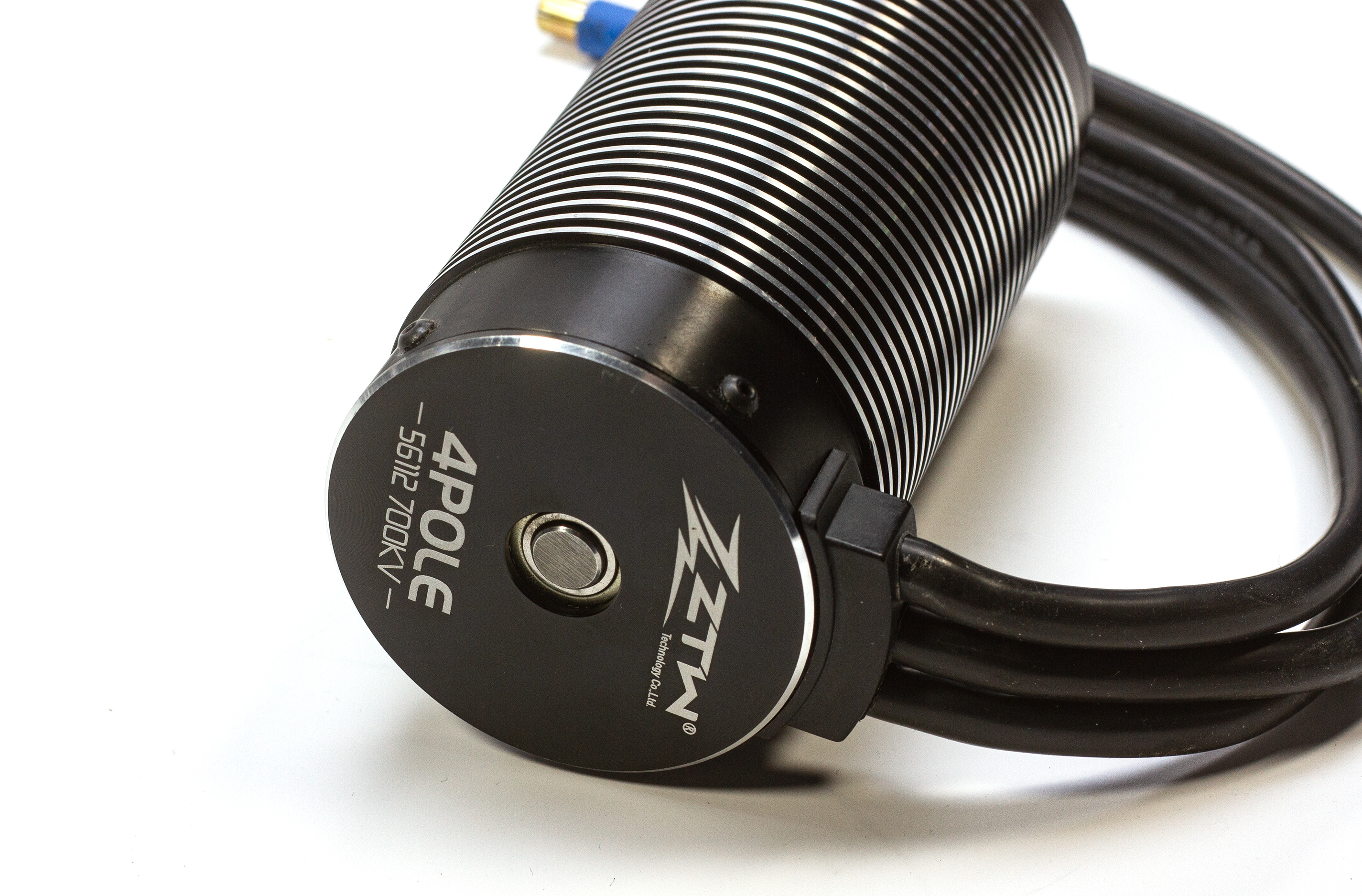

  • y1531/01 ZTW Beast Pro 200A ESC and 56112 ZTW Monster Brushless Motor 700 kV


TT1024 Top Tuning Electric conversion kit for Losi 5ive-T 2.0


Genuine Top Tuning spare/option part.

All aluminum parts are made of 7075 alloy.
Front motor mount design to assure ample clearance for the rear brake disc when running mechanical brakes.
Accepts two batteries up to 164 mm long und 50 mm wide.

Rear motor clamps:
  • Diameter 57 mm i.e. for Tenshock or Castle
  • Diameter 57,8 mm i.e. for Leopard 58 line
  • Diameter 60 mm i.e. for Lehner
  • Diameter 70 mm i.e. for BP70120 ZTW Beast Brushless engine 620 kV


This conversion kit is for the 5ive-T 2.0 only. It even allows for running the big BP70120 ZTW Beast Brushless motor in combination with mechanical brakes! The center diff will be turned around between its mounting pillars for installation.

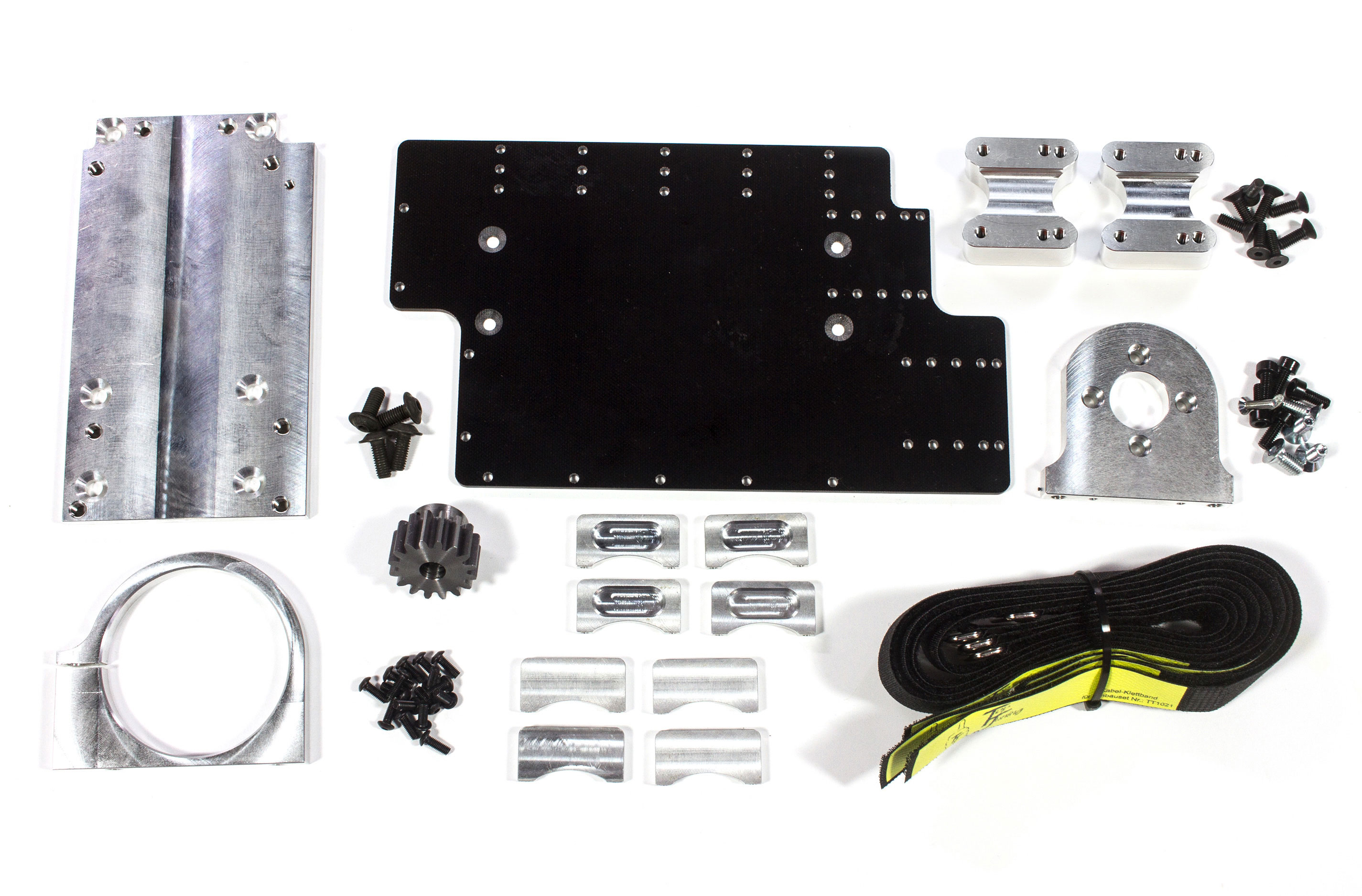

Contents:
  • Motor mount with your choice of rear clamp for 57 / 57.8 / 60 / 70 mm motor diameter

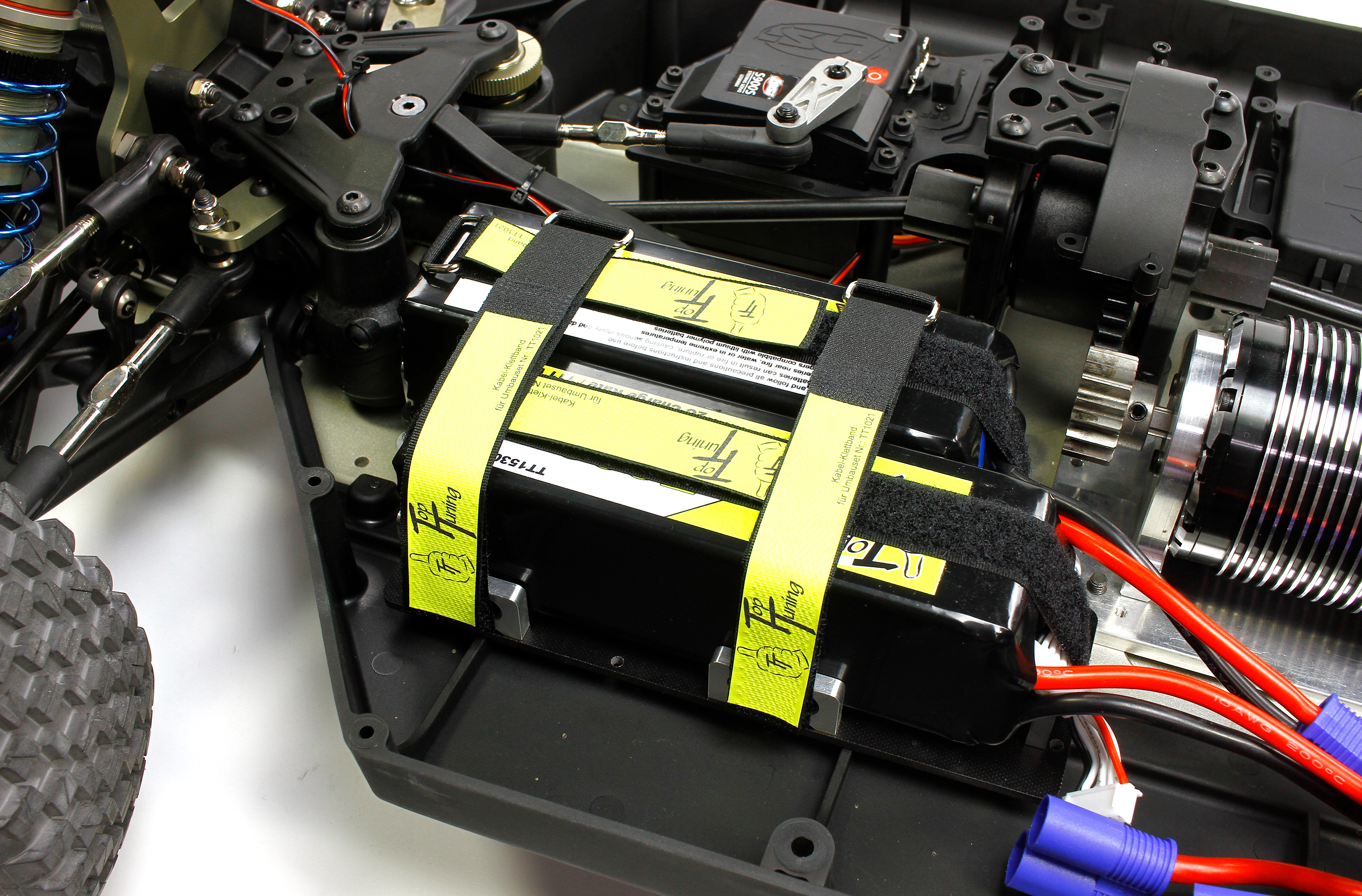

  • Battery carrier plate made of 3 mm epoxy with aluminum brackets for the hook-and-loop bands
  • 4 hook-and-loop bands to secure the batteries
  • aluminum mounting pedestals for the battery plate
  • 17T pinion with 8 mm bore diameter
  • Mounting screws

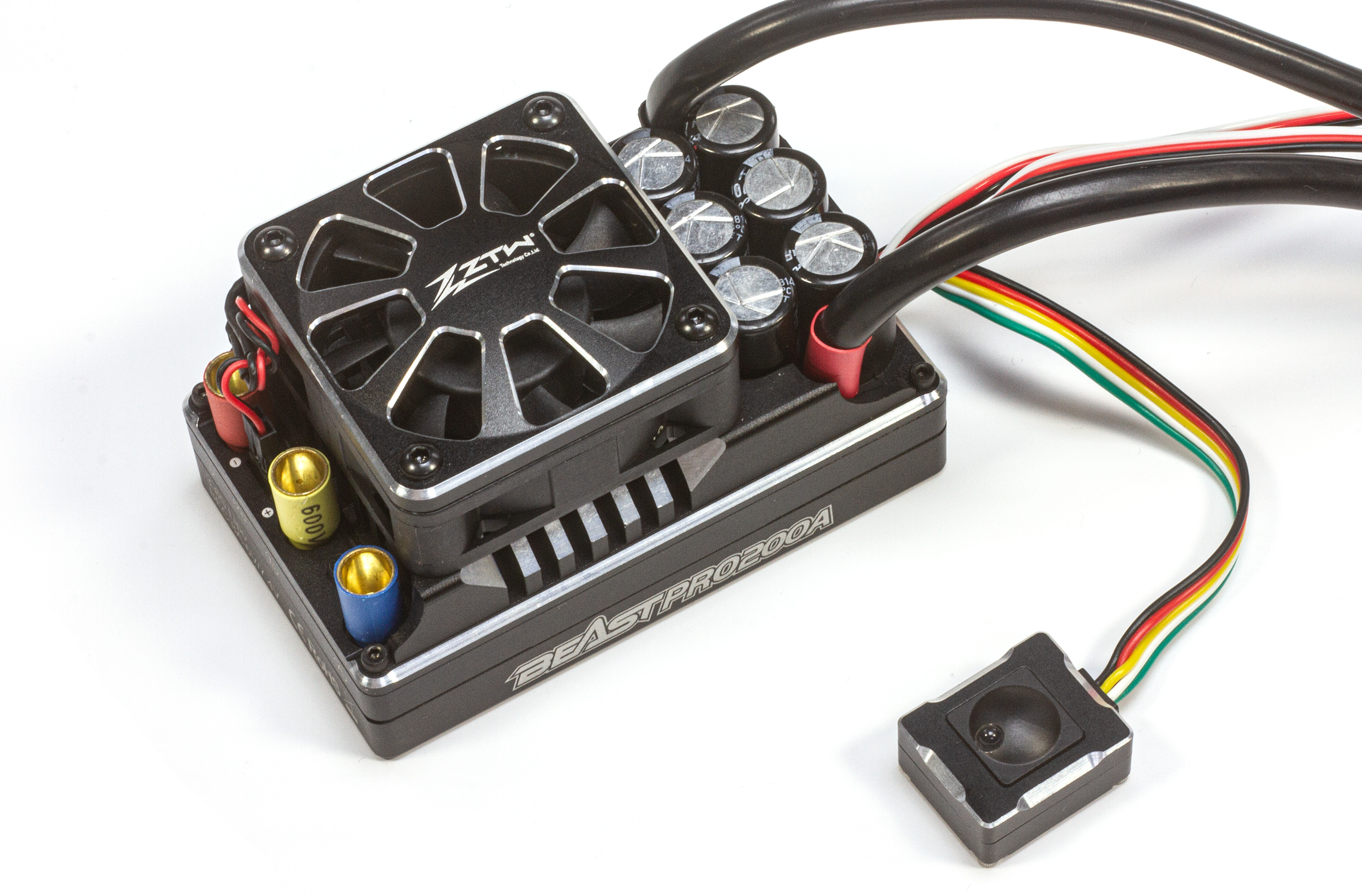

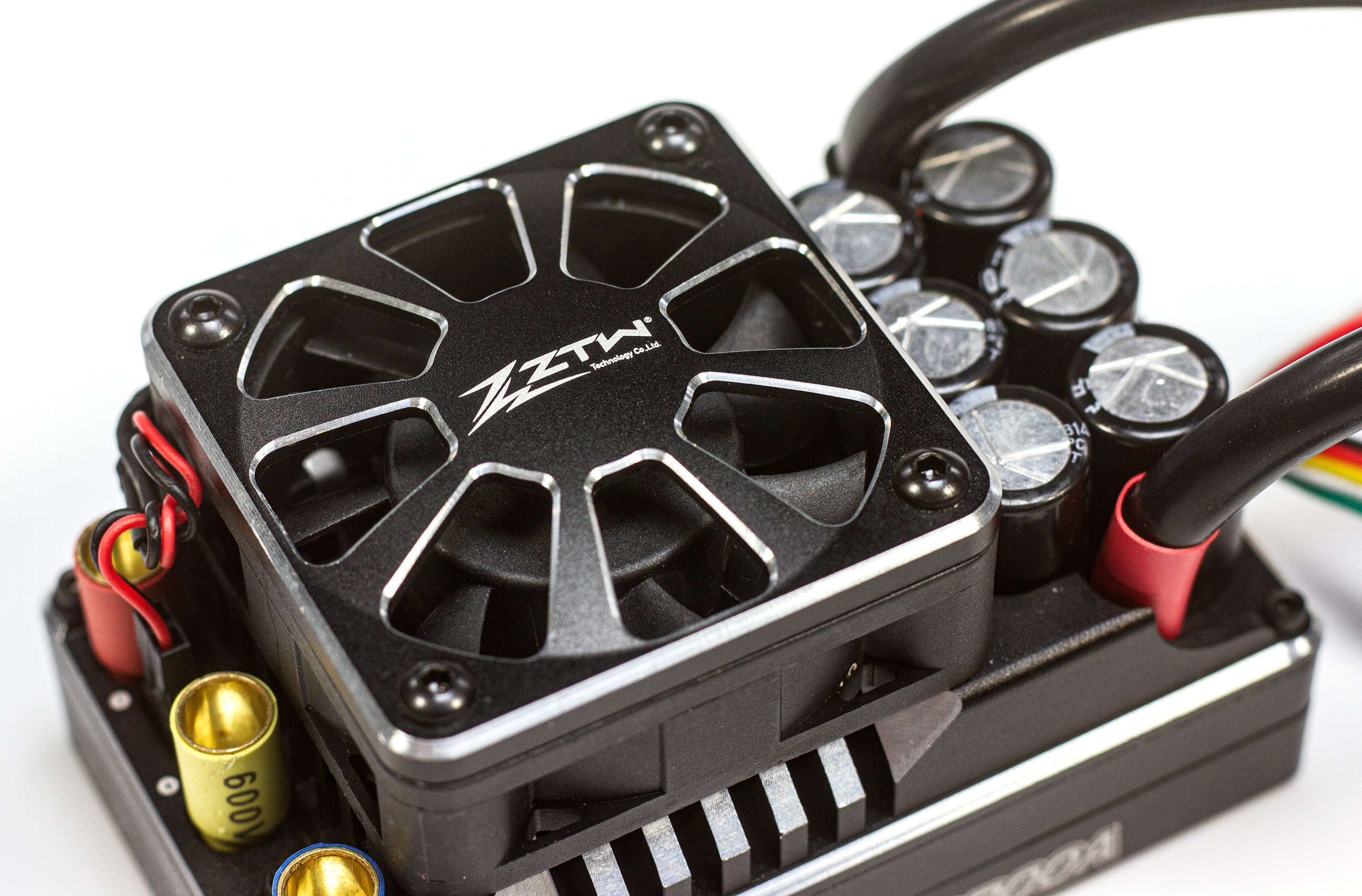

y1567 ZTW Beast Pro 200A ESC:




Specifications:
  • Max. Amps: 175A
  • Max. Voltage: 42V
  • Max. Power: 7.350W
  • KV (RPM/Volt): 700KV
  • Mounting hole depth: 8 mm
  • Bolt pattern: 4 x M4 on each 30 mm
  • Case diameter: 57,8 mm
  • Case length: 112 mm
  • Free shaft length: 30 mm
  • Shaft diameter: 8 mm
  • Gewicht: 1260g


y1549/01 ZTW Beast Pro 300A 12S ESC with BP70120 620KV Brushless motor:




Genuine ZTW spare/option part.




In our shop selection, the set is also available with the 300A ZTW BEAST 12S controller and 620kV motor at an additional cost.


y1549 ZTW Beast Pro 300A 12S ESC


Features:
  • Enchanced throttle response, excellent acceleration, linearity and driveability
  • Usind the advanced PC interface allows you to set up, program or update the firmware
  • Fully Programmable via LCD program card, PC interface
  • Adjustable BEC output 6.0/7.4V, up to 8A current output
  • Multible protection features: Low voltage cut-off protection, over-heat protection and throttle signal loss protection


Specification:
  • Continuous Current: 300A
  • Burst Current: 1800A
  • BEC: 6,0 V/7,4 V einstellbar / 8 A
  • Battery NIXX / LiPo: 18 - 36NC / 6-12S LiPo
  • Width: 74 mm
  • Length: 115 mm
  • Height: 78 mm
  • Weight: 500g
  • Programmable: Ja
  • Waterproof: yes


BP70120 ZTW Beast Brushless motor 620 kV


Specifications:
  • Max. Amps: 200A
  • Max. Voltage: 8-14S
  • Max. Power: 10.000W
  • KV (RPM/Volt): 620KV
  • Resistance: 0,0095
  • Mounting hole depth: 8 mm
  • Case diameter: 70 mm
  • Case length: 120 mm
  • Free shaft length: 30 mm
  • Shaft diameter: 8 mm
  • Gewicht: 1730g


Driving batteries with the following maximum dimensions can be installed:
  • Length: 165 mm
  • Width: 51 mm
  • Height: variable
The speed controller (ESC) requires EC8 connections or corresponding adapter cables!



Features:
  • High Quality Bearings
  • Rotor-4Pole High Quality Magnets
  • Stator-Super Thin Silicon Steels
  • Super Strength 8mm Shaft
  • CNC Aluminium Heatsink Shell
  • Copper Wires Of High Temperature Endurance


Contents:
  • 1 set



Config
Motor and ESC
  • • y1531/01 ZTW Beast Pro 200A ESC and 56112 ZTW Monster Brushless Motor 700 kV
  • • y1549/02 TT Beast Pro 300A 12S ESC with TT56112/520 520KV Brushless motor
  • • y1549/01 TT Beast Pro 300A 12S ESC with TT70120 620KV Brushless motor
Batterys
  • • Without batterys
  • • 2x y1300/02 Rc-Car LiPo battery 3S/2P 6.000 mAh 11,1 V 40C
  • • 2x TT1530/350 Top Tuning 5000 mAh LiPo battery 3S, 11,1V 60C
  • • 2x TT1530/650 Top Tuning 5000 mAh LiPo battery 6S, 22.2V 60C
Programming card
  • • Without Programming card
  • • y1550 ZTW LCD Programming card
more ...
